VOH-62831853Wireless Data Transceiver Module

Dickson WiZARD2 Wireless System with 21CFR11 Compliant Secure Software Rev 14 Preliminary Manual You have just purchased a precision data Logger system. To ensure proper installation of the WiZARD2 Wireless System, please read this manual in its entirety and closely follow setup instructions. Contents Important Startup Notes..........................................................................2 System Component Overview..................................................................3 Software Installation...............................................................................5 Installing the Receiver.............................................................................6 Signal Sensor Operation.........................................................................7 Installing Repeater(s)..............................................................................8 Installing Logger(s)...............................................................................10 InActive Logger(s)/Repeater(s)...............................................................12 Editing Logger/Repeater Settings............................................................13 21CFR11 WiZARD2 Secure Features Email/Text Alerts.........................................................................14 Secure Login..............................................................................16 Encrypted Database....................................................................16 Audit Trail..................................................................................16 Logger Validation........................................................................16 Software Upgrade and Un-Installation......................................................17 Calibration ...................................................................................18 Viewing Logged Data on a Network.........................................................19 Software Summary...............................................................................20 Technical Support................................................................................24 FCC and Canada Compliance Statements ............................................27 2 IMPORTANT STARTUP NOTES - PLEASE READ: 1. Full administrative rights are required on the host PC in order to install and setup the WiZARD2 system. We recommend against using this system on a PC with more than one user login. 2. We strongly recommend that the PC hosting the WiZARD2 software and Receiver be a dedicated PC that is not used for other wireless or SQLite applications (wireless devices such as a mouse and keyboard will not interfere with the WiZARD2). Firefox, Internet Explorer and other software applications that use SQLite have been found to compete for resources and can lock up the PC. 3. The host PC screen saver should be disabled and power options should be set to NEVER for “Turn Off Hard Disk”, “System Standby” and “Enable Hibernation”. 4. This system has been tested on and approved for Windows XP, Vista and Windows 7 PC’s 5. Before you begin installation, have the Receiver, Logger(s) and any Repeater(s) at the base computer where you plan to install the WiZARD2 Software and Receiver. 6. Logger/Receiver/Repeater signal strength performs best when mounted high up on a wall or on the ceiling. 3 System Component Overview: Host PC:  PC where the WiZARD2 Software and Receiver are installed and Loggers and Repeaters are setup.  Only one WiZARD2 System can operate on one PC at any time.  To view logged data from more than one PC, the host PC and non host PCs must be connected to a network and the non host PCs must have WiZARD2 Network Software installed. See section 11 below for more information.  This PC must be on 24/7 in order for the WiZARD2 system to operate properly.  It is recommended that the host PC be rebooted occasionally to keep things running smoothly. There will not be any lost data while rebooting  Individuals installing and setting up the WiZARD2 system must have full administrative rights on the host PC.  USB Connection: Best when connected to primary USB. Will not operate on an unpowered USB hub. WiZARD2 Software:  Software is included with the Receiver and is required to setup, manage and view all Loggers, Repeaters and saved logged data.  Stores all logged data points for viewing via graphs and tables in an encrypted database.  Must run 24/7 on host PC in order for WiZARD2 system to operate properly. Receiver (WR220/225):  WR220 features WiZARD2 Software. WR225 features WiZARD2 SECURE 21CFR11 Compliant Software.  The Receiver forwards data packets from the Loggers to the WiZARD2 database.  Must always be on and connected to the PC via a USB cable. It is recommended that it be powered via the AC adapter and have Backup Batteries installed.  Receivers do not require calibration. Logger (WT200/220/240/WH220/225/245):  Take temperature or temperature/humidity sample points at regular intervals and send those readings to the Receiver at regular transmission intervals.  Loggers are setup via USB at the host PC.  Have a practical operating range of up to 200 ft from Receiver. Any metal infrastructure or other wireless devices will significantly reduce operating range.  Will save logged data when communications with the Receiver have been interrupted. Once communications are restored, saved logged data will be sent.  Loggers should be calibrated every 6 to 12 months. 4 Repeater (WA200):  Extends the distance of a Logger from the Receiver by forwarding the data packet from the Logger to the Receiver.  Must be setup in the WiZARD2 Software in order to operate.  Logger(s) must be told to send data packet to the Repeater not the Receiver.  Repeater can forward data packets for multiple Loggers.  Repeaters can forward data packets to another Repeater.  Repeaters do not require calibration. Signal Sensor (WS200):  Allows the user to dete…

Text truncated - open the document above for the full version.

Authority to Act as Agent Date: 12/01/2009 American Telecommunication Certification Body, Inc. 6731 Whittier Avenue Suite CIlO McLean, VA 22101 To Whom It May Concern: Jim Blaha is authorized to act on our behalf, until otherwise notified, for applications to American Telecommunication Certification Body, Inc. (ATCB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: 12/01/2010 By: Dean A. Tjaden Jr. I (Signature) I I Title: Senior Engineer On behalf of: Dickson Company Telephone: 630-563-4253 930 S Westwood Ave • Addison, IL 60101-4917 • Phone 630-543-3747 • Fax 630-543-0498

FCC CONFIL)ENTIALITY Date: 12/01/2009 Time: 10:06:15 To: FCC Authorization & Ealuation Division 7435 Oakland Mills Road Columbia, MD 21045-0429 Applicant: Dickson Company E-Mail: dtjadendicksondata.com Subject: Request for Non disclosure for FCC ID: (VOll - 62831853). To Whom It May Concern: Pursuant to 47 CFR Section 0.459, (Dickson Company) hereby requests non disclosure and confidential treatment of the following materials submitted in support of FCC certification application for FCC ID # (VOH - 62831853) a. Schematic Diagrams b. Operational Description c. Block Diagram Above materials contain trade secrets, proprietary and technical information vhich would customarily be guarded from competitors under 47 CFR section 0.457(d)(2). Disclosure or publication of any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. (Dickson Company) understands that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before, during and after the date of the grant being issued. By: Dean A. Tjaden Jr / 2 1/ j/ / (Signature) Title: Senior Engineer On behalf of: Dickson Compan Telephone: 630-563-4254 930 S Westwood Ave • Addison, IL 60101-4917 • Phone 630-543-3747 • Fax 630-543-0498

930 S Westwood Ave  Addison, IL 60101-4917  Phone 630-543-3747  Fax 630-543-0498 FCC LIMITED MODULAR APPROVAL REQUEST Date: 1/29/2010 Time: 13:14:11 To: FCC Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, MD 2 I 045 -0429 From: Dean A. Tjaden Jr. Senior Engineer Applicant: Dickson Company Phone: 630-563-4254 email: [email protected] Subject: Request for Limited Modular Approval for FCC ID: VOH-62831853 To Whom It May Concern: Pursuant to FCC Public Notice DA 00-1407, June 26,2000, Dickson Company hereby requests Limited Modular Approval for FCC ID: VOH-62831853. The following response addresses the needs to demonstrate compliance with this Public Notice. 1) The modular transmitter must have its own RF shielding. This is intended to ensure that the module does not have to rely upon the shielding provided by the device into which it is installed in order for all modular transmitter emissions to comply with Part 15 limits. It is also intended to prevent coupling between the RF circuitry of the module and any wires or circuits in the device into which the module is installed. Such coupling may result in non-compliant operation. Shielding: The RF section of the module is contained on one circuit board that is connected to the Main PCB by a dual inline connector. Both sides of the module PCB have ground planes that are heavily interconnected with via’s. 2) The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. 930 S Westwood Ave  Addison, IL 60101-4917  Phone 630-543-3747  Fax 630-543-0498 Buffered Modulation: Data from the host does not directly modulate the transmitter. Data is sent as SPI buss commands. The microprocessor uses these commands to generate the modulation. Please see the Theory of Operation and Block Diagram. 3) The modular transmitter must have its own power supply regulation. This is intended to ensure that the module will comply with Part 15 requirements regardless of the design of the power supplying circuitry in the device into which the module is installed. Power Supply: The RF Module is not for sale or use outside the Dickson Company. It is only to be used in products designed and manufactured by or for the Dickson Company. The module receives its power from the host circuit board. The host circuit board has its own 3.3V regulator from which the transmitter module is powered. In addition there are bypass capacitors for noise filtering and reduction on the module PCB. 4) The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c). The antenna must either be permanently attached or employ a "unique" antenna coupler (at all connections between the module and the antenna, including the cable). Any antenna used with the module must be approved with the module, either at the time of initial authorization or through a Class II permissive change. The "professional installation" provision of Section 15.203 may not be applied to modules. Antenna Requirements: The antenna is etched onto the module PCB. There are no attachment points for external antennae. 5) The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in Section 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see Section 15.27(a)). The length of these lines shall be length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified or commercially available (see Section1 s.3 1 (i)). Test as a Module: The Module is not to be sold as a module. It is intended only for Dickson Company internal use. 930 S Westwood Ave  Addison, IL 60101-4917  Phone 630-543-3747  Fax 630-543-0498 6) The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: "Contains Transmitter Module FCC ID: XYZMODELI" or "Contains FCC ID: XYZMODEL1." Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. Labeling: Every module will be labeled with the following: FCC ID: VOH- 62831853 Dickson Company Since the module is internal to the completed product, and not visible to the user, a label with the following notice will be placed on the outside of the case for all products containing the module: Contains FCC ID: VOH- 62831853 7) The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. For example, there are very strict operational and timing requirements that must be met…

Text truncated - open the document above for the full version.

1LLi L Acknowledgment of Limited Modular Approval Requirements Date: 03 172010 To: FCC Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, MD 21045-0429 Time: 14:42 From: Dean A, Tjaden Jr Senior Engineer Phone: 630 - 563 - 4254 Fax: 630 - 542 - 5467 Applicant: Dickson Company E-Mail: dtjaden(dicksondata.com I opc: Acknowledgment of Understanding on the Limitation of Radio Modules with Limited Modular Appro’al It is acknowledged and understood by Dickson Company that with Limited Modular Approval for FCC ID: VOH-6283 1853, this module will be limited for use only within Dickson Company Products. Dickson Company is also fully responsible for each configuration this module is installed within. Additionally. as this module is introduced within other Dickson products. the Transmitter Spurious Emissions for each Host Device will be tested to ensure each complies with the FCC limits B: Dean A. Taden Jr. Title: Senior Engineer / Dickson Company 930 S Westwood Ave • Addison, IL 60101-4917 • Phone 630-543-3747 • Fax 630-543-0498

External / Internal Photos Dickson Company FCC ID: VOH-62831853 Canada IC: 3693A-62831853 Photo One RF Module – Non Component Side and Label Side with Product Label Photo 2 RF Module – Component Side Photo 3 Close-Up of FCC ID Label and IC Label Photo 4 Close-Up of PCB Antenna embedded in PCB Photo 5 Close-Up of PCB Connector

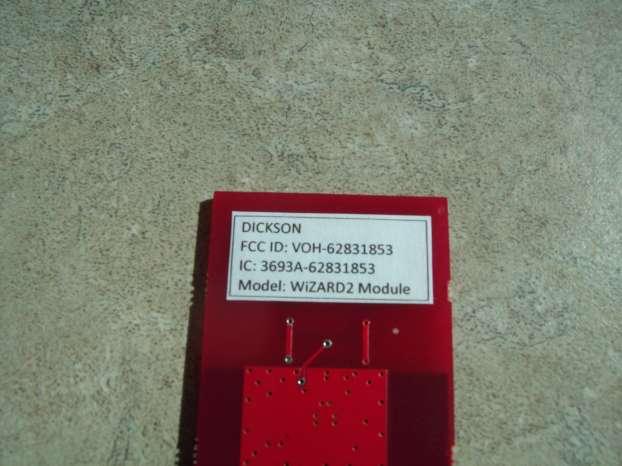

FCC ID Label with Canada ID DICKSON FCC ID: VOH-62831853 IC: 3693A-62831853 Model: WiZARD2 Module

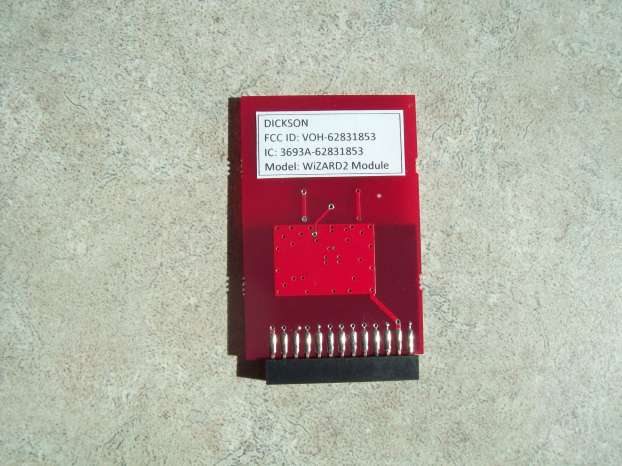

External / Internal Photos Dickson Company FCC ID: VOH-62831853 Canada IC: 3693A-62831853 Photo One RF Module – Non Component Side and Label Side with Product Label

External / Internal Photos Dickson Company FCC ID: VOH-62831853 Canada IC: 3693A-62831853 Photo One RF Module – Non Component Side and Label Side with Product Label Photo 2 RF Module – Component Side Photo 3 Close-Up of FCC ID Label and IC Label Photo 4 Close-Up of PCB Antenna embedded in PCB Photo 5 Close-Up of PCB Connector

INGENIUM TESTING, LLC ELECTROMAGNETIC INTERFERENCE (EMI) TEST SETUP PHOTOS DICKSON COMPANY WIZARD2 MODULE DOCUMENT NUMBER CTR-10-0111, REVISION BASIC APPROVAL RESPONSIBILITY SIGNATURE DATE Written by: Joshua Taylor Author Reviewed by: John Vorndran Technical Data Reviewed by: Debbie Randall Quality Assurance INGENIUM TESTING, LLC 3761 South Central Avenue Rockford, Illinois 61102 USA DATE: June 30, 2010 DATE: 6/30/10 DOC. NO: CTR-10-0111 Page 2 of 12 REVISION: Basic RECORD OF REVISIONS REVISION REASON FOR CHANGE / AREAS AFFECTED DATE APPROVED BASIC Original document issue 6/14/2010 Josh Taylor DATE: 06/30/10 DOC. NO: CTR-10-0111 Page 3 of 12 REVISION: Basic Figure 1 Dickson WiZARD2 Module (Label Side) DATE: 06/30/10 DOC. NO: CTR-10-0111 Page 4 of 12 REVISION: Basic Figure 2: Dickson WiZARD2 MODULE (Component Side) DATE: 06/30/10 DOC. NO: CTR-10-0111 Page 5 of 12 REVISION: Basic Test Setup Photos: Figure 3: Setup of the Logger for Radiated Emissions 80 MHz to 1000MHz DATE: 06/30/10 DOC. NO: CTR-10-0111 Page 6 of 12 REVISION: Basic Figure 4: Setup of the Logger for Radiated Emissions, 1 GHz to 12 GHz. DATE: 06/30/10 DOC. NO: CTR-10-0111 Page 7 of 12 REVISION: Basic Figure 5: Setup of the Logger for Radiated Emissions Back Axis DATE: 06/30/10 DOC. NO: CTR-10-0111 Page 8 of 12 REVISION: Basic Figure 6: Setup of the Logger for Radiated Emissions Side Axis DATE: 06/30/10 DOC. NO: CTR-10-0111 Page 9 of 12 REVISION: Basic Figure 7: Setup of the Logger for Radiated Emissions Upright Axis DATE: 06/30/10 DOC. NO: CTR-10-0111 Page 10 of 12 REVISION: Basic Figure 8: Conducted Emissions front view DATE: 06/30/10 DOC. NO: CTR-10-0111 Page 11 of 12 REVISION: Basic Figure 9: Conducted Emissions side view DATE: 06/30/10 DOC. NO: CTR-10-0111 Page 12 of 12 REVISION: Basic END OF REPORT
