VOSFL760BVHF AM TRANSCEIVER

Page 0 FL-760A VHF Aircraft Transceiver Installation / Operations Manual FL-760 series Flightline 12830 E. Mirabeau Parkway Spokane Valley, WA 99216 Toll free tel.: 1-800-235-3300 Toll free fax: 1-800-828-0623 http:// www.edmo.com VHF AM Aircraft Radio FCC ID: VOSFL760 B A Page 1 ATTENTION READ ME FIRST FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTICE This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Properly shielded a grounded cables and connectors must be used for connection to host computer and / or peripherals in order to meet FCC emission limits. （AC adaptor） with ferrite core must be used for RF interference suppression. The Flightline transceiver has been factory preset and in most cases the transmitted audio should be correct. A 15 pin connector is supplied for connection to the electrical system and microphone/speaker. Notes to the installer / user. ・ This is a 14-volt or 28-volt DC radio, voltages greater than 33 volts DC or AC voltage will severely damage it. ・ When making adjustments to the transmitter, ensure that you are not on an occupied channel. ・ Do not transmit on 121.500MHz, as this is the international distress frequency. ・ Do not transmit into an unterminated antenna line as a suitable antenna must be connected. Transmitting without being connected to an antenna may damage the radio. ・ Ensure that the supply voltage is regulated and does not fall below 11.7 volts DC or exceed 31 volts DC. ・ The transceiver is not waterproof. Do not allow it to get wet. ・ Speaker impedance must be either 4 or 8 ohms (4 ohms preferred) at 5 watts. ・ Use of electret microphones highly recommended. About this document. Due to our policy of continuous improvement to our products and services, technical specifications and claims are correct at time of going to printing, however they are subject to change without notice. Flightline does not accept liability for any error or omission. This manual remains the copyright of Flightline. Page 2 TABLE OF CONTENTS SECTION Page ATTENTION- READ ME FIRST ..........................................................1 TABLE OF CONTENTS.....................................................................2 1 INTRODUCTION .......................................................................... 3 2 INSTALLATION INSTRUCTIONS .................................................... 3 3 INSTALLATION CONSIDERATIONS .................................................3 4 GENERAL .....................................................................................4 4.1 Sailplanes ...................................................................................................4 4.2 Ultralights .... ............................................................................................. 4 4.3 Microlight / Homebuilt / G.A. ..............................................................4 5 BEFORE BEGINNING INSTALLATION.........................................................5 5.1 Installation parts identification.................................................................5 5.2 Transceiver installation and removal ........................................................ 5 5.3 General.................................................................................................5 5.4 Pin connections ...................................................................................... 5 5.5 Mechanical installation ............................................................................5 5.6 Electrical installation ..............................................................................6 5.7 Antenna installation.. ...................................................................................................7 5.8 Tuning .............................................................................................................7 5.9 On air testing ................................................................................................... 7 6 OPERATION OF EQUIPMENT .....................................................................8 6.1 General ..................................................................................................8 6.2 Control description ................................................................................8 6.3 Memory programming ...........................................................................10 6.4 Memory delete ..................................................................................... 10 6.5 Operation of intercom ...................................................................... 10 6.6 User setting ..................................................................................... 10 6.7 Music input ...... ................................................................................... 11 7 SPECIFICATIONS .................................................................................... 12 8 HELPFUL HINTS ..................................................................................... 13 WARRANTY EXTERNAL CONNECTIONS Page 3 1 INTRODUCTION Thank you for purchasing this quality product from Flightline. This transceiver has been designed and manufactured in Japan specifically for Ultralights, Gliders and General Aviation Aircraft and Helicopters with size and…

Text truncated - open the document above for the full version.

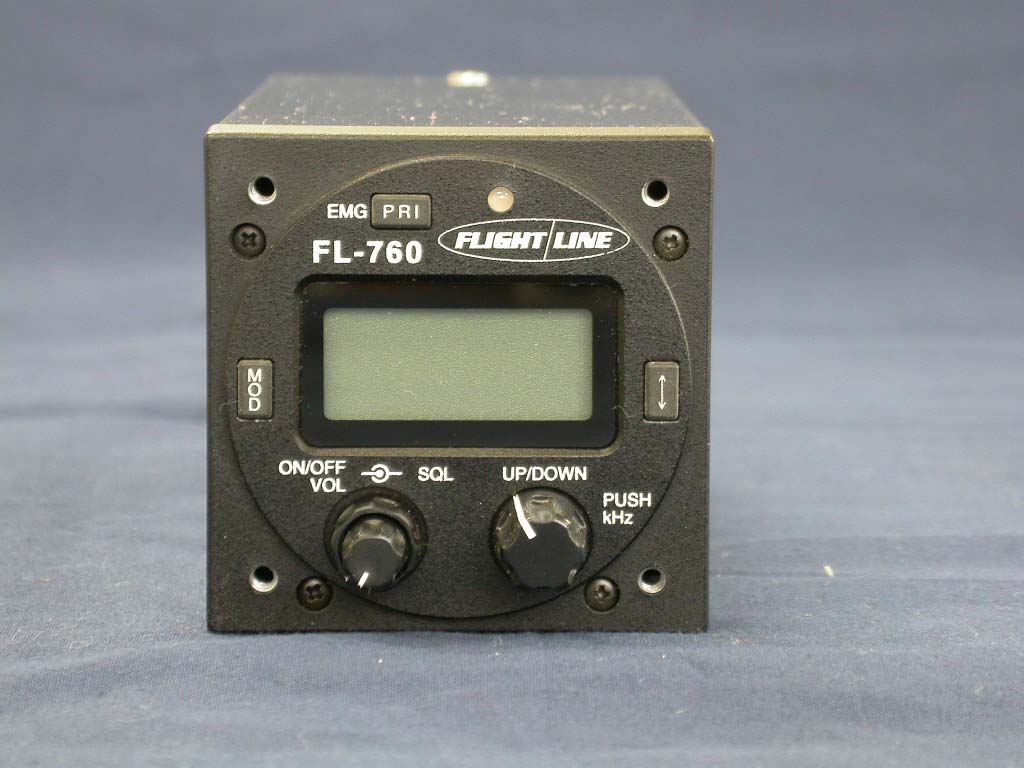

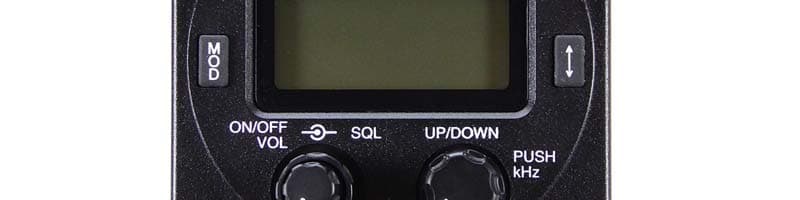

Photo FL-760A Front Photo FL-760A Top Bottom Photo FL-760A Right Left Photo FL-760A With Antenna With Antenna

FL-760A [Photo (RF PCB)] Location of RF PCB FL-760A [Photo (RF PCB)] RF PCB A Side RF PCB A Side (Without Shield) RF PCB B Side FL-760A [Photo (Other PCB)] AF PCB LCD PCB MPU PCB

Test Report No. : 10908283S-A Page : 1 of 82 Issued date : November 6, 2015 FCC ID : VOSFL760B UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 RADIO TEST REPORT Test Report No. : 10908283S-A Applicant : Edmo Distributors, Inc. Type of Equipment : VHF AM TRANSCEIVER Model No. : FL-760A Test regulation : FCC part 87 subpart D: 2015 FCC ID : VOSFL760B Test Result : Complied Date of test: September 24 to October 22, 2015 Representative test engineer: Kenichi Adachi Engineer Consumer Technology Division Approved by : Toyokaku Imamura Leader Consumer Technology Division 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with the limits of the above regulation. 4. The test results in this test report are traceable to the national or international standards. 5. This test report must not be used by the customer to claim product certification, approval, or endorsement by any agency of the Federal Government. 6. The opinions and the interpretations to the result of the description in this report are outside scopes where UL Japan has been accredited. 7. This test report covers Radio technical requirements. It does not cover administrative issues such as Manual or non-Radio test related Requirements. (if applicable) 13-EM-F0429 Revised date : November 13, 2015 Test Report No. : 10908283S-A Page : 2 of 82 Issued date : November 6, 2015 FCC ID : VOSFL760B UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 REVISION HISTORY Original Test Report No.: 10908283S-A Revision Test report No. Date Page revised Contents - (Original) 10908283S-A November 6, 2015 - - 1 10908283S-A November 13, 2015 p.1, p.2 Revised page. p.18 Corrected error (dB -> dBm). Added power class p.19 Added average power sheet. p.32 - 34 Corrected error (White line -> Blue line). Revised date : November 13, 2015 Test Report No. : 10908283S-A Page : 3 of 82 Issued date : November 6, 2015 FCC ID : VOSFL760B UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 CONTENTS PAGE SECTION 1: Customer information ......................................................................................... 4 SECTION 2: Equipment under test (E.U.T.) ........................................................................... 4 SECTION 3: Test specification, procedures and results ......................................................... 5 SECTION 4: Operation of E.U.T. during testing .................................................................... 8 SECTION 5: RF Output power ............................................................................................... 10 SECTION 6: Audio Frequency Response ............................................................................... 11 SECTION 7: Modulation Limiting ......................................................................................... 11 SECTION 8: Bandwidth of Emission (Emission mask) ........................................................ 12 SECTION 9: Spurious emission at Antenna Terminals ........................................................ 13 SECTION 10: Field Strength of Spurious Emission .............................................................. 14 SECTION 11: Frequency Stability .......................................................................................... 15 SECTION 12: Receiver spurious emission at Antenna Terminal ........................................ 16 SECTION 13: Receiver Spurious Emission ............................................................................ 16 Contents of APPENDIXES ....................................................................................................... 17 Test Report No. : 10908283S-A Page : 4 of 82 Issued date : November 6, 2015 FCC ID : VOSFL760B UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 SECTION 1: Customer information Company Name : Edmo Distributors, Inc. Address : 12830 East Mirabeau Parkway, Spokane Valley, WA 99216 U.S.A. Telephone Number : +1-509-535-8280 Facsimile Number : +1-509-535-8266 Contact Person : Jeff Christensen SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : VHF AM TRANSCEIVER Model Number : FL-760A Serial Number : Refer to Section 4.2 Rating : DC 13.8 V (DC 10.5 V to 16 V) or DC 26 V (DC 21 V to 33 V) Country of Mass-production : Japan Condition of EUT : Engineering prototype (Not for Sale: This sample is equivalent to mass-produced items.) Receipt Date of Sample : September 24, 2015 Modification of EUT : The test lab did not make the modification to the EUT supplied from the customer to have it pass the tests. 2.2 Product Description Model: FL-760A (referred to as the EUT in this report) is a VHF AM TRANSCEIVER. The VHF AM TRANSCEIVER is used with the aircraft. Radio Specification Radio Type : Transceiver Emission Designation : 6K00A3E Frequency of Operation : Transmitting: 118.000 MHz to 136.975 MHz Receiving: 108.000 MHz to 136.975 MHz Other Clock Frequency : IF: (1st): 50.85 MHz (upper) and (2nd): 450 kHz (lower) 36.864 MHz (CPU), 50.4 MHz (2nd Local), 16.8 MHz (Tcxo) Modulation : AM Channel spacing : 25 kHz Power Supply (RF part input) : DC +8 V Method of Frequency Generation : Synthesized method Antenna type : Omnidirectional Antenna Connector Type : BNC Antenna Gain : +3 dBi Operating Temperature : -20 deg.C. to +60 deg.C. Necessary bandwidth (Bn) : 6 kHz (Bn = 2 x (maximum modulation frequency = 3000 [Hz])) Test Report No. : 10908283S-A Page : 5 of 82 Issued date : November 6, 2015 …

Text truncated - open the document above for the full version.

UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 APPENDIX 3: Photographs of test setup Radiated emission (Transmitting) (Front) (Rear, below 1GHz) (Rear, above 1GHz) Test Report No. : 10908283S-A 79 of 82 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Radiated emission (Receiving) (Front) (Rear) Test Report No. : 10908283S-A 80 of 82 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Antenna terminal conducted tests (1) (photo1) (photo2) Test Report No. : 10908283S-A 81 of 82 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Antenna terminal conducted tests (2) (photo3) (photo4) END OF REPORT Test Report No. : 10908283S-A 82 of 82
