- 1 - This model phone meets the government’s requirements for exposure to radio waves. This phone is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government. The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg. *Tests for SAR are conducted using standard operating positions accepted by the FCC with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the poser required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output. The highest SAR value for the model phone as reported to the FCC when tested for use at the ear are: on the 800MHz: 0.568/ 10g, 0.846/ 1g, on the 1900MHz: 0.446/ 10g, 0.869/ 1g, and when worn on the body, as described in this user guide, are: on the 800MHz: 0.362/ 10g, 0.520/ 1g, on the 1900MHz: 0.252/ 10g, 0.424/ 1g (Body-worn measurements differ among phone models, depending upon available enhancements and FCC requirements.) While there may be differences between the SAR levels of various phones and at various positions, they all meet the government requirement. The FCC has granted an Equipment Authorization for this model phone with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. SAR information on this model phone is on file with the FCC and can be found under the Display Grant section of http://www.fcc.gov/oet/fccid after searching on VR2J88. For body worn operation, this phone has been tested and meets the FCC RF exposure guidelines for use with an accessory that contains no metal and the positions the handset a minimum of 1.5 cm from the body. Use of other enhancements may not ensure compliance with FCC RF exposure guidelines. If you do no t use a body-worn accessory and are not holding the phone at the ear, position the handset a minimum of 1.5 cm from your body when the phone is switched on. - 2 - CONTENTS INTRODUCTION.........................................................................................P.2 PHONE COMPONENTS ............................................................................P.3 INSERTING BATTERY AND USING THE CHARGER.............................P.5 Inserting and Removing the Battery ......................................................P.5 Charging the Battery ................................................................................P.6 Battery Charge Level ................................................................................P.6 BASIC FUNCTIONS ..................................................................................P.7 Turning the Phone On and Off .................................................................P.7 On Screen Icons ........................................................................................P.8 Making a Call .............................................................................................P.8 Receiving Calls ...........................................................................................P.8 MENU TREE ..............................................................................................P.9 EDITING INFORMATION .........................................................................P.10 QUICK FUNCTION GUIDE .....................................................................P.12 SAFETY INFORMATION .........................................................................P.15 - 3 - Congratulations on your purchase of the Reliance cellular phone what has been designed to operate with the latest digital mobile communication technology, Code Division Multiple Access (CDMA). The CDMA system has greatly enhanced voice clarity and can provide various types of advanced features. This is an advanced and compact phone which has diverse features as following: Messaging, Voice Mail, and Caller ID. 21-key keypad (10 number keys / 2 function keys / 2 Soft keys / 1 Ok key / 4 way navigation key / 1 Call key / 1 End key). Long battery stand-by and talk time. Menu-driven interface with prompt for easy operation and configuration. Voice Privacy inherent with CDMA encoding. Any key Answer, Auto Redial, Speed Dial up to 99 memory locations. Optional accessories with greater convenience and enhanced functionality. SMS, Group SMS. - 4 - PHONE COMPONENTS The following shows key components of your mobile phone - 5 - Speaker/Receiver Listens to voice from the phone. LCD Screen Displays messages & indicator icons. Soft Keys The names of the functions of these keys appear at the bottom of the screen. ※ Left/Right Soft key Used to display the menu of function setting and accept the highlighted choice when navigating the menu. Send/Answer Key Allows users to place or answer calls, refer, and, redial a call from call history. Alphanumeric Keypad These keys enable you to enter numbers and characters and choose menu items. * Lock Mode Key Enable you to lock or unlock the keypad by pressing and holding this key for 2 seconds. To input “*” in input, you can select from symbol table by pressing “1” key. In Input dialog, “*” key is used to switch input mode OK Key Selects highlighted options in menu. 4 Way Navigation Key This Navigation key allows you to quick access Messages, alarm, Calculator and Schedule. PWR/End Key To turn power On/Off and end a call. By using this key you can return to the idle screen. When you press once, when a call is received, the phone stops ringing depending on the mode it is in. Press twice to reject the call. Microphone Speaks to the phone. Charger po…
Text truncated - open the document above for the full version.

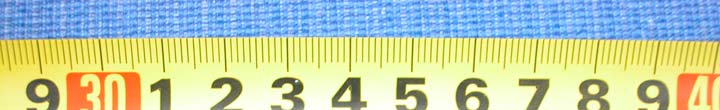

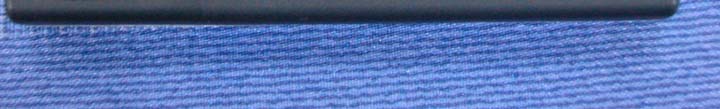

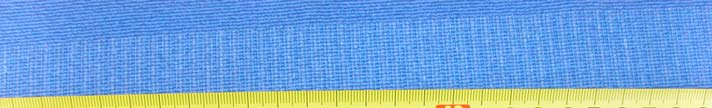

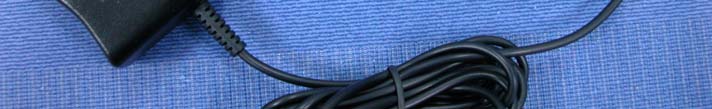

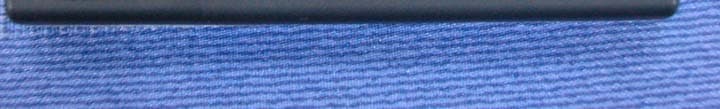

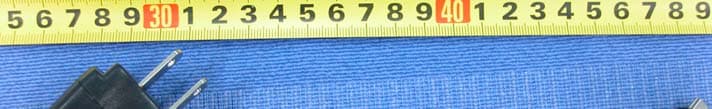

ANNEX B PHOTOGRAPHS OF EUT External Photo Mobile Phone Mobile Phone Charger (AC/DC Adapter) Label Charger
Cal-Comp (Su Zhou) Electronics Co., Ltd. J88 FCC ID Photo
Internal Photo Mobile phone Disassembly Mobile phone Disassembly Mobile phone Disassembly Mobile phone Disassembly
泰金寶電子(蘇州)有限公司 Cal-Comp Electronics (Su Zhou) Co., Ltd. Tune‐up procedure of J88 During manufacturing each phone will be individually calibrated. The measurement is done in a fully calibrated setup, which is based on Agilent 8960 or RS CMU200 for cdma test, Spirent GSS6100 for GPS test. Furthermore, the measurement is verified afterwards in a call measurement on three channels (low, mid and high) for each band. Procedure: 1. Set the phone to operational voltage and on one certain channel in a special service mode by means of company proprietary software. 2. Adjust the phone(hardware ADC) to send a expected power, then measure the power with Agilent 8960 or RS CMU200, automatic adjustment arithmetic until the target value is met, record the hardware ADC value and actual power to RF table(a special section in NorFlash marked with Read only and untouchable for end user). 3. Repeat step1 and step2 in many discrete channels with each band, and record every suite values to RF table; 4. The appropriate calibration data of each individual phone are stored for the phone using. The user has no possibility to change these settings later on 5. The Maximum and minimum power are measured in a call connected state for each band, to verify the calibration data are right. . Address: No. 2288, Jiangxing East Road, Wu‐Jinag Economic Development Zone, Jiang‐Su, China. Contact: Morse Yan E‐mail address: [email protected] Tel. No.: +86‐21‐64850963, Ext. 2604.
©Copyright. All rights reserved by TMC Beijing. SAR TEST REPORT No. 2007SAR00047 for Cal-Comp Electronics (Suzhou) CO., LTD CDMA Mobile Phone J88 With Hardware Version: P3.1 Software Version: 1.8.0 Issued Date: 2007-11-06 No. DAT-P-114/01-01 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: TMC Beijing, Telecommunication Metrology Center of Ministry of Information Industry No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China 100083. Tel:+86(0)10-62303288-2105, Fax:+86(0)10-62304793 Email:[email protected]. www.emcite.com No. 2007SAR00047 Page 2 of 117 TABLE OF CONTENT 1 TEST LABORATORY ........................................................................................................................................... 4 1.1 TESTING LOCATION............................................................................................................................................................4 1.2 TESTING ENVIRONMENT.....................................................................................................................................................4 1.3 PROJECT DATA...................................................................................................................................................................4 2 CLIENT INFORMATION ....................................................................................................................................... 4 2.1 APPLICANT INFORMATION..................................................................................................................................................4 2.2 MANUFACTURER INFORMATION..........................................................................................................................................4 3 EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE).......................................................... 5 3.1 ABOUT EUT ......................................................................................................................................................................5 3.2 INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST................................................................................................5 3.3 INTERNAL IDENTIFICATION OF AE USED DURING THE TEST..................................................................................................5 4 OPERATIONAL CONDITIONS DURING TEST ................................................................................................... 6 4.1 SCHEMATIC TEST CONFIGURATION.....................................................................................................................................6 4.2 SAR MEASUREMENT SET-UP..............................................................................................................................................6 4.3 DASY4 E-FIELD PROBE SYSTEM.........................................................................................................................................7 4.4 E-FIELD PROBE CALIBRATION.............................................................................................................................................8 4.5 OTHER TEST EQUIPMENT...................................................................................................................................................9 4.6 EQUIVALENT TISSUES.........................................................................................................................................................9 4.7 SYSTEM SPECIFICATIONS..................................................................................................................................................10 5 CHARACTERISTICS OF THE TEST ................................................................................................................. 10 5.1 APPLICABLE LIMIT REGULATIONS.....................................................................................................................................10 5.2 APPLICABLE MEASUREMENT STANDARDS.........................................................................................................................11 6 CONDUCTED OUTPUT POWER MEASUREMENT.......................................................................................... 11 6.1 SUMMARY........................................................................................................................................................................11 6.2 CONDUCTED POWER........................................................................................................................................................11 7 TEST RESULTS ................................................................................................................................................. 12 7.1 DIELECTRIC PERFORMANCE.............................................................................................................................................12 7.2 SYSTEM VALIDATION........................................................................................................................................................12 7.3 SUMMARY OF MEASUREMENT RESULTS (850MHZ) ..........................................................................................................13 7.4 SUMMARY OF MEASUREMENT RESULTS (1900MHZ) ........................................................................................................14 7.5 CONCLUSION....................................................................................................................................................................15 8 MEASUREMENT UNCERTAINTY ..................................................................................................................... 15 9 MAIN T…
Text truncated - open the document above for the full version.
No. 2007SAR00047 Page 21 of 117 Picture B6: Right Hand Touch Cheek Position Picture B7: Right Hand Tilt 15° Position No. 2007SAR00047 Page 22 of 117 Picture B8: Body-worn Position (toward phantom, the distance from handset to the bottom of the Phantom is 1.5cm) Picture B9: Body-worn Position (toward ground, the distance from handset to the bottom of the Phantom is 1.5cm) 1.5cm 1.5cm No. 2007SAR00047 Page 23 of 117 ANNEX C: GRAPH RESULTS CDMA 800 Left Cheek High Date/Time: 2007-11-3 12:02:28 Electronics: DAE4 Sn777 Medium: Head 850 Medium parameters used (interpolated): f = 848.31 MHz; σ = 0.917 mho/m; ε r = 43.1; ρ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liqiud Temperature: 22.5 o C Communication System: CDMA 1X-new Frequency: 848.31 MHz Duty Cycle: 1:1 Probe: ET3DV6 - SN1736 ConvF(6.51, 6.51, 6.51) Cheek High/Area Scan (51x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.815 mW/g Cheek High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 23.3 V/m; Power Drift = -0.200 dB Peak SAR (extrapolated) = 1.000 W/kg SAR(1 g) = 0.730 mW/g; SAR(10 g) = 0.489 mW/g Maximum value of SAR (measured) = 0.745 mW/g 0 dB = 0.745mW/g Fig. 1 CDMA 800 MHz CH777 No. 2007SAR00047 Page 24 of 117 Fig. 2 Z-Scan at power reference point (CDMA 800 MHz CH777) No. 2007SAR00047 Page 25 of 117 CDMA 800 Left Cheek Middle Date/Time: 2007-11-3 13:38:48 Electronics: DAE4 Sn777 Medium: Head 850 Medium parameters used (interpolated): f = 836.52 MHz; σ = 0.906 mho/m; ε r = 43.2; ρ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liqiud Temperature: 22.5 o C Communication System: CDMA 1X-new Frequency: 836.52 MHz Duty Cycle: 1:1 Probe: ET3DV6 - SN1736 ConvF(6.51, 6.51, 6.51) Cheek Middle /Area Scan (51x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.785 mW/g Cheek Middle /Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 23.1 V/m; Power Drift = 0.069 dB Peak SAR (extrapolated) = 1.00 W/kg SAR(1 g) = 0.732 mW/g; SAR(10 g) = 0.495 mW/g Maximum value of SAR (measured) = 0.757 mW/g 0 dB = 0.757mW/g Fig. 3 CDMA 800 MHz CH384 No. 2007SAR00047 Page 26 of 117 Fig. 4 Z-Scan at power reference point (CDMA 800 MHz CH384) No. 2007SAR00047 Page 27 of 117 CDMA 800 Left Cheek Low Date/Time: 2007-11-3 13:53:01 Electronics: DAE4 Sn777 Medium: Head 850 Medium parameters used: f = 825 MHz; σ = 0.896 mho/m; ε r = 43.3; ρ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liqiud Temperature: 22.5 o C Communication System: CDMA 1X-new Frequency: 824.7 MHz Duty Cycle: 1:1 Probe: ET3DV6 - SN1736 ConvF(6.51, 6.51, 6.51) Cheek Low/Area Scan (51x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.644 mW/g Cheek Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 20.6 V/m; Power Drift = -0.151 dB Peak SAR (extrapolated) = 0.812 W/kg SAR(1 g) = 0.587 mW/g; SAR(10 g) = 0.397 mW/g Maximum value of SAR (measured) = 0.607 mW/g 0 dB = 0.607mW/g Fig. 5 CDMA 800 MHz CH1013 No. 2007SAR00047 Page 28 of 117 Fig. 6 Z-Scan at power reference point (CDMA 800 MHz CH1013) No. 2007SAR00047 Page 29 of 117 CDMA 800 Left Tilt High Date/Time: 2007-11-3 12:20:05 Electronics: DAE4 Sn777 Medium: Head 850 Medium parameters used (interpolated): f = 848.31 MHz; σ = 0.917 mho/m; ε r = 43.1; ρ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liqiud Temperature: 22.5 o C Communication System: CDMA 1X-new Frequency: 848.31 MHz Duty Cycle: 1:1 Probe: ET3DV6 - SN1736 ConvF(6.51, 6.51, 6.51) Tilt High/Area Scan (51x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.422 mW/g Tilt High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 19.3 V/m; Power Drift = -0.200 dB Peak SAR (extrapolated) = 0.534 W/kg SAR(1 g) = 0.391 mW/g; SAR(10 g) = 0.266 mW/g Maximum value of SAR (measured) = 0.403 mW/g 0 dB = 0.403mW/g Fig.7 CDMA 800 MHz CH777 No. 2007SAR00047 Page 30 of 117 Fig. 8 Z-Scan at power reference point (CDMA 800 MHz CH777) No. 2007SAR00047 Page 31 of 117 CDMA 800 Left Tilt Middle Date/Time: 2007-11-3 13:28:34 Electronics: DAE4 Sn777 Medium: Head 850 Medium parameters used (interpolated): f = 836.52 MHz; σ = 0.906 mho/m; ε r = 43.2; ρ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liqiud Temperature: 22.5 o C Communication System: CDMA 1X-new Frequency: 836.52 MHz Duty Cycle: 1:1 Probe: ET3DV6 - SN1736 ConvF(6.51, 6.51, 6.51) Tilt Middle/Area Scan (51x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.437 mW/g Tilt Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 19.7 V/m; Power Drift = 0.137 dB Peak SAR (extrapolated) = 0.558 W/kg SAR(1 g) = 0.408 mW/g; SAR(10 g) = 0.278 mW/g Maximum value of SAR (measured) = 0.420 mW/g 0 dB = 0.420mW/g Fig.9 CDMA 800 MHz CH384 No. 2007SAR00047 Page 32 of 117 Fig. 10 Z-Scan at power reference point (CDMA 800 MHz CH384) No. 2007SAR00047 Page 33 of 117 CDMA 800 Left Tilt Low Date/Time: 2007-11-3 14:03:08 Electronics: DAE4 Sn777 Medium: Head 850 Medium parameters used: f = 825 MHz; σ = 0.896 mho/m; ε r = 43.3; ρ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liqiud Temperature: 22.5 o C Communication System: CDMA 1X-new Frequency: 824.7 MHz Duty Cycle: 1:1 Probe: ET3DV6 - SN1736 ConvF(6.51, 6.51, 6.51) Tilt Low/Area Scan (51x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.343 mW/g Tilt Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 16.9 V/m; Power Drift = -0.200 dB Peak SAR (extrapolated) = 0.441 W/kg SAR(1 g) = 0.320 mW/g; SAR(10 g) = 0.217 mW/g Maximum value of SAR (measured) = 0.328 mW/g 0 dB = 0.328mW/g Fig. 11 CDMA 800 MHz CH1013 No. 2007SAR00047 Page 34 of 117 Fig. 12 Z-Scan at power reference point (CDMA 800 MHz CH1013) No. 2007SAR00047 Page 35 of 117 CDMA 800 Right Cheek High Date/Time: 2007-11-3 12:31:47 Electronics: DAE4 Sn777 Medium: Head 850 Medium paramete…
Text truncated - open the document above for the full version.
No. 2007SAR00047 Page 41 of 117 CDMA 800 Right Tilt High Date/Time: 2007-11-3 12:41:59 Electronics: DAE4 Sn777 Medium: Head 850 Medium parameters used (interpolated): f = 848.31 MHz; σ = 0.917 mho/m; ε r = 43.1; ρ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liqiud Temperature: 22.5 o C Communication System: CDMA 1X-new Frequency: 848.31 MHz Duty Cycle: 1:1 Probe: ET3DV6 - SN1736 ConvF(6.51, 6.51, 6.51) Tilt High/Area Scan (51x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.420 mW/g Tilt High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 20.1 V/m; Power Drift = -0.113 dB Peak SAR (extrapolated) = 0.517 W/kg SAR(1 g) = 0.388 mW/g; SAR(10 g) = 0.269 mW/g Maximum value of SAR (measured) = 0.397 mW/g 0 dB = 0.397mW/g Fig.19 CDMA 800 MHz CH777 No. 2007SAR00047 Page 42 of 117 Fig. 20 Z-Scan at power reference point (CDMA 800 MHz CH777) No. 2007SAR00047 Page 43 of 117 CDMA 800 Right Tilt Middle Date/Time: 2007-11-3 13:06:21 Electronics: DAE4 Sn777 Medium: Head 850 Medium parameters used (interpolated): f = 836.52 MHz; σ = 0.906 mho/m; ε r = 43.2; ρ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liqiud Temperature: 22.5 o C Communication System: CDMA 1X-new Frequency: 836.52 MHz Duty Cycle: 1:1 Probe: ET3DV6 - SN1736 ConvF(6.51, 6.51, 6.51) Tilt Middle/Area Scan (51x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.457 mW/g Tilt Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 21.3 V/m; Power Drift = -0.187 dB Peak SAR (extrapolated) = 0.543 W/kg SAR(1 g) = 0.416 mW/g; SAR(10 g) = 0.291 mW/g Maximum value of SAR (measured) = 0.427 mW/g 0 dB = 0.427mW/g Fig.21 CDMA 800 MHz CH384 No. 2007SAR00047 Page 44 of 117 Fig. 22 Z-Scan at power reference point (CDMA 800 MHz CH384) No. 2007SAR00047 Page 45 of 117 CDMA 800 Right Tilt Low Date/Time: 2007-11-3 14:25:45 Electronics: DAE4 Sn777 Medium: Head 850 Medium parameters used: f = 825 MHz; σ = 0.896 mho/m; ε r = 43.3; ρ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liqiud Temperature: 22.5 o C Communication System: CDMA 1X-new Frequency: 824.7 MHz Duty Cycle: 1:1 Probe: ET3DV6 - SN1736 ConvF(6.51, 6.51, 6.51) Tilt Low/Area Scan (51x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.331 mW/g Tilt Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 18.2 V/m; Power Drift = -0.095 dB Peak SAR (extrapolated) = 0.397 W/kg SAR(1 g) = 0.306 mW/g; SAR(10 g) = 0.216 mW/g Maximum value of SAR (measured) = 0.313 mW/g 0 dB = 0.313mW/g Fig. 23 CDMA 800 MHz CH1013 No. 2007SAR00047 Page 46 of 117 Fig. 24 Z-Scan at power reference point (CDMA 800 MHz CH1013) No. 2007SAR00047 Page 47 of 117 CDMA 800 Body Towards Phantom High Date/Time: 2007-11-3 9:57:04 Electronics: DAE4 Sn777 Medium: 850 Body Medium parameters used (interpolated): f = 848.31 MHz; σ = 0.982 mho/m; ε r = 55; ρ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liqiud Temperature: 22.5 o C Communication System: CDMA 1X-new Frequency: 848.31 MHz Duty Cycle: 1:1 Probe: ET3DV6 - SN1736 ConvF(6.51, 6.51, 6.51) Toward Phantom High /Area Scan (51x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.256 mW/g Toward Phantom High /Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 16.5 V/m; Power Drift = -0.006 dB Peak SAR (extrapolated) = 0.307 W/kg SAR(1 g) = 0.238 mW/g; SAR(10 g) = 0.167 mW/g Maximum value of SAR (measured) = 0.248 mW/g 0 dB = 0.248mW/g Fig. 25 CDMA 800 MHz CH777 No. 2007SAR00047 Page 48 of 117 Fig. 26 Z-Scan at power reference point (CDMA 800 MHz CH777) No. 2007SAR00047 Page 49 of 117 CDMA 800 Body Towards Phantom Middle Date/Time: 2007-11-3 8:25:25 Electronics: DAE4 Sn777 Medium: 850 Body Medium parameters used (interpolated): f = 836.52 MHz; σ = 0.971 mho/m; ε r = 55; ρ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liqiud Temperature: 22.5 o C Communication System: CDMA 1X-new Frequency: 836.52 MHz Duty Cycle: 1:1 Probe: ET3DV6 - SN1736 ConvF(6.51, 6.51, 6.51) Toward Phantom Middle/Area Scan (51x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.357 mW/g Toward Phantom Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 19.8 V/m; Power Drift = -0.200 dB Peak SAR (extrapolated) = 0.425 W/kg SAR(1 g) = 0.327 mW/g; SAR(10 g) = 0.231 mW/g Maximum value of SAR (measured) = 0.336 mW/g 0 dB = 0.336mW/g Fig. 27 CDMA 800 MHz CH384 No. 2007SAR00047 Page 50 of 117 Fig. 28 Z-Scan at power reference point (CDMA 800 MHz CH384) No. 2007SAR00047 Page 51 of 117 CDMA 800 Body Towards Phantom Low Date/Time: 2007-11-3 8:53:52 Electronics: DAE4 Sn777 Medium: 850 Body Medium parameters used: f = 825 MHz; σ = 0.96 mho/m; ε r = 55.1; ρ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liqiud Temperature: 22.5 o C Communication System: CDMA 1X-new Frequency: 824.7 MHz Duty Cycle: 1:1 Probe: ET3DV6 - SN1736 ConvF(6.51, 6.51, 6.51) Toward Phantom Low/Area Scan (51x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.312 mW/g Toward Phantom Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 18.7 V/m; Power Drift = -0.122 dB Peak SAR (extrapolated) = 0.383 W/kg SAR(1 g) = 0.290 mW/g; SAR(10 g) = 0.205 mW/g Maximum value of SAR (measured) = 0.302 mW/g 0 dB = 0.302mW/g Fig. 29 CDMA 800 MHz CH1013 No. 2007SAR00047 Page 52 of 117 Fig. 30 Z-Scan at power reference point (CDMA 800 MHz CH1013) No. 2007SAR00047 Page 53 of 117 CDMA 800 Body Towards Ground High Date/Time: 2007-11-3 10:07:01 Electronics: DAE4 Sn777 Medium: 850 Body Medium parameters used (interpolated): f = 848.31 MHz; σ = 0.982 mho/m; ε r = 55; ρ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liqiud Temperature: 22.5 o C Communication System: CDMA 1X-new Frequency: 848.31 MHz Duty Cycle: 1:1 Probe: ET3DV6 - SN1736 ConvF(6.51, 6.51, 6.51) Toward Ground High /Area Scan (51x91x1): Measureme…
Text truncated - open the document above for the full version.
No. 2007SAR00047 Page 61 of 117 CDMA 1900 Left Cheek Middle Date/Time: 2007-11-2 16:03:52 Electronics: DAE4 Sn777 Medium: Head 1900 MHz Medium parameters used: f = 1880 MHz; σ = 1.35 mho/m; ε r = 39.4; ρ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liqiud Temperature: 22.5 o C Communication System: CDMA 1900 Frequency: 1880 MHz Duty Cycle: 1:1 Probe: ET3DV6 - SN1736 ConvF(5.4, 5.4, 5.4) Cheek Middle /Area Scan (51x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.884 mW/g Cheek Middle /Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 18.7 V/m; Power Drift = -0.112 dB Peak SAR (extrapolated) = 1.42 W/kg SAR(1 g) = 0.792 mW/g; SAR(10 g) = 0.409 mW/g Maximum value of SAR (measured) = 0.785 mW/g 0 dB = 0.785mW/g Fig. 39 CDMA 1900 MHz CH600 No. 2007SAR00047 Page 62 of 117 Fig. 40 Z-Scan at power reference point (CDMA 1900 MHz CH600) No. 2007SAR00047 Page 63 of 117 CDMA 1900 Left Cheek Low Date/Time: 2007-11-2 16:30:28 Electronics: DAE4 Sn777 Medium: Head 1900 MHz Medium parameters used (interpolated): f = 1851.25 MHz; σ = 1.33 mho/m; ε r = 39.4; ρ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liqiud Temperature: 22.5 o C Communication System: CDMA 1900 Frequency: 1851.25 MHz Duty Cycle: 1:1 Probe: ET3DV6 - SN1738 ConvF(5.6, 5.6, 5.6) Cheek Low/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.670 mW/g Cheek Low/Zoom Scan (4x4x7)/Cube 0: Measurement grid: dx=10mm, dy=10mm, dz=5mm Reference Value = 17.4 V/m; Power Drift = -0.098 dB Peak SAR (extrapolated) = 0.998 W/kg SAR(1 g) = 0.575 mW/g; SAR(10 g) = 0.300 mW/g Maximum value of SAR (measured) = 0.559 mW/g 0 dB = 0.559mW/g Fig. 41 CDMA 1900 MHz CH25 No. 2007SAR00047 Page 64 of 117 Fig. 42 Z-Scan at power reference point (CDMA 1900 MHz CH25) No. 2007SAR00047 Page 65 of 117 CDMA 1900 Left Tilt High Date/Time: 2007-11-2 17:11:42 Electronics: DAE4 Sn777 Medium: Head 1900 MHz Medium parameters used (interpolated): f = 1908.75 MHz; σ = 1.38 mho/m; ε r = 39.3; ρ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liqiud Temperature: 22.5 o C Communication System: CDMA 1900 Frequency: 1908.75 MHz Duty Cycle: 1:1 Probe: ET3DV6 - SN1736 ConvF(5.4, 5.4, 5.4) Tilt High/Area Scan (51x91x1): Measurement grid: dx=10mm, dy=105mm Maximum value of SAR (interpolated) = 0.866 mW/g Tilt High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 23.4 V/m; Power Drift = -0.171 dB Peak SAR (extrapolated) = 1.31 W/kg SAR(1 g) = 0.751 mW/g; SAR(10 g) = 0.402 mW/g Maximum value of SAR (measured) = 0.746 mW/g 0 dB = 0.746mW/g Fig.43 CDMA 1900 MHz CH1175 No. 2007SAR00047 Page 66 of 117 Fig. 44 Z-Scan at power reference point (CDMA 1900 MHz CH1175) No. 2007SAR00047 Page 67 of 117 CDMA 1900 Left Tilt Middle Date/Time: 2007-11-2 16:14:59 Electronics: DAE4 Sn777 Medium: Head 1900 MHz Medium parameters used: f = 1880 MHz; σ = 1.35 mho/m; ε r = 39.4; ρ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liqiud Temperature: 22.5 o C Communication System: CDMA 1900 Frequency: 1880 MHz Duty Cycle: 1:1 Probe: ET3DV6 - SN1736 ConvF(5.4, 5.4, 5.4) Tilt Middle/Area Scan (51x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.764 mW/g Tilt Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=50mm, dz=5mm Reference Value = 20.9 V/m; Power Drift = -0.200 dB Peak SAR (extrapolated) = 1.16 W/kg SAR(1 g) = 0.678 mW/g; SAR(10 g) = 0.367 mW/g Maximum value of SAR (measured) = 0.715 mW/g 0 dB = 0.715mW/g Fig.45 CDMA 1900 MHz CH600 No. 2007SAR00047 Page 68 of 117 Fig. 46 Z-Scan at power reference point (CDMA 1900 MHz CH600) No. 2007SAR00047 Page 69 of 117 CDMA 1900 Left Tilt Low Date/Time: 2007-11-2 16:42:40 Electronics: DAE4 Sn777 Medium: Head 1900 MHz Medium parameters used (interpolated): f = 1851.25 MHz; σ = 1.33 mho/m; ε r = 39.4; ρ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liqiud Temperature: 22.5 o C Communication System: CDMA 1900 Frequency: 1851.25 MHz Duty Cycle: 1:1 Probe: ET3DV6 - SN1736 ConvF(5.4, 5.4, 5.4) Tilt Low/Area Scan (51x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.523 mW/g Tilt Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 17.…
Text truncated - open the document above for the full version.
| # | Rule Parts | Frequency Range | Power Output | Emission | Tolerance |
|---|---|---|---|---|---|
| 2 | 24E | 1.85 GHz - 1.91 GHz | 310.00 mW | 1M28F9W | 0.013 ppm |
