VRNLT100Portable GPRS/ GPS Location and Tracking Unit

1-877-98SCOUT Worldscout Corporation Page 1 of 11 1-877-987-2688 www.omniscout.com omniscout Quick Start Guide.doc omniscout ® Portable Models Quick Start Guide Contents 1 CERTIFICATION & INFORMATION 2 2 GETTING STARTED 3 2.1 Your own SIM card 4 2.1.1 SIM card requirements 4 2.1.2 Installing the GSM/GPRS SIM Card 4 2.2 Charging the battery 5 2.3 Powering Up the omniscout unit 6 3 LOGGING IN TO THE OMNISCOUT CONTROL CENTRE 7 3.1 Registering your SIM card 7 3.1.1 Entering the SIM information 7 3.1.2 Update the unit 8 3.2 omniscout Control Centre Functions 9 3.3 The Settings Page 10 3.3.1 How to use the Settings Page 10 1-877-98SCOUT Worldscout Corporation Page 2 of 11 1-877-987-2688 www.omniscout.com omniscout Quick Start Guide.doc 1 Certification & Information The LT200 is a location based tracking device operating on GPRS/GSM. This equipment complies with the European R&TTE directive. Copies of the EC Declaration of Conformity are available from the company. Please send your request to: Worldscout Corporation 100 Leek Crescent, Unit 10 Richmond Hill, Ontario Canada L4B 3E6 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. FCC Radiation Exposure Statement: This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. SAR has been evaluated. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 1-877-98SCOUT Worldscout Corporation Page 3 of 11 1-877-987-2688 www.omniscout.com omniscout Quick Start Guide.doc omniscout ® Quick Start Guide 2 Getting Started Congratulations on the purchase of your omniscout unit! When using your omniscout unit for the first time the battery will need to be fully charged using the AC Battery Charger supplied with the omniscout Portable unit. We also recommend that the unit be recharged after each day of use. Some customers supply their own SIM card and therefore will also need to insert the GSM/GPRS SIM Card. Accessing omniscout functions is done via the omniscout Control Centre, an easy to use internet based interface. You will need a PC with internet access, no additional software is required. Microsoft Internet Explorer™ (version 5.5 or greater) or FireFox™ web browser is sufficient to run the omniscout Control Centre. This Quick Start Guide previews some of the basic functions as well as information about how to access your omniscout account online. Information on some of the more advanced functions is available through the online “Help” menu, accessible to you once logged in to your omniscout account. 1-877-98SCOUT Worldscout Corporation Page 4 of 11 1-877-987-2688 www.omniscout.com omniscout Quick Start Guide.doc 2.1 Your own SIM card Clients who have purchased a GSM/GPRS coverage option as part of their Monitoring Plan can skip this step. If you are unsure about whether this step applies to you, look at the omniscout unit. If a SIM card is already inserted, then you can skip this step. 2.1.1 SIM card requirements The omniscout LT200 communicates with the omniscout Control Centre through GSM/GPRS cellular networks. To get the LT200 unit online and tracking it will first require an active SIM card. Specifications of this SIM card are that it must have an Unrestricted Data Plan and can send/receive text messages. This will allow the unit to connect to the omniscout server. Upon receipt of the SIM card for your omniscout LT200, you will need to register the appropriate SIM information to the LT200 unit on the Control Center online. See section 2.1 below called Registering your SIM card. 2.1.2 Installing the GSM/GPRS SIM Card To insert your SIM Card: • Unlock the SIM card retaining clip by sliding the card retaining lock up as shown in Figure 1. • Lift the card retaining clip up by lifting up on the bottom of the clip as shown in Figure 2. • Slide the SIM card into the SIM card retaining clip as shown in Figure 3. Make sure that the card is seated to the bottom of the retaining clip. • Return the SIM card retaining clip to the down position as shown in Figure 4. Take special note of the orientation of the notched edge and copper circuit of the GSM/GPRS card. Press down on the retaining clip lock and then slide it down in the locked position. You may need to “wiggle” the card so that it is in the fully down position before engaging the retaining clip lock. Figure 1 Figure 2 Figure 3 Figure 4 1-877-98SCOUT Worldscout Corporation Page 5 of 11 1-877-987-2688 www.omniscout.com omniscout Quick Start Guide.doc 2.2 Charging the battery To install the battery insert the 2 tabs, located at the bottom of the battery, into the tab hinges located at the bottom of the omniscout unit. Next, depress the locking tab at the top of the battery and push the battery into its seated position. When inserting a charged battery the omniscout unit will power ‘ON’. To charge the omniscout unit, depress (pinch) the locking tabs on both side of the AC adapter, using your thumb and index finger, and insert into the Adapter Port located the side of the unit. When fully inserted, release the locking tabs. When properly connected, the Power Light (left, Red) will blink with a steady pulse. The AC Adapter must be plugged into an AC outlet. Normal charge time is approx. 2-4 hours. While charging, the Power Light (on the left) flashes every 30 seconds. Once the unit is fully charged, the Power Light will blink with 2 rapid blinks followed by a 30 second (approx.) pause. Safety Warning: The AC Charging Adapter uses a standard (North American) 110 volt, 15 AMP outlet. Choose a location away from exposure to direct sunlight and combustible materials. Locking Tabs 1-877-98SCOUT Worldscout Corporation Page 6 of 11 1-877-987-2688 www.omniscout.com omniscout Quick Start Guide.doc 2.3 P…

Text truncated - open the document above for the full version.

REQUEST FOR CONFIDENTIALITY REQUEST FOR CONFIDENTIALITY Telecommunication Certification Body Telecommunication Certification Body RFI Global Services Ltd. RFI Global Services Ltd. Pavilion A Pavilion A Ashwood Park Ashwood Park Basingstoke Basingstoke Hampshire Hampshire RG23 8BG RG23 8BG United Kingdom United Kingdom Subject: Certification Application FCC ID: VRNLT100 Subject: Certification Application FCC ID: VRNLT100 Enfora, Inc., requests confidentiality with regard to the following documents used in support of the filling of the Worldscout FCC application for the equipment approval identified by FCC ID VRNLT100, with relation to the integrated Enfora module FCCID MIVGSM0108 Enfora, Inc., requests confidentiality with regard to the following documents used in support of the filling of the Worldscout FCC application for the equipment approval identified by FCC ID VRNLT100, with relation to the integrated Enfora module FCCID MIVGSM0108 1) Electrical Schematics of the Circuitry 1) Electrical Schematics of the Circuitry 2) Block Diagram 2) Block Diagram 3) Operational Description 3) Operational Description 4) Tuning Procedure 4) Tuning Procedure 5) BoM Parts List 5) BoM Parts List These documents contain detailed system and equipment descriptions and related information about the Enfora Inc. GSM 0108 GSM Module, which Enfora Inc considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products may evolve, Enfora Inc. considers this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. These documents contain detailed system and equipment descriptions and related information about the Enfora Inc. GSM 0108 GSM Module, which Enfora Inc considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products may evolve, Enfora Inc. considers this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. This information is NOT to be shared with the customer, Worldscout; it is solely provided for FCC filing purposes of World scout’s LT 100 device and should be filed under confidentiality with the FCC This information is NOT to be shared with the customer, Worldscout; it is solely provided for FCC filing purposes of World scout’s LT 100 device and should be filed under confidentiality with the FCC Sincerely Sincerely Rob Holden Rob Holden Manager, Compliance Engineering Enfora, Inc. 251 Renner Pkwy, Richardson, Texas 75080 | 972.633.4400 Tel | 972.633.4444 Fax | www.enfora.com

Letter of Authorization Letter of Authorization Enfora Inc. hereby authorises RFI Global Services Ltd on behalf of Worldscout Inc to use Enfora Inc. documents held on file for the Enfora module FCC ID MIVGSM0108, to support the application of Worldscout Inc. FCC ID: VRNLT100 Enfora Inc. hereby authorises RFI Global Services Ltd on behalf of Worldscout Inc to use Enfora Inc. documents held on file for the Enfora module FCC ID MIVGSM0108, to support the application of Worldscout Inc. FCC ID: VRNLT100 Regards, Regards, Rob Holden Rob Holden Manager, Compliance Engineering Enfora, Inc. 251 Renner Pkwy, Richardson, Texas 75080 | 972.633.4400 Tel | 972.633.4444 Fax | www.enfora.com

LT100 labeling Main label Label location on the back of the device Label description Device Part Number Device Serial Number Device IMEI Number (used as Device ID)

TEST REPORT FROM RFI GLOBAL SERVICES LTD Test of: WorldScout Corporation LT100 To: OET Bulletin 65 Supplement C: (2001-01) Test Report Serial No: RFI/SARE1/RP72772JD02A This Test Report Is Issued Under The Authority Of Steve Flooks, Radio Performance Service Leader: pp Checked By: Joe Lomako Report Copy No: PDF01 Issue Date: 13 November 2007 Test Dates: 29 October 2007 This report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. This report may be copied in full. The results in this report apply only to the sample(s) tested. RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE1/RP72772JD02A Page: 2 of 48 Issue Date: 13 November 2007 Test of: WorldScout Corporation LT100 To: OET Bulletin 65 Supplement C: (2001-01) This page has been left intentionally blank. RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE1/RP72772JD02A Page: 3 of 48 Issue Date: 13 November 2007 Test of: WorldScout Corporation LT100 To: OET Bulletin 65 Supplement C: (2001-01) Table of Contents 1. Customer Information ...................................................................................................... 4 2. Equipment Under Test (EUT) ........................................................................................... 5 3. Test Specification, Methods and Procedures ................................................................ 9 4. Deviations from the Test Specification ........................................................................ 10 5. Operation and Configuration of the EUT during Testing ............................................ 11 6. Summary of Test Results............................................................................................... 12 7. Measurements, Examinations and Derived Results.................................................... 13 Appendix 1. Test Equipment Used.................................................................................... 20 Appendix 2. Measurement Methods ................................................................................. 24 Appendix 3. SAR Distribution Scans ................................................................................ 26 Appendix 4. Photographs .................................................................................................. 33 Appendix 5. Validation of System ..................................................................................... 44 Appendix 6. Simulated Tissues......................................................................................... 45 Appendix 7. DASY4 System Details .................................................................................. 46 RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE1/RP72772JD02A Page: 4 of 48 Issue Date: 13 November 2007 Test of: WorldScout Corporation LT100 To: OET Bulletin 65 Supplement C: (2001-01) 1. Customer Information Company Name: WorldScout Corporation Address: 100 Leek Crescent, Unit 10, Richmond Hill, ONTARIO L4B 3E6 Canada Contact Name: Mr. N Lazovic RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE1/RP72772JD02A Page: 5 of 48 Issue Date: 13 November 2007 Test of: WorldScout Corporation LT100 To: OET Bulletin 65 Supplement C: (2001-01) 2. Equipment Under Test (EUT) The following information (with the exception of the date of receipt) has been supplied by the customer: 2.1. Description of EUT The equipment under test is a quad band GSM/GPRS GPS LT100 receiver supporting 3 downlink and 1 uplink. 2.2. Identification of Equipment Under Test (EUT) Description: GSM/GPRS GPS Mobile Station Brand Name: Worldscout Model Name or Number: LT100 Serial Number: 7-0000627 IMEI Number: 35 268002691166 Hardware Version Number: None Stated Software Version Number: None Stated FCC ID Number: VRNLT100 Country of Manufacture: Canada Date of Receipt: 25 October 2007 RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE1/RP72772JD02A Page: 6 of 48 Issue Date: 13 November 2007 Test of: WorldScout Corporation LT100 To: OET Bulletin 65 Supplement C: (2001-01) 2.3. Modifications Incorporated in the EUT During the course of testing the EUT was not modified. 2.4. Accessories The following accessories were supplied with the EUT during testing: Description: Battery Brand Name: Worldscout Model Name or Number: LT100 Serial Number: 5-1-0001T01-01 Cable Length and Type: Not Applicable Connected to Port Manufacturer Unique Contacts Description: Battery Brand Name: Worldscout Model Name or Number: LT100 Serial Number: 5-1-0001T01-01 Country of Manufacture: Canada Connected to Port Manufacturer Unique Contacts RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE1/RP72772JD02A Page: 7 of 48 Issue Date: 13 November 2007 Test of: WorldScout Corporation LT100 To: OET Bulletin 65 Supplement C: (2001-01) 2.5. Support Equipment The following support equipment was used to exercise the EUT during testing: Description: Communication Test Set Brand Name: Anritsu Model Name or Number: MT8820A Serial Number: 6K00000647 Cable Length and Type: 1m Rosenberger Cable Connected to Port: RF Input & Output Port RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE1/RP72772JD02A Page: 8 of 48 Issue Date: 13 November 2007 Test of: WorldScout Corporation LT100 To: OET Bulletin 65 Supplement C: (2001-01) 2.6. Additional Information Related to Testing Equipment Category GSM/GPRS/GPS Quad Band Type of Unit Portable Receiver Intended Operating Environment: With in GSM/GPRS/GPS coverage Transmitter Maximum Output Power Characteristics: GSM850 33 dBm PCS1900 30 dBm Transmitter Frequency Range: GSM850 (824 to 849) MHz PCS1900 (1850 to 1910) MHz Channel Number Channel Description Frequency (MHz) 128 Low 824.2 189 Middle 836.4 251 High 848.8 512 Low 1850.2 660 Middle 1879.8 Transmitter Frequency Allocation of EUT When U…

Text truncated - open the document above for the full version.

RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE1/RP72772JD02A Page: 20 of 48 Issue Date: 13 November 2007 Test of: WorldScout Corporation LT100 To: OET Bulletin 65 Supplement C: (2001-01) Appendix 1. Test Equipment Used RFI No. Instrument Manufacturer Type No. Serial No. Date Last Calibrated Cal. Interval (Months) A034 Narda 20W Termination Narda 374BNM 8706 Calibrated as part of system - A1094 Digital Camera Sony MVC - FD81 125805 Calibration not required - A1097 SMA Directional Coupler MiDISCO MDC6223- 30 None Calibrated as part of system - A1137 3dB Attenuator Narda 779 04690 Calibrated as part of system - A1174 Dielectric Probe Kit Agilent Technologies 85070C Us9936007 2 Calibrate Before Use - A1182 Handset Positioner Schmid & Partners V3.0 None Calibration not required 12 A1184 Data Acquisition Electronics Schmid & Partner DAE3 394 24 May 2007 12 A1185 E-Field Probe Schmid & Partner ET3 DV6 1528 06 Jul 2007 12 A1234 DAE for SAR Schmid & Partner DAE3 450 13 Jun 2007 12 A1237 1900MHz Validation Dipole for SAR Schmid & Partners D1900V2 540 11 Jun 2007 24 A1238 SAM Phantom Schmid & Partners 001 001 Calibrated before use 12 A1328 DASY4 Handset Positioner Schmid & Partner Modification SD 000 H01 DA Calibration not required - A1329 900 MHz Dipole Scmid & Partners D900V2 185 18 May 2007 24 A1410 DC-4.0GHz 3dB Omni Spectra FSC 16179 20510-3 Calibrated as part of system - A1497 Amplifier Mini-Circuits zhl-42w (sma) e020105 Calibrated as part of system - A1531 Antenna AARONIA AG 7025 02458 Calibration not required - A1566 SAM Phantom Schmid & Partners 002 002 Calibrate Before Use - RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE1/RP72772JD02A Page: 21 of 48 Issue Date: 13 November 2007 Test of: WorldScout Corporation LT100 To: OET Bulletin 65 Supplement C: (2001-01) Test Equipment Used (Continued) RFI No. Instrument Manufacturer Type No. Serial No. Date Last Calibrated Cal. Interval (Months) A215 20 dB Attenuator to 4GHz 20W Narda 766-20 9402 Calibrated as part of system - A512 Double ridged Horn EMCO 3115 3993 Calibration not required - C1144 155 mm UTIFLEX Cable Rosenberger MICRO-COAX FA147AF00 1503030 41842-1 Calibrated as part of system C1145 300 mm UTIFLEX Cable Rosenberger MICRO-COAX FA147AF00 3003030 41843-1 Calibrated as part of system - C1146 3000 mm UTIFLEX Cable Rosenberger MICRO-COAX FA147AF03 0003030 41752-1 Calibrated as part of system - G051 10 MHz to 20.1 GHz Gigatronics 7100/.01-20 749472 06 Nov 2006 12 G0528 Robot Power Supply Schmid & Partner DASY None Calibrate Before Use - G087 PSI Dual 35V 10A Thurlby Thandar CPX200 100701 Calibrated as part of system - M010 NRV Power Meter Rohde & Schwarz NRV 882 317/065 06 Jul 2007 12 M509 High Accuracy Digital Thermometer Testo 110 403788004 33 20 Apr 2007 12 M1015 Network Analyser Agilent Technologies 8753ES US391724 06 24 Sep 2007 12 M1047 Robot Arm Staubli RX908 L F00/SD89 A1/A/01 Calibrate Before Use - M1069 Power Head Rohde & Schwarz NRV-Z2 838824/01 0 19 Apr 2007 12 M1129 Power Header Rohde & Schwarz URY-Z2 890242/16 12 June 2007 12 M1140 Radio Communications Analyser Anritsu MT8820A 6K0000647 Calibration not required - RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE1/RP72772JD02A Page: 22 of 48 Issue Date: 13 November 2007 Test of: WorldScout Corporation LT100 To: OET Bulletin 65 Supplement C: (2001-01) Test Equipment Used (Continued) RFI No. Instrument Manufacturer Type No. Serial No. Date Last Calibrated Cal. Interval (Months) M1150 Compact Data Logger with Interface and Probe Testo 175-T2 37503417 / 301 Calibrate Before Use - M136 Temperature/ Humidity/ Pressure Meter RS Components - - 19 Apr 2007 12 M1144 Thermometer Testo 110 03100047 23 Feb 2007 12 S256 SAR Test Lab RFI Site 56 Site 56 Calibrate Before Use - NB In accordance with UKAS requirements, all the measurement equipment is on a calibration schedule. RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE1/RP72772JD02A Page: 23 of 48 Issue Date: 13 November 2007 Test of: WorldScout Corporation LT100 To: OET Bulletin 65 Supplement C: (2001-01) A.1.1. Calibration Certificates This section contains the calibration certificates and data for the Probe(s) and Dipole(s) used, which are not included in the total number of pages for this report.

RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE1/RP72772JD02A Page: 24 of 48 Issue Date: 13 November 2007 Test of: WorldScout Corporation LT100 To: OET Bulletin 65 Supplement C: (2001-01) Appendix 2. Measurement Methods A.2.1. Evaluation Procedure The Specific Absorption Rate (SAR) evaluation was performed in the following manner: a) (i) The evaluation was performed in an applicable area of the phantom depending on the type of device being tested. For devices worn about the ear during normal operation, both the left and right ear positions were evaluated at the centre frequency of the band at maximum power. The side, which produced the greatest SAR, determined which side of the phantom would be used for the entire evaluation. The positioning of the head worn device relative to the phantom was dictated by the test specification identified in section 3.1 of this report. (ii) For body worn devices or devices which can be operated within 20 cm of the body, the flat section of the SAM phantom was used were the size of the device(s) is normal. for bigger devices and base station the 2mm Oval phantom is used for evaluation. The type of device being evaluated dictated the distance of the EUT to the outer surface of the phantom flat section. b) The SAR was determined by a pre-defined procedure within the DASY4 software. The exposed region of the phantom was scanned near the inner surface with a grid spacing of 20mm x 20mm or appropriate resolution. c) A 5x5x7 matrix was performed around the greatest spatial SAR distribution found during the area scan of the applicable exposed region. SAR values were then calculated using a 3-D spline interpolation algorithm and averaged over spatial volumes of 1 and 10 grams. d) If the EUT had any appreciable drift over the course of the evaluation, then the EUT was re-evaluated. Any unusual anomalies over the course of the test also warranted a re-evaluation. RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE1/RP72772JD02A Page: 25 of 48 Issue Date: 13 November 2007 Test of: WorldScout Corporation LT100 To: OET Bulletin 65 Supplement C: (2001-01) A.2.2. Specific Absorption Rate (SAR) Measurements to OET Bulletin 65 Supplement C: (2001-01) Evaluating Compliance with FCC Guidelines for Human Exposure to Radio Frequency Electromagnetic Fields SAR measurements were performed in accordance with Appendix D of the standard FCC OET Bulletin 65 Supplement C: 2001, against appropriate limits for each measurement position in accordance with the standard. The test was performed in a shielded enclosure with the temperature controlled to remain between +18.0ºC and +25.0ºC. The tissue equivalent material fluid temperature was controlled to give a maximum variation of ± 2.0ºC Prior to any SAR measurements on the EUT, system validation and material dielectric property measurements were conducted. In the absence of a detailed procedure within the specification, system validation and material dielectric property measurements were performed in accordance with Appendix C and Appendix D of FCC OET Bulletin 65 Supplement C: 2001. Following the successful system validation and material dielectric property measurements, a SAR versus time sweep shall be performed within 10 mm of the phantom inner surface. If the EUT power output is stable after three minutes then the measurement probe will perform a coarse surface level scan at each test position in order to ascertain the location of the maximum local SAR level. Once this area had been established, a 5x5x7 cube of 343 points (5 mm spacing in each axis ≈ 27g) will be centred at the area of concern. Extrapolation and interpolation will then be carried out on the 27g of tissue and the highest averaged SAR over a 10g cube determined. Once the maximum interpolated SAR measurement is complete; the coarse scan is visually assessed to check for secondary peaks within 50% of the maximum SAR level. If there are any further SAR measurements required, extra 5x5x7 cubes shall be centred on each of these extra local SAR maxima. At the end of each position test case a second time sweep shall be performed to check whether the EUT has remained stable throughout the test. RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE1/RP72772JD02A Page: 26 of 48 Issue Date: 13 November 2007 Test of: WorldScout Corporation LT100 To: OET Bulletin 65 Supplement C: (2001-01) Appendix 3. SAR Distribution Scans This appendix contains SAR distribution scans which are not included in the total number of pages for this report. Scan Reference Number Title SCN/72272JD02/001 Front Of EUT Facing Phantom GPRS850 CH189 SCN/72272JD02/002 Rear Of EUT Facing Phantom GPRS850 CH189 SCN/72272JD02/003 Front Of EUT Facing Phantom GPRS1900 CH660 SCN/72272JD02/004 Rear Of EUT Facing Phantom GPRS1900 CH660 SCN/72272JD02/005 System Performance Check 1900MHz Body 29 10 07 SCN/72272JD02/006 System Performance Check 900MHz Body 29 10 07 RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE1/RP72772JD02A Page: 27 of 48 Issue Date: 13 November 2007 Test of: WorldScout Corporation LT100 To: OET Bulletin 65 Supplement C: (2001-01) SCN/72272JD02/001: Front Of EUT Facing Phantom GPRS850 CH189 DUT: Worldscout LT200; Type: LT200; Serial: 353268002691166 Date: 29/10/2007 0 dB = 0.171mW/g Communication System: GPRS 850 MHz; Frequency: 836.4 MHz;Duty Cycle: 1:4 Medium: 900 MHz MSL Medium parameters used (interpolated): f = 836.4 MHz; σ = 0.97 mho/m; ε r = 54.6; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ET3DV6 - SN1528; ConvF(6.19, 6.19, 6.19); Calibrated: 06/07/2007 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn394; Calibrated: 24/05/2007 - Phantom: SAM 12a; Type: SAM 4.0; Serial: TP:1193 - Measurement SW: DASY4, V4.7 Build 55; Postprocessing SW: SEMCAD, V1.8 Build 176 Front Of EUT Facing Phantom Antenna Extended - Middle/Area Scan (71x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.171 mW/g …

Text truncated - open the document above for the full version.

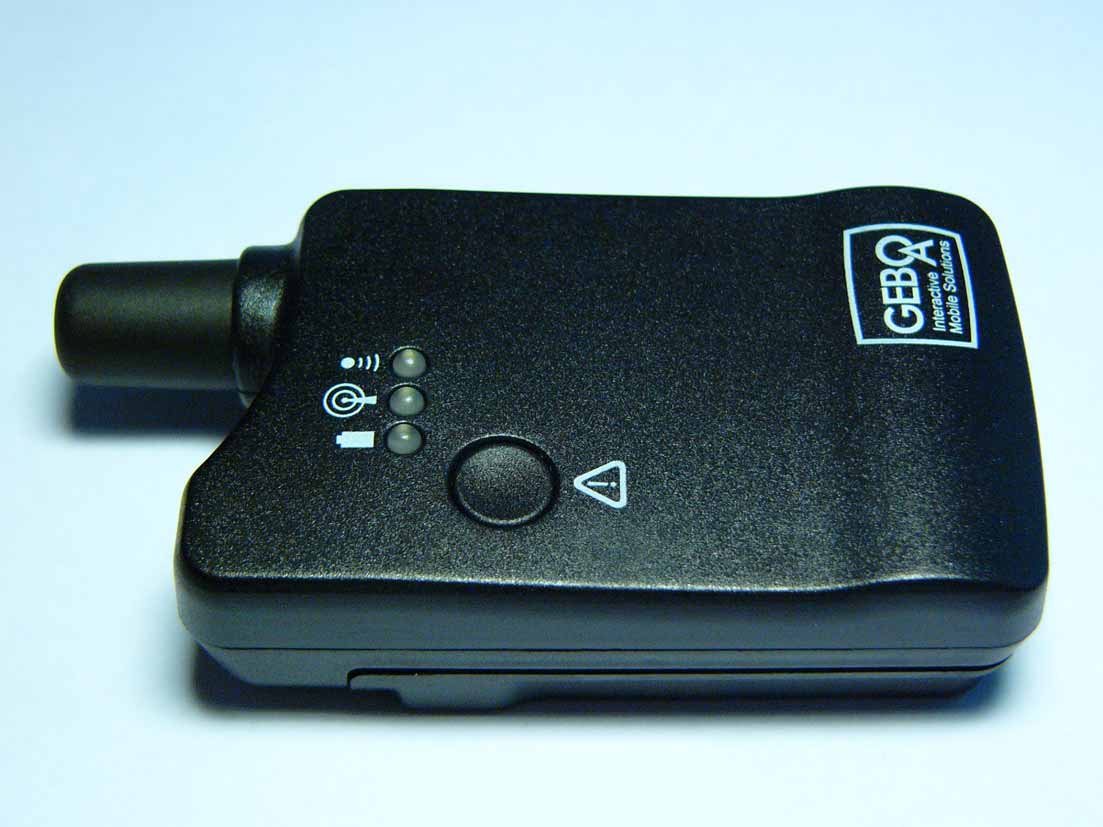

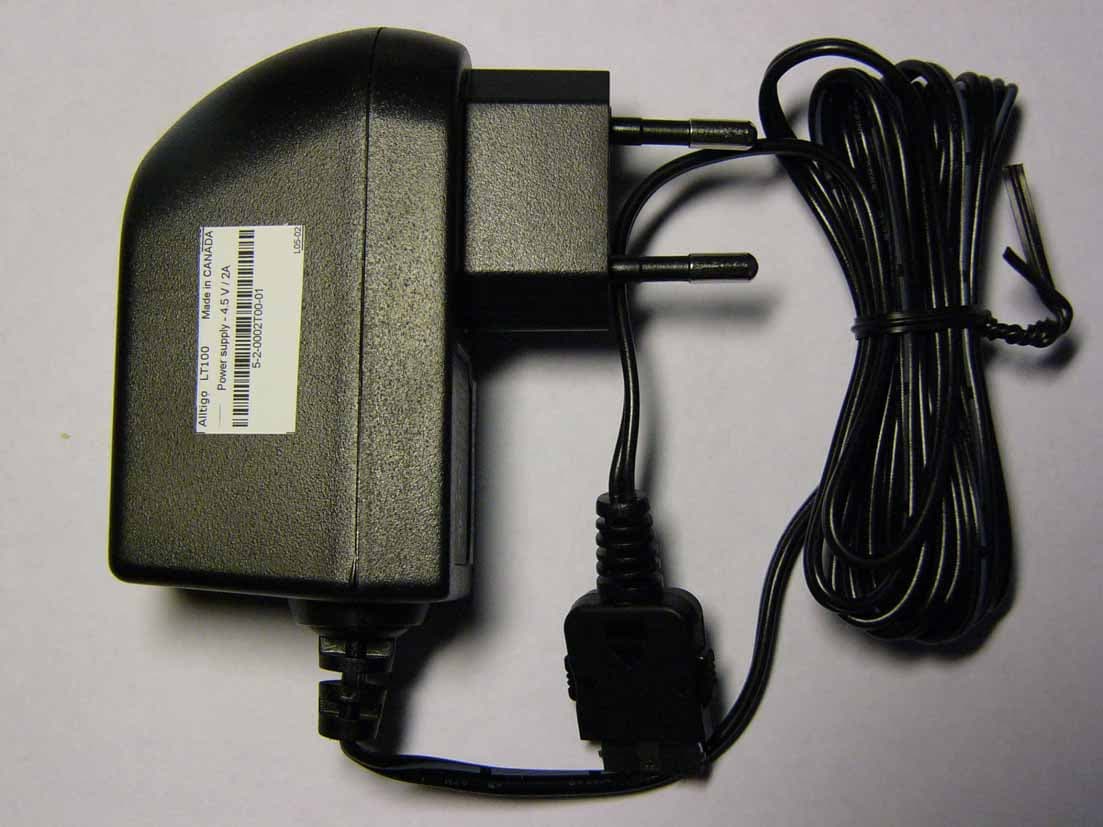

RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE1/RP72772JD02A Page: 33 of 48 Issue Date: 13 November 2007 Test of: WorldScout Corporation LT100 To: OET Bulletin 65 Supplement C: (2001-01) Appendix 4. Photographs This appendix contains the following photographs: Photo Reference Number Title PHT/72272JD02/001 Test configuration for the measurement of Specific Absorption Rate (SAR) PHT/72272JD02/002 Front of EUT Facing Phantom Separation PHT/72272JD02/003 Rear of EUT Facing Phantom 15mm Separation PHT/72272JD02/004 Front of EUT PHT/72272JD02/005 Rear of EUT PHT/72272JD02/006 Internal View of EUT PHT/72272JD02/007 Battery View PHT/72272JD02/008 AC Charger View PHT/72272JD02/009 900MHz Body Fluid PHT/72272JD02/010 1900MHz Body Fluid RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE1/RP72772JD02A Page: 34 of 48 Issue Date: 13 November 2007 Test of: WorldScout Corporation LT100 To: OET Bulletin 65 Supplement C: (2001-01) PHT/72272JD02/01: Test configuration for the measurement of Specific Absorption Rate (SAR) RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE1/RP72772JD02A Page: 35 of 48 Issue Date: 13 November 2007 Test of: WorldScout Corporation LT100 To: OET Bulletin 65 Supplement C: (2001-01) PHT/72272JD02/02: Front of EUT Facing Phantom Separation RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE1/RP72772JD02A Page: 36 of 48 Issue Date: 13 November 2007 Test of: WorldScout Corporation LT100 To: OET Bulletin 65 Supplement C: (2001-01) PHT/72272JD02/03: Rear of EUT Facing Phantom 15mm Separation RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE1/RP72772JD02A Page: 37 of 48 Issue Date: 13 November 2007 Test of: WorldScout Corporation LT100 To: OET Bulletin 65 Supplement C: (2001-01) PHT/72272JD02/04: Front of EUT RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE1/RP72772JD02A Page: 38 of 48 Issue Date: 13 November 2007 Test of: WorldScout Corporation LT100 To: OET Bulletin 65 Supplement C: (2001-01) PHT/72272JD02/05: Rear of EUT RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE1/RP72772JD02A Page: 39 of 48 Issue Date: 13 November 2007 Test of: WorldScout Corporation LT100 To: OET Bulletin 65 Supplement C: (2001-01) PHT/72272JD02/06: Internal View of EUT RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE1/RP72772JD02A Page: 40 of 48 Issue Date: 13 November 2007 Test of: WorldScout Corporation LT100 To: OET Bulletin 65 Supplement C: (2001-01) PHT/72272JD02/07: Battery View RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE1/RP72772JD02A Page: 41 of 48 Issue Date: 13 November 2007 Test of: WorldScout Corporation LT100 To: OET Bulletin 65 Supplement C: (2001-01) PHT/72272JD02/08: AC Charger View RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE1/RP72772JD02A Page: 42 of 48 Issue Date: 13 November 2007 Test of: WorldScout Corporation LT100 To: OET Bulletin 65 Supplement C: (2001-01) PHT/72272JD02/09: 900MHz Body Fluid RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE1/RP72772JD02A Page: 43 of 48 Issue Date: 13 November 2007 Test of: WorldScout Corporation LT100 To: OET Bulletin 65 Supplement C: (2001-01) PHT/72272JD02/010: 1900MHz Body Fluid

RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE1/RP72772JD02A Page: 44 of 48 Issue Date: 13 November 2007 Test of: WorldScout Corporation LT100 To: OET Bulletin 65 Supplement C: (2001-01) Appendix 5. Validation of System Prior to the assessment, the system was verified in the flat region of the phantom. A 900 and 1900 MHz dipole was used. A forward power of 250 mW was applied to the dipole and the system was verified to a tolerance of ±5% for the 900 and 1900 MHz dipole. The applicable verification (normalised to 1 Watt). Date:29/10/2007 Validation Dipole and Serial Number:D900V2 SN:185 Simulant Frequency (MHz) Room Temperature Liquid Temperature Parameters Target Value Measured Value Deviation (%) Limit (%) ε r 55.00 53.99 -0.02 5.00 σ 1.05 1.03 -0.02 5.00 1g SAR 10.50 10.32 -1.71 5.00 Body 900 23.0 ºC 23.0 ºC 10g SAR 6.88 6.72 -2.33 5.00 Date…
