VTP-SLT100LOCATION MONITORING SERVICE TRANSMITTER

SLT-100 Automatic Equipment Identification Preliminary Manual December 2007 Short Line Technologies, LLC 12A World’s Fair Drive Somerset, NJ 08873 Notice Use of this equipment requires a license from the Federal Communications Commission (FCC) for operation under 47 CFR 90. COMPLIANCE STATEMENTS: This device uses, generates, and radiates radio frequency energy. The radio frequency energy produced by this device is well below the maximum exposure allowed by the Federal Communications Commission (FCC). Operation is subject to the following conditions: 1. This device may not cause harmful interference, and 2. this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at this own expense. CAUTION: EXPOSURE TO RADIO FREQUENCY RADIATION To comply with FCC RF exposure requirements, the following antenna installation and device operating configurations must be satisfied. The antenna for this unit must be fixed and mounted with a separation distance of at least 12.2 inches or (31 cm) from all persons in occupational environment and 27.6 inches or (70 cm) in general population areas. MODIFICATIONS: The FCC requires the user to be notified that any changes or modifications to this device that are not expressly approved by the manufacturer may void the user’s authority to operate the equipment. The correction of interference caused by unauthorized modification, substitution, or attachment will be the responsibility of the user. The manufacturer and its authorized resellers or distributors are not liable for any damage or violation of government regulations that may arise from failing to comply with these guidelines. © 2007 Short Line Technologies, LLC (SLT) All rights reserved. I. Purpose The Short Line Technologies (“SLT”) model SLT-100 reads AEI (Automatic Equipment Identification) RFID Tags for any rolling railroad stock These tags comply with the requirements of the Association of the American Railroads (“AAR”) Standard S-918. II. Functionality Through the use of the most modern technology, maximum allowable effective radiated power and innovative error correcting software, the SLT-100 offers a significant improvement in the percentage of AEI tags read correctly. In addition to its core functionality of reading the AEI Tags that are mounted on passing rolling railroad stock, the SLT-100 provides two additional key features: 1. Direction Sensing – Two 24 GHz Doppler radar sensors, one on each side of the SLT-100 enclosure, sense the presence and direction of railcar motion on either side of unit. By accurately sensing direction of the train, whose AEI tags are being read, the cost of a 2 nd Tag Reader on the opposite side of the track is avoided. 2. Wireless Communications – Radio communications between the SLT-100 and its host computer eliminates the need for lengthy and expensive communications cable installation. The built-in data radio modem provides reliable communications to a host computer equipped with a companion modem. This offers a typical range of about 0.6 mile. By placing a Booster-Bridge within approximately 0.6 miles of the SLT-100, total coverage distance of as great as 30 miles is possible. III. Installation The SLT-100 is designed for simple, inexpensive installation. 1. Mounting -- The SLT-100 should be mounted 8 to12 feet from the rail. Usually a 2 to 3 inch steel pipe supports the unit, however it may be secured to any convenient object that is sturdy enough to hold the SLT-100 rigid even when a train is passing. The mounting is two 12 inch wide Unistrut™ 1 ⅝” on the rear of the unit. The SLT-100 comes with a set of clamps for a 2 ½ “ pipe. The Unistrut 1 catalog offers a vast array of other mounting options to satisfy any mounting requirement. 1 Unistrut 4205 Elizabeth • Wayne, MI 48184 Tel: 800 521-7730 • Fax: 734-721-4106 www.unistrut.com 2. Height -- The mounting height of the SLT-100 Tag Reader should place the center of the box about 3 feet above the rail. The front of the enclosure should be parallel to the rails. [ does this say what you want it to?] 3. Power – The SLT-100 requires approximately 40 watts of standard 117 VAC, 60 Hz power. All applicable electrical code requirements should be adhered to. The power connection is made through a mating connector that uses screw terminals to terminate the power wires. IV. Wireless Communications There are three options for communicating with the SLT-100: short range, long range, and mesh. In the course of this discussion it is important to bear in mind that coverage distances provided are generalizations, based on average conditions of terrain, ground cover, and levels of electrical noise and interference. The only way to be certain that a specific path will work is to conduct a site survey. Please contact the factory if you wish to arrange for such a study. 1. Short Range – A distance of approximately (see the note above) 0.6 miles may be realized using the 2.4 GHz modem built into the SLT-100. At the receiveing [should this be receiver or receiving?] end a 2.4 GHz modem connects to the USB port of the controlling computer. A laptop computer with this radio modem is also used for the initial setup. 2. Long Range – For distances up to 30 miles (under ideal conditions), a frequency hopped 900 MHz link is used. To establish this link, a 2.4 GHz …

Text truncated - open the document above for the full version.

December 13, 2007 Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669 Applicant: Short Line Technologies, LLC 12A Worlds Fair Drive Somerset, NJ 08873 Re: Confidentiality for submittal information regarding FCC ID number VTP-SLT100 PRODUCT: Location Monitoring Service operating in CFR47 Part 90. Dear Sirs: Short Line Technologies, LLC requests that the material in the Schematics, Operational Description, block diagram, and parts list be withheld from public disclosure in accordance with Section 0.459 of the Commissions Rules, 47 C.F.R. 0.459, following grant of the application. In support of this request, Short Line Technologies, LLC submits the following: CONFIDENTIAL FILES Parts List Conf PartList SLT100.pdf Schematics Conf Schem SLT100 1.pdf Schematics Conf Schem SLT100 2.pdf Schematics Conf Schem SLT100 3.pdf Schematics Conf Schem SLT100 4.pdf Schematics Conf Schem SLT100 5.pdf Schematics Conf Schem SLT100 PA1.pdf Schematics Conf Schem SLT100 PA2.pdf Block diagram Conf BlkDia SLT100.pdf Operational Description Conf OpDes SLT100.pdf 1. Identification of the specific information for which confidential treatment is sought: The materials set fourth in the Operational Description, block diagram, parts list, and Schematics, which are segregated, from the non-confidential exhibits of the application, are those for which confidentiality is sought. 2. Identification of the Commission proceeding in which the information was submitted or a description of the circumstances giving rise to the submission: The proceeding is that involving the application for equipment authorization (certification) under FCC ID No: VTP-SLT100 3. Explanation of the degree to which the information is commercial or financial, or contains a trade secret or is privileged: This material includes a detailed theory of operation, circuit diagrams, and schematic. As such, this material is treated as highly confidential business information. ROGERS LABS, INC. 4405 West 259th Terrace Louisburg, KS 66053 4. Explanation of the degree to which the information concerns a service that is subject to competition: The material for which confidentiality is sought is employed in the design and manufacture of this transmitting equipment that is offered on a highly competitive basis. Customers for this equipment have a variety of competing sources. 5. Explanation of how disclosure of the information could result in substantial competitive harm: Disclosure would, in effect, give away the fruits of the labors of Short Line Technologies, LLC’s engineering personnel, who have designed the equipment and the manufacturing process. Disclosure would also offer competitors additional unwarranted insight into the state of the product development, thereby allowing competitors an advantage, not available to Short Line Technologies, LLC 6. Identification of any measures taken by the submitting party to prevent unauthorized disclosure: The information for which confidential treatment is sought is kept confidential by Short Line Technologies, LLC and not made available to third parties except pursuant to non-disclosure agreements. 7. Identification of whether the information is available to the public and the extent of any previous disclosure of the information to third parties: To the knowledge of those preparing this application, the information has not been disclosed publicly heretofore. While the general theory of operation of this equipment has been the subject of numerous disclosures in industry and standards groups as well as in rule making proceedings of the FCC, the protection sought is narrowly drawn and pertains to certain specific implementations of this radio technology. 8. Justification of the period during which the submitting party asserts that the material should not be available for public disclosure: This material should not be disclosed for at least 25 years. While improvements in design are made relatively frequently, disclosure of the design information would lead to insights into both design and manufacturing techniques that could have an adverse competitive effect for many years to come. This equipment is designed for commercial, industrial, and governmental applications. As such, unlike most consumer equipment, this equipment could be used for more than a decade in some cases. As such, it is important that the design not be made available to unauthorized persons who might attempt to use knowledge of the design to compromise the applications for which the equipment will be employed. Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers

December 13, 2007 Office of Engineering and Technology Federal Communications Commission Columbia, MD 21046 Applicant: Short Line Technologies, LLC 12A Worlds Fair Drive Olathe, KS 66062 Re: Short-term Confidentiality request for submittal information regarding FCC ID number VTP-SLT100 Product: Location Monitoring Services operating in CFR47 Part 90. Dear Sirs: Short Line Technologies, LLC requests that the following information be withheld from public disclosure until 45 days after the Grant of Equipment Authorization in accordance with DA-04-1705 of the Commission’s public notice. Short term confidential files External Photographs ExtPho SLT100.pdf Internal Photographs IntPho SLT100.pdf Test Setup TSup SLT100.pdf User Manual UserMan SLT100.pdf Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053

12A World’s Fair Drive ♦Somerset, NJ 08873 USA ♦ Phone (732) 302-0178 ♦Web www.shortlinetech.com December 13, 2007 Federal Communications Commission Equipment Approval Services Post Office Box 358315 Pittsburgh, Pennsylvania 15215-5315 To Whom It May Concern: Please be advised that Short Line Technologies, LLC has authorized Rogers Labs, Inc. to act on behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters and submittals. All acts carried out by Rogers Labs, Inc. on our behalf shall have the same effects as our own. Rogers Labs, Inc. has been authorized to receive and exchange data between our company and the Commission. This Authorization is made pursuant to Paragraph 2.911 of FCC Rules CFR 47. This Authorization is in effect until otherwise notified in writing. Sincerely, Short Line Technologies, LLC By: Eric Small Chief Technical Officer

December 13, 2007 Timco Engineering Inc. Federal Communications Commission 849 NW State Road 45 Equipment Approval Services Newberry, FL 32669 P.O. Box 35815, Pittsburgh, PA 15251-3315 Applicant: Short Line Technologies, LLC Equipment: FCC ID: VTP-SLT100 12A Worlds Fair Drive CORES number: 0015 65 4544 Somerset, NJ 08873 FCC Rules: Parts 2 and 90 LMS Gentlemen: The 731 form and application have been electronically submitted and any attachments will be up loaded to your web site to be used in obtaining a grant of certification. Confidentiality is requested as outlined below. Short-term Pursuant to DA 04-1705 of the Commission’s pubic notice, we request short-term confidential treatment for the following information until 45 days after the Grant Date of Equipment Authorization in order to ensure sensitive business information remains confidential until the actual marketing of the device: External Photos ExtPho SLT100.pdf Internal Photos IntPho SLT100.pdf Test Setup Photos Tsup SLT100.pdf User Manual UserMan SLT100.pdf Permanent Short Line Technologies, LLC requests that the material in the Parts List, Schematics, block diagram, and Operational Description be withheld from public disclosure in accordance with Section 0.459 of the Commissions Rules, 47 C.F.R. 0.459, following grant of the application. It is requested that the information contained in the operational description, block diagram, parts list, and schematics of the application be held confidential per Section 0.459. A statement of confidentiality will be attached with the application at the time of submittal. Parts List Conf PartList SLT100.pdf Schematics Conf Schem SLT100 1.pdf Schematics Conf Schem SLT100 2.pdf Schematics Conf Schem SLT100 3.pdf Schematics Conf Schem SLT100 4.pdf Schematics Conf Schem SLT100 5.pdf Schematics Conf Schem SLT100 PA1.pdf Schematics Conf Schem SLT100 PA2.pdf Block diagram Conf BlkDia SLT100.pdf Operational Description Conf OpDes SLT100.pdf This equipment contains modular transmitters (UXS-IPS154US and OUR-XBEEPRO). The equipment was tested as described in the documentation. Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers Rogers Labs, Inc. Enclosures ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214

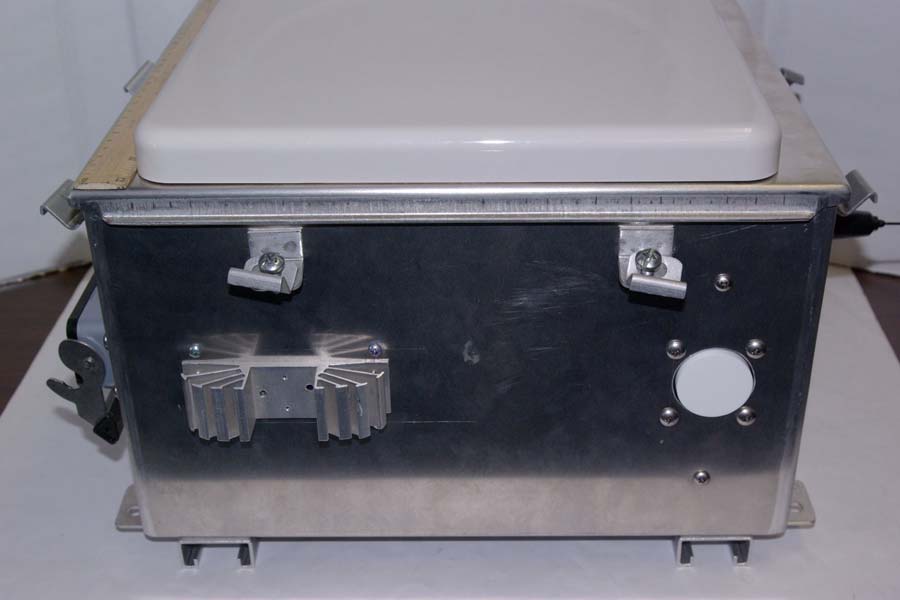

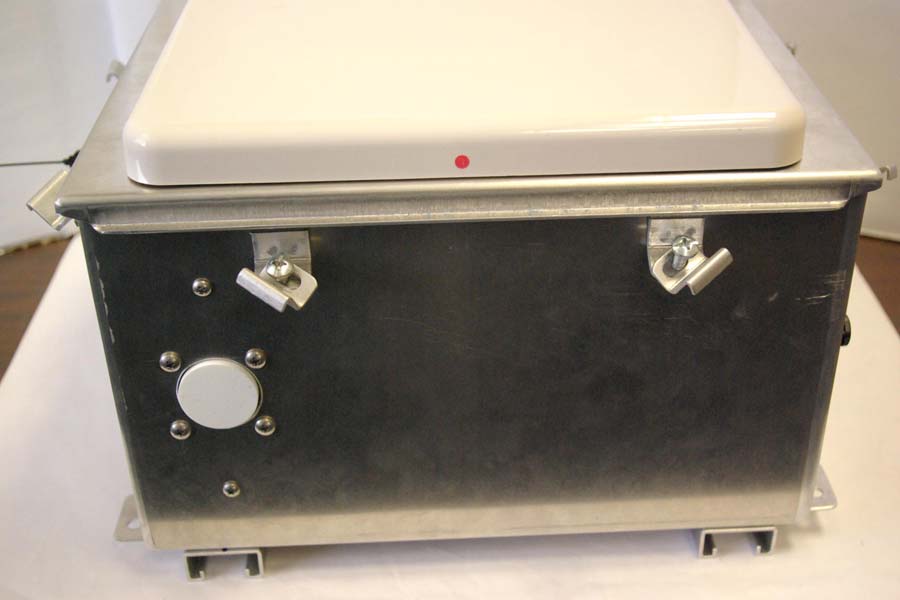

Rogers Labs, Inc. Short Line Technologies, LLC 4405 West 259 th Terrace Model: SLT-100 SN: 001 Louisburg, KS 66053 Test #: 071129 FCC ID#: VTP-SLT100 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2, and 90 Page 1 of 3 Report Revision 1 File: ExtPho SLT100 Date: 12/13/2007 External photographs of equipment under test. Front Bottom Side Rogers Labs, Inc. Short Line Technologies, LLC 4405 West 259 th Terrace Model: SLT-100 SN: 001 Louisburg, KS 66053 Test #: 071129 FCC ID#: VTP-SLT100 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2, and 90 Page 2 of 3 Report Revision 1 File: ExtPho SLT100 Date: 12/13/2007 Right Side Left Side Doppler Tx Doppler Tx Rogers Labs, Inc. Short Line Technologies, LLC 4405 West 259 th Terrace Model: SLT-100 SN: 001 Louisburg, KS 66053 Test #: 071129 FCC ID#: VTP-SLT100 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2, and 90 Page 3 of 3 Report Revision 1 File: ExtPho SLT100 Date: 12/13/2007 Top Side XBEEPRO Tx

Rogers Labs, Inc. Short Line Technologies, LLC 4405 West 259 th Terrace Model: SLT-100 SN: 001 Louisburg, KS 66053 Test #: 071129 FCC ID#: VTP-SLT100 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2, and 90 Page 1 of 1 Report Revision 1 File: LabelSmpl SLT100 Date: 12/13/2007 FCC/IC ID label and location located

Rogers Labs, Inc. Short Line Technologies, LLC 4405 West 259 th Terrace Model: SLT-100 SN: 001 Louisburg, KS 66053 Test #: 071129 FCC ID#: VTP-SLT100 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2, and 90 Page 1 of 3 Report Revision 1 File: IntPho SLT100 Date: 12/13/2007 Internal Photographs of transmitter Rogers Labs, Inc. Short Line Technologies, LLC 4405 West 259 th Terrace Model: SLT-100 SN: 001 Louisburg, KS 66053 Test #: 071129 FCC ID#: VTP-SLT100 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2, and 90 Page 2 of 3 Report Revision 1 File: IntPho SLT100 Date: 12/13/2007 Photographs of Power Amplifier Rogers Labs, Inc. Short Line Technologies, LLC 4405 West 259 th Terrace Model: SLT-100 SN: 001 Louisburg, KS 66053 Test #: 071129 FCC ID#: VTP-SLT100 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2, and 90 Page 3 of 3 Report Revision 1 File: IntPho SLT100 Date: 12/13/2007 Inside Cabinet Doppler Tx XBEEPRO Tx Power Amplifier LMS Tx

Rogers Labs, Inc. Short Line Technologies, LLC 4405 West 259 th Terrace Model: SLT-100 SN: 001 Louisburg, KS 66053 Test #: 071129 FCC ID#: VTP-SLT100 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2, and 90 Page 1 of 1 Report Revision 1 File: TunPro SLT100 Date: 12/13/2007 There are no “tuning controls” for the SLT-100. Each unit’s functionality is tested and judged with pass/fail criteria during production. Units meeting the criteria continue through production and others are returned for diagnostics.

Rogers Labs, Inc. Short Line Technologies, LLC 4405 West 259 th Terrace Model: SLT-100 SN: 001 Louisburg, KS 66053 Test #: 071129 FCC ID#: VTP-SLT100 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2, and 90 Page 1 of 1 Report Revision 1 File: RFExp SLT100 Date: 12/13/2007 MPE Calculation page MPE CalculatorModel SLT100 MPE uses EIRP for calculation. EIRP is based on TX power added to the antenna gain in dBi. dBi = dB gain compared to an isotropic radiator. S = power density in mW/cm^2 Antenna Gain (dBi)10 Output Power dBd + 2.17 = dBidBi to dBd2.17 Tx Frequency (MHz)915 (Watts)3.7000Antenna Gain (dBd)7.83 Cable Loss (dB)0.0(dBm)35.68Antenna minus cable (dBi)10.00 Calculated ERP (mw) 22449.244EIRP = Po(dBM) + Gain (dB) Calculated EIRP (mw) 37000.000Radiated (EIRP) dBm45.682 ERP = EIRP - 2.17 dB Occupational LimitRadiated (ERP) dBm43.512 3.05000 mW/cm 2 General Public Limit 0.61000 mW/cm 2 Frequency (MHz)Occupational LimitPublic Limit 300-1,500f/300f/1500 1,500-10,00051 Frequency (MHz) Occupational Limit @ Tx Freq (mW/cm^2)Public Limit @ Tx Freq (mW/cm^2) 300-1,5003.050.61 1,500-10,00051 EIRPDistanceDistanceSDistance milliwattscminches mW/cm 2 Feet 37000.0002000.00787.400.0007465.6167979 37000.0001500.00590.550.0013149.21259843 37000.0001250.00492.130.0018841.01049869 37000.0001125.00442.910.0023336.90944882 37000.0001000.00393.700.0029432.80839895 37000.000600.00236.220.0081819.68503937 37000.000500.00196.850.0117816.40419948 37000.000400.00157.480.0184013.12335958 37000.000350.00137.800.0240411.48293963 37000.000325.00127.950.0278810.66272966 37000.000300.00118.110.032729.842519685 37000.000275.00108.270.038939.022309711 37000.000250.0098.430.047118.202099738 37000.000225.0088.580.058167.381889764 37000.000200.0078.740.073616.56167979 37000.000190.0074.800.081566.233595801 37000.000180.0070.870.090885.905511811 37000.000170.0066.930.101885.577427822 37000.000160.0062.990.115015.249343832 37000.000150.0059.060.130864.921259843 37000.000140.0055.120.150224.593175853 37000.000130.0051.180.174224.265091864 37000.000120.0047.240.204473.937007874 37000.000110.0043.310.243343.608923885 37000.000100.0039.370.294443.280839895 37000.00090.0035.430.363502.952755906 37000.00080.0031.500.460062.624671916 37000.00070.0027.560.600892.296587927 37000.00050.0019.691.177751.640419948 37000.00035.0013.782.403561.148293963 37000.00031.0012.203.063861.017060367 Frequency (MHz) Occupational Limit minimum Distance (cm/inches) Public Limit minimum distance (cm/inches) 300-1,50070cm / 27.6"31cm / 12.2" 1,500-10,000N/AN/A FCC radio frequency radiation exposure limits per 1.1310 FCC radio frequency radiation exposure limits per 1.1310 Power density (S) EIRP ------- = mW/cm^2 4 π r^2 r (cm) EIRP

NVLAP Lab Code 200087-0 Rogers Labs, Inc. Short Line Technologies, LLC 4405 West 259 th Terrace Model: SLT-100 SN: 001 Louisburg, KS 66053 Test #: 071129 FCC ID#: VTP-SLT100 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2, and 90 Page 1 of 33 Report Revision 1 File: TstRpt SLT100 R1 Date: 12/13/2007 APPLICATION SUBMITTAL FOR FCC GRANT OF CERTIFICATION Per CFR47, Part 90 LMS FOR MODEL: SLT-100 902-904, 909.75-921.75 MHz LOCATION MONITORING SERVICE FCC ID: VTP-SLT100 FOR Short Line Technologies, LLC 12A World’s Fair Drive Somerset, NJ 08873 Test Report Number 071129 Authorized Signatory: Scot D. Rogers NVLAP Lab Code 200087-0 Rogers Labs, Inc. Short Line Technologies, LLC 4405 West 259 th Terrace Model: SLT-100 SN: 001 Louisburg, KS 66053 Test #: 071129 FCC ID#: VTP-SLT100 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2, and 90 Page 2 of 33 Report Revision 1 File: TstRpt SLT100 R1 Date: 12/13/2007 TEST REPORT For APPLICATION of CERTIFICATION For SHORT LINE TECHNOLOGIES, LLC 12A World’s Fair Drive Somerset, NJ 08873 LOCATION MONITORING SERVICE Model: SLT-100 Frequency Range: 902-904, 909.75-921.75 MHz FCC ID: VTP-SLT100 Test Date: November 29, 2007 Certifying Engineer: Scot D. Rogers ROGERS LABS, INC. 4405 West 259th Terrace Louisburg, KS 66053 Phone: (913) 837-3214 FAX: (913) 837-3214 This report shall not be reproduced except in full, without the written approval of the laboratory. This report must not be used by the client to claim product endorsement by NVLAP, NIST, or any agency of the U.S. Government. Rogers Labs, Inc. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214 NVLAP Lab Code 200087-0 Rogers Labs, Inc. Short Line Technologies, LLC 4405 West 259 th Terrace Model: SLT-100 SN: 001 Louisburg, KS 66053 Test #: 071129 FCC ID#: VTP-SLT100 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2, and 90 Page 3 of 33 Report Revision 1 File: TstRpt SLT100 R1 Date: 12/13/2007 TABLE OF CONTENTS TABLE OF CONTENTS.................................................................................................. 3 FORWARD..................................................................................................................... 5 OPINION / INTERPRETATION OF RESULTS............................................................... 5 APPLICABLE STANDARDS & TEST PROCEDURES .................................................. 5 ENVIRONMENTAL CONDITIONS.................................................................................. 5 EQUIPMENT TESTED.................................................................................................... 6 LIST OF TEST EQUIPMENT .......................................................................................... 6 2.1033(C) APPLICATION FOR CERTIFICATION .......................................................... 7 2.1046 RADIO FREQUENCY POWER OUTPUT ........................................................... 9 Measurements Required ........................................................................................................................................9 Test Arrangement...................................................................................................................................................9 Antenna Conducted Output Power Data ...........................................................................................................10 Figure one Maximum Output Power and Operational Frequency Band ............................................................10 2.1047 MODULATION CHARACTERISTICS ............................................................... 11 Measurements Required ......................................................................................................................................11 Modulation Characteristic Results .....................................................................................................................11 2.1049 OCCUPIED BANDWIDTH................................................................................ 11 Measurements Required ......................................................................................................................................11 Test Arrangement.................................................................................................................................................11 Occupied Bandwidth Data ...................................................................................................................................11 Figure two Occupied Bandwidth Plot of Continuous Wave ..............................................................................12 2.1051 SPURIOUS EMISSIONS AT ANTENNA TERMINALS..................................... 13 Measurements Required ......................................................................................................................................13 Test Arrangement.................................................................................................................................................13 Figure three Spurious Emissions at Antenna Terminal......................................................................................13 Figure four Spurious Emissions at Antenna Terminal. ......................................................................................14 Figure five Spurious Emissions at Antenna Terminal........................................................................................14 Figure six Spurious Emissions at Antenna Terminal. ........................................................................................15 Antenna Conducted Spurious Emissions Requirements...................................................................................15 Antenna Conducted Spurious Emissions Data...................................................................................................16 90.210 EMISSIONS MASK..........................................................................…

Text truncated - open the document above for the full version.

Rogers Labs, Inc. Short Line Technologies, LLC 4405 West 259 th Terrace Model: SLT-100 SN: 001 Louisburg, KS 66053 Test #: 071129 FCC ID#: VTP-SLT100 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2, and 90 Page 1 of 1 Report Revision 1 File: TSup SLT100 Date: 12/13/2007 Test setup photographs
