VU3-RECHARGE467Rechargeable Pager

Pager and Charger Guide Part Number 321045B5 Premises Pager System ® QuikCall ™ Pagers 2 Introduction: Congratulations on your purchase of a JTECH Paging System. Please take a few minutes to review this manual prior to installing and operating your system. Please inspect the System upon receipt. If the contents appear to be damaged, notify the shipper immediately to file a claim and notify JTECH Customer Care. If any component is missing, please contact JTECH Customer Care. If you have any questions or need assistance, please call JTECH Customer Care at 800-321-6221 or 561-997-0772, option 6. Pager Certifications: FCC statement: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Changes or modifications not expressly approved by the part responsible for compliance could void the user's authority to operate the equipment. RSS-Gen & RSS-210 statement: This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. RSS-102 Statement: "This equipment complies with Industry Canada radiation exposure limits set forth for an uncontrolled environment. " "Cet équipement est conforme à l'exposition aux rayonnements Industry Canada limites établies pour un environnement non contrôlé. Pager Dimensions and Weights: Pager (Without Clip) LxWxH 1.0x 2.2x 3.1” (33x56x79mm) Weight 2.2oz (63gm) Pager (With Metal Clip): LxWxH 1.4x 2.2x 3.1” (35x56x79mm) Weight 2.8oz (80gm) Pager Dimensions and Weights Certifications Introdu ction H W L L W H 3 Pager (With Spring Clip): LxWxH 1.4x 2.2x 3.8” (35x56x97mm) Weight 2.6oz (74gm) Pager (With Promotional Paddle And Inserts): LxWxH 1.2x 2.2x 7.7” (31x56x196mm) Weight 4.4oz. (124gm) Charger Dimensions and Weight Charger Only LxWxH 13.5x 4.8x 2.6” (343x122x65mm) Weight 1.64lbs (0.75kg) Charger and 10 Pagers With Clips: LxWxH1 13.5x 4.8x 4” (343x122x102mm) Weight 3.41lbs (1.55kg) Charger and 10 Pagers With Promotional Paddles: LxWxH2 13.5x 4.8x 8.8” (343x122x224mm) Weight 4.38lbs (1.99kg) Charger Components: 2.4 A Power Adapter Jumper Wires (Optional Equipment) AC Power Cord H W L J T E C H H W L 10 Position Charger W L H1 H2 H Charger Components Define what transmitter is to be used. Note: 4 Power Adapter Plug Charger Jack Connecting Power: 1. Insert the Power Adapter plug into jack on the bottom of the Charger. 2. Feed the wires through the guides in the bottom of the Charger. 3. Connect the Power Adapter to the AC Power Cord. 4. Plug the AC Power Cord into a 110-240VAC outlet. 5. The green LED on the Charger will light (ON). 6. Once the Charger is powered (ON), the Pagers can be inserted. Mounting Chargers: Chargers can be wall, shelf or counter top mounted. Mounting hardware is user supplied. Mounting Chargers Connecting Power to Chargers 5 Combining Chargers: If two Chargers are to be used, they can be combined with one 2.4A Power Supply. To combine: 1. Use a screwdriver or similar tool to extend the metal tabs out from one of the Chargers. 2. Place both Chargers on a table and slide together. The metal tabs will lock both Chargers together. 3. Insert the Power Adapter plug into jack on the bottom of the Charger. 4. Use the Jumper Wire (optional) to connect both Chargers together. 5. Feed the wires through the guides in the bottom of the Charger. 6. Connect the Power Adapter to the AC Power Cord. 7. Plug the AC Power Cord into a 110-240AC outlet. 8. The green LED on the Charger will light (ON). 9. Once the Charger is powered (ON), the Pagers can be inserted. Combining Chargers Power Adapter Plug Charger Jack 6 Charging Pagers: Pagers are turned OFF during shipment from JTECH. When first received, Pagers must be charged for a minimum of 3 hours prior to use. This first charge will also turn ON the Pagers for use. The charging system is two stage, with a fast initial and then final maintenance charge. Charging Pagers: 1. Insert Pagers into the empty locations of a powered (ON) Charger. 2. Each Pager’s LED will light. 3. The LED color indicates charging condition. Flashing yellow light = Battery charge very low. Charge needed. Do not use the Pager. Solid yellow light = Charge needed. Solid green light = OK to use. 4. Pagers in use and returned to the Charger within 24 hours will fully charge within three hours. 5. If not returned within 24 hours, charging time of up to 8 hours may be required to fully charge batteries. 6. When not in the Charger, each Pager continues to indicate battery charge condition: Flashing yellow light = Charge needed. Flashing green light = OK to use. Charging and Storing Pagers: To maintain maximum battery capacity, store Pagers in the powered (ON) Charger. If Pagers are left uncharged for more than 4 days, it is recommended to disconnect the batteries until their next use. See “Replacing the Battery” on page 11 for instructions. If left uncharged for extended periods of time, Pager batteries can damage beyond repair and will need to be replaced. When charged and stored properly, a battery life of 18-24 months can be expected before replacement is suggested. Charging and Storing Pagers Connecting Power to Chargers 7 Paging Using a Desktop Controll…

Text truncated - open the document above for the full version.

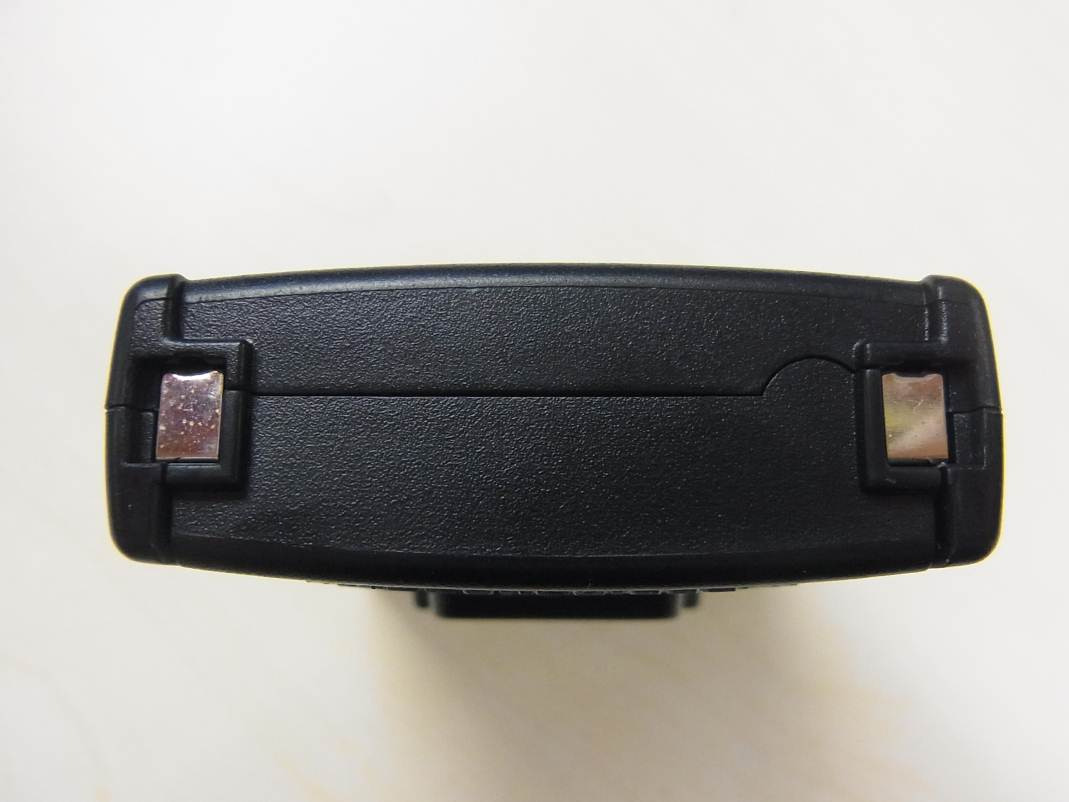

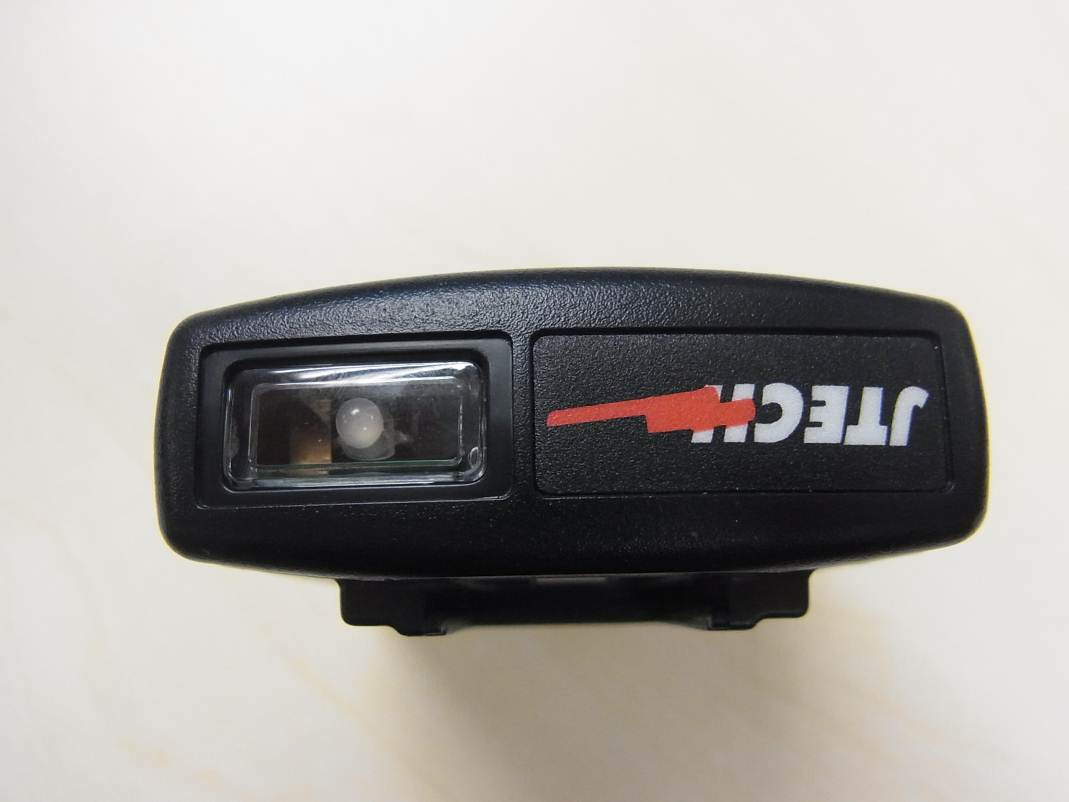

Page 1 of 2 Type Designation: 450304 Report Number: 17028744 001 Fig. 1: External view Fig. 2: External view Page 2 of 2 Type Designation: 450304 Report Number: 17028744 001 Fig. 3: External view Fig. 4: External view

289-53161XN BOTTOM LABEL 粘贴位置 舊FCC LABEL 粘贴位置 舊FCC LABEL 粘贴位置 舊FCC LABEL 粘贴位置

Page 1 of 3 Type Designation: 450304 Report Number: 17028744 001 Fig. 1: Internal view Fig. 2: Internal view Page 2 of 3 Type Designation: 450304 Report Number: 17028744 001 Fig. 3: Internal view Fig. 4: Internal view Page 3 of 3 Type Designation: 450304 Report Number: 17028744 001 Fig. 5: Internal view

Produkte Products Prüfbericht - Nr.: Test Report No. 17028744 001 Seite 2 von 17 Page 2 of 17 TEST SUMMARY 5.1.1 CONDUCTED EMISSION RESULT: Passed 5.2.1 RADIATED EMISSION RESULT: Passed Produkte Products Prüfbericht - Nr.: Test Report No. 17028744 001 Seite 3 von 17 Page 3 of 17 Contents 1. GENERAL REMARKS ......................................................................................................... 4 1.1 COMPLEMENTARY MATERIALS .......................................................................................... 4 2. TEST SITES ...................................................................................................................... 4 2.1 T EST FACILITIES ............................................................................................................... 4 2.2 LIST OF TEST AND MEASUREMENT INSTRUMENTS ............................................................... 5 2.3 TRACEABILITY .................................................................................................................. 5 2.4 CALIBRATION ................................................................................................................... 5 2.5 MEASUREMENT UNCERTAINTY .......................................................................................... 6 2.6 L OCATION OF ORIGINAL DATA .......................................................................................... 6 2.7 STATUS OF FACILITY USED FOR TESTING ........................................................................... 6 3. GENERAL PRODUCT INFORMATION .................................................................................... 7 3.1 PRODUCT FUNCTION AND INTENDED USE ........................................................................... 7 3.2 RATINGS AND SYSTEM DETAILS ........................................................................................ 7 3.3 I NDEPENDENT OPERATION MODES .................................................................................... 7 3.4 NOISE GENERATING AND NOISE SUPPRESSING PARTS ....................................................... 8 3.5 SUBMITTED DOCUMENTS .................................................................................................. 8 4. TEST SET-UP AND OPERATION MODES .............................................................................. 9 4.1 PRINCIPLE OF CONFIGURATION SELECTION ....................................................................... 9 4.2 TEST OPERATION AND TEST SOFTWARE ............................................................................ 9 4.3 S PECIAL ACCESSORIES AND AUXILIARY EQUIPMENT .......................................................... 9 4.4 C OUNTERMEASURES TO ACHIEVE EMC COMPLIANCE ......................................................... 9 4.5 TEST SETUP DIAGRAM .................................................................................................... 10 5. T EST RESULTS E M I S S I O N .................................................................................... 12 5.1 EMISSION IN THE FREQUENCY RANGE UP TO 30 MHZ ....................................................... 12 5.1.1 Conducted Emission ..................................................................................................................12 5.2 E MISSION IN THE FREQUENCY RANGE ABOVE 30 MHZ ...................................................... 13 5.2.1 Radiated Emission .....................................................................................................................13 6. PHOTOGRAPHS OF THE TEST SET-UP .............................................................................. 14 7. LIST OF TABLES ............................................................................................................. 17 8. L IST OF PHOTOGRAPHS .................................................................................................. 17 Produkte Products Prüfbericht - Nr.: Test Report No. 17028744 001 Seite 4 von 17 Page 4 of 17 1. General Remarks 1.1 Complementary Materials All attachments are integral parts of this test report. This applies especially to the following appendix: Appendix 1: Test Result 2. Test Sites 2.1 Test Facilities FCC Registration No.: 752051 Test site Industry Canada No.: 5077A The tests at the test site have been conducted under the supervision of a TÜV engineer. Shenzhen Accurate Technology Co., Ltd. F1, Bldg. A, Changyuan New Meterial Port, Keyuan Rd., Science & Industry Park Nanshan District, Shenzhen 518057, P.R. China Produkte Products Prüfbericht - Nr.: Test Report No. 17028744 001 Seite 5 von 17 Page 5 of 17 2.2 List of Test and Measurement Instruments Table 1: List of Test and Measurement Equipment Kind of Equipment Manufacturer Type S/N Calibrated until Conducted Emission Test Receiver Rohde & Schwarz ESCS30 100307 2013-01-07 Artificial Mains Network Schwarzbeck NLSK8126 8126431 2013-01-07 Radiated Emission Spectrum Analyzer Agilent E7405A MY45115511 2013-01-07 Test Receiver Rohde & Schwarz ESCS30 100307 2013-01-07 Bilog Antenna Schwarzbeck VULB9163 9163-323 2013-01-07 Loop Antenna Schwarzbeck FMZB1516 1516131 2013-01-07 Horn Antenna Schwarzbeck BBHA9120D 9120D-655 2013-01-07 50 Coaxial Switch Anritsu Corp MP59B 6200506474 2013-01-07 Pre-Amplifier Rohde & Schwarz CBLU11835 40-01 3791 2013-01-07 2.3 Traceability All measurement equipment calibrations are traceable to NIST or where calibration is performed outside the United States, to equivalent nationally recognized standards organizations. 2.4 Calibration Equipment requiring calibration is calibrated periodically by the manufacturer or according to manufacturer’s specifications. Additionally all equipment is verified for proper performance on a regular basics using in house standards or comparisons. Produkte Products Prüfbericht - Nr.: Test Report No. 17028744 001 Seite 6 von 17 Page 6 of 17 2.5 Measurement Uncertainty The estimated combined standard uncertainty for ra…

Text truncated - open the document above for the full version.

Produkte Products Prüfbericht - Nr.: Test Report No. 17028744 001 Seite 14 von 17 Page 14 of 17 6. Photographs of the Test Set-Up Photograph 1: Set-up for Conducted Emission Photograph 2: Set-up for Radiated Emission, below 1GHz, mode A Produkte Products Prüfbericht - Nr.: Test Report No. 17028744 001 Seite 15 von 17 Page 15 of 17 Photograph 3: Set-up for Radiated Emission, above 1GHz, mode A Photograph 4: Set-up for Radiated Emission, below 1GHz, mode B Produkte Products Prüfbericht - Nr.: Test Report No. 17028744 001 Seite 16 von 17 Page 16 of 17 Photograph 5: Set-up for Radiated Emission, above 1GHz, mode B
