VUX716TRWIRELESS MICROPHONE

Document Number： R&D-MIC -071108 Version： A/0 Issue date： 08-11- 2007 Wireless microphone User Manual Version Modifications Date A/0 The first time issued 08-11-2007 A/1 Detailed instructions 22-11-2007 I Products Obtain FCC certification for this product, the unique performance , the use of advanced audio processing technology, precision reasonable circuit design, multi-level and high-frequency narrow election IF frequency filtering, fully eliminate the interference signal, reliability has been greatly increased. Microphone sensitivity, frequency response, SNR, the biggest sound pressure level, such as with professional requirements. Used MCU control programme, focused on considering the protection and automatic power-saving function. Professional dynamic microphone sound head and the magnetic network, damping materials carefully selected. The product used two microphones AAA 1.5V battery-powered, built-in receiver 9 V battery case, but also external DC +9 V (being in the negative) power supply, battery change is very convenient. Standard 3.5 audio output interfaces to facilitate connectivity PSIII game equipment, with a special audio tips apply to the use of large-amp. Microphone luminous appearance innovative design, performers and the audience to bring extraordinary fantastic results. Through different microphone luminous color distinction between performers. That your ideal. This product appearance and structural design of the national patent applications are related to protection of the laws. II Microphone ① ② ③ ④ ⑤ 1. MIC IN 2. LED 3. Power on-off 3. Battery Box 4. TX antennas III Receiver ① ⑦ ⑥ ⑤ ② ③ ④ 1.RX antennas 2. Battery Box 3. RX LED1 4. RX LED2 5. Power on-off 6. DC9V IN Jack 7. Audio out Jack（L and R） IV Operation Guide 1. Microphone Operation: microphone transparent casing anti-clockwise rotation, according to the correct polarity direction into two AAA 1.5V batteries, then clockwise direction in a transparent shell into the microphone body, then the correct whip Microphone-shaped antenna into the rear will be placed switch "ON" position, this indicator can be turned into the working conditions (see the following section LED display 4:00 note), a blue and red microphone signals corresponding receiver blue (CH1) and red (CH2) frequency of the LED. 2. Receiver operating (PSIII game configuration): receiver open the battery cover in the correct polarity direction into a 9 V battery, and then wiring in the annex to insert the PS3 converter input socket on the other end Insert the receiver 3.5 standard audio sockets, switches will be placed in the "ON" position, then the receiver power indicator light, said that the receiver can start work and receiving signals transmitted from the microphone, the microphone signal received the corresponding channel signal LED also brightened, the game will be necessary at this time the menu should be elected position of the corresponding game programs, all on Syria before the game with the singer in a song contest. 3. Receiver operating (OK amp karaoke machine configuration): receiver open the battery cover in the correct polarity direction into a 9 V battery, and then in the annex to the cable and connector insertion karaoke machine OK AMPLIFICATION The audio input socket, it will switch at the "ON" position, then the receiver power indicator light, said that the receiver can start work and receiving signals transmitted from the microphone, amplifier of this will be the volume of spin and MIC IN Button placed third position, and power amplifier-player and display device should be connected to normal, after all the display equipment can be OK singing karaoke. 4. LED Display: will be placed microphone switch "ON" position, one of a lit LED 3 seconds, and then cycle three LED flashes when the microphone without audio signals (stop singing) more than three minutes to cease flashing , this LED is only a faint light, complete machine into the power-saving mode. If a microphone audio signal (to sing), flashing LED automatic entry into the cycle. 5. Other features: a microphone and receiver with automatic protection devices and power-saving mode, when no microphone audio signals (stop singing) over one minute, the microphone signal will automatically stop firing into the protection of the state, at the same time open the MCU power-saving mode, receiver has entered fully power-saving mode. For the process of singing suspended singing, and do not want to pick up the microphone to other sounds, the game can handle the Pause button. V Performance Parameters Carrier Frequency VHF174 MHz -216MHz Mode FM Frequency error ±100KHz Audio Frequency Response 100Hz-10KHz THD <8% S/N Ratio ﹥80dB Max. Modulate Range ±25KHz Work ing 10-15M（Open environment） Transmit power 8mW Sensitivity (TX) 8 dBm ；(RX) -65 dBm Audio Output 250mV-300mV Directivity Single point Battery (TX):1.5V AAA*2 ；(RX):DC9V Temperature Range 10°C ~ 40°C Dimensionsy Microphone（289*42.5）；Receiver（117*62*31） VI Packing list 1．Wireless microphone 2PCS 2．TX antennas 2PCS 3．Receiver 1PCS 4．Audio cable 1PCS 5．Audio plugs 2PCS VII Attention Matters 1. Please correct installation of battery, pay attention to positive and negative polarity. 2.When the microphone is noise or receive shorter distance, should be replaced microphone and receiver battery. 3. Please correct use of microphones, not to throw, throw, throw, it will seriously damage the engine, the protection of the surface of the transparent microphone. 4. If the distance is too great, and the noise generated rustle that exceeded the scope of services, return to the acceptable range. 5. After use, such as no longer to be sure demolition battery, battery to avoid metamorphic fluid, mechanical damage. 6. Host advised to avoid using on a corner, in order to maintain good signal reception. 7. Body should avoid direct sun or rain, as far as possible from high electromagnetic fields. 8. Please do not open without the engine, if fault, please contact …

Text truncated - open the document above for the full version.

BLOCK DIAGRAM TX TX Low-frequency amplifier( TX1) 112MHz Oscillation. FM modulation(60MHz) Frequency times (120MHz) 2 times the frequency(180MHz) power amplifier (TR4) AC signal/ DC Voltage Switch Circuit/commute Circuit Power supply or DC/DC converter MCU Control

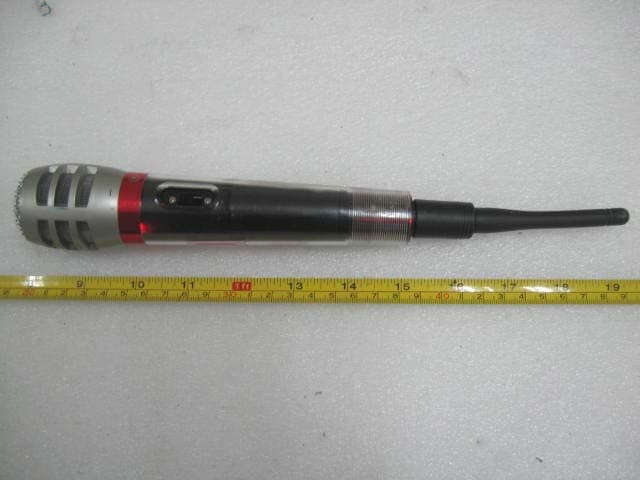

ZHONG SHAN OCVACO TECHNOLOGY CO., LTD. MODEL: MIC-716T/R REPORT NO.: STR08018016I FCC PART 74 EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View

ZHONG SHAN OCVACO TECHNOLOGY CO., LTD. MODEL: MIC-716T/R REPORT NO.: STR08018016I FCC PART 74 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: VUX716TR Specifications: Text is Black in color. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

ZHONG SHAN OCVACO TECHNOLOGY CO., LTD. MODEL: MIC-716T/R REPORT NO.: STR08018016I FCC PART 74 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: VUX716TR Specifications: Text is Black in color. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

ZHONG SHAN OCVACO TECHNOLOGY CO., LTD. MODEL: MIC-716T/R REPORT NO.: STR08018016I FCC PART 74 EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View Solder Board-Component View 1 ZHONG SHAN OCVACO TECHNOLOGY CO., LTD. MODEL: MIC-716T/R REPORT NO.: STR08018016I FCC PART 74 Solder Board-Component View 2 Solder Board-Component View 3

CIRCUIT DESCRIPTIONS The wireless microphone uses a transmitter module operation in the VHF band. This modulator is a high performance, nine channel FM transmitters capable of transmitting analog data. To transmit analog information the moduler reverts to FM modulation. An 60.0MHz FM oscillation serves as the base frequency reference for the Phase Locked Loop (PLL), supporting the one time and two time frequency for give and high frequency. The PLL combined with a 174-216MHz VCO, forms a stable frequency synthesizer that can programmed to oscillate at a number of present frequencies. An onboard micro-controller reads the channel-selection lines and programs the PLL to desired channel frequency. A buffer amplifier is used to isolate the VCO from the antenna and to increase the output power of the transmitter. The output of amplifier is connected to a BPF which used to suppress harmonics emissions.

Version： A Description: MIC-716 Date： 2007 Order NO Description Model Number Units No Remar RX 1 3702MICR1A PCB MIC-716RX03 (85*108*1.2)/2 FR4 1 PCS 2 1101035100 SMD Resistance 0603-1/10W-10Ω-J 2 PCS R11,R61 3 1101035151 SMD Resistance 0603-1/10W-150Ω-J 2 PCS R1,R51 4 1101035331 SMD Resistance 0603-1/10W-330Ω-J 2 PCS R5,R55 5 1101035102 SMD Resistance 0603-1/10W-1KΩ-J 1 PCS R9 6 1101035222 SMD Resistance 0603-1/10W-2.2KΩ-J 5 PCS R6,R56,R7,R57,R5 9 7 1101035472 SMD Resistance 0603-1/10W-4.7KΩ-J 2 PCS R8,R58 8 1101035103 SMD Resistance 0603-1/10W-10KΩ-J 2 PCS R60,R10 9 1101035183 SMD Resistance 0603-1/10W-18KΩ-J 3 PCS R3,R53,R81 10 1101035104 SMD Resistance 0603-1/10W-100KΩ-J 4 PCS R52,R2,R4,R54 11 101250R10C SMD Capacitance 0603-50V-NPO-010-C 2 PCS C58,C8 12 101250R20C SMD Capacitance 0603-50V-NPO-020-C 1 PCS C7 13 101250R50C SMD Capacitance 0603-50V-NPO-050-C 2 PCS C62,C12 14 101250100D SMD Capacitance 0603-50V-NPO-100-D 4 PCS C14,C56,C64,C6 15 101250120D SMD Capacitance 0603-50V-NPO-120-D 1 PCS C60 16 101250150D SMD Capacitance 0603-50V-NPO-150-D 2 PCS C10,C63 17 101250180D SMD Capacitance 0603-50V-NPO-180-D 1 PCS C13 18 101250102K SMD Capacitance 0603-50V-X7R-102-K 2 PCS C5,C55 19 101250103K SMD Capacitance 0603-50V-X7R-103-K 14 PCS C68,C1,C61,C74,C24,C51,C65,C15,C18,C22,C11,C72,C25,C75 20 101250104Z SMD Capacitance 0603-50V-Y5V-104-Z 7 PCS C17,C20,C67,C70,C81,C84,C82 21 107130106M SMD Electrolytic CD50-MS-16V-10uF-M 4x5.4mm 14 PCS C4,C54,C53,C66,C59,C69,C19,C9,C3,C16,C85,C23,C73,C86 22 107130475M SMD Electrolytic CD50-MS-16V-4.7uF-M 4x5.4mm 4 PCS C2,C52,C21,C71 MIC-716 BOM MODEL NO. MIC-716 BOM NO.81MIC716R0 Version： A Description: MIC-716 Date： 2007 Order NO Description Model Number Units No Remar MIC-716 BOM MODEL NO. MIC-716 BOM NO.81MIC716R0 23 107130107M SMD Electrolytic CD50-MS-16V-100uF-M 6.3x5.4mm 1 PCS C83 24 1901119102 IC CD1191CB SOP-28 2 PCS U1,U51 25 1901625020 IC PJ62502 SOT-89 1 PCS U3 26 3202004101 DC Jack DC-041 1 PCS DC1 27 3211327201 Earphone Jack ST-327A-2 3.5mm 1 PCS JK1 28 4206121401 Power switch SK-12F14-G5 1 PCS K1 29 2201303560 Antenna Matching Device COIL-C6-15 1 PCS L8 30 1314063545 Inductance 0.6*3.5T*4.5 4 PCS T2,T3,T52,T53 31 28015P60N1 Inductance KY-5P 60nH 2 PCS T1,T51 32 2507107301 Ceramic filters L10.7J-A ±30KHZ 2 PCS P2,P52 33 2507107302 Ceramic filters J10.7C-A ±30KHZ 2 PCS P1,P51 34 1508003001 LED φ3mm 2 PCS LED3,LED2 35 1508003003 LED φ3mm 1 PCS LED1 TX

1 2 34 ABCD 4 3 2 1 D CBA 334C2 C1472 R112/15k 47kR247kR3 H10 Q1 103C3 R41K C6 4/6P 15PC550PC4 9.5TT1 R5100K 20PC7 Q2H10 T23.5T C85P C9 10P C10NC T45.5T ANT MIC IN DC3V C67103 C6610u L3 100uH D3SS14 C65NC C6347u C6247u Q9 PJ2305 R6233K R61100R Q8S9014 C60103 R59NC R5112K C51334 Q5S9014 R535.6K R52270K Q6S9014 R553.3K R54270K C53104 C54334 D1IN4148 D2 IN4148 R56220K C551u Q7S9014 L4NC LED3LED2LED1 R66 680R R65 680R R64 680R C5710U C56103 R5847K Vin 1 GND 2 Vout 3 XC6371 P1.0 6 P1.1/RST/VPP 4 P5.4/BZ0/PWM0 5 VSS 8 P0.0/INT0 7 VDD 1 P1.3/XIN 2 P1.2/XOUT 3 U2EM78P153 MIC-716TX.SCH DESIGN: DavidDATE:2007.12.06 R647K Q3H10 T33.5T C115P C12 10P C13 18P C52103 R5710K R601K C5810u C5910u C6150P C62NC L115UH/0603 L222U/0805 C64103 OCVACO TECHNOLOGY CO.,LTD R6310K L522U/0805 C4=68P/102C8=8/56PC11=8/56PC13=18/56PC6=68P/102 C101220P R101 0R C102NC R102 680R C72104 f-60MHz f-120MHz f-180MHz +5Vout

ZHONG SHAN OCVACO TECHNOLOGY CO., LTD. MODEL: MIC-716T/R REPORT NO.: STR08018016I PAGE 1 OF 25 FCC PART 74 FCC PART 74 MEASUREMENT AND TEST REPORT FOR ZHONG SHAN OCVACO TECHNOLOGY CO., LTD. NO.142, SOUTH TANSHEN ROAD, TANZHOU TOWN, ZHONGSHAN, CHINA FCC ID: VUX716TR Report Concerns: Original Report Equipment Type: VHF WIRELESS MICROPHONE Model: MIC-716T/R Report No.: STR08018016I Test/Witness Engineer: Innaz Lee Test Date: 2008-01-07 to 2008-01-10 Prepared By: Shenzhen SEM.Test Compliance Service Co., Ltd. 3/F, Jinbao Commerce Building, Xin'an Fanshen Road, Bao'an District, Shenzhen, P.R.C.（518101） Approved & Authorized By: Jandy So / PSQ Manager Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by SEM.Test Compliance Service Co., Ltd . ZHONG SHAN OCVACO TECHNOLOGY CO., LTD. MODEL: MIC-716T/R REPORT NO.: STR08018016I PAGE 2 OF 25 FCC PART 74 TABLE OF CONTENTS 1. GENERAL INFORMATION ...................................................................................................................................3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)...............................................................................3 1.2 TEST STANDARDS...................................................................................................................................................3 1.3 RELATED SUBMITTAL(S)/GRANT(S) .......................................................................................................................3 1.4 TEST METHODOLOGY.............................................................................................................................................4 1.5 TEST FACILITY.......................................................................................................................................................4 1.6 EUT EXERCISE SOFTWARE....................................................................................................................................4 1.7 ACCESSORIES EQUIPMENT LIST AND DETAILS.......................................................................................................4 1.8 EUT CABLE LIST AND DETAILS.............................................................................................................................4 2. SUMMARY OF TEST RESULTS ...........................................................................................................................5 3. §74.861(E)(1)(I)-OUTPUT POWER MEASUREMENT .......................................................................................6 3.1 STANDARD APPLICABLE.........................................................................................................................................6 3.1 TEST EQUIPMENT LIST AND DETAIL.......................................................................................................................6 3.2 TEST PROCEDURE...................................................................................................................................................6 3.3 TEST RESULT/PLOTS..............................................................................................................................................6 4. §74.861(E)(3)-MODULATION CHARACTERISTICS .........................................................................................9 4.1 STANDARD APPLICABLE.........................................................................................................................................9 4.2 TEST EQUIPMENT LIST AND DETAILS.....................................................................................................................9 4.3 TEST PROCEDURE...................................................................................................................................................9 4.4 TEST RESULTS/PLOTS.............................................................................................................................................9 5. §74.861(E)(5) - OCCUPIED BANDWIDTH OF EMISSION ..............................................................................11 5.1 STANDARD APPLICABLE.......................................................................................................................................11 5.2 TEST PROCEDURE.................................................................................................................................................11 5.3 TEST RESULTS/PLOTS...........................................................................................................................................11 6. §74.861 (E)(6)(III)- RADIATED SPURIOUS EMISSION...................................................................................14 6.1 MEASUREMENT UNCERTAINTY............................................................................................................................14 6.2 STANDARD APPLICABLE.......................................................................................................................................14 6.3 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................14 6.4 TEST PROCEDURE.................................................................................................................................................15 6.5 ENVIRONMENTAL CONDITIONS............................................................................................................................16 6.6 SUMMARY OF TEST RESULTS/PLOTS....................................................................................................................16 7. §2.1051-SPURIOUS EMISSION AT ANTENNA TERMINAL ..........................................................................21 7.1 STANDARD APPLICABLE.................................................................…
