VVA25801011 16 SUPER CAR MOTION SENSING(LAMBORGHINI-VENENO)

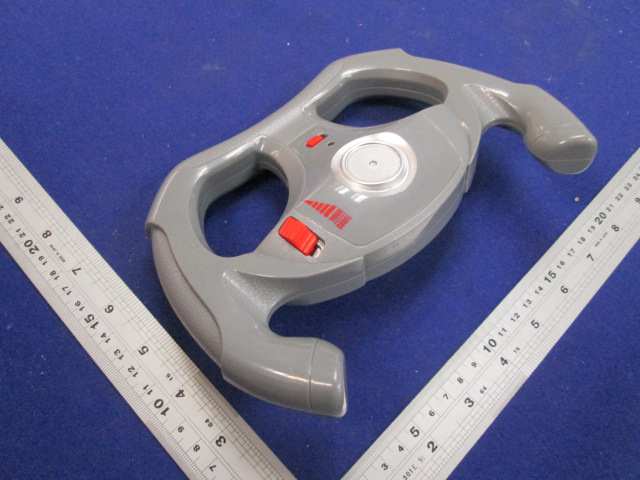

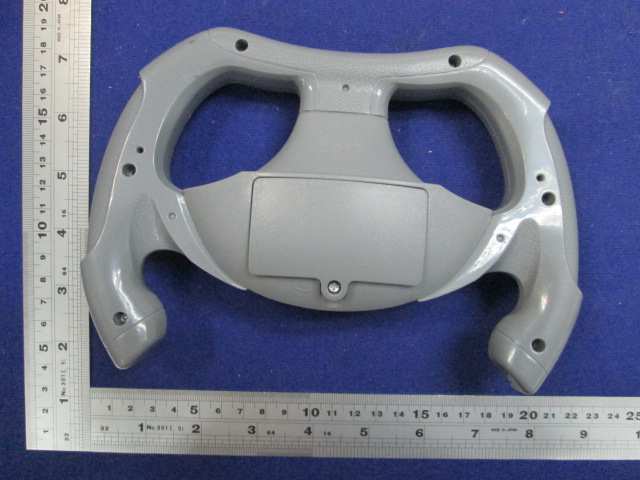

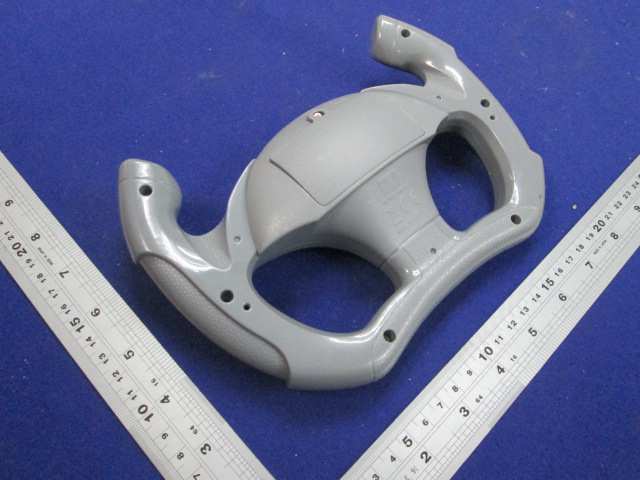

External Photos

External Photos

Label Artwork and Location SIZE: 106mm (W) x 16.5mm (H)

Internal Photos

Internal Photos

1 INTERTEK TESTING SERVICES RF Exposure The Equipment under Test (EUT) is a control unit for the 1:16 SUPER CAR MOTION SENSING( LAMBORGHINI - VENENO) operating at 2.4GHz band. It is powered by DC 3.0V (2 x 1.5V AA batteries). For more detail information pls. refer to the user manual. Antenna Type: Integral antenna. Antenna Gain: 0dBi. The normal radiated output power (e.i.r.p) is: -14.0dBm (tolerance: +/- 3.0dB). The normal conducted output power is: -14.0dBm (tolerance: +/- 3.0dB). Modulation Type: GFSK. According to the KDB 447498: Th e Maximum peak radiated emission for the EUT is 81.0dBμV/m at 3m in the frequency 2440MHz The EIRP = [(FS*D) ^2 / 30] mW = -14.23dBm which is within the production variation. The Minimum peak radiated emission for the EUT is 79.7dBμV/m at 3m in the frequency 2402MHz and 2478MHz The EIRP = [(FS*D) ^2 / 30] mW = -15.53dBm which is within the production variation. The maximum radiated output power specified is -11.0dB m = 0.08m W The source- based time-averaging conducted output power = 0.08* Duty cycle mW <0.1 mW(Duty cycle <100%) Th e SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.478) mW = 9.5 mW Since the source-based time-averaging conducted output power is well below the SAR low threshold level, so the EUT is considered to comply with SAR requirement without testing. The duty cycle is simply the on-time divided by the period: The duration of one cycle = 6.0580 ms Effective period of the cycle = 710.1 μs=0.7101 ms DC = 0.7101ms / 6.0580 ms = 0.1172 or 11.72% FCC ID: VVA2580101
