VWDZEFLDIM28WReplaceable Ballasted Adaptor

Instruction Purposed Dim-28W replaceable self-ballasted adaptor, the unit shall set-in a housing of GX10q-1 IEC standard lamp holder to rate the bare CFL with lamps shall usage that same standard lamp base. It is replaceable ballasted adaptor when installed in the lamp holder as combination will able rating compact fluorescent, as source will be conservation environment. This replaceable Dim-28W ballasted adaptor is allow user replacement when using in the lighting applications is able practical return from supermarkets, shopping centers, retail stores, and gymnasium place readily back to manufacturer for recycling. 2. Characteristics The function of Dim-28W ballasted adaptor will have preheated instant start, long-life and high lumen output, and protection that end of life, which has been required by IEC. The circuit of ballast is designed to perform up to the industry standards by using less Electricity. The lamp and adaptor can operate under -15 °C below zero degrees Celsius. The testing results by we own Lab shown that Dim-28W ballasted adaptor to rate compact fluorescent only uses 20% of the electricity compared and equivalent to an incandescent. 3. Directions 1) For Safety purposes, the lamp holder in the fixture must be powered off before being installed, changed or replace it. 2) This self ballasted adaptor with have dimming device. In order to keep the lamp’s high performance do not dim to 30% and less. 3) This ballasted adaptor can be performed under environmental areas in temperature from -15° C to 45° C, it able uses in enclosed fixture no high than 75 °Celsius or damp location. 4). Please check the power, voltage and contacts of the lamp holder in fixtures in order to incase the ballasted adaptor performs abnormal signs such as the light blinking or the light turns off suddenly. 5). For replacing ballasted adaptor please release lamp first, do not hold the tube by the hands while changing or cleaning the lamp then take it off from housing and putting a new one. The proper way is to hold the lamp by the plastic housing. 4. Warning This device complies with Part 18 of the FCC Rules. This product may cause interference to radio equipment and should not be installed near maritime safety communications equipment or other critical navigation or communication equipment operating between 0.45–30 MHz. If this occurs, please change outlet or move the adaptor far away from other appliance. Huiyang Zingesr Industry Co., Ltd. www.zingear.com or www.effixture.com

Confidentiality Request ATTN: FEDERA COMMUNICATIONS COMMISSION FCC ID: VWDZEFLDIM28W Pursuant to sections 0.457 and 0.459 of the commission’s rules, the applicant hereby requests confidential treatment of information accompanying with this application as outlined below: 1 - Circuit Diagram 2 – Block Diagram 3 – Operation Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to rules 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the grant of this application. Sincerely! Applicant’s company name: HUIYANG ZING EAR INDUSTRY CO., LTD Applicant’s company address: 3. Dist Tahsin Group. Chenjiang Town. Huizhou City. Guangdong, China. 516229 Signature: Jack Hong Date:2007-12-12

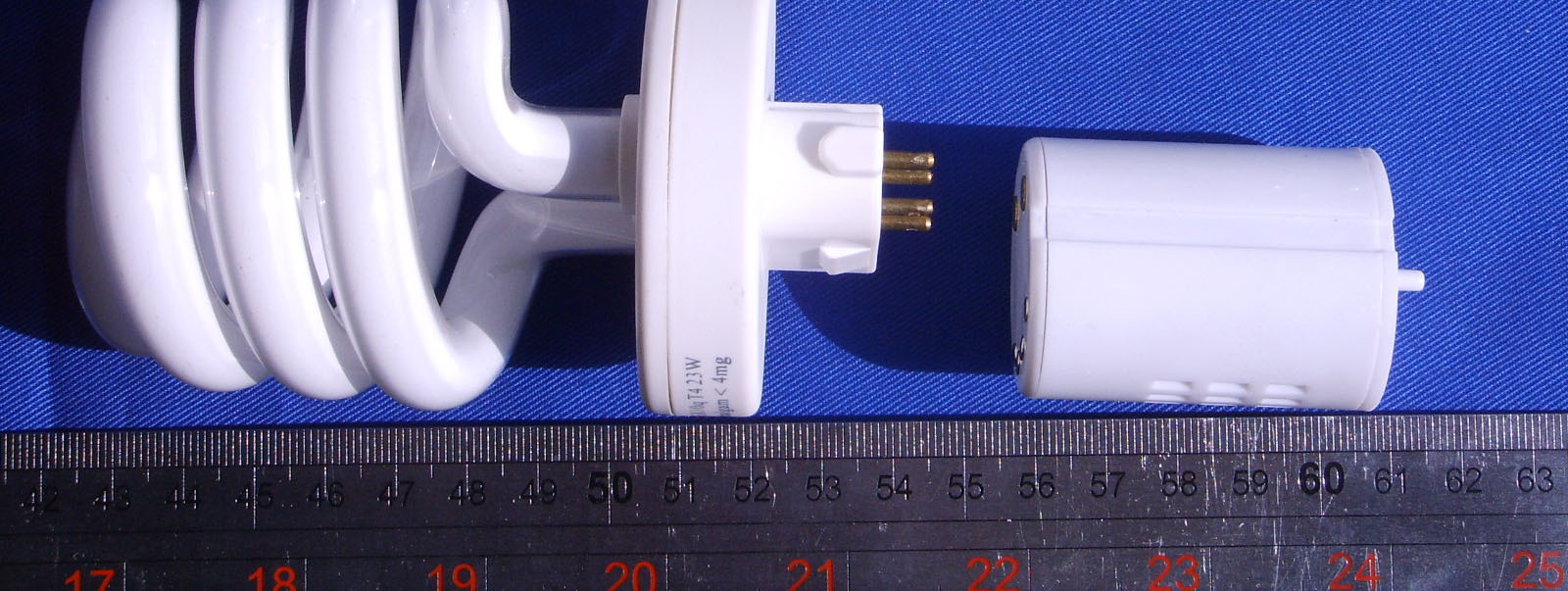

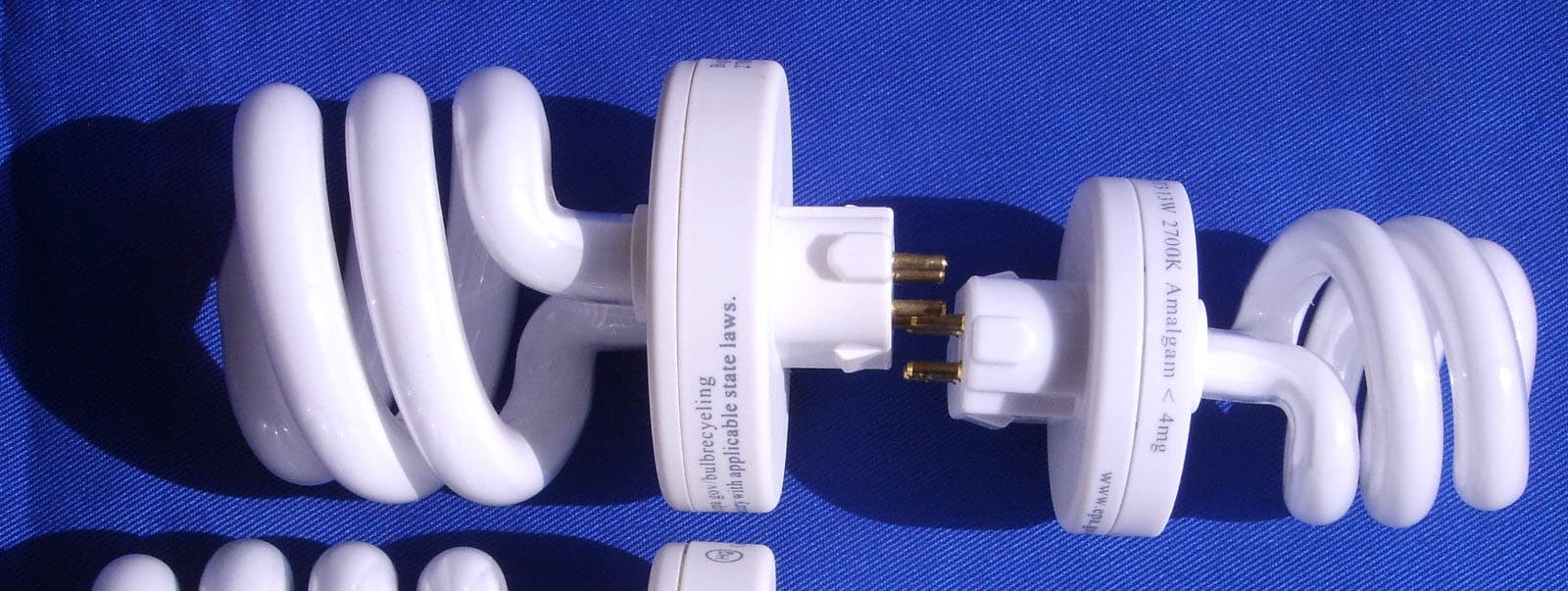

APPENDIX III External Photos EUT – Top View EUT – Bottom View EUT – General Appearance

APPENDIX I FCC ID Label FCC ID: VWDZEFLDIM28W

APPENDIX II FCC ID Label Location FCC ID Label Location FCC ID: VWDZEFLDIM28W

APPENDIX IV Internal Photos EUT – Uncovered View EUT –Components View EUT–Solder View

Note: The test report is specially limited to the above company and the product model only, it may not be duplicated without prior written consent of Best Test Service (Shenzhen) Co., Ltd. FCC PART 18 EMI MEASUREMENT AND TEST REPORT For HUIYANG ZING EAR INDUSTRY CO., LTD 3. Dist Tahsin Group. Chenjiang Town. Huizhou City. Guangdong, China. 516229 FCC ID: VWDZEFLDIM28W Product Name: Replaceable Ballasted Adaptor Model No: Dim-28W Sample Received Date: December 01, 2007 Test Performed Date : December 06, 2007 Test Engineer: Paul Tan Reviewed By: Chris Zeng Prepared By: BEST Test Service (Shenzhen) Co., Ltd Flat 11E, Xinhaofang Building, 11018, Shennan Road, Nanshan District, Shenzhen, 518057, China Tel: +86-755-86182350 Fax: +86-755-86182353 HUIYANG ZING EAR INDUSTRY CO., LTD. FCC ID: VWDZEFLDIM28W Report # BTR07120101-1 Page 2 of 12 FCC Part18 Report TABLE OF CONTENTS GENERAL INFORMATION........................................................................................................................................3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)................................................................................3 OBJECTIVE..................................................................................................................................................................3 RELATED SUBMITTAL(S)/GRANT(S)............................................................................................................................3 TEST METHODOLOGY.................................................................................................................................................3 TEST FACILITY.............................................................................................................................................................3 SYSTEM TEST CONFIGURATION...........................................................................................................................4 JUSTIFICATION.............................................................................................................................................................4 SCHEMATICS / BLOCK DIAGRAM.................................................................................................................................4 EQUIPMENT MODIFICATIONS......................................................................................................................................4 CONFIGURATION OF TEST SYSTEM............................................................................................................................4 TEST SETUP BLOCK DIAGRAM....................................................................................................................................4 CONDUCTED EMISSIONS TEST DATA.................................................................................................................5 APPLICABLE STANDARD..............................................................................................................................................5 MEASUREMENT UNCERTAINTY...................................................................................................................................5 EUT SETUP.................................................................................................................................................................5 TEST EQUIPMENTS......................................................................................................................................................6 TEST PROCEDURE......................................................................................................................................................6 SUMMARY OF TEST RESULTS.....................................................................................................................................6 CONDUCTED EMISSIONS TEST DATA AND PLOTS......................................................................................................6 HUIYANG ZING EAR INDUSTRY CO., LTD. FCC ID: VWDZEFLDIM28W Report # BTR07120101-1 Page 3 of 12 FCC Part18 Report GENERAL INFORMATION Product Description for Equipment Under Test (EUT) The HUIYANG ZING EAR INDUSTRY CO., LTD’s model Dim-28Wor the “EUT” as referred to in this report are Replaceable Ballasted Adaptor, rated input voltage: AC 120V/60Hz. The EUT can work together with 3 type’s lamp bulb: 13W/18W/23W, so we test with these three type bulbs and the data was included in this report. The test data was only good for the test sample. It may have deviation for other test sample. Objective The following test report is prepared on behalf of HUIYANG ZING EAR INDUSTRY CO., LTD. in accordance with Part 2, Subpart J, and Part 18, Subparts A, B, and C of the Federal Communication Commissions rules and regulations. The objective of the manufacturer is to demonstrate compliance with FCC Part 18 limit requirements for Industrial, Scientific, and Medical Equipment. Related Submittal(s)/Grant(s) No Related Submittals. Test Methodology All measurements contained in this report were conducted with MP-5 1986, FCC Method of measurements of radio noise emission from Industrial, Scientific and Medical equipments. Test Facility All measurement facilities used to collect the data are located at Huatongwei Building , Keji Rd, 12 S, high-Tech Park, Nanshan District, Shenzhen, China. The sites are constructed in conformance with the requirements of ANSI C63.7/634 and CISPR 22, the site was accredited by FCC (662850), A2LA (2243.01) and CNAL (L1225) HUIYANG ZING EAR INDUSTRY CO., LTD. FCC ID: VWDZEFLDIM28W Report # BTR07120101-1 Page 4 of 12 FCC Part18 Report SYSTEM TEST CONFIGURATION Justification The EUT was tested under normal mode as used by a common (typical) user. Schematics / Block Diagram N/A Equipment Modifications No modifications were made by BEST TEST SERVICE (SHENZHEN) CO., LTD. to ensure the EUT to comply with the applicat…

Text truncated - open the document above for the full version.

APPENDIX V Test Setup Photos Test Setup – Front View Test Setup – Side View
