VWM-GX188-BT01GPS SECURITY SYSTEM

1User’s manual of GX-188 Copyright

All trademarks mentioned in this manual are the property of Allis Communications Co., Ltd. (hereinafter “Allis Communications”).

All parts of this product, including the accessories and software, are the property of Allis Communications and shall not be reproduced, copied, excerpted or translated without prior approval of Allis Communications. Warranty

The warranty period shall be 12 months commencing on the date of purchase. It shall be determined based on the provision of invoice or receipt issued upon purchase or the barcode on the host machine in case of failure to provide such documents.

The warranty service is merely applicable to consumers who purchase the products of Allis Communications through legal sales channels with invoices.

The date of shipment corresponding to the serial number of the warranty barcode is recorded at the Quality Assurance Department of Allis Communications. If the goods returned by the customer can be inquired based on the serial number of the barcode only, the date shall be determined primarily based on the records of Allis Communications, to which the consumer shall not raise any objection.

Determination criteria for product replacement: In the event of any malfunction not due to man-made damages within 7 days after purchasing the product, the consumer may replace with a new product by presenting such proof of purchase as invoice or receipt. Any request for replacement with a new product must be made with complete accessories and original package (excluding the plastic wrap) within 7 days in a timely manner; otherwise, the faulty product will be repaired only. The consumer may replace the product directly with the dealer or the manufacturer. Declaration

This product has passed NCC’s safety inspections for controlled telecommunications radio frequency devices and acquired the sales permit. To “reduce the effects of electromagnetic waves, be sure to use it properly”.

Please read carefully this manual before using the product.

This user’s manual and product do not contain any warranty, statement of position or other implication. In case of any direct or indirect loss of data (for instance, from the SIM card or any memory, etc), income loss or termination of business arising from the use of this manual or any product information mentioned in it, Allis Communications and its employees shall not be held liable in any manner.

Since the installation of the power-off function will change the original circuit design made by the automobile manufacturer, Allis Communications and its employees shall not be held liable in any manner in the event of any dispute or liability between the car owner and the automobile manufacturer after installation.

Product specifications and information mentioned in this manual are for reference only and are subject to change without prior notice.

Allis Communications is not obligated to assume responsibility for any error existing in all parts of this user’s manual, including the hardware and software, in any manner.

In case of any new specification or firmware update of the product, the user’s manual will be updated accordingly. Please visit the website of Allis Communications atWWW.alliscom.com.tw for downloading.

This product will not be covered within the scope of warranty and service of Allis Communications upon occurrence of the following events: 1. The product is returned to the manufacturer with vague serial number, re-affixed/falsified product serial number barcode or damaged barcode so that the warranty period cannot be identified. 2. The product fails or is damaged due to natural disasters, such as, earthquakes or lightning strikes, abnormal voltage, or environmental factors. 3. The product is dismantled, modified or replaced with parts and components other than those of the original manufacturer by the consumer itself or by a repair shop not authorized by the original manufacturer. 4. The product is damaged due to operations not in compliance with this user’s manual or man-made improper use, including, but not limited to the following: soaked in water due to improper placement, corroded, dropped, compressed or exposed to the environment with abnormal temperature or humidity. 5. Consumables inside and outside the body of the product, for instance, battery, earphone, and etc. 6. Paid accessories apart from the body of the product, for instance, paper carton, manual, and etc. Contact information of Allis Communication Address: 10F-3 No. 31-1, Lane 169, Kang-Ning St., Hsi-Chih City, Taipei Hsien, Taiwan, R.O.C. Tel: 886-2-26952378 Fax: 886-2-26957078 Website: WWW.alliscom.com.tw E-Mail:[email protected] 2User’s manual of GX-188 Chapter 1 Product Description ........................................................................................................4 1-1 Key features....................................................................................................................4 1-2 Preparations for installation.............................................................................................5 1-3 Power supply source.......................................................................................................5 1-4 Possible status upon abnormal startup .............................................................................5 1-5 Product appearance (GX-188).........................................................................................6 Chapter 2 Hardware installation and introduction............................................................................8 2-1 Considerations for installation.........................................................................................8 2-2 Hardware installation locations .......................................................................................8 2-3 Illustrations for installation...............................................................................…

Text truncated - open the document above for the full version.

Warning Statement: NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to the equipment. Such modifications could void the user’s authority to operate the equipment. FCC RF Radiation Exposure Statement: This equipment complies with FCC RF Radiation Exposure Limits set forth for an uncontrolled Environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body and must not be co-located any other antenna or transmitter.

Request for Confidentiality Date: Dec. 04, 2007 Federal Communications Commission Authorization and Evaluation Division Subject: Confidentiality Request regarding Application for certification of FCC ID: VWM-GX188-BT01 Gentlemen: Pursuant to Section 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: (the below file name please refer to the exhibit type) ‹ (G5) Block Diagram (Bluetooth).pdf ‹ (G5) Block Diagram (System).pdf ‹ (G5) Schematics (Bluetooth).pdf ‹ (G5) Schematics (System).pdf ‹ (G5) Operational Description (Bluetooth).pdf ‹ (G5) Operational Description (System).pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely,

Date: Feb. 01, 2008 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: Authorization Letter for FCC ID: VWM-GX188-BT01 We, the undersigned, hereby authorize Audix Technology Corporation , to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Audix Technology Corporation on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing Audix Technology Corporation as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Rex Liu Product Dept. and R&D Dept. Manager ALLIS COMMUNICATIONS CO., LTD.

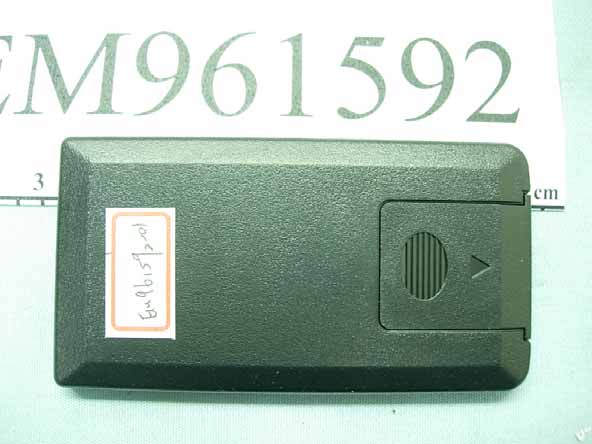

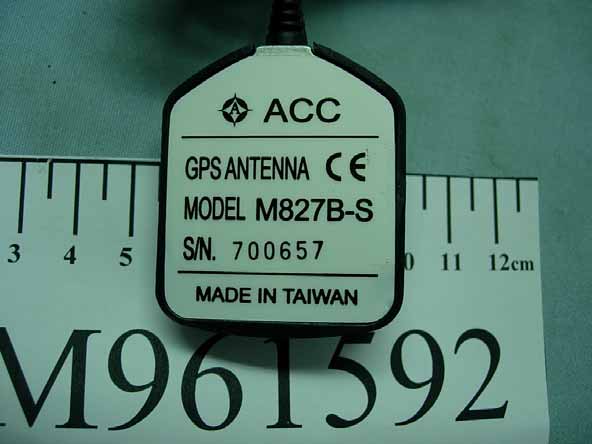

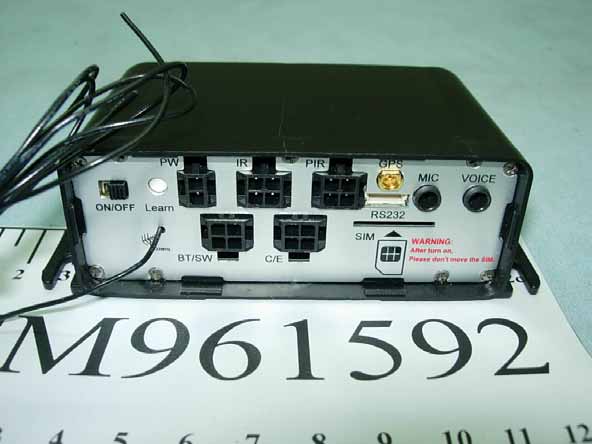

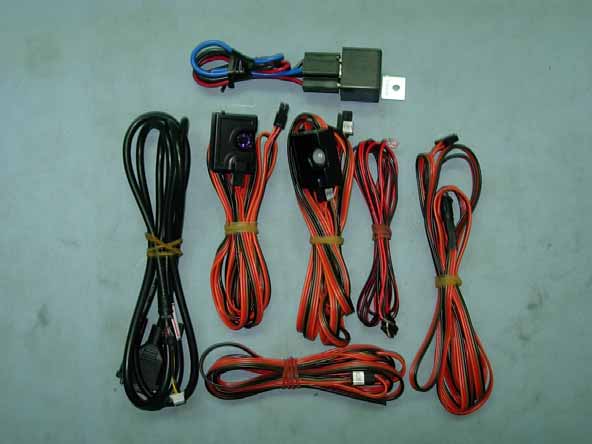

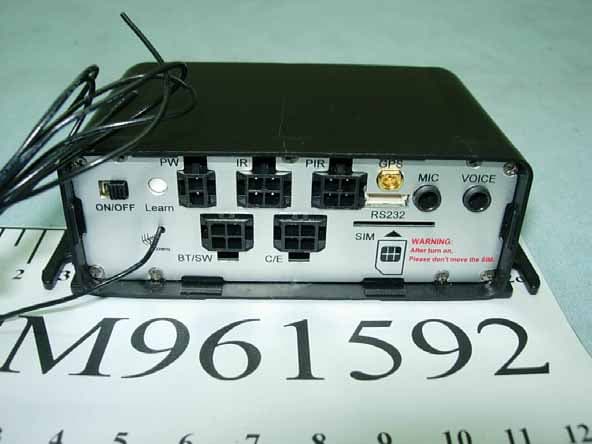

ALLIS COMMUNICATIONS CO., LTD. FCC ID. VWM-GX188-BT01 EUT External Photos General Appearance (Front & Top & Side View) General Appearance (Bottom & Rear & Side View) ALLIS COMMUNICATIONS CO., LTD. FCC ID. VWM-GX188-BT01 General Appearance (Removed the Enclosure Cover) General Appearance (Rear View) ALLIS COMMUNICATIONS CO., LTD. FCC ID. VWM-GX188-BT01 External GPS Antenna (Appearance, Front View) External GPS Antenna (Appearance, Back View) ALLIS COMMUNICATIONS CO., LTD. FCC ID. VWM-GX188-BT01 GSM Call Speaker (Appearance, Front View) GSM Call Speaker (Appearance, Back View) ALLIS COMMUNICATIONS CO., LTD. FCC ID. VWM-GX188-BT01 Call Microphone (Appearance View) Infrared Dialer (Appearance, Front View) ALLIS COMMUNICATIONS CO., LTD. FCC ID. VWM-GX188-BT01 Infrared Dialer (Appearance, Back View) Power off Relay, RS232 Cable, IR Sensor, PIR Sensor and LED Wire Control Switch, C/E Cable, Power Cord ALLIS COMMUNICATIONS CO., LTD. FCC ID. VWM-GX188-BT01 IR Sensor (Appearance, Front View) IR Sensor (Appearance, Back View) ALLIS COMMUNICATIONS CO., LTD. FCC ID. VWM-GX188-BT01 PIR Sensor/Human Body Infrared Sensor (Appearance View) PIR Sensor/Human Body Infrared Sensor (Appearance, Front View) ALLIS COMMUNICATIONS CO., LTD. FCC ID. VWM-GX188-BT01 PIR Sensor/Human Body Infrared Sensor (Appearance, Back View) LED Wire Control Switch (Appearance View) ALLIS COMMUNICATIONS CO., LTD. FCC ID. VWM-GX188-BT01 Power off Relay (Appearance View)

ALLIS COMMUNICATIONS CO., LTD. FCC ID. VWM-GX188-BT01 FCC ID Label Location and Format z Label Placement Location (Back Side of EUT) z FCC Label Format (1) – for Bluetooth Device FCC Label Placement Location FCC ID:VWM-GX188-BT01 FCC ID:VWM-GX188-BT01 ALLIS COMMUNICATIONS CO., LTD. FCC ID. VWM-GX188-BT01 z FCC Label Format (2) – for GSM Module and Remote Control z Label Placement Location (Back Side of EUT) FCC ID:IXV-TX3314S FCC ID:UDV-0606020060001 FCC ID:VWM-GX188-BT01 Bluetooth FCC ID Remote Control FCC ID GSM Module FCC ID FCC ID:VWM-GX188-BT01

ALLIS COMMUNICATIONS CO., LTD. FCC ID. VWM-GX188-BT01 EUT Internal Photos Frame of Internal (Removed the Cover) Internal View (Control Board, Front View) ALLIS COMMUNICATIONS CO., LTD. FCC ID. VWM-GX188-BT01 Internal View (GPS Module, Front View) Internal View (GPS Module, Back View) ALLIS COMMUNICATIONS CO., LTD. FCC ID. VWM-GX188-BT01 Internal View (Bluetooth Module, Front View) Internal View (Bluetooth Module, Back View) ALLIS COMMUNICATIONS CO., LTD. FCC ID. VWM-GX188-BT01 Frame of Internal (Removed Battery View) Internal View (Battery View) ALLIS COMMUNICATIONS CO., LTD. FCC ID. VWM-GX188-BT01 Internal View (Main Board, Front View) Internal View (Main Board + GSM Module, Back View) ALLIS COMMUNICATIONS CO., LTD. FCC ID. VWM-GX188-BT01 External GPS Antenna (Frame of Internal) External GPS Antenna (Frame of Internal) ALLIS COMMUNICATIONS CO., LTD. FCC ID. VWM-GX188-BT01 GSM Call Speaker (Frame of Internal) Infrared Dialer (Frame of Internal, PCB View) ALLIS COMMUNICATIONS CO., LTD. FCC ID. VWM-GX188-BT01 Infrared Dialer (Frame of Internal, PCB View) IR Sensor (Frame of Internal, PCB View) ALLIS COMMUNICATIONS CO., LTD. FCC ID. VWM-GX188-BT01 IR Sensor (Frame of Internal, PCB View) PIR Sensor/Human Body Infrared Sensor (Frame of Internal, PCB View) ALLIS COMMUNICATIONS CO., LTD. FCC ID. VWM-GX188-BT01 PIR Sensor/Human Body Infrared Sensor (Frame of Internal, PCB View)











!
" #$
%&



    Bluetooth Antenna Report Prepared by ALLIS COMMUNICATIONS CO., LTD. 10-3Fl, NO. 31-1, Lane 169, Kang Ning St., Hsi Chih City, Taipei Hsien 221, Taiwan R.O.C.










!
" #$
%&



    1. TEST CONDITIONS Tested By
Ivan Chang Date
December 25, 2007 Test Equipment
HP 8722D Network Analyzer NSI Spherical near-field measurement system 2. TEST RESULT Result List Item Peak Gain V-CUT -2.862dB H-CUT -0.844dB PS
(1) AR
Axial Ratio. V-CUT : Z-X H-CUT : Z-Y Diagrams










!
" #$
%&



    H-CUT Polar plot H-CUT










!
" #$
%&



    V-CUT Polar plot V-CUT











!
" #$
%&



    PIFA Antenna Report Prepared by ALLIS COMMUNICATIONS CO., LTD. 10-3Fl, NO. 31-1, Lane 169, Kang Ning St., Hsi Chih City, Taipei Hsien 221, Taiwan R.O.C.










!
" #$
%&



    1. TEST CONDITIONS Tested By
Ivan Chang Date
December 19, 2007 Test Equipment
HP 8722D Network Analyzer NSI Spherical near-field measurement system 2. TEST RESULT Result List Item Peak Gain V-CUT -4.573dB H-CUT -3.007dB PS
(1) AR
Axial Ratio. V-CUT : Z-Y H-CUT : X-Y Diagrams










!
" #$
%&



    H-CUT Polar plot H-CUT










!
" #$
%&



    V-CUT Polar plot V-CUT

FCC ID. VWM-GX188-BT01 Page 6 of 70 Audix Technology Corporation Report No. EM-F960619 Radio Technology FHSS Modulation Fundamental Range 2402MHz ~ 2480MHz Channel Number 79 Bluetooth Antenna Gain V-CUT: -0.844dB (Peak Gain) H-CUT: -2.862dB UPS Backup Battery ACC, Model: 103450-J (4.35V/1800mAh) Remote Control Antenna Cable: Non-Shielded, Undetachable, 1.0m Accessories --- External GPS Antenna ACC, Model: M827B-S Cable: Shielded, Undetachable, 5.0m GSM Call Speaker ACC Cable: Non-Shielded, Undetachable, 2.0m Call Microphone ACC Cable: Non-Shielded, Undetachable, 3.0m Infrared Dialer ACC (IR) IR Cable: Non-Shielded, Detachable, 2.0m Human Body Sensor ACC (PIR) PIR Cable: Non-Shielded, Detachable, 2.0m LED Wire Control Switch ACC BT/MS Cable: Non-Shielded, Detachable, 2.0m Power off Relay REC, Model: LD-12F Cable: Non-Shielded, Detachable, 0.2m C/E Cable Non-Shielded, Detachable, 2.0m 7~40V Power Cord Non-Shielded, Detachable, 2.0m Firmware Update Switching Non-Shielded, Detachable, 1.5m RS232 Cable (RS-232 only for the manufacturer to update new software, the customer cannot be use the function at usual.) Date of Receipt of Sample Nov. 26, 2007 Date of Test Dec. 13 ~ 20, 2007 Remark: 1. This EUT is a transmitter unit of the GPS security system, the transmitter unit integrated circuits include MCU, GSM module, GPS module, Bluetooth module, RF remote control module, and etc. 2. This test report of EM-F960619 is for the Bluetooth transmitting and receiving modes, the RF remote control transmitting is reported in report of EM-F960618. FCC ID number is IXV-TX3314S. The GPS and RF remote control receiver is tested and reported in report of EM-F960617. 3. The GSM module (SIM300) had gotten the TCB approval certificate, the FCC ID number is UDV-0606020060001. 4. The IR transmitting and receiving modes have checked and complied with the Part 15 subpart B radiated limit, we are sure of both the IR transmitter and receiver action has triggered.

FCC ID. VWM-GX188-BT01 Page 1 of 70 Audix Technology Corporation Report No. EM-F960619 APPLICATION FOR CERTIFICATION On Behalf of ALLIS COMMUNICATIONS CO., LTD. GPS Security System Product Type : GX-188 Model No.(1)G5 (2)G4 Brand: ALLISCOM FCC IDVWM-GX188-BT01 Prepared for : ALLIS COMMUNICATIONS CO., LTD. 10-3Fl., No. 31-1, Lane 169, Kang Ning St., Hsi Chih City, Taipei Hsien, 221 Taiwan R.O.C Prepared by : Audix Technology Corporation EMC Department No. 53-11, Tin-Fu Tsun, Lin-Kou, Taipei, Taiwan Tel : (02) 2609-9301, 2609-2133 Fax: (02) 2609-9303 File Number EM961592 Report Number EM-F960619 Date of Test Dec. 13 ~ 20, 2007 Date of Report Dec. 29, 2007 FCC ID. VWM-GX188-BT01 Page 2 of 70 Audix Technology Corporation Report No. EM-F960619 TABLE OF CONTENTS Description Page TEST REPORT CERTIFICATION .......................................................................................................4 1. GENERAL INFORMATION .......................................................................................................5 1.1. Description of Device (EUT).................................................................................................................. 5 1.2. Tested Supporting System Details .......................................................................................................... 7 1.3. Description of Test Facility .................................................................................................................... 8 1.4. Measurement Uncertainty....................................................................................................................... 9 2. POWERLINE CONDUCTED EMISSION MEASUREMENT..............................................10 3. RADIATED EMISSION MEASUREMENT ............................................................................11 3.1. Test Equipment ..................................................................................................................................... 11 3.2. Test Setup ............................................................................................................................................. 11 3.3. Radiated Emission Limits ..................................................................................................................... 13 3.4. Operating Condition of EUT ................................................................................................................ 14 3.5. Test Procedure ...................................................................................................................................... 14 3.6. Radiated Emission Measurement Results............................................................................................. 15 4. 20dB BANDWIDTH MEASUREMENT ...................................................................................37 4.1. Test Equipment ..................................................................................................................................... 37 4.2. Block Diagram of Test Setup................................................................................................................ 37 4.3. Specification Limits (§15.247(a)(1)) .................................................................................................... 37 4.4. Operating Condition of EUT ................................................................................................................ 37 4.5. Test Procedure ...................................................................................................................................... 38 4.6. Test Results........................................................................................................................................... 38 5. CARRIER FREQUENCY SEPARATION MEASUREMENT ..............................................40 5.1. Test Equipment ..................................................................................................................................... 40 5.2. Block Diagram of Test Setup................................................................................................................ 40 5.3. Specification Limits (§15.247(a)(1)) .................................................................................................... 40 5.4. Operating Condition of EUT ................................................................................................................ 40 5.5. Test Procedure ...................................................................................................................................... 40 5.6. Test Results........................................................................................................................................... 40 6. TIME OF OCCUPANCY MEASUREMENT ..........................................................................43 6.1. Test Equipment ..................................................................................................................................... 43 6.2. Block Diagram of Test Setup................................................................................................................ 43 6.3. Specification Limits (§15.247(a)(1)(iii)) .............................................................................................. 43 6.4. Operating Condition of EUT ................................................................................................................ 43 6.5. Test Procedure ...................................................................................................................................... 43 6.6. Test Results........................................................................................................................................... 44 7. NUMBER OF HOPPING CHANNELS MEASUREMENT ...................................................56 7.1. Test Equipment .......................................................…

Text truncated - open the document above for the full version.

FCC ID. VWM-GX188-BT01 Page 66 of 70 Audix Technology Corporation Report No. EM-F960619 12. PHOTOGRAPHS 12.1. Photos of Radiated Measurement at Semi-Anechoic Chamber 12.1.1. Frequency Range 30MHz~1GHz Test Mode: System Operating FRONT VIEW OF RADIATED MEASUREMENT BACK VIEW OF RADIATED MEASUREMENT FCC ID. VWM-GX188-BT01 Page 67 of 70 Audix Technology Corporation Report No. EM-F960619 12.1.2. Frequency Range 30MHz~1GHz Test Modes: Transmitting and Receiving FRONT VIEW OF RADIATED MEASUREMENT BACK VIEW OF RADIATED MEASUREMENT FCC ID. VWM-GX188-BT01 Page 68 of 70 Audix Technology Corporation Report No. EM-F960619 12.1.3. Frequency Range: Above 1GHz Test Modes: Transmitting and Receiving FRONT VIEW OF RADIATED MEASUREMENT BACK VIEW OF RADIATED MEASUREMENT FCC ID. VWM-GX188-BT01 Page 69 of 70 Audix Technology Corporation Report No. EM-F960619 VIEW OF THE PARTNER TEST SYSTEM (FOR GPS & BLUETOOTH) VIEW OF THE PARTNER TEST SYSTEM (FOR GSM) FCC ID. VWM-GX188-BT01 Page 70 of 70 Audix Technology Corporation Report No. EM-F960619 12.2. Photo of Section 4 ~ 7 & Section 9 ~ 10 12.3. Photo of Section 8
