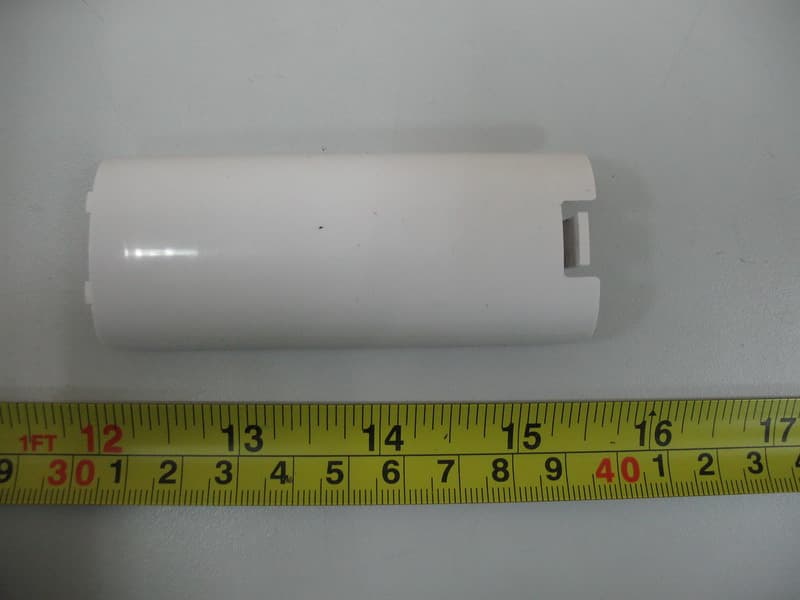

VXDWII07Wii Contactless Charger

Wii Contactless Charger User Manual Model No: Wii 07 Contents Chapter 1 Introduction............................................................................. 1 Chapter 2 Names of the Parts..................................................................... 1 Chapter 3 Explanation of Indicator Light........................................................ 3 Chapter 4 Instruction of Installation and Operation.............................................. 3 Chapter 5 Specifications of the Product......................................................... 6 Specifications of Wii Contactless Charger’s AC Adapter.................................. 6 Specifications of Wii Contactless Charger.................................................... 6 Specifications of Wii Contactless Charger’s Re-chargeable Battery....................6 Guarantee of the Product............................................................................. 7 Please read the owner’s manual and follow the instructions before using this product 1 Chapter 1 Introduction Product Name: Wii Contactless Charger Explanation: Contactless Charger for Wii Controllers Instruction: Remove existing battery cover and replace with the enclosed one before using Wii Contactless Charger, then place Wii Controllers into the charging sockets. Date of Manufacture: 2007 Chapter 2 Names of Parts Charger Base Front Charging Sockets Indicator Lights 2 Back AC Adapter Jack Wii Controller 3 Wii Controller Battery Cover AC Adapter Top of the Cover Charger Base Connector Bottom of the Cover Contact Pins Adapter Plug Chapter 3 Explanation of Indicator Light Red Light On: Not Charging Red Light Flashing: Error Green Light on: Charging Complete Green Light Flashing: Charging Chapter 4 Instruction of Installation and Operation Instruction of Installing Wii Controller 1. First remove the original battery cover, place re-chargeable batteries, then replace with enclosed battery cover, as shown below. 4 a. Remove the original battery cover. b. Install re-chargeable batteries. c. After installing the batteries, slide in the top of the enclosed battery cover. Note: Please make sure that the pins match the metal connector. d. Press down the enclosed battery cover. 5 2. Instruction of AC adapter a. Connect AC Adapter into the Wii Contactless Charger Jack. b. Connect adapter plug into the power outlet. Note For your own safety and to avoid damaging the product, please follow the rules below: 1. Make sure that you have changed to the re-chargeable batteries before use. 2. Make sure that you have changed to the enclosed battery cover before use. 3. Whenever using the product, do not let it come in contact with any liquid. 4. For your own safety, do not disassemble or damage the product in any way. 5. For your own safety and the efficiency of the product, keep it away from any metal objects. Warning 1. Keep the product out of direct sun light and away from heat and fire. 2. For use by children age 12 or above and then only under the supervision of an adult. 3. This product can only be used with the enclosed battery cover and re-chargeable batteries. 4. Please take note of the indicator light signal, especially if the red light is flashing which means error, please stop using immediately and check the instructions in the owner’s manual. 6 Chapter 5 Specifications of the Product Specifications of Wii Contactless Charger’s AC Adapter Rated Input Capacity: 100V~240V/50~60Hz Rated Output: DC6.0V 1.0A 6.0W MAX Specifications of Wii Contactless Charger Power source: DC6V/1A Radio Frequency: 250KHz Power Consumption: Not charging approx. 1W ; Charging approx. 5W Operating Temperature: 0~55°C Operating Humidity Range: 20~80% External Dimensions: 120 x 55mm(Diameter/Height) Weight: Approx. 180g Specifications of Wii Contactless Charger’s re-chargeable Battery Battery Type: AA 1.2V 1800mA (Two) Charging Time: Approx. 4.5 hours Battery Duration: Approx. 25 hours 7 Guarantee of the Product If the product fails to operate under normal usage, please send it back to be repaired according to the references below: 1. Enclose the guarantee card when you send the product. 2. Keep the guarantee card safe, the guarantee card will not be reissued if lost. 3. Malfunction during the guarantee period, will be repaired free of charge. 4. Under the following circumstances, a fee will be charged accordingly: a. Malfunction caused by using incorrectly or disassembling personally. b. Malfunction caused by dropping accidentally after purchasing. c. Malfunction caused by natural disasters such as fire, gas explosion, power surge... etc. d. Failure to return the guarantee card when returning the product. e. The information on the guarantee card is not correctly written or has been changed in any way. Purchaser: Date of Purchase: Address: Telephone: Retailers’ Stamp: Name of the Product: Serial number: Federal Communication Commission Interference Statement THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: …

Text truncated - open the document above for the full version.

R0712004 R0712004 R0712004 R0712004 R0712004 R0712004

R0712004 R0712004 R0712004 R0712004 R0712004 R0712004 R0712004

Report No.: NEI-FCCP-1-R0712004 Page 2 of 23 Neutron Engineering Inc. Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C., or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutronshall have no liability for any declarations, inferences o r generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Report No.: NEI-FCCP-1-R0712004 Page 3 of 23 Neutron Engineering Inc. Table of Contents Page 1 . CERTIFICATION 4 2 . SUMMARY OF TEST RESULTS 5 2.1 TEST FACILITY 6 2.2 MEASUREMENT UNCERTAINTY 6 3 . GENERAL INFORMATION 7 3.1 GENERAL DESCRIPTION OF EUT 7 3.2 DESCRIPTION OF TEST MODES 8 3.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 9 3.4 DESCRIPTION OF SUPPORT UNITS 10 4 . EMC EMISSION TEST 11 4.1 CONDUCTED EMISSION MEASUREMENT 11 4.1.1 POWER LINE CONDUCTED EMISSION 11 4.1.2 MEASUREMENT INSTRUMENTS LIST 11 4.1.3 TEST PROCEDURE 12 4.1.4 DEVIATION FROM TEST STANDARD 12 4.1.5 TEST SETUP 12 4.1.6 EUT OPERATING CONDITIONS 13 4.1.7 TEST RESULTS 14 4.2 RADIATED EMISSION MEASUREMENT 16 4.2.1 RADIATED EMISSION LIMITS 16 4.2.2 MEASUREMENT INSTRUMENTS LIST 17 4.2.3 TEST PROCEDURE 17 4.2.4 DEVIATION FROM TEST STANDARD 17 4.2.5 TEST SETUP 18 4.2.6 EUT OPERATING CONDITIONS 18 4.2.7 TEST RESULTS (Below 30MHz) 19 4.2.8 TEST RESULTS (Between 30 – 1000 MHz) 20 5 . EUT TEST PHOTO 22 Report No.: NEI-FCCP-1-R0712004 Page 4 of 23 Neutron Engineering Inc. 1. CERTIFICATION E q u i p m e n t : Wii CONTACTLESS CHARGER Brand Name : PowerHouse M o d e l N o . : Wii07 A p p l i c a n t : Fu Da Tong Technology Co., Ltd. Data of Test : Dec. 24, 2007 ~ Jan. 25, 2008 Te s t I t e m : ENGINEERING SAMPLE Standards : FCC Part15, Subpart C(15.209) / RSS-210: 2004/ ANCI C63.4 : 2003 The above equipment has been tested and found compliance with the requirement of the relative standards by Neutron Engineering Inc. EMC Laboratory. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. NEI-FCCP-1-R0712004) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of NVLAP and TAF according to the ISO-17025 quality assessment standard and technical standard(s). Report No.: NEI-FCCP-1-R0712004 Page 5 of 23 Neutron Engineering Inc. 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15, Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.209 Radiated Spurious Emission PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Report No.: NEI-FCCP-1-R0712004 Page 6 of 23 Neutron Engineering Inc. 2.1 TEST FACILITY The test facilities used to collect the test data in this report is C01/OS01 at the location of No.132-1, Lane 329, Sec. 2, Palain Road, Shijr City, Taipei, Taiwan. Neutron's test firm number is 95335 2.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 A. Conducted Measurement : Test Site Method Measurement Frequency Range U，(dB) NOTE C01 ANSI150 KHz ~ 30MHz 1.94 B. Radiated Measurement : Test Site Method Measurement Frequency Range Ant. H / V U，(dB) NOTE OS-01 ANSI30MHz ~ 200MHz V 3.82 30MHz ~ 200MHz H 3.60 200MHz ~ 1,000MHz V 3.86 200MHz ~ 1,000MHz H 3.94 OS-02 ANSI30MHz ~ 200MHz V 2.48 30MHz ~ 200MHz H 2.16 200MHz ~ 1,000MHz V 2.50 200MHz ~ 1,000MHz H 2.66 Report No.: NEI-FCCP-1-R0712004 Page 7 of 23 Neutron Engineering Inc. 3. GENERAL INFORMATION 3.1 GENERAL DESCRIPTION OF EUT Equipment Wii CONTACTLESS CHARGER Brand Name PowerHouse Model No. Wii07 OEM Brand/Model No. N/A Model Difference N/A Product Description The EUT is a Wii CONTACTLESS CHARGER. Operation Frequency: 250 KHz Product Class: Class 1 Receiver Class: Class 3 Modulation Type: ASK Antenna Designation: Integra (Induction coil) Output Power: 90.56 dBuV/m Mode of Operation: Simplex Based on the application, features, or specification exhibited in User's Manual, the EUT is considered as an ITE/Computing Device. More details of EUT technical specification, please refer to the User's Manual. Channel List N/A Power Source DC Voltage supplied from AC/DC adapter. Power Rating AC I/P 100-240V~50-60Hz, 0.3A / DC O/P 6.0V, 1.0A, 6.0W max Connecting I/O Port(s) Please refer to the User's Manual Products Covered AC/DC Adapter(Model No.: PA1008-1DU) Note: 1. For a more detailed features description, please refer to the manufacturer’s specifications or the User's Manual. Report No.: NEI-FCCP-1-R0712004 Page 8 of 23 Neutron Engineering Inc. 3.2 DESCRIPTION OF TEST MODES To investigate the maximum EMI emission characteristics generated from EUT, the test system was pre-scanning tested bas…

Text truncated - open the document above for the full version.

TEST PHOTO Conducted Measurement Photos Radiated Measurement Photos
