VXMSTANDALONETCDUniversal Telemetry Communication Device

Notice OEM integrators and installers are instructed that the phrase. This device contains transmitter FCC ID: must be placed on the outside of the host. Warning: Exposure to Radio Frequency Radiation The radiated output power of this device is far below the FCC radio frequency exposure limits. Nevertheless, the device should be used in such a manner that the potential for human contact during normal operation is minimized. In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the antenna should not be less than 20cm during normal operation. The gain of the antenna for Cellular band must not exceed dBi. The gain of the antenna for PCS band must not exce ed dBi. FCC Compliance Information This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received. Including interference that may cause undesired operation. Information to User This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/ tv technician for help.

Report No.: HCT-SAR08-0101 FCC ID: VXMSTANDALONETCD DATE: January 02, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr １ of 8 G. EXTERNAL PHOTOGRAPHS Report No.: HCT-SAR08-0101 FCC ID: VXMSTANDALONETCD DATE: January 02, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr ２ of 8 ■ EXTERNAL PHOTO Report No.: HCT-SAR08-0101 FCC ID: VXMSTANDALONETCD DATE: January 02, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr ３ of 8 ■ EXTERNAL PHOTO Report No.: HCT-SAR08-0101 FCC ID: VXMSTANDALONETCD DATE: January 02, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr ４ of 8 ■ EXTERNAL PHOTO Report No.: HCT-SAR08-0101 FCC ID: VXMSTANDALONETCD DATE: January 02, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr ５ of 8 ■ EXTERNAL PHOTO Report No.: HCT-SAR08-0101 FCC ID: VXMSTANDALONETCD DATE: January 02, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr ６ of 8 ■ EXTERNAL PHOTO Report No.: HCT-SAR08-0101 FCC ID: VXMSTANDALONETCD DATE: January 02, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr ７ of 8 ■ EXTERNAL PHOTO Report No.: HCT-SAR08-0101 FCC ID: VXMSTANDALONETCD DATE: January 02, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr ８ of 8 ■ EXTERNAL PHOTO

Placement of UL/FCC Label

Report No.: HCT-SAR08-0101 FCC ID: VXMSTANDALONETCD DATE: January 02, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr １ of 12 H. INTERNAL PHOTOGRAPHS Report No.: HCT-SAR08-0101 FCC ID: VXMSTANDALONETCD DATE: January 02, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr ２ of 12 ■ INTERNAL PHOTO Report No.: HCT-SAR08-0101 FCC ID: VXMSTANDALONETCD DATE: January 02, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr ３ of 12 ■ INTERNAL PHOTO Report No.: HCT-SAR08-0101 FCC ID: VXMSTANDALONETCD DATE: January 02, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr ４ of 12 ■ INTERNAL PHOTO Report No.: HCT-SAR08-0101 FCC ID: VXMSTANDALONETCD DATE: January 02, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr ５ of 12 ■ INTERNAL PHOTO Report No.: HCT-SAR08-0101 FCC ID: VXMSTANDALONETCD DATE: January 02, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr ６ of 12 ■ INTERNAL PHOTO Report No.: HCT-SAR08-0101 FCC ID: VXMSTANDALONETCD DATE: January 02, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr ７ of 12 ■ INTERNAL PHOTO Report No.: HCT-SAR08-0101 FCC ID: VXMSTANDALONETCD DATE: January 02, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr ８ of 12 ■ INTERNAL PHOTO Report No.: HCT-SAR08-0101 FCC ID: VXMSTANDALONETCD DATE: January 02, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr ９ of 12 ■ INTERNAL PHOTO Report No.: HCT-SAR08-0101 FCC ID: VXMSTANDALONETCD DATE: January 02, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr １０ of 12 ■ INTERNAL PHOTO Report No.: HCT-SAR08-0101 FCC ID: VXMSTANDALONETCD DATE: January 02, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr １１ of 12 ■ INTERNAL PHOTO Report No.: HCT-SAR08-0101 FCC ID: VXMSTANDALONETCD DATE: January 02, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr １２ of 12 ■ INTERNAL PHOTO

FCC ID: VXMSTANDALONETCD HCT CO., LTD SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8565 FAX : + 82 31 639 8525 www.hct.co.kr 1 of 2 RF Exposure Statement 1. LIMITS According to §1.1310 and §2.1091 RF exposure is calculated. (B) Limits for General Population/Uncontrolled Exposures Frequency range (MHz) Electric field Strength (V/m) Magnetic field Strength (A/m) Power density (mW/cm²) Averaging time (minutes) 0.3 - 1.34....................................... 1.34 - 30....................................... 30 - 300....................................... 300 - 1500.................................... 1500 - 100.000................................. 614 824/f 27.5 ............... ............... 1.63 2.19/f 0.073 ............... ............... *(100) *(180/ f²) 0.2 f/1500 1.0 30 30 30 30 30 F = frequency in MHz * = Plane-wave equivalent power density 2. MAXIMUM PERMISSIBLE EXPOSURE Prediction Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S = PG/4πR² S = Power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna FCC ID: VXMSTANDALONETCD HCT CO., LTD SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8565 FAX : + 82 31 639 8525 www.hct.co.kr 2 of 2 2-1. CELLUAR BAND Max Peak output Power at antenna input terminal (dBm) 33.100 Max Peak output Power at antenna input terminal (mW) 2041.738 Prediction distance (cm) 20.000 Prediction frequency (MHz) 836.600 Antenna Gain(typical) (dBi) -0.760 Antenna Gain(numeric) 0.839 Power density at prediction frequency (mW/cm²) 0.341 MPE limit for uncontrolled exposure at prediction frequency (mW/cm²) 0.558 2-1. PCS BAND Max Peak output Power at antenna input terminal (dBm) 30.08000 Max Peak output Power at antenna input terminal (mW) 1018.59139 Prediction distance (cm) 20.00000 Prediction frequency (MHz) 1850.20000 Antenna Gain(typical) (dBi) -1.25000 Antenna Gain(numeric) 0.74989 Power density at prediction frequency (mW/cm²) 0.15196 MPE limit for uncontrolled exposure at prediction frequency (mW/cm²) 1.00000 3. RESULTS The power density level at 20 cm is 0.341 mW/cm², which is below the uncontrolled exposure limit of 0.558 mW/cm² at 836.6 MHz for Cellular band. The power density level at 20 cm is 0.15196 mW/cm², which is below the uncontrolled exposure limit of 1.0 mW/cm² at 1850.2 MHz for PCS band.

FCC ID: VXMSTANDALONETCD HCT CO., LTD SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8565 FAX : + 82 31 639 8525 www.hct.co.kr 1 of 2 RF Exposure Statement 1. LIMITS According to §1.1310 and §2.1091 RF exposure is calculated. (B) Limits for General Population/Uncontrolled Exposures Frequency range (MHz) Electric field Strength (V/m) Magnetic field Strength (A/m) Power density (mW/cm²) Averaging time (minutes) 0.3 - 1.34....................................... 1.34 - 30....................................... 30 - 300....................................... 300 - 1500.................................... 1500 - 100.000................................. 614 824/f 27.5 ............... ............... 1.63 2.19/f 0.073 ............... ............... *(100) *(180/ f²) 0.2 f/1500 1.0 30 30 30 30 30 F = frequency in MHz * = Plane-wave equivalent power density 2. MAXIMUM PERMISSIBLE EXPOSURE Prediction Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S = PG/4πR² S = Power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna FCC ID: VXMSTANDALONETCD HCT CO., LTD SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8565 FAX : + 82 31 639 8525 www.hct.co.kr 2 of 2 2-1. CELLUAR BAND Max Peak output Power at antenna input terminal (dBm) 33.100 Max Peak output Power at antenna input terminal (mW) 2041.738 Prediction distance (cm) 20.000 Prediction frequency (MHz) 836.600 Antenna Gain(typical) (dBi) -0.760 Antenna Gain(numeric) 0.839 Power density at prediction frequency (mW/cm²) 0.341 MPE limit for uncontrolled exposure at prediction frequency (mW/cm²) 0.558 2-1. PCS BAND Max Peak output Power at antenna input terminal (dBm) 30.08000 Max Peak output Power at antenna input terminal (mW) 1018.59139 Prediction distance (cm) 20.00000 Prediction frequency (MHz) 1850.20000 Antenna Gain(typical) (dBi) -1.25000 Antenna Gain(numeric) 0.74989 Power density at prediction frequency (mW/cm²) 0.15196 MPE limit for uncontrolled exposure at prediction frequency (mW/cm²) 1.00000 3. RESULTS The power density level at 20 cm is 0.341 mW/cm², which is below the uncontrolled exposure limit of 0.558 mW/cm² at 836.6 MHz for Cellular band. The power density level at 20 cm is 0.15196 mW/cm², which is below the uncontrolled exposure limit of 1.0 mW/cm² at 1850.2 MHz for PCS band.

HCT CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL: +82 31 639 8565 FAX : +82 31 639 8525 www.hct.co.kr CERTIFICATE OF COMPLIANCE FCC Part 24 & 22 Certification EUT Type: TCD Tx Frequency: 824.20 – 848.80 MHz (GSM850) / 1 850.20 – 1 909.80 MHz (GSM1900) Rx Frequency: 869.20 – 893.80 MHz (GSM850) / 1 930.20 – 1 989.80 MHz (GSM1900) Max. RF Output Power: 1.393 W ERP GSM850 (31.44 dBm) / 0.760 W EIRP GSM1900 (28.81 dBm) Trade Name/Model(s): Avantis / Stand Alone TCD FCC Classification: PCS Licensed Transmitter worn on body (PCT) Application Type: Certification FCC Rule Part(s): §22, §24, §2 Antenna Specifications: Manufacturer: Auden Techno Corp. MODEL: CP-1210DS-200, Gain: CDMA: - 0.76 dBi / PCS: -1.25 dBi (Length= 105 mm) Emission Designator(s): 300KGXW (GSM) This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in 2.947. ∮ I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. HCT CO., LTD. Certifies that no party to this application has been denied FCC benefits pursuant to section 5301 of the Anti- Drug Abuse Act of 1998, 21 U.S. C. 853(a) This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd. Avantis Co., Ltd. Room #502, Seoil building, 1543-8, Seocho-dong, Seocho-gu, Seoul, Korea 137-872 Date of Issue: December 2, 2008 Test Report No.: HCT-SAR08-0101 Test Site: HCT CO., LTD. FCC ID : APPLICANT : VXMSTANDALONETCD Avantis Co., Ltd. Report No.: HCT-SAR08-0101 FCC ID: VXMSTANDALONETCD DATE: January 02, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr 2 of 54 Table of Contents 1. SCOPE -------------------------------------------------------------------------- 2. INTRODUCTION ------------------------------------------------------------- 3. DESCRIPTION OF TESTS------------------------------------------------- 4. EFFECTIVE RADIATED POWER OUTPUT -------------------------- 5. EQUIVALENT ISOTROPIC RADIATED POWER--------------------- 6. RADIATED MEASUREMENTS------------------------------------------- 7. FREQUENCY STABILITY ------------------------------------------------- 8. LIST OF TEST EQUIPMENT -------------------------------------------- 9. SAMPLE CALCULATIONS ---------------------------------------------- 10. CONCLUSION---------------------------------------------------------------- 11. TEST PLOT-------------------------------------------------------------------- 3 4 5 13 14 15 21 23 24 25 26 Report No.: HCT-SAR08-0101 FCC ID: VXMSTANDALONETCD DATE: January 02, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr 3 of 54 MEASUREMENT REPORT 1. SCOPE Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. General Information • EUT Type: TCD • Trade Name: Avantis • Model(s): Stand Alone TCD • Serial Number(s): #1 • Tx Frequency: 824.20 – 848.80 MHz (GSM850) 1 850.20 – 1 909.80 MHz (GSM1900) • Rx Frequency: 869.20 – 893.80 MHz (GSM850) 1 930.20 – 1 989.80 MHz (GSM1900) • Application Type: Certification • FCC Classification: PCS Licensed Transmitter worn on body (PCT) • FCC Rule Part(s): §22, §24, §2 • Modulation(s): GSM • Αntenna Type: Intenna • Date(s) of Tests: December 27, 2007 ~ December 28, 2007 • Place of Tests: HCT CO., LTD. Icheon, Kyounki-Do, KOREA • Report Serial No.: HCT-SAR08-0101 Company Name: Avantis Co., Ltd. Address: Room #502, Seoil building, 1543-8, Seocho-dong, Seocho-gu, Seoul, Korea 137-872 Tel. / Fax : 82-2-3474-7205 / 82-2-3474-720 Report No.: HCT-SAR08-0101 FCC ID: VXMSTANDALONETCD DATE: January 02, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr 4 of 54 2. INTRODUCTION EUT DESCRIPTION The Avantis Co., Ltd. TCD. Its basic purpose is used for communications. It transmits from 824.20 – 848.80 MHz (GSM850), 1 850.20 – 1 909.80 MHz (GSM1900) and receives from 869.20 – 893.80MHz (GSM850), 1 930.20 – 1 989.80 MHz (GSM1900)). The RF power is rated at GSM850 (1.393 W), GSM1900 (0.760 W). MEASURING INSTRUMENT CALIBRATION The measuring equipment, which was utilized in performing the tests documented herein, has been calibrated in accordance with the manufacturer's recommendations for utilizing calibration equipment, which is traceable to recognized national standards. Test Facility The open area test site and conducted measurement facility used to collect the radiated data are located at the 254-1, Maekok-Ri, Hobup-Myun, Ichon-Si, Kyoungki-Do, 467-701, KOREA. The site is constructed in conformance with the requirements of ANSI C63.4 and CISPR Publication 22. Detailed description of test facility was submitted to the Commission and accepted dated July 6, 2006(Registration Number: 90661) Report No.: HCT-SAR08-0101 FCC ID: VXMSTANDALONETCD DATE: January 02, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr 5 of 54 3. DESCRIPTION OF TESTS 3.1 Conducted RF Power TEST According to FCC §2.1046 (A), for transmitters other than single sideband, independent sideband and controlled carrier radiotelephone, power output shall be measured at the RF output terminals when the transmitter is adjusted in accordanc…

Text truncated - open the document above for the full version.

Report No.: HCT-F08-0101 FCC ID: VXM-STANDALONETDC DATE: January 02, 2008 HCT CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8539 FAX : +82 31 639 8535 www.hct.co.kr 2 / 14 TABLE OF CONTENTS PAGE 1. GENERAL INFORMATION 3 1.1 Product Description.................................................................. 3 1.2 Related submittal(s)/Grant(s)..................................................... . 3 1.3 Tested System Details............................................................... 4 1.4 Cable Description..................................................................... 4 1.5 Noise Suppression Parts on Cable. (I/O CABLE) ........................... 5 1.6 Test Methodology..................................................................... 6 1.7 Test Facility............................................................................ 6 2. SYSTEM TEST CONFIGURATION..................................................... 7 2.1 Configuration of Tested System................................................... 7 3. PRELIMINARY TEST....................................................................... 8 3.1 Conducted Emission Test......................................................... 8 3.2 Radiated Emission Test............................................................ 8 4. CONDUCTED AND RADIATED EMISSION TEST SUMMARY.................. 9 4.1 Conducted Emission Test.......................................................... 9 4.2 Radiated Emission Test............................................................. 10 4.3 Test Setup Photos.................................................................... 11 4.3.1 Radiated Emission.......................................................... 11 5. FIELD STRENGTH CALCULATION...................................................... 12 6. Test Equipment................................................................................ 13 7. Conclusion...................................................................................... 14 Report No.: HCT-F08-0101 FCC ID: VXM-STANDALONETDC DATE: January 02, 2008 HCT CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8539 FAX : +82 31 639 8535 www.hct.co.kr 3 / 14 1. GENERAL INFORMATION 1.1 Product Description The Avantis co., Ltd. Stand Alone TCD TCD. Its basic purpose is used for communications. It transmits from GSM850 (824.20 MHz – 848.80 MHz), GSM1900 (1850.20 MHz – 1909.80 MHz) and receives from GSM850 (869.20 MHz – 893.80 MHz), GSM1900 (1930.20 MHz – 1989.80 MHz). MODEL Stand Alone TCD FCC ID VXM-STANDALONETDC EUT Type TCD TX Frequency 824.20 MHz – 848.80 MHz (GSM850) / 1850.20 MHz – 1909.80 MHz (GSM1900 ) RX Frequency 869.20 MHz – 893.80 MHz (GSM850) / 1930.20 MHz – 1989.80 MHz (GSM 1900 ) 1.2 Related Submittal(s) / Grant(s) ORIGINAL SUBMITTAL ONLY Report No.: HCT-F08-0101 FCC ID: VXM-STANDALONETDC DATE: January 02, 2008 HCT CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8539 FAX : +82 31 639 8535 www.hct.co.kr 4 / 14 1.3 Tested System Details All equipment, descriptions used in the tested system (including inserted cards) are: DEVICE TYPE MANUFACTURER MODEL NUMBER/ PART NUMBER FCC ID / DoC CONNECTED TO TCD Avantis co., Ltd. Stand Alone TCD VXM-STANDALONETDC Notebook Antenna - - - EUT Notebook Toshiba PSMA2K-01D002 DoC EUT Notebook Adaptor DELTA SADP-65KB B - Notebook Mouse DELL MO56U0 DoC Notebook 1.4 Cable Description Product Name Port Power Cord Shielded (Y/N) I/O Cable Shielded (Y/N) Length (M) DC In N N/A (P)1.45 RJ 11 N/A N (D)1.3 RJ 45 N/A N (D)1.8 RS 232 N/A N (D)0.7 RS 485 N/A N (D)1.45 Serial N/A Y (D)1.8 TCD Antenna N/A Y (D)0.55 Notebook DC In N N/A (P)1.8 The marked "(D)" means the Data Cable and "(P)" means the Power Cable. Report No.: HCT-F08-0101 FCC ID: VXM-STANDALONETDC DATE: January 02, 2008 HCT CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8539 FAX : +82 31 639 8535 www.hct.co.kr 5 / 14 1.5 Noise Suppression Parts on Cable. (I/O CABLE) Product Name Port Ferrite Bead (Y/N) Location Metal Hood (Y/N) Location RJ 45 Y EUT End - - RS 232 Y EUT End - - RS 485 Y EUT End - - Antenna N - Y EUT End TCD RJ 11 N - N - Report No.: HCT-F08-0101 FCC ID: VXM-STANDALONETDC DATE: January 02, 2008 HCT CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8539 FAX : +82 31 639 8535 www.hct.co.kr 6 / 14 1.6 Test Methodology Both conducted and radiated testing were performed according to the procedures in ANSI C63.4/2003. Radiated testing was performed at an antenna to EUT distance of 3 meters. 1.7 Test Facility The open area test site and conducted measurement facility used to collect the radiated data are located at the 254-1,Maekok-Ri, Hobup-Myun, Ichon-Si, Kyoungki-Do, 467-701, KOREA. The site is constructed in conformance with the requirements of ANSI C63.4 and CISPR Publication 22. Detailed description of test facility was submitted to the Commission and accepted dated July 6, 2006(Registration Number: 90661) Report No.: HCT-F08-0101 FCC ID: VXM-STANDALONETDC DATE: January 02, 2008 HCT CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8539 FAX : +82 31 639 8535 www.hct.co.kr 7 / 14 2.SYSTEM TEST CONFIGURATION 2.1 Configuration of Test system Line Conducted Test : EUT was connected to LISN, all other supporting equipment were Connected to another LISN. Preliminary Power line Conducted Emission tests were performed by using the procedure in ANSI C63.4/2003 7.2.3 to determine the worst operating conditions. Radiated Emission Test : Preliminary Radiated Emission tests were performed by using the procedure in ANSI C63.4/2003 8.3.1.1 to determine the worst operating condition. Final Radiated Emission tests were performed at 3 meter open area test site. [Configuration of Tested System] Non-conducted table Battery EUT Antenna Connec…

Text truncated - open the document above for the full version.

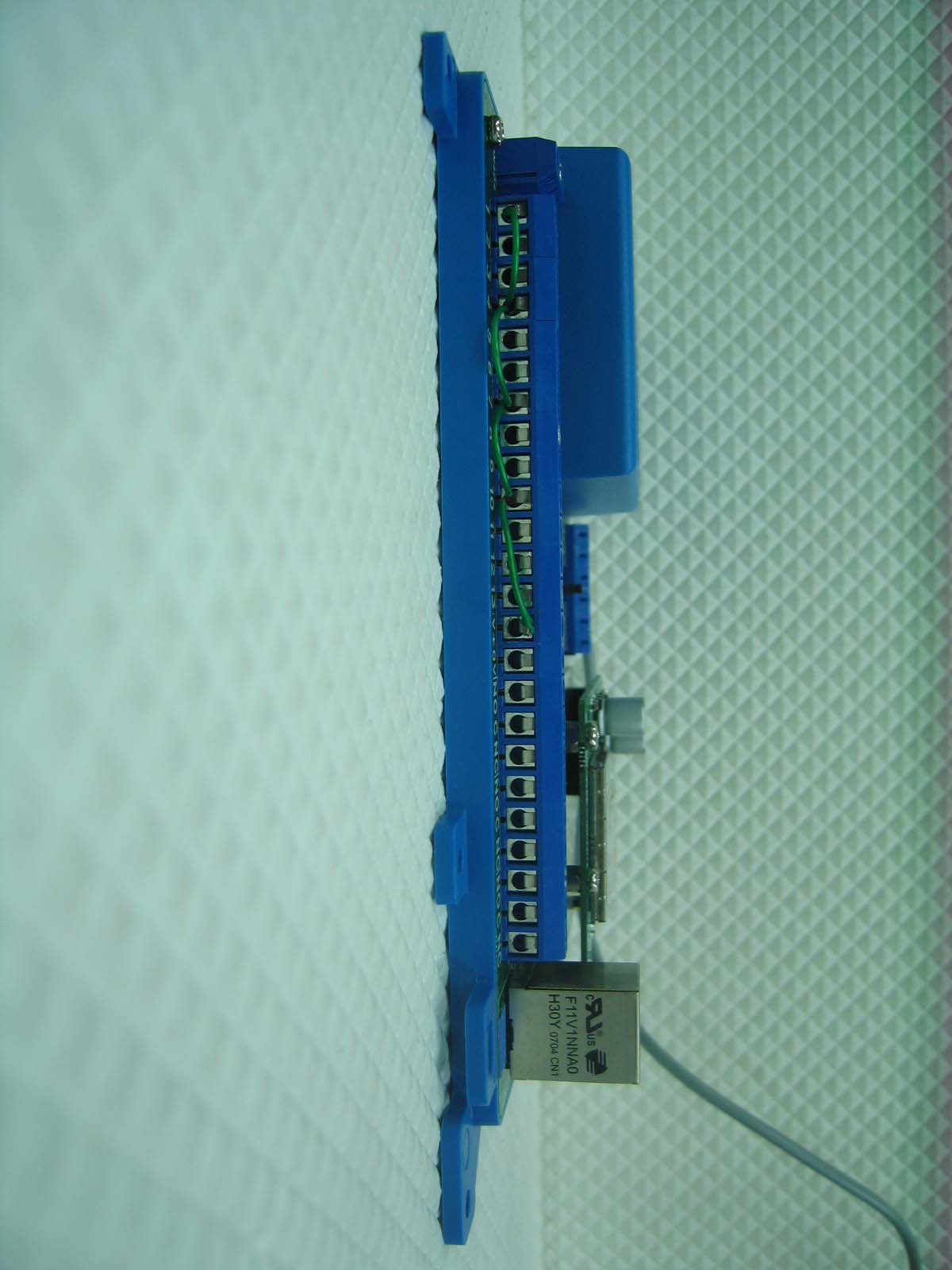

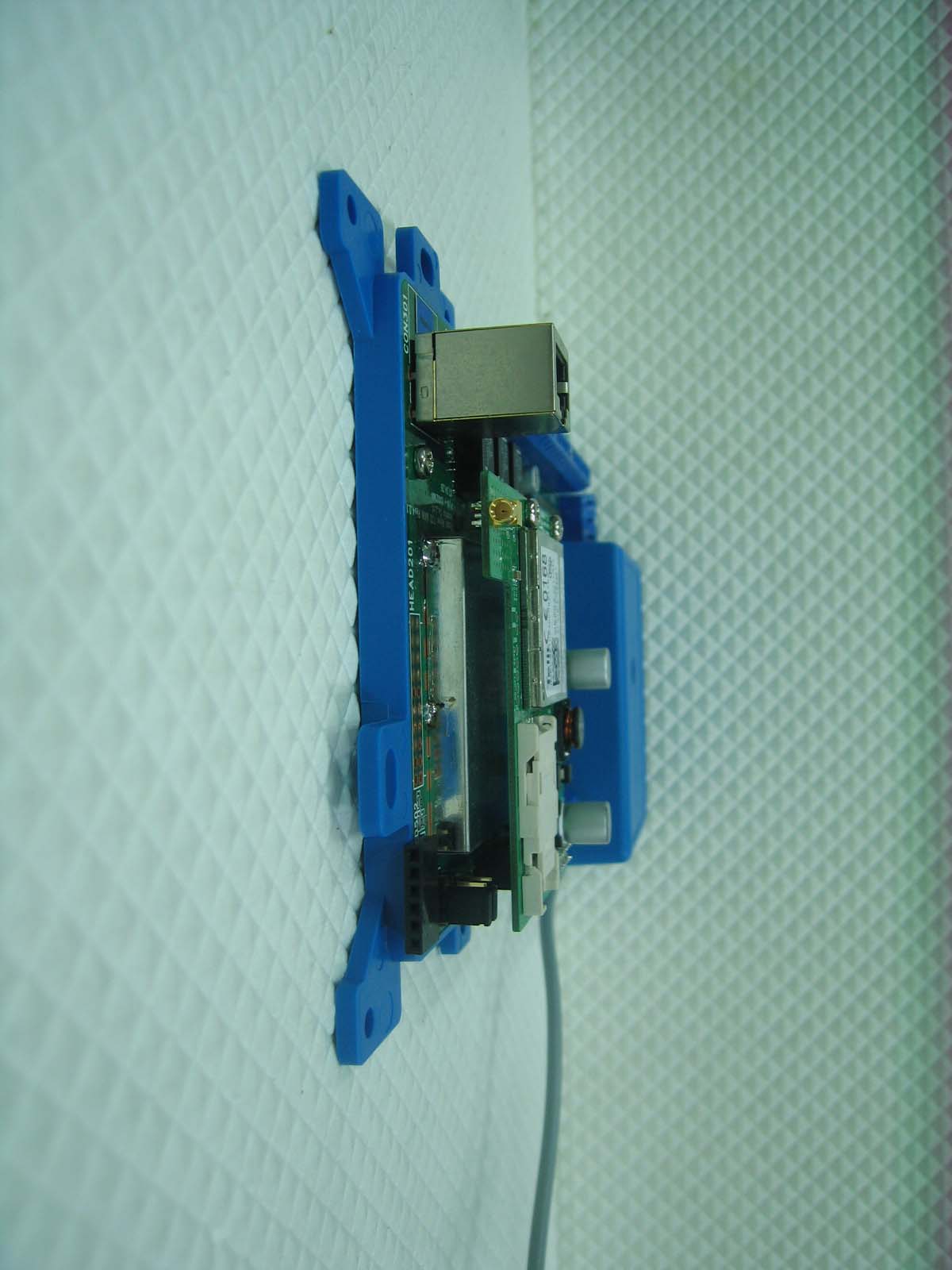

Report No.: HCT-SAR08-0101 FCC ID: VXMSTANDALONETCD DATE: January 02, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr １ of 5 F. TEST SETUP PHOTOGRAPHS Report No.: HCT-SAR08-0101 FCC ID: VXMSTANDALONETCD DATE: January 02, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr ２ of 5 Report No.: HCT-SAR08-0101 FCC ID: VXMSTANDALONETCD DATE: January 02, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr ３ of 5 Report No.: HCT-SAR08-0101 FCC ID: VXMSTANDALONETCD DATE: January 02, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr ４ of 5 Report No.: HCT-SAR08-0101 FCC ID: VXMSTANDALONETCD DATE: January 02, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr ５ of 5
