VXY70002Modular Minibar Status Transmitter

AURMANET Sarl
Modular Minibar Status Transmitter - FCC ID VXY70002 - AURMANET Sarl
Click to zoom

Application Details

Equipment Class
DSS - Part 15 Spread Spectrum Transmitter
Date of Grant
Apr 09, 2008
Application Purpose
Original Equipment
Date of Application
Apr 08, 2008
Equipment Note
Modular Minibar Status Transmitter
Frequency Range
903.50000000 - 927.50000000
Company
AURMANET Sarl
Country
France (European Territory)

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

UCF VM 8x9 FCC ID: VXY 70002 Aurmanet- 4 Impasse de la Croix Blanche - 95370 Montigny les Cormeilles - France Tel : + 33 (0) 1 39 97 09 65 - Fax : +33 (0) 1 39 97 64 49 -Web : http:/ /www.aurmanet.com- E-mail: [email protected] Sarl au capital de 20 000 € -Siret : 488 959 115 00012 - APE 518J - TVA CEE FR 95488 959 115 USER MANUAL , UCF VM 8x9 IMPORTANT: THE ABOVE MODELS ARE TO BE INSTALLED ONLY BY AURMANET AUTHORIZED REPRESENTATIVES FOR INSTALLATION CONTACT AURMANET AT: 4 Impasse de la croix blanche 95370 CORMEILLE EN PARISIS +33 1 39 97 09 65 attn : Mr Jean-claude Tillet E-mail : [email protected] UCF VM 8x9 FCC ID: VXY 70002 Aurmanet- 4 Impasse de la Croix Blanche - 95370 Montigny les Cormeilles - France Tel : + 33 (0) 1 39 97 09 65 - Fax : +33 (0) 1 39 97 64 49 -Web : http:/ /www.aurmanet.com- E-mail: [email protected] Sarl au capital de 20 000 € -Siret : 488 959 115 00012 - APE 518J - TVA CEE FR 95488 959 115 IMPORTANT SAFETY INSTRUCTIONS Read all instructions before using this appliance. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference, and must accept any interference received, including interference that may cause undesired operation. Warnings: (a) Conditions to Satisfy Modular Transmitter Approval This device is intended only for use by OEM integrators under the following 3 conditions: 1) The antenna must be installed such that 20 cm is maintained between the antenna and the end user for all installations. 2) The transmitter module may not be co-located with any other transmitter or antenna. 3) The Module is approved using the FCC ‘unlicensed modular transmitter approval’ method. Therefore the module must only be used with the originally approved antennas. As long as the 3 conditions above are met, further transmitter testing will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements with this module installed (for example, digital device emissions, PC peripheral requirements, etc.). IMPORTANT NOTE: In the event that any of these conditions can NOT be met (for example certain laptop configurations, co-location with another transmitter, or use of a different type antenna), then the FCC authorization for the module is no longer considered valid and the FCC ID can NOT be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. (b) Suggested End Product Labeling This transmitter module is authorized only for use in devices where the antenna may be installed in such a way that 20 cm may be maintained between the antenna and the users (for example access points, routers, wireless ASDL modems, and similar equipment). The final end product must be labeled in a visible area on the exterior of the enclosure with the following or similar text: "Contains TX FCC ID: VXY 70002". UCF VM 8x9 FCC ID: VXY 70002 Aurmanet- 4 Impasse de la Croix Blanche - 95370 Montigny les Cormeilles - France Tel : + 33 (0) 1 39 97 09 65 - Fax : +33 (0) 1 39 97 64 49 -Web : http:/ /www.aurmanet.com- E-mail: [email protected] Sarl au capital de 20 000 € -Siret : 488 959 115 00012 - APE 518J - TVA CEE FR 95488 959 115 (c) FCC & IC Information to Consumers The user manual for the consumer must contain the statements required by the following FCC and IC regulations: 47 C.F.R. 15.19(a)(3), 15.21, 15.101 and RSS-Gen Issue 2 dated June 2007, Sections 7.1.4 and 7.1.5. (d) RF Exposure Statements That Must be Included in the Final Devices Users Manual The user manual for consumers must include the following information in a prominent location: "IMPORTANT NOTE: To comply with FCC RF safety exposure limits, the antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter." (e) Additional Information That Must be Provided to OEM Integrators The end user should NOT be provided any instructions on how to remove or install the modular transmitter. Installation: The UCF can be installed inside the minibar or inside a wooden cabinet. - 4 stainless screws are needed to fix the main part on the top or on the side of the fridge or of the cabinet. - 2 stainless screws are needed to fix the latch to the door of the fridge or of the cabinet UCF VM 8x9 FCC ID: VXY 70002 Aurmanet- 4 Impasse de la Croix Blanche - 95370 Montigny les Cormeilles - France Tel : + 33 (0) 1 39 97 09 65 - Fax : +33 (0) 1 39 97 64 49 -Web : http:/ /www.aurmanet.com- E-mail: [email protected] Sarl au capital de 20 000 € -Siret : 488 959 115 00012 - APE 518J - TVA CEE FR 95488 959 115 The device must be powered by a 12 VDC – 60 mA power supply complying with the safety and FCC rules. TECH. PARAMETERS: Voltage input: 12 VDC Current power input:: 60mA / 0.7 Watt Radio Frequency Band: 902-927 Mhz WARRANTY INFORMATION The manufacturer provides warranty in accordance with the legislation of the customer's own country of residence, with a minimum of 1 year (Germany: 2 years), starting from the date on which the appliance is sold to the end user. The warranty only covers defects in material or workmanship. The repairs under warranty may only be carried out by an authorized service centre. When making a claim under the warranty, the original bill of purchase (with purchase date) must be submitted. The warranty will not apply in cases of: - Incorrect use, e.g. overloading of the appliance, use of non…

Text truncated - open the document above for the full version.

Cover Letter(s)

Aurmanet 4 Impasse de la Croix Blanche 95370 Montigny les Cormeilles France Tel : + 33 (0) 1 39 97 09 65 Fax : +33 (0) 1 39 97 64 49 Web : http://www.aurmanet.com E-mail: [email protected] Sarl au capital de 20 000 € Siret : 488 959 115 00012 APE 518J TVA CEE FR 95488 959 115 Date: February 14 th , 2008 Attn.: Reviewing Engineer Federal Communications Commission RE: Modular Approval Request for UCF VM 8x9, FCC ID: VXY 70002 Dear Sir, With regards to our application for equipment authorization of the UCF VM 8x9, FCC ID: VXY 70002 listed below are the modular approval requirements with which the EUT complies: 1. The modular transmitter has its own RF shielding. 2. The modular transmitter has buffered data inputs/outputs. 3. The modular transmitter has its own power supply regulator. 4. The antenna is an integral printed circuit and cannot be changed by the user. 5. The modular transmitter was tested in a stand alone configuration, i.e., outside of the host SVM-7-1 and complies with the AC line conducted requirements. 6. The modular transmitter will be labeled with its own FCC ID. Also, the OEM host will be informed to display a label referring to the enclosed module “Contains FCC ID: VXY 70002” 7. The modular transmitter complies with §15.247. Installation and other requirements are presented in the user’s guide to allow the unit to be installed correctly. 8. The modular transmitter complies with the RF exposure requirements as specified in §15.247 (refer to MPE calculation exhibit). Sincerely Jean-claude Tillet

Cover Letter(s)

Aurmanet 4 Impasse de la Croix Blanche 95370 Montigny les Cormeilles France Tel : + 33 (0) 1 39 97 09 65 Fax : +33 (0) 1 39 97 64 49 Web : http://www.aurmanet.com E-mail: [email protected] Sarl au capital de 20 000 € Siret : 488 959 115 00012 APE 518J TVA CEE FR 95488 959 115 Date: February 14 th , 2008 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite Cl 10 McLean,VA 22101 To Whom It May Concern: QualiTech (ECI Telecom) Laboratory is authorized to act on our behalf, until otherwise notified, for applications to American Telecommunications Certification Body, Inc. (ATCB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b) to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you. Regards, Jean-claude Tillet

Cover Letter(s)

Aurmanet 4 Impasse de la Croix Blanche 95370 Montigny les Cormeilles France Tel : + 33 (0) 1 39 97 09 65 Fax : +33 (0) 1 39 97 64 49 Web : http://www.aurmanet.com E-mail: [email protected] Sarl au capital de 20 000 € Siret : 488 959 115 00012 APE 518J TVA CEE FR 95488 959 115 Date: February 14 th , 2008 Attn.: Reviewing Engineer Federal Communications Commission 7435 Oakland Mills Road, Columbia, MD 21046 RE: CONFIDENTIALITY REQUEST FOR UCF VM 8x9 FCC ID: VXY 70002 To whom it May Concern: This letter serves as an official request for confidentiality under the FCC Rule Section 0.459. We have requested that the schematic diagrams, technical specifications and Block diagram required to be submitted with this application be withheld from public review. The reason for this request is that these documents are company proprietary information that should never get into the possession of competitors, which would be harmful for our business. Do not hesitate to contact me if you have any additional question. Thank you very much. Jean-claude Tillet

Cover Letter(s)

UCF VM 8x9 FCC ID: VXY 70002 Aurmanet- 4 Impasse de la Croix Blanche - 95370 Montigny les Cormeilles - France Tel : + 33 (0) 1 39 97 09 65 - Fax : +33 (0) 1 39 97 64 49 -Web : http:/ /www.aurmanet.com- E-mail: [email protected] Sarl au capital de 20 000 € -Siret : 488 959 115 00012 - APE 518J - TVA CEE FR 95488 959 115 Antenna information The Antenna is designed on the printed circuit board and is permanently attached to the RF circuit. Top copper layer and silkscreen layer (scale:2) Bottom copper Layer (scale:2)

External Photos

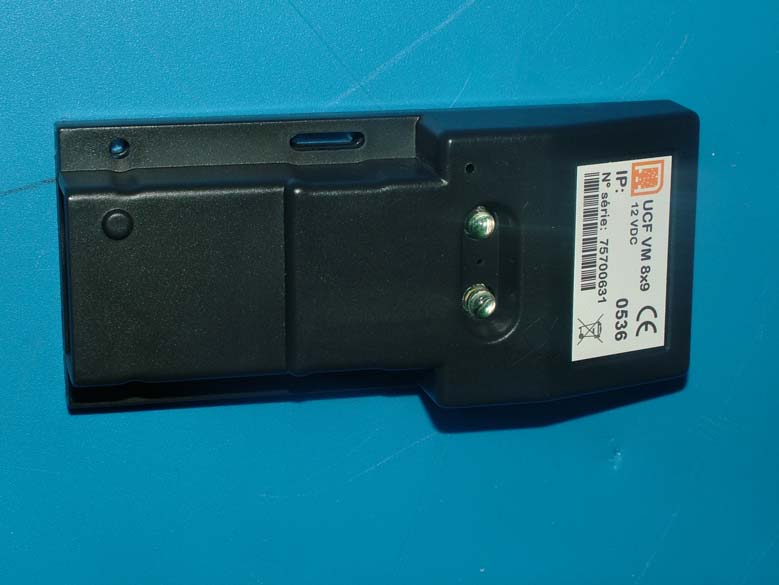

Top and Side View Bottom and Side View

ID Label/Location Info

34 mm 19 mm 49 mm 6 mm 85 mm 110 mm UCF FCC ID Label Artwork The material used is splash proof, tear resistant and smear proof, usable for indoor and outdoor. Ref J4773 from AVERY DENNISON UCF VM 8x9 12 VDC IP: Serial N°: 75700277 AURMANET FCC ID :VXY70002 0536 UCF VM 8x9 FCC ID: VXY 70002 Aurmanet- 4 Impasse de la Croix Blanche - 95370 Montigny les Cormeilles - France Tel : + 33 (0) 1 39 97 09 65 - Fax : +33 (0) 1 39 97 64 49 -Web : http:/ /www.aurmanet.com- E-mail: [email protected] Sarl au capital de 20 000 € -Siret : 488 959 115 00012 - APE 518J - TVA CEE FR 95488 959 115

Internal Photos

Top View w/ RF Shielding Top View, RF Shielding removed Bottom View

RF Exposure Info

Maximum Permissible exposure (MPE) Reference document: 47 CFR §15.247(i) & §1.1307(b)(1) Test Requirements: According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the commission’s guideline. Limit 1mW/cm2 Calculation Result*: Power Density = 0.0033mW/cm 2 at a sphere of 20cm. The SAR measurement is not required. Pass At the frequency of 900MHz, a sphere of 20cm is in the far field of the antenna, therefore, equation (3) given in OET Bulletin 65 is used to estimate the MPE. 2 4R PG S π = S=power density P=power input to the antenna, 10.52mW G=power gain of the antenna, 1.59 (2dBi) R= distance to the center of the antenna, 20cm This calculation results in an estimation of 0.0033mW/cm 2 at a sphere of 20cm.

Test Report

E E E l l l e e e c c c t t t r r r o o o m m m a a a g g g n n n e e e t t t i i i c c c C C C o o o m m m p p p a a a t t t i i i b b b i i i l l l i i i t t t y y y T T T e e e s s s t t t R R R e e e p p p o o o r r r t t t T T T e e e s s s t t t R R R e e e p p p o o o r r r t t t N N N o o o : : : H H H M M M I I I 2 2 2 6 6 6 1 1 1 1 1 1 0 0 0 7 7 7 Issued on: November 26, 2007 P P P r r r o o o d d d u u u c c c t t t N N N a a a m m m e e e U U U C C C F F F V V V M M M 8 8 8 X X X 9 9 9 T T T e e e s s s t t t e e e d d d A A A c c c c c c o o o r r r d d d i i i n n n g g g t t t o o o F F F C C C C C C 4 4 4 7 7 7 C C C F F F R R R , , , P P P a a a r r r t t t 1 1 1 5 5 5 , , , S S S u u u b b b p p p a a a r r r t t t s s s B B B & & & C C C T T T e e e s s s t t t s s s P P P e e e r r r f f f o o o r r r m m m e e e d d d f f f o o o r r r A A A U U U R R R M M M A A A N N N E E E T T T S S S a a a r r r l l l 4 Impasse de la croix Blanche, Montigny les Cormeilles 95370, France Tel: +33139970965 Q Q Q u u u a a a l l l i i i T T T e e e c c c h h h E E E M M M C C C L L L a a a b b b o o o r r r a a a t t t o o o r r r y y y , , , E E E C C C I I I T T T e e e l l l e e e c c c o o o m m m 30 Hasivim Street, Petah-Tikva, 49517, Israel Tel: 972-3-926 8443 Fax: 972-3-928 7490 1633.01 Test Report: HMI 261107 Date: 26.11.2007 EMC Lab The information contained herein is the property of QualiTech, EMC Lab and is supplied without liability for errors or omissions. The copyright for this document vests in QualiTech, EMC Lab. All rights reserved. This Test Report may not be reproduced, by any method, without the written permission of the QualiTech, EMC Lab. If and when such permission is granted, the report must be reproduced only in the full format. AURMANET Sarl Page 2 of 43 UCF VM 8X9 T T T e e e s s s t t t p p p e e e r r r s s s o o o n n n n n n e e e l l l Tests Performed By: ----------------------------------------- Rami Nataf Report Prepared By: ----------------------------------------- Bina Talkar Report Reviewed By: ----------------------------------------- Y. Zucker QA and Lab. Manager QualiTech EMC Laboratory 1633.01 Test Report: HMI 261107 Date: 26.11.2007 AURMANET Sarl Page 3 of 43 UCF VM 8X9 EMC Lab T T T e e e s s s t t t R R R e e e p p p o o o r r r t t t d d d e e e t t t a a a i i i l l l s s s : : : Issued on: 26.11.2007 A A A s s s s s s e e e s s s s s s m m m e e e n n n t t t i i i n n n f f f o o o r r r m m m a a a t t t i i i o o o n n n : : : This report contains an assessment of the EUT against Electromagnetic Compatibility based upon tests carried out on the samples submitted. The results contained in this report relate only to the items tested. Manufactured products will not necessarily give identical results due to production and measurement tolerances. QualiTech, EMC Lab does not assume responsibility for any conclusion and generalization drawn from the test results with regards to other specimens or samples of type of the equipment represented by test item. The EUT was set up and exercised using the configuration, modes of operation and arrangements defined in this report only. M M M o o o d d d i i i f f f i i i c c c a a a t t t i i i o o o n n n s s s : : : Modifications made to the EUT None. Modifications made to the Test Standard None. Test Report: HMI 261107 Date: 26.11.2007 EMC Lab AURMANET Sarl Page 4 of 43 UCF VM 8X9 S S S u u u m m m m m m a a a r r r y y y o o o f f f C C C o o o m m m p p p l l l i i i a a a n n n c c c e e e S S S t t t a a a t t t u u u s s s Bluetooth: FCC 47 CFR, Part 15, Subparts B & C Test Spec. Clause Test Case Remarks §15.247 (a) (1) (ii) Spectrum Bandwidth of a FHSS system/ Maximum 20dB BW Pass §15.247 (a) (1) Carrier Frequency Separation Pass §15.247 (a) (1)(iii) Number of Hopping Channels Pass §15.247 (a) (1)(iii) Time Occupancy (Dwell Time) Pass §15.247 (b) (1) Maximum Peak Output Power Pass §15.247 (d) Band-Edge compliance of RF Conducted Emission Pass §15.205& Radiated Emission, Restricted Bands Pass §15.247 (d) Spurious Emission Conducted Pass §15.247 (d) Spurious Emission Radiated Pass §15.109 Radiated Emission (receiver) Pass §15.107/207 Power Line Emissions measurements Pass §15.203 Antenna Connector requirement Pass 1633.01 Test Report: HMI 261107 Date: 26.11.2007 AURMANET Sarl Page 5 of 43 UCF VM 8X9 EMC Lab T T T e e e s s s t t t F F F a a a c c c i i i l l l i i i t t t y y y & & & U U U n n n c c c e e e r r r t t t a a a i i i n n n t t t y y y o o o f f f M M M e e e a a a s s s u u u r r r e e e m m m e e e n n n t t t Accreditation/ Registration reference: - A2LA Certificate Number: 1633.01 Test Facility description The tests were performed at the EMC Laboratory, QualiTech Division, ECI Telecom Group Address: 30, Hasivim St., Petah Tikva, Israel. Tel: 972-3-926-8443 3m Anechoic Chamber: The 3m-screened chamber is used in two configurations: the semi-anechoic configuration for Radiated Emission measurements and the full-anechoic configuration for Radiated Immunity tests. Semi Anechoic Configuration: Measurement distance 3m Chamber dimensions 9.5m x 6.5m x 5.2m Antenna height 1 - 4m Shielding Effectiveness Magnetic field ≥80dB at 15 kHz ≥90dB at 100 kHz Electric field >120dB from 1MHz to 1GHz >110dB from 1GHz to 10GHz Absorbing material Ferrite tiles on the walls and ceiling Frankonia hybrid absorbing material in selected positions on the walls Normalized Site Attenuation measured at 5 positions ±3.49dB, 30MHz to 1GHz Transmission Loss measured at 5 positions, at 1.5m height ±3dB, 1GHz to 18GHz Full-Anechoic Configuration: Measurement distance 3m Chamber dimensions 7m x 4m x 3m Antenna height 1.55m at Horizontal & Vertical polarizations Shielding Effectiveness Magnetic field ≥80dB at 15 kHz ≥90dB at 100 kHz Electric field >120dB from 1MHz to 1GHz >110dB from 1GHz to 10GHz Absorbing material Ferrite tiles on the walls and ceiling Frankonia hybrid absorbing material in selected positions on …

Text truncated - open the document above for the full version.

Test Setup Photos

Page 1 of 1 UCF VM 8X9 Photograph 1: Radiated Measurements Photograph 3: Conducted Measurements

Contact Information

Applicant

Jean-Claude TILLET(Mr)
[email protected]+33139970965Fax: +33139976449

Technical Contact

Aurmanet SariJean-Claude Tillet
[email protected]+331-3-997-0965

4 Impasse de la croix Blanche · Montigny les Cormeilles · France

Test Firm

QualiTech EMC Laboratory (ECI Telecom)Yossi Zucker
[email protected]972-3-9266502Fax: 972-3-9266901

Technical Specifications

#Rule PartsFrequency RangePower Output
115C903.5 MHz - 927.5 MHz10.52 mW
Modular Type
Limited Single Modular Approval
Confidentiality
Long Term
Grant Notes
Modular Approval. Power Output listed is Conducted. Approval is limited to OEM installation only. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. OEM integrators and end-users must be provided with transmitter operation conditions for satisfying RF exposure compliance. This grant is valid only when the device is sold to OEM integrators and the OEM integrators are instructed to ensure that the end user has no manual instructions to remove or install the device.
