VYU79006702Transmitter

Funcional Description V7 Information for Homologation November 29, 2007 A) Rough function of the Alcoguard, what is the function of the different switches/LED Alcoguard is a mobile alcohol breath analyzer. Main functions are: - Analyze breath alcohol concentration and pass/fail according to the set limits - Before test, transmit RF signals regarding ready and availability of test - After pass test, transmit RF signal to the car to allow the car start - In addition to the RF signals, indicate status, power and test results through LED’s and buzzer LED description Status LED left (Power) LED Middle (Result) LED right (Status) Description High power Green Low power Yellow Very low power Red Charging Green blink Preheat Off Yellow blink Unit getting to ready for test Abort Red blink Ready Green Approved Green Off BAC<0.1mg/l Approved with warning Yellow Off 0.1<BAC<0.2 Not approved Red Off BAC>0.2 B) How often the Alcoguard transmit Each time the Alcoguard changes state ( from preheat, to ready to user test results) or when the Tx button is pressed. Approximately up to 5 Tx per car start C) Duty cycles 320ms each Tx D) what kind of data is transmitted at what time 5 bits data simulating the KIR push buttons at a time E) Necessary voltages Internal battery 2x AA NiMH @ 1.2V or input voltage 12V with charger, 3V to KIR F) Events within t<30s and t>30s - Preheat state immediately after power on - Ready state after few seconds - After that user has to blow and analysis is done before sending another message. Part number and label information: - Homologation certificate owner: ACS - P/N is the certificate owner’s p/n ACS 79-006702 ( VCC 31201015 ) optional - FCC number xxx79-006702 - CE marking Note: Alcoguard V7 Handset Assembly 79-006702 Complete Alcoguard V7 Kit ( including handset, cradle and power cable ) 79-006700 G) Label Information ACS 79-006702 FCCID: VYU79006702 Owner Manual: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

2007.11.14 Commercial power of Attorney for the approval of low power wireless devices The Company Siemens VDO Automotive AG, Siemensstrasse 12, D-93055 Regensburg, Germany, has been contracted by ACS, ALCOHOL COUNTERMEASURE SYSTEMS CORP, 60 International Boulevard, Toronto, Ontario M9W 6J2, Canada, to obtain “Radio Type Approval” for the following low power wireless devices: Equipment: ACS Alcoguard wit Radio frequency transmitter Model 79-006702 This appointment is valid for a period of 6 months, commencing with the date of this authorization, provided, however, that ACS may revoke this authorization and appointment at any time prior to the six months period upon written notice Siemens VDO Automotive AG. William J Burger Technical Director Alcohol Countermeasure Systems Corp.

m. dudde hochfrequenz-technik Rottland 5a, D-51429 Bergisch-Gladbach DIN EN ISO/IEC 17025 zertifiziert Akkreditiertes Testhaus - Reg.-Nr.: DAT-P-225/96-02 Tel. : +49 22 07 - 96 89 - 0 Fax : +49 22 07 - 96 89 - 20 email: [email protected] www.dudde.com Date 2008-01-31 To: Telefication B.V. Attn: Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: VYU79006702 Dear FCC TCB, Persuant to 47 CFR Section 0.459(a) & (b), ACS Alcohol Countermeasure Systems Corp., 60 International Boulevard, Toronto, Ontario M9W 6J2, Canada hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application for FCC ID: VYU79006702 Alcoguard_Annex No 7_Block diagram_ Alcoguard_Annex No 9_Technical description_ Alcoguard_Annex No 8_Schematics, parts list, layouts and assembly_ Above materials contain secrets, proprietary and technical information, which would customarily be quarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. ACS Alcohol Countermeasure Systems Corp., 60 International Boulevard, Toronto, Ontario M9W 6J2, Canada understands that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. Sincerely, Bergisch Gladbach, 2008-01-31 m. dudde hochfrequenz-technik Manfred Dudde

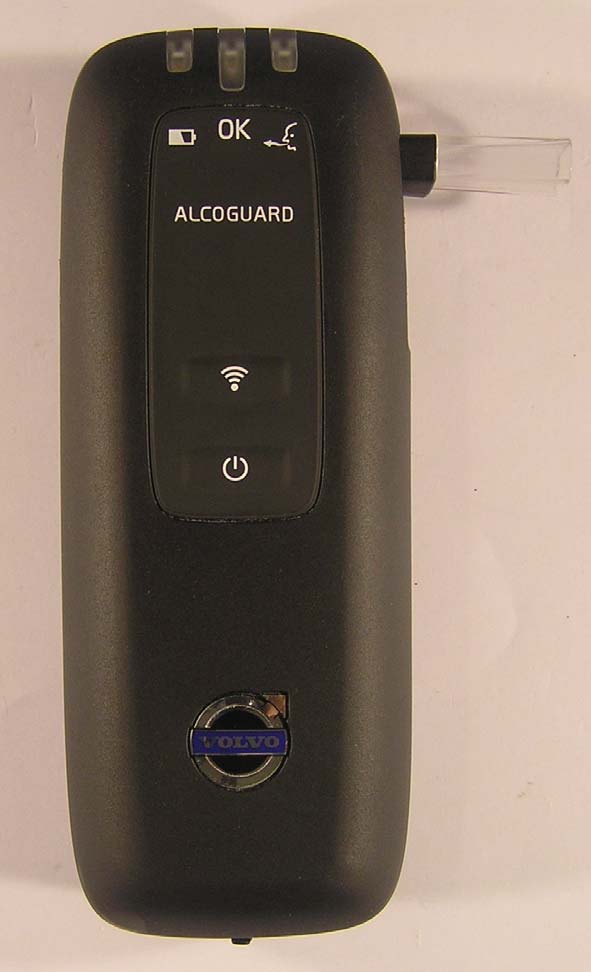

Annex No.1 Page 1 of 2 External photographs of the Equipment Under Test Annex No.1 Page 2 of 2

Annex No.4 Page 1 of 2 Sketch of label location Annex No.4 Page 2 of 2 Label sample

Annex No.2 Page 1 of 2 Internal photographs of the Equipment Under Test Annex No.2 Page 2 of 2

Test report no. 08004576 Page 1 of 22 EUT : ACS 79-006702 FCC ID: VYU79006702 Date of issue: 2008-01-31 m. dudde hochfrequenz-technik Rottland 5a Vers. no. 1.08 D-51429 Bergisch Gladbach Tel.: +49 2207-9689-0 Fax: +49 2207 9689-20 e-mail: [email protected] http://www.dudde.com DAT-P-225/96-02 Test Report acc. to the relevant standard 47 CFR Part 15 C – Intentional Radiators Measurement Procedure: ANSI C63.4 - 1992 relating to ACS Alcohol Countermeasure Systems Corp. Alcoguard ACS 79-006702 Measurement of Radio- Noise Emissions from Low- Voltage Electrical and Electronic Equipment Technical characteristics and test methods for radio equipment in the frequency range 9 kHz to 40 GHz Test report no. 08004576 Page 2 of 22 EUT : ACS 79-006702 FCC ID: VYU79006702 Date of issue: 2008-01-31 m. dudde hochfrequenz-technik Rottland 5a Vers. no. 1.08 D-51429 Bergisch Gladbach Tel.: +49 2207-9689-0 Fax: +49 2207 9689-20 e-mail: [email protected] http://www.dudde.com Manufacturer’s details Manufacturer ACS, Alcohol Countermeasure Systems Corp. Manufacturer’s grantee code VYU 60 International Boulevard Toronto, Ontario M9W 6J2 Canada Phone : +1- 4166193500 Fax : +1- 4166193501 Manufacturer’s address E- Mail: [email protected] 47 CFR Part 15C - Intentional Radiators Relevant standard used ANSI C63.4-2003 Test report prepared by Ralf Trepper m.dudde hochfrequenz-technik (laboratory) Rottland 5a 51429 Bergisch Gladbach Germany Phone: +49 2207 96890 Fax: +49 2207 968920 Technical engineer E-mail: [email protected] Equipment Under Test (EUT) Equipment category Transmitter Trade name ACS Type designation ACS 79-006702 Serial no. 00000088 none Variants Test report no. 08004576 Page 3 of 22 EUT : ACS 79-006702 FCC ID: VYU79006702 Date of issue: 2008-01-31 m. dudde hochfrequenz-technik Rottland 5a Vers. no. 1.08 D-51429 Bergisch Gladbach Tel.: +49 2207-9689-0 Fax: +49 2207 9689-20 e-mail: [email protected] http://www.dudde.com 0 Test result CFR Section Report Chapter Requirements Headline Test result OK 15.203 10.1 Antenna requirement pass fail n.a. 15.231(b) 10.2 Field strength limits (fundamental) pass fail n.a. 15.205(b) 15.209 10.2 Radiated spurious emissions pass fail n.a. 15.231(a) 10.3 Periodic operation characteristics pass fail n.a. 15.231 (c) 10.4 20 dB bandwidth pass fail n.a. Test requirements kept yes no Signature (Technical engineer) ........................................ Ralf Trepper Signature (Manager) ....................................... Manfried Dudde Test report no. 08004576 Page 4 of 22 EUT : ACS 79-006702 FCC ID: VYU79006702 Date of issue: 2008-01-31 m. dudde hochfrequenz-technik Rottland 5a Vers. no. 1.08 D-51429 Bergisch Gladbach Tel.: +49 2207-9689-0 Fax: +49 2207 9689-20 e-mail: [email protected] http://www.dudde.com List of contents Page 0 Test result ............................................................................................................................................... 3 1 Test laboratory........................................................................................................................................ 5 2 Introduction............................................................................................................................................ 5 3 Product................................................................................................................................................... 6 4 Test schedule .......................................................................................................................................... 6 5 Product and measurement documentation................................................................................................ 7 6 Observations and comments.................................................................................................................... 7 7 Summary ................................................................................................................................................ 7 8 Conclusions ........................................................................................................................................... 8 9 Operation description.............................................................................................................................. 9 10.1 Antenna requirement ......................................................................................................................... 10 10.1.1 Regulation ...................................................................................................................................... 10 10.1.2 Result ............................................................................................................................................. 10 10.2 Radiated emissions ........................................................................................................................... 11 10.2.1 Regulation ...................................................................................................................................... 11 10.2.2 Test equipment ............................................................................................................................... 12 10.2.2.1 Test procedures............................................................................................................................ 12 10.2.3 Calculation of field strength limits .................................................................................................. 13 10.2.4 Calculation of average correction factor.......................................................................................... 13 10.2.5 Calculation of the field strengths .................................................................................................... 13 10.2.6 Results......................................................................................................…

Text truncated - open the document above for the full version.

Annex No.3 Page 1 of 1 Occupied bandwidth plot

Annex No.10 Page 1 of 2 Periodic operation characteristics Manually operated transmitter deactivation 15.231 (a1) A manually operated transmitter shall employ a switch that will automatically deactivate the transmitter within not more than 5 seconds of being released Annex No.10 Page 2 of 2 15.231 (a2) A transmitter activated automatically shall cease transmission within 5 seconds after activation.

Annex No.6 Page 1 of 2 Test setup photos Annex No.6 Page 2 of 2
