VZ43607NDoran TPMS Sensor for OTR

 User manual User Manual 1. General Description Tire pressure sensor is composed of RF chip, battery, antenna and Rf matching network. It is applied to monitor tire pressure, temperature and acceleration and the tire data is transmitted via center frequency 434.1MHz. 2. Operation Functions 2.1 Data Accuracy (measure @0°C~70°C)  Temperature:+/-2°C  Pressure: +/-2psi 2.2 TPMS chip  Chip model#: Freescale FXTH87EK116  Working temperature: -40°C~120°C  Operation pressure range: 0 psi ~ 188psi  Working Voltage: 2.3 VDC ~3.6 VDC 2.3 RF chip  Chip model: MAX1479ATE  Max. RF signal strength: 10dBm 2.4 Battery information  Manufacturer: CR2450HRHAB (MnOOLi)  Capacity: 550mAh  Normal voltage: 3.0V  Extreme voltage:3.3V  Operation temperature: -40~125°C  Estimated life span: 9 years 3. Environmental requirement The sensor will be mounted onto the valve stem. For the OTR model, it has the built-in filter which can work with the tire that has the liquid inside.  Temperature requirement: -40°C~125°C for storage -40°C~120°C for operation  Vibration: Refer to ISO16750-3, 4.1.2.9 Test IX — Commercial vehicle, unsprung masses  IP protection: IP6k9k (with sensor screwed onto valve stem)  Codes for Climatic loads: E 4. PMN: Doran TPMS Sensor for OTR  User manual 5. Sensor Installation Instructions 5.1 Program the sensor ID into the receiver To make TPMS products work properly, the sensor ID must be programmed into the receiver for each wheel to be monitored. The following operations are performed on the receiver. a) Press the P button to enter the program mode. Select the wheel position and press S button to enter the sensor ID. b) Input the last three digits of the sensor ID into the receiver by navigating the arrow keys. c) Press the S button for three seconds to confirm the information. If there are more wheels to be programmed, repeat steps a-c in above until all the wheels have the sensor ID entered. Finish the programming process by pressing the P button for 5 seconds to quit the program mode. 5.2 Install the sensor onto the valve stem Once the receiver is prepared and programmed, simply screw the sensor onto the valve stem in each wheel. Be sure to inspect and replace any defective or cracked valve stems before installing the sensors. If replacements are necessary, suggest replacing the valve stems with a Brass or Stainless-Steel stem. It does improve the life of the stem due to premature failure from drying out and cracking. Inferior stems have been found in the market and can cause extensive damage. The sensor should he tightened only by hand not with a tool. Use a firm grip and tighten the sensor. When the sensor seal makes contact with the end of the valve stem only tighten the sensor an additional 1/2 turn. This should be tight enough to seal the sensor and hold it in place. Check for leaks with a soapy solution. The monitor or receiver will begin to receive and recognize the sensors, and it will display the wheel positions as they are received on the screen. 6. Manufacturer information Company name: Doran Manufacturing LLC Company address: 2851 Massachusetts Avenue Cincinnati, OH 45225 USA Federal Communications Commission (FCC) Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generate, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: ● Reorient or relocate the receiving antenna. ● Increase the separation between the equipment and receiver. ● Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ● Consult the dealer or an experienced radio / TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. RF exposure warning This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. The equipment must not be co-located or operating in conjunction with any other antenna or transmitter. Canadian Compliance Statement This device complies with Industry Canada license-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the device Le present appareil est conforme aux CNR d’Industrie Canada applicable aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes: 1. l’appareil ne doit pas produire de brouillage; 2. l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, meme si le brouillage est susceptible d’en compromettre le fonctionnement. IMPORTANT NOTE: Radiation Exposure Statement: This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. Déclaration d'exposition aux radiations: Cet équipement est conforme aux limites d’exposition aux rayonnements IC établies pour un environnement non contrôlé.

DORAN MANUFACTURING, LLC. Declaration of Conformity Federal Communications Commission Authorization and Evaluation Division FCC ID: VZ43607N Please be notified that we, the undersigned, Doran Manufacturing LLC declares that the product which bears the above FCC ID is also compliant with the FCC requirements for sDOC. And the sDOC procedure shall be carried out prior to marketing the device in the US. Sincerely, _________________ Name: KEVIN SHEN Title: VP of Product Development and Quality Email: [email protected] Date: 2022-10-14

Doran Manufacturing LLC Confidentiality Request Letter Federal Communications Commission Authorization and Evaluation Division FCC ID: VZ43607N Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: 1. Block Diagram 2. Schematics 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, _________________ Name: KEVIN SHEN Title: VP of Product Development and Quality Email: [email protected] Date: 2022-10-14

Doran Manufacturing LLC Declaration of Authorization We Name: Doran Manufacturing LLC Address: 2851 Massachusetts Avenue Cincinnati, OH 45225 United States Declare that: Name Representative of agent: Marlin Chen Agent Company name: MRT Technology (Suzhou) Co., Ltd Address: D8 Building, No.2 Tian'edang Rd., Wuzhong Economic Development Zone City: Suzhou Country: China is authorized to apply for Certification of the following product(s): Product: Doran TPMS Sensor for OTR FCC ID: VZ43607N Model No.: 3607 Sincerely, _ ________________ Name: KEVIN SHEN Title: VP of Product Development and Quality Email: [email protected] Date: 2022-10-14

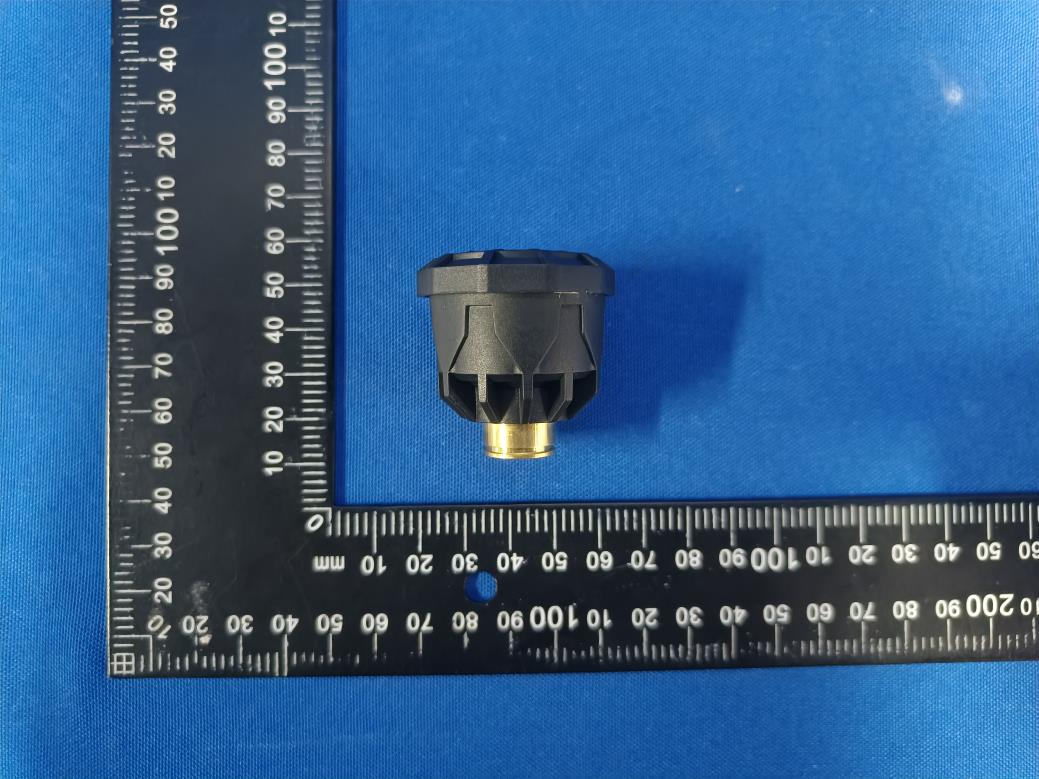

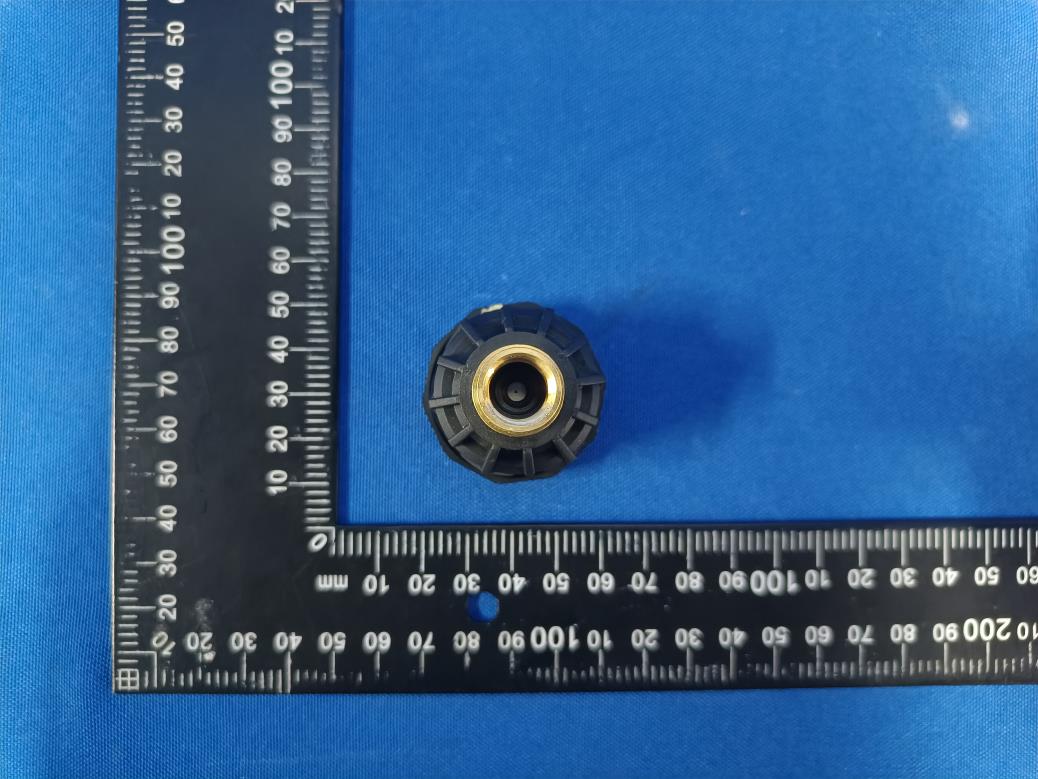

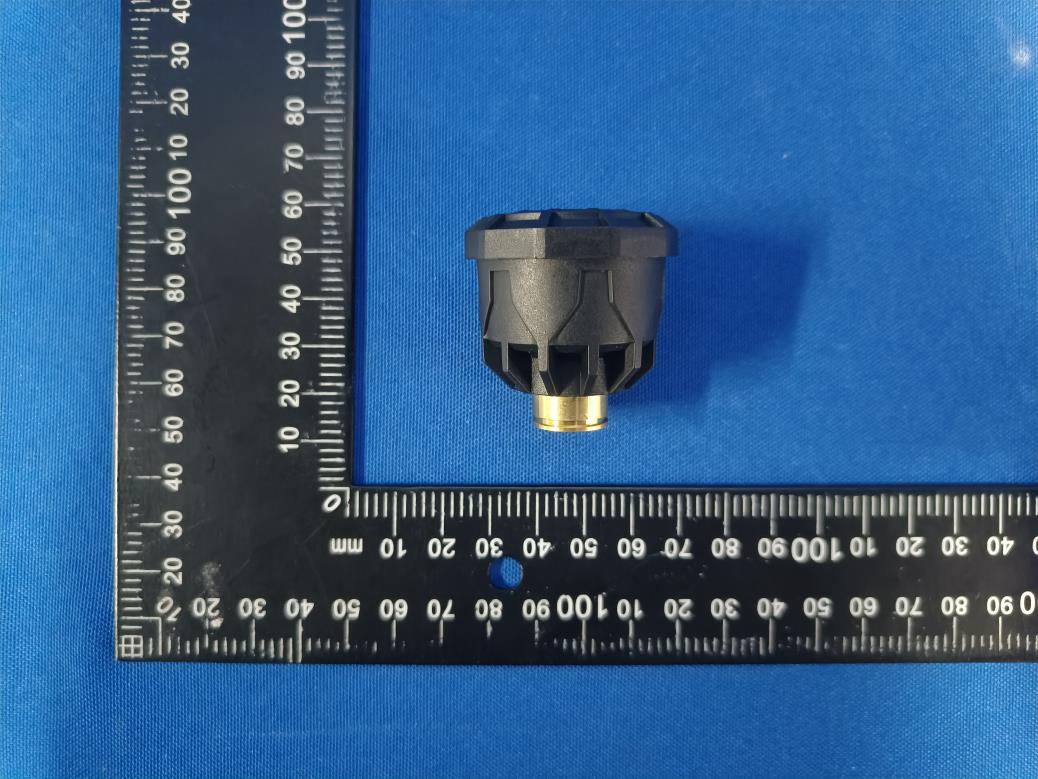

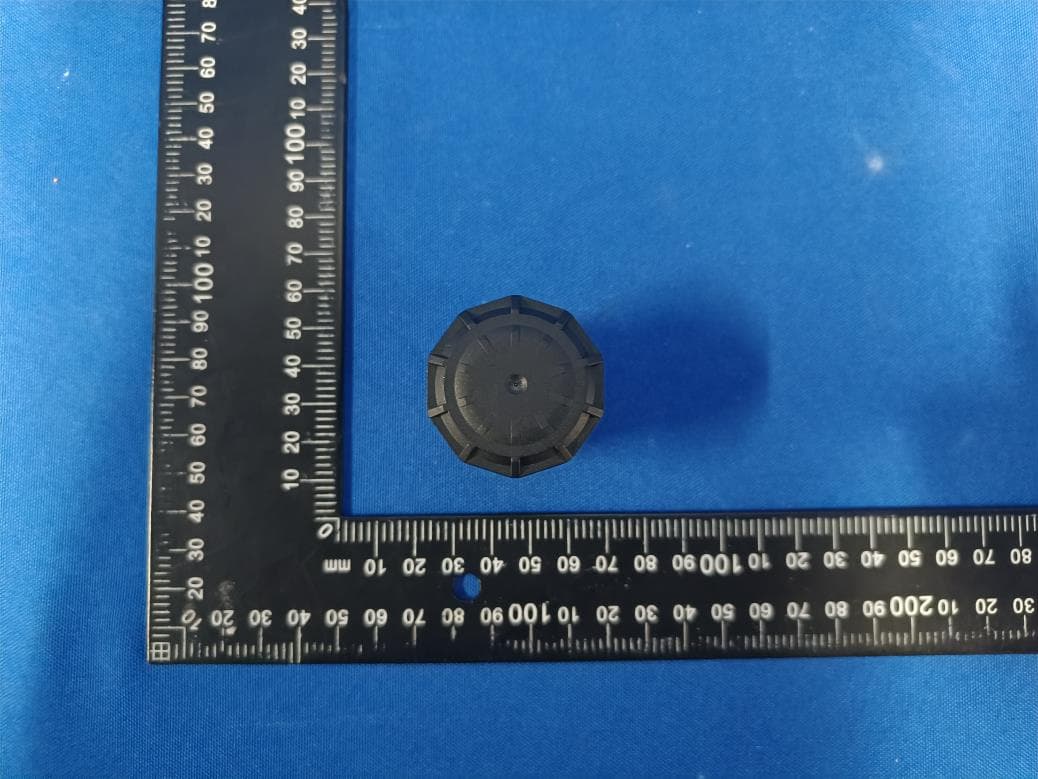

Report No.: 2209RSU008-UE 1 of 3 EUT Photograph (1) EUT Photo (2) EUT Photo Report No.: 2209RSU008-UE 2 of 3 (3) EUT Photo (4) EUT Photo Report No.: 2209RSU008-UE 3 of 3 (5) EUT Photo (6) EUT Photo

Report No.: 2209RSU008-UE 1 of 5 EUT Photograph (1) EUT Photo (2) EUT Photo Report No.: 2209RSU008-UE 2 of 5 (3) EUT Photo (4) EUT Photo Report No.: 2209RSU008-UE 3 of 5 (5) EUT Photo (6) EUT Photo Report No.: 2209RSU008-UE 4 of 5 (7) EUT Photo (8) EUT Photo Report No.: 2209RSU008-UE 5 of 5 (9) EUT Photo (10) EUT Photo

MRT Technology (Suzhou) Co., Ltd Report No.: 2209RSU008-U3 Phone: +86-512-66308358 Report Version: V01 Web: www.mrt-cert.com Issue Date: 2022-10-17 1 of 10 RF Exposure Evaluation Declaration FCC ID: VZ43607N Applicant: Doran Manufacturing LLC Product: Doran TPMS Sensor for OTR Model No.: 3607 Brand Name: Doran FCC Rule Part(s): FCC Part 1.1307 Result: Complies Reviewed By: Sunny Sun Approved By: Robin Wu The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standards through the calibration of the equipment and evaluated measurement uncertainty herein. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 2209RSU008-U3 2 of 10 Revision History Report No. Version Description Issue Date Note 2209RSU008-U3 Rev. 01 Initial Report 2022-10-17 Valid Report No.: 2209RSU008-U3 3 of 10 CONTENTS Description Page 1. General Information ................................................................................................................................ 4 1.1. Applicant ........................................................................................................................................ 4 1.2. Manufacturer ................................................................................................................................. 4 1.3. Testing Facility ............................................................................................................................... 4 1.4. Product Information ....................................................................................................................... 5 1.5. Radio Specification ....................................................................................................................... 5 1.6. Applied Standards ......................................................................................................................... 5 1.7. Device Classification ..................................................................................................................... 5 2. RF Exposure Evaluation ......................................................................................................................... 6 2.1. Limits ............................................................................................................................................. 6 2.1. MPE Exemptions ........................................................................................................................... 7 2.2. Calculated Result ........................................................................................................................ 10 Report No.: 2209RSU008-U3 4 of 10 1. General Information 1.1. Applicant Doran Manufacturing LLC 2851 Massachusetts Avenue Cincinnati, OH 45225 USA 1.2. Manufacturer Doran Manufacturing LLC 2851 Massachusetts Avenue Cincinnati, OH 45225 USA 1.3. Testing Facility Test Site – MRT Suzhou Laboratory Laboratory Location (Suzhou - Wuzhong) D8 Building, No.2 Tian’edang Rd., Wuzhong Economic Development Zone, Suzhou, China Laboratory Location (Suzhou - SIP) 4b Building, Liando U Valley, No.200 Xingpu Rd., Shengpu Town, Suzhou Industrial Park, China Laboratory Accreditations A2LA: 3628.01 CNAS: L10551 FCC: CN1166 ISED: CN0001 VCCI: R-20025 G-20034 C-20020 T-20020 R-20141 G-20134 C-20103 T-20104 Test Site – MRT Shenzhen Laboratory Laboratory Location (Shenzhen) 1G, Building A, Junxiangda Building, Zhongshanyuan Road West, Nanshan District, Shenzhen, China Laboratory Accreditations A2LA: 3628.02 CNAS: L10551 FCC: CN1284 ISED: CN0105 Test Site – MRT Taiwan Laboratory Laboratory Location (Taiwan) No. 38, Fuxing 2nd Rd., Guishan Dist., Taoyuan City 333, Taiwan (R.O.C.) Laboratory Accreditations TAF: L3261-190725 FCC: 291082, TW3261 ISED: TW3261 Report No.: 2209RSU008-U3 5 of 10 1.4. Product Information 1.5. Radio Specification 1.6. Applied Standards According to the specifications of the manufacturer, the EUT must comply with the requirements of the following standards: ⚫ FCC Part 1.1307 1.7. Device Classification According to the user manual, the device is classified as a Fixed Device. So, the RF exposure evaluation requirements of § 1.1307 for fixed device exposure conditions subject to MPE limits. Product Doran TPMS Sensor for OTR Model No. 3607 Brand Name Doran Operating Voltage 3.0Vdc (By internal lithium battery) Operating Temperature -40 ~ 120 o C Remark: The information of EUT was provided by the manufacturer, and the accuracy of the information shall be the responsibility of the manufacturer. Frequency Range 434.10MHz Type of Modulation FSK Antenna Type PCB Antenna Antenna Gain 0 dBi Report No.: 2209RSU008-U3 6 of 10 2. RF Exposure Evaluation 2.1. Limits According to FCC §1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in §1.1307(b) Limits For Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 0.3-3.0 614 1.63 *(100) ≤6 3.0-30 1842/f 4.89/f *(900/f 2 ) <6 30-300 61.4 0.163 1.0 <6 300-1,500 -- -- f/300 <6 1,500-100,000 -- -- 5 <6 (B) Limits for General Population/ Uncontrolled Exposures 0.3-1.34 614 1.63 *(100) <30 1.34-30 824/f 2.19/f *(180/f 2 ) <30 30-300 27.5 0.073 0.2 <30 300-1,500 -- -- f/1500 <30 1,500-100,000 -- -- 1.0 <30 f= frequency in MHz. * = Plane-wave equivalent power density. Report No.: 2209RSU008-U3 7 of 10 2.1. MPE Exemptions For single RF sources (i.e., any single fixed RF source, mobile device, or portable device, as defined in paragraph §1.1307(b)(2) of this section): A single RF source is exempt if: (Option A) The available maximum time-averaged power is no more than 1 mW, regardl…

Text truncated - open the document above for the full version.

MRT Technology (Suzhou) Co., Ltd Report No.: 2209RSU008-U2 Phone: +86-512-66308358 Report Version: V01 Web: www.mrt-cert.com Issue Date: 2022-10-20 1 of 24 FCC ID: VZ43607N Applicant: Doran Manufacturing LLC Product: Doran TPMS Sensor for OTR Model No.: 3607 Brand Name: Doran FCC Classification: FCC Part 15 Security/Remote Control Transmitter (DSC) FCC Rule Part(s): Part 15.231 Result: Complies Test Date: 2022-09-19 ~ 2022-10-20 Reviewed By: Sunny Sun Approved By: Robin Wu RF MEASUREMENT REPORT The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.10-2013. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 2209RSU008-U2 2 of 24 Revision History Report No. Version Description Issue Date Note 2209RSU008-U2 Rev. 01 Initial Report 2022-10-20 Valid Report No.: 2209RSU008-U2 3 of 24 CONTENTS Description Page 1. General Information ................................................................................................................................. 5 1.1. Applicant ........................................................................................................................................ 5 1.2. Manufacturer .................................................................................................................................. 5 1.3. Testing Facility ............................................................................................................................... 5 1.4. Product Information ....................................................................................................................... 6 1.5. Radio Specification ........................................................................................................................ 6 2. Test Configuration .................................................................................................................................... 7 2.1. Test Mode ...................................................................................................................................... 7 2.2. Test System Connection Diagram ................................................................................................. 7 2.3. Applied Standards ......................................................................................................................... 7 2.4. Test Environment Condition ........................................................................................................... 7 3. Antenna Requirements ............................................................................................................................ 8 4. Measuring Instrument .............................................................................................................................. 9 5. Decision Rules and Measurement Uncertainty ................................................................................... 10 5.1. Decision Rules ............................................................................................................................. 10 5.2. Measurement Uncertainty ........................................................................................................... 10 6. Test Result .............................................................................................................................................. 11 6.1. Summary ..................................................................................................................................... 11 6.2. Conducted Emission .................................................................................................................... 12 6.2.1. Test Limit ...................................................................................................................................... 12 6.2.2. Test Setup .................................................................................................................................... 12 6.2.3. Test Result ................................................................................................................................... 12 6.3. Radiated Emissions ..................................................................................................................... 13 6.3.1. Test Limit ...................................................................................................................................... 13 6.3.2. Test Setup .................................................................................................................................... 15 6.3.3. Test Results ................................................................................................................................. 16 6.4. 20dB Bandwidth ........................................................................................................................... 19 6.4.1. Test Limit ...................................................................................................................................... 19 6.4.2. Test Procedure ............................................................................................................................. 19 6.4.3. Test Setting .................................................................................................................................. 19 6.4.4. Test Setup .................................................................................................................................... 19 6.4.5. Test Result ................................................................................................................................... 20 6.5. Transmi…

Text truncated - open the document above for the full version.

• Antenna Specification 1. General information Antenna Gain: 0dB Antenna Type: PCB 2, Antenna Drawing and Dimension Antenna material: FR-4 Antenna thickness: 3mm Antenna copper thickness: 45um Antenna size: As shown in the picture on the right

Report No.: 2209RSU008-UT 1 of 2 RF Test Setup Photograph Description: Radiated Spurious Emissions Test Setup for below 1GHz Description: Radiated Spurious Emissions Test Setup for above 1GHz Report No.: 2209RSU008-UT 2 of 2 Description: RF Test Setup
