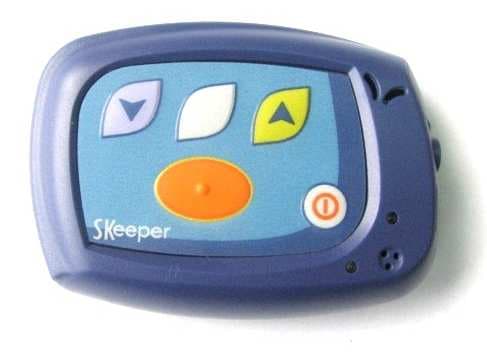

VZU-SKEEPERS-56Wristop Safety Phone

User Manual (S-56) SKeeper™ - User Manual Page 2 TABLE OF CONTENTS INTRODUCTORY INFORMATION.........................4 CONVENTIONS.............................................................................................................4 FCC COMPLIANCE......................................................................................................5 IC (INDUSTRY CANADA) COMPLIANCE...........................................................................5 SAR STATEMENT........................................................................................................6 SAFETY INFORMATION..................................................................................................7 COPYRIGHT NOTICE...................................................................................................11 SKEEPER AND ACCESSORIES DESCRIPTION ..................12 SKEEPER OVERVIEW.................................................................................................12 SKEEPER LAYOUT.....................................................................................................13 CONNECTING THE SKEEPER ACCESSORIES.................................................................14 SKEEPER OPERATION .........................................................17 TURNING THE SKEEPER ON.......................................................................................17 TURNING THE SKEEPER OFF......................................................................................18 SKEEPER INDICATIONS..............................................................................................18 MAKING A SAFETY CALL.............................................................................................20 MAKING A SAFETY CALL WHEN THE SKEEPER IS OFF .................................................21 MAKING A SILENT SAFETY CALL.................................................................................22 MAKING AN OUTGOING CALL......................................................................................23 ENDING A CALL..........................................................................................................24 ADJUSTING THE SPEAKER VOLUME.............................................................................24 MUTE MODE..............................................................................................................25 SENDING A TEXT MESSAGE (SMS).............................................................................26 RECEIVING INCOMING PHONE CALLS..........................................................................27 CHARGING THE BATTERY...........................................................................................29 BATTERY INFORMATION..............................................................................................31 SKEEPER SETUP VIA THE INTERNET.................................33 SKEEPER LOGIN........................................................................................................33 DEVICE SETUP..........................................................................................................35 RESET ALL................................................................................................................36 SPEED DIALING BUTTONS SETTINGS...........................................................................36 SAFETY CALL BUTTON SETTINGS...............................................................................37 SKeeper™ - User Manual Page 3 DEFINING ALERTS......................................................................................................38 PRESETTING AUTHORIZED INCOMING CALLS...............................................................39 ANSWERING MODE....................................................................................................40 INCOMING CALLS INDICATION......................................................................................41 SOUNDS....................................................................................................................42 UPDATE SETTINGS.....................................................................................................42 CARE AND MAINTENANCE ..................................................44 CARING FOR YOUR SKEEPER.....................................................................................44 TROUBLESHOOTING...................................................................................................45 LIMITED WARRANTY...................................................................................................46 SKEEPER SPECIFICATIONS.................................................48 SKeeper™ - User Manual Page 4 INTRODUCTORY INFORMATION CONVENTIONS This guide uses the following conventions to convey instructions and information: A warning calls for attention to a situation that can result in physical harm to the user or equipment. A note calls for attention to an important item in the text. SKeeper™ - User Manual Page 5 FCC COMPLIANCE This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. FCC ID: VZU-SKEEPERS-56 IC (INDUSTRY CANADA) COMPLIANCE Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. IC: 6931A-SKEEPER SKeeper™ - User Manual Page 6 SAR STATEMENT Specific Absorption Rate (SAR) is a value that corresponds to the relative amount of RF energy absorbed by the user of a wireless phone. Skeeper is designed and manufactured so as not to exceed the emission limits for exposure to radio frequency (RF) energy set by international standards. Th…

Text truncated - open the document above for the full version.

r*erotet MedicalSystems February 13, 2008 Output Power during SAR tests We, Aerotel Medical Systems (1998) Ltd. of 5 Hazoref St., Holon 58856, ISMEL declare, under our sole responsibility, that the SAR tesb for the SKeeper were conducted with the device transmitting at its highest power level in all tested frequency bands. Your sincerely, Itsik Ben David xso taanaser --1,/(J .ft Aerotel Medical Systems Ltd. AEROTEL MEDTCAL SYSTEMS (r 998) tID. . 5 HMOREF ST. HOLON 58856 TSRAEL IEL: +972-3-559-3222 . Fy'X: +972-3-559-611 I . www.oerotel.com . [email protected]

r, Aesotel January 30, 2008 Telecommunication Certifi cation Body RFI Global Services Ltd. Pavilion A Ashwood Park Basingstoke Hampshire RG23 8BG United Kingdom Subjectr Cedification Application F CC lD I VZU.S KEEPERS-56 lt is requested that the folfowing information is to be held confidential on behalf ol Aerotel Medical Systems (1998) Ltd ("Aerctel"). FCC Rules Part 0.459 refers. Exhibits Number of filesNumber of Pages per file Schenatic 1 Pafts List2 Block Diagram 1 Aperctional Desciption1 2 1 The reasons forthis request are as follows: 1. The listed docurnenis contain privileged and confidential information, including lrade secfets, know- how, and oiher propietary lech nica I informaiion that has been achleved thfough Aelolel's own iinancial investment. 2. The lisied documents contain confidenual technical information, which has no value to the public. 3. The disclosure ofthe information to unauthorized third parties, and in parliculafto competilors, could resuli in substantial and irreversible competitive and financial damage io Aerotel. 4. Aerotelis regularlytaking measuresto protect such data in orderlo prevent unautho zed disclosure, including provision ofihe information to company employees only on a need{o-know basis; limiiing the provision to thlrd parties only when justified from a commercial or business point of view and only after the receiving third parties have signed a non-dlsclosure agreement. 5. The information is not available to the public and was neverand willnever be disclosed to unauthorized lhird parties, nor will it be made public by Aerotel. 6. The nrate alshould be kept confidentialand not be ava ilable for pu blic djsclosu le for at lea si five (5) vears. which is a reasonable lifetime ofthe trade secrets. Yours sincerely Itsik Ben David L l R&D Managdr Aerotel l4edical Systems (1998) Ltd. AEROTET MED CAL SYSTFMS (l 998) tTD. . 5 HAZOREF ST. HOLON58856|SMEL IFL: +912-3-559-3222 . FAX: +972 3 559 61 1 1' www.oerolel.com . nfo @oerotel.com

S/N: 600001 TM Aerotel Medical Systems (1998) Ltd. Power: 5V ,600mA 600001 FCC ID: VZU-SKEEPERS-56 IC: 6931A-SKEEPER

S/N: 600001 TM Aerotel Medical Systems (1998) Ltd. Power: 5V ,600mA 600001 FCC ID: VZU-SKEEPERS-56

TEST REPORT FROM RFI GLOBAL SERVICES LTD Test of: Aerotel Medical Systems (1998) Ltd. Skeeper S-56 To: OET Bulletin 65 Supplement C: (2001-01) Test Report Serial No: RFI/SARE2/RP72900JD03A Supersedes Test Report Serial No: RFI/SARE1/RP72900JD03A This Test Report Is Issued Under The Authority Of Steve Flooks, Service Leader Radio Performance Group: Checked By: Brian Watson Report Copy No: PDF01 Issue Date: 14 February 2008 Test Dates: 21 January to 22 January 2008 This report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. This report may be copied in full. The results in this report apply only to the sample(s) tested. RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE2/RP72900JD03A Page: 2 of 84 Issue Date: 14 February 2008 Test of: Aerotel Medical Systems (1998) Ltd. Skeeper S-56 To: OET Bulletin 65 Supplement C: (2001-01) This page has been left intentionally blank. RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE2/RP72900JD03A Page: 3 of 84 Issue Date: 14 February 2008 Test of: Aerotel Medical Systems (1998) Ltd. Skeeper S-56 To: OET Bulletin 65 Supplement C: (2001-01) Table of Contents 1. Customer Information ...................................................................................................... 4 2. Equipment Under Test (EUT) ........................................................................................... 5 3. Test Specification, Methods and Procedures ................................................................ 9 4. Deviations from the Test Specification .......................................................................... 9 5. Operation and Configuration of the EUT during Testing ............................................ 10 6. Summary of Test Results............................................................................................... 12 7. Measurements, Examinations and Derived Results.................................................... 13 Appendix 1. Test Equipment Used.................................................................................... 26 Appendix 2. Measurement Methods ................................................................................. 29 Appendix 3. SAR Distribution Scans ................................................................................ 31 Appendix 4. Photographs .................................................................................................. 60 Appendix 5. Validation of System ..................................................................................... 79 Appendix 6. Simulated Tissues......................................................................................... 81 Appendix 7. DASY4 System Details .................................................................................. 82 RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE2/RP72900JD03A Page: 4 of 84 Issue Date: 14 February 2008 Test of: Aerotel Medical Systems (1998) Ltd. Skeeper S-56 To: OET Bulletin 65 Supplement C: (2001-01) 1. Customer Information Company Name: Aerotel Medical Systems (1998) Ltd. Address: 5 Hazoref St. Holon 58856 ISRAEL Contact Name: Mr. I David RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE2/RP72900JD03A Page: 5 of 84 Issue Date: 14 February 2008 Test of: Aerotel Medical Systems (1998) Ltd. Skeeper S-56 To: OET Bulletin 65 Supplement C: (2001-01) 2. Equipment Under Test (EUT) The following information (with the exception of the date of receipt) has been supplied by the customer: 2.1. Description of EUT The equipment under test is a SKeeper™ compact wearable mobile communication and safety device intended to make life safer and easier for elderly people, chronically ill patients, children and lone workers. Using its embedded Siemens MC56 wireless module and built-in speakerphone, SKeeper™ users can place cellular voice calls to pre-defined numbers (e.g. a relative or a health professional) or receive calls from anyone. 2.2. Identification of Equipment Under Test (EUT) Description: Wearable Cellular Phone Brand Name: SKeeper™ Model Name or Number: S-56 Serial Number: C045 (temporary Serial Number) IMEI Number: 352023-00-306649 Hardware Version Number: 2.1 Software Version Number: 1 Hardware Revision of GSM Module: MC56 HW Release 4 Software Revision of GSM Module: MC56 SW Release 04.00 FCC ID Number: VZU-SKEEPERS-56 Country of Manufacture: Israel Date of Receipt: 09 January 2008 2.3. Modifications Incorporated in the EUT During the course of testing the EUT was not modified. RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE2/RP72900JD03A Page: 6 of 84 Issue Date: 14 February 2008 Test of: Aerotel Medical Systems (1998) Ltd. Skeeper S-56 To: OET Bulletin 65 Supplement C: (2001-01) 2.4. Accessories The following accessories were supplied with the EUT during testing: Description: Neck Strap Brand Name: Aerotel Medical Systems Ltd Model Name or Number: Not Applicable Serial Number: Not Applicable Cable Length and Type: Not Applicable Country of Manufacture: None Stated Connected to Port Not Applicable Description: Wrist Strap Brand Name: Aerotel Medical Systems Ltd. Model Name or Number: Not Applicable Serial Number: Not Applicable Cable Length and Type: Not Applicable Country of Manufacture: None Stated Connected to Port Not Applicable Description: Battery Charger Brand Name: Shenzhen ENG Electronics Co., LTD. Model Name or Number: 3A-041WU05 Serial Number: Not Applicable Cable Length and Type: 1.53 meter Country of Manufacture: China Connected to Port Charger port Unique to Manufacturer Description: Battery Brand Name: GP Model Name or Number: NTA2365 Serial Number: Not Applicable Cable Length and Type: Not Applicable Country of Manufacture: None Stated Connected to Port Battery 3 Pins RFI GLOBAL SERVICES LTD Test …

Text truncated - open the document above for the full version.

RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE2/RP72900JD03A Page: 29 of 84 Issue Date: 14 February 2008 Test of: Aerotel Medical Systems (1998) Ltd. Skeeper S-56 To: OET Bulletin 65 Supplement C: (2001-01) Appendix 2. Measurement Methods A.2.1. Evaluation Procedure The Specific Absorption Rate (SAR) evaluation was performed in the following manner: a) (i) The evaluation was performed in an applicable area of the phantom depending on the type of device being tested. For devices worn about the ear during normal operation, both the left and right ear positions were evaluated at the centre frequency of the band at maximum power. The side, which produced the greatest SAR, determined which side of the phantom would be used for the entire evaluation. The positioning of the head worn device relative to the phantom was dictated by the test specification identified in section 3.1 of this report. (ii) For body worn devices or devices which can be operated within 20 cm of the body, the flat section of the SAM phantom was used were the size of the device(s) is normal. for bigger devices and base station the 2mm Oval phantom is used for evaluation. The type of device being evaluated dictated the distance of the EUT to the outer surface of the phantom flat section. b) The SAR was determined by a pre-defined procedure within the DASY4 software. The exposed region of the phantom was scanned near the inner surface with a grid spacing of 20mm x 20mm or appropriate resolution. c) A 5x5x7 matrix was performed around the greatest spatial SAR distribution found during the area scan of the applicable exposed region. SAR values were then calculated using a 3-D spline interpolation algorithm and averaged over spatial volumes of 1 and 10 grams. d) If the EUT had any appreciable drift over the course of the evaluation, then the EUT was re-evaluated. Any unusual anomalies over the course of the test also warranted a re-evaluation. RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE2/RP72900JD03A Page: 30 of 84 Issue Date: 14 February 2008 Test of: Aerotel Medical Systems (1998) Ltd. Skeeper S-56 To: OET Bulletin 65 Supplement C: (2001-01) A.2.2. Specific Absorption Rate (SAR) Measurements to OET Bulletin 65 Supplement C: (2001-01) Evaluating Compliance with FCC Guidelines for Human Exposure to Radio Frequency Electromagnetic Fields SAR measurements were performed in accordance with Appendix D of the standard FCC OET Bulletin 65 Supplement C: 2001, against appropriate limits for each measurement position in accordance with the standard. The test was performed in a shielded enclosure with the temperature controlled to remain between +18.0ºC and +25.0ºC. The tissue equivalent material fluid temperature was controlled to give a maximum variation of ± 2.0ºC Prior to any SAR measurements on the EUT, system validation and material dielectric property measurements were conducted. In the absence of a detailed procedure within the specification, system validation and material dielectric property measurements were performed in accordance with Appendix C and Appendix D of FCC OET Bulletin 65 Supplement C: 2001. Following the successful system validation and material dielectric property measurements, a SAR versus time sweep shall be performed within 10 mm of the phantom inner surface. If the EUT power output is stable after three minutes then the measurement probe will perform a coarse surface level scan at each test position in order to ascertain the location of the maximum local SAR level. Once this area had been established, a 5x5x7 cube of 175 points (5 mm spacing in each axis ≈ 27g) will be centred at the area of concern. Extrapolation and interpolation will then be carried out on the 27g of tissue and the highest averaged SAR over a 10g cube determined. Once the maximum interpolated SAR measurement is complete; the coarse scan is visually assessed to check for secondary peaks within 50% of the maximum SAR level. If there are any further SAR measurements required, extra 5x5x7 cubes shall be centred on each of these extra local SAR maxima. At the end of each position test case a second time sweep shall be performed to check whether the EUT has remained stable throughout the test. RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE2/RP72900JD03A Page: 31 of 84 Issue Date: 14 February 2008 Test of: Aerotel Medical Systems (1998) Ltd. Skeeper S-56 To: OET Bulletin 65 Supplement C: (2001-01) Appendix 3. SAR Distribution Scans This appendix contains SAR distribution scans which are not included in the total number of pages for this report. Scan Reference Number Title SCN/72900JD03/001 Front Of EUT Facing Phantom With Neck Strap CH660 SCN/72900JD03/002 Rear Of EUT Facing Phantom With Neck Strap CH660 SCN/72900JD03/003 Front Of EUT Facing Phantom With Wrist Strap CH660 SCN/72900JD03/004 Rear Of EUT Facing Phantom With Wrist Strap CH660 SCN/72900JD03/005 Touch Left With Neck Strap CH660 SCN/72900JD03/006 Touch Left With Wrist Strap CH660 SCN/72900JD03/007 Touch Right With Neck Strap CH660 SCN/72900JD03/008 Touch Right With Wrist Strap CH660 SCN/72900JD03/009 Touch Left With Neck Strap CH189 SCN/72900JD03/010 Touch Left With Neck Strap CH128 SCN/72900JD03/011 Touch Left With Neck Strap CH251 SCN/72900JD03/012 Touch Left With Wrist Strap CH189 SCN/72900JD03/013 Touch Left With Wrist Strap CH128 SCN/72900JD03/014 Touch Left With Wrist Strap CH251 SCN/72900JD03/015 Touch Right With Neck Strap CH189 SCN/72900JD03/016 Touch Right With Neck Strap CH128 SCN/72900JD03/017 Touch Right With Neck Strap CH251 SCN/72900JD03/018 Touch Right With Wrist Strap CH189 SCN/72900JD03/019 Touch Right With Wrist Strap CH128 SCN/72900JD03/020 Touch Right With Wrist Strap CH251 SCN/72900JD03/021 Front Of EUT Facing Phantom With Neck Strap CH189 SCN/72900JD03/022 Rear Of EUT Facing Phantom With Neck Strap CH189 SCN/72900JD03/023 Front Of EUT Facing Phantom With Wrist Strap CH189 SCN/72900JD03/024 Rear Of EUT Facing Phantom With Wrist Strap C…

Text truncated - open the document above for the full version.

RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE2/RP72900JD03A Page: 39 of 84 Issue Date: 14 February 2008 Test of: Aerotel Medical Systems (1998) Ltd. Skeeper S-56 To: OET Bulletin 65 Supplement C: (2001-01) SCN/72900JD03/008: Touch Right With Wrist Strap CH660 Date: 21/01/2008 DUT: Aerotel Medical System Ltd; Type: SKeeper; Serial: 352023-00-306649 0 dB = 0.644mW/g Communication System: PCS 1900; Frequency: 1879.8 MHz;Duty Cycle: 1:8.3 Medium: 1900 MHz HSL Medium parameters used (interpolated): f = 1879.8 MHz; σ = 1.45 mho/m; ε r = 41.1; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: - Probe: ET3DV6 - SN1528; ConvF(4.98, 4.98, 4.98); Calibrated: 06/07/2007 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn394; Calibrated: 24/05/2007 - Phantom: SAM 12b; Type: SAM 4.0; Serial: TP:1197 - Measurement SW: DASY4, V4.7 Build 55; Postprocessing SW: SEMCAD, V1.8 Build 176 Touch Right - Middle/Area Scan (81x101x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.750 mW/g Touch Right - Middle/Zoom Scan (5x5x7) 2 (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.68 V/m; Power Drift = -0.016 dB Peak SAR (extrapolated) = 1.30 W/kg SAR(1 g) = 0.573 mW/g; SAR(10 g) = 0.253 mW/g Maximum value of SAR (measured) = 0.644 mW/g RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE2/RP72900JD03A Page: 40 of 84 Issue Date: 14 February 2008 Test of: Aerotel Medical Systems (1998) Ltd. Skeeper S-56 To: OET Bulletin 65 Supplement C: (2001-01) SCN/72900JD03/009: Touch Left With Neck Strap CH189 Date: 22/01/2008 DUT: Aerotel Medical System Ltd; Type: SKeeper; Serial: 352023-00-306649 0 dB = 1.41mW/g Communication System: 850 MHz; Frequency: 836.4 MHz;Duty Cycle: 1:8.3 Medium: 900 MHz HSL Medium parameters used (interpolated): f = 836.4 MHz; σ = 0.867 mho/m; ε r = 40.4; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: ET3DV6 - SN1528; ConvF(6.39, 6.39, 6.39); Calibrated: 06/07/2007 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn394; Calibrated: 24/05/2007 - Phantom: SAM 12b; Type: SAM 4.0; Serial: TP:1197 - Measurement SW: DASY4, V4.7 Build 55; Postprocessing SW: SEMCAD, V1.8 Build 176 Touch Left - Middle/Area Scan (81x101x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.00 mW/g Touch Left - Middle/Zoom Scan (5x5x7) 2 (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 12.7 V/m; Power Drift = -0.025 dB Peak SAR (extrapolated) = 5.23 W/kg SAR(1 g) = 1.32 mW/g; SAR(10 g) = 0.475 mW/g Maximum value of SAR (measured) = 1.41 mW/g RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE2/RP72900JD03A Page: 41 of 84 Issue Date: 14 February 2008 Test of: Aerotel Medical Systems (1998) Ltd. Skeeper S-56 To: OET Bulletin 65 Supplement C: (2001-01) SCN/72900JD03/010: Touch Left With Neck Strap CH128 Date: 22/01/2008 DUT: Aerotel Medical System Ltd; Type: SKeeper; Serial: 352023-00-306649 0 dB = 1.48mW/g Communication System: 850 MHz; Frequency: 824.2 MHz;Duty Cycle: 1:8.3 Medium: 900 MHz HSL Medium parameters used (interpolated): f = 824.2 MHz; σ = 0.853 mho/m; ε r = 40.6; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: ET3DV6 - SN1528; ConvF(6.39, 6.39, 6.39); Calibrated: 06/07/2007 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn394; Calibrated: 24/05/2007 - Phantom: SAM 12b; Type: SAM 4.0; Serial: TP:1197 - Measurement SW: DASY4, V4.7 Build 55; Postprocessing SW: SEMCAD, V1.8 Build 176 Touch Left - Low 2/Area Scan (81x101x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.30 mW/g Touch Left - Low 2/Zoom Scan (5x5x7) 2 (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 13.0 V/m; Power Drift = -0.080 dB Peak SAR (extrapolated) = 5.96 W/kg SAR(1 g) = 1.54 mW/g; SAR(10 g) = 0.562 mW/g Maximum value of SAR (measured) = 1.48 mW/g RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE2/RP72900JD03A Page: 42 of 84 Issue Date: 14 February 2008 Test of: Aerotel Medical Systems (1998) Ltd. Skeeper S-56 To: OET Bulletin 65 Supplement C: (2001-01) SCN/72900JD03/011: Touch Left With Neck Strap CH251 Date: 22/01/2008 DUT: Aerotel Medical System Ltd; Type: SKeeper; Serial: 352023-00-306649 0 dB = 1.14mW/g Communication System: 850 MHz; Frequency: 848.8 MHz;Duty Cycle: 1:8.3 Medium: 900 MHz HSL Medium parameters used (interpolated): f = 848.8 MHz; σ = 0.882 mho/m; ε r = 40.3; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: ET3DV6 - SN1528; ConvF(6.39, 6.39, 6.39); Calibrated: 06/07/2007 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn394; Calibrated: 24/05/2007 - Phantom: SAM 12b; Type: SAM 4.0; Serial: TP:1197 - Measurement SW: DASY4, V4.7 Build 55; Postprocessing SW: SEMCAD, V1.8 Build 176 Touch Left - Low/Area Scan (81x101x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.826 mW/g Touch Left - Low/Zoom Scan (5x5x7) 2 (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 12.0 V/m; Power Drift = -0.035 dB Peak SAR (extrapolated) = 4.40 W/kg SAR(1 g) = 1.09 mW/g; SAR(10 g) = 0.396 mW/g Maximum value of SAR (measured) = 1.14 mW/g RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE2/RP72900JD03A Page: 43 of 84 Issue Date: 14 February 2008 Test of: Aerotel Medical Systems (1998) Ltd. Skeeper S-56 To: OET Bulletin 65 Supplement C: (2001-01) SCN/72900JD03/012: Touch Left With Wrist Strap CH189 Date: 22/01/2008 DUT: Aerotel Medical System Ltd; Type: SKeeper; Serial: 352023-00-306649 0 dB = 1.24mW/g Communication System: 850 MHz; Frequency: 836.4 MHz;Duty Cycle: 1:8.3 Medium: 900 MHz HSL Medium parameters used (interpolated): f = 836.4 MHz; σ = 0.867 mho/m; ε r = 40.4; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: ET3DV6 - SN1528; ConvF(6.39, 6.39, 6.39); Calibrated: 06/07/2007 - Sensor-Surfa…

Text truncated - open the document above for the full version.

RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE2/RP72900JD03A Page: 46 of 84 Issue Date: 14 February 2008 Test of: Aerotel Medical Systems (1998) Ltd. Skeeper S-56 To: OET Bulletin 65 Supplement C: (2001-01) SCN/72900JD03/015: Touch Right With Neck Strap CH189 Date: 22/01/2008 DUT: Aerotel Medical System Ltd; Type: SKeeper; Serial: 352023-00-306649 0 dB = 1.33mW/g Communication System: 850 MHz; Frequency: 836.4 MHz;Duty Cycle: 1:8.3 Medium: 900 MHz HSL Medium parameters used (interpolated): f = 836.4 MHz; σ = 0.867 mho/m; ε r = 40.4; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: - Probe: ET3DV6 - SN1528; ConvF(6.39, 6.39, 6.39); Calibrated: 06/07/2007 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn394; Calibrated: 24/05/2007 - Phantom: SAM 12b; Type: SAM 4.0; Serial: TP:1197 - Measurement SW: DASY4, V4.7 Build 55; Postprocessing SW: SEMCAD, V1.8 Build 176 Touch Right - Middle/Area Scan (81x101x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.36 mW/g Touch Right - Middle/Zoom Scan (5x5x7) 2 (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 13.5 V/m; Power Drift = 0.024 dB Peak SAR (extrapolated) = 4.30 W/kg SAR(1 g) = 1.08 mW/g; SAR(10 g) = 0.382 mW/g Maximum value of SAR (measured) = 1.33 mW/g RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE2/RP72900JD03A Page: 47 of 84 Issue Date: 14 February 2008 Test of: Aerotel Medical Systems (1998) Ltd. Skeeper S-56 To: OET Bulletin 65 Supplement C: (2001-01) SCN/72900JD03/016: Touch Right With Neck Strap CH128 Date: 22/01/2008 DUT: Aerotel Medical System Ltd; Type: SKeeper; Serial: 352023-00-306649 0 dB = 1.72mW/g Communication System: 850 MHz; Frequency: 824.2 MHz;Duty Cycle: 1:8.3 Medium: 900 MHz HSL Medium parameters used (interpolated): f = 824.2 MHz; σ = 0.853 mho/m; ε r = 40.6; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: - Probe: ET3DV6 - SN1528; ConvF(6.39, 6.39, 6.39); Calibrated: 06/07/2007 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn394; Calibrated: 24/05/2007 - Phantom: SAM 12b; Type: SAM 4.0; Serial: TP:1197 - Measurement SW: DASY4, V4.7 Build 55; Postprocessing SW: SEMCAD, V1.8 Build 176 Touch Right - Low/Area Scan (81x101x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.78 mW/g Touch Right - Low/Zoom Scan (5x5x7) 2 (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 15.3 V/m; Power Drift = -0.041 dB Peak SAR (extrapolated) = 5.61 W/kg SAR(1 g) = 1.4 mW/g; SAR(10 g) = 0.494 mW/g Maximum value of SAR (measured) = 1.72 mW/g RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE2/RP72900JD03A Page: 48 of 84 Issue Date: 14 February 2008 Test of: Aerotel Medical Systems (1998) Ltd. Skeeper S-56 To: OET Bulletin 65 Supplement C: (2001-01) SCN/72900JD03/017: Touch Right With Neck Strap CH251 Date: 22/01/2008 DUT: Aerotel Medical System Ltd; Type: SKeeper; Serial: 352023-00-306649 0 dB = 1.14mW/g Communication System: 850 MHz; Frequency: 848.8 MHz;Duty Cycle: 1:8.3 Medium: 900 MHz HSL Medium parameters used (interpolated): f = 848.8 MHz; σ = 0.882 mho/m; ε r = 40.3; ρ = 1000 kg/m 3 Phantom se…

Text truncated - open the document above for the full version.
