W22-ETAG58Electronic Shelf Label E-paper 5.8 Display

Store Intelligence Associate Guide Introduction The electronic shelf label (ESL) is used for displaying product pricing on shelves. ESLs allow for smarter pricing and stronger profits as well as the benefit of saving time and money from the old manual, paper pricing strategy. It will also provide a consistent standard for signing from store to store. The pricing strategy for ESLs includes regular prices, clearance prices (show as was/now on the ESL), and promotion prices (sale shows as a sale on the ESL). The prices are automatically updated whenever a price is changed from a central control server. Price changes can be updated in seconds which means pricing and promotion strategies can be deployed with speed, agility, accuracy, and efficiency. Tag Specifications Output power max. is 9dBm max. DC power source Li 2450-coin cells FCC statements: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user‘s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. This device has been tested and meets applicable limits for Radio Frequency (RF) exposure. This equipment should be installed and operated with minimum distance 20 cm between the radiator & your body. IC Statements: This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. This device has been tested and meets applicable limits for Radio Frequency (RF) exposure. This equipment should be installed and operated with minimum distance 20 cm between the radiator & your body. Responsible Party: Store Intelligence Corp. 6700 Koll Center Parkway, Suite 109, Pleasanton, CA, 94566, USA Support Equipment StoreIntelligence Access Point Device (AP) The AP device covers 50,000 square feet. The AP device communicates the prices that are held in POS to the ESL. Shelf Rails The shelf rails for the ESLs insert directly into the c-channel. Slide the top of the rail into the edge of the shelf from a downward motion up to the top lip of the shelf. While holding the rail up into the top lip, the bottom lip of the rail needs to be pushed up and then in so that it latches onto the shelf. Then start pressing in the bottom of the rail either from left to right or right to left. NOTE: Watch out for “finger burn” while inserting the rails. Suggest wearing a glove on the hand pushing the bottom of the rail into the shelf lip. The ESL pops into the holder. Insert the top of the holder into the top of the rail and pop the bottom in. The bottom of the ESL has two tiny “teeth” that pop in to hold it in place. ESL Process Initial Start Up When a facility initially gets the electronic shelf labels, there is a back office set up involved on the designated computer. Please refer to the Store Intelligence Cloud ASG Quick Start User Guide for detailed process. Tags will join the network on their own at the customer site provided the customer has installed the ASG/AP and turned the system on. Tags will arrive with a blank screen Most tags will join in approximately a two hour window. Tags will display a bar code when they have joined the network. Handheld Device To use the Vantiq Linker APP with the LP5-E-POD5 iPod Scanner, first download the Vantiq APP from the Apple Store. Once you install the APP you should see the Vantiq Icon: After the APP is installed you will need to make sure the scanner is running and start the APP. Then you will need to change the server to: na1.storeintelligence.io After the server is set you will need to login. See the screen below: We have setup the following login to use with the handhelds, you can create a new user on the server for each store that can be used with handhelds for that store. For now you can use the following login: Login: [email protected] Password: linK21### Select Vantiq Linker APP for the Scanner After you login you will need to select the APP that works with the scanner, pick the top one shown below: Once you have started the proper APP you will see the store name and number, just click START. Start Linking After you press start you will see the linking screen, here you can type in the UPC or scan the UPC using the scanner button on the side of the device. See the screen below: Note that the SCAN BARCODE is green and ready, if it is not you will need to exit the APP and restart the scanner with its APP and then return to this APP. After the UPC is …

Text truncated - open the document above for the full version.

PHOTOGRAPHS OF EUT Report No.: EP211110005 TEL : 886-3-327-3456 Page Number : 1 of 18 FAX : 886-3-328-4978 Issued Date : Mar. 31, 2022 Report Version : 02 1. External Photograph of EUT Brand Name: Store Intelligence Inc. Model Name: ETAG 580E5 Marketing Name: ETAG 580E5 NFC LED BW (BWR) PHOTOGRAPHS OF EUT Report No.: EP211110005 TEL : 886-3-327-3456 Page Number : 2 of 18 FAX : 886-3-328-4978 Issued Date : Mar. 31, 2022 Report Version : 02 PHOTOGRAPHS OF EUT Report No.: EP211110005 TEL : 886-3-327-3456 Page Number : 3 of 18 FAX : 886-3-328-4978 Issued Date : Mar. 31, 2022 Report Version : 02 PHOTOGRAPHS OF EUT Report No.: EP211110005 TEL : 886-3-327-3456 Page Number : 4 of 18 FAX : 886-3-328-4978 Issued Date : Mar. 31, 2022 Report Version : 02 PHOTOGRAPHS OF EUT Report No.: EP211110005 TEL : 886-3-327-3456 Page Number : 5 of 18 FAX : 886-3-328-4978 Issued Date : Mar. 31, 2022 Report Version : 02 PHOTOGRAPHS OF EUT Report No.: EP211110005 TEL : 886-3-327-3456 Page Number : 6 of 18 FAX : 886-3-328-4978 Issued Date : Mar. 31, 2022 Report Version : 02 720510 PHOTOGRAPHS OF EUT Report No.: EP211110005 TEL : 886-3-327-3456 Page Number : 7 of 18 FAX : 886-3-328-4978 Issued Date : Mar. 31, 2022 Report Version : 02 2. Photograph of Accessory Brand Name: Store Intelligence Inc. Model Name: ETAG 580E5 Marketing Name: ETAG 580E5 NFC LED BW (BWR) Specification of Accessory Battery Brand Name Panasonic Model Name CR2450 Remark: For accessories equipped with this EUT, please refer to the following photos. PHOTOGRAPHS OF EUT Report No.: EP211110005 TEL : 886-3-327-3456 Page Number : 8 of 18 FAX : 886-3-328-4978 Issued Date : Mar. 31, 2022 Report Version : 02 PHOTOGRAPHS OF EUT Report No.: EP211110005 TEL : 886-3-327-3456 Page Number : 9 of 18 FAX : 886-3-328-4978 Issued Date : Mar. 31, 2022 Report Version : 02 Battery PHOTOGRAPHS OF EUT Report No.: EP211110005 TEL : 886-3-327-3456 Page Number : 10 of 18 FAX : 886-3-328-4978 Issued Date : Mar. 31, 2022 Report Version : 02 720510

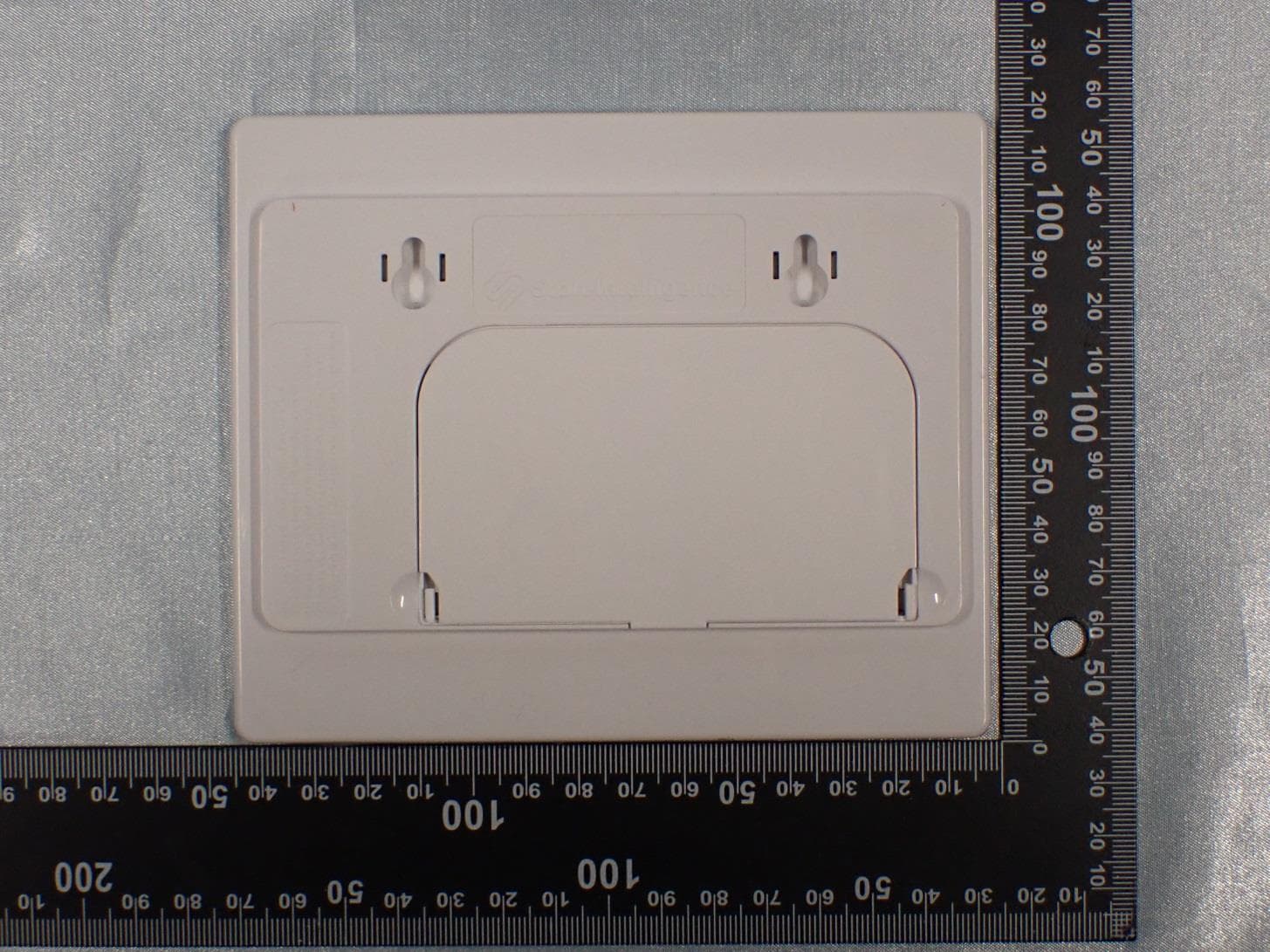

Back of the device Label Label

PHOTOGRAPHS OF EUT Report No.: EP211110005 TEL : 886-3-327-3456 Page Number : 11 of 18 FAX : 886-3-328-4978 Issued Date : Mar. 31, 2022 Report Version : 02 3. Internal Photograph of EUT Brand Name: Store Intelligence Inc. Model Name: ETAG 580E5 Marketing Name: ETAG 580E5 NFC LED BW (BWR) 720510 PHOTOGRAPHS OF EUT Report No.: EP211110005 TEL : 886-3-327-3456 Page Number : 12 of 18 FAX : 886-3-328-4978 Issued Date : Mar. 31, 2022 Report Version : 02 PHOTOGRAPHS OF EUT Report No.: EP211110005 TEL : 886-3-327-3456 Page Number : 13 of 18 FAX : 886-3-328-4978 Issued Date : Mar. 31, 2022 Report Version : 02 PHOTOGRAPHS OF EUT Report No.: EP211110005 TEL : 886-3-327-3456 Page Number : 14 of 18 FAX : 886-3-328-4978 Issued Date : Mar. 31, 2022 Report Version : 02 PHOTOGRAPHS OF EUT Report No.: EP211110005 TEL : 886-3-327-3456 Page Number : 15 of 18 FAX : 886-3-328-4978 Issued Date : Mar. 31, 2022 Report Version : 02 PHOTOGRAPHS OF EUT Report No.: EP211110005 TEL : 886-3-327-3456 Page Number : 16 of 18 FAX : 886-3-328-4978 Issued Date : Mar. 31, 2022 Report Version : 02 720510 PHOTOGRAPHS OF EUT Report No.: EP211110005 TEL : 886-3-327-3456 Page Number : 17 of 18 FAX : 886-3-328-4978 Issued Date : Mar. 31, 2022 Report Version : 02 Proprietary 2.4GHz Antenna PHOTOGRAPHS OF EUT Report No.: EP211110005 TEL : 886-3-327-3456 Page Number : 18 of 18 FAX : 886-3-328-4978 Issued Date : Mar. 31, 2022 Report Version : 02 ─────THE END───── 720510

TEL : 886-3-327-3456 Page : 1 of 5 FAX : 886-3-328-4978 Issued Date : Mar. 18, 2022 Form version: 200414 RF EXPOSURE EVALUATION REPORT Report No. : FA211110005 RF EXPOSURE EVALUATION REPORT FCC ID : W22-ETAG58 Equipment : Electronic Shelf Label E-paper 5.8" Display Brand Name : Store Intelligence Inc. Model Name : ETAG 580E5 Marketing Name : ETAG 580E5 NFC LED BW (BWR) Applicant : Store Intelligence 6700 Koll Center Parkway, Suite 109, Pleasanton, CA, 94566, USA Manufacturer : Team Precision Public Company Limited 198 Moo 13 Suwansorn Rd. , Dong-Khee-Lek, Muang Prachinburi 25000, Thailand Standard : 47 CFR Part 2.1091 We, SPORTON INTERNATIONAL INC has been evaluated this product in accordance with 47 CFR Part2.1091 and it complies with applicable limit. Sporton Lab is accredited to ISO 17025 by Taiwan Accreditation Foundation (TAF code: 1190) and the FCC designation No. TW1190 under the FCC 2.948(e) by Mutual Recognition Agreement (MRA) in FCC evaluation. The results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC. Laboratory, the test report shall not be reproduced except in full SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory No. 52, Huaya 1st Rd., Guishan Dist., Taoyuan City, Taiwan (R.O.C.) Approved by: Cona Huang / Deputy Manager TEL : 886-3-327-3456 Page : 2 of 5 FAX : 886-3-328-4978 Issued Date : Mar. 18, 2022 Form version: 200414 RF EXPOSURE EVALUATION REPORT Report No. : FA211110005 Table of Contents 1. DESCRIPTION OF EQUIPMENT UNDER TEST (EUT) ............................................................................. 4 2. MAXIMUM RF AVERAGE OUTPUT POWER AMONG PRODUCTION UNITS ........................................ 4 3. RF EXPOSURE LIMIT INTRODUCTION .................................................................................................... 5 4. RADIO FREQUENCY RADIATION EXPOSURE EVALUATION ............................................................... 5 4.1. Standalone Power Density Calculation ............................................................................................. 5 TEL : 886-3-327-3456 Page : 3 of 5 FAX : 886-3-328-4978 Issued Date : Mar. 18, 2022 Form version: 200414 RF EXPOSURE EVALUATION REPORT Report No. : FA211110005 History of this test report Report No. Version Description Issued Date FA211110005 Rev. 01 Initial issue of report Mar. 18, 2022 TEL : 886-3-327-3456 Page : 4 of 5 FAX : 886-3-328-4978 Issued Date : Mar. 18, 2022 Form version: 200414 RF EXPOSURE EVALUATION REPORT Report No. : FA211110005 1. Description of Equipment Under Test (EUT) Product Feature & Specification EUT Type Electronic Shelf Label E-paper 5.8" Display Brand Name Store Intelligence Inc. Model Name ETAG 580E5 Marketing Name ETAG 580E5 NFC LED BW (BWR) FCC ID W22-ETAG58 Wireless Technology and Frequency Range 2.4GHz Proprietary: 2403 MHz ~ 2469 MHz EUT Stage Identical Prototype Remark: The above EUT's information was declared by manufacturer. Please refer to the specifications or user's manual for more detailed description. Reviewed by: Jason Wang Report Producer: Daisy Peng 2. Maximum RF average output power among production units Mode Average power (dBm) 2.4GHz Proprietary 9 TEL : 886-3-327-3456 Page : 5 of 5 FAX : 886-3-328-4978 Issued Date : Mar. 18, 2022 Form version: 200414 RF EXPOSURE EVALUATION REPORT Report No. : FA211110005 3. RF Exposure Limit Introduction According to ANSI/IEEE C95.1-1992, the criteria listed in Table 1 shall be used to evaluate the environmental impact of human exposure to radio frequency (RF) radiation as specified in §1.1310. The MPE was calculated at 20 cm to show compliance with the power density limit. The following formula was used to calculate the Power Density: 퐒= 퐏퐆 ퟒ훑퐑 ퟐ Where: S = Power Density P = Output Power at Antenna Terminals G = Gain of Transmit Antenna (linear gain) R = Distance from Transmitting Antenna 4. Radio Frequency Radiation Exposure Evaluation 4.1. Standalone Power Density Calculation Band Antenna Gain (dBi) Maximum Power (dBm) Maximum EIRP (dBm) Maximum EIRP (W) Average EIRP (mW) Power Density at 20cm (mW/cm^2) Limit (mW/cm^2) 2.4GHz Proprietary 0.0 9.0 9.0 0.01 7.94 0.002 1.000 Conclusion: According to 47 CFR §1.1307, the RF exposure analysis concludes that the RF Exposure is FCC compliant.

TEL : 408 9043300 Page Number : 1 of 17 Report Template No.: BU5-FR15C24G Version 2.1 Issued Date : Apr. 06, 2022 Report Version : 02 FCC RADIO TEST REPORT Report No. : FR211110005 FCC RADIO TEST REPORT FCC ID : W22-ETAG58 Equipment : Electronic Shelf Label E-paper 5.8" Display Brand Name : Store Intelligence Inc. Model Name : ETAG 580E5 Marketing Name : ETAG 580E5 NFC LED BW (BWR) Applicant : Store Intelligence 6700 Koll Center Parkway, Suite 109, Pleasanton, CA, 94566, USA Manufacturer : Team Precision Public Company Limited 198 Moo 13 Suwansorn Rd., Dong-Khee-Lek, Muang Prachinburi 25000, Thailand Standard : FCC Part 15 Subpart C §15.249 The product was received on Dec. 17, 2021 and testing was started from Dec. 27, 2021 and completed on Feb. 09, 2022. We, Sporton International (USA) Inc., would like to declare that the tested sample has been evaluated in accordance with the test procedures and ha s been in compliance with the applicable technical standards. The test results in thi s report apply exclusi vely to the te sted model / sample. Without written approval of Sporton International (USA) Inc., the test report shall not be reproduced except in full. Approved by: Neil Kao Sporton International (USA) Inc. 1175 Montague Expressway, Milpitas, CA 95035 TEL : 408 9043300 Page Number : 2 of 17 Report Template No.: BU5-FR15C24G Version 2.1 Issued Date : Apr. 06, 2022 Report Version : 02 FCC RADIO TEST REPORT Report No. : FR211110005 Table of Contents Hi story of thi s te st report .......................................................................................................................3 Summary of Test Result ........................................................................................................................4 1 General Description ..........................................................................................................................5 1.1 Product Feature of E quipm ent Under Test .................................................................................5 1.2 Modi fication of EUT ..................................................................................................................5 1.3 Testing Location ......................................................................................................................5 1.4 Applicabl e Standards ...............................................................................................................5 2 Test Configuration of Equipment Under Test ...................................................................................6 2.1 Carrier Frequency Channel.......................................................................................................6 2.2 Test Mode ...............................................................................................................................6 2.3 Connection Diagram of Test System .........................................................................................7 2.4 Support Unit used in test configuration and system ....................................................................7 2.5 EUT Operati on Test Setup........................................................................................................7 3 Test Re sult........................................................................................................................................8 3.1 99% Occupied Bandwi dth Meas urem ent ...................................................................................8 3.2 Field Strength of Fundamental/ Harmonics and Radiat ed Spurious Emission Measurement......... 11 3.3 Antenna Requi rem ents ........................................................................................................... 15 4 List of Measuring Equipment .......................................................................................................... 16 5 Uncertainty of Evaluation ............................................................................................................... 17 Appendix A. Radiated Spurious Emission Appendix B. Radiated Spurious Emission Plots Appendix C. Duty Cycle Plots Appendix D. Setup Photographs TEL : 408 9043300 Page Number : 3 of 17 Report Template No.: BU5-FR15C24G Version 2.1 Issued Date : Apr. 06, 2022 Report Version : 02 FCC RADIO TEST REPORT Report No. : FR211110005 History of this test report Report No. Version Description Issued Date FR211110005 01 Initial issue of report Feb. 15, 2022 FR211110005 02 Revise Summary of Test Result Apr. 06, 2022 TEL : 408 9043300 Page Number : 4 of 17 Report Template No.: BU5-FR15C24G Version 2.1 Issued Date : Apr. 06, 2022 Report Version : 02 FCC RADIO TEST REPORT Report No. : FR211110005 Summary of Test Result Report Clause Ref Std. Clause Test Items Result (PASS/FAIL) Remark 3.1 2.1049 99% Occupied Bandwidth Reporting only - 3.2 15.249(a) Field Strength of Fundamental Pass 12.27 dB under the limit at 2403.000 MHz 3.2 15.249(d) Radiated Spurious Emission Pass 7.22 dB under the limit at 37.760 MHz - 15.207 AC Conducted Emission Not Required See Note 1 - 15.249(b) Frequency Stability Not Required See Note 2 3.3 15.203 Antenna Requirements Pass - Note: 1. The EUT is powered by batteries which is deemed DC power source, it does not operate from the AC power lines or contain provisions for operation while connected to the AC power lines, according to 47 CFR § 15.207(c), the conducted emission limits are not applicable to the device hence the test is not performed. 2. Only applicable to fixed point to point systems. Declaration of Conformity: 1. The test results (PASS/FAIL) with all measurement uncertainty e xcluded are presented in accordance with the regulation limits or requirements declared by manufacturers. It’s means measurement values may risk exceeding the limit of regulation standards, if measurement uncertainty is include in test results. 2. The measurement uncertainty please refer to this report ”Uncertai…
