1 INTERTEK TESTING SERVICES Analysis Report The equipment under test (EUT) is a portable transmitter for a RC TOYS operating at 49.86 MHz which is controlled by a crystal. The EUT is powered by one 9.0V 6F22 size battery. For more detail information pls. refer to the user manual. Antenna Type: Dedicated antenna with unique antenna connector Antenna Gain: 0dBi The nominal conducted output power specified: -13.0dBm (+/- 3dB) Th e nominal radiated output power (e.r.p) specified: -15.15dBm (+/- 3dB) Mo dulation Type: Pulse modulation According to the KDB 447498: Th e worst-case peak radiated emission for the EUT is 84.0dBμV/m at 3m in the frequency 49.86MHz The EIRP = [(FS*D) ^2 / 30] mW= -11.23dBm T he ERP = EIRP – 2.15 = -13.38 dBm whi ch is within the production variation. The maximun conducted output power specified is -10.0dBm =0.1mW Th e source- based time-averaging conducted output power = 0.1* Duty Cycle mW< 0.1mW (Duty Cycle<100%) Th e SAR Exclusion Threshold Level for 49.860MHz when t he minimum test separation distance is < 50mm: = 474 * [1 + log(100/f(MHz)]/2 = 308.6 mW Since the source-based time-averaging conducted output power is well below the SAR low threshold level, so the EUT is considered to comply with SAR requirement without testing. Transmitter Duty Cycle Calculation The duration of one cycle = 17.5217ms Effective period of the cycle = 478.3μs x 10 + 1.4783 ms x 4 = 10.6962ms DC = 10.6962ms / 17.5217ms = 0.6105 or 61.05% FCC ID: W2MXQ3499TX49MH

Test Report

• The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to copy or distribute this report. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results referenced from this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. TRF No.: FCC 15C_TX_b Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F, D Block, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 XQ ARTS TOYS CO., LTD Application For Certification FCC ID: W2MXQ3499TX49MH RC TOYS Model: 3499 Additional Models: 3497, 981596 Transmitter Report No.: GZHH00177284-001 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [ 10-1-13] Prepared and Checked by: Approved by: Sign on file Terry Tang Engineer Andy Yan Senior Project Engineer Date: June 18, 2015 INTERTEK TESTING SERVICES Report No.: GZHH00177284-001 FCC ID: W2MXQ3499TX49MH TRF No.: FCC 15C_TX_b i GENERAL INFORMATION XQ ARTS TOYS CO., LTD MODEL: 3499 FCC ID: W2MXQ3499TX49MH Grantee: XQ ARTS TOYS CO., LTD Grantee Address: North of Xing Ye Road, Lai Mei Industrial District ShanTou China Contact Person: Chen Liang Tel: 86-754-85513333 Manufacturer: XQ ARTS TOYS CO., LTD Manufacturer Address: North of Xing Ye Road, Lai Mei Industrial District ShanTou China Model: 3499 Type of EUT: Transmitter Description of EUT: RC TOYS Serial Number: N/A FCC ID : W2MXQ3499TX49MH Date of Sample Submitted: June 12, 2015 Date of Test: June 15, 2015 Report No.: GZHH00177284-001 Report Date: June 18, 2015 Environmental Conidtions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: GZHH00177284-001 FCC ID: W2MXQ3499TX49MH TRF No.: FCC 15C_TX_b ii SUMMARY OF TEST RESULT XQ ARTS TOYS CO., LTD MODEL: 3499 FCC ID: W2MXQ3499TX49MH TEST SPECIFICATION REFERENCE RESULTS Maximum Peak Output Power 15.247(b), (c) / RSS-210 A8.4 N/A Hopping Channel Carrier Frequencies Separation (for 2.4GHz Digital) 15.247(e) / RSS-210 A8.1 N/A 20dB Bandwidth of the Hopping Channel 15.247(a) / RSS-210 A8.1 N/A Number of Hopping Frequencies 15.247(e) / RSS-210 A8.1 N/A Average Time of Occupancy of Hopping Frequency 15.247(e) / RSS-210 A8.1 N/A Anteann Conducted Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A Radiated Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A RF Exposure Compliance 15.247(i) / RSS-Gen 5.5 N/A Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 7.2.2 N/A Transmitter Field Strength (for 27MHz) 15.227 / RSS-310 3.8 N/A Transmitter Field Strength (for 40MHz) 15.229 / RSS-210 A2.7 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for Remote Control) 15.231(a) / RSS-210 A1.1.1 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for 433MHz) 15.231(e) / RSS-210 A1.1.5 N/A Transmitter Field Strength and Bandwidth Requirement(for 88-108MHz) 15.239 / RSS-210 A2.8 N/A Transmitter Field Strength and Bandwidth Requirement(for 902- 928MHz or 2.4GHz) 15.249 / RSS-210 A2.9 N/A Transmitter Field Strength and Bandwidth Requirement (for 49MHz) 15.235 / RSS-310 3.9 Pass Receiver / Digital Device Radiated Eissions 15.109 / ICES-003 N/A Digital Device Conducted Emissions 15.107 / ICES-003 N/A Note: 1. The EUT uses a dedicated antenna, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: GZHH00177284-001 FCC ID: W2MXQ3499TX49MH TRF No.: FCC 15C_TX_b iii Table of Contents 1.0 General Description ....................................................................................... 1 1.1 Product Description .......................................................................................... 1 1.2 Related Submittal(s) Grants.............................................................................. 1 1.3 Test Methodology ............................................................................................. 1 1.4 Test Facility ...................................................................................................... 1 2.0 System Test Configuration ............................................................................ 2 2.1 Justification ...................................................................................................... 2 2.2 EUT Exercising Software .................................................................................. 2 2.3 Special Accessories ......................................................................................... 2 2.4 Equipment Modification ...…

Text truncated - open the document above for the full version.

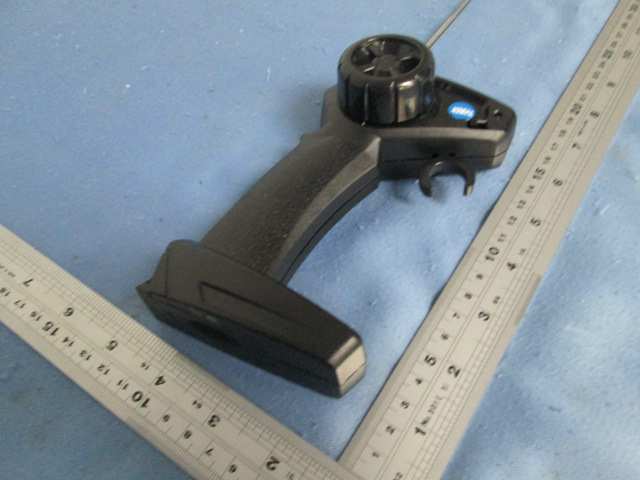

Test Setup Photos
