W38-CT21002000-01CT2100/2000 ChargePoint Networked Charging Station

CT2000 Family ChargePoint ® Networked Charging Stations CT2001 Bollard MountCT2002 Pole MountCT2003 Wall Mount Installation Guide Part Number: 75-001026-01 Revision: 1.0 Coulomb Technologies Inc. 1692 Dell Ave. Campbell, CA 95008-6901 USA US toll free: +1-877-370-3802 www.coulombtech.com www.mychargepoint.net by Coulomb Technologies ® IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS This manual contains important instructions that must be followed during installation of a ChargePoint ® Networked Charging Station. Grounding instructions The ChargePoint ® Charging Station must be connected to a grounded, metal, permanent wiring system; or an equipment-grounding conductor is to be run with circuit conductors and connected to the equipment grounding terminal or lead on the Electric Vehicle Supply Equipment (EVSE). Connections to the EVSE shall comply with all local codes and ordinances. Safety and compliance This document provides instructions to install the ChargePoint ® Charging Station and should not be used for any other product. Before installing the ChargePoint ® Charging Station, you should review this manual carefully and consult with a licensed contractor, licensed electrician and trained installation expert to ensure compliance with local building practices, climate conditions, safety standards, and state and local codes. The ChargePoint ® Charging Station should be installed only by a licensed contractor and a licensed electrician and in accordance with all local and national codes and standards. The ChargePoint ® Charging Station should be inspected by a qualified installer prior to the initial use. Under no circumstances will compliance with the information in this manual relieve the user of his/her responsibility to comply with all applicable codes or safety standards. This document describes the most commonly-used installation and mounting scenarios. If situations arise in which it is not possible to perform an installation following the procedures provided in this document, contact Coulomb Technologies. Coulomb Technologies is not responsible for any damages that may occur resulting from custom installations that are not described in this document. No accuracy guarantee Reasonable effort was made to ensure that the specifications and other information in this manual are accurate and complete at the time of its publication. However, the specifications and other information in this manual are subject to change at any time without prior notice. Warranty information and disclaimer Your use of, or modification to, the ChargePoint ® Charging Station in a manner in which the ChargePoint ® Charging Station is not intended to be used or modified will void the limited warranty. Other than any such limited warranty, the Coulomb products are provided “AS IS,” and Coulomb and its distributors expressly disclaim all implied warranties, including any warranty of design, merchantability, fitness for a particular purposes and non-infringement, to the maximum extent permitted by law. Limitation of liability IN NO EVENT SHALL COULOMB TECHNOLOGIES, INC. OR ITS AUTHORIZED DISTRIBUTORS BE LIABLE FOR ANY INDIRECT, INCIDENTAL, SPECIAL, PUNITIVE, OR CONSEQUENTIAL DAMAGES, INCLUDING WITHOUT LIMITATION, LOST PROFITS, LOST DATA, LOSS OF USE, COST OF COVER, OR LOSS OR DAMAGE TO THE CHARGEPOINT ® CHARGING STATION, ARISING OUT OF OR RELATING TO THE USE OR INABILITY TO USE THIS MANUAL, EVEN IF COULOMB TECHNOLOGIES, INC. OR ITS AUTHORIZED DISTRIBUTORS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Copyright and Trademarks ©2010 Coulomb Technologies, Inc. All rights reserved. This material is protected by the copyright laws of the United States and other countries. It may not be modified, reproduced or distributed without the prior, express written consent of Coulomb Technologies, Inc. CHARGEPOINT is a U.S. registered trademark and service mark of Coulomb Technologies, Inc. All other products or services mentioned are the trademarks, service marks, registered trademarks or registered service marks of their respective owners. Coulomb Technologies has filed several patent applications. FCC Compliance Statement This equipment has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the manufacturer’s instruction manual, may cause harmful interference with radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case, you will be required to correct the interference at your own expense. Important: Changes or modifications to this product not authorized by Coulomb Technologies, Inc., could affect the EMC compliance and revoke your authority to operate this product. Exposure to Radio Frequency Energy: The radiated power output of the Zigbee radio and cellular modem (optional) in this device is below the FCC radio frequency exposure limits for uncontrolled equipment. This device should be operated with a minimum distance of at least 20 cm between the Zigbee and Cellular antennas and a person’s body and must not be co-located or operated with any other antenna or transmitter by the manufacturer, subject to the conditions of the FCC Grant. i Contents 1Introduction Before installing stations........................................................................................................................................... 1-1 Specifications ............................................................................................................................................................. 1-2 Wiring information ................................................................................................…

Text truncated - open the document above for the full version.

CT2100 Family ChargePoint ® Networked Charging Stations CT2101 Bollard MountCT2102 Pole MountCT2103 Wall Mount Installation Guide Part Number: 75-001020 Revision: 1.1 Coulomb Technologies Inc. 1692 Dell Ave. Campbell, CA 95008-6901 USA US toll free: +1-877-370-3802 www.coulombtech.com www.mychargepoint.net by Coulomb Technologies ® IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS This manual contains important instructions that must be followed during installation of a ChargePoint ® Networked Charging Station. Grounding instructions The ChargePoint ® Charging Station must be connected to a grounded, metal, permanent wiring system; or an equipment-grounding conductor is to be run with circuit conductors and connected to the equipment grounding terminal or lead on the Electric Vehicle Supply Equipment (EVSE). Connections to the EVSE shall comply with all local codes and ordinances. Safety and compliance This document provides instructions to install the ChargePoint ® Charging Station and should not be used for any other product. Before installing the ChargePoint ® Charging Station, you should review this manual carefully and consult with a licensed contractor, licensed electrician and trained installation expert to ensure compliance with local building practices, climate conditions, safety standards, and state and local codes. The ChargePoint ® Charging Station should be installed only by a licensed contractor and a licensed electrician and in accordance with all local and national codes and standards. The ChargePoint ® Charging Station should be inspected by a qualified installer prior to the initial use. Under no circumstances will compliance with the information in this manual relieve the user of his/her responsibility to comply with all applicable codes or safety standards. This document describes the most commonly-used installation and mounting scenarios. If situations arise in which it is not possible to perform an installation following the procedures provided in this document, contact Coulomb Technologies. Coulomb Technologies is not responsible for any damages that may occur resulting from custom installations that are not described in this document. No accuracy guarantee Reasonable effort was made to ensure that the specifications and other information in this manual are accurate and complete at the time of its publication. However, the specifications and other information in this manual are subject to change at any time without prior notice. Warranty information and disclaimer Your use of, or modification to, the ChargePoint ® Charging Station in a manner in which the ChargePoint ® Charging Station is not intended to be used or modified will void the limited warranty. Other than any such limited warranty, the Coulomb products are provided “AS IS,” and Coulomb and its distributors expressly disclaim all implied warranties, including any warranty of design, merchantability, fitness for a particular purposes and non-infringement, to the maximum extent permitted by law. Limitation of liability IN NO EVENT SHALL COULOMB TECHNOLOGIES, INC. OR ITS AUTHORIZED DISTRIBUTORS BE LIABLE FOR ANY INDIRECT, INCIDENTAL, SPECIAL, PUNITIVE, OR CONSEQUENTIAL DAMAGES, INCLUDING WITHOUT LIMITATION, LOST PROFITS, LOST DATA, LOSS OF USE, COST OF COVER, OR LOSS OR DAMAGE TO THE CHARGEPOINT ® CHARGING STATION, ARISING OUT OF OR RELATING TO THE USE OR INABILITY TO USE THIS MANUAL, EVEN IF COULOMB TECHNOLOGIES, INC. OR ITS AUTHORIZED DISTRIBUTORS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Copyright and Trademarks ©2010 Coulomb Technologies, Inc. All rights reserved. This material is protected by the copyright laws of the United States and other countries. It may not be modified, reproduced or distributed without the prior, express written consent of Coulomb Technologies, Inc. CHARGEPOINT is a U.S. registered trademark and service mark of Coulomb Technologies, Inc. All other products or services mentioned are the trademarks, service marks, registered trademarks or registered service marks of their respective owners. Coulomb Technologies has filed several patent applications. FCC Compliance Statement This equipment has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the manufacturer’s instruction manual, may cause harmful interference with radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case, you will be required to correct the interference at your own expense. Important: Changes or modifications to this product not authorized by Coulomb Technologies, Inc., could affect the EMC compliance and revoke your authority to operate this product. Exposure to Radio Frequency Energy: The radiated power output of the Zigbee radio and cellular modem (optional) in this device is below the FCC radio frequency exposure limits for uncontrolled equipment. This device should be operated with a minimum distance of at least 20 cm between the Zigbee and Cellular antennas and a person’s body and must not be co-located or operated with any other antenna or transmitter by the manufacturer, subject to the conditions of the FCC Grant. i Contents 1Introduction Before installing stations........................................................................................................................................... 1-1 Specifications ............................................................................................................................................................. 1-2 Wiring information ...................................................................................................…

Text truncated - open the document above for the full version.

FCC Confidential Authorization August 13, 2010 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: W38- CT21002000-01 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Coulomb Technologies Inc., hereby requests long-term confidential treatment of information accompanying this application as outlined below: • Block Diagram • Schematics • Operation Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Gary Eldridge, P.E. Regulatory Compliance Manager Phone: 408 718-3781 [email protected] Coulomb Technologies, Inc. 1692 Dell Ave. Campbell CA 95008-6901

DECLARATION OF SIMILARITY August 31, 2010 To: Bay Area Compliance Laboratories Corp. 1274 Anvilwood Ave. Sunnyvale, CA 94089 Phone: 408-732-9162, Fax: 408-732-9164 http://www.baclcorp.com Dear Sir or Madam: We, Coulomb Technologies Inc., hereby declare that the product: Electric Vehicle Charge Station, CT2000 is electrically identical with the same electromagnetic emissions and electromagnetic compatibility characteristics as CT2100 tested by BACL project number: R1008093. Descriptions of the differences between the tested model and those that are declared similar are as follows: The following options are built-in to the CT2100 and are not in CT2000; - CT2100 has Door solenoids & support circuitry which allow Level 1 charging (120VAC). - CT2100 has a Safety Supervisory module circuitry for Level 1 charging on the Combo Board which is not present on the CT2000. These are the Mechanical Changes and Circuitry differences between CT2100 and CT2000. Please contact me should there be need for any additional clarification or information. Best Regards, Gary Eldridge, P.E. Regulatory Compliance Manager Phone: 408 718-3781 [email protected] Coulomb Technologies, Inc. 1692 Dell Ave. Campbell CA 95008-6901

Coulomb Technologies, Inc. FCC ID: W38-CT21002000-01, IC: 8854A-21002000 Report Number: R1008093-225 Page 26 of 46 FCC Part15.225/RSS-210 Test Report 8 EXHIBIT A - FCC ID & IC LABEL INFORMATION 8.1 FCC ID Label Requirements As per FCC §2.925, (a) Each equipment covered in an application for equipment authorization shall bear a nameplate or label listing the following: (1) FCC Identifier consisting of the two elements in the exact order specified in §2.926. The FCC Identifier shall be preceded by the term FCC ID in capital letters on a single line, and shall be of a type size large enough to be legible without the aid of magnification. Example: FCC ID XXX123. XXX—Grantee Code 123—Equipment Product Code As per FCC §15.19, (a) In addition to the requirements in part 2 of this chapter, a device subject to certification, or verification shall be labeled as follows: (3) All other devices shall bear the following statement in a conspicuous location on the device: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. (4) Where a device is constructed in two or more sections connected by wires and marketed together, the statement specified above is required to be affixed only to the main control unit. If the EUT is integrated within another device then a label affixed to the host shall also state, “Contains FCC ID: XXXXXX” (5) When the device is so small or for such use that it is not practicable to place the statement specified under paragraph (a) of this section on it, the information required by this paragraph shall be placed in a prominent location in the instruction manual or pamphlet supplied to the user or, alternatively, shall be placed on the container in which the device is marketed. However, the FCC identifier or the unique identifier, as appropriate, must be displayed on the device. 8.2 IC Label Requirements As per IC RSS-Gen § 5, the certification number shall appear as follows: IC: XXXXXX-YYYYYYYY Where: • "XXXXXX-YYYYYYYY" is the certification number • "XXXXXX" is the Certificate Holder Number (CHN), made of at most 6 alphanumeric characters (A-Z, 0- 9), assigned by Industry Canada; and • "YYYYYYYY" is the Unique Product Number (UPN), made of at most 11 alphanumeric characters (A-Z, 0-9) assigned by the applicant. • Note 1: The term "IC" before the equipment certification number only signifies that the Industry Canada technical specifications were met. • Note 2: Note 1 shall be conspicuously placed in the equipment user manual. • Note 3: Permitted alphanumeric characters used in the CHN and UPN are limited to capital letters (A-Z) and digits (0-9). Other characters, such as "#", "/" or "-", shall not be used. Coulomb Technologies, Inc. FCC ID: W38-CT21002000-01, IC: 8854A-21002000 Report Number: R1008093-225 Page 27 of 46 FCC Part15.225/RSS-210 Test Report As per RSS-Gen §5.2 Equipment Labeling: Equipment subject to certification under the applicable RSS, shall be permanently labeled on each item, or as an inseparable combination. The label must contain the following information for full compliance: (a) the certification number, prefixed by the term “IC:”; (b) the manufacturer's name, trade name or brand name; and (c) a model name or number. Equipment for which a certificate has been issued is not considered certified if it is not properly labeled. The information on the Canadian label can be combined with the manufacturer’s other labeling requirements. If the device size is too small to put a label, the label can be included in the user’s manual, upon agreement with Industry Canada. 8.3 FCC ID & IC Label Contents Model: CT2000 Model: CT2100 Specifications: Text is black or white in color and is left justified. Labels are silk-screened and shall be “permanently affixed” at a conspicuous location on the EUT. Coulomb Technologies, Inc. FCC ID: W38-CT21002000-01, IC: 8854A-21002000 Report Number: R1008093-225 Page 28 of 46 FCC Part15.225/RSS-210 Test Report 8.4 Proposed FCC ID & IC Label Location on EUT Model: CT2000 Model: CT2100

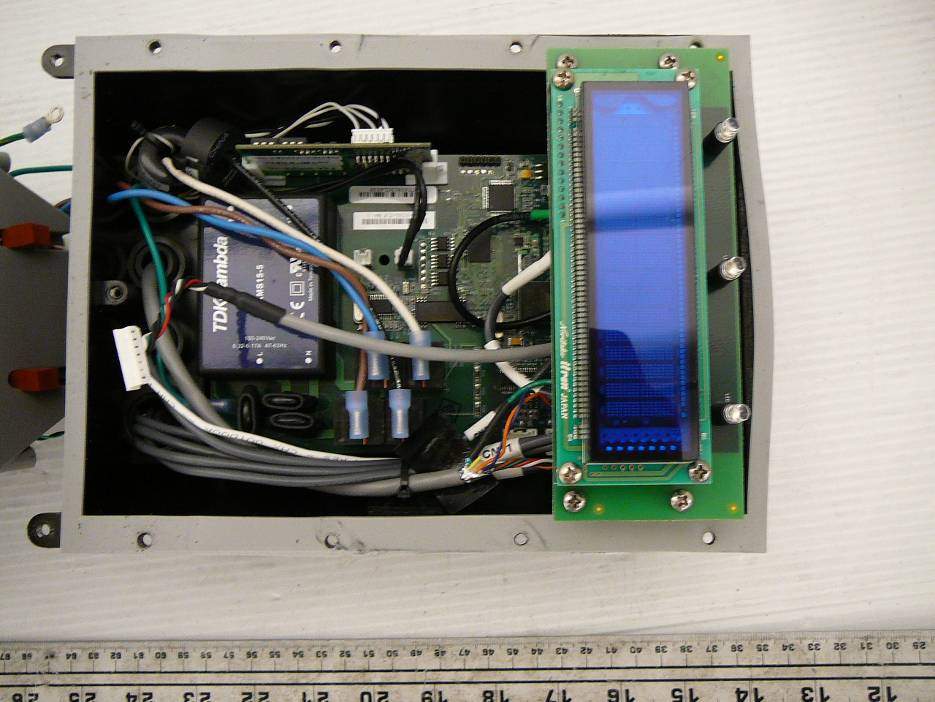

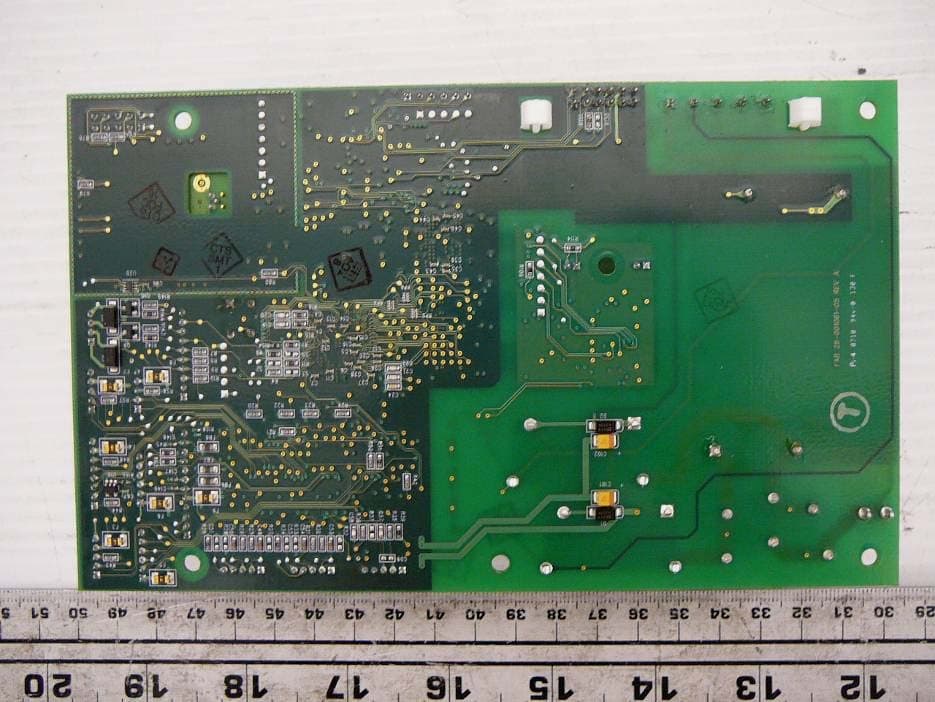

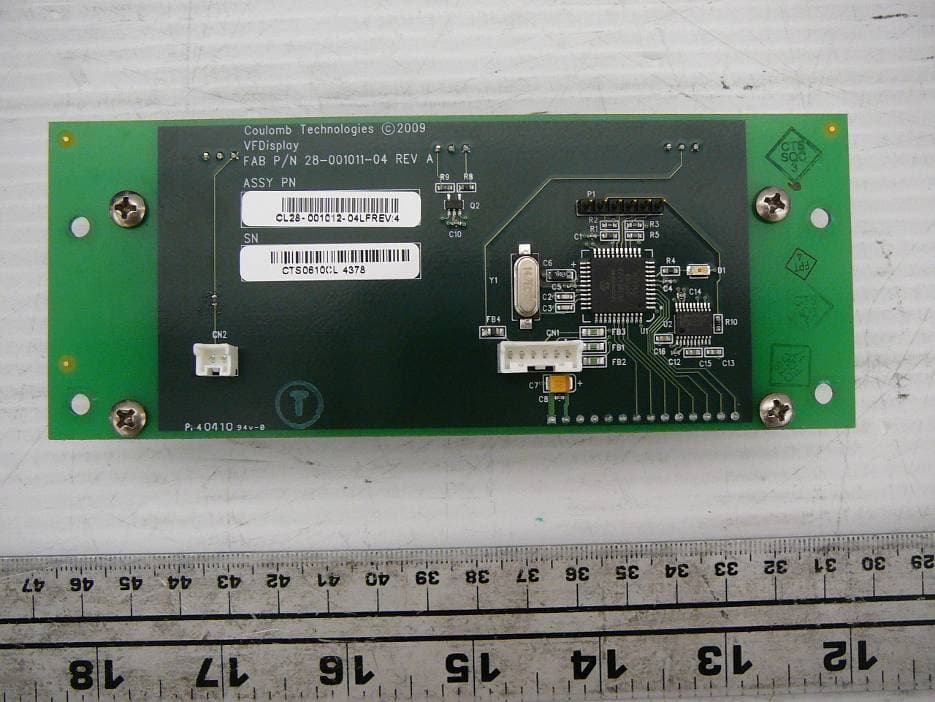

Coulomb Technologies, Inc. FCC ID: W38-CT21002000-01, IC: 8854A-21002000 Report Number: R1008093-225 Page 38 of 46 FCC Part15.225/RSS-210 Test Report 10.9 EUT – Main Body Front View 10.10 EUT - Main Body Back View Coulomb Technologies, Inc. FCC ID: W38-CT21002000-01, IC: 8854A-21002000 Report Number: R1008093-225 Page 39 of 46 FCC Part15.225/RSS-210 Test Report 10.11 EUT - Main Body Cover off View 10.12 EUT – RFID Board Front View Coulomb Technologies, Inc. FCC ID: W38-CT21002000-01, IC: 8854A-21002000 Report Number: R1008093-225 Page 40 of 46 FCC Part15.225/RSS-210 Test Report 10.13 EUT – RFID Board Back View 10.14 EUT – Display Board Front View Coulomb Technologies, Inc. FCC ID: W38-CT21002000-01, IC: 8854A-21002000 Report Number: R1008093-225 Page 41 of 46 FCC Part15.225/RSS-210 Test Report 10.15 EUT – Display Board Back View 10.16 EUT – Main Board Front View Coulomb Technologies, Inc. FCC ID: W38-CT21002000-01, IC: 8854A-21002000 Report Number: R1008093-225 Page 42 of 46 FCC Part15.225/RSS-210 Test Report 10.17 EUT – Main Board Back View 10.18 EUT – Zigbee Module Front View Coulomb Technologies, Inc. FCC ID: W38-CT21002000-01, IC: 8854A-21002000 Report Number: R1008093-225 Page 43 of 46 FCC Part15.225/RSS-210 Test Report 10.19 EUT – Zigbee Module Back View 10.20 EUT –Safety Supervisor Board Front View Coulomb Technologies, Inc. FCC ID: W38-CT21002000-01, IC: 8854A-21002000 Report Number: R1008093-225 Page 44 of 46 FCC Part15.225/RSS-210 Test Report 10.21 EUT – Safety Supervisor Board Back View 10.22 EUT –CDMA Modem Front View Coulomb Technologies, Inc. FCC ID: W38-CT21002000-01, IC: 8854A-21002000 Report Number: R1008093-225 Page 45 of 46 FCC Part15.225/RSS-210 Test Report 10.23 EUT -CDMA Modem Back View 10.24 EUT –GPRS Modem Front View Coulomb Technologies, Inc. FCC ID: W38-CT21002000-01, IC: 8854A-21002000 Report Number: R1008093-225 Page 46 of 46 FCC Part15.225/RSS-210 Test Report 10.25 EUT -GPRS Modem Back View 10.26 CDMA/GPRS Module Antenna View ***** End of Report *****

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, NIST, or any agency of the Federal Government. * This report may contain data that are not covered by the NVLAP accreditation and are marked with an asterisk “*” (Rev.2) FCC PART 15.225 IC RSS-210, ISSUE 7, JUNE 2007 TEST AND MEASUREMENT REPORT For Coulomb Technologies, Inc. 1692 Dell Avenue, Campbell, CA 95008, USA FCC ID: W38-CT21002000-01 IC: 8854A-21002000 Report Type: Original Report Product Type: Electric Vehicle Charging Station Test Engineer: Kevin Li Report No.: R1008093-225 Report Date: 2010-09-24 Reviewed By: Victor Zhang Test Engineer, RF Lead Prepared By: (SP) Bay Area Compliance Laboratories Corp. (BACL) 1274 Anvilwood Avenue, Sunnyvale, CA 94089, USA Tel: (408) 732-9162 Fax: (408) 732-9164 Coulomb Technologies, Inc. FCC ID: W38-CT21002000-01, IC: 8854A-21002000 Report Number: R1008093-225 Page 2 of 46 FCC Part15.225/RSS-210 Test Report TABLE OF CONTENTS 1 GENERAL INFORMATION ..............................................................................................................................5 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ........................................................................5 1.2 MECHANICAL DESCRIPTION OF EUT ..............................................................................................................5 1.3 OBJECTIVE......................................................................................................................................................5 1.4 RELATED SUBMITTAL(S)/GRANT(S)................................................................................................................5 1.5 TEST METHODOLOGY.....................................................................................................................................5 1.6 MEASUREMENT UNCERTAINTY.......................................................................................................................5 1.7 TEST FACILITY................................................................................................................................................6 2 SYSTEM TEST CONFIGURATION .................................................................................................................7 2.1 JUSTIFICATION................................................................................................................................................7 2.2 EUT EXERCISE SOFTWARE.............................................................................................................................7 2.3 SPECIAL ACCESSORIES....................................................................................................................................7 2.4 EQUIPMENT MODIFICATIONS..........................................................................................................................7 2.5 REMOTE SUPPORT EQUIPMENT.......................................................................................................................7 2.6 LOCAL SUPPORT EQUIPMENT..........................................................................................................................7 2.7 INTERNAL CONFIGURATIONS..........................................................................................................................7 2.8 INTERFACE PORTS AND CABLING....................................................................................................................8 3 SUMMARY OF TEST RESULTS ......................................................................................................................9 4 FCC §15.203 & IC RSS-GEN §7.1.4 – ANTENNA REQUIREMENT ..........................................................10 4.1 APPLICABLE STANDARD...............................................................................................................................10 5 FCC §15.205, §15.209, §15.225 & IC RSS-210 §2.6, §A2.6 - RADIATED EMISSION TEST .....................11 5.1 APPLICABLE STANDARD...............................................................................................................................11 5.2 EUT SETUP...................................................................................................................................................11 5.3 TEST SETUP BLOCK DIAGRAM......................................................................................................................12 5.4 TEST PROCEDURE.........................................................................................................................................12 5.5 CORRECTED AMPLITUDE & MARGIN CALCULATION....................................................................................12 5.6 TEST EQUIPMENT LIST AND DETAILS............................................................................................................13 5.7 TEST ENVIRONMENTAL CONDITIONS............................................................................................................13 5.8 SUMMARY OF TEST RESULTS........................................................................................................................13 5.9 RADIATED EMISSIONS TEST RESULT DATA..................................................................................................14 6 FCC §15.207 & IC RSS-GEN – AC LINE CONDUCTED EMISSIONS ......................................................17 6.1 APPLICABLE STANDARD...............................................................................................................................17 6.2 TEST SETUP....................................................................................…

Text truncated - open the document above for the full version.

Coulomb Technologies, Inc. FCC ID: W38-CT21002000-01, IC: 8854A-21002000 Report Number: R1008093-225 Page 29 of 46 FCC Part15.225/RSS-210 Test Report 9 EXHIBIT B - TEST SETUP PHOTOGRAPHS 9.1 Radiated Emission below 30 MHz – Front View 9.2 Radiated Emission below 30 MHz – Rear View Coulomb Technologies, Inc. FCC ID: W38-CT21002000-01, IC: 8854A-21002000 Report Number: R1008093-225 Page 30 of 46 FCC Part15.225/RSS-210 Test Report 9.3 Radiated Emission above 30 MHz – Front View 9.4 Radiated Emission above 30 MHz – Rear View Coulomb Technologies, Inc. FCC ID: W38-CT21002000-01, IC: 8854A-21002000 Report Number: R1008093-225 Page 31 of 46 FCC Part15.225/RSS-210 Test Report 9.5 Radiated Emission above 1 GHz- Front View 9.6 Radiated Emission above 1 GHz – Rear View Coulomb Technologies, Inc. FCC ID: W38-CT21002000-01, IC: 8854A-21002000 Report Number: R1008093-225 Page 32 of 46 FCC Part15.225/RSS-210 Test Report 9.7 Conducted Emission – Front View 9.8 Conducted Emission – Side View Coulomb Technologies, Inc. FCC ID: W38-CT21002000-01, IC: 8854A-21002000 Report Number: R1008093-225 Page 33 of 46 FCC Part15.225/RSS-210 Test Report 9.9 Frequency Stability Testing
