W4QADS600BA1SUAT Transceiver

2010-04-20 P/N: 240-0008-00-02 Copyright 2009-2010 NavWorx ® Page 1 of 46 All rights reserved. Printed in the U.S.A. ADS600-B™ Installation and User Manual ® 2010-04-20 P/N: 240-0008-00-02 Copyright 2009-2010 NavWorx ® Page 2 of 46 All rights reserved. Printed in the U.S.A. Business Address: NavWorx Inc. 3906 Industrial St, Suite 100 Rowlett, TX 75088 Telephone: (888)-NAVWORX (628-9679) Facsimile: 888- 628-9679 Email: [email protected] Website: www.NavWorx.com Information in this document is subject to change without notice. NavWorx reserves the right to modify its products and documentation without notice and is under no obligation to notify anyone of such changes or improvements. NavWorx is a registered trademark of NavWorx Incorporated. ADS600-B™ is a trademark of NavWorx Incorporated. These trademarks may not be used without the express written permission of NavWorx Incorporated. No part of this document may be copied, reproduced, transmitted, disseminated, downloaded or stored on any storage medium without the express written permission of NavWorx. NavWorx grants permission to download a single copy of this document onto a hard drive or other electronic storage medium to be viewed for personal use as long as the downloaded or printed copy contains the complete text of this copyright notice. Unauthorized commercial distribution of any revision of this documentation is strictly prohibited. 2010-04-20 P/N: 240-0008-00-02 Copyright 2009-2010 NavWorx ® Page 3 of 46 All rights reserved. Printed in the U.S.A. Revision History Revision Date Comments 01 04/20/2010 Initial release 02 05/11/2010 Revised FCC statement 2010-04-20 P/N: 240-0008-00-02 Copyright 2009-2010 NavWorx ® Page 4 of 46 All rights reserved. Printed in the U.S.A. List of Effective Pages Page Rev Page Rev Page Rev Page Rev Page Rev 2010-04-20 P/N: 240-0008-00-02 Copyright 2009-2010 NavWorx ® Page 5 of 46 All rights reserved. Printed in the U.S.A. End User License Agreement (EULA) Terms. By installing or using the ADS600-B (“product”), you agree to be bound by the terms and conditions of the following license agreement. Please read this agreement carefully. NavWorx Incorporated ("NavWorx") grants you a limited, non-exclusive license to use the product. Title, ownership rights, and intellectual property rights in and to the product remain with NavWorx. Refund. If you do not agree to the terms of this EULA, NavWorx Inc. is unwilling to license the product to you. In such event, you may not use the licensed product, and you should promptly contact NavWorx for a refund. The product must not have been used or installed in order to obtain a full refund. No Warranties. Except as expressly provided in the limited warranty section, the products’ hardware and its operating system software are provided to you “as is” without warranty of any kind, either expressed or implied, including, but not limited to, waranties of noninfringement, merchantability, and /or fitness for a particular purpose. The entire risk of the quality and performance of both the software and hardware is with the user. Copyright. You acknowledge that the product is the property of NavWorx and is protected under United States of America copyright laws and international copyright treaties. You further acknowledge that the structure, organization, and source design of the hardware and software are valuable trade secrets of NavWorx. You agree not to open the product, break the EULA seal, nor decompile, disassemble, modify, reverse assemble, reverse engineer, or reduce to human readable form the hardware or software or any part thereof or create any derivative works based on the product. No Liability for Consequential Damages. NavWorx Inc. and its suppliers shall not be held liable for any damages suffered or incurred by you (including, but not limited to, general, special, consequential or incidental damages for loss of business profits, business interruption, personal compensation and the like), arising from or in connection with the delivery, use, or performance of the product and its software. Customer Remedies. NavWorx Inc. and its suppliers entire liability and your exclusive remedy shall be, at NavWorx’ option, either (1) return of the product purchase price, not to exceed list price, or (2) repair or replacement of the product which is returned to NavWorx with original proof of purchase. 2010-04-20 P/N: 240-0008-00-02 Copyright 2009-2010 NavWorx ® Page 6 of 46 All rights reserved. Printed in the U.S.A. Disclaimer Symbology seen throughout this documentation highlight important information. The following table defines how to interpret these symbols: Symbol Description Hazardous. Warning. Important. The ADS600-B is used as an aid to visual acquisition of traffic and weather and it is to be used only for pilot and crew situational awareness. The ADS600-B does not relieve the flight crew of seeing and avoiding traffic, obstacles and weather. Installation of the ADS600-B does not relieve the pilot of consulting approved data sources prior to and during each flight. The ADS600-B is not a collision-avoidance-device. Any deviation from ATC clearance, given cockpit information derived from the ADS600-B, must be approved by ATC. The ADS600-B is a Universal Access Transceiver (UAT) that interfaces with an MFD or CDTI to display UAT, TIS-B and FIS-B products. NavWorx is not responsible for how a display device renders these products. Nor is NavWorx is not responsible for the failure of the display device to render these products. The ADS600-B receives TIS-B and FIS-B products from ADS-R ground stations. NavWorx is not responsible for the content, or lack of content, in TIS-B and FIS-B product offerings by the FAA. NavWorx is not responsible for the failure of ADS-R groundstations to broadcast TIS-B and FIS-B products. NavWorx is not liable for damages as a result of use or misuse of the ADS600-B. NavWorx has tested the product in accordance with FAA guidance material. Howev…

Text truncated - open the document above for the full version.

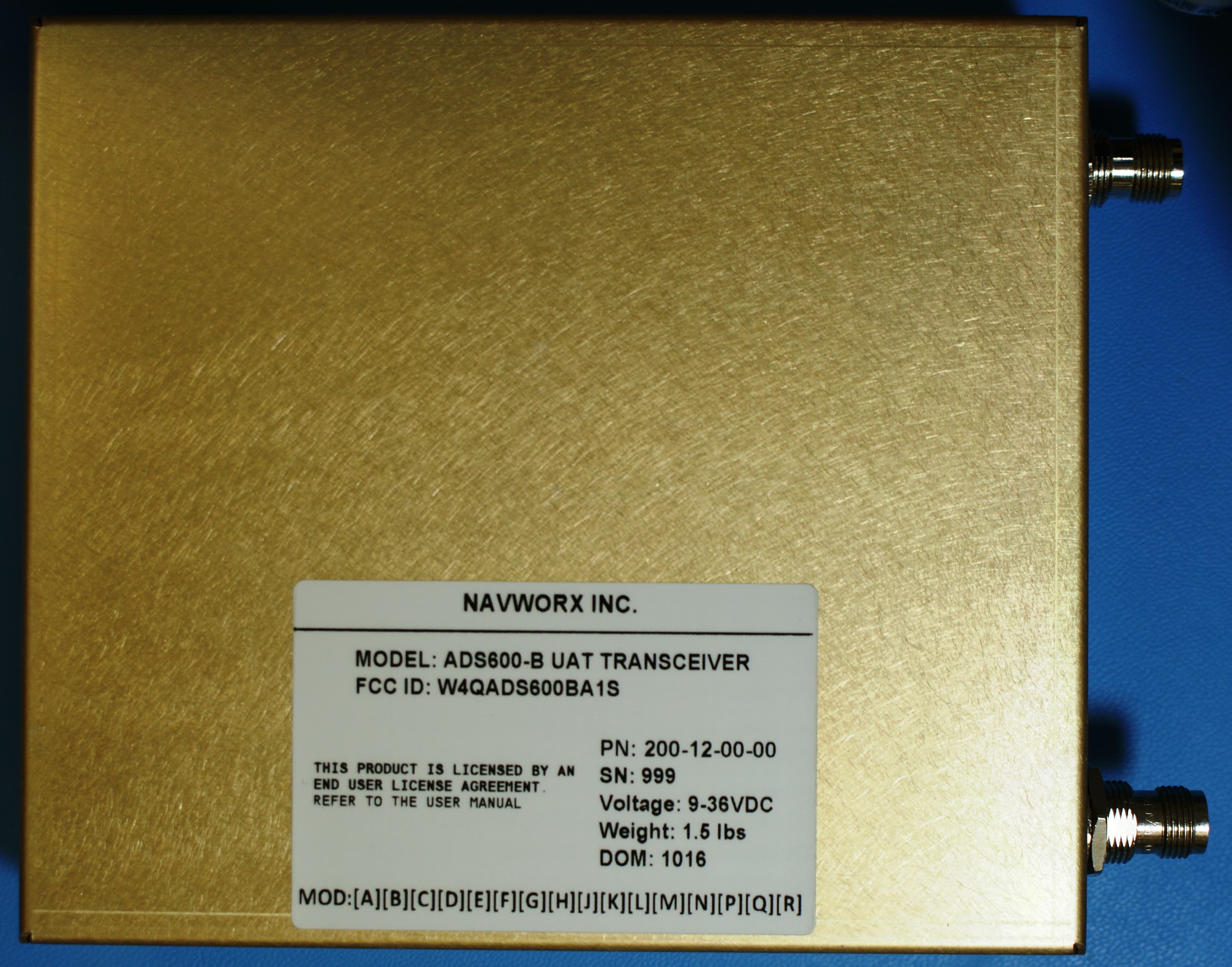

Approvals Drawn By:Karen Harrison Date 05/14/2010 ADS600-B Equipment Nameplate V.P. Engr:William Moffitt05/14/2010 Sheet Number: Drawing Number: 1 of 1 250-0001-00 Revision Number:02 History of Revisions RevDateDescriptionAuthorization 0104/15/2010Initial ReleaseW. Moffitt 0205/14/2010Removed FCC 2 part descW. Moffitt NavWorx® Incorporated 3906 Industrial Street, Suite 100 Rowlett, TX 75088 This document contains confidential and proprietary information and shall not be used without the written permission of NavWorx® Incorporated. THIS PRODUCT IS LICENSED BY AN END USER LICENSE AGREEMENT REFER TO THE USER MANUAL MOD:[A][B][C][D][E][F][G][H][J][K][L][M][N][P][Q][R] Notes: 1) PN number ‘rr’ value indicates revision number. 2) The modification status is indicated by marking with a permanent ink marker an ‘x’ or dot over the applicable MOD character. 3) The date of manufacturer (DOM) is marked as ‘yyww’ where ‘yy’ is the last 2 numbers of the year and ‘ww’ is the week number. 4) ‘ssss’ is a 4 numeric character serial number. 2 inches 3 inches NAVWORX INC. Label is made of metalized polyester and is affixed with permanent adhesive. Label PN: THT-1948-1 (3"x2" Brady Thermal Transfer Label) MODEL: ADS600-B UAT TRANSCEIVER FCC ID: W4QADS600BA1S PN: 200-12-00-‘rr’ SN: ‘ssss’ Voltage: 9-36 VDC Weight: 1.5 lbs DOM: ‘yyww’

NavWorx® Incorporated 3906 Industrial Street, Suite 100 Rowlett, Texas 75088 Tel 972.475.5613 Fax 469.327.2683 www.navworx.com Tune-Up Procedure : Unit is tuned at the factory. No user tune-up is possible.

Nemko Test Report: 43893RUS1 Applicant: NavWorx Incorporated 3906 Industrial Street, Suite 100 Rowlett, TX 75088 USA Equipment Under Test: ADS600-B Universal Access Transceiver (E.U.T.) FCC Identifier: W4QADS600BA1S In Accordance With: CFR Title 47 Part 87, Subpart D Aeronautical Transmitter Tested By: Nemko USA Inc. 802 N. Kealy Lewisville, TX 75057-3136 TESTED BY: DATE: 12 May 2010 Tom Tidwell, Wireless Engineer APPROVED BY: DATE: 20 May 2010 David Light, Wireless Verificator Number of Pages: 27 Nemko USA, Inc. CFR Title 47, PART 87, Subpart D Aeronautical Transmitter EQUIPMENT: ADS600-B PROJECT NO.:43893RUS1 Page 2 of 27 Table of Contents Section 1. Summary of Test Results .......................................................................................................3 Section 2. General Equipment Specification........................................................................................... 5 Section 3. RF Power Output.................................................................................................................... 7 Section 4. Occupied Bandwidth .............................................................................................................. 8 Section 5. Spurious Emissions at Antenna Terminals........................................................................... 12 Section 6. Field Strength of Spurious Emissions .................................................................................. 16 Section 7. Frequency Stability ............................................................................................................... 19 Section 8. Test Equipment List ............................................................................................................. 23 ANNEX A - TEST DIAGRAMS................................................................................................................ 24 Nemko USA, Inc. CFR Title 47, PART 87, Subpart D Aeronautical Transmitter EQUIPMENT: ADS600-B PROJECT NO.:43893RUS1 Page 3 of 27 Section 1. Summary of Test Results Manufacturer: Navworx, Inc. Model No.: ADS600-B Serial No.: 999 General: All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with CFR Part 87. Testing was performed using test methods described in EIA/TIA 603C. New Submission Production Unit Class II Permissive Change Pre-Production Unit THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See “ Summary of Test Data”. Nemko USA, Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety, for use by the company’s employees only. This report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. Nemko USA, Inc. is a NVLAP accredited laboratory. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko USA, Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Nemko USA, Inc. CFR Title 47, PART 87, Subpart D Aeronautical Transmitter EQUIPMENT: ADS600-B PROJECT NO.:43893RUS1 Page 4 of 27 Summary Of Test Data NAME OF TEST PARA. NO. RESULT RF Power Output 2.1046/87.131 Complies Modulation Characteristics 2.1047 Complies 1 Occupied Bandwidth 2.1049(c)/87.135 Complies Spurious Emissions at Antenna Terminals 2.1051/87.139(l) Complies Field Strength of Spurious Emissions 2.1053/87.139 Complies Frequency Stability 2.1055/87.133/87.147(a) Complies Footnotes: 1 The transceiver is not voice-modulated. The transmitter only sends GPS location coordinates and other navigation data to ground monitoring stations. The modulation is FSK, binary phase coherent. Modulation index of 0.6 baseband filtered using cosine filter. The data rate is 1.041666MHz (period = 960ns) . Nemko USA, Inc. CFR Title 47, PART 87, Subpart D Aeronautical Transmitter EQUIPMENT: ADS600-B PROJECT NO.:43893RUS1 Page 5 of 27 Section 2. General Equipment Specification Supply Voltage Input: 13.56 Vdc nominal Frequency Range: 978 MHz fixed Tunable Bands: N/A. The EUT is fix tuned Type(s) of Modulation: F1D (FSK) data only Emission designator: 1M26F1D Output Impedance: 50 ohms RF Power Output (rated): 40 W (nominal) 46 dBm Channel Spacing(s): N/A Operator Selection of Operating Frequency: Not selectable by user Power Output Adjustment Capability: Not adjustable by user Nemko USA, Inc. CFR Title 47, PART 87, Subpart D Aeronautical Transmitter EQUIPMENT: ADS600-B PROJECT NO.:43893RUS1 Page 6 of 27 Description of EUT Product is portable ADS-B UAT transceiver, designed to meet DO-282B specifications. The product is housed in a metal enclosure for EMI/RFI purposes. System Diagram EUT GPS External antenna Aircraft battery Nemko USA, Inc. CFR Title 47, PART 87, Subpart D Aeronautical Transmitter EQUIPMENT: ADS600-B PROJECT NO.:43893RUS1 Page 7 of 27 Section 3. RF Power Output NAME OF TEST: RF Power Output PARA. NO.: 2.1046 TESTED BY: T. Tidwell DATE: 30 April 2010 Test Results: Complies. Measurement Data: Frequency (MHz) Measured Power (dBm) Measured Power (W) 978 46.01 39.9 Equipment Used: 1064, 1065, 1469, 1036, 1627, 1629 Measurement Uncertainty: +/- 1.7 dB Temperature: 22 °C Relative Humidity: 37 % Nemko USA, Inc. CFR Title 47, PART 87, Subpart D Aeronautical Transmitter EQUIPMENT: ADS600-B PROJECT NO.:43893RUS1 Page 8 of 27 Section 4. Occupied Bandwidth NAME OF TEST: Occupied Bandwidth PARA. NO.: 2.1049 TESTED BY: T. Tidwell DATE: 7 May 2010 Test Results: Complies. Test Data: See attached plot(s). Minimum requirement: See mask on plots. Equipment Used: 1064, 1065, 1469, 1036, 1627, 1629 Measurement Uncertainty…
