W55TR1FM1B2Tire Pressure Monitoring System

翔鑫科技股份有份公司 Oro Technology Co., LTD Tire Pressure Monitoring System TR01 USER MANUAL ORO TR01 TPMS TPMS Manual To ensure correct operations and services please read these instructions before installing and operating the TPMS TABLE of CONTENTS 1. Notice..............................................................................................1 2. TR01 Tire Pressure Monitoring System................................................2 3. TR01 TPMS Specification..................................................................2 4. TR01 TPMS Specification Accessories.................................................3 5. TR01 TPMS Installation....................................................................4 Tire Sensor Installation........................................................................4 Antenna Installation...........................................................................7 Display Unit Installation......................................................................8 6. TR01 System Operation....................................................................9 1.Display Signals Description........................................................9 2.Operation to Change Display Mode...................................................9 3.Operation to Change Unit of Tire Pressure and Temperature................10 4.Operation to Modify Factory Default.................................................10 Single Wheel Standard Cold Tire Pressure Setting Mode..................10 Double Wheels Standard Cold Tire Pressure Setting Mode...............11 Tire Temperature-Over Temperature Setting Mode..........................12 Power On Setting Mode.............................................................13 7. TR01 System Alarm Mode Description...............................................14 8. TR01 Reset for Tire Change and Rotation...........................................16 Mode1：Random Repositioning...........................................................16 Mode2：Single Sensor Replaced.........................................................19 Mode3：Spare Tire Sensor Rotation....................................................23 9. ORO Warranty Policy........................................................................25 10. APPENDIX.....................................................................................26 11. TR01 Failure - Troubleshooting........................................................26 NOTICE FCC Federal Communications Commission (FCC) Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: ‐ Reorient or relocate the receiving antenna. ‐ Increase the separation between the equipment and receiver. ‐ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ‐ Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. To maintain compliance with FCC RF exposure compliance requirements, please avoid direct contact to the transmitting antenna during transmitting. " This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co‐located or operating in conjunction with any other antenna or transmitter. End‐users and installers must be provide with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. " TR01 Tire Pressure Monitoring System ORO-TR01 Tire Pressure Monitoring Systems (TPMS), can monitor and provide tire pressure, tire temperature and car battery information in real time to help the driver control and keep the normal tire pressure in order to reduce the fuel consumption and extend the tire life, and also through the battery information, the driver can change the battery before any incident occurs and reduce the possibility of vehicle breakdown on the roads. Tire Pressure Monitoring System, includes 7 tire sensors and 1 receiver display, the TPMS can monitor the pressure/temperature by snap-in installation into the tire, and transmit the tire information to the receiver by wireless. The TPMS display will trigger an alarm when any abnormalities arise from to the tire in order to prevent any possible accidents which may happen to the driver/vehicle. TR01 TPMS Specification 1. Tire Sensor’s Specification Battery life Up to 5~7 years in normally use Battery Voltage 3.0 V Operating Humidity Max 95% Storage Temperature -30 °Cto 125 °C Operation Temperature -30 °C to 115 °C Operation Frequency 433.92MHz Transmitting power Max 5 dBm Pressure Monitoring Range 0 ~ 13 bar (或0 ~ 188 psi ) Pressure Reading Accuracy ±0…

Text truncated - open the document above for the full version.

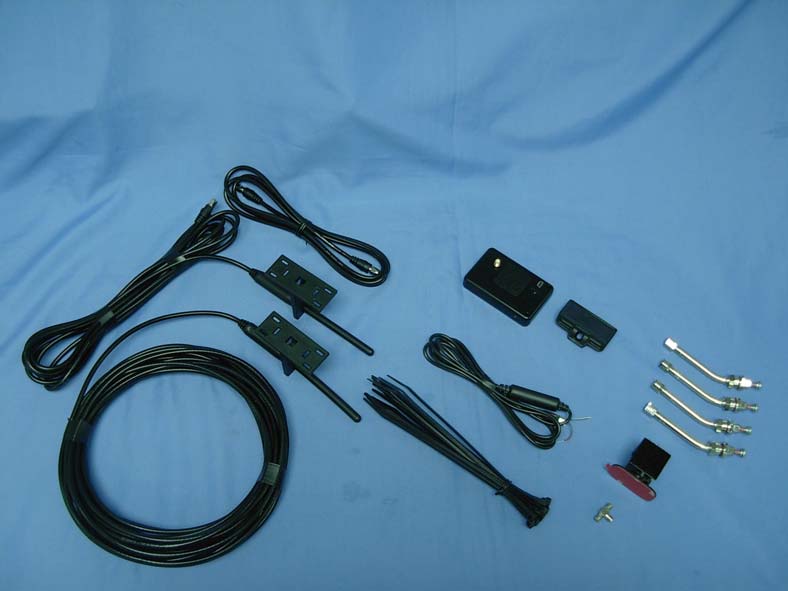

Report No：11C351R-RFUSP41V01 Page: 27 of 34 Attachment EUT Photograph (1) EUT Photo (2) EUT Photo

FCC ID.: W55TR1FM1B2 FCC ID Label The FCC ID Label will be placed on the equipment as shown in the photograph below. Tire Pressure Monitoring System Model No.: TR01 FCC ID : W55TR1FM1B2 S/N: Made in Taiwan

FCC ID.: W55TR1FM1B2 FCC ID Label The FCC ID Label will be placed on the equipment as shown in the photograph below. Tire Pressure Monitoring System Model No.: TR01 FCC ID : W55TR1FM1B2 S/N: Made in Taiwan

Report No：11C351R-RFUSP41V01 Page: 28 of 34 (3) EUT Photo (4) EUT Photo Report No：11C351R-RFUSP41V01 Page: 29 of 34 (5) EUT Photo (6) EUT Photo Report No：11C351R-RFUSP41V01 Page: 30 of 34 (7) EUT Photo (8) EUT Photo Report No：11C351R-RFUSP41V01 Page: 31 of 34 (9) EUT Photo Report No：11C351R-RFUSP41V01 Page: 32 of 34 (10) EUT Photo Report No：11C351R-RFUSP41V01 Page: 33 of 34 (11) EUT Photo (12) EUT Phot Report No：11C351R-RFUSP41V01 Page: 34 of 34 (13) EUT Photo (ANT)

Report No. 122312R-RF-US-Exp Page: 1 of 3 RF Exposure Evaluation declaration Product Name ：Tire Pressure Monitoring System Model No. ：TR01 FCC ID. ：W55TR1FM1B2 Applicant : Oro Technology Co., LTD Address : 3F, No.32-1, 24th Road, Industrial Park, Taichung 408, Taiwan Date of Receipt : 2012/02/09 Issued Date : 2012/02/22 Report No. : 122312R-RF-US-Exp Report Version : V1.0 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No. 122312R-RF-US-Exp Page: 2 of 3 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 122312R-RF-US-Exp Page: 3 of 3 1.3. Test Result of RF Exposure Evaluation Product Tire Pressure Monitoring System Test Mode Mode 1: Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 0dBi or 1 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 01 433.92 0.1744 0.00003 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 0.29 mW/cm 2 in 433.92MHz.

Report No：122312R-RFUSP41V01 Page: 1 of 34 Test Report Product Name ： Tire Pressure Monitoring System Model No. ： TR01 FCC ID. ： W55TR1FM1B2 Applicant ：Oro Technology Co., LTD Address ：3F, No.32-1, 24th Road, Industrial Park, Taichung 408, Taiwan Date of Receipt：2012/02/09 Issued Date ：2012/02/22 Report No. ：122312R-RFUSP41V01 Report Version：V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No：122312R-RFUSP41V01 Page: 2 of 34 Test Report Certification Issued Date : 2012/02/22 Report No. : 122312R-RFUSP41V01 Product Name : Tire Pressure Monitoring System Applicant : Oro Technology Co., LTD Address ： 3F, No.32-1, 24th Road, Industrial Park, Taichung 408, Taiwan Manufacturer : Oro Technology Co., LTD Model No. : TR01 FCC ID. : W55TR1FM1B2 EUT Voltage : DC 3V Trade Name : ORO Applicable Standard : FCC 15 Subpart C Section 15.231(e): 2010 Test Result : Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Documented By ： ( Carol Tsai / Adm. Specialist ) Tested By ： ( Quale Tang / Engineer ) Approved By ： ( Roy Wang / Manager ) Report No：122312R-RFUSP41V01 Page: 3 of 34 TABLE OF CONTENTS Description Page 1. General Information........................................................................................................ 4 1.1. EUT Description ............................................................................................................. 4 1.2. Operation Description.....................................................................................................5 1.3. Test Mode ....................................................................................................................... 6 1.4. Tested System Details .................................................................................................... 7 1.5. Configuration of tested System ...................................................................................... 7 1.6. EUT Exercise Software .................................................................................................. 7 1.7. Test Facility..................................................................................................................... 8 2. Radiated Emission ......................................................................................................... 9 2.1. Test Equipment............................................................................................................... 9 2.2. Test Setup .................................................................................................................... 10 2.3. Limits ............................................................................................................................ 11 2.4. Test Procedure ............................................................................................................. 12 2.5. Test Specification.......................................................................................................... 12 2.6. Uncertainty ................................................................................................................... 12 2.7. Test Result.................................................................................................................... 13 2.8. Test Photo .................................................................................................................... 18 3. Occupied Bandwidth..................................................................................................... 20 3.1. Test Equipment............................................................................................................. 20 3.2. Test Setup .................................................................................................................... 20 3.3. Limits ............................................................................................................................ 20 3.4. Test Specification.......................................................................................................... 20 3.5. Uncertainty ................................................................................................................... 20 3.6. Test Result.................................................................................................................... 21 4. Duty cycle ..................................................................................................................... 22 4.1. Test Equipment............................................................................................................. 22 4.2. Test Setup .................................................................................................................... 22 4.3. Limits ............................................................................................................................ 22 4.4. Test Specification.......................................................................................................... 22 4.5. Uncertainty ................................................................................................................... 22 4.6. Test Result.................................................................................................................... 23 5. Transmitter time............................................................................................................24 5.1. Test Equipment............................................................................................................. 24 5.2. Test Setup ...................…

Text truncated - open the document above for the full version.

Report No：11C351R-RFUSP41V01 Page: 18 of 34 2.8. Test Photo Test Mode ： Mode 1: Transmit Description： Front View of Radiated Emission Test Setup (Bi-Log) Test Mode ： Mode 1: Transmit Description： Back View of Radiated Emission Test Setup (Bi-Log) Report No：11C351R-RFUSP41V01 Page: 19 of 34 Test Mode ： Mode 1: Transmit Description： Front View of Radiated Test (Horn) Test Mode ： Mode 1: Transmit Description： Back View of Radiated Test (Horn)
