W5EM631Bluetooth Laser Mouse

ASUS BX700 Bluetooth Laser Mouse User’s Guide GENERAL SPECIFICATIONS n 5 Buttons Bluetooth laser mouse. n 1,200 dpi hardware resolution. n Low power indicator. n Power ON/OFF switch. n Ergonomic and enlarge buttons design for comfortable grip. n 2 AAA batteries to operate the mouse. n Dimension: 105.6*57.7*36.2 (L*W*H,mm) n Weight: 62±5gm (without batteries) System Requirement ü Laptop or PC with Bluetooth technology ü Windows 7, Vista, XP, 2000, MAC 10.1 above Before you begin ü Keep this installation guide for future reference! It contains Important Troubleshooting Information. ü Keep your old PS/2 mouse as a back-up device. Getting Started This BX700 features a 1200dpi tracking resolution and an ergonomic 5-button operation. Please read this manual thoroughly and follow the instruction procedures to prevent from any equipment damage or personal injury. Function: Button #1 – Left mouse Button #3 – Centre scroll Low power Button #5 – Internet Forwards Button #4 – Internet Backwards Button#2–Right mouse Package Contains Your BX700 Bluetooth Mouse package includes the following: 1. Bluetooth Laser Mouse 2. User’s manual 3. 2 AAA size of Alkaline batteries *** If any part is missing, please contact your dealer for a replacement Immediately.*** Precaution ! The BX700 cannot work on a glass or mirror surface. Avoid operating this mouse on a glossy surface. Otherwise, this mouse may not operate normally. ! For consideration of saving battery power, it is strongly recommended to operate BX700 on a bright surface with fine texture to obtain lower power consumption. A very dark surface will cause higher power consumption. ! For a better transmission distance, avoid using this device on a metal plate or desktop because a large surface of iron, aluminum, operating on a metal may cause the transmission distance shorter. ! While the mouse is functioning, no laser light is visible to the naked eye. Be careful not to look directly into the emitter hole while the mouse is active. Installation Guide Step 1. Inserting the Batteries I. Remove the battery compartment cover. II. Install batteries with the positive (+) & negative (-) in the correct direction indicated by the battery compartment label. III. Replace battery compartment cover. Note: Please see the bottom of this mouse, the sliding-switch must be put on the “ON” position. Step 2. Connecting the BX700 to the available Bluetooth-enabled PC or Laptop There requires a one-time connection between the mouse and the available Bluetooth-enabled PC or Laptop. Please follow the steps below to finish the connection: 1. Before you can install your BX700 Bluetooth mouse, please make sure you have done the Bluetooth dongle installation procedure. 2. Press and release the “CONNECT” button on the bottom of the BX700. The red light led under the wheel button will be turn on. 3. On your computer system, double click the Bluetooth icon, and select the advanced configuration program. 4. Follow the indication of the advanced configuration program to setup the HID Bluetooth mouse driver. Note: If you press the "connect" button by mistake, you should re-pairing, follow the steps 1 to 4 again. BATTERY LOW INDICATOR When battery voltage level goes under the preset level, the LED on the mouse top cover will blink frequency. Although the mouse can still work for a while, the user, at this time, should have a new set of batteries ready for replacement as soon as possible. POWER ON/OFF MOUSE Power off the mouse For traveling user, this BX700 provides one sliding-switch on the bottom of mouse. User just pushes the sliding-switch to the “OFF” position to power-off this BX700. Power on the mouse When this BX700 is in sleep mode, to activate the mouse again, just need to move the mouse. If this mouse is power-off, user needs to push the sliding-switch to the “ON” position, and move this BX700 to wake up the mouse connection. Link OPERATIONS ON POWER SAVING MODE In order to conserve battery power, the mouse is designed to reduce power consumption gradually from Standby 1, Standby 2 and Sleep mode, if it is not being used. Mode Description Standby-1 mode Stop moving to Standby1 mode interval 3 sec Standby-2 mode Standby-1 mode to Standby-2 mode interval 3 sec Sleep mode Standby-2 mode to Sleep mode interval 8 min, for mouse without freeze mode). In sleep mode, user has to move the mouse to wake up the mouse for normal operation. COMPATIBILITY ß Bluetooth Version 2.1 protocol stack ß Bluetooth Human Interface Device profile. ß Microsoft Windows 2000/XP/Vista,Windows7, supported with Bluetooth USB dongle or Bluetooth-enabled PC ß Mac 10.1 above Electromagnetic Characteristics (EMC) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.…

Text truncated - open the document above for the full version.

Bluetooth SIG Qualification Design (QDL) Certificate QDL Certificate: This certificate represents the Specifications declared by the Member as having passed the Bluetooth Qualification/Certification Process as specified within the Bluetooth Specifications and as required within the PRD 2.0. Design Name: Bluetooth v2.1+EDR Mouse/HID Certified This Product Design has passed the Bluetooth Qualification Process! Specification Version: 2.1/2.1+EDR QDID: B014294 Declared Specifications: Baseband Conformance, Radio, Service Discovery Protocol, Logical Link Control and Adaption Protocol, Generic Access Profile, Link Manager, RFCOMM, Serial Port Profile, Human Interface Device Profile, Interoperability Test Specification, Summary ICS, Product Type Member Company:Requirements:Project Dates: Integrated System Solution Corp. 3F, No.2-1, Industry East Rd., 1, Science-Based Industrial Park Hsinchu, Taiwan 300 BQE: Jan-Willem Vonk 1. Testing 2. Documentation 3. Assessment 4. Declaration 5. Listing 6. Marking 7. Compliance to Auditing and Enforcement Assessment Date: June/25/2008 Listing Date: June/25/2008 https://www.bluetooth.org/tpg/Certificate.cfm?QID=14294 1 of 126-Jun-08 10:24

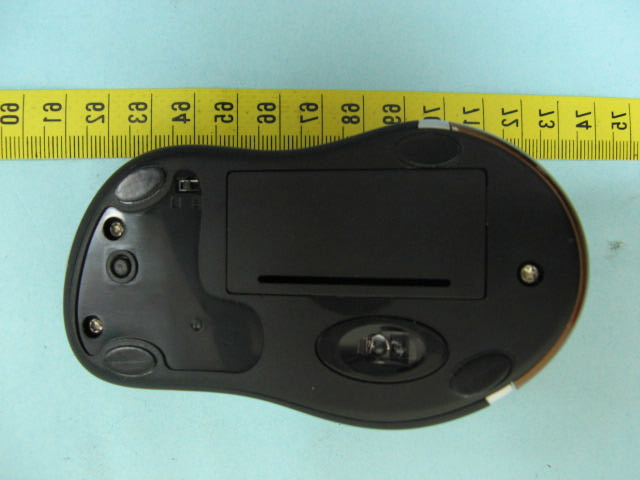

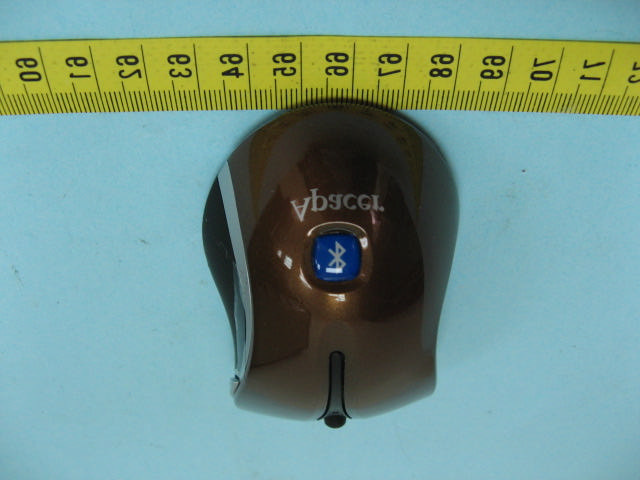

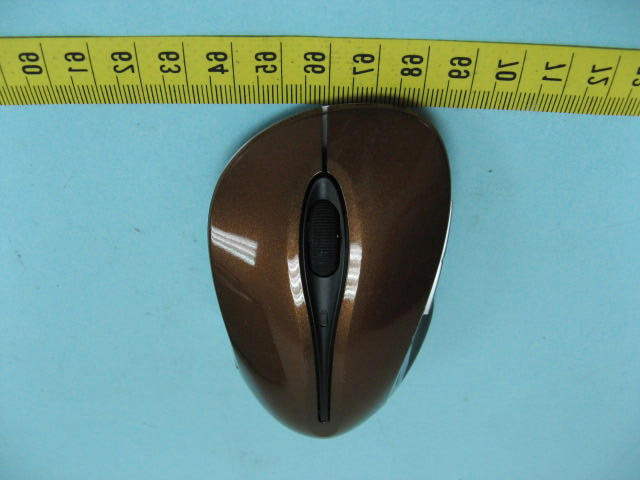

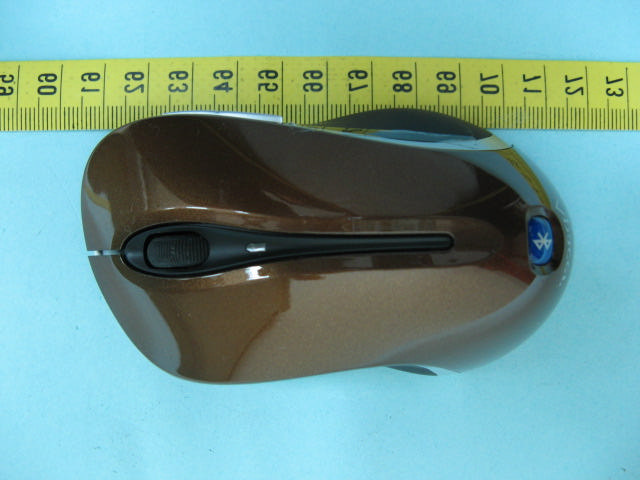

ETC Report No. : 10-05-RBF-144-04 FCC ID.: W5EM631 Sheet 1 of 6 Sheets Rev. No 2.1 CONSTRUCTED PHOTOS of EUT 1. Top View of EUT 2. Bottom View of EUT ETC Report No. : 10-05-RBF-144-04 FCC ID.: W5EM631 Sheet 2 of 6 Sheets Rev. No 2.1 CONSTRUCTED PHOTOS of EUT 3. Side View of EUT 4. Front View of EUT ETC Report No. : 10-05-RBF-144-04 FCC ID.: W5EM631 Sheet 3 of 6 Sheets Rev. No 2.1 CONSTRUCTED PHOTOS of EUT 5. Side View of EUT 6. Rear View of EUT

ETC Report No. : 10-05-RBF-144-04 FCC ID.: W5EM631 Sheet 4 of 6 Sheets Rev. No 2.1 CONSTRUCTED PHOTOS of EUT 7. Internal View of EUT ETC Report No. : 10-05-RBF-144-04 FCC ID.: W5EM631 Sheet 5 of 6 Sheets Rev. No 2.1 CONSTRUCTED PHOTOS of EUT 8. Component View of PCB 9. Solder View of PCB ETC Report No. : 10-05-RBF-144-04 FCC ID.: W5EM631 Sheet 6 of 6 Sheets Rev. No 2.1 CONSTRUCTED PHOTOS of EUT 10. Component View of PCB 11. Solder View of PCB

Rev. No 1.0 FCC Part 15 EMI TEST REPORT of E.U.T. : Bluetooth Laser Mouse Model : M631 FCC ID : W5EM631 for APPLICANT : Apacer Technology Inc. ADDRESS : 3F, No.83, Kur Wong Rd., Aspire Park, Lung Tan Hsiang, Tao Yuan Hsien, Taiwan. Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO.34, LIN 5, DINGFU TSUEN, LINKOU SHIANG TAIPEI COUNTY, TAIWAN, 24442, R.O.C. Tel:(02)26023052 Fax:(02)26010910 http://www.etc.org.tw ; e-mail : [email protected] Report Number : 10-05-RBF-144-04 ETC Report No. : 10-05-RBF-144-04 FCC ID.: W5EM631 Rev. No 1.0 TEST REPORT CERTIFICATION Applicant : Apacer Technology Inc. 3F, No.83, Kur Wong Rd., Aspire Park, Lung Tan Hsiang, Tao Yuan Hsien, Taiwan. Manufacture : Apacer Technology Inc. 3F, No.83, Kur Wong Rd., Aspire Park, Lung Tan Hsiang, Tao Yuan Hsien, Taiwan. Description of Device : a) Type of EUT : Bluetooth Laser Mouse b) Trade Name : Apacer c) Model No. : M631 d) Power Supply : DC 1.5V battery x 2 Regulation Applied : FCC Rules and Regulations Part 15 Subpart C (2009) I HEREBY CERTIFY THAT: The data shown in this report were made in accordance with the procedures given in ANSI C63.4, and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note: 1. The result of the testing report relate only to the item tested. 2. The testing report shall not be reproduced expect in full, without the written approval of ETC. ETC Report No. : 10-05-RBF-144-04 FCC ID.: W5EM631 Rev. No 1.0 Date Test Item Received : May 24, 2010 Date Test Campaign Completed : Jun 02, 2010 Date of Issue : Jun. 07, 2010 Test Engineer : ( falcon Shi, Engineer ) Check By : ( Charles Wang, Supervisor ) Approve & Authorized : Will Yauo, Manager EMC Dept. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No. : 10-05-RBF-144-04 FCC ID.: W5EM631 Rev. No 1.0 Table of Contents Page 1 GENERAL INFORMATION.......................................................................................................1 1.1 Product Description......................................................................................................................1 1.2 Test Methodology........................................................................................................................1 1.3 Test Facility..................................................................................................................................1 2 PROVISIONS APPLICABLE......................................................................................................2 2.1 Definition.....................................................................................................................................2 2.2 Requirement for Compliance.......................................................................................................3 2.3 Restricted Bands of Operation.....................................................................................................5 2.4 Labeling Requirement..................................................................................................................6 2.5 User Information..........................................................................................................................6 3 SYSTEM TEST CONFIGURATION..........................................................................................7 3.1 Justification..................................................................................................................................7 3.2 Devices for Tested System...........................................................................................................7 4 RADIATED EMISSION MEASUREMENT..............................................................................8 4.1 Applicable Standard.....................................................................................................................8 4.2 Measurement Procedure...............................................................................................................8 4.3 Measuring Instrument................................................................................................................10 4.4 Radiated Emission Data.............................................................................................................11 4.5 Field Strength Calculation..........................................................................................................19 4.6 Photos of Radiation Measuring Setup........................................................................................20 5 CONDUCTED EMISSION MEASUREMENT........................................................................21 5.1 Description.................................................................................................................................21 6 ANTENNA REQUIREMENT....................................................................................................22 6.1 Standard Applicable...................................................................................................................22 6.2 Antenna Construction.................................................................................................................22 7 HOPPING CHANNEL SEPARATION.....................................................................................23 7.1 Standard Applicable...................................................................................................................23 7.2 Measurement Procedure.............................................................................................................23 7.3 Measurement Equipment............................................................................................................24 7.4 Measurement Data......................................................................................................................24 8 NUMBER OF HOPPING FREQUENCY USED..…

Text truncated - open the document above for the full version.

ETC Report No. : 10-05-RBF-144-04 FCC ID.: W5EM631 Sheet 20 of 92 Sheets Rev. No 2.1 4.6 Photos of Radiation Measuring Setup
