W5P-PRF-PURECOM10PURECOM v1.0 Monitoring Base Unit PRF-PURECOM10MF/F/M/A

User Manual-PureComv1.0 Confidential & ProprietaryPage1of11 USERMANUAL PURECOMv1.0 Monitoring baseunit The information in this document is confidential to the person to whom it is addressed and should not be disclosedto any other person. It may not be reproduced in whole, or in part, nor may any of the information contained therein be disclosed without the prior consent of the SuperCom Ltd. (‘the Company’). A recipient may not solicit, directly or indirectly (whetherthrough an agent or otherwise) the participation of another institution or person without the prior approval of the directors of the Company. Any form of reproduction, dissemination, copying, disclosure, modification, distribution and or publication of this material is strictly prohibited. © All rights reserved. Supercom 2013 User Manual-PureComv1.0 Confidential & ProprietaryPage2of11 Document version management DateVersionCommentsAuthor 17.12.2014 1.0Initial versionEhud Bachman Author Ehud Bachman Approved by Barak Trabelsi Document version 1.0 Product PURECOMv1.0 Date December2014 User Manual-PureComv1.0 Confidential & ProprietaryPage3of11 Table of Contents 1Introduction..................................................................................................................4 1.1About this Guide.....................................................................................................4 1.2Important Information..............................................................................................4 1.3Safety Precautions..................................................................................................5 1.4FCC Warnings........................................................................................................6 2Technical Specifications.............................................................................................7 2.1Interfaces and MMIs...............................................................................................7 2.1.1RF....................................................................................................................7 2.1.2Interfaces & Connectors..................................................................................7 2.1.3Tampers & Sensors.........................................................................................7 2.1.4MMI.................................................................................................................7 2.1.5Operational temperature:.................................................................................7 2.2Power Requirements..............................................................................................7 3Unit Installation............................................................................................................8 4Configuration.............................................................................................................10 5Appendix A: Model Name and Variants...................................................................11 User Manual-PureComv1.0 1Introduction 1.1Aboutthis Guide This User Guide contains important information forinstallers and usersof thePRF-PURECOM10 product and all of its series.PureCom is a monitoring base unit especially designed for electronic monitoring. This guide introduces thePRF-PURECOM10andprovides instructions on how to install, configure, operate,and troubleshoot thedevice. Each section has both written and graphically explanations to providethe technical information necessary to be successful at using, installing, and configuringthe PRF-PURECOM10device. 1.2Important Information SuperComInc. reserves the right to make corrections, modifications, enhancements, improvements, and other changesto its products and services at any time and to discontinue any product or service without notice. Customers shouldobtain the latest relevant information before placing orders and should verify that such information is current andcomplete. All products are sold subject toSuperCom Inc.’s terms and conditions of sale supplied at the time of orderacknowledgment. SuperComInc. warrants performance of its hardware products to the specifications applicable at the time of sale inaccordance withSuperComInc.’s standard warranty. Testing and other quality control techniques are used to the extentSuperComInc. deems necessary to support this warranty. Except where mandated by government requirements, testingof all parameters of each product is not necessarily performed. SuperComInc. assumes no liability for applications assistance or customerproduct design. Customers are responsiblefor their products and applications usingSuperComInc. components. To minimize the risks associated with customerproducts and applications, customers should provide adequate design and operating safeguards. SuperComInc. does not warrant or represent that any license, either express or implied, is granted under anySuperComInc. patent right, copyright, mask work right, or otherSuperComInc. intellectual property right relating to anycombination, machine, or process in whichSuperComInc. products or services are used. Information published bySuperComInc. regarding third-party products or services does not constitute a license fromSuperComInc. to use suchproducts or services or a warranty or endorsement thereof. Use of such information may require a license from a thirdparty under the patents or other intellectual property of the third party, or a license fromSuperComInc. under the patentsor other intellectual property ofSuperComInc. Resale ofSuperComInc. products or services with statements different from or beyond the parameters stated bySuperComInc. for that product or service voids all express and any implied warranties for the associatedSuperComInc. Product or service and is an unfair and deceptive business practice.SuperComInc. is not responsible or liable for anysuch statements. All company and brand products and service names are tra…

Text truncated - open the document above for the full version.

Scanned by CamScanner

Scanned by CamScanner

Scanned by CamScanner

Scanned by CamScanner

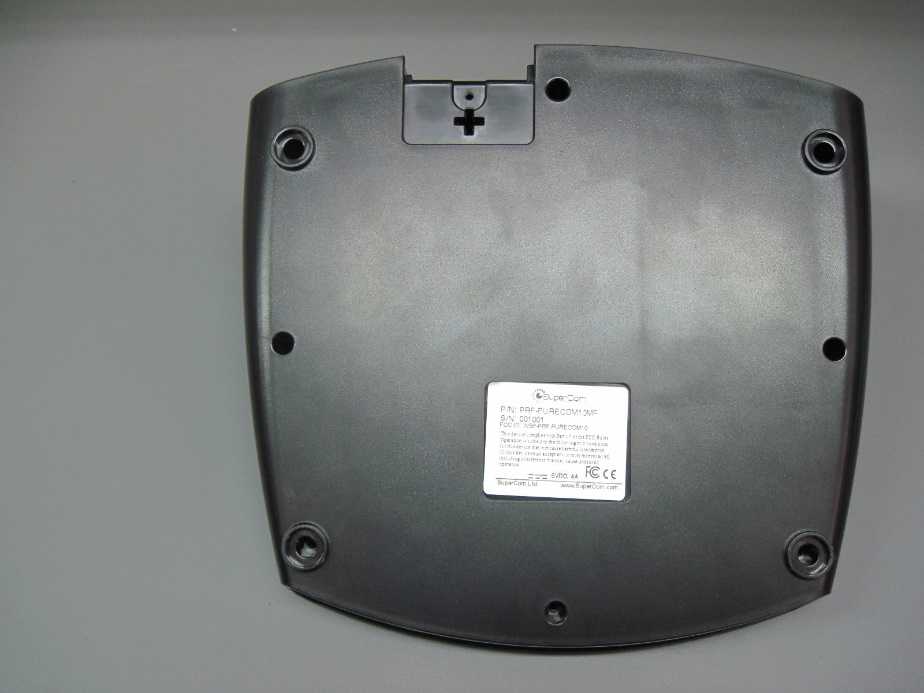

Confidential & ProprietaryPage1of6 FCCLABELDETAILS PURECOM Model Name: PRF-PURECOM10 SuperCom 2014 Confidential & ProprietaryPage2of6 Table of Contents 1Model details................................................................................................................3 2Label drawing example...............................................................................................4 3Label location on EUT.................................................................................................5 1Model details Model Name:PRF-PURECOM10 PureComv1.0 variants: PRF-PURECOM10A-PureCom v1.0 without analog modem and without fingerprint reader. PRF-PURECOM10F-PureCom v1.0 with fingerprint reader. PRF-PURECOM10M-PureCom v1.0 with analog modem. PRF-PURECOM10MF-PureCom v1.0 with analog modem and fingerprint reader. Confidential & ProprietaryPage4of6 2Label draw ing example A Stickeron thebackof theEUT,stickersize:50mm x40mm. PRF-PURECOM10A PRF-PURECOM10F Confidential & ProprietaryPage5of6 PRF-PURECOM10M PRF-PURECOM10MF 3Label location on EUT The sticker shall be placed on thebackof the EUT. Confidential & ProprietaryPage6of6 Sticker Sticker

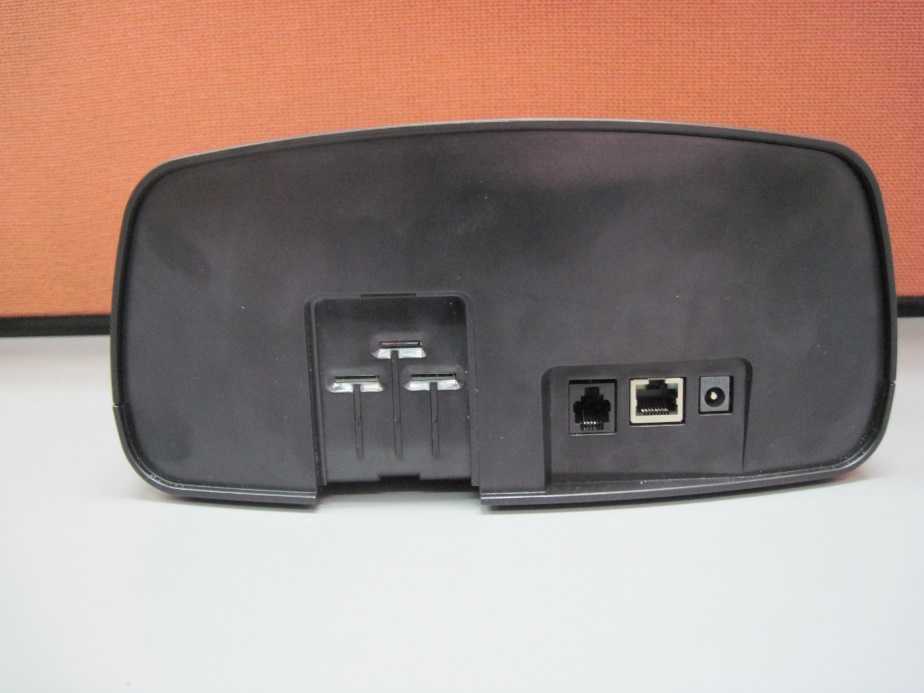

OPERATIONAL DESCRIPTION PURECOM v1.0 Model Name: PRF-PURECOM10 SuperCom 2014 Confidential & Proprietary Page 1 of 3 Table of Contents 1 Operational Description .............................................................................................. 3 Confidential & Proprietary Page 2 of 3 1 Operational Description The EUT is a monitoring base station, with ability to read RF transmissions and transmit LF radio transmissions to tags around it, with fully connectivity to IP networking on the background. The EUT has ability to alert the monitoring application (server side) on various events and tempers around it. The EUT uses a combination between two RF frequency types for communications with the tags around it. The Activator transmitter based on LF magnetic field at 125 KHz and transceiver based on free channel 433.92MHz (UHF). That way enabling two ways of data air flow: LF transmitter (TX) and UHF receiver (RX). As for the IP connectivity, the EUT has 4 options: • Ethernet (RJ-45 to router) • Wi-Fi (to wireless router) • Cellular GPRS (to cellular antenna) • Dial-up modem connection (RJ11 to telephone line) EUT model name: PRF-PURECOM10 PureCom v1.0 variants: • PRF -PURECOM10A - PureCom v1.0 without analog modem and without fingerprint reader. • PRF -PURECOM10F - PureCom v1.0 with fingerprint reader. • PRF -PURECOM10M - PureCom v1.0 with analog modem. • PRF -PURECOM10MF - PureCom v1.0 with analog modem and fingerprint reader.

Test Report E146810.01SuperCom Ltd.Page1of40 FCC ACC M Ver 1.1 05Mayl 2000 DATE:05January2015 I.T.L. (PRODUCT TESTING) LTD. FCC Radio Test Report for SuperCom Ltd. Equipment under test: PURECOM v1.0 Monitoring Base Unit PRF-PURECOM10MF;PRF-PURECOM10A*; PRF-PURECOM10F*; PRF-PURECOM10M* *See customer’s Declaration on page5 Approved by:____________________________ M. Zohar Approved by:_____________________________ D. Shidlowsky This report must not be reproduced, except in full, without the written permission of I.T.L. (Product Testing) Ltd. This report relates only to items tested. Test Report E146810.01SuperCom Ltd.Page2of40 FCC ACC M Ver 1.1 05Mayl 2000 Measurement/Technical Report for SuperCom Ltd. PURECOM v1.0 Monitoring Base Unit PRF-PURECOM10MF,PRF-PURECOM10A*; PRF-PURECOM10F*; PRF-PURECOM10M* FCC ID:W5P-PRF-PURECOM10 This report concerns:OriginalGrant:X Class I change: Class II change: Equipment Type:Part 15 Low Power Transmitter Below 1705 kHz Limits used:47CFR15 Section15.209 Measurement procedure used is ANSI C63.4: 2003. Application for CertificationApplicant for thisdevice: prepared by:(different from "prepared by") R. PinchuckZe’ev Lavi ITL (Product Testing) Ltd.SuperComLtd. 1 Bat Sheva St.1 Arie ShenkarSt. Lod7116002Herzliya 4672501 IsraelIsrael [email protected]:+ 972-9-889-0800 Fax:+ 972-9-889-0814 e-mail:[email protected] Test Report E146810.01SuperCom Ltd.Page3of40 FCC ACC M Ver 1.1 05Mayl 2000 TABLE OF CONTENTS 1.GENERAL INFORMATION-------------------------------------------------------------------------------4 1.1Administrative Information.................................................................................4 1.2List of Accreditations.........................................................................................5 1.3Product Description...........................................................................................7 1.4Test Methodology..............................................................................................7 1.5Test Facility.......................................................................................................7 1.6Measurement Uncertainty.................................................................................7 2.SYSTEM TEST CONFIGURATION---------------------------------------------------------------------8 2.1Justification........................................................................................................8 2.2Special Accessories..........................................................................................8 2.3Equipment Modifications...................................................................................8 2.4Configuration of Tested System........................................................................9 3.TEST SET-UP PHOTOS----------------------------------------------------------------------------------10 4.CONDUCTED EMISSION FROM AC MAINS-------------------------------------------------------12 4.1Test Specification............................................................................................12 4.2Test Procedure................................................................................................12 4.3Measure Data..................................................................................................13 4.4Test Instrumentation Used, Conducted Measurement...................................18 5.26DB MINIMUM BANDWIDTH-------------------------------------------------------------------------19 5.1Test Specification............................................................................................19 5.2Test procedure................................................................................................19 5.3Test Results.....................................................................................................20 5.4Test Equipment Used; 26 dB Minimum Bandwidth.........................................21 6.FIELD STRENGTH OF FUNDAMENTAL------------------------------------------------------------22 6.1Test Specification............................................................................................22 6.2Test Procedure................................................................................................22 6.3Test Results.....................................................................................................22 6.4Test Equipment Used, Field Strength of Fundamental...................................24 7.RADIATED EMISSION, 9KHZ–30 MHZ-----------------------------------------------------------25 7.1Test Specification............................................................................................25 7.2Test Procedure................................................................................................25 7.3Test Results.....................................................................................................25 7.4Test Instrumentation Used, Radiated Measurements.....................................26 7.5Field Strength Calculation...............................................................................26 8.INTERMODULATION RADIATED EMISSION------------------------------------------------------27 8.1Test Procedure................................................................................................27 8.2Measured Data................................................................................................28 8.1Test Instrumentation Used, Intermodulation Radiated Emission Measurements.................................................................................................33 9.ANTENNA GAIN/INFORMATION----------------------------------------------------------------------34 10.R.F EXPOSURE/SAFETY--------------------------------------------------------------------------------35 11.APPENDIX A-CORRECTION FACTORS----------------------------------------------------------36 11.1Correction factors for CABLE........…
