Confidential & Proprietary 1/116 SC-DAS SC-DAS Installation and Operation Manual Document Reference: Version: V1.0 Document Status: Release 1 Issue Date: April. 11, 2011 Author: Kyung Eun Han Department: R&D Division Team 3 Authorizing Manager: Youngshin Yeo Confidential & Proprietary 2/116 SC-DAS REVISION HISTORY Version Issue Date No. of Pages Initials Details of Revision Changes V 1.0 April. 11, 2011 Original Technical Support SOLiD serial numbers must be available to authorize technical support and/or to establish a return authorization for defective units. The serial numbers are located on the back of the unit, as well as on the box in which they were delivered. Additional support information may be obtained by accessing the SOLiD Tehcnology, Inc. website at www.st.co.kr or send email at [email protected] This manual is produced by Global Business Division Business Team 1. Printed in Korea. Confidential & Proprietary 3/116 SC-DAS Contents Section1 Safety & Certification Notice..................................................................... 10 Section2 System Overview...................................................................................... 12 2.1 General overview............................................................................................. 13 2.2 System overview............................................................................................. 15 Section3 System Specifications............................................................................... 18 3.1 System specifications...................................................................................... 19 3.1.1 Physical Specifications.............................................................................. 19 3.1.2 Optical wavelength and Laser power.......................................................... 20 3.1.3 Environmental specifications...................................................................... 20 3.1.4 Operating Frequencies range..................................................................... 20 3.1.5 Specifications Per band............................................................................. 21 Section4 System Configuration and Functions.......................................................... 22 4.1 BIU (BTS Interface Unit).................................................................................. 23 4.1.1 Specifications of BIU................................................................................. 23 4.1.2 Block diagram of BIU................................................................................. 24 4.1.3 BIU parts.................................................................................................. 24 4.1.4 Function by unit........................................................................................ 25 4.1.5 Front/Rear panels of BIU.......................................................................... 29 4.2 ODU (Optic distribution Unit)........................................................................... 32 4.2.1 Specifications of ODU............................................................................... 32 4.2.2 Block Diagram of ODU............................................................................... 33 4.2.3 ODU parts................................................................................................. 33 4.2.4 Function by unit........................................................................................ 34 4.2.5 Front/rear panels of ODU.......................................................................... 35 4.2.6 Interface with BIU..................................................................................... 37 4.3 OEU (Optic Expansion Unit)............................................................................. 39 4.3.1 Specifications of OEU................................................................................ 39 4.3.2 Block Diagram of OEU............................................................................... 40 4.3.3 OEU parts................................................................................................. 40 4.3.4 Function by unit........................................................................................ 41 4.3.5 Front/rear panels of OEU.......................................................................... 44 4.4 ROU (Remote Optic Unit)................................................................................ 45 Confidential & Proprietary 4/116 SC-DAS 4.4.1 Specifications of ROU............................................................................... 45 4.4.2 Block Diagram of ROU............................................................................... 46 4.4.3 ROU parts................................................................................................. 46 4.4.4 Function by unit........................................................................................ 48 4.4.5 Bottom of ROU......................................................................................... 50 4.4.6 Top of ROU............................................................................................... 52 Section5 System Installation & Operation................................................................. 53 5.1 BIU Installation................................................................................................ 54 5.1.1 BIU Shelf Installation....................................................................................... 54 5.1.2 BIU Power Cabling........................................................................................... 55 5.1.3 RF Interface at BIU......................................................................................... 58 5.1.4 MDBU insertion............................................................................................... 62 5.1.5 ODU Interface.........................................…

Text truncated - open the document above for the full version.

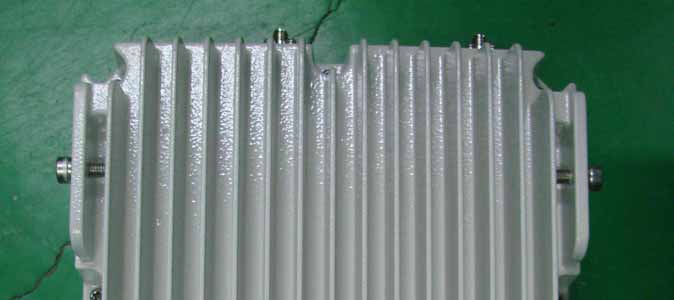

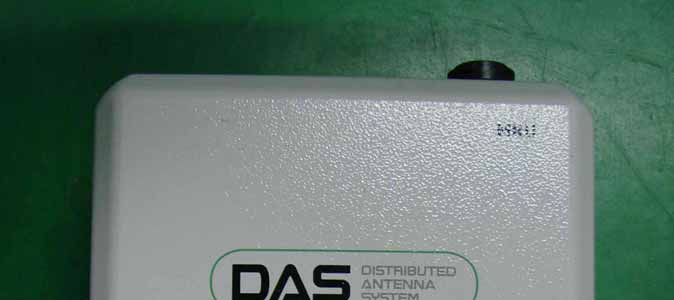

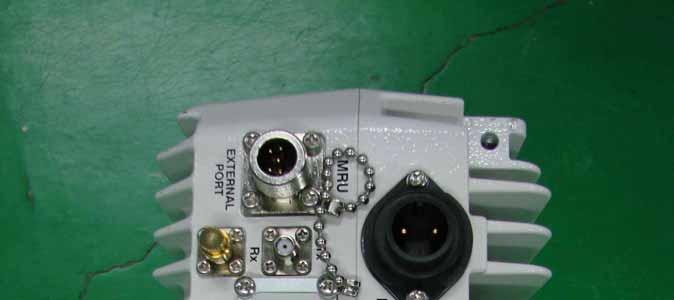

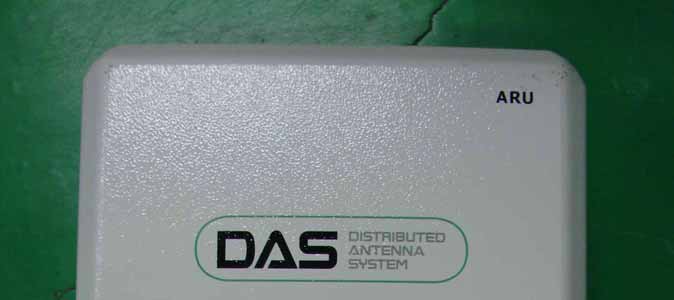

Confidential & Proprietary 45/116 SC-DAS 4.4 ROU (Remote Optic Unit) ROU consist of two unit which one is MRU(Main Remote Unit) and the other is ARU(Add on Remote Unit). We simply called as ROU combination of MRU and ARU MRU receives TX optical signals from ODU or OEU and converts them into RF signals. The converted RF signals are amplified through High Power Amp in a corresponding RU, combined with Multiplexer and then radiated to the antenna port. When receiving RX signals through the antenna port, this unit filters out-of-band signals in a corresponding RU and sends the results to Remote Optic Module to make electronic-optical conversion of them. After converted, the signals are sent to a upper device of ODU or OEU. MRU and ARU are composed of maximal dual band The most difference of MRU an ARU is whether existence of optical module is in it or not (a)MRU (b)ARU Figure 4.30 – ROU Outer Look 4.4.1 Specifications of ROU Item MRU Spec ARU Spec. Remark Size(mm) 300 x 200 x 140 300 x 200 x 140 mm Weight 6.6kg 6.8 Kg Power consumption 50W 40W Full load Confidential & Proprietary 46/116 SC-DAS 4.4.2 Block Diagram of ROU Figure 4.31 – ROU block diagram 4.4.3 ROU parts (a)MRU Confidential & Proprietary 47/116 SC-DAS (b)ARU Figure 4.32 – ROU Inner Look No. Unit Description Remark 1 MRFM/ARFM +BPF Main/Add on RF Module Filter and high amplify TX signals; Filter and amplify RX signals; Remove other signals through BPF 2 RPSU Remote Power Supply Unit Input power: DC -48V or AC120V, Output power: 25V For 120V input of AC/DC; For -48V input of DC/DC 3 R-OPT Remote Optic Make RF conversion of TX optical signals; Convert RX RF signals into optical signals; Compensates optical loss interval Communicates with BIU or OEU though the FSK modem 4 RCPU Remote Central Processor Unit Controls signal of each unit Monitors BIU/ODU/OEU status through FSK modem communication Confidential & Proprietary 48/116 SC-DAS 5 Enclosure Enable Wall Mount; Check if the system is normal, through the bottom panel LED 4.4.4 Function by unit 1) Main RF Module/Add on RF Module (MRFM/ARFM)+BPF When receiving TX signals from each band through R-Opt, MRFM/AFRM filters the signals and amplifies them with High Power Ampifier. The unit also filters RX signals given through antenna and amplifies them as low noise to send the signals to R-Opt. In the unit, there is ATT to adjust gain. This devices are varied for each frequency band, including the following: BPF No Unit naming Description Cavity Filter Ceramic Filter 1 MRFM 1900P+850C Dual. 1900P 850C 2 ARFM 700LTE+AWS-1 Dual. 700LTE AWS-1 3 To be Developed 2) Remote Power Supply Unit (RPSU) RPSU receives -48V of input. This unit is divided into DC/DC type to output +25V of DC power and AC/DC type to receive 120V of AC input and to output +25V of DC power. Upon order, either of the two types should be decided. MS Connector, which uses ports to receive inputs, is designed to different type of AC and DC. The input cable is different as power input conditions. RPSU don’t have switch to turn the power ON/OFF. If power receives, power is automatically operated Here, you should check for rang of input power as following: No. Unit Range of input power Remark 1 AC/DC 90 ~ 264VAC 2 DC/DC -42V ~ -56VDC Confidential & Proprietary 49/116 SC-DAS (a)AC/DC (b)DC/DC Figure 4.33 – PSU Outer Look 3) Remote Optic(R-OPT) Remote Optic converts optical signals into RF signals and performs vice versa. With an FSK modem in it, the unit communicates with upper devices. It also has internal ATT to compensate for optical cable loss. Optical wavelength for TX path is 1310nm, for Rx path is 1550nm. It can be transported by a optical strand using WDM(Wavelength Division Multiplexing) technique 4) Remote Central Processor Unit (RCPU) RCPU can monitor and control RU. This unit receives and analyzes upper communication data from Remote Optic and reports the unit's own value to upper devices. At the bottom of the module, it has LED indicator to show system status, letting you check any abnormalities at a time. At the same pannel, it also has communication LED Indicators to show communication status with upper devices. Through USB Port, the unit enables you to check and control device status through PC and laptop. This equipment is indoor use and all the communication wirings are limited to inside of the building. RCPU of MRU have two port to connect exteranl devices which one is for ARU and the other is for VHF&UHF ARU. Using external interface cable, MRU can communicate with ARU/VHF&UHF ARU. MRU collects status information from ARU/VHF&UHF ARU and then communicate with upper device Confidential & Proprietary 50/116 SC-DAS 4.4.5 Bottom of ROU 1) Functions (a)MRU (b)ARU Figure 4.34 – ROU Bottom Look Item Description Remark 1. VHF/UHF ARU Port Terminal for TX and RX RF ports of VHF and UHF Terminal for signal port to interface with VHF and UHF 2.LED PANEL Visible LED indicator panel for checking if status is abnormal USB Port for check and control device status through PC and laptop 3. Power Port AC 120V input port or DC-48V input port 4.ARU/MRU Port Terminal for TX and RX RF ports of MRU/ARU Terminal for signal port to interface with MRU/ARU 5.GND LUG PORT Terminal for system ground Power Port A different type of power ports are used for power-supplying of -48V DC or 120V AC, and specific power cable should be applied to each different types of ROU power supply (AC/DC or DC/DC). Below figure is naming of the power supply by type. Confidential & Proprietary 51/116 SC-DAS (a)AC/DC (b)DC/DC Figure 4.35 – ROU Power Port Look Confidential & Proprietary 52/116 SC-DAS 4.4.6 Top of ROU 1) Functions (a)MRU (b)ARU Figure 4.36 – ROU Bottom Look Item Description Remark 1. RF Port Terminal for Low RF port to connect between MRU and ARU RF Terminal for HIGH RF port to connect between MRU and ARU RF 2. ANT Port Terminal for RF port to connect with antenna 3. Optic Port Termnial for Optical port to connect with optical cable The supported…

Text truncated - open the document above for the full version.

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ Date: May 12, 2011 FCC Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Attention : Application Examiner / Reviewing Engineer Subject : Request for confidentiality per Section 0.459 of FCC Rules Applicant : SOLiD Technologies, Inc. FCC ID : W6U19P85C70L21A To whom it may concern, Request is hereby submitted, SOLiD Technologies, Inc., to withhold from public review certain portions of the application for equipment certification for the referenced FCC identifier. In particular, the following sections of the application and report are requested to be kept confidential: Schematics / Block Diagram / Operational Description / Parts List / Tune Up procedure Rationale for request for confidentiality: SOLiD Technologies, Inc, has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the confidential portions of this application to competitors would give them competitive advantage in developing similar products. If you have questions or need further information, please contact the undersigned. Sincerely Yours,

FCC ID. : W6U19P85C70L21A Page 1 of 12 Report No. : E115R-007 It should not be reproduced except in full, without the written approval of ONETECH. EMC-003 (Rev.1) HEAD OFFICE : #505 SK Apt. Factory, 223-28 Sangdaewon 1-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do 462-705 Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) FCC ID. : W6U19P85C70L21A Page 2 of 12 Report No. : E115R-007 It should not be reproduced except in full, without the written approval of ONETECH. EMC-003 (Rev.1) HEAD OFFICE : #505 SK Apt. Factory, 223-28 Sangdaewon 1-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do 462-705 Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) FCC ID. : W6U19P85C70L21A Page 3 of 12 Report No. : E115R-007 It should not be reproduced except in full, without the written approval of ONETECH. EMC-003 (Rev.1) HEAD OFFICE : #505 SK Apt. Factory, 223-28 Sangdaewon 1-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do 462-705 Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) FCC ID. : W6U19P85C70L21A Page 4 of 12 Report No. : E115R-007 It should not be reproduced except in full, without the written approval of ONETECH. EMC-003 (Rev.1) HEAD OFFICE : #505 SK Apt. Factory, 223-28 Sangdaewon 1-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do 462-705 Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) FCC ID. : W6U19P85C70L21A Page 5 of 12 Report No. : E115R-007 It should not be reproduced except in full, without the written approval of ONETECH. EMC-003 (Rev.1) HEAD OFFICE : #505 SK Apt. Factory, 223-28 Sangdaewon 1-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do 462-705 Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) FCC ID. : W6U19P85C70L21A Page 6 of 12 Report No. : E115R-007 It should not be reproduced except in full, without the written approval of ONETECH. EMC-003 (Rev.1) HEAD OFFICE : #505 SK Apt. Factory, 223-28 Sangdaewon 1-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do 462-705 Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) FCC ID. : W6U19P85C70L21A Page 7 of 12 Report No. : E115R-007 It should not be reproduced except in full, without the written approval of ONETECH. EMC-003 (Rev.1) HEAD OFFICE : #505 SK Apt. Factory, 223-28 Sangdaewon 1-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do 462-705 Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) FCC ID. : W6U19P85C70L21A Page 8 of 12 Report No. : E115R-007 It should not be reproduced except in full, without the written approval of ONETECH. EMC-003 (Rev.1) HEAD OFFICE : #505 SK Apt. Factory, 223-28 Sangdaewon 1-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do 462-705 Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) FCC ID. : W6U19P85C70L21A Page 9 of 12 Report No. : E115R-007 It should not be reproduced except in full, without the written approval of ONETECH. EMC-003 (Rev.1) HEAD OFFICE : #505 SK Apt. Factory, 223-28 Sangdaewon 1-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do 462-705 Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) FCC ID. : W6U19P85C70L21A Page 10 of 12 Report No. : E115R-007 It should not be reproduced except in full, without the written approval of ONETECH. EMC-003 (Rev.1) HEAD OFFICE : #505 SK Apt. Factory, 223-28 Sangdaewon 1-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do 462-705 Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) FCC ID. : W6U19P85C70L21A Page 11 of 12 Report No. : E115R-007 It should not be reproduced except in full, without the written approval of ONETECH. EMC-003 (Rev.1) HEAD OFFICE : #505 SK Apt. Factory, 223-28 Sangdaewon 1-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do 462-705 Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) FCC ID. : W6U19P85C70L21A Page 12 of 12 Report No. : E115R-007 It should not be reproduced except in full, without the written approval of ONETECH. EMC-003 (Rev.1) HEAD OFFICE : #505 SK Apt. Factory, 223-28 Sangdaewon 1-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do 462-705 Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904)

FCC ID. : W6U19P85C70L21A Page 1 of 1 Report No. : E115R-007 It should not be reproduced except in full, without the written approval of ONETECH. EMC-003 (Rev.1) HEAD OFFICE : #505 SK Apt. Factory, 223-28 Sangdaewon 1-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do 462-705 Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) IDENTIFICATION LABEL: PROPOSED FCC ID LABEL The FCC ID shall be permanently affixed to the rear side of the equipment FCC ID AREA

FCC ID. : W6U19P85C70L21A Page 1 of 28 Report No. : E115R-007 It should not be reproduced except in full, without the written approval of ONETECH. EMC-003 (Rev.1) HEAD OFFICE : #505 SK Apt. Factory, 223-28 Sangdaewon 1-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do 462-705 Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) FCC ID. : W6U19P85C70L21A Page 2 of 28 Report No. : E115R-007 It should not be reproduced except in full, without the written approval of ONETECH. EMC-003 (Rev.1) HEAD OFFICE : #505 SK Apt. Factory, 223-28 Sangdaewon 1-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do 462-705 Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) FCC ID. : W6U19P85C70L21A Page 3 of 28 Report No. : E115R-007 It should not be reproduced except in full, without the written approval of ONETECH. EMC-003 (Rev.1) HEAD OFFICE : #505 SK Apt. Factory, 223-28 Sangdaewon 1-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do 462-705 Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) FCC ID. : W6U19P85C70L21A Page 4 of 28 Report No. : E115R-007 It should not be reproduced except in full, without the written approval of ONETECH. EMC-003 (Rev.1) HEAD OFFICE : #505 SK Apt. Factory, 223-28 Sangdaewon 1-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do 462-705 Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) FCC ID. : W6U19P85C70L21A Page 5 of 28 Report No. : E115R-007 It should not be reproduced except in full, without the written approval of ONETECH. EMC-003 (Rev.1) HEAD OFFICE : #505 SK Apt. Factory, 223-28 Sangdaewon 1-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do 462-705 Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) FCC ID. : W6U19P85C70L21A Page 6 of 28 Report No. : E115R-007 It should not be reproduced except in full, without the written approval of ONETECH. EMC-003 (Rev.1) HEAD OFFICE : #505 SK Apt. Factory, 223-28 Sangdaewon 1-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do 462-705 Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) FCC ID. : W6U19P85C70L21A Page 7 of 28 Report No. : E115R-007 It should not be reproduced except in full, without the written approval of ONETECH. EMC-003 (Rev.1) HEAD OFFICE : #505 SK Apt. Factory, 223-28 Sangdaewon 1-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do 462-705 Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) FCC ID. : W6U19P85C70L21A Page 8 of 28 Report No. : E115R-007 It should not be reproduced except in full, without the written approval of ONETECH. EMC-003 (Rev.1) HEAD OFFICE : #505 SK Apt. Factory, 223-28 Sangdaewon 1-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do 462-705 Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) FCC ID. : W6U19P85C70L21A Page 9 of 28 Report No. : E115R-007 It should not be reproduced except in full, without the written approval of ONETECH. EMC-003 (Rev.1) HEAD OFFICE : #505 SK Apt. Factory, 223-28 Sangdaewon 1-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do 462-705 Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) FCC ID. : W6U19P85C70L21A Page 10 of 28 Report No. : E115R-007 It should not be reproduced except in full, without the written approval of ONETECH. EMC-003 (Rev.1) HEAD OFFICE : #505 SK Apt. Factory, 223-28 Sangdaewon 1-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do 462-705 Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) FCC ID. : W6U19P85C70L21A Page 11 of 28 Report No. : E115R-007 It should not be reproduced except in full, without the written approval of ONETECH. EMC-003 (Rev.1) HEAD OFFICE : #505 SK Apt. Factory, 223-28 Sangdaewon 1-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do 462-705 Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) FCC ID. : W6U19P85C70L21A Page 12 of 28 Report No. : E115R-007 It should not be reproduced except in full, without the written approval of ONETECH. EMC-003 (Rev.1) HEAD OFFICE : #505 SK Apt. Factory, 223-28 Sangdaewon 1-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do 462-705 Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) FCC ID. : W6U19P85C70L21A Page 13 of 28 Report No. : E115R-007 It should not be reproduced except in full, without the written approval of ONETECH. EMC-003 (Rev.1) HEAD OFFICE : #505 SK Apt. Factory, 223-28 Sangdaewon 1-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do 462-705 Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea. (TEL: +82-31-765-8289, FAX: +82-31-…

Text truncated - open the document above for the full version.

FCC ID. : W6U19P85C70L21A Page 107 of 369 Report No. : E115R-007 It should not be reproduced except in full, without the written approval of ONETECH. EMC-003 (Rev.1) HEAD OFFICE : #505 SK Apt. Factory, 223-28 Sangdaewon 1-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do 462-705 Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) 6.3.4 Test Result for Part 27 C (AWS-1) -. Test Date : April 13 ~ 14, 2011 -. Temperature : 24 °C -. Relative humidity : 48 % R.H. -. Test Result : Pass Modulation Channel 26 dB Bandwidth (kHz) 99 % Occupied Bandwidth (kHz) Low 35.3 29.33 Middle 35.3 29.33 TDMA High 35.3 29.33 Low 348 255 Middle 348 255 GSM High 348 253.8 Low 332 255 Middle 332 255 EDGE High 332 255 Low 1 600 1 350 Middle 1 600 1 350 CDMA High 1 600 1 342 Low 1 600 1 350 Middle 1 600 1 350 1xEVDO High 1 600 1 350 Low 4 720 4 200 Middle 4 720 4 217 WCDMA High 4 720 4 217 Remark: According to above result, the carrier frequency shall be within the frequency block edges. Tested by: Ki-Hong, Nam / Senior Engineer FCC ID. : W6U19P85C70L21A Page 108 of 369 Report No. : E115R-007 It should not be reproduced except in full, without the written approval of ONETECH. EMC-003 (Rev.1) HEAD OFFICE : #505 SK Apt. Factory, 223-28 Sangdaewon 1-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do 462-705 Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) TDMA – 26 dB Bandwidth (Low Channel) TDMA – 26 dB Bandwidth (Middle Channel) FCC ID. : W6U19P85C70L21A Page 109 of 369 Report No. : E115R-007 It should not be reproduced except in full, without the written approval of ONETECH. EMC-003 (Rev.1) HEAD OFFICE : #505 SK Apt. Factory, 223-28 Sangdaewon 1-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do 462-705 Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) TDMA – 26 dB Bandwidth (High Channel) FCC ID. : W6U19P85C70L21A Page 110 of 369 Report No. : E115R-007 It should not be reproduced except in full, without the written approval of ONETECH. EMC-003 (Rev.1) HEAD OFFICE : #505 SK Apt. Factory, 223-28 Sangdaewon 1-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do 462-705 Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) GSM – 26 dB Bandwidth (Low Channel) GSM – 26 dB Bandwidth (Middle Channel) FCC ID. : W6U19P85C70L21A Page 111 of 369 Report No. : E115R-007 It should not be reproduced except in full, without the written approval of ONETECH. EMC-003 (Rev.1) HEAD OFFICE : #505 SK Apt. Factory, 223-28 Sangdaewon 1-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do 462-705 Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) GSM – 26 dB Bandwidth (High Channel) FCC ID. : W6U19P85C70L21A Page 112 of 369 Report No. : E115R-007 It should not be reproduced except in full, without the written approval of ONETECH. EMC-003 (Rev.1) HEAD OFFICE : #505 SK Apt. Factory, 223-28 Sangdaewon 1-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do 462-705 Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) EDGE – 26 dB Bandwidth (Low Channel) EDGE – 26 dB Bandwidth (Middle Channel) FCC ID. : W6U19P85C70L21A Page 113 of 369 Report No. : E115R-007 It should not be reproduced except in full, without the written approval of ONETECH. EMC-003 (Rev.1) HEAD OFFICE : #505 SK Apt. Factory, 223-28 Sangdaewon 1-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do 462-705 Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) EDGE – 26 dB Bandwidth (High Channel) FCC ID. : W6U19P85C70L21A Page 114 of 369 Report No. : E115R-007 It should not be reproduced except in full, without the written approval of ONETECH. EMC-003 (Rev.1) HEAD OFFICE : #505 SK Apt. Factory, 223-28 Sangdaewon 1-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do 462-705 Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea. (TEL: +82-31-765-8289, FAX: +82-31-766…
