W6U19PAWS1MIMORDU Module (1900P/AWS-1 (MIMO))

Confidential & Proprietary 1/28 SMDR-NH124(Remote Unit) User Manual Document Reference: Version: V1.0 Document Status: Release 1 Issue Date: July. 16, 2014 Author: Young Ju YOU Department: R&D Division Team 3 Authorizing Manager: Young shin Yeo Confidential & Proprietary 2/28 REVISION HISTORY Version Issue Date No. of Pages Initials Details of Revision Changes V 1.0 July. 16, 2014 Original Technical Support SOLiD serial numbers must be available to authorize technical support and/or to establish a return authorization for defective units. The serial numbers are located on the back of the unit, as well as on the box in which they were delivered. Additional support information may be obtained by accessing the SOLiD Tehcnology, Inc. website at www.st.co.kr or send email at [email protected] This manual is produced by Global Business Division Business Team 1. Printed in Korea. Confidential & Proprietary 3/28 Contents Section1 Safety & Certification Notice ................................................................. 5 Section2 System Overview .................................................................................... 8 2.1 Purpose ......................................................................................................... 9 2.2 SMDR-NH124 .............................................................................................. 10 Section3 Functional Description ......................................................................... 11 3.1 General (Remote Optic Unit) ...................................................................... 12 3.2 Component of SMDR-NH124 Remote Unit ................................................ 13 3.3 Dimension ................................................................................................... 15 Section4 System Installation ............................................................................... 16 4.1 ROU Installation ......................................................................................... 16 4.1.1 ROU Enclosure installation ................................................................. 16 4.1.2 ROU Power Cabling ............................................................................. 20 4.1.3 Optical Cabling ..................................................................................... 21 4.1.4 GND Terminal Connection ................................................................... 22 4.1.5 Coaxial cable and Antenna Connection .............................................. 23 4.1.6 Insertion of RDU ................................................................................... 23 4.1.7 RDU Specifications Per band .............................................................. 24 Confidential & Proprietary 4/28 Contents of Figure Figure 3.1 – Remote Unit Block Diagram ...................................................... 12 Figure 3.2 – Inside of Remote Unit ............................................................... 13 Figure 3.3 – ROU Outer Look ....................................................................... 15 Figure 4.1 – How to install ROU .................................................................... 17 Figure 4.2 – Dimension used to install ROU on the WALL ............................ 17 Confidential & Proprietary 5/28 Section1 Safety & Certification Notice Confidential & Proprietary 6/28 “Only qualified personnel should handle the DAS equipment. Any person involved in installation or service of the DAS should understand and follow these safety guidelines.” - Obey all general and regional installation and safety regulations relating to work on high voltage installations, as well as regulations covering correct use of tools and personal protective equipment. - The power supply unit in repeaters contains dangerous voltage level, which can cause electric shock. Switch the mains off prior to any work in such a repeater. Any local regulations are to be followed when servicing repeaters. - When working with units outdoors, make sure to securely fasten the door or cover in an open position to prevent the door from slamming shut in windy conditions.. - Use this unit only for the purpose specified by the manufacturer. Do not carry out any modifications or fit any spare parts which are not sold or recommended by the manufacturer. This could cause fires, electric shock or other injuries. - Any DAS system or Fiber BDA will generate radio (RF) signals and continuously emit RF energy. Avoid prolonged exposure to the antennas. SOLiD recommends maintaining a 3-foot minimum clearance from the antenna while the system is operating. - Do not operate this unit on or close to flammable materials, as the unit may reach high temperatures due to power dissipation. - Do not use any solvents, chemicals, or cleaning solutions containing alcohol, ammonia, or abrasives on the DAS equipment. Alcohol may be used to clean fiber optic cabling ends and connectors. - To prevent electrical shock, switch the main power supply off prior to working with the DAS System or Fiber BDA. Never install or use electrical equipment in a wet location or during a lightning storm. - Do not look into the ends of any optical fiber or directly into the optical transceiver of any digital unit. Use an optical spectrum analyzer to verify active fibers. Place a protective cap over any radiating transceiver or optical fiber connector to avoid the potential of radiation exposure. - Allow sufficient fiber length to permit routing without severe bends. - For pluggable equipment, make sure to install the socket outlet near the equipment so that it is easily accessible. - A readily accessible disconnect device shall be incorporated external to the equipment. Confidential & Proprietary 7/28 - This power of this system shall be supplied through wiring installed in a normal building. If powered directly from the mains distribution system, it shall be used additional protection, such as overvoltage protection …

Text truncated - open the document above for the full version.

Re: FCC ID:W6U19PAWS1MIMO Applicant:SOLiD, Inc. Correspondence Reference Number:182088/09/03/2014 Date 10/6/2014 Dear Tim, Please see below for how we believe each of the issues raised in your correspondence have been addressed. TCB has superseded older versions of test report, block diagram and operational description, please advise if you would like both old and new versions to be visible. Regards, Daniel Park / Mark Briggs UL Verification Services TCB Question 1We are not aware that uniform procedures have been established/specified for testing DAS boosters in configurations other than "Donor-side and server-side components generally need to be tested together as a system." Further, uniform test procedures similar as used herein have not been specified, i.e., with input frequencies from donor-side fed into the remote unit at frequencies not allocated nor licensable for the applicable radio service rules. FYI OET Lab will look into updating KDB publication(s) accordingly to facilitate uniform processing of future filings for similar devices. TCB please coordinate with agent/lab/applicant to arrange for updated exhibits as appropriate, then TCB please submit herein after processing consistent with 2.962(b) (i.e., per Guide 65) and 2.962(f) (i.e., per FCC rules and policies). Response: The TCB Process has been adhered to. Additional guidance was not deemed necessarybecause the current guidance does cover the operation and testing of this device. This device is a sub-assembly of a Commercial Industrial Booster base unit, operating as the Remote side of a DAS system. The testing has been performed as a part of theDAS system, with the input to this Remote Side being generated by the Donor side. The Frequency of this input is an Intermediate Frequency (IF) frequency and not a transmission frequency. It is understood that the test report is not absolutely clear about this IF frequency, so we have requested that the test report be updated to clearly state this fact. This module is the Remote Side portion of a professionally installed base unit, much like the Modular nature of most Network Base Station transmitters. No explicit guidance and/or endorsement had been obtained from FCC (via KDB inquiry and/or e-filing corresp. and/or direct email) related to test procedures. RF test reports and related exhibits had been updated. Question 2)At least for our local Adobe Acrobat XI and X packages, we get error message and figure not displayed for op. desc. pg. 9/9; please replace exhibit. Response: This is addressed in the Revised Operational Description on page 9 which has been uploaded to the filing. Question3)Consistent with 935210 D01 and D02 provisions, if not in filing already please amend to identify/describe typical and/or specific "ODU" and/or "OEU," also "BIU," used at host end of an overall booster system that includes "ROU" populated with "RDU" FCC ID W6U19PAWS1MIMO. Response: This is addressed in the Revised Operational Description which has been uploaded to the filing. Please advise if FCC is OK with TCB superseding prior versions. Question 4a)EMC/radio report includes: PCS Input: 2456.5 MHz-2521.5 MHz PCS Output: 1930 MHz-1995 MHz AWS Input: 2366.5 MHz-2411.5 MHz AWS Output: 2110 MHz-2155 MHz Given that "PCS" and "AWS" denote specific FCC radio services with specific allocated and licensable paired bands [24.229, 24.5, 24-E; 27.5(h),27.4, 27-L], the latter is misleading or even incorrect.Please revise all parts(sections) of test reports and other exhibits to describe these somehow other than "PCS Input" and "AWS Input." Response: PCS Input and AWS Output bands are “IF” bands. Thetest reports and Operational Description have been modified and uploaded to the filing. Question 4b)EMC/radio report at 3.2 includes "The EUT was operated in a manner representative of the typical usage of the equipment." Please amend to explain howthis testing with "off-channel" input signals and with "partial" signal path only are valid for compliance demonstration of the end-use overall host/remote booster system configuration. As part of description, please also address the 935210 items listed above. Response:. The test reports have been modified and uploaded to the filing. Question 4c)Please amend test setup photos, also system block diagrams, to clearly identify/show input and output RF connector test points, and as relative to normal end-use optical-unit RF port(s) on donor-side. Response: Please refer the revised Block Diagram. Question 5a)It is noted that for example the spec sheet from web for "SOLiD ALLIANCE MULTI-CARRIER DAS" AUG 2014 includes text: "ALLIANCE ROU (REMOTE OPTICAL UNIT) ... Accommodates SISO / MIMO / Public Safety Configurations" (http://www.solid.com/das-solutions/alliance-multi-carrier-das.html) (http://www.solid.com/media/ALLIANCE_3PG_081914.pdf) In reply herein please submit explanations, along with system block diagram, how those MIMO modes/operations are implemented with W6U19PAWS1MIMO when used in an overall booster system, i.e. along with associated BIU, ODU/OEU and associated RDU/ROU. Other background: Based on exhibits herein, as well as grantee's marketing info and similarity to equipment configurations in other B2I grants per the new framework established under FCC-13-21, compliance demonstration seems needed for reasonably expected end-use MIMO operations when this "RDU" is optionally used as part of a booster system along with same-band/same- frequency integral or connectable (add-on) remote unit(s) ["RDU," or "ROU"], and along with host unit(s) [ODU, OEU, BIU] and transport links that supportMIMO streams. Equipment authorization for such operations needs to address KDB pub. 662911 multi-port tests, along with associated technical information describing the end-to-end system configurations. Response: Grantee and Test Labhave been advised and told to correct any misrepresentations related toPublic Safety Configurations.Grantee hasadded the explanationinto theOperational De…

Text truncated - open the document above for the full version.

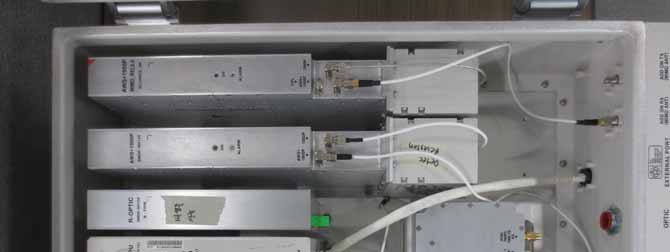

FCC ID : W6U1900PAWS1/ IC: 9354A-19PAWS1MIMO HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 1/9 EXTERNAL PHOTOGRAPHS FCC ID : W6U1900PAWS1/ IC: 9354A-19PAWS1MIMO HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 2/9 FCC ID : W6U1900PAWS1/ IC: 9354A-19PAWS1MIMO HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 3/9 FCC ID : W6U1900PAWS1/ IC: 9354A-19PAWS1MIMO HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 4/9 FCC ID : W6U1900PAWS1/ IC: 9354A-19PAWS1MIMO HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 5/9 FCC ID : W6U1900PAWS1/ IC: 9354A-19PAWS1MIMO HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 6/9 FCC ID : W6U1900PAWS1/ IC: 9354A-19PAWS1MIMO HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 7/9

FCC ID : W6U1900PAWS1/ IC: 9354A-19PAWS1MIMO HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 1/3 EXTERNAL PHOTOGRAPHS FCC ID : W6U1900PAWS1/ IC: 9354A-19PAWS1MIMO HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 2/3 FCC ID : W6U1900PAWS1/ IC: 9354A-19PAWS1MIMO HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 3/3

Label Location [Label Drawing] [Part20 Warning Statement]

FCC ID : W6U1900PAWS1/ IC: 9354A-19PAWS1MIMO HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 1/8 INTERNAL PHOTOGRAPHS FCC ID : W6U1900PAWS1/ IC: 9354A-19PAWS1MIMO HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 2/8 RDU Module (1900P/AWS-1 (MIMO)) - Bare_PCB BOTTOM - Bare_PCB TOP FCC ID : W6U1900PAWS1/ IC: 9354A-19PAWS1MIMO HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 3/8 - SMT_PCB TOP FCC ID : W6U1900PAWS1/ IC: 9354A-19PAWS1MIMO HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 4/8 FCC ID : W6U1900PAWS1/ IC: 9354A-19PAWS1MIMO HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 5/8 - Bare_PAM_PCB BOTTOM - Bare_PAM_PCB TOP FCC ID : W6U1900PAWS1/ IC: 9354A-19PAWS1MIMO HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 6/8 - Bare_PCB bottom - Bare_PCB TOP FCC ID : W6U1900PAWS1/ IC: 9354A-19PAWS1MIMO HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 7/8 - SMT_PAM_PCB TOP - SMT_PCB TOP FCC ID : W6U1900PAWS1/ IC: 9354A-19PAWS1MIMO HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 8/8

Report No.: HCT-R-1407-F034-3 MODEL: RDU 1900P/AWS-1 (MIMO)Page 2 of 110 F-01P-02-014 (Rev.00) HCT CO., LTD FCC ID: W6U1900PAWS1/ IC: 9354A-19PAWS1MIMO Report Revision TEST REPORT NO. DATE DESCRIPTION HCT-R-1407-F034 July 18, 2014 - First Approval Report HCT-R-1407-F034-1 July 25, 2014 - Revised the KDB 935210 version - Added the types of band Within page 46 and 56 HCT-R-1407-F034-2 July 31, 2014 - Revised the KDB 935210 D version HCT-R-1407-F034-3 September 25, 2014 - Added the MIMO operations test results RF Output Power, Spurious Emissions at Antenna Terminals Report No.: HCT-R-1407-F034-3 MODEL: RDU 1900P/AWS-1 (MIMO)Page 3 of 110 F-01P-02-014 (Rev.00) HCT CO., LTD FCC ID: W6U1900PAWS1/ IC: 9354A-19PAWS1MIMO Table of Contents 1. CLIENT INFORMATION _______________________________________________________________ 4 2. FACILITIES AND ACCREDITATIONS ____________________________________________________ 5 2.1. FACILITIES ......................................................................................................................................... 5 2.2. EQUIPMENT ....................................................................................................................................... 5 3. TEST SUMMARY ____________________________________________________________________ 6 3.1. STANDARDS ...................................................................................................................................... 6 3.2. MODE OF OPERATION DURING THE TEST .................................................................................... 7 4. STANDARDS ENVIRONMENTAL TEST CONDITIONS ______________________________________ 9 5. TEST EQUIPMENT __________________________________________________________________ 10 6. RF OUTPUT POWER ________________________________________________________________ 11 7. OCCUPIED BANDWIDTH ____________________________________________________________ 29 8. PASSBAND GAIN AND BANDWIDTH & Out of Band Rejection _____________________________ 44 9. SPURIOUS AND HARMONIC EMISSION AT ANTENNA TERMINAL __________________________ 47 10. RADIATED SPURIOUS EMISSIONS __________________________________________________ 103 11. FREQUENCY STABILITY OVER TEMPERATURE AND VOLTAGE VARIATIONS ______________ 107 Report No.: HCT-R-1407-F034-3 MODEL: RDU 1900P/AWS-1 (MIMO)Page 4 of 110 F-01P-02-014 (Rev.00) HCT CO., LTD FCC ID: W6U1900PAWS1/ IC: 9354A-19PAWS1MIMO 1. CLIENT INFORMATION The EUT has been tested by request of Company SOLiD, Inc 10, 9th Floor, SOLiD Space, Pangyoyeok-ro 220, Bundang-gu, Seongnam-si, Gyeonggi-do, 463-400 ■ FCC ID: W6U1900PAWS1 ■ IC: 9354A-19PAWS1MIMO ■ APPLICANT: SOLiD, Inc ■ EUT Type: RDU Module (1900P/AWS-1 (MIMO)) ■ Model: RDU 1900P/AWS-1 (MIMO) ■ Frequency Ranges: PCS IF Input Band: PCS Output: AWS IF Input Band: AWS Output: 2456.5 MHz ~ 2521.5 MHz 1930 MHz ~ 1995 MHz 2366.5 MHz ~ 2411.5 MHz 2110 MHz ~ 2155 MHz ■ Conducted Output Power: PCS : AWS: 1 W (30 dBm) 1 W (30 dBm) ■ Antenna Gain(s) : Manufacturer does not provide an antenna. ■ FCC Rules Part(s): CFR Title 47 Part 24, 27 ■ IC Rules Part(s): RSS-Gen (Issue3, December 2010), RSS-131( Issue 2, July 2003) ■ Measurement standard(s): ANSI/TIA-603-C-2004, KDB 971168 D01 v02, KDB 662911 D01 v02r01 RSS-131( Issue 2, July 2003) ■ Place of Tests: 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi- do, Korea. (IC Recognition No. : 5944A-3) Report No.: HCT-R-1407-F034-3 MODEL: RDU 1900P/AWS-1 (MIMO)Page 5 of 110 F-01P-02-014 (Rev.00) HCT CO., LTD FCC ID: W6U1900PAWS1/ IC: 9354A-19PAWS1MIMO 2. FACILITIES AND ACCREDITATIONS 2.1. FACILITIES The SAC(Semi-Anechoic Chamber) and conducted measurement facility used to collect the radiated data are located at the 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea. The site is constructed in conformance with the requirements of ANSI C63.4. (Version :2003) and CISPR Publication 22. Detailed description of test facility was submitted to the Commission and accepted dated June 21, 2011 (Registration Number: 90661). 2.2. EQUIPMENT Radiated emissions are measured with one or more of the following types of Linearly polarized antennas: tuned dipole, bi-conical, log periodic, bi-log, and/or ridged waveguide, horn. Spectrum analyzers with pre- selectors and quasi-peak detectors are used to perform radiated measurements. Calibrated wideband preamplifiers, coaxial cables, and coaxial attenuators are also used for making measurements. All receiving equipment conforms to CISPR Publication 16-1, “Radio Interference Measuring Apparatus and Measurement Methods.” Report No.: HCT-R-1407-F034-3 MODEL: RDU 1900P/AWS-1 (MIMO)Page 6 of 110 F-01P-02-014 (Rev.00) HCT CO., LTD FCC ID: W6U1900PAWS1/ IC: 9354A-19PAWS1MIMO 3. TEST SUMMARY 3.1. STANDARDS The following tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 24, 27, RSS-GEN, RSS-131. Description Reference (FCC) Reference (IC) Results RF Output Power §2.1046, §24.232, §27.50 RSS-131, Section 4.3 RSS-131, Section 6.2 Compliant Occupied Bandwidth §2.1049 RSS-GEN, Section 4.6.1 Compliant Passband Gain and Bandwidth & Out of Band Rejection KDB 935210 D03 v02r01 RSS-131, Section 4.2 RSS-131, Section 6.1 Compliant Spurious Emissions at Antenna Terminals §2.1051, §24.238, §27.53 RSS-131, Section 4.4 RSS-131, Section 6.3 RSS-131, Section 6.4 Compliant Radiated Spurious Emissions §2.1053, §24.238, §27.53 - Compliant Frequency Stability §2.1055, §22.235, §27.54 RSS-131, Section 4.5 RSS-131, Section 6.5 Compliant Note: ROU supports SISO and MIMO system. MIMO operation are used with RDU Module(RDU 1900P+AWS-1_R) that has been already get the certification.(FCC ID:W6U1900PAWS1R, June 11 2012) In order to meet MIMO requirement, the test results are listed in the test report by calculating test data of both RDU Module ‘RDU 1900P+AWS-1_R’ and ‘RDU 1900P/AWS-1(MIMO)’. RDU 1900P+AWS-1_R data, reference to the Test Report No. : E126R-006. Calcula…

Text truncated - open the document above for the full version.

Report No.: HCT-R-1407-F034-3 MODEL: RDU 1900P/AWS-1 (MIMO)Page 47 of 110 F-01P-02-014 (Rev.00) HCT CO., LTD FCC ID: W6U1900PAWS1/ IC: 9354A-19PAWS1MIMO 9. SPURIOUS AND HARMONIC EMISSION AT ANTENNA TERMINAL FCC Rules Test Requirement(s): § 2.1051 Measurements required: Spurious emissions at antenna terminals: The radio frequency voltage or powers generated within the equipment and appearing on a spurious frequency shall be checked at the equipment output terminals when properly loaded with a suitable artificial antenna. Curves or equivalent data shall show the magnitude of each harmonic and other spurious emission that can be detected when the equipment is operated under the conditions specified in § 2.1049 as appropriate. The magnitude of spurious emissions which are attenuated more than 20 dB below the permissible value need not be specified. § 24.238 Emission limitations for Broadband PCS equipment. The rules in this section govern the spectral characteristics of emissions in the Broadband Personal Communications Service. (a) Out of band emissions. The power of any emission outside of the authorized operating frequency ranges must be attenuated below the transmitting power (P) by a factor of at least 43 + 10 log(P) dB. (b) Measurement procedure. Compliance with these rules is based on the use of measurement instrumentation employing a resolution bandwidth of 1 MHz or greater. However, in the 1 MHz bands immediately outside and adjacent to the frequency block a resolution bandwidth of at least one percent of the emission bandwidth of the fundamental emission of the transmitter may be employed. A narrower resolution bandwidth is permitted in all cases to improve measurement accuracy provided the measured power is integrated over the full required measurement bandwidth ( i.e. 1 MHz or 1 percent of emission bandwidth, as specified). The emission bandwidth is defined as the width of the signal between two points, one below the carrier center frequency and one above the carrier center frequency, outside of which all emissions are attenuated at least 26 dB below the transmitter power. (c) Alternative out of band emission limit. Licensees in this service may establish an alternative out of band emission limit to be used at specified band edge(s) in specified geographical areas, in lieu of that set forth in this section, pursuant to a private contractual arrangement of all affected licensees and applicants. In this event, each party to such contract shall maintain a copy of the contract in their station files and disclose it to prospective assignees or transferees and, upon request, to the FCC. (d) Interference caused by out of band emissions. If any emission from a transmitter Report No.: HCT-R-1407-F034-3 MODEL: RDU 1900P/AWS-1 (MIMO)Page 48 of 110 F-01P-02-014 (Rev.00) HCT CO., LTD FCC ID: W6U1900PAWS1/ IC: 9354A-19PAWS1MIMO operating in this service results in interference to users of another radio service, the FCC may require a greater attenuation of that emission than specified in this section. § 27.53 Emission limits (h) For operations in the 1710–1755 MHz and 2110–2155 MHz bands, the power of any emission outside a licensee's frequency block shall be attenuated below the transmitter power (P) by at least 43 + 10 log 10 (P) dB. Test Procedures: A modulated carrier generated by the signal generator carrier was connected to either the Uplink or Downlink RF port at a maximum level as determined by the spectrum analyzer was connected to either the Uplink or Downlink port depending on the circuitry being measured. The spectrum was investigated from 9 kHz to the 26.5 GHz of the carrier. Test Results: The EUT complies with the requirements of this section. There were no detectable Spurious emissions for this EUT IC Rules Test Requirement(s): RSS-131 6.4 Spurious emissions of zone enhancers and translators shall be suppressed as much as possible. Spurious emissions shall be attenuated below the rated power of the enhancer by at least: 43 + 10 Log10(Prated in watts), or 70 dB, whichever is less stringent. Note: If the minimum standard is not met, check to see if the input signal generators have a high harmonic content. Test Procedures: RSS-131 4.4 4.4.1 Multi-channel Enhancer The spurious emissions of the equipment under test shall be measured using the two-tone method in section 4.3.1, with the two tones Po1 and Po2 set to the required levels. Using a spectrum analyser with a resolution bandwidth set at 100 kHz, search for spurious emissions from 30 MHz to at least 5 times the highest RF passband frequency. The search may omit the band that contains the test tones and intermodulation products. 4.4.2 Single channel Enhancer The enhancer shall be operated as described in section 4.3.2 during the search for spurious emissions. Using a spectrum analyser with a resolution bandwidth set at 100 kHz, search for spurious emissions from 30 MHz to at least 5 times the highest RF passband frequency. The search may omit the band that contains the input signal. Report No.: HCT-R-1407-F034-3 MODEL: RDU 1900P/AWS-1 (MIMO)Page 49 of 110 F-01P-02-014 (Rev.00) HCT CO., LTD FCC ID: W6U1900PAWS1/ IC: 9354A-19PAWS1MIMO [RDU 1900P/AWS-1 (MIMO)] Band Edge Channel Frequency (MHz) Emission Level (dBm) (uW) LTE 5 MHz Low 1932.5 -36.08 0.246 High 1992.5 -37.07 0.196 LTE 10 MHz Low 1935.0 -34.85 0.328 High 1990.0 -40.78 0.084 Channel Frequency (MHz) Emission Level (dBm) (uW) LTE 5 MHz Low 2112.5 -33.95 0.403 High 2152.5 -40.33 0.093 LTE 10 MHz Low 2115.0 -34.49 0.356 High 2150.0 -40.74 0.084 Report No.: HCT-R-1407-F034-3 MODEL: RDU 1900P/AWS-1 (MIMO)Page 50 of 110 F-01P-02-014 (Rev.00) HCT CO., LTD FCC ID: W6U1900PAWS1/ IC: 9354A-19PAWS1MIMO Spurious emissions Channel Frequency (MHz) Emission Level (dBm) (uW) LTE 5 MHz Low 1932.5 -21.58 6.944 Middle 1962.5 -25.20 3.021 High 1992.5 -22.90 5.130 LTE 10 MHz Low 1935.0 -25.00 3.161 Middle 1962.5 -24.99 3.169 High 1990.0 -24.90 3.233 Channel Frequency (MHz) Emission Level (dBm)…
