W6UEROU7191725DAS System

Confidential & Proprietary 1/19 Alliance_eROU User Manual Document Reference: Version: V1.0 Document Status: Release 1 Issue Date: March 10, 2020 Author: Yang-Su Kim Department: R&D Division Team 2 Authorizing Manager: hyun-suk Chae Confidential & Proprietary 2/19 REVISION HISTORY Version Issue Date No. of Pages Initials Details of Revision Changes V 1.0 March 09, 2020 Original Technical Support SOLiD serial numbers must be available to authorize technical support and/or to establish a return authorization for defective units. The serial numbers are located on the back of the unit, as well as on the box in which they were delivered. Additional support information may be obtained by accessing the SOLiD Tehcnology, Inc. website at www.solid.co.kr or send email at [email protected] This manual is produced by Global Business Division Business Team Printed in Korea. Confidential & Proprietary 3/19 Contents Section1 Safety & Certification Notice ....................................................................... 4 Section2 System configuration and Functions ........................................................... 10 2.1 eROU(edge Remote Optic Unit) ....................................................................... 10 2.1.1 Specifications of eROU .............................................................................. 11 2.1.2 Port on eROU ........................................................................................... 12 2.1.2.1 Functions ................................................................................................. 12 Section3 System Installation ................................................................................... 14 3.1 eROU Installation ........................................................................................... 14 3.1.1 eROU Enclosure installation ....................................................................... 14 3.1.2 eROU(Internal Antenna) Mount Installation_ Case .1 .................................... 16 3.1.3 eROU(Internal Antenna) Mount Installation_ Case .2 .................................... 16 3.1.4 eROU(Internal Antenna) Mount Installation_ Case .3 .................................... 17 3.1.5 eROU(External Antenna) Mount Installation................................................. 17 3.1.6 Installation Cable Gland ............................................................................. 18 3.1.7 Power cabling ........................................................................................... 19 3.1.8 Ground cabling ......................................................................................... 19 Confidential & Proprietary 4/19 Section1 Safety & Certification Notice Confidential & Proprietary 5/19 “Only qualified personnel should handle the DAS equipment. Any person involved in installation or service of the DAS should understand and follow these safety guidelines.” - Obey all general and regional installation and safety regulations relating to work on high voltage installations, as well as regulations covering correct use of tools and personal protective equipment. - The power supply unit in repeaters contains dangerous voltage level, which can cause electric shock. Switch the mains off prior to any work in such a repeater. Any local regulations are to be followed when servicing repeaters. - eROU equipment is exclusive to the indoor. - Use this unit only for the purpose specified by the manufacturer. Do not carry out any modifications or fit any spare parts which are not sold or recommended by the manufacturer. This could cause fires, electric shock or other injuries. - Any DAS system or Fiber BDA will generate radio (RF) signals and continuously emit RF energy. Avoid prolonged exposure to the antennas. SOLiD recommends maintaining a 500 cm minimum clearance from the antenna while the system is operating. - Do not operate this unit on or close to flammable materials, as the unit may reach high temperatures due to power dissipation. - Do not use any solvents, chemicals, or cleaning solutions containing alcohol, ammonia, or abrasives on the DAS equipment. Alcohol may be used to clean fiber optic cabling ends and connectors. - To prevent electrical shock, switch the main power supply off prior to working with the DAS System or Fiber BDA. Never install or use electrical equipment in a wet location or during a lightning storm. - Do not look into the ends of any optical fiber or directly into the optical transceiver of any digital unit. Use an optical spectrum analyzer to verify active fibers. Place a protective cap over any radiating transceiver or optical fiber connector to avoid the potential of radiation exposure. - Allow sufficient fiber length to permit routing without severe bends. - For pluggable equipment, make sure to install the socket outlet near the equipment so that it is easily accessible. - A readily accessible disconnect device shall be incorporated external to the equipment. - This power of this system shall be supplied through wiring installed in a normal building. If powered directly from the mains distribution system, it shall be used additional protection, such as Confidential & Proprietary 6/19 overvoltage protection device - Only 50 ohm rated antennas, cables and passive equipment shall be used with this remote. Any equipment attached to this device not meeting this standard may cause degradation and unwanted signals in the bi-directional system. All components connected to this device must operate in the frequency range of this device. - Only 50 ohm rated antennas, cables and passive components operating from 150 - 3 GHz shall be used with this device. - The head end unit must always be connected to the Base Station using a direct cabled connection. This system has not been approved for use with a wireless connection via server antenna to the base station. - Access can only be gained by SERVICE PERSONS or by USERS who have been instructed about the re…

Text truncated - open the document above for the full version.

DATE: Mar. 25, 2020 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 Subject: Letter for Warning Label Message FCC ID: W6UEROU7191725 To Whom It May Concern: Warning label messages will be also shown in online and point-of-sale marketing materials and on outside packaging of device per KDB 935210 D02 Signal Boosters Certification v04r02 in Section IV clause (d). Sincerely, Signed by: Contact Name : Yong chul Kim E-mail : [email protected]

DATE: Mar. 25, 2020 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 Subject: Letter for Warning Label Message FCC ID: W6UEROU7191725 To Whom It May Concern: Warning label messages will be also shown in online and point-of-sale marketing materials and on outside packaging of device per KDB 935210 D02 Signal Boosters Certification v04r02 in Section V clause (g). Sincerely, Signed by: Contact Name : Yong chul Kim E-mail : [email protected]

Date : Nov. 9, 2017 Rev : 2.3 HACS-F004 FCC Agent Authorization Letter HCT America LLC ([email protected]) 1726 Ringwood Avenue San Jose, CA 95131 TEL: +1.510.933.8848, Fax: +1.510.933.8849 Page 1 of 2 This document is electronically controlled. Hard copy documents are uncontrolled. Please check all hard copies against the controlled electronic copy to ensure validity. This document is the confidential property of HCT America LLC. It may not be forwarded or reproduced in whole or in part without written permissions from HCT America LLC FCC Agent Authorization Letter Date : Nov. 9, 2017 Rev : 2.3 HACS-F004 FCC Agent Authorization Letter HCT America LLC ([email protected]) 1726 Ringwood Avenue San Jose, CA 95131 TEL: +1.510.933.8848, Fax: +1.510.933.8849 Page 2 of 2 This document is electronically controlled. Hard copy documents are uncontrolled. Please check all hard copies against the controlled electronic copy to ensure validity. This document is the confidential property of HCT America LLC. It may not be forwarded or reproduced in whole or in part without written permissions from HCT America LLC REVISION TABLE Rev Description of Change Date Approved 1.0 Original Release(Obsolete) 06/14/2012 QM 2.0 Updated template(Obsolete) 10/01/2012 QM 2.1 Updated address(Obsolete) 01/10/2014 QM 2.2 Updated address 11/18/2016 QM 2.3 Fixed Typo “Agent” 11/09/2017 QM HACS-F004 FCC Agent Authorization Letter Rev : 2.3 DATE: Mar. 25, 2020 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD To whom it may concern: Subject: FCC Agent Authorization Letter for FCC ID: W6UEROU7191725 We, the undersigned, hereby authorize HCT CO., LTD. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by HCT CO., LTD. on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). We recognize that we are still responsible for the terms and conditions outlined in the HCT America Client Services Agreement. This authorization is valid until further written notice from the applicant. Sincerely, Signed by: Contact Name : Yong chul Kim E-mail : [email protected]

Date : Nov. 09, 2017 Rev : 3.0 HACS-F003 FCC Confidentiality Request Letter HCT America LLC ([email protected]) 1726 Ringwood Avenue San Jose, CA 95131 TEL: +1.510.933.8848, Fax: +1.510.933.8849 Page 1 of 2 This document is electronically controlled. Hard copy documents are uncontrolled. Please check all hard copies against the controlled electronic copy to ensure validity. This document is the confidential property of HCT America LLC. It may not be forwarded or reproduced in whole or in part without written permissions from HCT America LLC FCC Confidentiality Request Letter Date : Nov. 09, 2017 Rev : 3.0 HACS-F003 FCC Confidentiality Request Letter HCT America LLC ([email protected]) 1726 Ringwood Avenue San Jose, CA 95131 TEL: +1.510.933.8848, Fax: +1.510.933.8849 Page 2 of 2 This document is electronically controlled. Hard copy documents are uncontrolled. Please check all hard copies against the controlled electronic copy to ensure validity. This document is the confidential property of HCT America LLC. It may not be forwarded or reproduced in whole or in part without written permissions from HCT America LLC REVISION TABLE Rev Description of Change Date Approved 1.0 Original Release(Obsolete) 06/14/2012 QM 2.0 Updated template(Obsolete) 10/01/2012 QM 2.1 Updated address(Obsolete) 01/10/2014 QM 2.2 Updated address 11/18/2016 QM 3.0 Updated LTC and STC Confidentiality table 11/09/2017 QM HACS-F003 FCC Confidentiality Request Letter Rev : 3.0 DATE: Mar. 25, 2020 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD SUBJECT: Request for Confidentiality for FCC ID: W6UEROU7191725 We hereby request confidential treatment of the information accompanying this application as outlined below: LONG-TERM AND SHORT-TERM CONFIDENTIAL LIST LONG-TERM CONFIDENTIAL Exhibit Description 1 Block Diagram 2 Operational Description 3 Parts List & Tune up procedure 4 Schematics SHORT-TERM CONFIDENTIAL (180 DAYS) 5 External Photos 6 Internal Photos 7 Test-Setup Photos 8 User’s Manual The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Signed by: Contact Name : Yong chul Kim E-mail : [email protected]

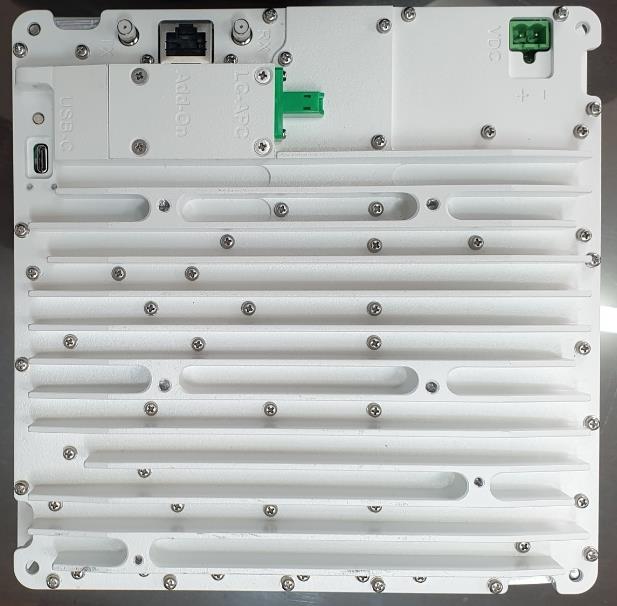

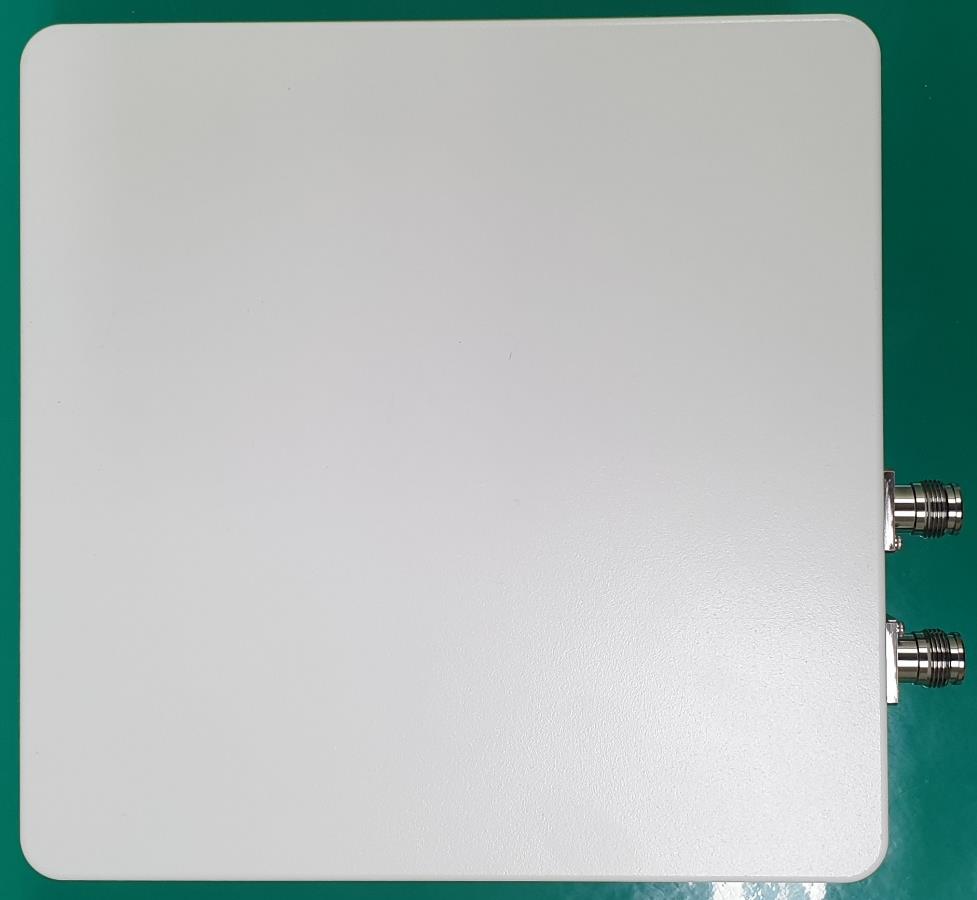

FCC ID: W6UEROU7191725, IC: 9354A-EROU7191725 HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １ of 13 EXTERNAL PHOTOGRAPHS FCC ID: W6UEROU7191725, IC: 9354A-EROU7191725 HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ２ of 13 ■ External antenna booster [Top] FCC ID: W6UEROU7191725, IC: 9354A-EROU7191725 HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ３ of 13 [ Bottom ] FCC ID: W6UEROU7191725, IC: 9354A-EROU7191725 HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ４ of 13 [ Side 1 ] FCC ID: W6UEROU7191725, IC: 9354A-EROU7191725 HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ５ of 13 [ Side 2 ] FCC ID: W6UEROU7191725, IC: 9354A-EROU7191725 HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ６ of 13 [ Side 3 ] FCC ID: W6UEROU7191725, IC: 9354A-EROU7191725 HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ７ of 13 [ Side 4 ] FCC ID: W6UEROU7191725, IC: 9354A-EROU7191725 HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ８ of 13 ■ Internal antenna booster [Top] FCC ID: W6UEROU7191725, IC: 9354A-EROU7191725 HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ９ of 13 [ Bottom ] FCC ID: W6UEROU7191725, IC: 9354A-EROU7191725 HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １０ of 13 [ Side 1 ] FCC ID: W6UEROU7191725, IC: 9354A-EROU7191725 HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １１ of 13 [ Side 2 ] FCC ID: W6UEROU7191725, IC: 9354A-EROU7191725 HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １２ of 13 [ Side 3 ] FCC ID: W6UEROU7191725, IC: 9354A-EROU7191725 HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １３ of 13 [ Side 4 ]

FCC/IC label & location (External antenna booster) Label FCC/IC label & location (Internal antenna booster) Label

FCC ID: W6UEROU7191725, IC: 9354A-EROU7191725 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １ of 7 INTERNAL PHOTOGRAPHS FCC ID: W6UEROU7191725, IC: 9354A-EROU7191725 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ２ of 7 ■ External antenna booster & Internal antenna booster (Common) [Top] FCC ID: W6UEROU7191725, IC: 9354A-EROU7191725 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ３ of 7 [Bottom] FCC ID: W6UEROU7191725, IC: 9354A-EROU7191725 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ４ of 7 ■ Internal antenna booster (Antenna view-top) FCC ID: W6UEROU7191725, IC: 9354A-EROU7191725 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ５ of 7 ■ Internal antenna booster (Antenna view-side) FCC ID: W6UEROU7191725, IC: 9354A-EROU7191725 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ６ of 7 ■ External antenna booster (Antenna view) FCC ID: W6UEROU7191725, IC: 9354A-EROU7191725 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ７ of 7 ■ External antenna booster (Antenna view) External antenna connector cable connection

HCT Co., Ltd. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383 KOREA Tel. +82 31 634 6300 F ax. +82 31 645 6401 On your side FCC MPE Test for eROU_7191725L1_X Certification APPLICANT SOLiD, Inc. REPORT NO. HCT-RF-2003-FC016 DATE OF ISSUE March 26, 2020 Report No. HCT-RF-2003-FC016 F-TP22-03 (Rev. 02) Page 3 of 16 REVISION HISTORY The revision history for this test report is shown in table. Revision No. Date of Issue Description 0 March 26, 2020 Initial Release The result shown in this test report refer only to the sample(s) tested unless otherwise stated. The measurements shown in this report were made in accordance with the procedures indicated, and the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. It is further stated that upon the basis of the measurements made, the equipment tested is capable of operation in accordance with the requirements of the FCC Rules under normal use and maintenance. Report No. HCT-RF-2003-FC016 F-TP22-03 (Rev. 02) Page 4 of 16 RF Exposure Statement 1. LIMITS According to §1.1310 and §2.1091 RF exposure is calculated. (B) Limits for General Population/Uncontrolled Exposures Frequency range (MHz) Electric field Strength (V/m) Magnetic field Strength (A/m) Power density (mW/cm²) Averaging time (minutes) 0.3 - 1.34 1.34 - 30 30 - 300 300 - 1500 1500 - 100.000 614 824/f 27.5   1.63 2.19/f 0.073   *(100) *(180/ f²) 0.2 f/1500 1.0 30 30 30 30 30 F = frequency in MHz * = Plane-wave equivalent power density 2. MAXIMUM PERMISSIBLE EXPOSURE Prediction Prediction of MPE limit at a given distance S = PG/4πR² S = Power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Report No. HCT-RF-2003-FC016 F-TP22-03 (Rev. 02) Page 5 of 16 - Lower 700 MHz ˊ LTE 5 MHz (Downlink) Max Peak output Power at antenna input terminal 20.00 dBm Max Peak output Power at antenna input terminal 100.00 mW Prediction distance 50.00 cm Prediction frequency 731.50 MHz Antenna Gain(typical) 17.000 dBi Antenna Gain(numeric) 50.119 - Power density at prediction frequency( S) 0.1595 mW/cm 2 MPE limit for uncontrolled exposure at prediction frequency 0.4877 mW/cm 2 - Lower 700 MHz ˊ LTE 10 MHz (Downlink) Max Peak output Power at antenna input terminal 20.00 dBm Max Peak output Power at antenna input terminal 100.00 mW Prediction distance 50.00 cm Prediction frequency 734.00 MHz Antenna Gain(typical) 17.000 dBi Antenna Gain(numeric) 50.119 - Power density at prediction frequency( S) 0.1595 mW/cm 2 MPE limit for uncontrolled exposure at prediction frequency 0.4893 mW/cm 2 Report No. HCT-RF-2003-FC016 F-TP22-03 (Rev. 02) Page 6 of 16 - Upper 700 MHz ˊ LTE 5 MHz (Downlink) Max Peak output Power at antenna input terminal 20.00 dBm Max Peak output Power at antenna input terminal 100.00 mW Prediction distance 50.00 cm Prediction frequency 748.50 MHz Antenna Gain(typical) 17.000 dBi Antenna Gain(numeric) 50.119 - Power density at prediction frequency( S) 0.1595 mW/cm 2 MPE limit for uncontrolled exposure at prediction frequency 0.4990 mW/cm 2 - Upper 700 MHz ˊ LTE 10 MHz (Downlink) Max Peak output Power at antenna input terminal 20.00 dBm Max Peak output Power at antenna input terminal 100.00 mW Prediction distance 50.00 cm Prediction frequency 751.00 MHz Antenna Gain(typical) 17.000 dBi Antenna Gain(numeric) 50.119 - Power density at prediction frequency( S) 0.1595 mW/cm 2 MPE limit for uncontrolled exposure at prediction frequency 0.5007 mW/cm 2 Report No. HCT-RF-2003-FC016 F-TP22-03 (Rev. 02) Page 7 of 16 - FirstNet ˊ LTE 5 MHz (Downlink) Max Peak output Power at antenna input terminal 20.00 dBm Max Peak output Power at antenna input terminal 100.00 mW Prediction distance 50.00 cm Prediction frequency 760.50 MHz Antenna Gain(typical) 17.000 dBi Antenna Gain(numeric) 50.119 - Power density at prediction frequency( S) 0.1595 mW/cm 2 MPE limit for uncontrolled exposure at prediction frequency 0.5070 mW/cm 2 - FirstNet ˊ LTE 10 MHz (Downlink) Max Peak output Power at antenna input terminal 20.00 dBm Max Peak output Power at antenna input terminal 100.00 mW Prediction distance 50.00 cm Prediction frequency 763.00 MHz Antenna Gain(typical) 17.000 dBi Antenna Gain(numeric) 50.119 - Power density at prediction frequency( S) 0.1595 mW/cm 2 MPE limit for uncontrolled exposure at prediction frequency 0.5087 mW/cm 2 Report No. HCT-RF-2003-FC016 F-TP22-03 (Rev. 02) Page 8 of 16 - AWS ˊ CDMA (Downlink) Max Peak output Power at antenna input terminal 24.000 dBm Max Peak output Power at antenna input terminal 251.189 mW Prediction distance 50.000 cm Prediction frequency 2135.03 MHz Antenna Gain(typical) 17.000 dBi Antenna Gain(numeric) 50.119 - Power density at prediction frequency( S) 0.4007 mW/cm 2 MPE limit for uncontrolled exposure at prediction frequency 1.0000 mW/cm 2 - AWS ˊ WCDMA (Downlink) Max Peak output Power at antenna input terminal 24.000 dBm Max Peak output Power at antenna input terminal 251.189 mW Prediction distance 50.000 cm Prediction frequency 2135.03 MHz Antenna Gain(typical) 17.000 dBi Antenna Gain(numeric) 50.119 - Power density at prediction frequency( S) 0.4007 mW/cm 2 MPE limit for uncontrolled exposure at prediction frequency 1.0000 mW/cm 2 Report No. HCT-RF-2003-FC016 F-TP22-03 (Rev. 02) Page 9 of 16 - AWS ˊ LTE 5 MHz (Downlink) Max Peak output Power at antenna input terminal 24.000 dBm Max Peak output Power at antenna input terminal 251.189 mW Prediction distance 50.000 cm Prediction frequency 2135.03 MHz Antenna Gain(typical) 17.000 dBi Antenna Gain(numeric) 50.119 - Power density at prediction frequency( S) 0.4007 mW/cm 2 MPE limit for uncontrolled exposure at prediction frequency 1.0000 mW/cm 2 - AWS ˊ LTE 10 MHz (…

Text truncated - open the document above for the full version.

HCT Co., Ltd. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383 KOREA Tel. +82 31 634 6300 F ax. +82 31 645 6401 On your side TEST REPORT FCC Test for eROU_7191725L1_X, eROU_7191725L1_N Certification APPLICANT SOLiD, Inc. REPORT NO. HCT-RF-2003-FC015-R1 DATE OF ISSUE March 30, 2020 Report No. HCT-RF-2003-FC015-R1 F-TP22-03 (Rev. 02) Page 3 of 505 REVISION HISTORY The revision history for this test report is shown in table. Revision No. Date of Issue Description 0 March 26, 2020 Initial Release 1 March 30, 2020 - Updated information and test results for eROU_7191725L1_N (internal antenna type). - Revised the power results of BRS/EBS on page 82, 83. The result shown in this test report refer only to the sample(s) tested unless otherwise stated. The measurements shown in this report were made in accordance with the procedures indicated, and the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. It is further stated that upon the basis of the measurements made, the equipment tested is capable of operation in accordance with the requirements of the FCC Rules under normal use and maintenance. Report No. HCT-RF-2003-FC015-R1 F-TP22-03 (Rev. 02) Page 4 of 505 CONTENTS 1. GENERAL INFORMATION 5 1.1. APPLICANT INFORMATION 5 1.2. PRODUCT INFORMATION 5 1.3. TEST INFORMATION 5 2. FACILITIES AND ACCREDITATIONS 6 2.1. FACILITIES 6 2.2. EQUIPMENT 6 3. TEST SPECIFICATIONS 7 3.1. STANDARDS 7 3.2. ADDITIONAL DESCRIPTIONS ABOUT TEST 8 3.3. MEASUREMENTUNCERTAINTY 11 3.4. STANDARDS ENVIRONMENTAL TEST CONDITIONS 11 3.5. TEST DIAGRAMS 12 4. TEST EQUIPMENTS 13 5. TEST RESULT 14 5.1. AGC THRESHOLD 14 5.2. OUT-OF-BAND REJECTION 17 5.3. INPUT-VERSUS-OUTPUT SIGNAL COMPARISON 20 5.4. INPUT/OUTPUT POWER AND AMPLIFIER/BOOSTER GAIN 72 5.5. OUT-OF-BAND/OUT-OF-BLOCK EMISSIONS AND SPURIOUS EMISSIONS 97 5.6. RADIATED SPURIOUS EMISSIONS 501 6. Annex A_EUT AND TEST SETUP PHOTO 505 Report No. HCT-RF-2003-FC015-R1 F-TP22-03 (Rev. 02) Page 5 of 505 1. GENERAL INFORMATION 1.1. APPLICANT INFORMATION Company Name SOLiD, Inc. Company Address 10, 9th Floor, SOLiD Space, Pangyoyeok-ro 220, Bundang-gu, Seongnam-si, Gyeonggi-do, 463-400, South Korea 1.2. PRODUCT INFORMATION EUT Type DAS System EUT Serial Number External Ver: 01110M666G1020300001 Internal Ver: 01110M666G2020300001 Power Supply Input DC 39~57 Vdc Frequency Range Band Name Uplink (MHz) Downlink (MHz) Lower 700 MHz 699 ~ 716 729 ~ 746 Upper 700 MHz776 ~ 787746 ~ 757 FirstNet788 ~ 798758 ~ 768 Broadband PCS 1 850 ~ 1 915 1 930 ~ 1 995 AWS 1 710 ~ 1 780 2 110 ~ 2 180 BRS/EBS 2 496 ~ 2 690 Tx Output Power Lower 700 MHz, Upper 700 MHz, FirstNet: 19 dBm PCS, AWS, BRS: 23 dBm Antenna Peak Gain Antenna Type: Omni Antenna Gain: 17 dBi 1.3. TEST INFORMATION FCC Rule Parts Part 2, Part 24, Part 27, Part 90 Measurement Standards KDB 935210 D05 v01r03, ANSI C63.26-2015 Test Location HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA Report No. HCT-RF-2003-FC015-R1 F-TP22-03 (Rev. 02) Page 6 of 505 2. FACILITIES AND ACCREDITATIONS 2.1. FACILITIES The SAC(Semi-Anechoic Chamber) and conducted measurement facility used to collect the radiated data are located at the 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA. The site is constructed in conformance with the requirements of ANSI C63.4 (Version: 2014) and CISPR Publication 22. Detailed description of test facility was submitted to the Commission and accepted dated April 02, 2018 (Registration Number: KR0032). 2.2. EQUIPMENT Radiated emissions are measured with one or more of the following types of linearly polarized antennas: tuned dipole, bi-conical, log periodic, bi-log, and/or ridged waveguide, horn. Spectrum analyzers with pre-selectors and quasi-peak detectors are used to perform radiated measurements. Calibrated wideband preamplifiers, coaxial cables, and coaxial attenuators are also used for making measurements. All receiving equipment conforms to CISPR Publication 16-1, ˑRadio Interference Measuring Apparatus and Measurement Methods.˒ Report No. HCT-RF-2003-FC015-R1 F-TP22-03 (Rev. 02) Page 7 of 505 3. TEST SPECIFICATIONS 3.1. STANDARDS The following tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 2, Part 24, Part 27, Part 90. Description Reference Results AGC threshold KDB 935210 D05 v01r03 3.2 Compliant Out-of-band rejection KDB 935210 D05 v01r03 3.3 Compliant Input-versus-output signal comparison §2.1049 Compliant Input/output power and amplifier/booster gain §2.1046, §24.232, §27.50(b), (c), (d), (h), §90.542 Compliant Out-of-band/out-of-block emissions and spurious emissions §2.1051, §24.238, §27.53(c), (f), (g), (h), (m), §90.543 Compliant Spurious emissions radiated §2.1053 Compliant Report No. HCT-RF-2003-FC015-R1 F-TP22-03 (Rev. 02) Page 8 of 505 3.2. ADDITIONAL DESCRIPTIONS ABOUT TEST Except for the following cases, EUT was tested under normal operating conditions. : Out-of-band rejection test requires maximum gain condition without AGC. This EUT is supported power supply both of AC and DC. Test results are only attached worst cases. The test was generally based on the method of KDB 935210 D05 v01r03 and only followed ANSI C63.26-2015 if there was no test method in KDB standard. EUT was tested with following modulated signals provide by applicant. Band Name Tested signals Lower 700 MHz LTE 5 MHz LTE 10 MHz Upper 700 MHz LTE 5 MHz LTE 10 MHz FirstNet LTE 5 MHz LTE 10 MHz AWS CDMA WCDMA LTE 5 MHz LTE 10 MHz LTE 20 MHz PCS GSM CDMA WCDMA LTE 5 MHz LTE 10 MHz LTE 20 MHz BRS/EBS LTE 20 MHz 5G NR 20 MHz 5G NR 40 MHz 5G NR 60 MHz 5G NR 80 MHz 5G NR 100 MHz The frequency stability measurement has been omitted in accordance with section 3.7 of KDB 935210 D05 v01r03. : It can be confirmed thro…

Text truncated - open the document above for the full version.

Report No. HCT-RF-2003-FC015-R1 F-TP22-03 (Rev. 02) Page 121 of 505 Out-of-band (two adjacent test signals) / AWS / Downlink / LTE 10 MHz / Upper Out-of-band (two adjacent test signals) / AWS / Downlink / LTE 10 MHz / Lower Report No. HCT-RF-2003-FC015-R1 F-TP22-03 (Rev. 02) Page 122 of 505 +3 dB above Out-of-band (two adjacent test signals) / AWS / Downlink / LTE 10 MHz / Upper +3 dB above Out-of-band (two adjacent test signals) / AWS / Downlink / LTE 10 MHz / Lower Report No. HCT-RF-2003-FC015-R1 F-TP22-03 (Rev. 02) Page 123 of 505 Out-of-band (two adjacent test signals) / AWS / Downlink / LTE 20 MHz / Upper Out-of-band (two adjacent test signals) / AWS / Downlink / LTE 20 MHz / Lower Report No. HCT-RF-2003-FC015-R1 F-TP22-03 (Rev. 02) Page 124 of 505 +3 dB above Out-of-band (two adjacent test signals) / AWS / Downlink / LTE 20 MHz / Upper +3 dB above Out-of-band (two adjacent test sig…
