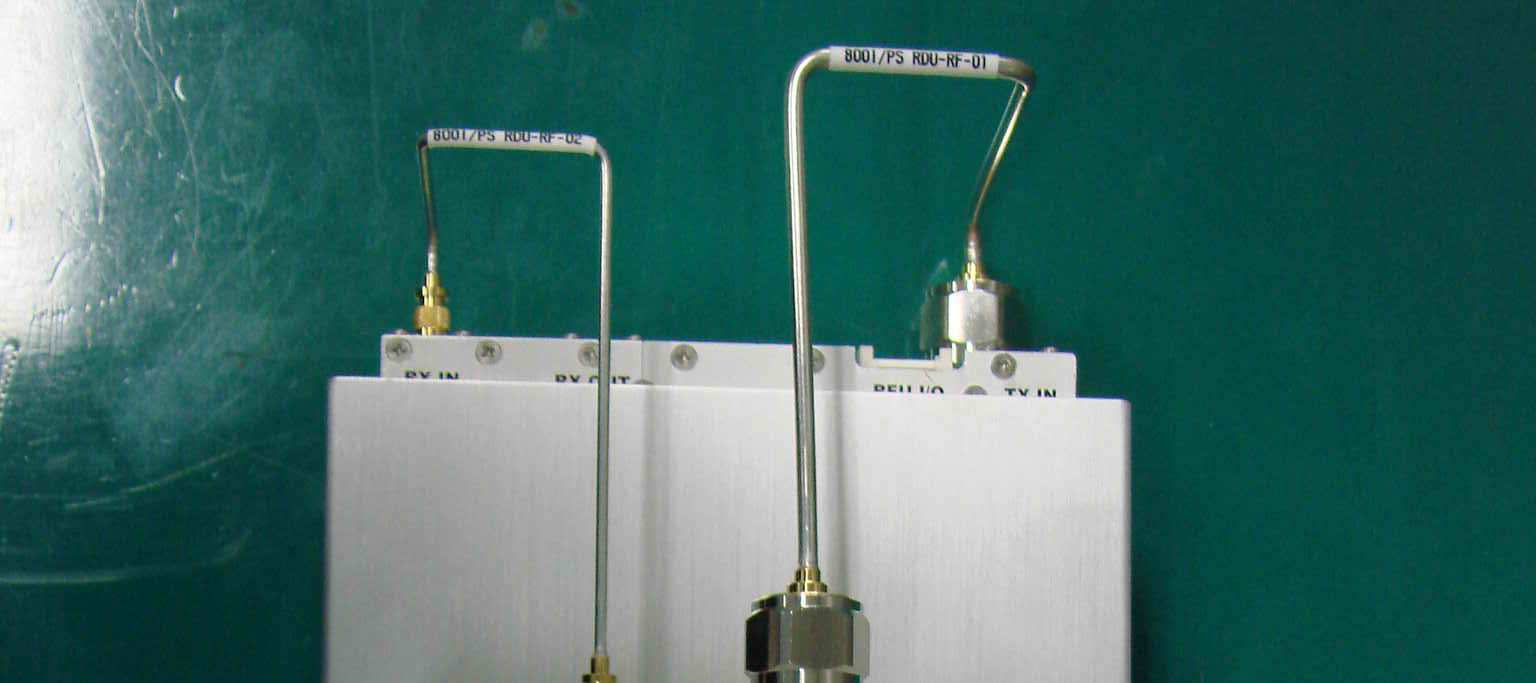

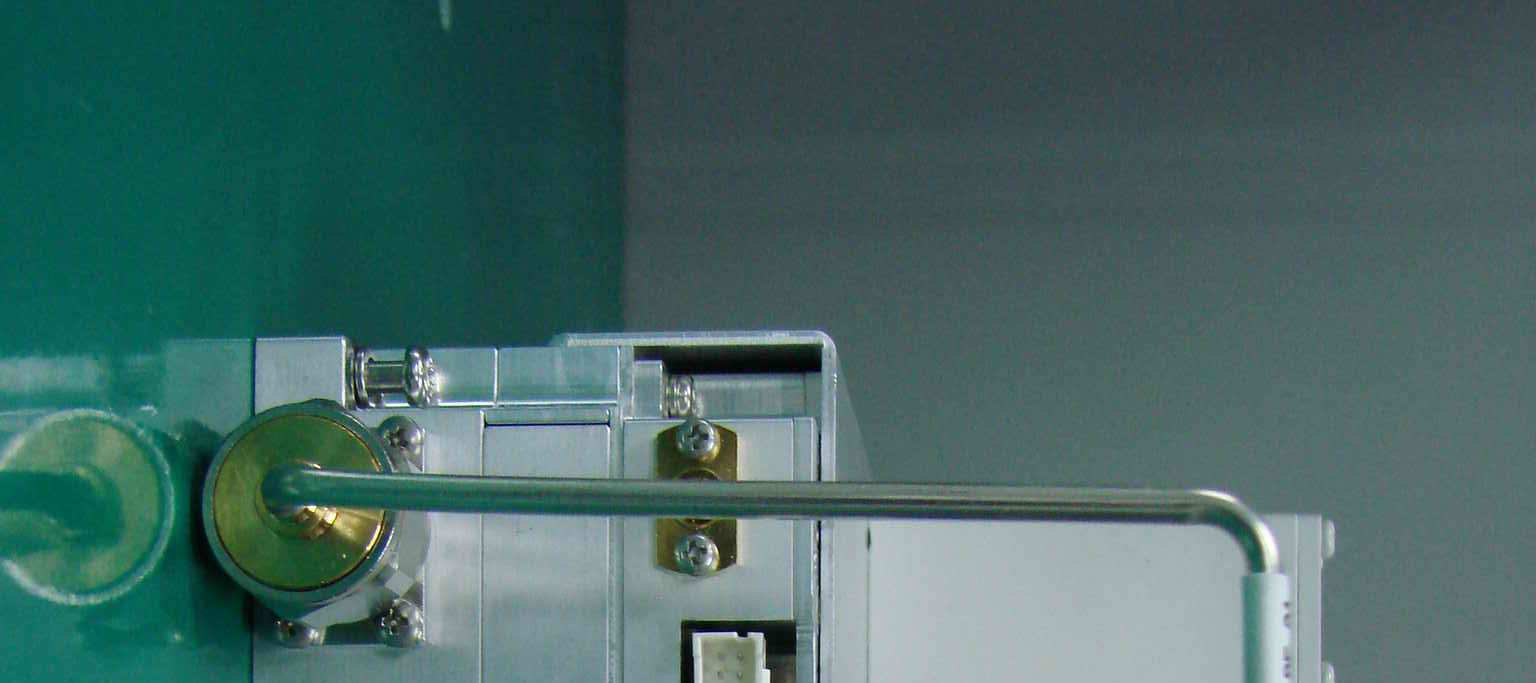

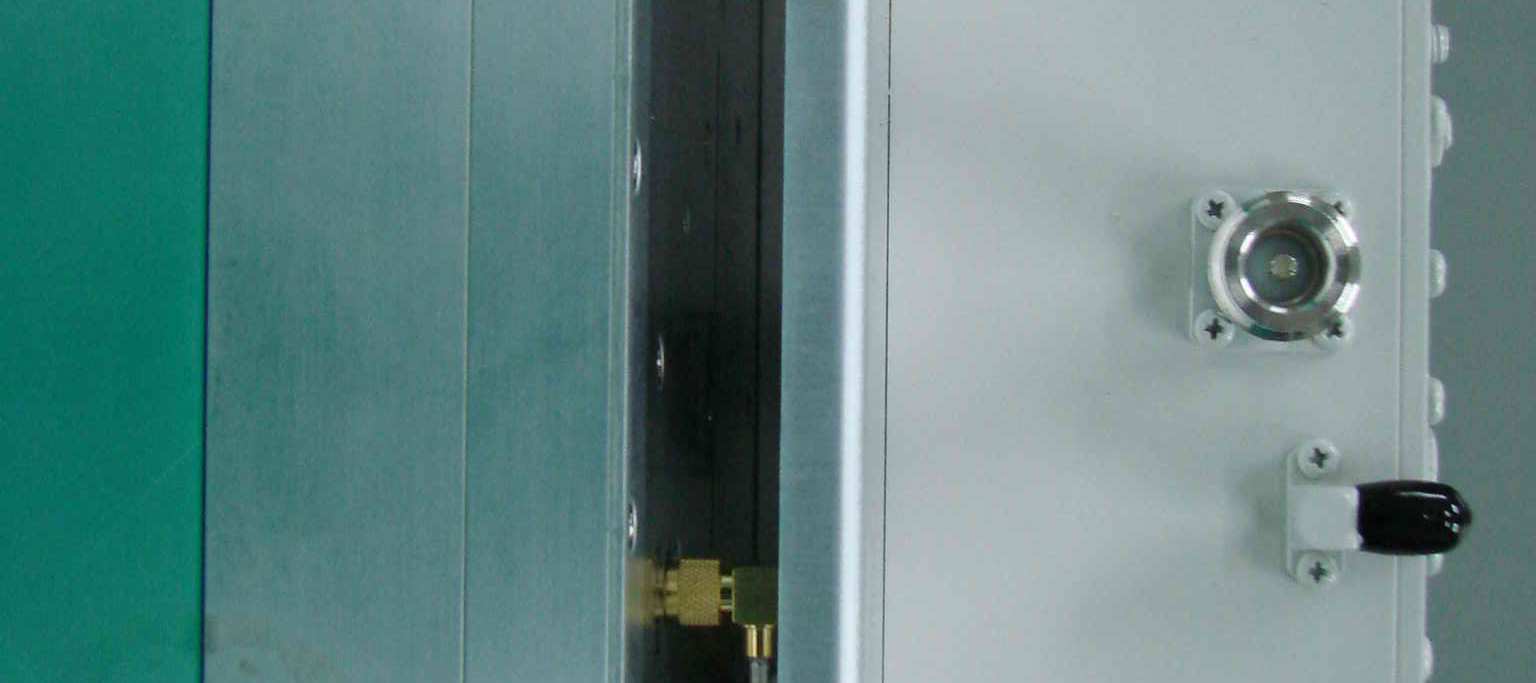

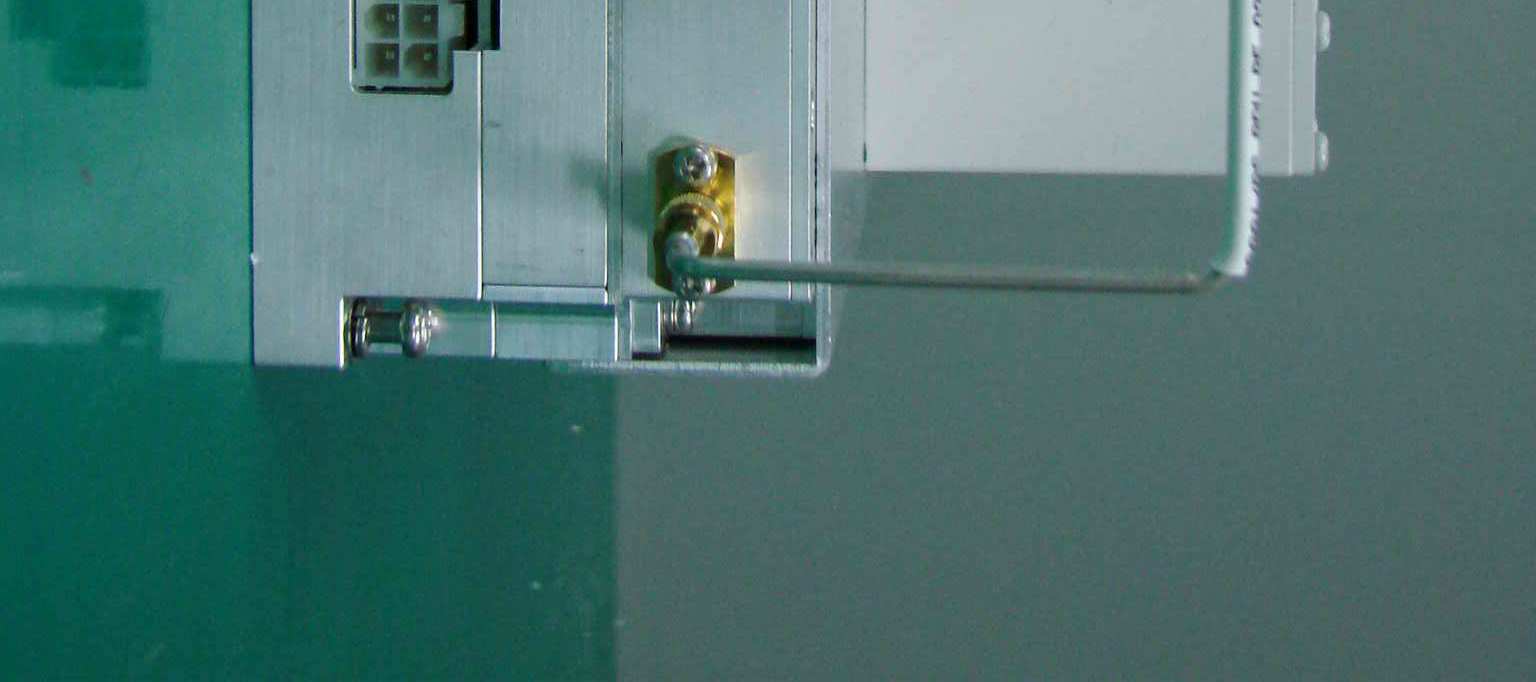

W6UH800PSRDU Module (800I/PS)

Confidential & Proprietary 1/59 TiTAN Installation and Operation Manual Document Reference: Version: V1.0 Document Status: Release 1 Issue Date: MAR. 03, 2012 Author: Kyung Eun Han Department: R&D Division Team 3 Authorizing Manager: Youngshin Yeo Confidential & Proprietary 2/59 REVISION HISTORY Version Issue Date No. of Pages Initials Details of Revision Changes V 1.0 MAR. 03, 2012 Original Technical Support SOLiD serial numbers must be available to authorize technical support and/or to establish a return authorization for defective units. The serial numbers are located on the back of the unit, as well as on the box in which they were delivered. Additional support information may be obtained by accessing the SOLiD Tehcnology, Inc. website at www.st.co.kr or send email at [email protected] This manual is produced by Global Business Division Business Team 1. Printed in Korea. Confidential & Proprietary 3/59 Contents Section1 Safety & Certification Notice................................................................... 8 Section2 System Overview ................................................................................... 10 2.1 General overview......................................................................................... 11 2.2 System overview.......................................................................................... 12 Section3 System Specifications........................................................................... 13 3.1 System specifications................................................................................. 14 3.1.1 Physical Specifications......................................................................... 14 3.1.2 Optic wavelength and Laser power...................................................... 14 3.1.3 Environmental specifications............................................................... 14 3.1.4 Operating Frequencies range............................................................... 15 3.1.5 Specifications Per band........................................................................ 16 3.1.5.1 700MHz LTE............................................................................................ 16 3.1.5.2 700MHz Public safety............................................................................ 16 3.1.5.3 800MHz Public safety............................................................................ 17 3.1.5.4 850MHz Cellular..................................................................................... 17 3.1.5.5 900MHz iDEN & Paging......................................................................... 18 3.1.5.6 1900MHz PCS......................................................................................... 18 3.1.5.7 1700MHz&2100MHz AWS-1................................................................... 19 Section4 System Configuration and Functions .................................................. 20 4.1 HROU (High power Remote Optic Unit)..................................................... 21 4.1.1 Specifications of HROU......................................................................... 22 4.1.2 Block Diagram of HROU........................................................................ 22 4.1.2.1 HMRU block diagram............................................................................. 22 4.1.2.2 HARU block diagram............................................................................. 23 4.1.3 HROU parts............................................................................................. 24 4.1.3.1 HROU inner look.................................................................................... 24 4.1.3.2 HROU part list........................................................................................ 25 4.1.4 Function by unit..................................................................................... 26 4.1.5 Bottom of HROU.................................................................................... 30 Section5 System Installation ................................................................................ 32 5.1 HROU Installation......................................................................................... 33 5.1.1 Tools........................................................................................................ 33 Confidential & Proprietary 4/59 5.1.2 HROU Enclosure installation................................................................ 34 5.1.3 How to expand ARU at the HMRU........................................................ 38 5.1.4 HROU Power Cabling............................................................................ 40 5.1.5 HROU Ground cabling........................................................................... 41 5.1.6 Optical Cabling...................................................................................... 43 5.1.7 Mounting of RDU.................................................................................... 45 5.1.8 How to mount FAN Unit......................................................................... 50 5.1.9 Consumption of HROU.......................................................................... 51 Section6 Operation ................................................................................................ 52 6.1 HROU Operation.......................................................................................... 53 6.1.1 HROU Operation.................................................................................... 53 Confidential & Proprietary 5/59 Contents of Figure Figure 2.1 – Basic system topology ............................................................... 12 Figure 4.1 – HROU Outer Look ................................................................... 21 Figure 4.2 – HMRU Block diagram............................................................. 22 Figure 4.3 – HARU Block diagram ........................................…

Text truncated - open the document above for the full version.

Confidential & Proprietary 32/59 Section5 System Installation 5.1 HROU Installation Confidential & Proprietary 33/59 This chapter describes how to install each unit and optical cables, along with power cabling method. In detail, the chapter describes how to install shelves or enclosuers of each unit, Power Cabling method and Optic Cabling and RF Interface. Furthermore, by showing power consumption of modules to be installed in each unit, it presents Power Cabling budget in a simple way. Then, it describes the quantity of components of modules to be installed in each unit and expansion method. 5.1 HROU Installation 5.1.1 Tools Tools needed for installation is below No Tools Q’tySpecification Remark 1 1 +, 3Ø Length is more than 20mm For fixing RDU 2 1 20mm To tighten antenna port Confidential & Proprietary 34/59 5.1.2 HROU Enclosure installation HROU is designed to be water- and dirt-proof. The unit has the structure of one-Body enclosure. It satisfies water-proof and quake-proof standards equivalent of NEMA4(IP66). The way to install for both HMRU and ARU has same. Basically HROU is attached with wall mountable bracket. This wall moutable bracket can be unattached by loosing screws on the both side of enclosure. HROU can be mounted into either of wall or on a pole. MOUNT BRACKET HOUSING Figure 5.1 – How to install HROU Confidential & Proprietary 35/59 Figure 5.2 – Dimension used to install HROU on the WALL Confidential & Proprietary 36/59 HROU Wall Mount Installation Turn M12 Fixing Screws by half on the wall and fully fix the screw with a Wall Mount Bracket on it. For convenience, the Wall Mount Bracket has fixing holes to let you easily mount an enclosure. Turn the M5 Wrench Bolt by half at each side of the Heatsink of the enclosure. 8-M8 Wrench Bolt 4-M12 Fixing Screw MOUNT BRACKET HOUSING MOUNTING HOLE Figure 5.3 – Procedures of installation Put the enclosure with the M5 Wrench Bolt fixed on the fixing groove and fix the M5 Wrench Bolts into the remaining fixing holes. In this case, you will use 12 M5 Wrench Bolts in total except bolts used for the fixing groove. Confidential & Proprietary 37/59 HROU components HROU has the following components: No. Unit Description Remark Enclosure Including Wall mounting bracket 1EA RCPU - 1EA R_OPTIC With SC/ACP adaptor 1EA,option al RPSU AC 120V 1EA - 1EA Common Part Power Cable - MS Connector with 4 hole to AC 120 plug(AC) - MS Connector with 3 lug termination(battery) Each 1EA Optional Part RDU 1900PCS RDU 44.5 850CEL RDU 44.5 700LTE RDU 44.5 AWS-1 RDU 44.5 700PS RDU 44.5 800I/PS RDU 44.5 900I RDU 44.5 Up to 2EA to be mounted Basically, the common part of HROU should have an enclosure and it is equipped with RCPU to inquire and control state of each module, R_OPTIC to make both of electronic-optical and optical-electronic conversions, RPSU to supply power for HROU. It should have Power Cable for external rectifier or to supply required power. In addition, RDU can be mounted and removed to provide service for desired band (Optional). Confidential & Proprietary 38/59 5.1.3 How to expand ARU at the HMRU HMRU can expand ARU up to 3. The three item is needed for connection between HMRU and HARU. HARU’s components additively have 3 item except for enclosure like below Accessories Description Qty Specification Remark 1 TX RF Cable 1 SMBL(M) ST_3M 2 RX RF Cable 1 SMBL(M) ST_3M 3 I/O Cable 1 xxxx Confidential & Proprietary 39/59 Following picture shows the connection diagrm between HMRU and HARUs For expanding HARU at the HMRU in proper cable length provided, we recommend MRU be located at middle of among ARUs. The cables between HMRU and HARU have each 3m length HMRU HARU1 HARU2HARU3 Figure 5.4 – Connection diagram between HMRU and HARU Table below shows the point to connect between HMRU and HARU according to ARU order. MRU port name 1 st ARU port name 2 nd ARU port name 3 rd ARU port name Remark TX TX - - RX RX - - ARU #1 I/O I/O - - TX - TX RX - RX ARU #2 I/O - I/O TX - - TX RX - - RX ARU #3 I/O - - I/O Confidential & Proprietary 40/59 5.1.4 HROU Power Cabling AC Power cabling HROU supports only AC120V of input power. Provided outside power cable is only one type. The pin discription of AC port is below. You should connect exact polarity of AC. Port outlook MS Connector numbering Name Description A AC_H AC Hot B AC_N AC Neutral C N.C Not Connected A : AC_H B : AC_N C : N.C D : F.G D F.G Frame Ground Check if the connection is the same as one seen in the table above and make sure to turn the power ON. Battery cabling The battery port provides either charging mode or discharging mode. According to system power, you should calculate battery capacity and connect Port outlook MS Connector numberingNameDescription A +BATT Positive polarity B -BATTNegative polarity C N.C Not Connected D N.C Not Connected If you use battery through external battery pack, turn Battery switch on and if you don’t use battery port, you should turn Battery switch off Confidential & Proprietary 41/59 5.1.5 HROU Ground cabling The Grounding terminal is located at the right of HROU enclosure fixed by M6 screw. Compression terminal is attached already when is delivered. The best thickness of cable is AWG#6 copper grounding wire Figure 5.5 – Location of Ground Terminal The specification of compression terminal is like below Figure 5.6 – Information of Terminal Confidential & Proprietary 42/59 The required part number is JOCT 14 supporting AWG 6. The way to install the grounding cable comply with below procedures Figure 5.7 – How to install Ground Terminal The procedures are 1. Loosen a two M6 screws and then take compression terminal off 2. Insert AWG#6 Grounding Wire into terminal and then compress a terminal using tool 3. Assemble the terminal which made in step “2” using 2xM6 screws 4. Cut the ground wire to proper length and connect it to the earth ground source Confidential & Proprietary 43/59 5.1.6 Optical Cabling HROU makes optical-electronic conversion of TX signals from upper…

Text truncated - open the document above for the full version.
