W6UNH1900PHPRD (High Power Remote Drive Unit)

ALLIANCE_N20(Remote Unit) User Manual Document Reference: Version: V1.0 Document Status: Release 1 Issue Date: July. 16, 2014 Author: Hwan sun Lee Department: R&D Division Team 3 Authorizing Manager: Young shin Yeo Confidential & Proprietary 1/44 REVISION HISTORY Version Issue Date No. of Pages Initials Details of Revision Changes V 1.0 Aug. 20, 2014 Original Technical Support SOLiD serial numbers must be available to authorize technical support and/or to establish a return authorization for defective units. The serial numbers are located on the back of the unit, as well as on the box in which they were delivered. Additional support information may be obtained by accessing the SOLiD Tehcnology, Inc. website at www.solid.co.kr or send email at [email protected] This manual is produced by Global Business Division Business Team 1. Printed in Korea. Confidential & Proprietary 2/44 Contents Section1 Safety & Certification Notice ....................................................................... 6 Section2 System Overview ...................................................................................... 10 2.1 Purpose ......................................................................................................... 11 2.2 System overview ............................................................................................ 12 Section3 System configuration and Functions ........................................................... 14 3.1 HROU (High power Remote Optic Unit) ............................................................ 14 3.1.1 Specifications of HROU ............................................................................. 15 3.1.2 Block Diagram of HROU ............................................................................ 16 3.1.2.1 HMRU block diagram ................................................................................ 16 3.1.2.2 HROU inner look ...................................................................................... 17 3.1.2.3 HROU part list .......................................................................................... 18 3.1.3 Function by unit ....................................................................................... 19 3.1.3.1 High Remote Drive Unit (HRDU) ................................................................. 19 3.1.3.2 Remote Power Supply Unit ( RPSU) ............................................................ 21 3.1.3.3 Remote Optic(R OPTIC) ............................................................................. 22 3.1.3.4 Remote Central Processor Unit (RCPU) ....................................................... 23 3.1.4 Bottom of HROU ...................................................................................... 24 3.1.4.1 Functions ................................................................................................. 24 Section4 System Installation ................................................................................... 26 4.1 HROU Installation ........................................................................................... 26 4.1.1 Tools ............................................................................................................. 27 4.1.2 HROU Enclosure installation ............................................................................ 27 4.1.3 HROU Wall Mount Installation ......................................................................... 29 4.1.4 HROU components ......................................................................................... 30 4.1.5 HROU Power Cabling ...................................................................................... 32 4.1.6 HROU Ground cabling ..................................................................................... 34 4.1.9 Mounting of HRDU ......................................................................................... 41 Confidential & Proprietary 3/44 Contents of Figure Figure 1. Basic system topology ........................................................................ 12 Figure 2. Expansion system topology ................................................................. 13 Figure 3. HROU outer Look ............................................................................... 15 Figure 4. HMRU Block diagram.......................................................................... 16 Figure 5. Inside of Remote Unit ...................................................................... 17 Figure 6. HRDU Outer Look ............................................................................... 19 Figure 7. AC-DC RPSU Outer Look ...................................................................... 21 Figure 8. DC-DC RPSU Outer Look ...................................................................... 22 Figure 9. R OPTIC Outer Look ............................................................................ 23 Figure 10. RCPU Outer Look.............................................................................. 23 Figure 11. The Bottom Look of HROU ................................................................ 24 Figure 12. How to install ROU ........................................................................... 28 Figure 13. Dimension used to install HROU on the WALL ...................................... 29 Figure 14. Procedures of installation .................................................................. 30 Figure 15. Location of Ground Terminal ............................................................. 34 Figure 16. Information of Terminal .................................................................... 35 Figure 17. How to install Ground Terminal .......................................................... 36 Figure 18. Location of Optical Connector ............................................................ 37 Figure 19. Information of Optical Connector .................................................…

Text truncated - open the document above for the full version.

SOLiD, Inc. 10,9th Floor, SOLiD Space 220 Pangyoyeok-ro, Bundang-gu, Seongnam-si, Gyeonggi-do, Korea 463-400 Tel : +82-31-627-6290 Fax : +82-31-627-6209 ____________________________________________________________________________ Date: Aug. 25, 2014 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: W6UNH1900P To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SOLiD, Inc. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SOLiD, Inc. temporary confidentiality of commercially sensitive information prior to product release. The requested Confidential and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description CONFIDENTIAL 1 Block Diagram 2 Operational Descriptions 3 Parts Lists and Tune-Up Procedure 4 Schematics SHORT-TERM CONFIDENTIAL 5 External Photos 6 Internal Photos 7 Test-Setup Photos 8 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. SOLiD, Inc.

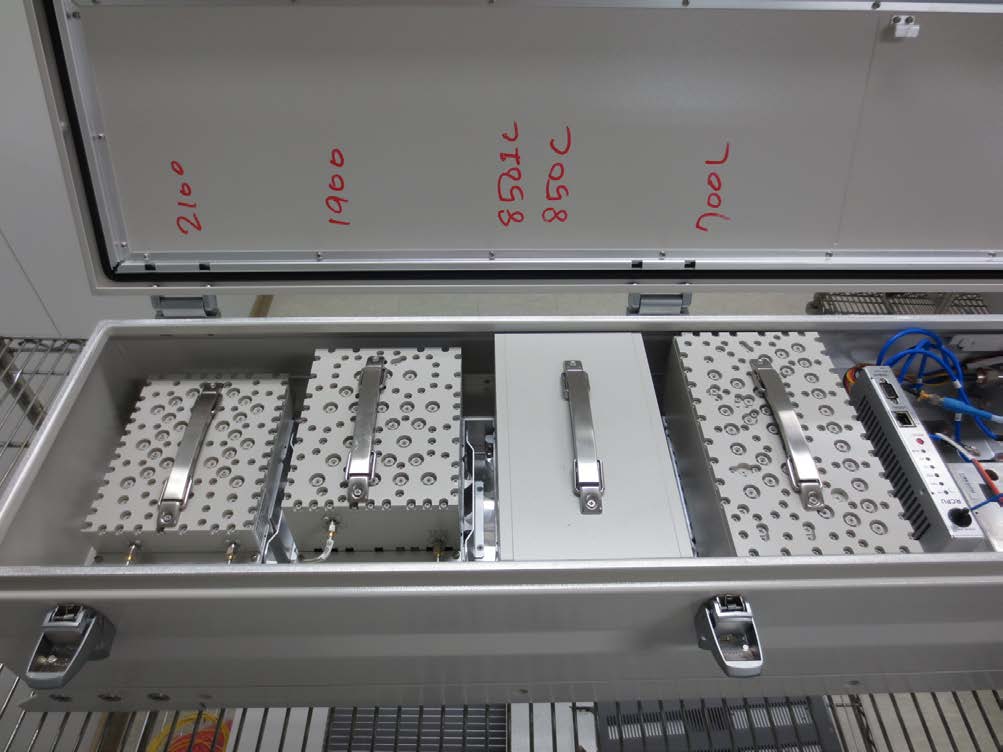

FCC ID : W6UNH1900P / IC: 9354A-NH1900P EXTERNAL PHOTOGRAPHS HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 1/ 7 FCC ID : W6UNH1900P / IC: 9354A-NH1900P HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 2/ 7 FCC ID : W6UNH1900P / IC: 9354A-NH1900P HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 3/ 7 FCC ID : W6UNH1900P / IC: 9354A-NH1900P HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 4/ 7 FCC ID : W6UNH1900P / IC: 9354A-NH1900P HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 5/ 7 FCC ID : W6UNH1900P / IC: 9354A-NH1900P HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 6/ 7 FCC ID : W6UNH1900P / IC: 9354A-NH1900P HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 7/ 7

FCC ID : W6UNH1900P/ IC: 9354A-NH1900P EXTERNAL PHOTOGRAPHS HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 1/ 6 FCC ID : W6UNH1900P/ IC: 9354A-NH1900P HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 2/ 6 FCC ID : W6UNH1900P/ IC: 9354A-NH1900P HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 3/ 6 FCC ID : W6UNH1900P/ IC: 9354A-NH1900P HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 4/ 6 FCC ID : W6UNH1900P/ IC: 9354A-NH1900P HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 5/ 6 FCC ID : W6UNH1900P/ IC: 9354A-NH1900P HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 6/ 6

SOLiD, Inc. 10,9th Floor, SOLiD Space 220 Pangyoyeok-ro, Bundang-gu, Seongnam-si, Gyeonggi-do, Korea 463-400 Tel : +82-31-627-6290 Fax : +82-31-627-6209 Model : TR-HRDU-1900P : (N20-HRDU-1900P) 1) Label Location 2) ID Label ID Label WARNING Label FCC Part 15.19 3) WARNING Label 4) FCC Part 15.19 statement

FCC ID : W6UNH1900P / IC: 9354A-NH1900P INTERNAL PHOTOGRAPHS HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 1/ 14 FCC ID : W6UNH1900P / IC: 9354A-NH1900P Main PCB TOP HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 2/ 14 FCC ID : W6UNH1900P / IC: 9354A-NH1900P Main PCB Bottom HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 3/ 14 FCC ID : W6UNH1900P / IC: 9354A-NH1900P FB Top HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 4/ 14 FCC ID : W6UNH1900P / IC: 9354A-NH1900P FB Bottom HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 5/ 14 FCC ID : W6UNH1900P / IC: 9354A-NH1900P Main PBA Top HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 6/ 14 FCC ID : W6UNH1900P / IC: 9354A-NH1900P Main PBA Bottom HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 7/ 14 FCC ID : W6UNH1900P / IC: 9354A-NH1900P FB PBA Top HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 8/ 14 FCC ID : W6UNH1900P / IC: 9354A-NH1900P HPA HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 9/ 14 FCC ID : W6UNH1900P / IC: 9354A-NH1900P UDC Top HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 10/14 FCC ID : W6UNH1900P / IC: 9354A-NH1900P UDC Bottom HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 11/14 FCC ID : W6UNH1900P / IC: 9354A-NH1900P UDC PBA Top HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 12/14 FCC ID : W6UNH1900P / IC: 9354A-NH1900P UDC PBA Bottom HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 13/14 FCC ID : W6UNH1900P / IC: 9354A-NH1900P UDC HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 14/14

FCC ID: W6UNH1900P / IC: 9354A-NH1900P RF EXPOSURE STATEMENT 1. LIMITS According to §1.1310 and §2.1091 RF exposure is calculated. (B) Limits for General Population/Uncontrolled Exposures Frequency range (MHz) Electric field Strength (V/m) Magnetic field Strength (A/m) Power density (mW/cm²) Averaging time (minutes) 0.3 - 1.34....................................... 1.34 - 30....................................... 30 - 300....................................... 300 - 1500.................................... 1500 - 100.000................................. 614 824/f 27.5 ............... ............... 1.63 2.19/f 0.073 ............... ............... *(100) *(180/ f²) 0.2 f/1500 1.0 30 30 30 30 30 F = frequency in MHz * = Plane-wave equivalent power density 2. MAXIMUM PERMISSIBLE EXPOSURE Prediction Prediction of MPE limit at a given distance S = PG/4πR² S = Power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna FCC ID: W6UNH1900P / IC: 9354A-NH1900P 2-1 Limit (CDMA & EVDO) Max Peak output Power at antenna input terminal 44.10 dBm Max Peak output Power at antenna input terminal 25703.96 mW Prediction distance 500.00 cm Prediction frequency 1993.75 MHz Antenna Gain(typical) 17.00 dBi Antenna Gain(numeric) 50.12 - Power density at prediction frequency( S) 0.410 mW/cm 2 MPE limit for uncontrolled exposure at prediction frequency 1.000 mW/cm 2 2-2 Limit (WCDMA) Max Peak output Power at antenna input terminal 44.04 dBm Max Peak output Power at antenna input terminal 25351.29 mW Prediction distance 500.00 cm Prediction frequency 1932.40 MHz Antenna Gain(typical) 17.00 dBi Antenna Gain(numeric) 50.12 - Power density at prediction frequency( S) 0.404 mW/cm 2 MPE limit for uncontrolled exposure at prediction frequency 1.000 mW/cm 2 2-3 Limit (GSM &EDGE) Max Peak output Power at antenna input terminal 44.07 dBm Max Peak output Power at antenna input terminal 25527.01 mW Prediction distance 500.00 cm Prediction frequency 1962.40 MHz Antenna Gain(typical) 17.00 dBi Antenna Gain(numeric) 50.12 - Power density at prediction frequency( S) 0.407 mW/cm 2 MPE limit for uncontrolled exposure at prediction frequency 1.000 mW/cm 2 FCC ID: W6UNH1900P / IC: 9354A-NH1900P 2-4 Limit (LTE 5MHz) Max Peak output Power at antenna input terminal 44.17 dBm Max Peak output Power at antenna input terminal 26121.61 mW Prediction distance 500.00 cm Prediction frequency 1962.50 MHz Antenna Gain(typical) 17.00 dBi Antenna Gain(numeric) 50.12 - Power density at prediction frequency( S) 0.417 mW/cm 2 MPE limit for uncontrolled exposure at prediction frequency 1.000 mW/cm 2 3. RESULTS The power density level at 500 cm is 0.410 mW/cm², which is below the uncontrolled exposure limit of 1.0 mW/cm² at CDMA& EVDO The power density level at 500 cm is 0.404 mW/cm², which is below the uncontrolled exposure limit of 1.0 mW/cm² at WCDMA The power density level at 500 cm is 0.407 mW/cm², which is below the uncontrolled exposure limit of 1.0 mW/cm² at GSM & EDGE The power density level at 500 cm is 0.417 mW/cm², which is below the uncontrolled exposure limit of 1.0 mW/cm² at LT E Note: “"RF exposure will be addressed at time of installation and the use of higher gain antennas may require larger separation distances."

Report No.: HCT-R-1409-F003 MODEL: TR-HRDU-1900P Page 2 of 121 Report Revision TEST REPORT NO. DATE DESCRIPTION HCT-R-1409-F003 September 04, 2014 - First Approval Report F-01P-02-014 (Rev.00) HCT CO., LTD FCC ID: W6UNH1900P / IC: 9354A-NH1900P Report No.: HCT-R-1409-F003 MODEL: TR-HRDU-1900P Page 3 of 121 Table of Contents 1. CLIENT INFORMATION ________________________________________________________________ 4 2. FACILITIES AND ACCREDITATIONS _____________________________________________________ 5 2.1. FACILITIES ......................................................................................................................................... 5 2.2. EQUIPMENT ....................................................................................................................................... 5 3. TEST SUMMARY _____________________________________________________________________ 6 3.1. STANDARDS ...................................................................................................................................... 6 3.2. MODE OF OPERATION DURING THE TEST .................................................................................... 6 4. STANDARDS ENVIRONMENTAL TEST CONDITIONS _______________________________________ 7 5. TEST EQUIPMENT ___________________________________________________________________ 8 6. RF OUTPUT POWER__________________________________________________________________ 9 7. OCCUPIED BANDWIDTH _____________________________________________________________ 30 8. PASSBAND GAIN AND BANDWIDTH & OUT OF BAND REJECTION _________________________ 54 9. SPURIOUS AND HARMONIC EMISSION AT ANTENNA TERMINAL __________________________ 56 10. RADIATED SPURIOUS EMISSIONS __________________________________________________ 115 11. FREQUENCY STABILITY OVER TEMPERATURE AND VOLTAGE VARIATIONS _______________ 118 F-01P-02-014 (Rev.00) HCT CO., LTD FCC ID: W6UNH1900P / IC: 9354A-NH1900P Report No.: HCT-R-1409-F003 MODEL: TR-HRDU-1900P Page 4 of 121 1. CLIENT INFORMATION The EUT has been tested by request of Company SOLiD, Inc 10, 9th Floor, SOLiD Space, Pangyoyeok-ro 220, Bundang-gu, Seongnam-si, Gyeonggi-do, 463-400 ■ FCC ID: W6UNH1900P ■ IC: 9354A-NH1900P ■ APPLICANT: SOLiD, Inc ■ EUT Type: HPRD (High Power Remote Drive Unit) ■ Model: TR-HRDU-1900P ■ Additional Model: N20-HRDU-1900P ■ Frequency Ranges: 1930 MHz ~ 1995 MHz ■Conducted Output Power: 25 W (44 dBm) ■ Antenna Gain(s) : Manufacturer does not provide an antenna. ■ FCC Rules Part(s): CFR Title 47 Part 24 ■ IC Rules Part(s): RSS-Gen (Issue3, December 2010), RSS-131( Issue 2, July 2003) ■ Measurement standard(s): ANSI/TIA-603-C-2004, KDB 971168 D01 v02, KDB 935210 D03 v02r01, RSS-131( Issue 2, July 2003) ■ Place of Tests: 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi- do, Korea. (IC Recognition No. : 5944A-3) F-01P-02-014 (Rev.00) HCT CO., LTD FCC ID: W6UNH1900P / IC: 9354A-NH1900P Report No.: HCT-R-1409-F003 MODEL: TR-HRDU-1900P Page 5 of 121 2. FACILITIES AND ACCREDITATIONS 2.1. FACILITIES The SAC(Semi-Anechoic Chamber) and conducted measurement facility used to collect the radiated data are located at the 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea. The site is constructed in conformance with the requirements of ANSI C63.4. (Version :2003) and CISPR Publication 22. Detailed description of test facility was submitted to the Commission and accepted dated February 28, 2014 (Registration Number: 90661). 2.2. EQUIPMENT Radiated emissions are measured with one or more of the following types of Linearly polarized antennas: tuned dipole, bi-conical, log periodic, bi-log, and/or ridged waveguide, horn. Spectrum analyzers with pre- selectors and quasi-peak detectors are used to perform radiated measurements. Calibrated wideband preamplifiers, coaxial cables, and coaxial attenuators are also used for making measurements. All receiving equipment conforms to CISPR Publication 16-1, “Radio Interference Measuring Apparatus and Measurement Methods.” F-01P-02-014 (Rev.00) HCT CO., LTD FCC ID: W6UNH1900P / IC: 9354A-NH1900P Report No.: HCT-R-1409-F003 MODEL: TR-HRDU-1900P Page 6 of 121 3. TEST SUMMARY 3.1. STANDARDS The following tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 24, RSS-GEN, RSS-131. Description Reference (FCC) Reference (IC) Results Conducted RF Output Power §2.1046; §24.232 RSS-131, Section 4.3 RSS-131, Section 6.2 Compliant Occupied Bandwidth §2.1049 RSS-GEN, Section 4.6.1 Compliant Passband Gain and Bandwidth & Out of Band Rejection KDB 935210 D03 v02r01 RSS-131, Section 4.2 RSS-131, Section 6.1 Compliant Spurious Emissions at Antenna Terminals §2.1051, §24.238 RSS-131, Section 4.4 RSS-131, Section 6.3 RSS-131, Section 6.4 Compliant Radiated Spurious Emissions §2.1053, §24.238 - Compliant Frequency Stability §2.1055, §24.235 RSS-131, Section 4.5 RSS-131, Section 6.5 Compliant 3.2. MODE OF OPERATION DURING THE TEST The EUT was operated in a manner representative of the typical usage of the equipment. During all testing, system components were manipulated within the confines of typical usage to maximize each emission. The device does not supply antenna(s) with the system, so the dummy loads were connected to the RF output ports for radiated spurious emission testing. QPSK was only selected and tested since it’s the worst case configuration among all here modulations (QPSK, 16QAM, 64QAM). F-01P-02-014 (Rev.00) HCT CO., LTD FCC ID: W6UNH1900P / IC: 9354A-NH1900P Report No.: HCT-R-1409-F003 MODEL: TR-HRDU-1900P Page 7 of 121 4. STANDARDS ENVIRONMENTAL TEST CONDITIONS Temperature : + 15 °C to + 35 °C Relative humidity: 30 % to 60 % Air pressure 860 mbar to 1 060 mbar F-01P-02-014 (Rev.00) HCT CO., LTD FCC ID: W6UNH1900P / IC: 9354A-NH1900P Report No.: HCT-R-1409-F003 MODEL: TR-HRDU-1900P Page 8 of 121 5. TEST EQUIPMENT Manufacturer Model / Equipment Cal Interval Calibration Date Serial No. Agilent E4438C /S…

Text truncated - open the document above for the full version.

Report No.: HCT-R-1409-F003 MODEL: TR-HRDU-1900P Page 67 of 121 Conducted Spurious Emissions (150 kHz – 30 MHz) [CDMA Downlink Low] [CDMA Downlink Middle] F-01P-02-014 (Rev.00) HCT CO., LTD FCC ID: W6UNH1900P / IC: 9354A-NH1900P Report No.: HCT-R-1409-F003 MODEL: TR-HRDU-1900P Page 68 of 121 [CDMA Downlink High] [CDMA EVDO Downlink Low] F-01P-02-014 (Rev.00) HCT CO., LTD FCC ID: W6UNH1900P / IC: 9354A-NH1900P Report No.: HCT-R-1409-F003 MODEL: TR-HRDU-1900P Page 69 of 121 [CDMA EVDO Downlink Middle] [CDMA EVDO Downlink High] F-01P-02-014 (Rev.00) HCT CO., LTD FCC ID: W6UNH1900P / IC: 9354A-NH1900P Report No.: HCT-R-1409-F003 MODEL: TR-HRDU-1900P Page 70 of 121 [WCDMA Downlink Low] [WCDMA Downlink Middle] F-01P-02-014 (Rev.00) HCT CO., LTD FCC ID: W6UNH1900P / IC: 9354A-NH1900P Report No.: HCT-R-1409-F003 MODEL: TR-HRDU-1900P Page 71 of 121 [WCDMA Downlink High] [GSM Downlink Low] F-01P-02-014 (Rev.00) HCT CO., LTD FCC ID: W6UNH1900P / IC: 9354A-NH1900P Report No.: HCT-R-1409-F003 MODEL: TR-HRDU-1900P Page 72 of 121 [GSM Downlink Middle] [GSM Downlink High] F-01P-02-014 (Rev.00) HCT CO., LTD FCC ID: W6UNH1900P / IC: 9354A-NH1900P Report No.: HCT-R-1409-F003 MODEL: TR-HRDU-1900P Page 73 of 121 [GSM EDGE Downlink Low] [GSM EDGE Downlink Middle] F-01P-02-014 (Rev.00) HCT CO., LTD FCC ID: W6UNH1900P / IC: 9354A-NH1900P Report No.: HCT-R-1409-F003 MODEL: TR-HRDU-1900P Page 74 of 121 [GSM EDGE Downlink High] [LTE Downlink 5 MHz Low] F-01P-02-014 (Rev.00) HCT CO., LTD FCC ID: W6UNH1900P / IC: 9354A-NH1900P Report No.: HCT-R-1409-F003 MODEL: TR-HRDU-1900P Page 75 of 121 [LTE Downlink 5 MHz Middle] [LTE Downlink 5 MHz High] F-01P-02-014 (Rev.00) HCT CO., LTD FCC ID: W6UNH1900P / IC: 9354A-NH1900P Report No.: HCT-R-1409-F003 MODEL: TR-HRDU-1900P Page 76 of 121 Conducted Spurious Emissions (30 MHz – 1 GHz) [CDMA Downlink Low] [CDMA Downlink Middle] F-01P-02-014 (Rev.00) HCT CO., LTD FCC ID: W6UNH1900P / IC: 9354A-NH1900P Report No.: HCT-R-1409-F003 MODEL: TR-HRDU-1900P Page 77 of 121 [CDMA Downlink High] [CDMA EVDO Downlink Low] F-01P-02-014 (Rev.00) HCT CO., LTD FCC ID: W6UNH1900P / IC: 9354A-NH1900P Report No.: HCT-R-1409-F003 MODEL: TR-HRDU-1900P Page 78 of 121 [CDMA EVDO Downlink Middle] [CDMA EVDO Downlink High] F-01P-02-014 (Rev.00) HCT CO., LTD FCC ID: W6UNH1900P / IC: 9354A-NH1900P Report No.: HCT-R-1409-F003 MODEL: TR-HRDU-1900P Page 79 of 121 [WCDMA Downlink Low] [WCDMA Downlink Middle] F-01P-02-014 (Rev.00) HCT CO., LTD FCC ID: W6UNH1900P / IC: 9354A-NH1900P Report No.: HCT-R-1409-F003 MODEL: TR-HRDU-1900P Page 80 of 121 [WCDMA Downlink High] [GSM Downlink Low] F-01P-02-014 (Rev.00) HCT CO., LTD FCC ID: W6UNH1900P / IC: 9354A-NH1900P Report No.: HCT-R-1409-F003 MODEL: TR-HRDU-1900P Page 81 of 121 [GSM Downlink Middle] [GSM Downlink High] F-01P-02-014 (Rev.00) HCT CO., LTD FCC ID: W6UNH1900P / IC: 9354A-NH1900P Report No.: HCT-R-1409-F003 MODEL: TR-HRDU-1900P Page 82 of 121 [GSM EDGE Downlink Low] [GSM EDGE Downlink Middle] F-01P-02-014 (Rev.00) HCT CO., LTD FCC ID: W6UNH1900P / IC: 9354A-NH1900P Report No.: HCT-R-1409-F003 MODEL: TR-HRDU-1900P Page 83 of 121 [GSM EDGE Downlink High] [LTE Downlink 5 MHz Low] F-01P-02-014 (Rev.00) HCT CO., LTD FCC ID: W6UNH1900P / IC: 9354A-NH1900P Report No.: HCT-R-1409-F003 MODEL: TR-HRDU-1900P Page 84 of 121 [LTE Downlink 5 MHz Middle] [LTE Downlink 5 MHz High] F-01P-02-014 (Rev.00) HCT CO., LTD FCC ID: W6UNH1900P / IC: 9354A-NH1900P Report No.: HCT-R-1409-F003 MODEL: TR-HRDU-1900P Page 85 of 121 Conducted Spurious Emissions (1 GHz –26.5 GHz) [CDMA Downlink Low] [CDMA Downlink Middle] F-01P-02-014 (Rev.00) HCT CO., LTD FCC ID: W6UNH1900P / IC: 9354A-NH1900P Report No.: HCT-R-1409-F003 MODEL: TR-HRDU-1900P Page 86 of 121 [CDMA Downlink High] [CDMA EVDO Downlink Low] F-01P-02-014 (Rev.00) HCT CO., LTD FCC ID: W6UNH1900P / IC: 9354A-NH1900P Report No.: HCT-R-1409-F003 MODEL: TR-HRDU-1900P Page 87 of 121 [CDMA EVDO Downlink Middle] [CDMA EVDO Downlink High] F-01P-02-014 (Rev.00) HCT CO., LTD FCC ID: W6UNH1900P / IC: 9354A-NH1900P Report No.: HCT-R-1409-F003 MODEL: TR-HRDU-1900P Page 88 of 121 [WCDMA Downlink Low] [WCDMA Downlink Middle] F-01P-02-014 (Rev.00) HCT CO., LTD FCC ID: W6UNH1900P / IC: 9354A-NH1900P Report No.: HCT-R-1409-F003 MODEL: TR-HRDU-1900P Page 89 of 121 [WCDMA Downlink High] [GSM Downlink Low] F-01P-02-014 (Rev.00) HCT CO., LTD FCC ID: W6UNH1900P / IC: 9354A-NH1900P Report No.: HCT-R-1409-F003 MODEL: TR-HRDU-1900P Page 90 of 121 [GSM Downlink Middle] [GSM Downlink High] F-01P-02-014 (Rev.00) HCT CO., LTD FCC ID: W6UNH1900P / IC: 9354A-NH1900P Report No.: HCT-R-1409-F003 MODEL: TR-HRDU-1900P Page 91 of 121 [GSM EDGE Downlink Low] [GSM EDGE Downlink Middle] F-01P-02-014 (Rev.00) HCT CO., LTD FCC ID: W6UNH1900P / IC: 9354A-NH1900P Report No.: HCT-R-1409-F003 MODEL: TR-HRDU-1900P Page 92 of 121 [GSM EDGE Downlink High] [LTE Downlink 5 MHz Low] F-01P-02-014 (Rev.00) HCT CO., LTD FCC ID: W6UNH1900P / IC: 9354A-NH1900P Report No.: HCT-R-1409-F003 MODEL: TR-HRDU-1900P Page 93 of 121 [LTE Downlink 5 MHz Middle] [LTE Downlink 5 MHz High] F-01P-02-014 (Rev.00) HCT CO., LTD FCC ID: W6UNH1900P / IC: 9354A-NH1900P Report No.: HCT-R-1409-F003 MODEL: TR-HRDU-1900P Page 94 of 121 Multi channel Enhancer Plots of Spurious Emission for IC Conducted Spurious Emissions (9 kHz – 150 kHz) [Downlink Low] [Downlink Middle] F-01P-02-014 (Rev.00) HCT CO., LTD FCC ID: W6UNH1900P / IC: 9354A-NH1900P Report No.: HCT-R-1409-F003 MODEL: TR-HRDU-1900P Page 95 of 121 [Downlink High] F-01P-02-014 (Rev.00) HCT CO., LTD FCC ID: W6UNH1900P / IC: 9354A-NH1900P Report No.: HCT-R-1409-F003 MODEL: TR-HRDU-1900P Page 96 of 121 Conducted Spurious Emissions (150 kHz – 30 MHz) [Downlink Low] [Downlink Middle] F-01P-02-014 (Rev.00) HCT CO., LTD FCC ID: W6UNH1900P / IC: 9354A-NH1900P Report No.: HCT-R-1409-F003 MODEL: TR-HRDU-1900P Page 97 of 121 [Downlink High] F-01P-02-014 (Rev.00) HCT CO., LTD FCC ID: W6UNH1900P / IC: 9354A-NH1900P Report No.: HCT-R-1409-F003 MODEL: TR-HRDU-1900P Page…

Text truncated - open the document above for the full version.

FCC ID : W6UNH1900P / IC: 9354A-NH1900P TEST SETUP PHOTOGRAPHS HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 1/ 5 FCC ID : W6UNH1900P / IC: 9354A-NH1900P ■ AC Power Test Setup Photo HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 2/ 5 FCC ID : W6UNH1900P / IC: 9354A-NH1900P ■ DC Power Test Setup Photo HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 3/ 5 FCC ID : W6UNH1900P / IC: 9354A-NH1900P ■ Conducted Emission Front Test Setup Photo HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 4/ 5 FCC ID : W6UNH1900P / IC: 9354A-NH1900P ■ Conducted Emission Rear Test Setup Photo HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 5/ 5
