W6UNH345

SOLiD, Inc.

HRDU

Click to zoom

Application Details

Equipment Class: B2I - Part 20 Industrial Booster (CMRS)
Date of Grant: Jan 15, 2023
Application Purpose: Original Equipment
Date of Application: Jan 15, 2023

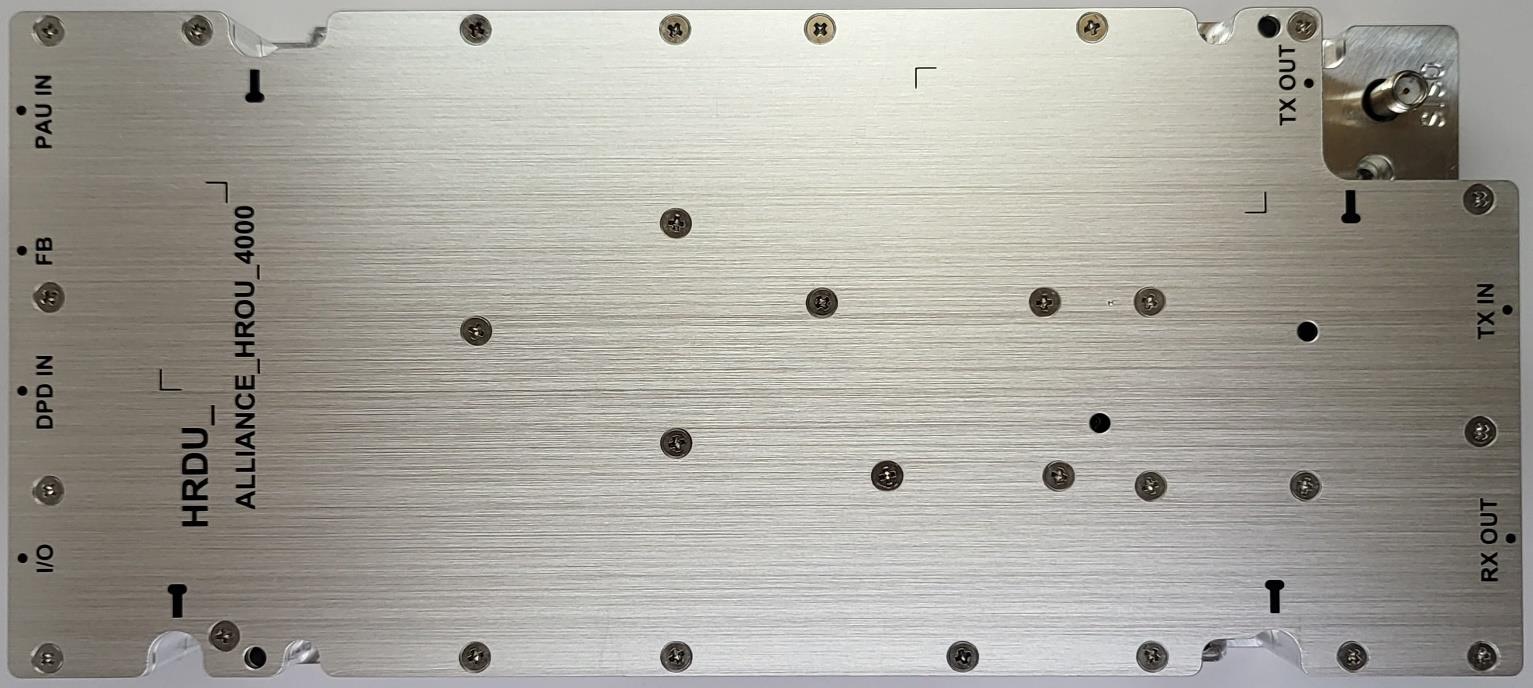

Equipment Note: HRDU
Frequency Range: 3450.00000000 - 3550.00000000
Company: SOLiD, Inc.
Country: South Korea

Documents & Files

Select a file to view

Users Manual

Attestation Statements

Cover Letter(s)

External Photos

ID Label/Location Info

Internal Photos

RF Exposure Info

Test Report

Test Setup Photos

Contact Information

Applicant

Yong Chul Kim(Team Manager)

[email protected]+82-31-627-6292Fax: +82-31-627-6009

Test Firm

HCT Co., Ltd.Lee MyoungLim

[email protected]82-31-645-6918Fax: 82-31-645-6401

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
5	27	3.45 GHz - 3.55 GHz	4.63 W	G7W	Amp

Confidentiality

Long Term

Grant Notes

Power output listed is maximum EIRP Density (W/MHz) for SISO operation. This device must be professionally installed. This transmitter operates as a remote unit as part of a system along with master unit components as described in this filing, and excluding any other devices connected to the (downlink) output terminal of the master unit. This application covers only the system configuration with master unit in downlink path; operations if any with master unit connected to antenna or amplifier in the downlink require separate equipment authorization. Outdoor Antenna(s) installed for each remote unit must provide a minimum 450cm separation distance from all persons as described in this filling using a maximum 15dBi MIMO peak gain, including cable loss. Indoor Antenna(s) installed for each remote unit must provide a minimum 60cm separation distance from all persons as described in this filling using a maximum -13dBi MIMO peak gain, including cable loss. RF exposure compliance is addressed at the time of licensing, as required by the responsible FCC bureau(s), including antenna co-location requirement of 1.1307(b)(3). This device is capable of SISO operation and 2x2 MIMO operation when configured in the Alliance HROU_4000 enclosure with the transmitter approved under FCC ID W6UNH345M. Test data for MIMO operations have been addressed in this approval.
