W6UNHAAWS13-40WDAS

SOLiD, Inc.
DAS - FCC ID W6UNHAAWS13-40W - SOLiD, Inc.
Click to zoom

Application Details

Equipment Class
B2I - Part 20 Industrial Booster (CMRS)
Date of Grant
May 14, 2020
Application Purpose
Original Equipment
Date of Application
May 12, 2020
Equipment Note
DAS
Frequency Range
2110.00000000 - 2180.00000000
Company
SOLiD, Inc.
Country
South Korea

Documents & Files

Select a file to view

Users Manual

↗

Attestation Statements

↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Confidential & Proprietary 1/44 ALLIANCE_N20 User Manual Document Reference: Version: V1.2 Document Status: Release 2 Issue Date: Jan 16, 2017 Author: Hwan sun Lee Department: R&D Division Team 2 Authorizing Manager: Kyung Eun Han Confidential & Proprietary 2/44 REVISION HISTORY Version Issue Date No. of Pages Initials Details of Revision Changes V 1.0 Aug. 20, 2014 Original V 1.1 Aug. 2015 Revision Add 2.5TDD Information V1.2 Jan 16, 2017 Update Updated RDU CPU Firmware V1.3 Dec 7, 2017 Update Added new products Technical Support SOLiD serial numbers must be available to authorize technical support and/or to establish a return authorization for defective units. The serial numbers are located on the back of the unit, as well as on the box in which they were delivered. Additional support information may be obtained by accessing the SOLiD Tehcnology, Inc. website at www.solid.co.kr or send email at [email protected] This manual is produced by Global Business Division Business Team Printed in Korea. Confidential & Proprietary 3/44 Contents Section1 Safety & Certification Notice ....................................................................... 6 Section2 System configuration and Functions ........................................................... 11 2.1 HROU (High power Remote Optic Unit) ............................................................ 12 2.1.1 Specifications of HROU ............................................................................. 13 2.1.2 Block Diagram of HROU ............................................................................ 16 2.1.2.1 HMRU block diagram ................................................................................ 16 2.1.2.2 HROU inner look ...................................................................................... 17 2.1.2.3 HROU part list .......................................................................................... 18 2.1.3 Function by unit ....................................................................................... 19 2.1.3.1 High Remote Drive Unit (HRDU) ................................................................. 19 2.1.3.2 Remote Power Supply Unit ( RPSU) ............................................................ 23 2.1.3.3 Remote Optic(ROPTIC) .............................................................................. 24 2.1.3.4 Remote Central Processor Unit (RCPU) ....................................................... 24 2.1.3.5 Multiplexer .............................................................................................. 25 2.1.3.6 System interface unit (SIU) ........................................................................ 25 2.1.4 Bottom of HROU ...................................................................................... 26 2.1.4.1 Functions ................................................................................................. 26 Section3 System Installation ................................................................................... 30 3.1 HROU Installation ........................................................................................... 30 3.1.1 Tools ....................................................................................................... 30 3.1.2 HROU Enclosure installation ...................................................................... 31 3.1.3 HROU Wall Mount Installation ................................................................... 32 3.1.4 HROU components ................................................................................... 33 3.1.5 HROU Power Cabling ................................................................................ 35 3.1.6 HROU Ground cabling ............................................................................... 36 3.1.7 HROU Optical Cable .................................................................................. 38 3.1.8 HROU ALM IN/OUT Port cabling ................................................................ 40 3.1.9 Mounting of HRDU ................................................................................... 42 Confidential & Proprietary 4/44 Contents of Figure Figure 3. HROU consists of 2 unit ...................................................................... 12 Figure 4. HROU outer Look ............................................................................... 13 Figure 5. HMRU Block diagram .......................................................................... 16 Figure 6. Inside of Remote Unit ......................................................................... 17 Figure 7. HRDU Outer Look ............................................................................... 19 Figure 8. AC-DC RPSU Outer Look ...................................................................... 23 Figure 9. DC-DC RPSU Outer Look ...................................................................... 23 Figure 10. R OPTIC Outer Look .......................................................................... 24 Figure 11. AC-DC RPSU Outer Look .................................................................... 25 Figure 12. Multiplexer Outer Look ..................................................................... 25 Figure 13. SIU Outer Look ................................................................................. 26 Figure 14. The Bottom Look of HROU and CU options .......................................... 27 Figure 15. The panel for support CU Option3 with 4 antenna ports ....................... 27 Figure 16. The name of each port on the bottom of HROU ................................... 27 Figure 17. How to install ROU ........................................................................... 31 Figure 18. Dimension used to install HROU on the WALL ...................................... 32 Figure 19. Procedures of installation .................................................................. 33 Figure 20. Loc…

Text truncated - open the document above for the full version.

Attestation Statements

DATE: May 2, 2020 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 Subject: Letter for Warning Label Message FCC ID: W6UNHAAWS13-40W To Whom It May Concern: Warning label messages will be also shown in online and point-of-sale marketing materials and on outside packaging of device per KDB 935210 D02 Signal Boosters Certification v04r02 in Section IV clause (d). Sincerely, Signed by: Contact Name : Yong chul Kim E-mail : [email protected]

Cover Letter(s)

Date : Nov. 9, 2017 Rev : 2.3 HACS-F004 FCC Agent Authorization Letter HCT America LLC ([email protected]) 1726 Ringwood Avenue San Jose, CA 95131 TEL: +1.510.933.8848, Fax: +1.510.933.8849 Page 1 of 2 This document is electronically controlled. Hard copy documents are uncontrolled. Please check all hard copies against the controlled electronic copy to ensure validity. This document is the confidential property of HCT America LLC. It may not be forwarded or reproduced in whole or in part without written permissions from HCT America LLC FCC Agent Authorization Letter Date : Nov. 9, 2017 Rev : 2.3 HACS-F004 FCC Agent Authorization Letter HCT America LLC ([email protected]) 1726 Ringwood Avenue San Jose, CA 95131 TEL: +1.510.933.8848, Fax: +1.510.933.8849 Page 2 of 2 This document is electronically controlled. Hard copy documents are uncontrolled. Please check all hard copies against the controlled electronic copy to ensure validity. This document is the confidential property of HCT America LLC. It may not be forwarded or reproduced in whole or in part without written permissions from HCT America LLC REVISION TABLE Rev Description of Change Date Approved 1.0 Original Release(Obsolete) 06/14/2012 QM 2.0 Updated template(Obsolete) 10/01/2012 QM 2.1 Updated address(Obsolete) 01/10/2014 QM 2.2 Updated address 11/18/2016 QM 2.3 Fixed Typo “Agent” 11/09/2017 QM HACS-F004 FCC Agent Authorization Letter Rev : 2.3 DATE: May 2, 2020 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD To whom it may concern: Subject: FCC Agent Authorization Letter for FCC ID: W6UNHAAWS13-40W We, the undersigned, hereby authorize HCT CO., LTD. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by HCT CO., LTD. on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). We recognize that we are still responsible for the terms and conditions outlined in the HCT America Client Services Agreement. This authorization is valid until further written notice from the applicant. Sincerely, Signed by: Contact Name : Yong chul Kim E-mail : [email protected]

Cover Letter(s)

Date : Nov. 09, 2017 Rev : 3.0 HACS-F003 FCC Confidentiality Request Letter HCT America LLC ([email protected]) 1726 Ringwood Avenue San Jose, CA 95131 TEL: +1.510.933.8848, Fax: +1.510.933.8849 Page 1 of 2 This document is electronically controlled. Hard copy documents are uncontrolled. Please check all hard copies against the controlled electronic copy to ensure validity. This document is the confidential property of HCT America LLC. It may not be forwarded or reproduced in whole or in part without written permissions from HCT America LLC FCC Confidentiality Request Letter Date : Nov. 09, 2017 Rev : 3.0 HACS-F003 FCC Confidentiality Request Letter HCT America LLC ([email protected]) 1726 Ringwood Avenue San Jose, CA 95131 TEL: +1.510.933.8848, Fax: +1.510.933.8849 Page 2 of 2 This document is electronically controlled. Hard copy documents are uncontrolled. Please check all hard copies against the controlled electronic copy to ensure validity. This document is the confidential property of HCT America LLC. It may not be forwarded or reproduced in whole or in part without written permissions from HCT America LLC REVISION TABLE Rev Description of Change Date Approved 1.0 Original Release(Obsolete) 06/14/2012 QM 2.0 Updated template(Obsolete) 10/01/2012 QM 2.1 Updated address(Obsolete) 01/10/2014 QM 2.2 Updated address 11/18/2016 QM 3.0 Updated LTC and STC Confidentiality table 11/09/2017 QM HACS-F003 FCC Confidentiality Request Letter Rev : 3.0 DATE: May 2, 2020 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD SUBJECT: Request for Confidentiality for FCC ID: W6UNHAAWS13-40W We hereby request confidential treatment of the information accompanying this application as outlined below: LONG-TERM AND SHORT-TERM CONFIDENTIAL LIST LONG-TERM CONFIDENTIAL Exhibit Description 1 Block Diagram 2 Operational Description 3 Parts List & Tune up procedure 4 Schematics SHORT-TERM CONFIDENTIAL (180 DAYS) 5 External Photos 6 Internal Photos 7 Test-Setup Photos 8 User’s Manual The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Signed by: Contact Name : Yong chul Kim E-mail : [email protected]

External Photos

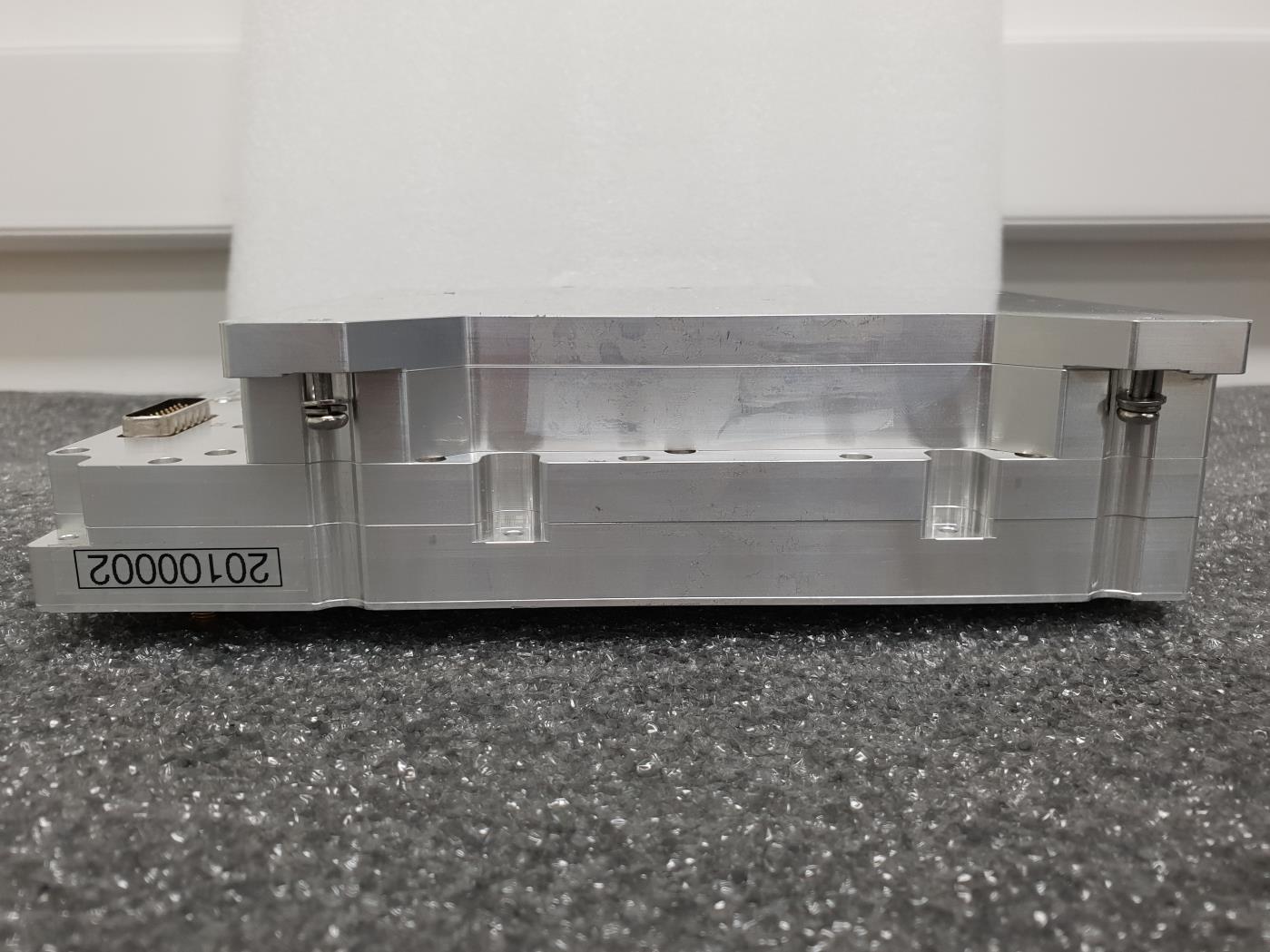

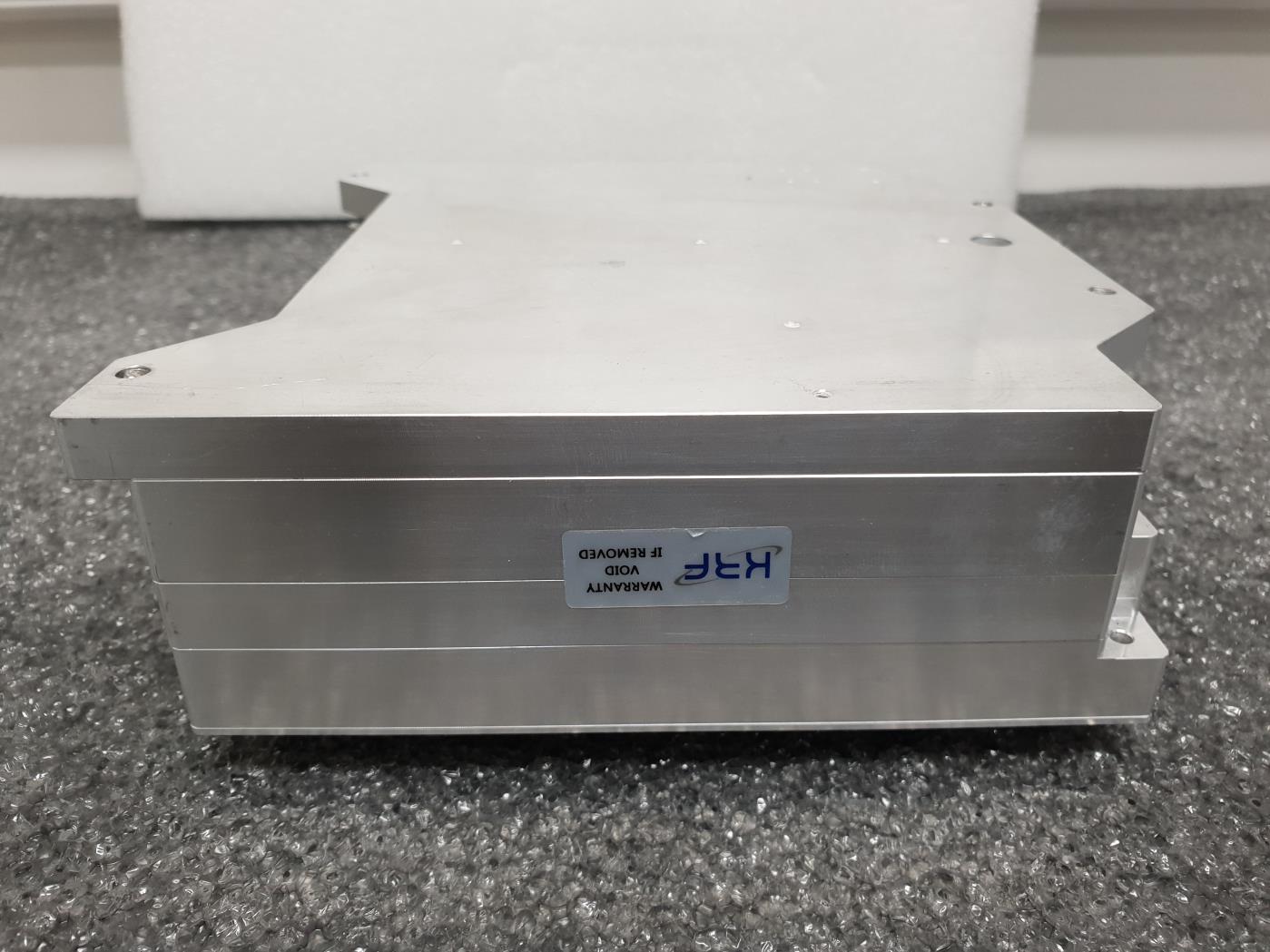

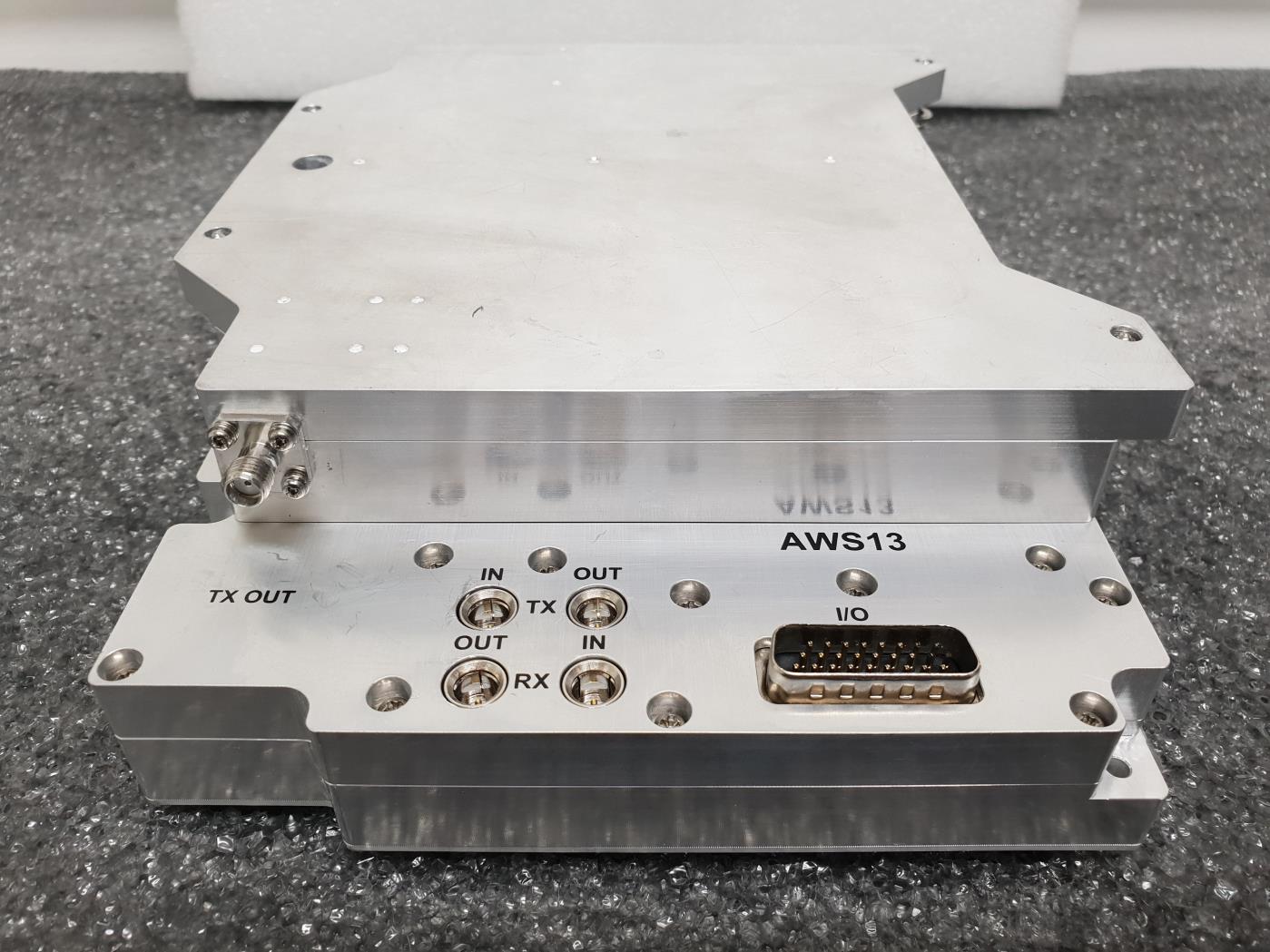

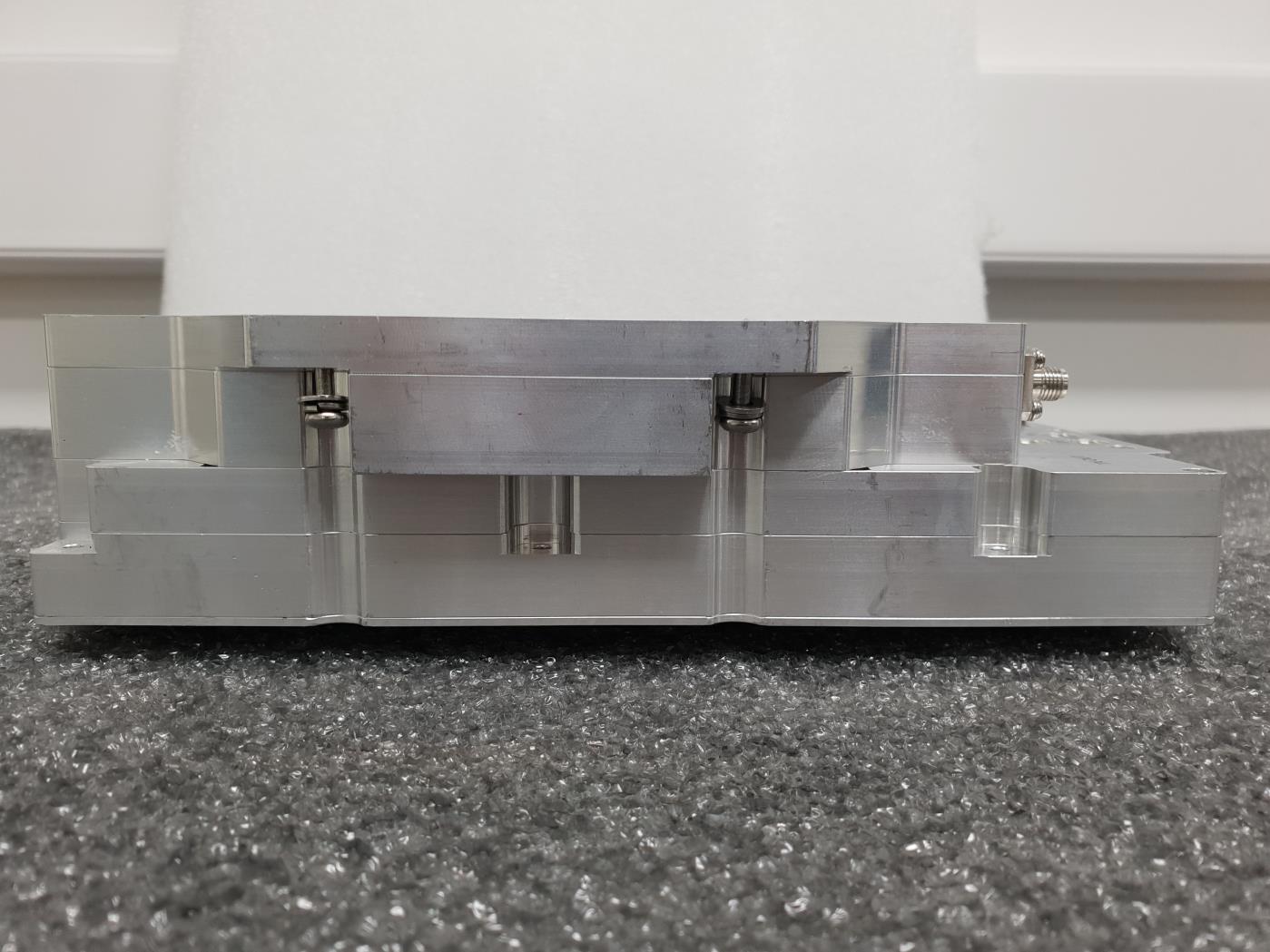

FCC ID: W6UNHAAWS13-40W, IC: 9354A-NHAAWS1340W HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page 1 of 7 EXTERNAL PHOTOGRAPHS FCC ID: W6UNHAAWS13-40W, IC: 9354A-NHAAWS1340W HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page 2 of 7 ■ EXTERNAL PHOTO( bottom ) FCC ID: W6UNHAAWS13-40W, IC: 9354A-NHAAWS1340W HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page 3 of 7 ■ EXTERNAL PHOTO( front ) FCC ID: W6UNHAAWS13-40W, IC: 9354A-NHAAWS1340W HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page 4 of 7 ■ EXTERNAL PHOTO( left ) FCC ID: W6UNHAAWS13-40W, IC: 9354A-NHAAWS1340W HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page 5 of 7 ■ EXTERNAL PHOTO( rear ) FCC ID: W6UNHAAWS13-40W, IC: 9354A-NHAAWS1340W HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page 6 of 7 ■ EXTERNAL PHOTO( right ) FCC ID: W6UNHAAWS13-40W, IC: 9354A-NHAAWS1340W HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page 7 of 7 ■ EXTERNAL PHOTO( top )

ID Label/Location Info

RDU Label Location ID Label Warning Label (FCC) Warning Label (IC) Model : N20-HRDU_A_AWS13_40W Made in KOREA IC : 9354A-NHAAWS1340W FCC : W6UNHAAWS13-40W Model ID Label WARNING Label (IC) WARNING:This is NOT a CONSUMER device. It is designed for installation by an installer approved by an ISED licensee. You MUST have an ISED LICENCE or the express consent of an ISED licensee to operate this device. WARNING Label (FCC) FCC Label FCC Label

Internal Photos

FCC ID: W6UNHAAWS13-40W, IC: 9354A-NHAAWS1340W HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page 1 of 9 INTERNAL PHOTOGRAPHS FCC ID: W6UNHAAWS13-40W, IC: 9354A-NHAAWS1340W HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page 2 of 9 [PAU PCB TOP] FCC ID: W6UNHAAWS13-40W, IC: 9354A-NHAAWS1340W HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page 3 of 9 [PAU PCB Bottom] FCC ID: W6UNHAAWS13-40W, IC: 9354A-NHAAWS1340W HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page 4 of 9 [PAU inside] FCC ID: W6UNHAAWS13-40W, IC: 9354A-NHAAWS1340W HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page 5 of 9 [UDCU PCB TOP] FCC ID: W6UNHAAWS13-40W, IC: 9354A-NHAAWS1340W HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page 6 of 9 [UDCU PCB BOTTOM] FCC ID: W6UNHAAWS13-40W, IC: 9354A-NHAAWS1340W HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page 7 of 9 [UDCU PBA Top] FCC ID: W6UNHAAWS13-40W, IC: 9354A-NHAAWS1340W HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page 8 of 9 [UDCU PBA BOTTOM] FCC ID: W6UNHAAWS13-40W, IC: 9354A-NHAAWS1340W HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page 9 of 9 [UDCU inside]

RF Exposure Info

HCT Co., Ltd. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383 KOREA Tel. +82 31 634 6300 F ax. +82 31 645 6401 On your side FCC MPE Test for N20-HRDU_A_AWS13_40W Certification APPLICANT SOLiD, Inc. REPORT NO. HCT-RF-2004-FC051 DATE OF ISSUE April 29, 2020 HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383 KOREA Tel. +82 31 634 6300 F ax. +82 31 645 6401 TEST REPORT FCC MPE Test for N20-HRDU_A_AWS13_40W REPORT NO. HCT-RF-2004-FC051 DATE OF ISSUE 29 April 2020 Additional Model - Applicant SOLiD, Inc. 10, 9th Floor, SOLiD Space, Pangyoyeok-ro 220, Bundang-gu, Seongnam-si, Gyeonggi-do, 463-400, South Korea EUT Type Model Name DAS N20-HRDU_A_AWS13_40W FCC IDW6UNHAAWS13-40W This test results were applied only to the test methods required by the standard. Tested by Kyung Soo Kang (signature) Technical Manager Jong Seok Lee (signature) (signature) F-TP22-03 (Rev.02)Page 2 of 6 Report No. HCT-RF-2004-FC051 F-TP22-03 (Rev. 02) Page 3 of 6 REVISION HISTORY The revision history for this test report is shown in table. Revision No. Date of Issue Description 0 April 29, 2020 Initial Release The result shown in this test report refer only to the sample(s) tested unless otherwise stated. The measurements shown in this report were made in accordance with the procedures indicated, and the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. It is further stated that upon the basis of the measurements made, the equipment tested is capable of operation in accordance with the requirements of the FCC Rules under normal use and maintenance. Report No. HCT-RF-2004-FC051 F-TP22-03 (Rev. 02) Page 4 of 6 RF Exposure Statement 1. LIMITS According to §1.1310 and §2.1091 RF exposure is calculated. (B) Limits for General Population/Uncontrolled Exposures Frequency range (MHz) Electric field Strength (V/m) Magnetic field Strength (A/m) Power density (mW/cm²) Averaging time (minutes) 0.3 - 1.34 ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ 1.34 - 30 ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ 30 - 300 ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ 300 - 1500 ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ 1500 - 100.000 ̆ ̆ ̆ ̆ ̆ ̆ 614 824/f 27.5 ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ 1.63 2.19/f 0.073 ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ *(100) *(180/ f²) 0.2 f/1500 1.0 30 30 30 30 30 F = frequency in MHz * = Plane-wave equivalent power density 2. MAXIMUM PERMISSIBLE EXPOSURE Prediction Prediction of MPE limit at a given distance S = PG/4πR² S = Power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Report No. HCT-RF-2004-FC051 F-TP22-03 (Rev. 02) Page 5 of 6 - AWS ˊ CDMA (Downlink) Max Peak output Power at antenna input terminal 47.000 dBm Max Peak output Power at antenna input terminal 50118.723 mW Prediction distance 570.000 cm Prediction frequency 2159.53 MHz Antenna Gain(typical) 16.000 dBi Antenna Gain(numeric) 39.811 - Power density at prediction frequency( S) 0.4887 mW/cm 2 MPE limit for uncontrolled exposure at prediction frequency 1.0000 mW/cm 2 - AWS ˊ WCDMA (Downlink) Max Peak output Power at antenna input terminal 47.000 dBm Max Peak output Power at antenna input terminal 50118.723 mW Prediction distance 570.000 cm Prediction frequency 2159.53 MHz Antenna Gain(typical) 16.000 dBi Antenna Gain(numeric) 39.811 - Power density at prediction frequency( S) 0.4887 mW/cm 2 MPE limit for uncontrolled exposure at prediction frequency 1.0000 mW/cm 2 Report No. HCT-RF-2004-FC051 F-TP22-03 (Rev. 02) Page 6 of 6 - AWS ˊ LTE 5 MHz (Downlink) Max Peak output Power at antenna input terminal 47.000 dBm Max Peak output Power at antenna input terminal 50118.723 mW Prediction distance 570.000 cm Prediction frequency 2159.53 MHz Antenna Gain(typical) 16.000 dBi Antenna Gain(numeric) 39.811 - Power density at prediction frequency( S) 0.4887 mW/cm 2 MPE limit for uncontrolled exposure at prediction frequency 1.0000 mW/cm 2 - AWS ˊ LTE 10 MHz (Downlink) Max Peak output Power at antenna input terminal 47.000 dBm Max Peak output Power at antenna input terminal 50118.723 mW Prediction distance 570.000 cm Prediction frequency 2159.53 MHz Antenna Gain(typical) 16.000 dBi Antenna Gain(numeric) 39.811 - Power density at prediction frequency( S) 0.4887 mW/cm 2 MPE limit for uncontrolled exposure at prediction frequency 1.0000 mW/cm 2

Contact Information

Applicant

Yong Chul Kim(Team Manager)
[email protected]+82-31-627-6292Fax: +82-31-627-6009

Test Firm

HCT Co., Ltd.Lee Yoon-Jung
[email protected]82-31-645-6432Fax: 82-31-645-6401

Technical Specifications

#Rule PartsFrequency RangePower OutputEmissionTolerance
4272.11 GHz - 2.18 GHz39.902 WG7WAmp
Confidentiality
Long Term
Grant Notes
Output power listed is the maximum conducted at antenna port. This device supports CDMA/WCDMA, LTE 5/10MHz modulation. The antenna(s) used with this transmitter must be fix-mounted on permanent structures. End Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This filing has compliance demonstration information and test data only for SISO (single-input single-output) booster system configurations; additional equipment authorization is required to allow this device to be used in MIMO (multiple-input multiple-output) industrial booster systems. The single unit RF Exposure compliance using a 16dBi antenna requires a minimum separation distance between persons and the antenna of 5.7 meters. Users and installers must be provided with appropriate antenna installation instructions and transmitter operating conditions, including antenna co-location requirements of Sec. 1.1307(b)(3), for satisfying RF exposure compliance. RF exposure will be addressed at time of installation and licensing, and the use of higher gain antennas may require larger separation distances.
