W7N-PROXCR01RFID Module

Last Revision: 4/16/2010 Copyright 2009 API Healthcare Corporation. API Internal Document – Company Confidential Information Page 1of 5 Casi-Rusco RFID Module Installation Manual Series 500 Reader Installation Version 1.00 Last Revision: 4/16/2010 Copyright 2009 API Healthcare Corporation. API Internal Document – Company Confidential Information Page 2of 5 Purpose This document describes the installation process of the Casi-Rusco RFID Module in the Series 500 Reader. This module is an option that may be purchased by the customer. NOTICE: Installation of this module may only be made by qualified API employees. This is not a field upgrade, and must be done at the API factory. FCC Notice FCC ID: W7N-PROXCR01 Compliance Statement (Part 15.19) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Warning (Part 15.21) Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC Interference Statement (Part 15.105 (b)) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Installing the Casi-Rusco RFID Module 1. Prepare the headers by breaking apart P/N SELCD1020 into 3 pin segments as shown in Figure 1.. Remove the center pin with a long nose pliers. Each module will require 2 headers. Last Revision: 4/16/2010 Copyright 2009 API Healthcare Corporation. API Internal Document – Company Confidential Information Page 3of 5 Figure 1. 2. Insert the short pins of the two headers into the module. Note that the center hole is left empty. You might need to bend the pins slightly to fit through the holes. Solder the pins. Use care not to damage the antenna while soldering. 3. Remove the paper back and install a 1-1/4” X 1-3/4” plastic insulator over the circuit board. Figure 2. 4. Trim the excess lengths of the pins and solder. Last Revision: 4/16/2010 Copyright 2009 API Healthcare Corporation. API Internal Document – Company Confidential Information Page 4of 5 Figure 3. 5. Mount the Series 500 Main PCB in the case in the normal manner. Figure 5. 6. Complete final assembly of the unit. Testing the RFID Module 1. Apply power and wait for the unit to boot up. 2. Enter Diagnostic Mode: Last Revision: 4/16/2010 Copyright 2009 API Healthcare Corporation. API Internal Document – Company Confidential Information Page 5of 5 a. Hold the F1 key until the display shows: DIAGNOSTIC PIN b. Enter the PIN number by pressing the following keys: 415049<ENT> c. Press 1 (BADGE) d. Press 1 (RAW DATA) 3. Hold the test badge near the front plate of the reader until it displays: PROX SUCCESS. 4. Verify the number displayed matches the number printed on the test card. 5. This completes test of the module.

TA-500 Badge Reader Installation and Configuration Guide DSI Version 2.0 – 2.3 06/05/2009 AD0842-20705 Copyright © 2006 API Healthcare Corporation This document is copyrighted by API Healthcare Corporation and all rights are reserved. This document may not, in whole or part, be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, recording, or otherwise, without prior written consent from API Healthcare. Portions of the information contained in this document, respectively, are: Copyright © 2005 Microsoft Corporation, One Microsoft Way, Redmond, Washington 98052-6399 U.S.A.; Copyright © 2005 Sax Software Corp.; Copyright © 2005 Identify Software, Ltd., All rights reserved; © 1995-2005 by Actuate Corporation, All rights reserved; and Copyright © 2005 Seagate Technology, LLC now d/b/a Business Objects SA, All rights reserved. TallPDF.NET and PDFKit.NET are © 2001 TallComponents BV. All rights reserved. TeleTools ActiveX and VCL controls are Copyright © 1997 ExceleTel, Inc. All rights reserved. Portions of the GoDiagram TM for .NET Windows Forms Binary Kit are Copyright © 1999 Northwoods Software Corporation. All rights reserved. The Desaware Universal .NET StorageTools are Copyright © 2005 Desaware, Inc. All rights reserved. Redistributable DLL files in the NetAdvantage TM .NET Windows Forms Controls are Copyright © 2001 Infragistics, Inc. Windsor Corporate Park, 50 MillStone Rd., Building 200 – Suite 150, East Windsor, NJ 08520. All rights reserved. Portions of the ActiveX controls, respectively, are: Copyright © 2003 Bennet-Tec Information Systems, Inc., All rights reserved; Copyright © 2005 Data Dynamics, Ltd., All rights reserved; Copyright © DL Technology, Ltd.; Copyright © 1991 – 2005 FarPoint Technologies, Inc.; Copyright © Janus Systems SA de CV; and © Olympus 2005. The information in this document is subject to change without notice. API Healthcare assumes no responsibility for any errors in this document Although API Healthcare warrants (per the License Agreement with its Customers) that the System in general will perform in accordance with Documentation, there may be minor differences in screen formats, report layouts, operating procedures, etc., depending on each Customer's particular preference and operating environment. Names and data and all other information used in examples herein are fictitious, unless otherwise noted. Trademarks ActiveLink, ActiveRoster, ActiveStaffer, Acuality, api LaborWorkx, API Healthcare, Applicants Navigator, Attendance+, Benefits Navigator, CalcEngine, DayCare DeductIT, DeductIT, e:HRStats, e:LaborStats, e:StafferStats, EdStats, EdTrack, HR Navigator, HRStats, HRXpress, LaborStats, LaborVision, myHRaccess, NetXpress, Payroll Navigator, Payrollmation, Position Control Navigator, ReportXpress, SecurALL, SecurALL Basic, SecurALL Lite, SecurALL Server, SecurStats, StafferStats, TimeBack, TimeCall, TimeFax, TimeID, TimePC, TimeStor, TimeView, www.ActiveStaffer, www.ApplicantsNavigator, www.ReportXpress, www.TimePC, and WorkAgent are either registered trademarks or trademarks of API Healthcare Corporation in the United States. The absence of a name or logo in the foregoing list does not constitute a waiver of any and all intellectual property rights that API Healthcare. has established in any of its product, feature, or service names or logos. Trademarks of API Healthcare Corporation may be used publicly only with written permission from an authorized representative of API Healthcare– nothing contained in this document should be construed as granting, by implication, laches, estoppel, or otherwise, any license or right to use, copy, publish, transmit, or modify any trademark of API Healthcare Corporation without such prior written authorization. Microsoft, Windows, Windows 2003, Windows 2000, Windows XP, Windows CE, Windows 98, and SQL Server are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. Oracle is a registered trademark of Oracle Corporation and/or its affiliates. Adobe, the Adobe Logo, Acrobat, Reader, Flash, and Macromedia are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries. Canon is a registered trademark or trademark in the United States and/or other countries. Catalyst Systems and EVALISYS are registered trademarks or trademarks of Catalyst Systems, LLC. Patient Care Technologies, PtCT, and well.at.home are registered trademarks of Patient Care Technologies, Inc. PKZIP and PKWARE are trademarks of PKWARE, Inc. Per-Se, ANSOS, and One Staff are registered trademarks or trademarks of Per-Se Technologies, Inc. Res-Q is a registered trademark of Res-Q Healthcare Systems, Inc. Intel and Dialogic are registered trademarks of Intel Corporation. MicroTouch is a trademark of MicroTouch Systems, Inc. Adaptec is a trademark of Adaptec, Inc. Nisca is a trademark of Team Nisca. Sun, Sun Microsystems, the Sun Logo, the Java Coffee Cup Logo, J2RE, J2SE, and Java are trademarks or registered trademarks of Sun Microsystems, Inc. in the U.S. or other countries. All other company, product, feature, or service names or logos are the registered trademarks or trademarks of their respective companies. TABLE OF CONTENTS THE TA-500 DEVICE .................................................................................................1 SUPPORTING DOCUMENTATION .............................................................................................. 1 PARTS IDENTIFICATION - FRONT ............................................................................................. 2 PARTS IDENTIFICATION – BACK .............................................................................................. 4 PARTS IDENTIFICATION – INSIDE ............................................................................................ 5 MOUNTING BRACKET DIMENSIONS ..............................…

Text truncated - open the document above for the full version.

(m,"RI Time: 11:25 AM E-Mail: gary. sutcliffe @aplhealthcare. com Subject: Request for Limited Modular Approval for FCC ID: W7N-PROXCROI To FCC Reviewer: Pursuant to FCC Public Notice DA 00-1407, June 26,2000, API Healthcare hereby requests Limited Modular Approval for: FCC ID: W7N-PROXCROI The following response addresses the needs to demonstrate compliance with this Public Notice. 1) The modular transmitter must have its own RF shielding. This is intended to ensure that the module does not have to rely upon the shielding provided by the device into which it is installed in order for all modular transmitter emissions to comply with Part 15 limits. It is also intended to prevent coupling between the RF circuitry of the module and any wires or circuits in the device into which the module is installed. Such coupling may result in non-compliant operation. Shielding The RF module does not have shielding. 2) The modular transmitter must have buffered modulationldatainputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. Buffered modulation This RFID device does not modulate the transmission from data supplied by the host system. Actual transmissions are controlled by the module's on board microcontroller. The RFID module reads data from factory programmed ID badges. This data is transmitted to the host through TTL level clock and data signals. Experts in opt¡mizing human capital FCC LIMITED MODULAR APPROVAL REQUEST Date: 3l23ll0 To: FCC Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, MD 21 0 45 -0429 From: Gary C. Sutcliffe Director of Electrical Engineering Applicant: API Healthcare Corporation Phone: Fax: 262-670-2789 262-673-2650 www. a pi h ealth ca r e. co m NA"RI 3) The modular transmitter must have its own power supply regulation. This is intended to ensure that the module will comply with Part 15 requirements regardless of the design of the power supplying circuitry in the device into which the module is installed. Power supply The RFID Module is only sold as an internal component to API Healthcare products. The module receives its power from the host circuit board. The host circuit board has its own 5V regulator from which the transmitter module is powered. 4') The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c). The antenna must either be permanently attached or employ a "unique" antenna coupler (at all connections between the module and the antenna, including the cable). Any antenna used with the module must be approved with the module, either at the time of initial authorization or through a Class II permissive change. The "professional installation" provision of Section 15.203 may not be applied to modules. Antenna Requirements The antenna is permanently mounted to the RFID circuit board module. The connection between the transmitter module and antenna is hard wired. 5) The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in Section 15.207. AC or DC power lines and data inpuloutput lines connected to the module must not contain ferrites, unless they will be marketed with the module (see Section 15.27(a)). The length of these lines shall be length typical of actual use or, if that length is unknown, at least l0 centimeters to insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified or commercially available (see Section 15.31(i)). Test as a Module The module was tested as a standalone unit with a cable length of less than 30cm. 6) The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: "Contains Transmitter Module FCC ID: XYZMODEL1" or "Contains FCC ID: XYZMODEL1." Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. Labeling Every module will be labeled with the following: FCC ID: \ry7N-PROXCR01 Since the module is internal to the completed product, and not visible to the user, a label with the following notice will be placed on the outside of the case for all products containing the module: Contains FCC ID: W7N-PROXCR01 Experts in optimizing human capital w ww. ap i h ealt h c a re. c o m (mRl 7) The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. For example, there are very strict operational and timing requirements that must be met before a transmitter is authori zed for operation under Section 15 .231. For instance, data transmission is prohibited, except for operation under Section 15.231(e), in which case there are separate flreld strenglh level and timing requirements. Compliance with these requirements must be assured.…

Text truncated - open the document above for the full version.

ffi."RT FCC AUTHORIZAÏION Dote: Morch 23,2010 Time: I l:28 AM To: FCC Authorizotion & Evoluotion Division 2435 Ooklond Mills Rood Columbio, MD 21 045-0429 From: Gory Sutcliffe Director of Electricol Engineering Direct: 262-670-2789 Fox:262-673-2560 [email protected] Applicont: API Heqllhcore Corp. Deor Lodies ond/or Gentlemen: I oppoint Tereso White, Brion Pelted ond Kenneth Boston of LS Reseorch, LLC to oct os on ogent in the signing ond preporoiion of opplicotions under Port l5 of the rules ond regulotions of the Federol Communicotions Commission. I certify thot the exhibitions properly describe the device being submilted under this opplicotion, ond will implement ony chonges described in the test report. The lobels described will be offixed to eoch item. By checking "yes", the opplicont certifies thot, in fhe cose of on individuol opplicont, he or she is not subject to o deniol of federol benefits, including FCC benefits, pursuont to Section 5301 of the Anti-Drug Abuse Act of 1988,21 U.S.C. 853(o); or, in the cose of o non-individuol opplicont (e.9. corporotion, portnership or other unincorporoted ossociotion), no porty to the opplicotion is subject to o deniol of federol benefits, which includes FCC benefiis, pursuoni to thot section. X Yes ENo Sincerely, 9*z ( '!&/" Gory C. Sutcliffe Director of Electricol Engineering API Heolthcore Corp.

PI EALTHCARE November 4,2009 Americon Telecommunicotions Certificotion Body, lnc. ó73.l Whitfier Avenue Suite Cl l0 Mcleon, VA 22101 To Whom lt Moy Concern: LS Reseorch, LLC is outhorized to oct on our beholf, until otherwise notified, for opplicotions to Americon Telecommunicotions Certificotion Body, lnc. (ATCB). On our beholf, we oppoint Tereso White, Ken Boston ond Brion Petted of LS Reseorch, LLC, Wóó N220 Commerce Court, Cedcrburg, Wisconsin 53012 USA to oct os our ogent in the preporction ond signing of documentotion for this opplicoiion for equipment certificolion. We certify thot we ore not subjecl to deniol of federol benefits, including FCC benefits, pursuont to Section 5301 of the Anti-Drug Abuse Act of I9BB, U.S.C. Bó2. Further, no porty, os defined in 47 CFR 1"2002 (b) to the opplicotion is subject to deniol of federol benefits, including FCC benefits. Thonk you" Regords, û,y C !-øl '0ru Gory C. Sutcliffe Director of Electricol Engineering 262-670-2789 gory"[email protected] Experts in optimizing human capital

(MRI FCC CONIIDENTIAI.ITY Morch 23,2010 l:25 PM To: FCC Authorizotion & Evoluotion Division 7435 Ooklond Mills Rood Columbio, MD 2l 045-0429 From: Gory C. Sutcliffe Director of Electricol Engineering Direct: 262-670-2789 Fox 262-673-2560 [email protected] Applicont: API Heolthcore Corp. Subject: Request for Non-Disclosure for FCC lD: WZN-PROXCROI Deor Lodies ond/or Genllemen: Pursuont to Title 47 CtR, Section 0.459, API Heolthcore Corp. hereby requests non-disclosure ond confidentiol treotment of the following moteriols submitted in support of FCC certificotion opplicotion for FCC lD: WZN-PROXCR0I o. Schemotic Diogroms b. Operotionol Description c. Block Diogrom The obove moteriols contoin trode secreis, proprietory ond technicol informoiion, which would customorily be guorded from competitors under Title 47 CtR, Section 0.457(d)(2). Disclosure or publicotion of ony portion of this compony's confidentiol moleriol to other porlies could couse substontiol competitive horm ond provide unjustified benefits for competitors. API Heolthcore Corp. understonds thot pursuonl to Title 47 CFR, Section 0.452(d)(l )(ii), disclosure of the opplicont ond oll occomponying documentotion will not be mode before the dote of the Gront. Sincerely, b,4U,4/l Gory C. Sutcliffe Director of Electricol Engineering, API Heolthcore Corp. Expefts in optimizing human capital

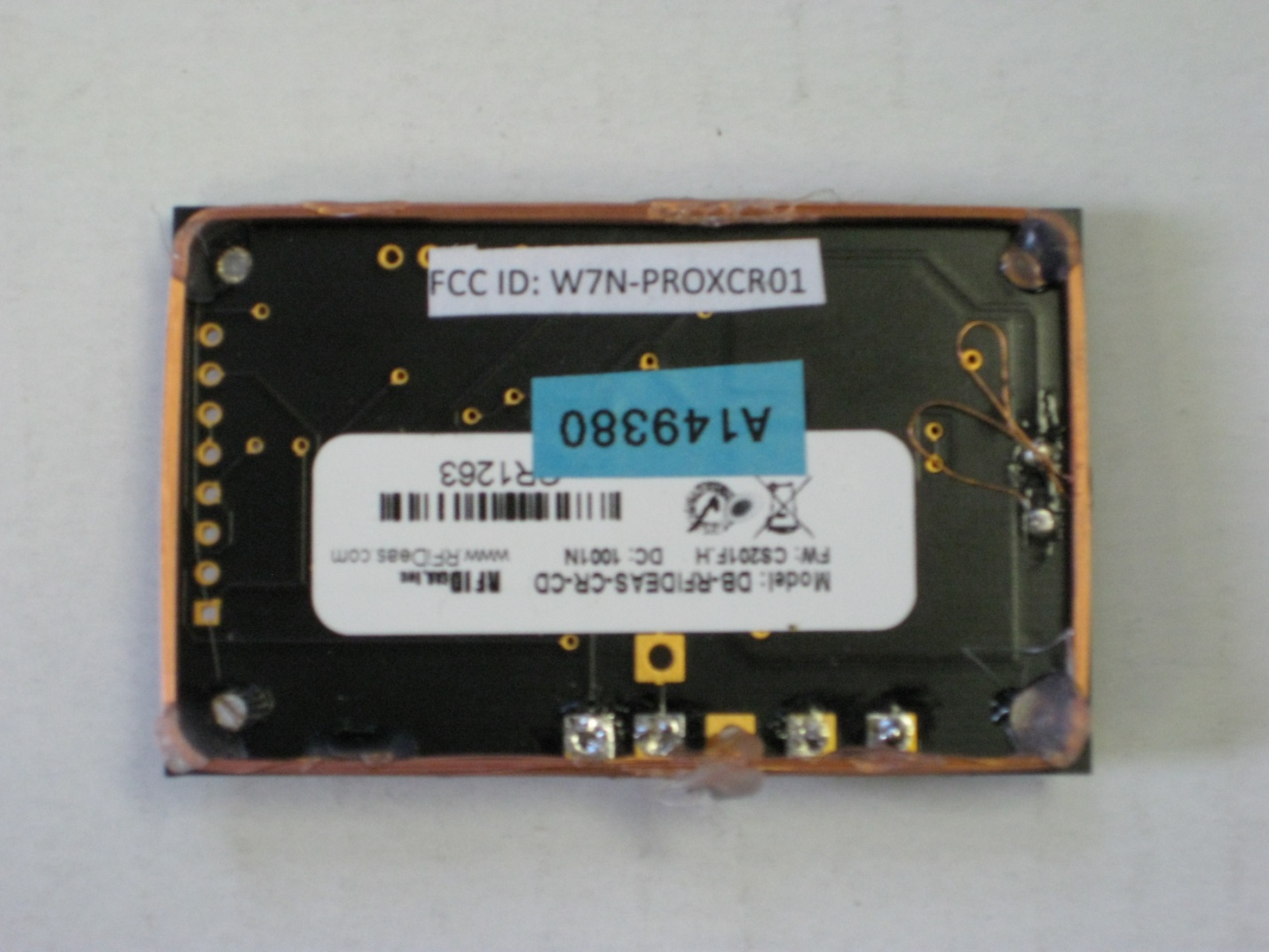

EXTERNAL PHOTOS Company Name API Healthcare Model # DB‐RFIDEAS_CR‐CD FCC ID # W7N‐PROXCR01 Page 1 of 3 Full View of Unit EXTERNAL PHOTOS Company Name API Healthcare Model # DB‐RFIDEAS_CR‐CD FCC ID # W7N‐PROXCR01 Page 2 of 3 Backside View #1 EXTERNAL PHOTOS Company Name API Healthcare Model # DB‐RFIDEAS_CR‐CD FCC ID # W7N‐PROXCR01 Page 3 of 3 Photo of ID Label

EXTERNAL PHOTOS Company Name API Healthcare Model # DB‐RFIDEAS_CR‐CD FCC ID # W7N‐PROXCR01 Page 3 of 3 Photo of ID Label

API Healthcare FCC Casi-Rusco Label Information Size: 1” X .25” Material: White Polyester, Brady B-619 Label on PCB module: FCC ID: W7N-PROXCR01 Label on outside of case: Contains FCC ID: W7N-PROXCR01

INTERNAL PHOTOS Company Name API Healthcare Model # DB‐RFIDEAS_CR‐CD FCC ID # W7N‐PROXCR01 Page 1 of 2 Inside View #1 INTERNAL PHOTOS Company Name API Healthcare Model # DB‐RFIDEAS_CR‐CD FCC ID # W7N‐PROXCR01 Page 2 of 2 Inside View #2

W66 N220 Commerce Court ● Cedarburg, WI 53012 ● USA Phone: 262.375.4400 ● Fax: 262.375.4248 www.lsr.com ENGINEERING TEST REPORT # 310037-A LSR Job #: C-871 Compliance Testing of: Casi-Rusco RFID Module Test Date(s): March 24 th and April 12 th 2010 Prepared For: API Healthcare Attn: Gary Sutcliffe 1550 Innovation Way Hartford, WI 53027 In accordance with: Federal Communications Commission (FCC) Part 15, Subpart C, Section 15.209, and 15.109 Industry Canada (IC) RSS 210 Annex 2 and section 2.7 General Operating Requirements for Low-Power License-Exempt Transceivers This Test Report is issued under the Authority of: Thomas T. Smith, Manager EMC Test Services Signature: Date: 05.06.10 Test Report Reviewed by: Ryan M. Urness, Laboratory Manager Signature: Date: 05.06.10 Tested by: Khairul Aidi Zainal, Senior EMC Engineer Signature: Date: 05.05.10 This Test Report may not be reproduced, except in full, without written approval of LS Research, LLC. Prepared For: API Healthcare Model #:DB-RFIDEAS_CR-CD LS Research, LLC EUT: Casi Rusco RFID module IC: Template: 15.209 - v1 10-22-09 Report #:310037 FCC ID #: Page 2 of 39 TABLE OF CONTENTS (page 1 of 2) Description Page EXHIBIT 1: INTRODUCTION 1.1 Scope 4 1.2 Normative References 5 1.3 LS Research, LLC Test Facility 6 1.4 Location of Testing 6 1.5 Test Equipment Utilized 6 EXHIBIT 2: PERFORMANCE ASSESSMENT 2.1 Client Information 7 2.2 Equipment Under Test (EUT) Information 7 2.3 Associated Antenna Description 7 2.4 EUT’s Technical Specifications 8 2.5 Product Description 9 EXHIBIT 3: EUT OPERATING CONDITIONS & CONFIGURATIONS DURING TESTS 3.1 Climate Test Conditions 10 3.2 Applicability & Summary of EMC Emission Test Results 10 3.3 Modifications Incorporated in the EUT for Compliance Purposes 10 3.4 Deviations & Exclusions from Test Specifications 10 EXHIBIT 4: DECLARATION OF CONFORMITY 11 EXHIBIT 5: RADIATED EMISSIONS TESTING TRANSMIT AND RECEIVE 5.1 Test Setup 12 5.2 Test Procedure 12 5.3 Test Equipment Utilized 13 5.4 Test Results 13 5.5 Calculation of Radiated Emissions Limits 14-15 5.6 Radiated Emissions Test Data Chart 16-19 5.7 Test Setup Photo(s) – Radiated Emissions Test 20-21 5.8 Screen Captures – Radiated Emissions Test 22-26 EXHIBIT 6: CONDUCTED EMISSIONS TEST, AC POWER LINE TRANSMIT AND RECEIVE. 6.1 Test Setup 27 6.2 Test Procedure 27 6.3 Test Equipment Utilized 27 6.4 Test Results 27 6.5 FCC Limits of Conducted Emissions at the AC Mains Ports 28 6.6 Conducted Emissions Test Data Chart 29 6.7 Test Setup Photo(s) – Conducted Emissions Test 30 6.8 Screen Captures – Conducted Emissions Test 31 Prepared For: API Healthcare Model #:DB-RFIDEAS_CR-CD LS Research, LLC EUT: Casi Rusco RFID module IC: Template: 15.209 - v1 10-22-09 Report #:310037 FCC ID #: Page 3 of 39 TABLE OF CONTENTS (Page 2 of 2) Description Page EXHIBIT 7: OCCUPIED BANDWIDTH 7.1 Limits 32 7.2 Method of Measurements 32 7.3 Test Data 32 7.4 Screen Captures – Occupied Bandwidth 33 EXHIBIT 8: BAND-EDGE MEASUREMENT 8.1 Test Criterion 34 8.2 Screen Captures 34-36 APPENDICES APPENDIX A: TEST EQUIPMENT LIST 37 APPENDIX B: TEST STANDARDS 38 APPENDIX C: UNCERTAINTY STATEMENT 39 Prepared For: API Healthcare Model #:DB-RFIDEAS_CR-CD LS Research, LLC EUT: Casi Rusco RFID module IC: Template: 15.209 - v1 10-22-09 Report #:310037 FCC ID #: Page 4 of 39 EXHIBIT 1. INTRODUCTION 1.1 SCOPE References: FCC Part 15, Subpart C, Section 15.209 Title: Telecommunication – Code of Federal Regulations, CFR 47, Part 15 Purpose of Test: To gain FCC Certification Authorization for Low-Power License-Exempt Transmitters. References: FCC Part 15, Subpart B, Section 15.109 Title: Telecommunication – Code of Federal Regulations, CFR 47, Part 15 Purpose of Test: To gain FCC Certification Authorization for a Digital Device or a Non-Intentional Radiator. References: RSS 210 Annex 2 Title: Low-power License-exempt Radiocommunication Devices (All Frequency Bands): Category I equipment. Purpose of Test: To gain IC Certification Authorization for Low-Power License-Exempt Transmitters. References: RSS GEN Title: General requirements and Information for the Certification of Radiocommunication Equipment. Purpose of Test: To gain IC Certification Authorization for Low-Power License-Exempt Transmitters. Test Procedures: Both conducted and radiated emissions measurements were conducted in accordance with American National Standards Institute ANSI C63.4 – American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. Environmental Classification: • Commercial, Industrial or Business • Residential Prepared For: API Healthcare Model #:DB-RFIDEAS_CR-CD LS Research, LLC EUT: Casi Rusco RFID module IC: Template: 15.209 - v1 10-22-09 Report #:310037 FCC ID #: Page 5 of 39 1.2 NORMATIVE REFERENCES Publication Year Title 47 CFR, Parts 0-15 (FCC) 2009 Code of Federal Regulations - Telecommunications RSS 210 Annex 2 2007 Low-power License-exempt Radiocommunication Devices (All Frequency Bands): Category I equipment. RSS GEN 2007 General requirements and information for the certification of Radiocommunication Equipment. ANSI C63.4 2009 American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. CISPR 16-1-1 2006-03 A1: 2006-09 A2: 2007-07 Specification for radio disturbance and immunity measuring apparatus and methods. Part 1-1: Measuring Apparatus. CISPR 16-2-1 2003 A1: 2004-04 A2: 2007-07 Specification for radio disturbance and immunity measuring apparatus and methods. Part 201: Conducted disturbance measurement. Prepared For: API Healthcare Model #:DB-RFIDEAS_CR-CD LS Research, LLC EUT: Casi Rusco RFID module IC: Template: 15.209 - v1 10-22-09 Report #:310037 FCC ID #: Page 6 of 39 1.3 LS Research, LLC TEST FACILITY LS Research, LLC is accredited by A2LA (American Association for Laboratory Accreditation) to conform to ISO/IE…

Text truncated - open the document above for the full version.

TEST SETUP PHOTOS Company Name API Healthcare Corp. Model # DB-RFIDEAS_CR-CD FCC ID # W7N-PROXCR01 Page 1 of 3 EUT outside of Host EUT Vertical (V) EUT Side (S) EUT Flat (F) TEST SETUP PHOTOS Company Name API Healthcare Corp. Model # DB-RFIDEAS_CR-CD FCC ID # W7N-PROXCR01 Page 2 of 3 5.7.2 EUT inside of Host EUT Vertical (V) TEST SETUP PHOTOS Company Name API Healthcare Corp. Model # DB-RFIDEAS_CR-CD FCC ID # W7N-PROXCR01 Page 3 of 3 Test Setup Photo(s) – Conducted Emissions Test
