W98-129778000-WiFi Module

Page 1 10/20/2015 Tridium 8000‐WiFi User Manual Page 2 11/24/2015 Note: This User Manual is for internal Tridium use only. The 8000-WiFi module is a device that is be incorporated into a final assembly. The final assemblies using this module would each have an appropriate User Manual specific to their features/functions. 8000-WiFi Module Features: The Tridium 8000-Wifi module includes the following features: • WLAN Baseband Processor and RF Transceiver support of IEEE Std. 802.11a, 802.11b, 802.11g, and 802.11n • printed circuit board layout for an eight layer pcb • PCB space approximately: 1.5 X 1.5 inches • WLAN 2.4 GHz SISO (20 MHz channels) and 5 GHz SISO (20 and 40 MHz channels) • Designed for use with the Texas Instruments AM3352 processor • WLAN core that is software- and hardware-compatible with prior WL127x, WL128x, and BL6450 offerings for smooth migration to device • Supports access point and client modes of operation • Shared host-controller-interface (HCI) for WLAN using 4-bit SDIO • RP-SMA connector for use with external antenna • easy-to-use FCC, IC, ETSI, certified module Approved Antenna Types and Maximum Gain Values: This device is intended only for integration into Tridium products under the following conditions: • The antenna(s) used for this transmitter must not transmit simultaneously with any other antenna or transmitter, except in accordance with FCC multi-transmitter product procedures. • The radio transmitter can operate only using an antenna of a type and maximum (or lesser) gain approved by Tridium. Table 2 lists the antennas approved by Tridium for use with the radio transmitter along with maximum allowable gain values. Antenna types not included in the list or having a gain greater than the maximum indicated are strictly prohibited for use with this transmitter. Table 2. Approved Antenna Types and Maximum Gain Values Antenna Type Brand Part Number Max Gain 2.4 GHz Max Gain 4.9 to 5.9 GHz Unit Dipole Linx Technologies ANT-DB1-RAF-RPS 2.5 4.6 dBi Page 3 11/24/2015 FCC and Industry Canada Compliance Statements: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This Device complies with Industry Canada License-exempt RSS standard(s). Operation is subject to the following two conditions: 1) this device may not cause interference, and 2) this device must accept any interference, including interference that may cause undesired operation of the device. Cet appareil est conforme à la norme d'Industrie Canada, exempts de licence standard RSS (s). Son fonctionnement est soumis aux deux conditions suivantes: 1) le dispositif ne doit pas causer d'interférences, et 2) le dispositif doit accepter toute interférence, y compris les interférences qui susceptible de provoquer un mauvais fonctionnement de l'appareil. Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication. En vertu des règlements d’Industrie Canada, cet émetteur de radio ne peut fonctionner qu’en utilisant une antenne d'un type et maximale (ou moins) gain approuvé pour l'émetteur d’Industrie Canada. Pour réduire les interférences radio potentielles aux autres utilisateurs, le type d'antenne et son gain doivent être choisis afin que la puissance isotrope rayonnée équivalente (e.i.r.p.) ne soit pas plus que ce qui est nécessaire pour une communication réussie. The device for operation in the band 5150–5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems. Les dispositifs fonctionnant dans la bande 5150-5250 MHz sont réservés uniquement pour une utilisation à l'intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux WARNING - Users should also be advised that high-power radars are allocated as primary users (i.e. priority users) of the bands 5250–5350 MHz and 5650–5850 MHz and that these radars could cause interference and/or damage to LE-LAN devices. Avertissement - De plus, les utilisateurs devraient aussi être avisés que les utilisateurs de radars de haute puissance sont désignés utilisateurs principaux (c.-à-d., qu'ils ont la priorité) pour les bandes 5250-5350 MHz et 5650-5850 MHz et que ces radars pourraient causer du brouil…

Text truncated - open the document above for the full version.

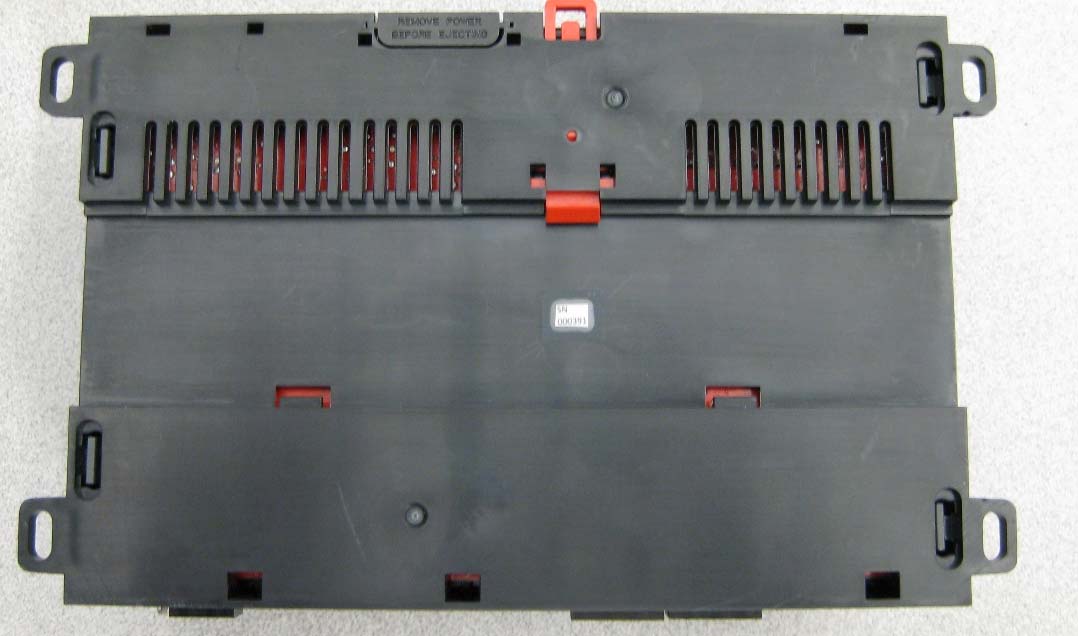

INTERNAL PHOTOS Company Name Tridium Inc Model # 8000‐WIFI FCC ID # W98‐12977 IC # 8339A‐12977 Page 1 of 1

W66 N220 Commerce Court ● Cedarburg, WI 53012 Phone: 262.375.4400 ● Fax: 262.375.4248 www.lsr.com RF Evaluation Exclusion Exhibit For: 8000-WiFi Module Prepared by: Peter Feilen, EMC Engineer 11-5-2015 W66 N220 Commerce Court ● Cedarburg, WI 53012 Phone: 262.375.4400 ● Fax: 262.375.4248 www.lsr.com Contents Product Description: ..................................................................................................................................... 3 Associated Antenna(s): ................................................................................................................................. 3 Statement of compliance: ............................................................................................................................. 3 Limits: ............................................................................................................................................................ 3 Calculations: .................................................................................................................................................. 5 Summary: ...................................................................................................................................................... 6 Summary: ....................................................................................................... Error! Bookmark not defined. W66 N220 Commerce Court ● Cedarburg, WI 53012 Phone: 262.375.4400 ● Fax: 262.375.4248 www.lsr.com Product Description: The 8000-WiFi is a module with support for WLAN (802.11 a/b/g/n) Associated Antenna(s): Corresponding antenna data associated with the EUT: 1. Peak gain of 2.5dBi – 2.4 GHz 2. Peak gain of 4.6 dBi – 5 GHz Statement of compliance: The 8000-WiFi module was evaluated against the requirements and limits of OET Bulletin 65, KDB 447498 as well as RSS-102 Issue 5 and was found to be compliant. Limits: A. Mobile (MPE) OET Bulletin 65 limits for General population/Uncontrolled Exposure W66 N220 Commerce Court ● Cedarburg, WI 53012 Phone: 262.375.4400 ● Fax: 262.375.4248 www.lsr.com RSS 102 limits for General population/Uncontrolled Exposure Per RSS 102 issue 5 section 2.5.2, RF exposure evaluation is required is separation distance between the user and/or bystander and the device’s radiating element is greater than 20cm, except when the device operates as follows:   below 20 MHz and the source-based, time-averaged maximum e.i.r.p. of the device is equal to or less than 1 W (adjusted for tune-up tolerance);  at or above 20 MHz and below 48 MHz and the source-based, time-averaged maximum e.i.r.p. of the device is equal to or less than 22.48/ƒ 0.5 W (adjusted for tune-up tolerance), where ƒ is in MHz;  at or above 48 MHz and below 300 MHz and the source-based, time-averaged maximum e.i.r.p. of the device is equal to or less than 0.6 W (adjusted for tune-up tolerance);  at or above 300 MHz and below 6 GHz and the source-based, time-averaged maximum e.i.r.p. of the device is equal to or less than 1.31 x 10 -2 ƒ 0.6834 W (adjusted for tune-up tolerance), where ƒ is in MHz;  at or above 6 GHz and the source-based, time-averaged maximum e.i.r.p. of the device is equal to or less than 5 W (adjusted for tune-up tolerance). W66 N220 Commerce Court ● Cedarburg, WI 53012 Phone: 262.375.4400 ● Fax: 262.375.4248 www.lsr.com Calculations: A. MPE Calculation The following MPE calculations are based on a measured conducted RF power of +14.81 dBm as presented to the antenna. The peak gain of this antenna, based on the data sheet is 4.6 dBi. Power Density = 0.0174mW/cm 2 = 0.174 W/m 2 Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where:S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal:14.81(dBm) Maximum peak output power at antenna input terminal:30.269(mW) Antenna gain(typical):4.6(dBi) Maximum antenna gain:2.884(numeric) Prediction distance:20(cm) Prediction frequency:5200(MHz) MPE limit for uncontrolled exposure at prediction frequency:1(mW/cm^2) Power density at prediction frequency:0.017367(mW/cm^2) Maximum allowable antenna gain:22.2(dBi) 20cm =17.6dBMargin of Compliance at 2 4R PG S p = W66 N220 Commerce Court ● Cedarburg, WI 53012 Phone: 262.375.4400 ● Fax: 262.375.4248 www.lsr.com RF Exposure Evaluation: Evaluated against exposure limits: General Public Use Controlled Use Duty cycle used in evaluation: 100 % Standard(s)/Procedure(s) used for evaluation (e.g. IEEE C95.3): OET Buletin 65 and RSS 102 Measurement distance: 20 cm RF field strength value: 0.174 V/m A/m W/m 2 Measured Computed Calculated Summary: The calculated power density of the EUT was found to be below the OET Bulletin 65 MPE limit. Per RSS 102 issue 5 section 2.5.2, since the EUT operates at less than 1.31 x 10 -2 * (5500) 0.6834 W = 4.71 W The EUT is excluded from Routine evaluation. Based on the calculation above, the EUT complies with RF exposure requirement when used at a minimum separation distance of at least 20 cm.

W66 N220 Commerce Court ● Cedarburg, WI 53012 USA ● Phone: 262.375.4400 ● Fax: 262.375.4248 ● www.lsr.com i. Title Page ENGINEERING TEST REPORT # TR 314337 B LSR Job #: C-2089 Compliance Testing of: 8000-WiFi Module Test Date(s): May-September, 2015 Prepared For: Tridium 3951 Westerre Parkway Richmond, VA 23233 This Test Report is issued under the Authority of: Peter Feilen, EMC Engineering Signature: Date: 11/13/2015 Test Report Reviewed by: Signature: Date: 11/13/2015 Report by: Peter Feilen, EMC Engineer Signature: Date: 11/3/15 This Test Report may not be reproduced, except in full, without written approval of LS Research, LLC. Prepared For: Tridium Name: 8000-WiFi Module Report: TR 314337 B Model: 8000-WIFI LSR: C-2089 Serial: Eng. Sample Page 2 of 60 ii. Table of Contents Table of Contents i. Title Page ................................................................................................................................... 1 ii. Table of Contents ....................................................................................................................... 2 iii. LS Research, LLC in Review .................................................................................................... 3 1.0 Summary of Test Report ............................................................................................................ 4 2.0 Test Facilities ............................................................................................................................. 5 3.0 Client Information ...................................................................................................................... 5 3.1 Equipment Under Test (EUT) Information ................................................................................ 5 3.2 Product Description ................................................................................................................... 5 3.3 Modifications Incorporated In the EUT for Compliance Purposes ........................................... 5 3.4 Deviations & Exclusions from Test Specifications ................................................................... 5 3.5 Additional Information .............................................................................................................. 6 4.0 Conditions of Test ...................................................................................................................... 6 5.0 Test Equipment .......................................................................................................................... 6 6.0 Conformance Summary ............................................................................................................. 6 Appendix A – Test Equipment ............................................................................................................. 7 Appendix B – Test Data ........................................................................................................................ 8 B.1 – RF Conducted Emissions ........................................................................................................ 8 B.1 – Transmitter Radiated Emissions............................................................................................ 43 B.3 – AC Mains Conducted Emissions........................................................................................... 56 Appendix C - Uncertainty Summary .................................................................................................. 58 Appendix D - References .................................................................................................................... 59 Prepared For: Tridium Name: 8000-WiFi Module Report: TR 314337 B Model: 8000-WIFI LSR: C-2089 Serial: Eng. Sample Page 3 of 60 iii. LS Research, LLC in Review As an EMC Testing Laboratory, our Accreditation and Assessments are recognized through the following: A2LA – American Association for Laboratory Accreditation Accreditation based on ISO/IEC 17025: 2005 with Electrical (EMC) Scope of Accreditation A2LA Certificate Number: 1255.01 Federal Communications Commission (FCC) – USA Listing of 3 Meter Semi-Anechoic Chamber based on Title 47 CFR – Part 2.948 FCC Registration Number: 90756 Industry Canada On file, 3 Meter Semi-Anechoic Chamber based on RSS-212 – Issue 1 File Number: IC 3088-A On file, 3 and 10 Meter OATS based on RSS-212 – Issue 1 File Number: IC 3088 U. S. Conformity Assessment Body (CAB) Validation Validated by the European Commission as a U. S. Competent Body operating under the U. S./EU, Mutual Recognition Agreement (MRA) operating under the European Union Electromagnetic Compatibility –Council Directive 2004/108/EC (formerly 89/336/EEC, Article 10.2). Date of Validation: January 16, 2001 Validated by the European Commission as a U.S. Notified Body operating under the U.S. /EU, Mutual Recognition Agreement (MRA) operating under the European Union Telecommunication Equipment – Council Directive 99/5/EC, Annex V. Date of Validation: November 20, 2002 Notified Body Identification Number: 1243 Prepared For: Tridium Name: 8000-WiFi Module Report: TR 314337 B Model: 8000-WIFI LSR: C-2089 Serial: Eng. Sample Page 4 of 60 1.0 Summary of Test Report In May-November, 2015 the EUT, Titan Controller, as supplied by Tridium was tested and MEETS the following requirements: Operation in the 5.15 – 5.25 GHz band FCC Rule Part IC Standard Test Description Measurement Procedure Test Result 15.407 (a)(1)(iv) RSS-247 Section 6.2.1 Power Limits ANSI C63.10-2013 Section 12.3 Pass 15.407 (a)(1) (iv) RSS-247 Section 6.2.1 Power Spectral Density ANSI C63.10-2013 Section 12.5 Pass 15.407 (a)(5) RSS-247 Section 6.2.1 26dB / 99% Bandwidth ANSI C63.10-2013 Section 12.4 Pass 15.407 (b)(1) RSS-247 Section 6.2.1 Undesirable emissions Limit ANSI C63.10-2013 Section 12.7 Pass 15.407 (b)(6) RSS-GEN Spurious Emissions below 1GHz & AC Mains ANSI C63.10-2013 Section 12.7 Pass 15.407 (b)(7…

Text truncated - open the document above for the full version.

TEST SETUP PHOTOS Company Name Tridium Inc Model # 8000‐WIFI FCC ID # W98‐12977 IC # 8339A‐12977 Page 1 of 3 TEST SETUP PHOTOS Company Name Tridium Inc Model # 8000‐WIFI FCC ID # W98‐12977 IC # 8339A‐12977 Page 2 of 3 TEST SETUP PHOTOS Company Name Tridium Inc Model # 8000‐WIFI FCC ID # W98‐12977 IC # 8339A‐12977 Page 3 of 3
