W9Q-FD-100GVHF TRANSMITTER

E1 Contents 1. Features/Overview.................................................................................E1 2. Important Safety Instruction.......................................................................E2 3. Parts Description....................................................................................E3-E4 4. Notes on Battery.......................................................................................E5 5. How to connect Cube 50.......................................................................E6- E7 6.Spec ifications............................................................................................E8 Features ¾ Line input (RCA Type) ¾ Microphone input (6.35 Phone jack) ¾ Wireless Microphone (VHF Band) ¾ TALKOVER for your vocal priority ¾ Individual Volume control for Mic/Line/Wireless Mic ¾ Master Volume with Power Switch and Tone ¾ 12V4Ah Battery powered. With charging indicator and over–discharging protection. ¾ 5.25“speaker 4Ω Overview DJ-Tech Cube 50 lets you easily enjoy your personal soundtrack anywhere. This sound system features one ‘line input’, just connect MP3/CD and so on with one RCA cable then you can start the party! Built-in all what you need to have be mobile: rechargeable battery which last for more than 12 hours, a 3-Channel mixer with talkover function and strong cabinet in particle board with carpet for all the sound trip that you will enjoy. Cube 50 will be your very best partner for your commercial, school, church, seminar or Karaoke. Rock your MP3/CD, and bring your sound everywhere, anywhere. Thank you, and congratulations on your choice of DJ Tech Cube 50! 2 IMPORTANT SAFETY INSTRUCTIONS FCC part 15.21 Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. FCC part 15.105 NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and sued in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or mote of the following measures: ·Reorient or relocate the receiving antenna. ·Increase the separation between the equipment and receiver. ·Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ·Consult the dealer or an experienced radio TV technician for help. This model comply with Annex IV of the R&TTE Directive 1999/5/EC of 9 March,1999 and gees the approval mark CE 1177 CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN The lightning flash with arrowhead symbol inside an equilateral triangle is intended to alert User that the presence of uninsulated ＂hazardous voltage＂within the product’s enclosure, which may be of sufficient magnitude to induce a risk of electric shock to persons. The exclamation mark inside an equilateral triangle is intended to alert user that the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED PERSONNEL. This symbol means that this unit is double insulated. An earth or ground connection is not required. 1. Read these instructions. 2.Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11. Only use attachments/accessories specified by the manufacturer. 12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. 13. Unplug this apparatus during lightning storms or when unused for long periods of time. 14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 15. The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus. 16. The battery shall not be exposed to excessive heat such as sunshine, fire or the like. 17. The MAINS plug is used as the disconnect device, which shall remain readily operable. E2 E3 Parts Description Stand base Grille Control panel Vent Heat sink Battery Compartment E4 Parts Description 1.MIC input(6.35 Ph…

Text truncated - open the document above for the full version.

First Audio Manufacturing(Hong Kong)Ltd. 3/F.,Block A,Wing Kut Ind Bldg.,608 Castle Peak Rd.,Kowloon,HK Tel: 852 2741-1491 Fax: 852 2786-4012 Mar 22, 2010 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: W9Q-FD-100G Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram W9Q-FD-100G _Block Diagram.pdf Schematic W9Q-FD-100G _Schematic.pdf Operational Description W9Q-FD-100G_ Operational Description.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Best regards,

First Audio Manufacturing(Hong Kong)Ltd. 3/F.,Block A,Wing Kut Ind Bldg.,608 Castle Peak Rd.,Kowloon,HK Tel: 852 2741-1491 Fax: 852 2786-4012 POWER OF ATTORNEY FCC ID: W9Q-FD-100G Mar 22, 2010 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen VITE Technology Co., Ltd (MR. Tracy Qi) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Shenzhen VITE Technology Co., Ltd (MR. Tracy Qi) on our behalf shall have the same effect as acts of our own. This authorization expires on Dec 25, 2010. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, First Audio Manufacturing(Hong Kong)Ltd. are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely yours,

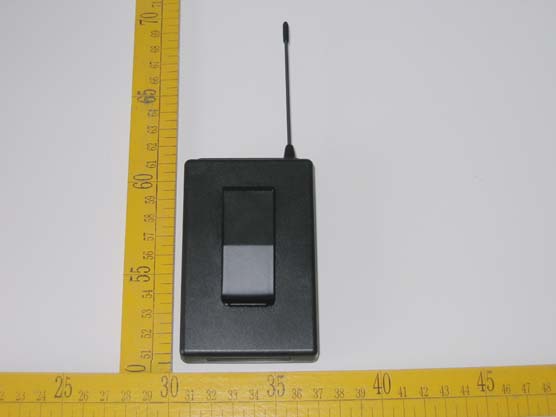

FCC ID: W9Q-FD-100G First Audio Manufacturing (Hong Kong) Ltd. External and Internal Photos of the EUT External Photos

Applicant: First Audio Manufacturing (Hong Kong) Ltd. FCC ID: W9Q-FD-100G Model Name: FD-100G The device complies with Part 74 of FCC rules

FCC ID: W9Q-FD-100G First Audio Manufacturing (Hong Kong) Ltd. Internal Photos FCC ID: W9Q-FD-100G First Audio Manufacturing (Hong Kong) Ltd. .

ItemPart typeValueDesignatorQuantity 1ICSP31101FIC11 2 Resistor47Ω 1/8W R1 R5 R17 R20 R215 3 Resistor560Ω 1/8W R71 4 Resistor1KΩ 1/8W R3 R12 R183 5 Resistor1.5KΩ 1/8W R281 6 Resistor3.3KΩ 1/8W R151 7 Resistor4.7KΩ 1/8W R25 R292 8 Resistor5.6KΩ 1/8W R231 9 Resistor6.8KΩ 1/8W R261 10 Resistor8.2KΩ 1/8W R111 11 Resistor10KΩ 1/8W R2 R6 R13 R14 R275 12 Resistor22KΩ 1/8W R91 13 Resistor33KΩ 1/8W R81 14 Resistor47KΩ 1/8W R221 15 Resistor56KΩ 1/8W R4 R162 16 Resistor68KΩ 1/8W R241 17 Resistor100KΩ 1/8W R191 18 ThermistorNTC 10KΩ R101 19Capacitor1pF/25VC351 20Capacitor3pF/25VC37 C402 21Capacitor15pF/25VC24 C34 C383 22Capacitor20pF/25VC22 C36 C433 23Capacitor30pF/25VC201 24Capacitor33pF/25VC19 C282 25Capacitor39pF/25VC211 26Capacitor47pF/25VC4 C62 27Capacitor68pF/25VC27 C312 28Capacitor100pF/25VC151 29Capacitor222pF/25VC131 30Capacitor470pF/25VC331 31Capacitor1000pF/25VC261 32Capacitor 0.01μF/25V C5 C17 C18 C23 C25 C29 C30 C328 33Capacitor 0.1μF/25V C41 C422 Part List: Emitter Product Type: FD-100G 第 1 页，共 2 页 ItemPart typeValueDesignatorQuantity Part List: Emitter Product Type: FD-100G 34Capacitor 1μF/25V C9 C102 35Capacitor 4.7μF/25V C1 C2 C3 C7 C8 C11 C12 C14 C169 36Capacitor 10μF/16V C391 37Capacitor 47μF/16V C441 38Capacitor 100μF/16V C181 39 Diode 5.1V/0.5WD11 40 Diode 7.5V/0.5WD5 41 Diode D2638D21 42 Diode D5819D41 43 Diode LEDD31 44TransistorS9018Q2 Q42 45Transistor2SC3356Q31 46TransistorT33Q11 47TransistorS2098Q51 48TransistorBRQ61 49Crystal186.5MHzTX1 50Inductor 3.3μH L1 L22 51Inductor 100μH L7 L82 52Inductor3.5TL4 L62 53Inductor5.5TL51 54Inductor6.5TL31 55TransducerT30T31 56TransducerT36T21 57TransducerT43T11 58SwitchSW2*3SW11 59Battery1.5V*2BT11 60Microphone---MIC11 第 2 页，共 2 页

First Audio Manufacturing(Hong Kong)Ltd. 3/F.,Block A,Wing Kut Ind Bldg.,608 Castle Peak Rd.,Kowloon,HK Tel: 852 2741-1491 Fax: 852 2786-4012 First Audio Manufacturing(Hong Kong)Ltd. FCC ID: W9Q-FD-100G Mar 27, 2010 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: I would like to confirm this device (FCC ID: W9Q-FD-100A) does not have tune up information because the tune up is fixed by the manufacturer.Therefore, the user cannot tune up the device. Sincerely yours,

Shenzhen VITE Technology Co., Ltd Tel: +86-755-89486194 Fax: +86-755-89486187 FCC PART 74 SUBPART H TEST REPORT FCC ID: W9Q-FD-100G Report Reference No......................: VITE1003014R Compiled by ( position+printed name+signature)..: File administrators Tracy Qi Supervised by ( position+printed name+signature)..: Test Engineer Tracy Qi Approved by ( position+printed name+signature)..: Manager Andy Zhang Date of issue.....................................: Mar 26, 2010 Testing Laboratory Name..............: Shenzhen VITE Technology Co., Ltd Address.............................................: Suite 2123, Building 4, Hongfa Centre, Central Area Baoan, Baoan District, Shenzhen, Guangdong, 518101, P.R. China Applicant’s name............................: First Audio Manufacturing (Hong Kong) Ltd. Address.............................................: Flat 1-4. 3/F., Block A, Wing Kut Industrial Building 608 Catle Peak Road, Kowloon, Hong Kong Test specification: Standard ...........................................: FCC PART 74H, 2008 TRF Originator ..................................: Shenzhen VITE Technology Co., Ltd Master TRF.......................................: Dated 2009-03 Shenzhen VITE Technology Co., Ltd All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen VITE Technology Co., Ltd is acknowledged as copyright owner and source of the material. Shenzhen VITE Technology Inspection Co., Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : VHF Transmitter Trade Mark .......................................: DJ-Tech Model/Type reference.......................: FD-100G Listed Models ..................................: / Modulation..................................: FM Emission Type............................: 9K40F3E Power Supply..............................: DC 3 V Maximum Transmitter Power(ERP)...: 0.00007W Operating Frequency Range............: 186.5 MHz Result................................................: Positive V1.0 Page 2 of 23 Report No.: VITE1003014R FCC ID: W9Q-FD-100G First Audio Manufacturing (Hong Kong) Ltd. T E S T R E P O R T Test Report No. : VITE1003014R Mar 26, 2010 ______________________________________________________________________________________________ Date of issue Equipment under Test : VHF Transmitter Model /Type : FD-100G Listed Models : / Applicant : First Audio Manufacturing (Hong Kong) Ltd. Address : Flat 1-4. 3/F., Block A, Wing Kut Industrial Building 608 Catle Peak Road, Kowloon, Hong Kong Manufacture : First Audio Manufacturing(Guang Zhou)Ltd. Address : Tanbu Fidek Industrial Zone,Huadu District,Guangzhou City, China Test Result according to the standards on page 4: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. V1.0 Page 3 of 23 Report No.: VITE1003014R FCC ID: W9Q-FD-100G First Audio Manufacturing (Hong Kong) Ltd. Contents 1. TEST STANDARDS .................................................................. 4 2. SUMMARY............................................................................. 5 2.1. General Remarks 5 2.2. Equipment Under Test 5 2.3. Short description of the Equipment under Test (EUT) 5 2.4. EUT operation mode 5 2.5. EUT configuration 5 2.6. Related Submittal(s) / Grant (s) 6 2.7. Modifications 6 3. TEST ENVIRONMENT............................................................... 7 3.1. Address of the test laboratory 7 3.2. Test Facility 7 3.3. Environmental conditions 7 3.4. Configuration of Tested System 7 3.5. Statement of the measurement uncertainty 8 3.6. Equipments Used during the Test 8 3.7. General Technical Requirements and Summary of Test Results 8 4. TEST CONDITIONS AND RESULTS ............................................. 9 4.1. Conducted Emissions Test 9 4.2. Occupied Bandwidth and Emission Mask 10 4.3. Radiated Spurious Emission Test 13 4.4. Modulation Characteristics 16 4.5. Frequency Stability Measurement 18 5. TEST SETUP PHOTOS OF THE EUT .......................................... 20 6. EXTERNAL AND INTERNAL PHOTOS OF THE EUT ....................... 21 V1.0 Page 4 of 23 Report No.: VITE1003014R FCC ID: W9Q-FD-100G First Audio Manufacturing (Hong Kong) Ltd. 1. TEST STANDARDS The tests were performed according to following standards: FCC PART 74—EXPERIMENTAL RADIO, AUXILIARY, SPECIAL BROADCAST AND OTHER PROGRAM DISTRIBU-TIONAL SERVICES TIA/EIA 603: Land Mobile FM or PM Communications Equipment Measurement and Performance Standards. V1.0 Page 5 of 23 Report No.: VITE1003014R FCC ID: W9Q-FD-100G First Audio Manufacturing (Hong Kong) Ltd. 2. SUMMARY 2.1. General Remarks Date of receipt of test sample : Mar 11, 2010 Testing commenced on : Mar 12, 2010 Testing concluded on : Mar 22, 2010 2.2. Equipment Under Test Power supply system utilised Power supply voltage : o 120V / 60 Hz o 115V / 60Hz o 12 V DC o 24 V DC ● Other (specified in blank below) DC 3V from battery 2.3. Short description of the Equipment under Test (EUT) Wireless Microphone For more details, refer to the user’s manual of the EUT. Serial number: Prototype 2.4. EUT operation mode The EUT has been tested under typical operating condition. 2.5. EUT configuration The following peripheral devices and interface cables were connected during the measurement: o - supplied by the manufacturer o - supplied by the lab o Power Cable Length (m) : / Shield : / Detachable : / o Multimeter Manufacturer : / Model No. : / V1.0 Page 6 of 23 Report No.: VITE1003014R FCC ID: W9Q-FD-100G First Audio Manufacturing (Hong Kong) Ltd. 2.6. Related Submittal(s) / Grant (s) This submittal(s) (test report) is intended for FCC ID: W9Q-FD-100G filing to comply with the FCC Part 74 subpart H Rules. 2.7. Modifications N…

Text truncated - open the document above for the full version.

FCC ID: W9Q-FD-100G First Audio Manufacturing (Hong Kong) Ltd. Test Setup Photos of the EUT
