ST730P USER MANUAL 1 ST730P USER MANUAL -Sigfox Back-up Tracking Device- Suntech International Ltd. ST730P USER MANUAL 2 The ST730P is a battery-powered mini tracker utilizing GPS, RF and Sigfox techonology. Tracking Device with RF shall normally be used for Presence function (configured as “slave”) and might be set in ERB Mode. With its holder, it is a waterproof (IP67 compliant) hard-cased device to be used for various purposed like an assent tracker or a personal tracker. It works autonomously with its built-in battery. In addition to 3-axis acceleration sensor, the ST730P have various functionalities such as ultra- low power consumption algorithms and motion checking. Features; 1. Power On/Off button The device can be powered up or down by pressing the On/Off button for at least 2 seconds. At power up the device will: - Flash 1 time all the LEDs - Show the battery status using the battery LED. This status will only show in the first minute after power-up. - Send a “power up” message. - In case the GPS is configured as a location source, it will start the GPS acquisition. After the GPS fix, the GPS will go into deep sleep mode. There is also a GPS acquisition timeout, after this timeout the GPS will also enter deep sleep. At power down: - Flash twice all the LEDs During operation, if the button is pressed for less than 2 seconds, it will show the battery status using the battery LED. ST730P USER MANUAL 3 2. Tracking The device will send a tracking message at a defined interval. The customer can configure what time interval and the local location source. The location source can be GPS. In the case of GPS as the location source, the device will turn on or wake-up the GPS receiver 30 seconds before sending the message. If the time interval is greater than 1 (?) hour the GPS will be turned on 1 minute before. This is done to keep the message transmissions at regular intervals and increase the probability to get a GPS fix. 3. SOS button When the device is ON and if this button is pressed, it will trigger the device to send immediately a “SOS” message. It will also turn on the GPS. If it is able to get a fix within the timeout period it will send a location message. 4. Sensors - Accelerometer - Hall/Magnetic - Temperature 5. Geo fence The device will monitor the location based on the GPS receiver and check if the device is inside or outside the circular fence. A circular fence is defined as a GPS coordinate and a radius in meters. There is a limit of 5 (TBD) circular fences. In order to save power, the customer can configure the time interval between the GPS acquisition. At the specified time the device will wake-up the GPS receiver and keep it on until there is a fix or a timeout is reached. The check can also be configured to be triggered by the accelerometer or hall sensors. In this case the check is done every time the accelerometer or hall sensors are triggered. The device will keep in non-volatile memory the status of the fences (if it is inside or outside) while the device is On. At power-up the device will turn the GPS on and will set the fences reference at the first GPS fix. This will be used to trigger the fences status change thereafter. 6. Presence Function The host device will transmit to the slave device(ST730P) over RF 900 MHz that it can't deliver information to the server. So the slave device could start reporting as a backup method. ST730P USER MANUAL 4 7. Settings The device can be configured by using the Synctrak software or by RF. The RF possible configurations are limited and (TBD) 8. Battery The battery status can be checked at power up, when the device will show it for 1 minute using the battery LED, and if the device is ON by pressing the On/Off button for less than 2 seconds. The code of the LED is: - between 100% and 80%, the LED flashes 5 times - between 80% and 60%, the LED flashes 4 times - between 60% and 40%, the LED flashes 3 times - between 40% and 20%, the LED flashes 2 times - below 20%, the LED flashes 1 times A “Low battery” message can be configured to be sent when the battery level reaches at a specified level. Also an “External power connected” and an “External power disconnected” can be configured. 9. Location sources GPS – the device has an internal GPS receiver that is able to calculate the geographic coordinates using both the GPS and Glonass constellations. 10. Firmware update The device can be updated using the following methods: - USB – the FW can be updated by using the USB port and a specific update software ST730P USER MANUAL 5 GENERAL SPECIFICATION Battery Primary battery Li-SOCL2 4000mAh Motion Detection Built-in 3-axis Acceleration sensor Report Interval (1) Normal Mode: Every 6 hour / day (2) Emergency: ≈ 15min /day RF Presence Every 15 min Battery Life Time (1) 2 years with the report interval above on normal mode (2) 1 week on Emergency mode. Power Consumption Operating current Deep sleep current Sigfox : 17 mA in Rx mode 200mA in Tx mode @ 22.5dBm RF 900MHz : 120mA at 20dBm @3V GPS : 40mA in active mode Less than 15uA SigFox Frequency RCZ2: Tx 902.1375MHz, Rx 905.200MHz. SigFox Output Power RCZ2: 22dBm Temperature Range -20°C ~ +60°C User Interface Power Button , SOS Button Waterproof IP67 LED Indicator Sigfox, GPS, RF status PC Sync Track USB cable Dimension 75 x 50.5 x 32.5 mm Weight 95g(without holder) 205g (with magnetic holder) ST730P USER MANUAL 6 Approval FCC, Sigfox certificate (TBD) RF TRANSCEIVER SPECIFICATION Modulation Type CSS(Chirp Spread Spectrum) Frequency band 902~928MHz Output power Maximum 20dBm Power Consumption 120mA at 20dBm @4V GPS RECEIVER SPECIFICATION Receiver Type 56-channel U-Blox 7 engine GPS&QZSS L1 C/A, SBAS : WAAS, EGNOS, MASA, Update Rate 10Hz Accuracy 1) Position 2.5m CEP SBAS 2.0m CEP Acquisition 2) Cold starts 29s 12s ( AssistNow Autonomous) Aided start <1s Hot start <1s Supply Voltage Single voltage supply : 1.4V or 3.0V Sensitivity 3) Tracking -162dBm Reacquisition -160dBm Cold start -148dBm Bac…

Text truncated - open the document above for the full version.

FCC Agent Authorization letter February 15, 2021 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 To Whom It May Concern: I, the undersigned, hereby authorize SGS Korea Co., Ltd. and hereafter referred to as SGS Korea, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by SGS Korea Co., Ltd. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing SGS Korea as our agent, we still recognize that we are responsible to: a)comply with the relevant provisions of the certification program; b)make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c)make claims regarding certification only in respect of the scope for which certification has been granted; d)do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e)upon suspension or cancellation of certification, discontinue use of all advertising matter FCC Agent Authorization letter that contains any reference thereto and return any certification documents as required by the Certification Division; f)use certification only to indicate the products are certified as being in conformity with specified standards; g)endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h)ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i)keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j)take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k)document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely yours, (Sign) Name/Title : Yohan Kim Company Name : Suntech International Ltd.

Applicant Declaration Applicant Declaration Rev:0.0 SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia 30024 United States Applicant Legal Business Name Suntech International Ltd. Address A-1706, Greatvalley, 9Gil 32, Digital-Ro, Geumcheon-Gu, Seoul, Korea Grantee Code WA2 FCC ID WA2ST730P Authorized Contact Name Yohan, Kim Contact Email [email protected] Contact Phone +82-2-6327-5690 I, the undersigned, certify that I am an authorized signatory for the Applicant and therefore declare; a) in accordance with 47CFR2.911(d), all of the statements herein and the exhibits attached hereto are true and correct to the best of my knowledge and belief. b) in accepting a Grant of Equipment Authorization issued by a TCB, under the authority of the FCC, as a result of the representations made in this application, the Applicant is responsible for: (1) labeling the equipment with the exact FCC ID as specified in this application, (2) compliance statement labeling pursuant to the applicable rules, (3) compliance of the equipment with the applicable technical rules, c) if the Applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC’s technical requirements. d) in accordance with 47 CFR 2.909 and KDB394321, the Applicant has read, understood and agrees to accept that they are the responsible party and agree to abide by their responsibilities as specified under 47 CFR 2.909 and KDB394321. e) in accordance with ISO17065, FCC KDB641163, FCC KDB610077, KDB394321 and RSP-100, the Applicant has read, understood, accepts and agrees to abide by the post market surveillance requirements. (1) the Applicant understands, accepts and agrees that a sample may be requested for surveillance testing. (2) the Applicant shall make provisions to always have a production sample available upon request by SGS, FCC and/or ISED. (3) the Applicant shall, upon request by SGS, at the Applicant’s expense, provide a production sample of the requested product to SGS, FCC and/or ISED as instructed. The sample shall include all support devices, cables, software, accessories or other hardware or software required for evaluation, review, certification and audit surveillance of products certified by SGS. f) neither the Applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance. See 47CFR 1.2002(b) for the definition of a “party” for these purposes. g) the Applicant has read, understood, accepts and agrees to abide by the SGS North America, Inc.(TCB) terms and conditions. Link to CFRs: https://www.fcc.gov/wireless/bureau-divisions/technologies-systems-and-innovation-division/rules-regulations-title-47 Link to KDBs: https://apps.fcc.gov/oetcf/kdb/index.cfm Link to RSP-100: https://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf01130.html a Applicant Signature: Date: 16-FEB-2021 Print Name: Yohan, kim Title: General Manager *NOTE: This declaration cannot be signed by an Agent, it shall be signed by an authorized person listed in the FCC database

FCC Confidentiality Request Letter February 15, 2021 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE : Request of Confidentiality for FCC ID : WA2ST730P To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Suntech International Ltd. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give Suntech International Ltd. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL LIST Permanent 1 Block Diagram 2 Operational Descriptions 3 Schematics 4 Tune-up Procedure Short-Term 5 External Photos 6 Internal Photos 7 Test-Setup Photos 8 User’s Manual FCC Confidentiality Request Letter The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely yours, (Sign) Name/Title : Yohan Kim Company Name : Suntech International Ltd.

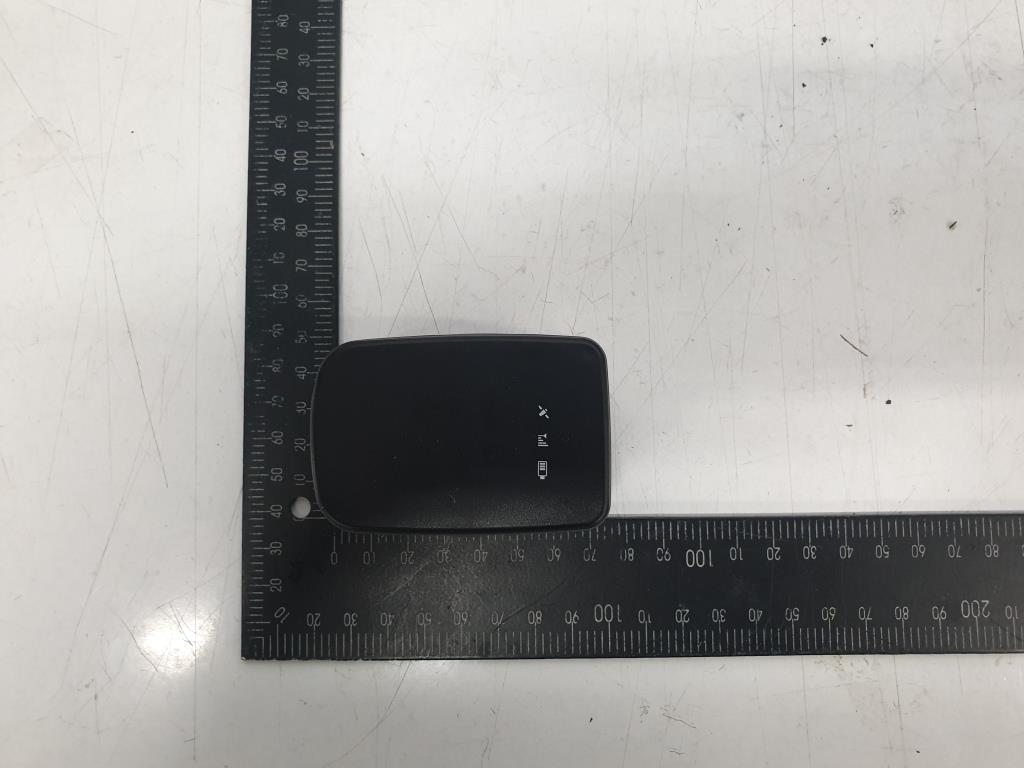

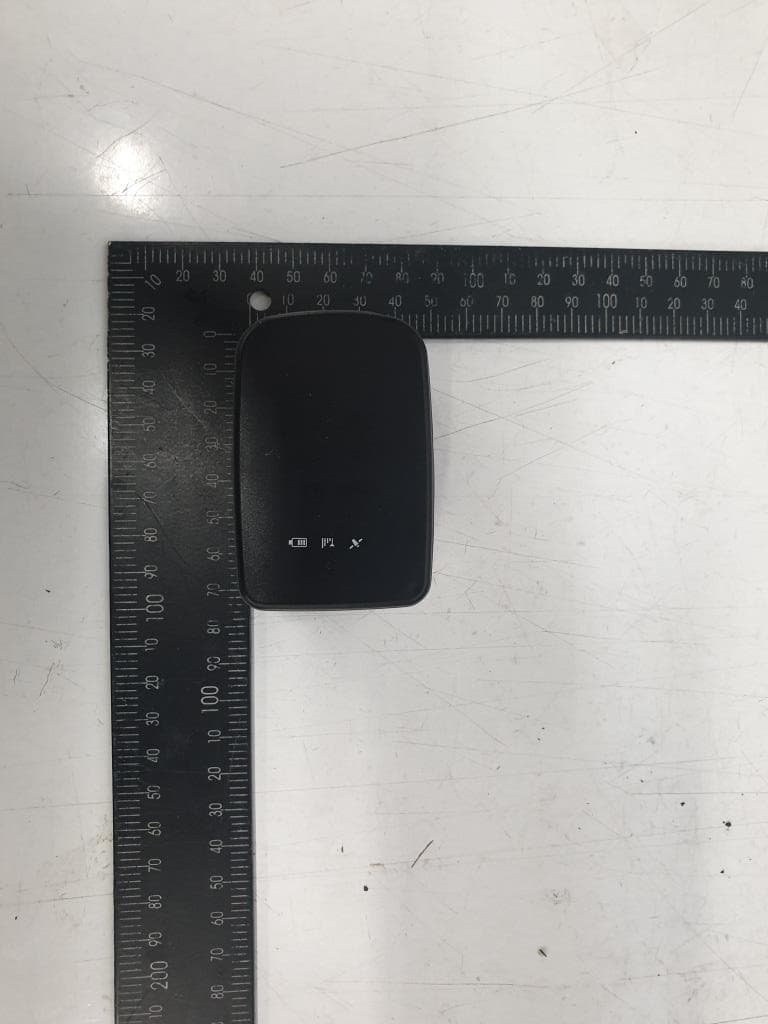

External photos of EUT Top view of EUT Bottom view of EUT Side view of EUT

IP67 25 mm 8mm

Internal photos of EUT Internal view of EUT Top view of Main PCB Bottom view of Main PCB View of Antenna & Module PCB Antenna RFID Module Sigfox Module

SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL001672 Page: 2 of 5 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) INDEX Table of Contents Page 1. General Information -------------------------------------------------------------------------------- 3 2. RF Exposure Evaluation -------------------------------------------------------------------------- 4 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL001672 Page: 3 of 5 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - 10-2, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 - 4, LS-ro 182beon-gil , Gunpo-si, Gyeonggi-do, Korea, 15807 - Designation number: KR0150 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx. Telephone : +82 31 688 0901 FAX : +82 31 688 0921 1.2. Details of Applicant Applicant : Suntech International Ltd. Address : A-1705, 1706, Greatvalley, 32, Digital-ro 9-gil, Geumcheon-gu, Seoul, South Korea, 08512 Contact Person : K i m , Yo-han Phone No. : +82 02 6327 5690 1.3. Details of Manufacturer Company : Same as applicant Address : Same as applicant 1.4. Description of EUT Kind of Product Tracking Device Model Name ST730P Power Supply DC 3.6 V Frequency Range 902.137 5 ㎒ ~ 904.662 5 ㎒ (Sigfox) 915 ㎒ (LoRa) Modulation Technique DPBSK, CSS Number of Channels 54 channels (Sigfox) 1 channel (LoRa) Antenna Type PCB antenna Antenna Gain 1.48 ㏈i H/W Version 02 S/W Version 300T19 1.5. Test Report Revision Revision Report Number Date of Issue Description 0 F690501-RF-RTL001672 2021.02.10 Initial SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL001672 Page: 4 of 5 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) 2. RF Exposure Evaluation 2.1. Environmental evaluation and exposure limit according to FCC CFR 47 part 1, 1.1307(b), 1.1310 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) 2.1.1. Friis transmission formula: Pd = (Pout*G)/(4*pi*R 2 ) Where Pd = power density in ㎽/㎠ Pout = output power to antenna in ㎽ G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in ㎝ Pd the limit of MPE, 1 ㎽/㎠. If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. Frequency Range (㎒) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (㎽/㎠) Average Time (A) Limits for Occupational/Controlled Exposure 0.3-3.0 614 1.63 *100 6 3.0-30 1842/f 4.89/f *900/f 2 6 30-300 61.4 0.163 1.0 6 300-1 500 - - f/300 6 1 500-100 000 - - 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *100 30 1.34-30 824/f 2.19/f *180/f 2 30 30-300 27.5 0.073 0.2 30 300-1 500 - - f/1500 30 1 500-100 000 - - 1.0 30 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL001672 Page: 5 of 5 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) 2.1.2. Test Result of RF Exposure Evaluation Test Item ： RF Exposure Evaluation Data Test Mode ： Normal Operation 2.1.3. Output Power into Antenna & RF Exposure Evaluation Distance Sigfox - Maximum tune up tolerance Frequency Range (㎒) Output Average Power to Antenna (㏈m) Antenna Gain (㏈i) Power Density at 20㎝ (㎽/㎠) Limits (㎽/㎠) 902.137 5 ~ 904.662 5 21 1.48 0.035 215 0.60 LoRa - Maximum tune up tolerance Frequency (㎒) Output Average Power to Antenna (㏈m) Antenna Gain (㏈i) Power Density at 20㎝ (㎽/㎠) Limits (㎽/㎠) 915 10 1.48 0.002 797 0.61 Note; - The power density Pd (5th column) at a distance of 20 ㎝ calculated from the friis transmission formula is far below the limit of 1 ㎽/㎠. - This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. - This equipment should be installed and operated with minimum 20 ㎝ between the radiator and your body. - The antenna gain of this transmitter is less than 6㏈ i and must not be collocated or operating in conjunction with any other antenna or transmitter unless authorized to do so by the FCC. - According to KDB 447498 D01 RF Exposure Guidance 4.1. - The Sigfox and LoRa mode do not transmit simultaneously. - End of the Test Report -

SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL001670 Page: 2 of 39 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) INDEX Table of Contents Page 1. General Information --------------------------------------------------------------------------------- 3 2. Transmitter Radiated Spurious Emissions and Conducted Spurious Emission ----- 7 3. 20 ㏈ Bandwidth & 99 % Bandwidth ----------------------------------------------------------- 25 4. Maximum Peak Conducted Output Power ---------------------------------------------------- 30 5. Carrier Frequency Separation ------------------------------------------------ -------------------- 33 6. Number of Hopping Frequencies ---------------------------------------------------------------- 35 7. Time of Occupancy(Dwell Time) ----------------------------------------------------------------- 37 8. Antenna Requirement ------------------------------------------------------------------------------ 39 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL001670 Page: 3 of 39 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - 10-2, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 - 4, LS-ro 182beon-gil , Gunpo-si, Gyeonggi-do, Korea, 15807 - Designation number: KR0150 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx. Phone No. : +82 31 688 0901 Fax No. : +82 31 688 0921 1.2. Details of Applicant Applicant : Suntech International Ltd. Address : A-1705, 1706, Greatvalley, 32, Digital-ro 9-gil, Geumcheon-gu, Seoul, South Korea, 08512 Contact Person : K i m , Yo-han Phone No. : +82 2 6327 5661 1.3. Details of Manufacturer Company : Same as applicant Address : Same as applicant 1.4. Description of EUT Kind of Product Tracking Device Model Name ST730P Serial Number Conducted Sample: 7329999991 Radiated Sample: 7329999992 Power Supply DC 3.6 V Frequency Range 902.137 5 ㎒ ~ 904.662 5 ㎒ (Sigfox) Modulation Technique DBPSK Number of Channels 54 channels (Sigfox) Antenna Type PCB antenna Antenna Gain 1.48 ㏈i H/W Version 02 S/W Version 300T19 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL001670 Page: 4 of 39 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) 1.5. Test Equipment List Equipment Manufacturer Model S/N Cal. Date Cal. Interval Cal. Due Signal Generator R&S SMR40 100272 Ju n. 18, 2020 Annual Ju n. 18, 2021 Signal Generator R&S SMBV100A 255834 Ju n. 03, 2020 Annual Ju n. 03, 2021 Spectrum Analyzer R&S FSV30 103101 Jun. 01, 2020 Annual Jun. 01, 2021 Spectrum Analyzer Agilent N9030A MY53120526 Jan. 09, 2020 Annual Jan. 09, 2021 Attenuator AEROFLEX / INMET 40AH2W-10 40G-3 Ju n. 16, 2020 Annual Ju n. 16, 2021 High Pass Filter Wainwright Instrument GmbH WHKX1.5/15G-6SS 4 Jun. 11, 2020 Annual Jun. 11, 2021 Power Sensor R&S NRP-Z81 100748 Jun. 01, 2020 Annual Jun. 01, 2021 DC Power Supply R&S HMP2020 019922876 Apr. 27, 2020 Annual Apr. 27, 2021 Preamplifier H.P. 8447F 2944A03909 Aug. 06, 2020 Annual Aug. 06, 2021 Signal Conditioning Unit R&S SCU-18 10117 Jun. 10, 2020 Annual Jun. 10, 2021 Preamplifier MITEQ Inc. JS44-18004000-35-8P 1546891 May 08, 2020 Annual May 08, 2021 Loop Antenna Schwarzbeck Mess-Elektronik FMZB 1519 1519-039 Aug. 22, 2019 Biennial Aug. 22, 2021 Bilog Antenna Schwarzbeck Mess-Elektronik VULB 9163 396 Mar. 21, 2019 Biennial Mar. 21, 2021 Horn Antenna R&S HF906 100326 Feb. 14, 2020 Annual Feb. 14, 2021 Test Receiver R&S ESU26 100109 Feb. 18, 2020 Annual Feb. 18, 2021 Turn Table Innco systems GmbH DS 1200 S N/A N.C.R. N/A N.C.R. Controller Innco systems GmbH CONTROLLER CO3000-4P CO3000/963/383 30516/L N.C.R. N/A N.C.R. Antenna Mast Innco systems GmbH MA4640-XP-ET MA4640/536/383 30516/L N.C.R. N/A N.C.R. Anechoic Chamber SY Corporation L × W × H (9.6 m × 6.4 m × 6.6 m) N/A N.C.R. N/A N.C.R. Coaxial Cable RFONE SFX086-NMNM-5M (5 m) 20200324001 Aug. 10, 2020 Semi- annual Feb. 10, 2021 Coaxial Cable RFONE SFX086-NMNM-10M (10 m) 20200324001 Aug. 10, 2020 Semi- annual Feb. 10, 2021 Coaxial Cable Rosenberger LA1-C006-1500 131014 10/20 Aug. 21, 2020 Semi- annual Feb. 21, 2021 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL001670 Page: 5 of 39 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) 1.6. Summary of Test Results The EUT has been tested according to the following specifications: APPLIED STANDARD: FCC Part15 Subpart C, IC RSS-247 Issue 2 and RSS-Gen Issue 5 Section in FCC Section in IC Test Item(s) Result 15.205(a) 15.209 15.247(d) RSS-247 Issue 2 5.5 RSS-Gen Issue 5 8.9 Transmitter Radiated Spurious Emissions and Conducted Spurious Emission Complied 15.247(a)(1)(i) RSS-247 Issue 2 5.1(c) RSS-Gen Issue 5 6.7 20 ㏈ Bandwidth and 99 % Bandwidth Complied 15.247(a)(1)(i) 15.247(b)(2) RSS-247 Issue 2 5.1(c) 5.4(a) Maximum Peak Conducted Output Power Complied 15.247(a)(1)(i) RSS-247 Issue 2 5.1(c) Carrier Frequency Separation Complied 15.247(a)(1)(i) RSS-247 Issue 2 5.1(c) Number of Hopping Frequencies Complied 15.247(a)(1)(i) RSS-247 Issue 2 5.1(c) Time of Occupancy (Dwell Time) Complied 15.207 RSS-Gen Issue 5 8.8 AC Power Line Conducted Emission N/A 1) Note; 1) The AC power line test was not performed because the EUT use battery power for operation and which do not operate from the AC power lines. 1.7. Test Procedure(s) The measurement procedures described in the American National Standard of Procedure for Compliance Testing of unlicensed Wireless Devices (ANSI C63.…

Text truncated - open the document above for the full version.

Test setup photos of EUT 1. Orthogonal plane of EUT - The testing was set in the three orthogonal planes and measured for each position (X, Y, Z). X-axis Y-axis Z-axis 2. Photo of Radiated Spurious Emission Test (Below 1㎓) 3. Photo of Radiated Spurious Emission Test (Above 1㎓) 4. Photos of Conducted test
