WA6R23GSM/GPRS DUAL-BAND MOBILE PHONE

R23 User Manual Thank you for purchasing the R23 mobile phone Introduction Welcome to choose the R23 mobile phone. This user manual states the outstanding performance of the R23 mobile phone in detail. In addition to the basic call features, the R23 mobile phone and the system network also provide you with a variety of useful features and services to facilitate your work and leisure activities. The Company reserves the right to make any amendment on the technical specifications without any advance notice. Reading Statement for the Manual In manual, different typesetting styles are used to interpret different operating details, and the specific interpretation is as follows: Operation Description of Contents Example Showing contents Show with normal characters 0-9 General key All the keys except functional keys are shown by normal characters with frames 0-9 Functional key Functional key is shown with bold and frame OK Menu item Show in bold italics Settings Note: The picture shown in the manual are only used as function hint pictures which may be different from the ones shown in the mobile phone, and the ones in your mobile phone shall prevail. I CONTENT Introduction ............................................................................. I Security and performance..................................................... 1 1 Start Using .................................................................... 4 1.1 Battery .................................................................. 4 1.1.1 Uninstallation and installation of battery ...... 4 1.1.2 Charging the battery.................................... 5 1.1.3 Use of battery .............................................. 5 1.2 SIM card ............................................................... 6 1.2.1 Insertion of SIM card ................................... 6 1.2.2 Unlock the SIM card .................................... 7 1.3 Plug and unplug the Memory card ........................ 7 1.4 Plug and unplug the earphone.............................. 8 1.5 Status bar and content.......................................... 8 1.5.1 Keys ............................................................ 9 1.5.2 Text input and edit window........................ 12 2 Dial and answer the call............................................. 12 2.1 Making a call....................................................... 12 2.1.1 Direct dial .................................................. 12 2.1.2 Making a call from Phonebook .................. 13 2.1.3 Speed dial ................................................. 13 2.2 Answering a call.................................................. 13 2.2.1 Answering new call.................................... 13 2.2.2 Connecting two calls at the same time ...... 13 2.2.3 Conference call ......................................... 14 2.3 Emergency call ................................................... 14 3 Main menu structure .................................................. 15 4 Phonebook.................................................................. 15 5 Call Center .................................................................. 15 5.1 Call history .......................................................... 15 5.2 Call settings ........................................................ 16 5.2.1 SIM1/SIM2 call settings............................. 16 II 5.2.2 Advance settings ....................................... 16 6 Messaging................................................................... 16 7 Settings ....................................................................... 19 7.1 Dual SIM switch .................................................. 19 7.2 Dual SIM settings................................................ 19 7.3 User Profiles ....................................................... 19 7.4 Phone settings .................................................... 20 7.5 Network settings ................................................. 20 7.6 Security settings ................................................. 21 7.6.1 SIM1/SIM2 security ................................... 21 7.6.2 Phone security........................................... 21 7.6.3 Auto keypad lock ....................................... 21 7.6.4 Certificate manager ................................... 22 7.7 Restore factory settings ...................................... 22 8 Security ....................................................................... 22 8.1 Coffer .................................................................. 22 8.1.1 Coffer phonebook...................................... 22 8.1.2 Coffee message ........................................ 22 8.1.3 Coffer call log ............................................ 23 8.1.4 Change coffer Lock ................................... 23 8.1.5 Block Incoming Call................................... 23 8.1.6 Password Reminder .................................. 23 8.2 Calls & SMS firewall............................................ 23 8.3 Phone control...................................................... 24 8.4 Private security ................................................... 25 9 Applications................................................................ 26 10 Services.................................................................. 26 10.1 Internet service ................................................... 26 10.2 Chat .................................................................... 26 10.2.1 MSN .......................................................... 26 10.2.2 Yahoo........................................................ 27 10.2.3 Facebook .................................................. 27 III 10.2.4 Skype ........................................................ 27 10.2.5 Twitter ....................................................... 27 10.3 Connectivity ........................................................ 27 10.3.1 Bluetooth ...............................…

Text truncated - open the document above for the full version.

SYSTEM BLOCK DIAGRAM RF MODULE: RDA6232 CPU: MT6235B Transceiver: AD6548 Antenna LCD Module 0.3M camera T-flash Keypad FM Bluetooth Memory 26MHz CRYSTAL 32.768KHz CRYSTAL Ant. GSM850/1900 Ant. 2402-2480MHz

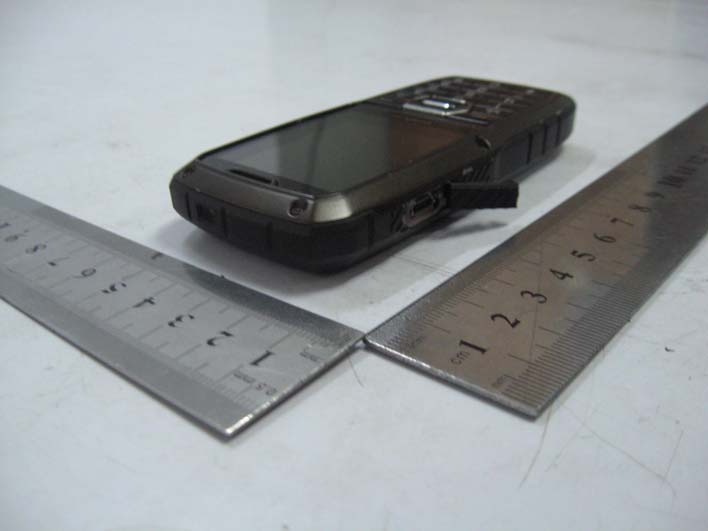

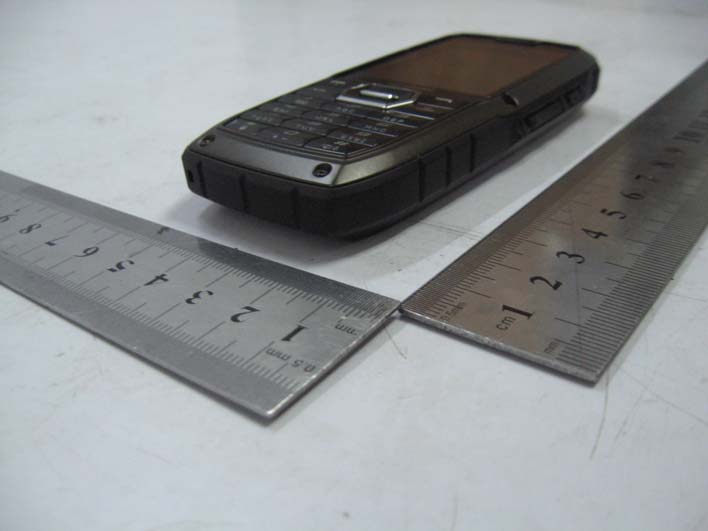

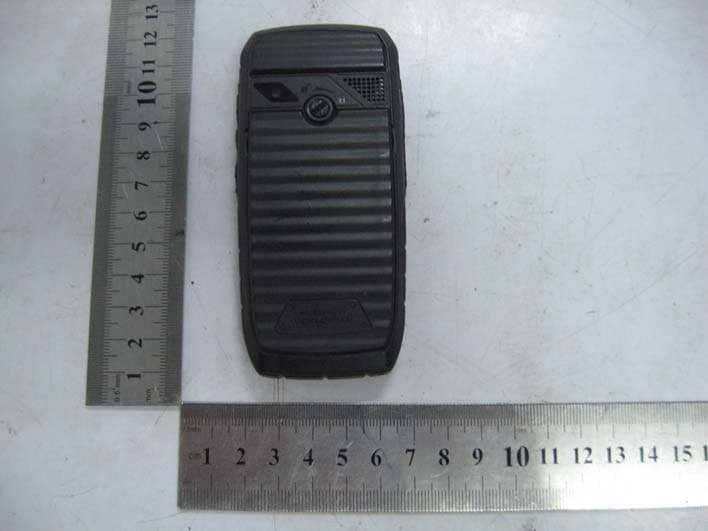

Verykool USA Inc Model: R23 REPORT NO.: STR11098019I-1 FCC PART 22H/24E EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 Verykool USA Inc Model: R23 REPORT NO.: STR11098019I-1 FCC PART 22H/24E EUT View 3 EUT View 4 Verykool USA Inc Model: R23 REPORT NO.: STR11098019I-1 FCC PART 22H/24E EUT View 5

Verykool USA Inc Model: R23 REPORT NO.: STR11098019I-1 FCC PART 22H/24E EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: WA6R23 Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

Verykool USA Inc Model: R23 REPORT NO.: STR11098019I-1 FCC PART 22H/24E EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: WA6R23 Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

Verykool USA Inc Model: R23 REPORT NO.: STR11098019I-1 FCC PART 22H/24E EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 EUT Housing and Board View 2 Verykool USA Inc Model: R23 REPORT NO.: STR11098019I-1 FCC PART 22H/24E Solder Board-Component View 1 Solder Board-Component View 2 Verykool USA Inc Model: R23 REPORT NO.: STR11098019I-1 FCC PART 22H/24E Solder Board-Component View 3 Solder Board-Component View 4

R23 Circuit Description 1 RF circuit 1.1 Main functions of RF circuit: The baseband modulate the uplink signal, and then transmit it on RF carrier by the antenna; Demodulate the received wireless signal transmitted by the base station by the receiving circuit then get the forward signal; at the same time, provide the steady en-control 26MHz frequency source. 1.2 Structure of RF circuit: We can divide it to 4 units according to the functions: Antenna unit, frequency synthesized unit, receiving unit, transmitting unit. 1.2.1 Antenna unit Antenna unit is composed by antenna groupware, antenna switch and FEM RDA6232. This antenna groupware is the transceiver of the wireless signal that is composed by inside antenna, and could fetch up the disadvantages such as the low efficiency and the poor radiance direction by the high performance match. This phone has the antenna switch and diplexer. The antenna switch is used as the auto-test mechanical switch, which is located at the RF channel and parallel connected to the antenna. When producing and testing, it is connected to the test cable. Diplexer is used to isolate the received and transmitted signals, which can reduce the interference. 1.2.2 Frequency-synthesized unit The AD6548 has a single fast-locking fractional synthesizer used for VCO control in both receive and transmit mode. The entire system including VCO, tank, fractional N dividers, sigma delta compensation, charge pump and loop filters are fully integrated. The only external component is the frequency reference. The synthesizer is controlled via the serial interface. The VCO is fed into the respective dividers to generate the appropriate LO frequencies for the RX and TX bands. Fractional N Dividers The fractional N divider allows the PLL system to have a smaller step size than the comparison frequency which is set by the external reference to 26 MHz. This feature allows all the GSM frequency band raster to be achieved, with fast lock times and good phase noise characteristics. The divider section consists of a dual modulus 8/9 prescaler, integer M & A dividers, and fractional N system based on sigma-delta modulation to generate the required fractional divide ratio. The Denominator of the fractional divider can be set to 3 different values, (1040, 1170, 1235), depending on the mode of operation. For example a denominator of 1040 with an input fraction F maintains an average value of F/1040 allowing 25 kHz steps when operated at a reference of 26 MHz. Phase Frequency Detector/Charge Pump A Phase Frequency Detector (PFD) is used for the PLL phase detector. The charge pump is designed such that good matching of up and down currents is achieved over a wide output operating range. The charge pump output is internally routed to the integrated synthesizer loop filter. Synthesizer Loop filter To minimize complexity of the external PCB layout the Main Synthesizer loop filter is also fully integrated into the IC. No external components or adjustments are required. Voltage Controlled Oscillator The integrated voltage controlled oscillator (VCO) is a complete self- calibrating subsystem. This employs a fully auto-mated digital self- calibration function to ensure optimum phase noise performance over the entire frequency range. The VCO generates frequencies between 2520MHz and 2985MHz as required to operate in the four GSM bands for RX and TX. Reference Oscillator The AD6548 requires only an external low cost crystal as the frequency reference. The circuitry to oscillate the crystal and tune its frequency is fully integrated. For good noise immunity the oscillator is a balanced implementation requiring the crystal to be connected across 2 pins. There is a programmable capacitor array included for coarse tuning of fixed offsets (e.g. crystal manufacturing tolerance), and an integrated varactor for dynamic control. The oscillator is designed for use with a 26MHz crystal. 1.3. Transmitting unit The transmit section of the AD6548 radio implements a translation loop modulator. This consists of a quadrature modulator, high speed phase- frequency detector (PFD) with charge pump output, loop filter, TX VCO and a feedback down converting mixer. The VCO output (divided by 2 for low band) is fed to the power amplifier with a portion internally fed back into the down-converting feedback mixer to close the feedback loop. The Quadrature modulator takes the baseband I & Q signals and translates these into a GMSK signal at the Transmit Inter-mediate Frequency (TX IF). After bandpass filtering and limiting the TX IF signal is used as the reference input to the Phase Frequency Detector (PFD) of the transmit PLL. Phase Frequency Detector (PFD) The PFD ensures that the transmitted signal contains the required modulation and is accurately locked to the desired GSM channel. The downconverted feedback signal from the TX VCO and the Quadrature Modulator output are phase compared by the PFD. The PFD charge pump generates a current pulse proportional to the difference in phase which is applied to the loop filter. Loop filter To minimize complexity of the external PCB layout the TX loop filter is fully integrated into the IC. At power up the filter is automatically calibrated as part of the baseband filter cal, eliminating process tolerances. The calibration is fully integrated and requires no extra programming. TX VCO The Transmit Voltage Controlled Oscillator (TX VCO) and tank components are a fully integrated subsystem. The subsystem includes PA drivers so the outputs are used to directly drive the external PAs. The low noise oscillator design and internal filtering mean that external TX SAW filters are not required. In Low band operation the TX VCO output is divided by two and filtered. The TX VCO is automatically calibrated to ensure optimum performance over its operating frequency of 1648 to 1910 MHz. Feedback Down-Converting Mixer The feedback down converting mixer is used to translate the TX VCO output frequency to …

Text truncated - open the document above for the full version.

1 A210040V000 MainBoard PCBA 2 P MR70026V200 MainBoard PCB 1 MR70026V200 Verykool 3 P 0600003A001 res 0 +/-5% 0402 1/16W R101 R102 R110 R114 R407R522 R523 R702 R704 R804R805 R910 C143 R1018R1025 R1026 R1027 R1028 18 RC0402JR-070RL YAGEO 4 P 0600003A030 res 15 +/-5% 0402 1/16W R706 1 RC0402JR-0715RL YAGEO 5 P 0600003A043 res 51 +/-5% 0402 1/16W R109 1 RC0402JR-0751RL YAGEO 6 P 0600003A048 res 82 +/-5% 0402 1/16W R112 R113 2 RC0402JR-0782RL YAGEO 7 P 0600003A050 res 100 +/-5% 0402 1/16W R507 R508 2 RC0402JR-07100RL YAGEO 8 P 0600003A074 res 1K +/-5% 0402 1/16W R103 R105 R106 R111 R403R503 R504 R506 R509 R511 10 RC0402JR-071KL YAGEO 9 P 0600003A078 res 1K5 +/-5% 0402 1/16W R501 R505 R510 3 RC0402JR-071K5L YAGEO 10 P 0600003A082 res 2K2 +/-5% 0402 1/16W R802 R803 2 RC0402JR-072K2L YAGEO 11 P 0600003A086 res 3K3 +/-5% 0402 1/16W R402 1 RC0402JR-073K3L YAGEO 12 P 0600003A090 res 4K7 +/-5% 0402 1/16W R703 R705 2 RC0402JR-074K7L YAGEO 13 P 0600003A095 res 7K5 +/-5% 0402 1/16W R401 1 RC0402JR-077K5L YAGEO 14 P 0600003A098 res 10K +/-5% 0402 1/16W R201 R104 R1019 R1020 4 RC0402JR-0710KL YAGEO 15 P 0600004A107 res 24K +/-1% 0402 1/16W R409 1 RC0402FR-0724KL YAGEO 16 P 0600003A108 res 27K +/-5% 0402 1/16W R107 1 RC0402JR-0727KL YAGEO 17 P 0600003A119 res 75K +/-5% 0402 1/16W R902 1 RC0402JR-0775KL YAGEO 18 P 0600003A122 res 100K +/-5% 0402 1/16W R205 R901 2 RC0402JR-07100KL YAGEO 19 P 0600004A122 res 100K +/-1% 0402 1/16W R410 1 RC0402FR-07100KL YAGEO 20 P 0600004A091 res 5K1 +/-1% 0402 1/16W R202 1 RC0402FR-075K1L YAGEO 21 P 0600005A036 res 27 +/-5% 0603 1/10W R408 1 RC0603JR-0727RL YAGEO 22 P 0600007A058 res 0.2 +/-1% 0805 1/8W R404 1 RL0805FR-070R2L YAGEO 23 P 0900035A001 Conn-BB s 24pin 0.4pitch H0.9 CONN703 1 DF30FC-24DS-0.4V(81) Hirose 24 P 0900064A001 conn-switch 0.2mm 4.5×2.3×1.7 S701 S702 S703 3 LS10N2-T Citizen 25 P 0900630A001 5 pin micro usb H=2.5 CONN902 1 WKUBI011-011 JTCONN 26 P 0900556A001 6 pin conn-SIM holder wing H1.9 CONN402 CONN403 2 WKSM005-1901 JTCONN 27 P 0900498A001 Conn T-flash flip H1.93 CONN901 1 WKTFH010-S01 JTCONN 28 P 2100005A005 Cap Ceramic 0402 1pF +/-0.1pF 50V C0G C106 C814 C104 3 CL05C010BB5NNNC Samsung 29 P 2100005A020 Cap Ceramic 0402 2.2pF +/-0.1pF 50V C0G C127 1 CL05C2R2BB5NNNC Samsung 2nd source P/N Part No. Description Ref No. QTY Main Board BOM (Model: R23) Item Purchase Level 2nd source Supplier Remark Supplier P/N Supplier Name 2nd source P/N Part No. Description Ref No. QTY Main Board BOM (Model: R23) Item Purchase Level 2nd source Supplier Remark Supplier P/N Supplier Name 30 P 2100005A024 Cap Ceramic 0402 2.7pF +/-0.25pF 50V C0G C810 1 CL05C2R7CB5NNNC Samsung 31 P 2100005A029 Cap Ceramic 0402 3.9pF +/-0.25p 50V C0G C123 C124 C125 C126 4 CL05C3R9CB5NNNC Samsung 32 P 2100005A074 Cap,Ceramic,0402,47pF,+/-5%,50V,C0G C135 1 CL05C470JB5NNNC Samsung 33 P 2100005A041 Cap Ceramic 0402 6pF +/-0.1pF 50V C0G C111 1 CL05C060BB5NNNC Samsung 34 P 2100005A012 Cap,Ceramic,0402,1.5pF,+/-0.25pF,50V,C0G C119 C120 C121 C122 4 CL05C1R5CB5NNNC Samsung 35 P 2100005A068 Cap Ceramic 0402 22pF +/-5% 50V C0G C108 C109 C110 C136 C137C138 C139 C140 C117 9 CL05C220JB5NNNC Samsung 36 P 2100005A069 Cap Ceramic 0402 24pF +/-5% 50V C0G C808 1 CL05C240JB5NNNC Samsung 37 P 2100005A070 Cap Ceramic 0402 27pF +/-5% 50V C0G C411 C412 2 CL05C270JB5NNNC Samsung 38 P 2100005A072 Cap Ceramic 0402 39pF +/-5% 50V C0G C507 C522 C523 3 CL05C390JB5NNNC Samsung 39 P 2100005A079 Cap Ceramic 0402 100pF +/-5% 50V C0G C113 C804 2 CL05C101JB5NNNC Samsung 40 P 2100005A085 Cap Ceramic 0402 220pF +/-5% 50V C0G C107 1 CL05C221JB5NNNC Samsung 41 P 2100006A023 Cap Ceramic 0402 1000pF +/-10% 50V X7R C112 C520 C521 3 CL05B102KB5NNNC Samsung 42 P 2100006A039 Cap Ceramic 0402 0.022uF +/-10% 16V X7R C809 C813 2 CL05B223KO5NNNC Samsung 43 P 2100006A052 Cap Ceramic 0402 0.1uF +/-10% 16V X5R C129 C131 C301 C403 C405C406 C407 C408 C501 C502C508 C509 C803 C806C1028 15 CL05B104KO5NNNC Samsung 44 P 2100006A061 Cap Ceramic 0402 1uF +/-10% 6.3V X5R C128 C130 C201 C202 C409C410 C416 C419 C420 C421C422 C424 C425 C426 C427C428 C429 C430 C431 C703C801 C811 C812 C902 24 CL05A105KQ5NNNC Samsung 45 P 2100006A058 Cap,Ceramic,0402,0.47uF,+/-10%,6.3V,X5R C1029 1 CL05A474KQ5NNNC Samsung 46 P 2100010A072 Cap Ceramic 0603 2.2uF +/-10% 6.3V X5R C901 1 CL10A225KQ8NNNC Samsung 47 P 2100010A076 Cap Ceramic 0603 4.7uF +/-10% 6.3V X5R C401 C415 C418 C423 C504C513 C805 7 CL10A475KQ8NNNC Samsung 48 P 2100015A029 Cap Ceramic 0805 22uF +/-20% 6.3V X5R C114 C514 C515 3 CL21A226MQQNNNE Samsung 49 P 2100010A071 Cap Ceramic 0603 1uF +/-10% 25V X5R C404 C802 2 CL10A105KA8NNNC Samsung 2nd source P/N Part No. Description Ref No. QTY Main Board BOM (Model: R23) Item Purchase Level 2nd source Supplier Remark Supplier P/N Supplier Name 50 P 2400002A133 ind 1.5n +/-0.3n 0402 L102 L104 2 SDCL1005C1N5STDF Sunlord 51 P 2400002V003 ind 2.4n +/-0.3n 0402 L804 1 SDCL1005C2N4STDF Sunlord 52 P 2400002A061 ind 3.0n +/-0.3n 0402 L802 1 SDCL1005C3N0STDF Sunlord 53 P 2400002A142 ind,3.6n,+/-0.3n,0402 L114 1 SDCL1005C3N6STF Sunlord 54 P 2400002A064 ind 4.7n +/-0.3n 0402 L111 L113 2 SDCL1005C4N7STDF Sunlord 55 P 2400002A068 ind 8.2n +/-5% 0402 C144 C141 2 SDCL1005C8N2JTDF Sunlord 56 P 2400002A074 ind,22n,+/-5%,0402 L107 L109 2 SDCL1005C22NJTDF Sunlord 57 P 2400002A082 ind 100n +/-5% 0402 L803 1 SDCL1005CR10JTDF Sunlord 58 P 4800085A001 Diode zener Vzmin=6.65V Vzmax=6.93VIz=5mA D701 D702 D703 D704 D705D706 D707 D708 8 VDZT2R6.8B ROHM 59 P 4700001V001 EMI Bead ， 1channel ， 600 Ω at 100MHz ， 500m A ， 0603 R904 1 PZ1608D601-R50TF Sunlord 60 P 2400007A109 Ind power 4.7uH+/-20%. ， 2*1.6*1mm 300mA DCR0.8ohm L405 1 SQC201609T-4R7M-NS Chilisin 61 P 4700023A001 EMI Bead ， 1channel ， 1K Ω at 100MHz ， 100m A ， 0603 L901 L902 L903 3 BLM18HD102SN1D Murata HZ1608K102TDF Sunlord 62 P 4700028A001 EMI Bead ， 1channel ， 60 ohm at 100MHz ， 200mA ， 0402 L103 L201 L202 L401 L402L503 L504 L505 L506 R512R513 R515 R514 13 SZ1005G600T(f) Sunlord 63 P 4800030A001 Crystal 32.768KHz +/-20ppm 12.5pF7.0*1…

Text truncated - open the document above for the full version.

Tune up procedure Tune up procedure shall be over the power range or at specific operating power levels. 1. It must provide an operational voltage (3.4 ~ 4.2V DC) to turn on the device and on one certain channel in service mode by means of company proprietary software. 2. Base station simulator (Agilent 8960) measures the GSM device specific RF characteristics. 3. The maximum gains of each individual device are adjusted until the target value met. z For GSM 850 band： PCL = 5, PWR = 30 - 33dBm z For PCS 1900 band： PCL = 5, PWR = 27 - 30dBm z For BLUETOOTH PWR = 0dBm± 4dBm Then these appropriate gain settings are stored in each device individually. The user has no possibility to change these settings later on, and during manufacturing each device will be individual calibrated. The measurement is done in fully calibrated setup, which is based on a Agilent 8960 base station simulator. Furthermore, the highest power level is verified afterwards in a call measurement on three channels (low, middle and high).

R23_Mainborad_SCH_0629.sch-1 - Wed Jun 29 10:04:41 2011 R23_Mainborad_SCH_0629.sch-2 - Wed Jun 29 10:04:43 2011 R23_Mainborad_SCH_0629.sch-3 - Wed Jun 29 10:04:44 2011 R23_Mainborad_SCH_0629.sch-4 - Wed Jun 29 10:04:44 2011 R23_Mainborad_SCH_0629.sch-5 - Wed Jun 29 10:04:45 2011 R23_Mainborad_SCH_0629.sch-6 - Wed Jun 29 10:04:45 2011 R23_Mainborad_SCH_0629.sch-7 - Wed Jun 29 10:04:45 2011 R23_Mainborad_SCH_0629.sch-8 - Wed Jun 29 10:04:46 2011 R23_Mainborad_SCH_0629.sch-9 - Wed Jun 29 10:04:46 2011

Verykool USA Inc Model: R23 REPORT NO.: STR11098019I-3 PAGE 1 OF 15 FCC PART 15B FCC PART 15B MEASUREMENT AND TEST REPORT FOR Verykool USA Inc 4350 Executive Dr. #100, San Diego FCC ID: WA6R23 Report Concerns: Original Report Equipment Type: GSM/GPRS Dual-band Mobile Phone Model: R23 Report No.: STR11098019I-3 Test Date: 2011-09-02 to 2011-09-08 Issue Date: 2011-09-22 Tested By: Jason Chen / Engineer Reviewed By: Lahm Peng / EMC Manager Approved & Authorized By: Jandy so / PSQ Manager Prepared By: SEM.Test Compliance Service Co., Ltd 3/F, Jinbao Commerce Building, Xin'an Fanshen Road, Bao'an District, Shenzhen, P.R.C.（518101） Tel.: +86-755-33663308 Fax.: +86-755-33663309 Website: www.semtest.com.cn Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by SEM.Test Compliance Service Co., Ltd . Verykool USA Inc Model: R23 REPORT NO.: STR11098019I-3 PAGE 2 OF 15 FCC PART 15B TABLE OF CONTENTS 1. GENERAL INFORMATION ...................................................................................................................................3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)...............................................................................3 1.2 TEST STANDARDS...................................................................................................................................................3 1.3 TEST METHODOLOGY.............................................................................................................................................3 1.4 TEST FACILITY.......................................................................................................................................................4 1.5 EUT EXERCISE SOFTWARE....................................................................................................................................4 1.6 ACCESSORIES EQUIPMENT LIST AND DETAILS.......................................................................................................4 1.7 EUT CABLE LIST AND DETAILS.............................................................................................................................4 2. SUMMARY OF TEST RESULTS ...........................................................................................................................5 3. §15.107 (A)- CONDUCTED EMISSION .................................................................................................................6 3.1 MEASUREMENT UNCERTAINTY..............................................................................................................................6 3.2 TEST EQUIPMENT LIST AND DETAILS.....................................................................................................................6 3.3 TEST PROCEDURE...................................................................................................................................................6 3.4 BASIC TEST SETUP BLOCK DIAGRAM.....................................................................................................................6 3.5 ENVIRONMENTAL CONDITIONS..............................................................................................................................7 3.6 TEST RECEIVER SETUP...........................................................................................................................................7 3.7 SUMMARY OF TEST RESULTS/PLOTS......................................................................................................................7 3.8 CONDUCTED EMISSIONS TEST DATA......................................................................................................................7 4. §15.109(A)- RADIATED EMISSION ....................................................................................................................10 4.1 MEASUREMENT UNCERTAINTY............................................................................................................................10 4.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................10 4.3 TEST PROCEDURE.................................................................................................................................................10 4.4 CORRECTED AMPLITUDE & MARGIN CALCULATION............................................................................................11 4.5 ENVIRONMENTAL CONDITIONS............................................................................................................................11 4.6 SUMMARY OF TEST RESULTS/PLOTS....................................................................................................................11 Verykool USA Inc Model: R23 REPORT NO.: STR11098019I-3 PAGE 3 OF 15 FCC PART 15B 1. GENERAL INFORMATION 1.1 Product Description for Equipment Under Test (EUT) Client Information Applicant: Verykool USA Inc Address of applicant: 4350 Executive Dr. #100, San Diego Manufacturer: Verykool Wireless Technology Ltd. Address of manufacturer: Room 1701, Reward Building C, No.203, 2nd Section of Wangjing, Li Ze Zhong Yuan, ChaoYang District, Beijing, P.R. of China 100102 General Description of E.U.T Items Description EUT Description: GSM/GPRS Dual-band Mobile Phone Trade Name: verykool Model No.: R23 Rated Voltage: Battery DC 3.7V with Power adaptor Rated Current: 2A Battery: M/N: 553450AR; DC 3.7V/1050mAh Power Adapter: M/N: ASUCI-050050; Input: 100-240V ~ 50/60Hz, 0.3A For more information refer to the circuit diagram form and the user’s manual. The test data is gathered from a production sample, provided by the manufacturer. 1.2 Test Standards The following report is prepared on behalf of the Verykool USA Inc in accordance with Part 2, Subpart J, and Part 15, Subparts A and B of the Federal Communication Commissions rul…

Text truncated - open the document above for the full version.

Verykool USA Inc Model: R23 REPORT NO.: STR11098019I-3 FCC PART 15B EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Conducted Emission Test Setup View Radiation Emission Test Setup (30MHz to 1GHz) Test Mode: Charging Verykool USA Inc Model: R23 REPORT NO.: STR11098019I-3 FCC PART 15B Test Mode: Reading and Writing Radiation Emission Test Setup (9kHz to 30MHz) Test Mode: Charging Verykool USA Inc Model: R23 REPORT NO.: STR11098019I-3 FCC PART 15B Test Mode: Reading and Writing
