R623 User Manual Thank you for purchasing the R623 mobile phone Introduction Welcome to choose the R623 mobile phone. This user manual states the outstanding performance of the R623 mobile phone in detail. In addition to the basic call features, the R623 mobile phone and the system network also provide you with a variety of useful features and services to facilitate your work and leisure activities. The Company reserves the right to make any amendment on the technical specifications without any advance notice. Reading Statement for the Manual In manual, different typesetting styles are used to interpret different operating details, and the specific interpretation is as follows: OperationDescription of Contents Example Showing contents Show with normal characters 0-9 General key All the keys except functional keys are shown by normal characters with frames 0-9 Functional key Functional key is shown with bold and frame OK Menu item Show in bold italics Edit Note: The pictures shown in the manual are only used as function hint which may be different from the phone, and the ones in your phone shall prevail. I CONTENT INTRODUCTION.............................................................................. II SECURITY AND PERFORMANCE ................................................. 1 1 START USING.......................................................................... 3 1.1 B ATTERY............................................................................. 3 1.2 SIM CARD............................................................................ 3 1.3 P LUG THE MEMORY CARD..................................................... 4 1.4 P LUG THE EARPHONE........................................................... 4 1.5 S TATUS BAR AND CONTENT................................................... 4 1.5.1 Keys ........................................................................... 5 1.5.2 Text input and edit window ........................................ 6 2 DIAL AND ANSWER THE CALL............................................. 6 2.1 D IALING A CALL.................................................................... 7 2.2 A NSWERING A CALL.............................................................. 7 2.3 E MERGENCY CALL................................................................ 8 3 MENU OPERATION ................................................................. 8 4 APPLICATIONS ....................................................................... 8 5 PHONEBOOK .......................................................................... 8 6 CALL CENTER......................................................................... 8 6.1 C ALL HISTORY...................................................................... 8 6.2 C ALL SETTINGS.................................................................... 9 6.2.1 SIM1/SIM2 call settings ............................................. 9 6.2.2 Advanced settings...................................................... 9 7 CONNECTIVITY ....................................................................... 9 8 SNS......................................................................................... 10 9 MESSAGING .......................................................................... 10 10 SERVICES .............................................................................. 11 11 FILE MANAGER..................................................................... 11 12 ORGANIZER .......................................................................... 11 13 MULTIMEDIA ......................................................................... 12 14 SETTINGS .............................................................................. 13 14.1 U SER PROFILES................................................................. 13 14.2 N ETWORK SETTINGS........................................................... 13 14.3 S ECURITY SETTINGS........................................................... 13 14.4 R ESTORE FACTORY SETTINGS............................................. 14 15 CAMCORDER ........................................................................ 14 16 OTHER FUNCTIONS ............................................................. 15 II 17 COMMON QUESTIONS......................................................... 15 18 MAINTENANCE GUIDELINE................................................. 16 1 Security and performance ◆In thunder raining days, please do not use the mobile phone when charge it or outdoor, so as to avoid being struck by thunder or other injuries. ◆Please do not put the battery in high-temperature environment (high temperature will lead to heat of the battery upgrading), and keep the phone being charged and the charger away from people or other flammable and explosive articles in order to avoid fire, explosion or other dangers! ◆Please strictly adhered to the rules and do shut down the mobile phone on occasions which use of mobile phone is prohibited! ◆Please do not arbitrarily refit or teardown the phone and accessories. Only the authorized organizations can repair the phone. ◆Please do not use batteries, charger or accessories of non-standard original models. ◆Please do not join the two poles of the battery, so as not to result in battery short-circuit. ◆Please do not use the mobile phone when driving. In case of emergency, please use hand-free devices (which may be bought separately). ◆Please do not put the phone on car insurance airbag or region reachable by the airbag after spreading. Otherwise when the airbag expands or ruptures, the mobile phone is likely to cause serious damage to the people in the car due to strong external force. ◆In order to comply with provisions of RF leakage, when you wear a phone or use the data functions, please maintain the distance between the antenna and the body at least 1 inch (2.5 cms). ◆Do not use chemical lotion, scrubbing cleanser to wipe the mobile phone or the charger, otherwise it may d…

Text truncated - open the document above for the full version.

SYSTEM BLOCK DIAGRAM RF MODULE: SKY77568 CPU: MT6250A LCD Module 0.3M camera T-flash Keypad Memory 26MHz CRYSTAL 32.768KHz CRYSTAL SIM MT5931A/ WIFI BT 2402-2480MHz GSM850/1900 Wi-Fi 2412-2462MHz

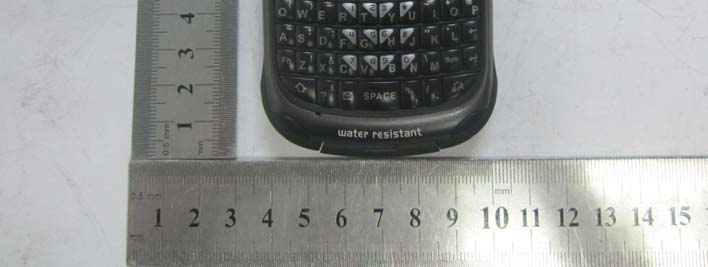

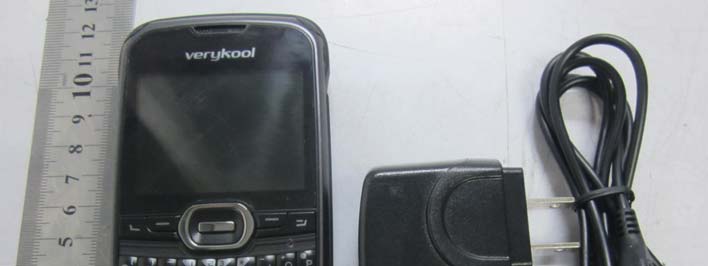

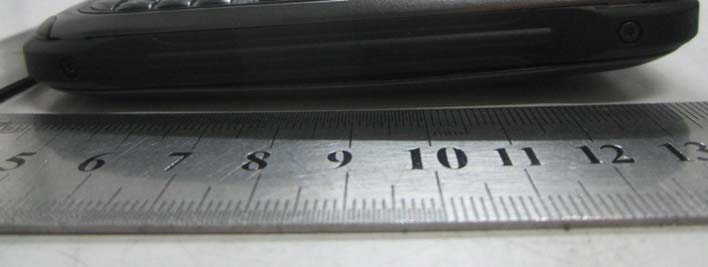

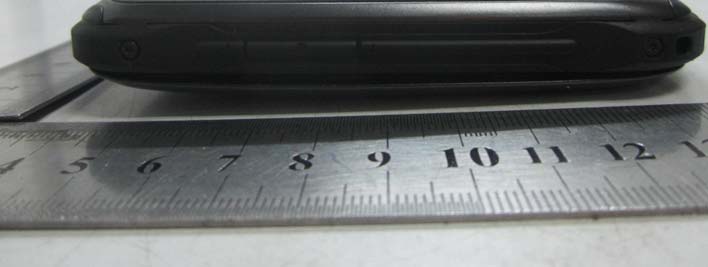

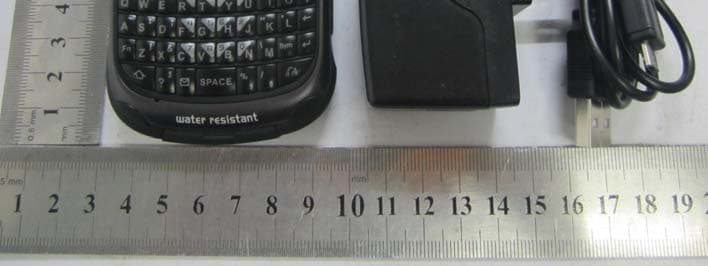

Verykool USA Inc Model: R623 REPORT NO.: STR12098307I-1 FCC PART 22H&24E EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 Verykool USA Inc Model: R623 REPORT NO.: STR12098307I-1 FCC PART 22H&24E EUT View 3 EUT View 4 Verykool USA Inc Model: R623 REPORT NO.: STR12098307I-1 FCC PART 22H&24E EUT View 5 EUT View 6 Verykool USA Inc Model: R623 REPORT NO.: STR12098307I-1 FCC PART 22H&24E EUT View 7

Verykool USA Inc Model: R623 REPORT NO.: STR12098307I-1 FCC PART 22H&24E EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: WA6R623 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. FCC ID Label Location

Verykool USA Inc Model: R623 REPORT NO.: STR12098307I-1 FCC PART 22H&24E EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: WA6R623 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. FCC ID Label Location

Verykool USA Inc Model: R623 REPORT NO.: STR12098307I-1 FCC PART 22H&24E EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 EUT Housing and Board View 2 Verykool USA Inc Model: R623 REPORT NO.: STR12098307I-1 FCC PART 22H&24E EUT Housing and Board View 3 Solder Board-Component View 1 Verykool USA Inc Model: R623 REPORT NO.: STR12098307I-1 FCC PART 22H&24E Solder Board-Component View 2 Solder Board-Component View 3 Verykool USA Inc Model: R623 REPORT NO.: STR12098307I-1 FCC PART 22H&24E Solder Board-Component View 4 Antenna View Ant. GSM850/1900 BT Ant. 2402～2480MHz WIFI Ant. 2412～2462MHz

Circuit Description 1 RF circuit 1.1 Main functions of RF circuit: The baseband modulate the uplink signal, and then transmit it on RF carrier by the antenna; Demodulate the received wireless signal transmitted by the base station by the receiving circuit then get the forward signal; at the same time, provide the steady en-control 26MHz frequency source. 1.2 Structure of RF circuit: We can divide it to 4 units according to the functions: Antenna unit, frequency synthesized unit, receiving unit, transmitting unit. 1.2.1 Antenna unit Antenna unit is composed by antenna groupware, antenna switch and FEM SKY77568. This antenna groupware is the transceiver of the wireless signal that is composed by inside antenna, and could fetch up the disadvantages such as the low efficiency and the poor radiance direction by the high performance match. This phone has the antenna switch and diplexer. The antenna switch is used as the auto-test mechanical switch, which is located at the RF channel and parallel connected to the antenna. When producing and testing, it is connected to the test cable. Diplexer is used to isolate the received and transmitted signals, which can reduce the interference. 1.2.2 Frequency-synthesized unit The MT6250A has a single fast-locking fractional synthesizer used for VCO control in both receive and transmit mode. The entire system including VCO, tank, fractional N dividers, sigma delta compensation, charge pump and loop filters are fully integrated. The only external component is the frequency reference. The synthesizer is controlled via the serial interface. The VCO is fed into the respective dividers to generate the appropriate LO frequencies for the RX and TX bands. Fractional N Dividers The fractional N divider allows the PLL system to have a smaller step size than the comparison frequency which is set by the external reference to 26 MHz. This feature allows all the GSM frequency band raster to be achieved, with fast lock times and good phase noise characteristics. The divider section consists of a dual modulus 8/9 prescaler, integer M & A dividers, and fractional N system based on sigma-delta modulation to generate the required fractional divide ratio. The Denominator of the fractional divider can be set to 3 different values, (1040, 1170, 1235), depending on the mode of operation. For example a denominator of 1040 with an input fraction F maintains an average value of F/1040 allowing 25 kHz steps when operated at a reference of 26 MHz. Phase Frequency Detector/Charge Pump A Phase Frequency Detector (PFD) is used for the PLL phase detector. The charge pump is designed such that good matching of up and down currents is achieved over a wide output operating range. The charge pump output is internally routed to the integrated synthesizer loop filter. Synthesizer Loop filter To minimize complexity of the external PCB layout the Main Synthesizer loop filter is also fully integrated into the IC. No external components or adjustments are required. Voltage Controlled Oscillator The integrated voltage controlled oscillator (VCO) is a complete self- calibrating subsystem. This employs a fully auto-mated digital self- calibration function to ensure optimum phase noise performance over the entire frequency range. The VCO generates frequencies between 2520MHz and 2985MHz as required to operate in the four GSM bands for RX and TX. Reference Oscillator The MT6250A requires only an external low cost crystal as the frequency reference. The circuitry to oscillate the crystal and tune its frequency is fully integrated. For good noise immunity the oscillator is a balanced implementation requiring the crystal to be connected across 2 pins. There is a programmable capacitor array included for coarse tuning of fixed offsets (e.g. crystal manufacturing tolerance), and an integrated varactor for dynamic control. The oscillator is designed for use with a 26MHz crystal. 1.3. Transmitting unit The transmit section of the MT6250A radio implements a translation loop modulator. This consists of a quadrature modulator, high speed phase-frequency detector (PFD) with charge pump output, loop filter, TX VCO and a feedback down converting mixer. The VCO output (divided by 2 for low band) is fed to the power amplifier with a portion internally fed back into the down-converting feedback mixer to close the feedback loop. The Quadrature modulator takes the baseband I & Q signals and translates these into a GMSK signal at the Transmit Inter-mediate Frequency (TX IF). After bandpass filtering and limiting the TX IF signal is used as the reference input to the Phase Frequency Detector (PFD) of the transmit PLL. Phase Frequency Detector (PFD) The PFD ensures that the transmitted signal contains the required modulation and is accurately locked to the desired GSM channel. The downconverted feedback signal from the TX VCO and the Quadrature Modulator output are phase compared by the PFD. The PFD charge pump generates a current pulse proportional to the difference in phase which is applied to the loop filter. Loop filter To minimize complexity of the external PCB layout the TX loop filter is fully integrated into the IC. At power up the filter is automatically calibrated as part of the baseband filter cal, eliminating process tolerances. The calibration is fully integrated and requires no extra programming. TX VCO The Transmit Voltage Controlled Oscillator (TX VCO) and tank components are a fully integrated subsystem. The subsystem includes PA drivers so the outputs are used to directly drive the external PAs. The low noise oscillator design and internal filtering mean that external TX SAW filters are not required. In Low band operation the TX VCO output is divided by two and filtered. The TX VCO is automatically calibrated to ensure optimum performance over its operating frequency of 1648 to 1910 MHz. Feedback Down-Converting Mixer The feedback down converting mixer is used to translate the TX VCO output frequency to t…

Text truncated - open the document above for the full version.

1 A210127V010 MainBoard PCBA 1 2 MR70048V000 MainBoard PCB 1 MR70048V000 3 0600003A001 res,0,+/-5%,0402,1/16W R205 R206 R210 R211 R301R302 R305 R315 R331 R411R412 R420 R425 R426 R529R530 R531 R601 R611 R613R622 R650 R655 R657 C602 25 RC0402JR-070RL YAGEO 4 0600003A048 res,82,+/-5%,0402,1/16W R606 R607 2 RC0402JR-0782RL YAGEO 5 0600003A050 res,100,+/-5%,0402,1/16W R212 R213 R718 R719 4 RC0402JR-07100RL YAGEO 6 0600003A058 res 220 +/-5% 0402 1/16W R710 R711 R712 R715 R716R717 R721 R723 R724 R728R729 11 RC0402JR-07220RL YAGEO 7 0600003A074 res,1K,+/-5%,0402,1/16W R201 R204 R207 R209 R214R304 R314 R316 R603 R604 10 RC0402JR-071KL YAGEO 8 0600003A078 res,1K5,+/-5%,0402,1/16W R202 R203 R208 R307 4 RC0402JR-071K5L YAGEO 9 0600003A090 res,4K7,+/-5%,0402,1/16W R224 R513 R515 3 RC0402JR-074K7L YAGEO 10 0600003A095 res,7K5,+/-5%,0402,1/16W R313 1 RC0402JR-077K5L YAGEO 11 0600003A098 res,10K,+/-5%,0402,1/16W R422 R602 2 RC0402JR-0710KL YAGEO 12 0600003A102 res,15K,+/-5%,0402,1/16W R658 1 RC0402JR-0715KL YAGEO 13 0600003A105 res 20K +/-5% 0402 1/16W R222 1 RC0402JR-0720KL YAGEO 14 0600003A107 res,24K,+/-5%,0402,1/16W R605 1 RC0402JR-0724KL YAGEO 15 0600003A112 res,39K,+/-5%,0402,1/16W R312 1 RC0402JR-0739KL YAGEO 16 0600003A114 res,47K,+/-5%,0402,1/16W R111 R114 R501 R502 R504 5 RC0402JR-0747KL YAGEO 17 0600003A118 res 68K +/-5% 0402 1/16W R223 1 RC0402JR-0768KL YAGEO 18 0600003A122 res,100K,+/-5%,0402,1/16W R102 R416 R508 3 RC0402JR-07100KL YAGEO 19 0600003A134 res,330K,+/-5%,0402,1/16W R311 1 RC0402JR-07330KL YAGEO 20 0600003A145 res,910K,+/-5%,0402,1/16W R408 1 RC0402JR-07910KL YAGEO 21 0600004A198 res,49.9,+/-1%,0402,1/16W R415 1 RC0402FR-0749R9L YAGEO 22 0600005A001 res,0,+/-5%,0603,1/10W L511 L512 2 RC0603JR-070RL YAGEO 23 0600007A058 res, 0.2,+/-1%,0805,1/8W R317 1 RL0805FR-070R2L YAGEO 24 2100005A002 Cap,Ceramic,0402,0.5pF,+/-0.1pF,50V,C0G C658 L404 2 CL05C0R5BB5NNNC Sumsang 25 2100005V004 Cap,Ceramic,0402,1pF,+/-0.1pF,50V,C0G L606 1 CL05C010BB5NNNC Sumsang 26 2100005A015 Cap,Ceramic,0402,1.8pF,+/-0.1pF,50V,C0G C654 1 CL05C1R8BB5NNNC Sumsang 27 2100005A017 Cap,Ceramic,0402,2pF,+/-0.1pF,50V,C0G L602 1 CL05C020BB5NNNC Sumsang 28 2100005A020 Cap,Ceramic,0402,2.2pF,+/-0.1pF,50V,C0G C404 1 CL05C2R2BB5NNNC Sumsang 29 2100005A023 Cap,Ceramic,0402,2.4pF,+/-0.25pF,50V,C0G C657 1 CL05C2R4CB5NNNC Sumsang 2nd source Supplier Main Board BOM Item Part No. Description Ref No. QTY Supplier P/N Supplier Name 2nd source P/N 第 1 页，共 4 页 2nd source Supplier Main Board BOM Item Part No. Description Ref No. QTY Supplier P/N Supplier Name 2nd source P/N 30 2100005A041 Cap,Ceramic,0402,6pF,+/-0.1pF,50V,C0G C612 1 CL05C060CB5NNNC Sumsang 31 2100005A057 Cap,Ceramic,0402,10pF,+/-0.1pF,50V,C0G C401 C402 2 CL05C100CB5NNNC Sumsang 32 2100005A064 Cap,Ceramic,0402,15pF,+/-5%,50V,C0G C460 1 CL05C150CB5NNNC Sumsang 33 2100005A068 Cap,Ceramic,0402,22pF,+/-5%,50V,C0G C604 C609 C610 C611 C613C642 6 CL05C220JB5NNNC Sumsang 34 2100005A072 Cap,Ceramic,0402,39pF,+/-5%,50V,C0G C203 C205 C206 C210 C214C217 C218 C219 C220 C221C222 C223 C225 C241 C242C532 C534 C537 C641 19 CL05C390JB5NNNC Sumsang 35 2100005A079 Cap Ceramic 0402 100pF +/-5% 50VC0G C501 1 CL05C101JB5NNNC Sumsang 36 2100005A085 Cap,Ceramic,0402,220pF,+/-5%,50V,C0G C244 C608 2 CL05C221JB5NNNC Sumsang 37 2100005A087 Cap,Ceramic,0402,330pF,+/-5%,50V,C0G C332 1 CL05C331JB5NNNC Sumsang 38 2100005A120 Cap,Ceramic,0402,1000pF,+/-5%,50V,X7R C422 1 CL05B102JB5NNNC Sumsang 39 2100006A037 Cap Ceramic 0402 0.015uF +/-10% 16VX7R C240 1 CL05B153KO5NNNC Sumsang 40 2100006A052 Cap,Ceramic,0402,0.1uF,+/-10%,16V,X5R C104 C201 C202 C207 C208C243 C309 C337 C449 C450C451 C452 C455 C511 C545C542 C543 C614 C627 19 CL05B104KO5NNNC Sumsang 41 2100006A061 Cap,Ceramic,0402,1uF,+/-10%,6.3V,X5R C113 C302 C303 C306 C308C310 C311 C312 C313 C314C315 C316 C317 C318 C319C320 C335 C338 C504 C239C513 C514 C515 C524 C628C649 C650 C651 C405 C406C407 C410 C411 C454 C463 35 CL05A105KQ5NNNC Sumsang 42 2100007A021 Cap,Ceramic,0402,2.2uF,+/-20%,6.3V,X5R C103 C331 C333 C336 4 CL05A225MQ5NNNC Sumsang 43 2100010A071 Cap,Ceramic,0603,1uF,+/-10%,25V,X5R C322 C323 2 CL10A105KA8NNNC Sumsang 44 2100010A076 Cap,Ceramic,0603,4.7uF,+/-10%,6.3V,X5R C204 C213 C408 C409 C412C447 6 CL10A475KQ8NNNC Sumsang 45 2100015A029 Cap,Ceramic,0805,22uF,+/-20%,6.3V,X5R C215 C216 C307 3 CL21A226MQQNNNE Sumsang 46 2100014A046 Cap,Ceramic,0805,2.2uF,+/-20%,6.3V,X5R,T=0.95mm max C615 1 CL21A225KOCNNNC Sumsung CL21A225KPCLNNC Sumsung 第 2 页，共 4 页 2nd source Supplier Main Board BOM Item Part No. Description Ref No. QTY Supplier P/N Supplier Name 2nd source P/N 47 2400002V007 ind,1.1n,+/-0.3n,0402 L653 1 SDCL1005C1N1STDFM01 Sunlord 48 2400002A059 ind,2.2n,+/-0.3n,0402 L603 1 SDCL1005C2N2STDF Sunlord 49 2400002A011 ind,2.7n,+/-0.3n,0402 L652 C617 L401 3 SDCL1005C2N7STDF Sunlord 50 2400002A062 ind,3.3n,+/-0.3n,0402 L604 1 SDCL1005C3N3STDF Sunlord 51 2400002A020 ind,5.6n,+/-0.3n,0402 C624 C625 2 SDCL1005C5N6STDF Sunlord 52 2400002V005 ind,5.1n,+/-5%,0402 L616 1 SDCL1005C5N1JTDF Sunlord 53 2400002V001 ind,7.5n,+/-5%,0402 C616 1 SDCL1005C7N5JTDF Sunlord 54 2400002A036 ind,18n,+/-5%,0402 C620 C621 2 SDCL1005C18NJTDF Sunlord 55 2400006A025 ind,24n,+/-5%,0402 L612 1 SDCL1005C24NJTDF Sunlord 56 4700001V001 EMI Bead ， 1channel ， 600 Ω at 100MHz ， 500mA ， 0603 L510 1 PZ1608D601-R50TF Sunlord 57 4700070A001 EMI Bead ， 1channel ， 1.0K Ω at 100MHz ， 500mA ， 0603 L208 L209 L403 R215 R216L501 L502 L505 L513 9 HZ1608K102TDF Sunlord 58 2400007V004 Ind power 2.2uH +/-20% 2*1.2*1.0mm800mA DCR0.25ohm L402 1 MPL2012S2R2MHT Sunlord 59 4800085A001 Diode,zener,Vzmin=6.65V,Vzmax=6.93V,Iz=5mA D201 D202 2 VDZT2R6.8B Rohm 60 4800010V001 Diode,zener,Vzmin=4.85V,Vzmax=5.36V,Iz=5mA,SOD-123 D301 1 MMSZ5V1T1G Onsemi MMSZ5231B JCST 61 4800015V001 35 V, 5 A, Low VCE(sat) PNP Transistor D303 1 NSS35200MR6T1G ONsemi PT236T30E2 Prisemi 62 4800460A001 Diode, WhiteLED,5mA,2.65~3.15V,1.6*0.8*0.38(mm),0603 D702 D703 D704 D705 D706D710 D711 D713 D724 D725D726 D727 D728 13 LTW-C193SN5 Liteon 6…

Text truncated - open the document above for the full version.

R623_0928.sch-1 - Sat Sep 29 09:42:48 2012 R623_0928.sch-2 - Sat Sep 29 09:42:50 2012 R623_0928.sch-3 - Sat Sep 29 09:42:52 2012 R623_0928.sch-4 - Sat Sep 29 09:42:53 2012 R623_0928.sch-5 - Sat Sep 29 09:42:55 2012 R623_0928.sch-6 - Sat Sep 29 09:42:55 2012

Verykool USA Inc Model: R623 FCC Part 15B Measurement and Test Report For VeryKool USA Inc 3636 Nobel Drive, Suite 325, San Diego, CA 92122 USA FCC ID: WA6R623 Test Standards: FCC Part 15 Subpart B Product Description: GSM/GPRS Dual-band Mobile Phone Tested Model: R623 Report No.: STR12098307I-4 Tested Date: 2012-10-09 to 2012-10-29 Issued Date: 2012-10-29 Tested By: Seven Song / Engineer Reviewed By: Lahm Peng / EMC Manager Approved & Authorized By: Jandy so / PSQ Manager Prepared By: SEM.Test Compliance Service Co., Ltd 3/F, Jinbao Commerce Building, Xin'an Fanshen Road, Bao'an District, Shenzhen, P.R.C.（518101） Tel.: +86-755-33663308 Fax.: +86-755-33663309 Website: www.semtest.com.cn Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by SEM.Test Compliance Service Co., Ltd REPORT NO.: STR12098307I-4 PAGE 1 OF 18 FCC PART 15B Verykool USA Inc Model: R623 TABLE OF CONTENTS 1. GENERAL INFORMATION ...................................................................................................................................3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)...............................................................................3 1.2 TEST STANDARDS...................................................................................................................................................4 1.3 TEST METHODOLOGY.............................................................................................................................................4 1.4 TEST FACILITY.......................................................................................................................................................4 1.5 EUT SETUP AND OPERATION MODE......................................................................................................................5 2. SUMMARY OF TEST RESULTS ...........................................................................................................................6 3. CONDUCTED EMISSIONS ....................................................................................................................................7 3.1 MEASUREMENT UNCERTAINTY..............................................................................................................................7 3.2 TEST EQUIPMENT LIST AND DETAILS.....................................................................................................................7 3.3 TEST PROCEDURE...................................................................................................................................................7 3.4 BASIC TEST SETUP BLOCK DIAGRAM.....................................................................................................................7 3.5 ENVIRONMENTAL CONDITIONS..............................................................................................................................8 3.6 SUMMARY OF TEST RESULTS/PLOTS......................................................................................................................8 3.7 CONDUCTED EMISSIONS TEST DATA......................................................................................................................8 4. RADIATED EMISSIONS .......................................................................................................................................11 4.1 MEASUREMENT UNCERTAINTY............................................................................................................................11 4.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................11 4.3 TEST PROCEDURE.................................................................................................................................................11 4.4 TEST RECEIVER SETUP.........................................................................................................................................12 4.5 CORRECTED AMPLITUDE & MARGIN CALCULATION............................................................................................12 4.6 ENVIRONMENTAL CONDITIONS............................................................................................................................12 4.7 SUMMARY OF TEST RESULTS/PLOTS....................................................................................................................12 REPORT NO.: STR12098307I-4 PAGE 2 OF 18 FCC PART 15B Verykool USA Inc Model: R623 1. GENERAL INFORMATION 1.1 Product Description for Equipment Under Test (EUT) Client Information Applicant: VeryKool USA Inc Address of applicant: 3636 Nobel Drive, Suite 325, San Diego, CA 92122 USA Manufacturer: Verykool Wireless Technology Ltd. Address of manufacturer: Room 1701, Reward Building C, No.203, 2 nd Section of WangJing, Li Ze Zhong Yuan, ChaoYang District, Beijing, P.R. of China 100102 General Description of EUT Product Name: GSM/GPRS Dual-band Mobile Phone Trade Name: verykool Model No.: R623 Rated Voltage: DC 3.7V Li-ion Battery Power Adapter Model: CYSK05-050050 (Input: AC 100-240V, Output: DC 5V) Note: The test data is gathered from a production sample, provided by the manufacturer. Technical Characteristics of EUT Highest Internal Frequency: 26MHz Classification of ITE: Class B Support Interface: USB Port REPORT NO.: STR12098307I-4 PAGE 3 OF 18 FCC PART 15B Verykool USA Inc Model: R623 1.2 Test Standards The following report is prepared on behalf of the Verykool USA Inc in accordance with Part 2, Subpart J, and Part 15, Subparts A and B of the Federal Communication Commissions rules. The objective is to determine compliance with FCC Part 15, Subpart B, and section 15.205, 15.107, and 15.109 rules. Maintenance of compliance is the responsibility of the manufacturer. Any modification of the product, which result in low…

Text truncated - open the document above for the full version.

Verykool USA Inc Model: R623 REPORT NO.: STR12098307I-4 FCC PART 15B EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Conducted Emission Test Setup Radiated Emission Test Setup(below 30MHz) Charging &Playing Mode Verykool USA Inc Model: R623 REPORT NO.: STR12098307I-4 FCC PART 15B Downloading Mode Radiated Emission Test Setup(30MHz~1G) Charging &Playing Mode Verykool USA Inc Model: R623 REPORT NO.: STR12098307I-4 FCC PART 15B Downloading Mode
