WA6R800PANEL COMPUTER

VeryKool USA Inc

Click to zoom

Application Details

Equipment Class: PCT - PCS Licensed Transmitter worn on body
Date of Grant: Dec 27, 2011
Application Purpose: Original Equipment
Date of Application: Dec 27, 2011
Equipment Note: PANEL COMPUTER
Frequency Range: 826.40000000 - 846.60000000
Company: VeryKool USA Inc
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

User Manual December, 2011 Preface Thank you for choosing R800C. The 3G Pad, operating on Google Android system, is designed for the WCDMA network environments. In addition to the general functions, a variety of useful features and services including music playback, camera, sound recording, Bluetooth, WIFI, web browsers, email, etc... In addition, the open Android platform offers abundant applications, adding value to mobile experience to satisfy all kinds of needs. Security Notifications Please r ead these simple guidelines. Non-compliance may be dangerous or illegal. This user manual provides more detailed information on security matters. Safe Power on: When wireless device or equipment is prohibited or possible to cause interference or danger, do not switch on. Safe driving: Please obey all traffic rules and regulations. Please drive with both of your hands. INTERFERENCE: All wireless devices may be susceptible to interference, which could affect performance. SWITCH OFF IN HOSPITALS Please follow the restrictions and switch off near hospitals. SWITCH OFF IN AIRCRAFT Please follow the restrictions. Wireless devices may cause interference to aircraft. SWITCH OFF WHEN REFUELING: Do not use the device at a refueling point and near fuels or chemicals. SWITCH OFF NEAR EXPLOSION. Do not use the device during an explosion process. Follow the documentation and use the product in normal positions. Avoid touching the antenna. QUALIFIED SERVICE: Only qualified personnel may install or repair this equipment. Accessories and batteries: Use only approved accessories and batteries. Do not connect with incompatible products. This device is not waterproof. Please keep it dry. Remember to backup all important information or keep a written record. When connecting to other devices, read user guide for detailed safety instructions. Do not connect incompatible products. Emergency call: ensure there is network available and phone function activated. Press the end button repeatedly to clear the display content and return to standby mode. Enter the emergency number, then press call button and provide your location. Please do not hang up without permission. Note: The pictures used in the manual only serve as demonstration function and may be different from the actual phone display. Security Notifications .......................................................................................................................2 1.0 Your Device.................................................................................................................................5 1.1 Installing SIM and MicroSD Card ..............................................................................................7 1.2 Charging Battery .........................................................................................................................7 1.3 Start up your Device ...................................................................................................................8 1.4 Home Screen ...............................................................................................................................8 1.5 Use your Device as Storage Card................................................................................................9 1.6 Making a voice Call ....................................................................................................................9 1.7 Contacts.....................................................................................................................................10 1.8 Sending a Message.................................................................................................................... 11 1.9 Using Browser ..........................................................................................................................12 2.0 Setting up Email Account .........................................................................................................13 2.1 Sendind and Receiving Emails..................................................................................................14 2.2 Using Gmail ..............................................................................................................................15 2.3 Using Market ............................................................................................................................15 2.4 Using Camera and Camcorder ..................................................................................................15 2.5 Multi-media file Management...................................................................................................17 2.6 Using Music Player ...................................................................................................................18 2.7 Using Sound Recorder ..............................................................................................................19 2.8 Using Wi-Fi...............................................................................................................................20 2.9 Using Bluetooth ........................................................................................................................20 3.0 Mobile Network Settings ..........................................................................................................21 3.1 Sound and Display Settings ......................................................................................................22 3.2 Other Settings............................................................................................................................22 3.3 Using Calculator .......................................................................................................................22 3.4 Using GPS.................................................................................................................................23 1.0 Your Device Front Panel： Rear Panel： Sid…

Text truncated - open the document above for the full version.

Block Diagram

Block Diagram MSM7627T Baseband PM7540 PMIC LCM & TP Battery Keypad Sidekey NAND & DDR TF card RF PA Front ‐ end RTR6285 WCDMA RF Transceiver WCDMA/GSM Antenna UMTS 850/2100Mhz GSM/GPRS/EDGE/850/90 0/1800/1900MHz) Mic Headset Speaker Receiver Wifi Bluetooth Bluetooth Wifi Antenna ( 2.4GHz ) GPS Antenna ( 1575MHz ) Vibrator Front Camera Rear Camera G ‐ sensor E ‐ compass Micro USB Connector USB Cable AC Charger UIM/SI M Card XTAL 26MHz XTAL 32.768kHz XTAL 19.2MHz Ant. BT 2402 ‐ 2480MHz WIFI 2412 ‐ 2462MHz Ant. GSM850/1900 WCDMA Band V

External Photos

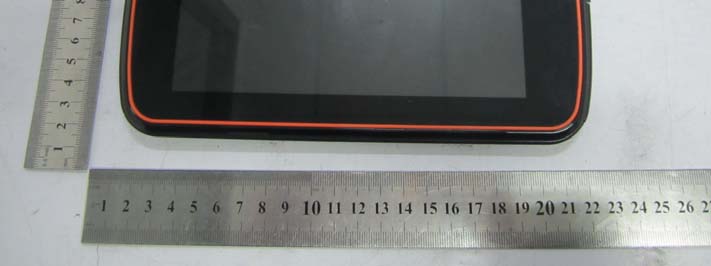

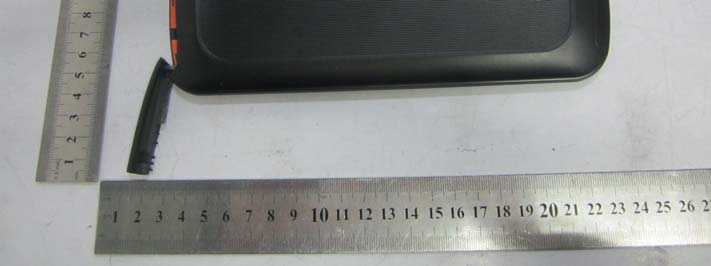

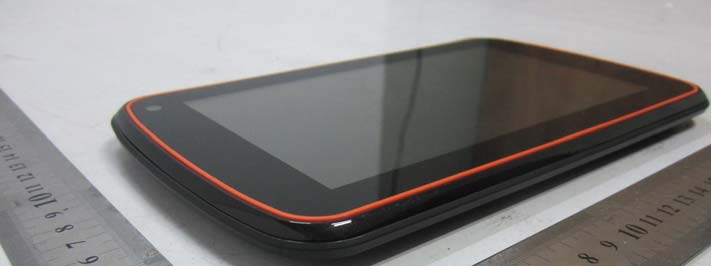

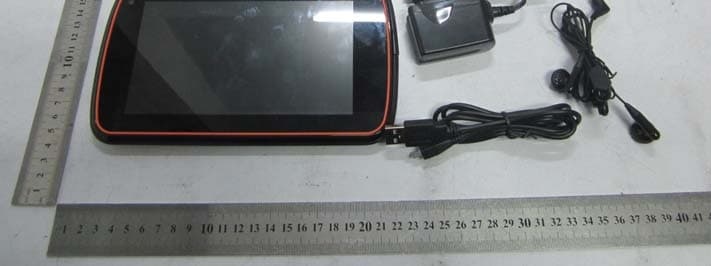

Verykool USA Inc Model: R800C REPORT NO.: STR11118292I-1 FCC PART 22H/24E EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 Verykool USA Inc Model: R800C REPORT NO.: STR11118292I-1 FCC PART 22H/24E EUT View 3 EUT View 4 Verykool USA Inc Model: R800C REPORT NO.: STR11118292I-1 FCC PART 22H/24E EUT View 5

ID Label/Location Info

Verykool USA Inc Model: R800C REPORT NO.: STR11118292I-1 FCC PART 22H/24E EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: WA6R800 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

ID Label/Location Info

Internal Photos

Verykool USA Inc Model: R800C REPORT NO.: STR11118292I-1 FCC PART 22H/24E EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 Solder Board-Component View 1 Verykool USA Inc Model: R800C REPORT NO.: STR11118292I-1 FCC PART 22H/24E Solder Board-Component View 2 Solder Board-Component View 3 Verykool USA Inc Model: R800C REPORT NO.: STR11118292I-1 FCC PART 22H/24E Solder Board-Component View 4 Solder Board-Component View 5

Operational Description

Operation Description The transmitter and receiver utilize the same antenna. RF circuit including antenna,the transmitter, the receiver / transmitter Duplexer, transmit shaping filter BPF, the transmit power amplifier circuit and the Balun BPF filter. RF subsystem consists of transmitter, receiver, frequency synthesizer, and so on. RF systems support wireless communication, transceiver are zero-IF architecture eliminates the traditional superheterodyne structure of external RF interference suppression filter and IF SAW filter. RF transceiver subsystem, the gain of each state variable gain amplifier is controlled by the baseband signal part .Direct up / down converters required local oscillator signal LO are crystal by the external 19.2M Hz signal through the chip phase-locked loop circuit to be. RF chip transmit signals directly from the baseband signal is upconverted to the transmit band, and after a variable gain amplifier output to drive external RF band-pass filter and amplifier, the final output to the antenna radiation through the Duplexer out. When the transmission power in mobile phone range near the maximum power limit , the power control module with an external Power Detector circuit input signal and the phone memory power calibration table control the transmission power value. RF receive signals from the antenna feed, the diplexer output to RF variable-gain low-noise amplifier, and then the off-chip band-pass filter and then input into a differential form of the variable gain amplifier chip and direct down-converter, down-conversion by the RF signal directly to baseband signal, after baseband filtering, amplification, AD conversion circuit output to the baseband demodulation processing. Transmitter Specification GSM850&GSM900 Transmitter output power: 33±2dBm Phase Error(RMS): ≤ 5 ° degree Phase Error(Peak): -20° to +20°degree Frequency Error: ＜ 0.1ppm Hz Reference Sensitivity Level (ClassII RBER ≤ 2%): ≤ -104 dBm DCS1800&PCS1900 Transmitter output power: 30±2dBm Phase Error(RMS): ≤ 5 ° degree Phase Error(Peak): -20° to +20°degree Frequency Error: ＜ 0.1ppm Hz Reference Sensitivity Level (ClassII RBER ≤ 2%): ≤ -102dBm WCDMA Band V Maximum output power: 21 ～ 25 dBm Minimum output power: ≤ -50 dBm Frequence Error: <±0.1 Occupied Bandwidth: <5 MHz EVM: ≤ 17.5% Reference sensitivity level : -106.7 ， <0.1% Modulation Mode WCDMA:QPSK GSM:GMSK/8PSK BT:GFSK, WIFI ： CCK/OFDM Frequency Range ： BT:2402~2480MHz WIFI:2412~2462MHz Transmitting Power ： WIFI: ≤16 dBm BT: ≤ 3dBm

Parts List/Tune Up Info

Item Supplier(P/N) Description(EN) Reference No. Qty 1 BS131100910 220*155.9mm 8 2 COS_7227T Mainboard PCB, P1 1 2 04 6800 650 012 846+ 0.5Pitch RA SMT Dual-sided contact Backflip locking type CN1102 1 3 DF30FC-24DS-0.4V(81) Conn-BB,s,24pin,0.4pitch,H0.9 CN1101 1 4 SQ3D02600B2JBA Crystal, 26MHz, +/-10ppm, 8.8pF,3.2*2.5*0.75(mm) OSC1301 OSC1302 2 5 Q3716LH01000700 VCO, 19.2MHz, +2.8V, 3.2*2.5*0.9(mm) U802 1 6 AAT2822IBK-1-T1 TFT-LCD DC-DC Converter with WLED Driver and VCOM Buffe U1701 1 7 AC0100-142 SIM CARD CN502 1 8 ACPM-5205 UMTS Band5 (824-849MHz) 3x3mm Power Amplifier Module U1605 1 9 ACPM-5201-LR1 UMTS Band1 (1920-1980MHz) 3x3mm Power Amplifi er Modul e U1601 1 10 ALM-1412-TR1G LNA module with saw filter, centre frequency= 1575.42MHz,Gai n U1502 1 11 AOT-1615-3D-RGB01-Z-HO SMD LED, RGB D502 1 12 AR6302G-AL1B A R6302 Single Chip 802.11b/g/n MAC/BB/Radio for Embedded U1304 1 13 AVLC18S02015 MULTILAYER CHIP VARISTOR, 15pF VAR9 VAR501 VAR502 VAR503 VAR530VAR534 VAR509 VAR510 VAR511 VAR512VAR513 VAR514 VAR518 VAR519 VAR520VAR521 VAR522 VAR523 VAR524 VAR525VAR1205 VAR1206 VAR1207 VAR120 8 36 14 AVLC18S02003 MULTILAYER CHIP VARISTOR, 3pF VAR531 VAR532 VAR533 VAR535 VAR536 VAR537 6 15 BAT54S-7-F SURFACE MOUNT SCHOTTKY BARRIER DIODE D1707 D1714 2 16 BAT54XV2T1G Diode,Schottky, Vr=30V, low forward Voltage-0.35V(typ)@If=10 m D509 1 17 BC63B239A04-IQD-E4 Bluetooth Transeiver And Baseband Processor IC,QFN40 U1302 1 18 CAF11-08193-SF09 T-FLASH CARD CONN. CN503 1 19 RTR-6285-0-68MQFN-TR-13 RTR-6285 RF TRANSCEIVER, 68QFN package U1501 1 20 DL030WLM-57 Darling Camera Module Specification U1105 1 Parts List (Model: R800C) 21 DTC114TM3T5G Transistor, NPN, Vceo=50V, Ic=1mA Q401 1 22 DTC123JM3T5G Transistor, NPN ， Vceo=50V, Ic=100mA Q501 Q502 Q503 Q1201 Q1204 5 23 ESD9L5.0ST5G ESD Protection Diodes with Ultra.Low Capacitance SOD_923 D507 D510 2 24 FAR-D6JG-2G1400-D3FZ Band I Duplexer F1602 1 25 FAR-F6KA-1G9500-D4CD Filter, SAW Filtre, W-CDMA I (2G) Tx,FAR-F6KA-1G9500-D4C D F1601 1 26 FAR-G5KG-942M50-Y4SD Filter, SAW Filter, EGSM / GSM850 Rx (50/150ohms)1.8typ. x 1 F1606 1 27 FAR-G6KG-1G9600-Y4SC Filter, SAW Filter, PCS/ DCS Rx,FAR-G6KG-1G9600-Y4SC, FU F1605 1 28 FH34S-6S-0.5SH(50) 6PIN ZIF CONNECTOR CN1208 CN505 2 29 GW2151 SP3T Switch_0.1-GHz for bluetooth U1310 1 30 GZ1005U121TF EMI Bead, 1 channel, 120 ohm at 100MHz, 200mA , 0402 L201 L1101 L1103 L1110 L1111 L1301 6 31 GZ2012D121TF EMI Bead ， 1channel ， 120 Ω at 100MHz ， 800mA ， 0805 L405 L406 L407 L408 4 32 H8BCS0UN0MCR-4EM-C 4Gb (256Mb x16) NAND Flash / 2Gb (64Mb x32) DDR U901 1 33 HFL-0304M-2.7 MOTOR MOTO 1 34 HMC5883L 3-Axis Digital Compass IC U1209 1 35 KJA2339S01R Conn-Audio Jack,CUT board, ф 3.5, (14*6.3*4.5) J501 1 36 015-00F31-033 Antenna Shrapnel ANT606 ANT1601 ANT1301 ANT1302 4 37 LC1463CB5ATR15 LDO,1.5V 300mA Single Output,SOT-23-5 U1101 1 38 LC1463CB5ATR18 LDO,1.8V 300mA Single Output,SOT-23-5 U403 U1307 2 39 LC1463CB5ATR26 LDO,2.6V 300mA Single Output,SOT-23-5 U1103 1 40 LC1463CB5ATR33 LDO,3.3V 300mA Single Output,SOT-23-5 U1702 U803 U1203 U1309 4 41 LFB212G45BAAD082 Filter,Band Pass Filter,2450MHz,LFB212G45BA1A220,Murata U1301 1 42 ADXL346ACCZR Ultralow Power Digital Accelerometer U1206 1 43 LMSP33QM-B16 Murata LMSP33QM-B16 is SP10T CMOS switch with GSM Tx L U1600 1 44 LS10N2-T conn-switch ,0.2mm,4.5×2.3×1.7 SW1 SW2 SW1201 SW1202 4 45 MBT35200MT1G Transistor, PNP , Vcbo=55V, Ic=2A Q802 1 46 MC74VHC1G125 Noninverting 3-State Buffer U1313 1 47 MM3Z16VT1G Diode, Zener, Vz=16.2V D508 D520 2 48 MM3Z5V1ST1G Diode, Zener, Vz=5.1V D201 1 49 MM8430-2610RA1 Conn-RF,bottom,H1.75,0.6 CN1601 1 50 MSM-7227-1-560NSP-TR-0G-0-BB MSM7227T-1, 800MHz U1 1 51 NC7SZ74K8X TinyLogic UHS D-Type Flip-Flop,8-Lead US8 U804 1 52 NFA21SL157X1A48L EMI FILTER ， 4channel , 2.0*1.25*0.85mm ,cutoff frequency 15 0 U1107 U1109 U1110 U1111 U1112 U1113 U1114 7 53 NTA4001NT1G Transister, N channel MOSFET, Vdss=20V, Vgs=10V,Id=238m A Q1702 1 54 NTR2101PT1G Transister, P channel MOSFET, Vdss=8V, Vgs=8V, Id=3.7A Q801 Q1701 2 55 PM-7540-0-137CSP-TR-03 Power Management IC, PM7540 U801 1 56 rb161m-20 Schottky barrier diode D516 D518 2 57 RSB6.8STE61 Diode, ESD, Double direction, Vz=6.8v, ESD Protection=30KV D401-408 8 58 SAFEB1G57KD0F00 FILTER, Low-loss filter for mobile communication 1575.42MHZ FL1501 1 59 SAFEB2G14FB0F00 Filter,SAW Filter,2140MHz Q1501 1 60 SAFEB836MAL0F00 SAW FILTER FOR CDMA800/TDMA800/E-AMPS/GSM850(Tx) F1618 1 61 SAYZZ836MCA0F00R05 SAW DPX FOR CDMA800/UMTS BC5 RR type F1610 1 62 RB161VA-20 Diode, Schottky, 20V, 1A D801 1 63 SBR140S3 Diode, Schottky, 40V, 1A D1701 D1715 2 64 SN2145 2.8W Mono Clip-less & Filter-less Class-D Audio Power Amplifie U401-402 2 65 SSP-T7-F(7.0pf,±20ppm) Crystal, 32.768KHz, +/-20ppm, 7pF, 7.0*1.5*1.4(mm) Y801 1 66 TBL-1005-245-MA1 Port Impedance Conjugate match to Atheros AR6003 chipset U1311 1 67 TBL-1608-245-MA3 TBL-1608-245-MA3 THIN FILM BALUN U1306 1 68 TC7SH00FU TOSHIBA CMOS digital integrated circuit silicon monolithic SSO U201 1 69 TQM7M5012H 3V Quad-Band GSM850/GSM900/DCS/PCS Power Amplifier M o U1604 1 70 UAF95-05254-1500 Conn Micro USB,on board, 5pin CN2 1 71 VDH-0401-XT-A DC JACK 5PIN SMT J502 1 72 crf_shielding_frame_v1-0_0225 crf_shielding_frame_v1-0_0225 1 73 crf_shielding_cover_v1-0_0225 crf_shielding_cover_v1-0_0225 1 74 msm_shielding_cover_v1-0_0225 msm_shielding_cover_v1-0_0225 1 75 msm_shielding_frame_v1-0_0225 msm_shielding_frame_v1-0_0225 1 76 pmic_shielding_cover_v1-0_0225 pmic_shielding_cover_v1-0_0225 1 77 pmic_shielding_frame_v1-0_0225 pmic_shielding_frame_v1-0_0225 1 78 wrf_shielding_cover_v1-0_0225 wrf_shielding_cover_v1-0_0225 1 79 wrf_shielding_frame_v1-0_0225 wrf_shielding_frame_v1-0_0225 1 80 gps_shielding_0314.stp gps_shielding_0314.stp 1 81 rtr6285_shielding_0513 rtr6285_shielding_0513 1 82 rtr_6500_shielding_v1-0_0225 rtr_6500_shielding_v1-0_0225 1 83 lcm_shielding_0526.stp lcm_shielding_0526.stp 1 84 mic_shielding_0314.stp mic_shielding_0314.stp 1 85 fm_shielding_v1-0_0225 fm_shielding_v1-0_0225 1 86…

Text truncated - open the document above for the full version.

RF Exposure Info

Report No.: 11CS030R-HP-US-P03V01 Page: 1 of 113 SAR Test Report Product Name : Panel computer Model No. : R800C FCC ID : WA6R800 Applicant : Verykool USA Inc Address : 4350 Executive Dr.#100, San Diego Date of Receipt : 09/12/2011 Date of Test : 19/12/2011 Issued Date : 20/12/2011 Report No. : 11CS030R-HP-US-P03V01 Report Version : V1.3 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No.: 11CS030R-HP-US-P03V01 Page: 2 of 113 Test Report Certification Issued Date: 20/12/2011 Report No.: 11CS030R-HP-US-P03V01 Product Name : Panel computer Applicant : Verykool USA Inc Address : 4350 Executive Dr.#100, San Diego Manufacturer : Verykool Wireless Technology Ltd. Address : Room 1701, Reward Building C, No.203, 2nd Section of WangJing, Li Ze Zhong Yuan, ChaoYang District, Beijing, P.R. of China 100102 Model No. : R800C FCC ID : WA6R800 Brand Name : Verykool EUT Voltage : DC 3.7V Applicable Standard : FCC Oet65 Supplement C June 2001 IEEE Std. 1528-2003,47CFR § 2.1093 Test Result : Max. SAR Measurement (1g) 1.420W/kg Performed Location : Suzhou EMC Laboratory No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., Suzhou, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 FCC Registration Number: 800392 Documented By : (Engineering ADM: Alice Ni) Reviewed By : (Engineering Supervisor: Robin Wu) Approved By : (Engineering Manager: Marlin Chen) Report No.: 11CS030R-HP-US-P03V01 Page: 3 of 113 Laboratory Information We, QuieTek Corporation, are an independent EMC and safety consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted(audited or listed) by the following related bodies in compliance with ISO 17025, EN 45001 and specified testing scope: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site : http://www.quietek.com/tw/ctg/cts/accreditations.htm The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory : No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory : No. 5-22, Ruei-Shu Valley, Ruei-Ping Tsuen, Lin-Kou Shiang, Taipei, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Suzhou (China) Testing Laboratory : No. 99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., Suzhou,China. TEL : +86-512-6251-5088 / FAX : +86-512-6251-5098 E-Mail : [email protected] Taiwan R.O.C. :BSMI, NCC, TAF Germany :TUV Rheinland Norway :Nemko, DNV USA :FCC, NVLAP Japan :VCCI Report No.: 11CS030R-HP-US-P03V01 Page: 4 of 113 TABLE OF CONTENTS Description Page 1. General Information .................................................................................................... 6 1.1. EUT Description .................................................................................................. 6 1.2. Test Environment ................................................................................................. 8 2. SAR Measurement System ........................................................................................ 9 2.1. DASY5 System Description ................................................................................. 9 2.1.1. Applications ................................................................................................... 10 2.1.2. Area Scans .................................................................................................... 10 2.1.3. Zoom Scan (Cube Scan Averaging) .............................................................. 10 2.1.4. Uncertainty of Inter-/Extrapolation and Averaging ......................................... 10 2.2. DASY5 E-Field Probe ........................................................................................ 11 2.2.1. Isotropic E-Field Probe Specification ............................................................. 11 2.3. Boundary Detection Unit and Probe Mounting Device ...................................... 12 2.4. DATA Acquisition Electronics (DAE) and Measurement Server ........................ 12 2.5. Robot ................................................................................................................. 13 2.6. Light Beam Unit ................................................................................................. 13 2.7. Device Holder .................................................................................................... 14 2.8. SAM Twin Phantom ........................................................................................... 14 3. Tissue Simulating Liquid ........................................................................................... 15 3.1. The composition of the tissue simulating liquid ................................................. 15 3.2. Tissue Calibration Result ................................................................................... 16 3.3. Tissue Dielectric Parameters for Head and Body Phantoms ............................. 17 4. SAR Measurement Procedure .................................................................................. 18 4.1. SAR System Validation ...................................................................................... 18 4.1.1. Validation Dipoles .......................................................................................... 18 4.1.2. Validation Result ............................................................................................ 19 4.2. SAR Measurement Procedure ................................…

Text truncated - open the document above for the full version.

RF Exposure Info

Report No.: 11CS030R-HP-US-P03V01 Page: 71 of 113 Appendix D. Probe Calibration Data Report No.: 11CS030R-HP-US-P03V01 Page: 72 of 113 Report No.: 11CS030R-HP-US-P03V01 Page: 73 of 113 Report No.: 11CS030R-HP-US-P03V01 Page: 74 of 113 Report No.: 11CS030R-HP-US-P03V01 Page: 75 of 113 Report No.: 11CS030R-HP-US-P03V01 Page: 76 of 113 Report No.: 11CS030R-HP-US-P03V01 Page: 77 of 113 Report No.: 11CS030R-HP-US-P03V01 Page: 78 of 113 Report No.: 11CS030R-HP-US-P03V01 Page: 79 of 113 Report No.: 11CS030R-HP-US-P03V01 Page: 80 of 113 Report No.: 11CS030R-HP-US-P03V01 Page: 81 of 113 Report No.: 11CS030R-HP-US-P03V01 Page: 82 of 113 Appendix E. Dipole Calibration Data Report No.: 11CS030R-HP-US-P03V01 Page: 83 of 113 Report No.: 11CS030R-HP-US-P03V01 Page: 84 of 113 Report No.: 11CS030R-HP-US-P03V01 Page: 85 of 113 Report No.: 11CS030R-HP-US-P03V01 Page: 86 of 113 Report No.: 11CS030R-HP-US-P03V01 Page: 87 of 113 Report No.: 11CS030R-HP-US-P03V01 Page: 88 of 113 Report No.: 11CS030R-HP-US-P03V01 Page: 89 of 113 Report No.: 11CS030R-HP-US-P03V01 Page: 90 of 113 Report No.: 11CS030R-HP-US-P03V01 Page: 91 of 113 Report No.: 11CS030R-HP-US-P03V01 Page: 92 of 113 Report No.: 11CS030R-HP-US-P03V01 Page: 93 of 113 Report No.: 11CS030R-HP-US-P03V01 Page: 94 of 113 Report No.: 11CS030R-HP-US-P03V01 Page: 95 of 113 Report No.: 11CS030R-HP-US-P03V01 Page: 96 of 113 Report No.: 11CS030R-HP-US-P03V01 Page: 97 of 113 Report No.: 11CS030R-HP-US-P03V01 Page: 98 of 113 Report No.: 11CS030R-HP-US-P03V01 Page: 99 of 113 Report No.: 11CS030R-HP-US-P03V01 Page: 100 of 113 Report No.: 11CS030R-HP-US-P03V01 Page: 101 of 113 Report No.: 11CS030R-HP-US-P03V01 Page: 102 of 113 Report No.: 11CS030R-HP-US-P03V01 Page: 103 of 113 Report No.: 11CS030R-HP-US-P03V01 Page: 104 of 113 Report No.: 11CS030R-HP-US-P03V01 Page: 105 of 113 Report No.: 11CS030R-HP-US-P03V01 Page: 106 of 113 Report No.: 11CS030R-HP-US-P03V01 Page: 107 of 113 Report No.: 11CS030R-HP-US-P03V01 Page: 108 of 113 Report No.: 11CS030R-HP-US-P03V01 Page: 109 of 113 Appendix F. DAE Calibration Data Report No.: 11CS030R-HP-US-P03V01 Page: 110 of 113 Report No.: 11CS030R-HP-US-P03V01 Page: 111 of 113 Report No.: 11CS030R-HP-US-P03V01 Page: 112 of 113 Report No.: 11CS030R-HP-US-P03V01 Page: 113 of 113

Schematics

! " # $ ! " $ ! " # # $ ! " # # # # # # # # # # $ ! " # # $ ! " # # # # # # # # # # $ ! " # # # # # # # # # # $ ! " # # # # # # # # # # $ % ! ! ! ! ! " # # $ ! " # $ ! " $ ! " # # $ ! " # # $ ! " $ ! " # # $ ! ! ! ! " # # $ ! " # # # # # # # # # # $ ! " # # $ ! " # # # # # # # # # # $ ! ! " ! " ! # # $ % # # $ & % # # $ % ' ! ! $ % " $ & % " $ % " $ & & & & & & & & & & % $ % ! $ % ' ! $ % ' # ! $ % ' ( ' $ % ' ( ' $ % ' ) ' ) $ % ' ) ( ' ) $ % ' ( ' $ % ' ( ' $ % ' ) ( ' ) $ % ' ) ( ' ) $ % ! # $ % ! $ % $ % ' ! $ % $ % $ % # $ % # $ % $ % $ % $ % ' ) $ % ' ) $ % ' $ % ' $ % $ % " $ & & % ' ! $ & % ' ! $ & % " $ & & % $ % ! ! $ % $ % ' * ' * ! " $ % " $ & & & & & & & & & & % ! # $ & & % $ & % $ % $ % ! $ % ! $ % …

Text truncated - open the document above for the full version.

Contact Information

Applicant

Sunny Choi

[email protected]858-373-1635Fax: 858-373-1505

Test Firm

SEM.Test Compliance Service Co., Ltd.Jandy So

[email protected]086-755-33663308Fax: 086-755-33663309

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
5	22H	826.4 MHz - 846.6 MHz	144.00 mW	4M14F9W	0.04 ppm

Grant Notes

Power listed is EIRP for part 24 and ERP for part 22. SAR compliance for body worn operation has been evaluated as described in this filing and meets the RF exposure guidelines when used with an accessory that contains no metal. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. The highest reported body SAR value for this device is 1.42 W/kg. This device contains functions that are not operational in U.S. Territories. This filing is only applicable for U.S. operations.
