WA6S351Mobile Phone

User’s Manual of Mobile Phone Contents 1Preface...................................................................................... 4 1.1Insert SIM card and battery .................................................................. 4 1.2Insert memory card ................................................................................ 4 1.3Battery charging......................................................................................4 1.4Power on and off ..................................................................................... 5 1.5Phone display & key basics....................................................................5 2Interface ................................................................................... 6 2.1Home screen.............................................................................................6 2.2Onscreen Keyboard ................................................................................ 7 2.3Applications ............................................................................................. 8 3Phone Call.............................................................................. 10 3.1Making a call ......................................................................................... 10 3.2Answering and Ending a call ............................................................... 10 3.3Using call history...................................................................................10 4Contacts.................................................................................. 11 4.1Add a contact ......................................................................................... 11 4.2Edit contact details................................................................................11 4.3Communicate with a contact ................................................................ 11 4.4SIM contacts import and export ......................................................... 12 5Messaging............................................................................... 13 6Camera & Gallery ................................................................. 15 7Music ...................................................................................... 17 8Browser .................................................................................. 18 9Clock ....................................................................................... 19 10Calendar................................................................................. 20 11Calculator .............................................................................. 21 12Search..................................................................................... 22 13Other applications ................................................................. 23 14Settings ................................................................................... 24 14.1Dual Sim Settings .................................................................................. 24 14.2Wireless & networks ............................................................................. 24 14.3Language and keyboard ....................................................................... 24 14.4Date & time...........................................................................................24 14.5Audio profiles ........................................................................................ 24 14.6Display Settings.....................................................................................25 15Additional Function .............................................................. 26 15.1U Disk Function....................................................................................26 16Maintenance of Mobile Phone ............................................. 26 17Safety Message and notices .................................................. 28 Safe power on ....................................................................................... 28 Safe transportation first ..................................................................... 28 Disturbance ............................................................................................ 28 All mobile phone performances might be disturbed ................. 28 Turn off when in hospital ................................................................... 28 Turn off on an airplane ........................................................................ 28 Turn off when at a gasoline station ................................................. 28 Turn off around exposure Area ........................................................ 28 Proper use .............................................................................................. 28 Use qualified after sale service ........................................................ 28 Accessories and batteries ................................................................. 28 Waterproof .............................................................................................. 28 Backup ..................................................................................................... 28 Connect to other devices ................................................................... 28 SOS emergency calls .......................................................................... 28 1Preface Thank you for choosing this smart phone. 1.1 Insert SIM card and battery ¾Long press Power key for 3s to turn it off; ¾Remove the back cover from the gap at the end side of the phone; ¾Remove the battery. Insert SIM1 (per the mark “SIM1”onthecardslot.The contactor shall face down (note the notch on the SIM card is in line with the slot). Push the SIM card inwards from the card slot until it absolutely fits the slot. ¾Insert SIM2 in the same manner. Insert the battery with metallic contact aligned to the phone battery contact and replace the back cover. 1.2 Insert memory card This ph…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date FromTo Initial Release (obsolete)1.01.0Nov-14-2006 Revised wording (obsolete)1.02.0Sept–25-2007 Updated company template (current)2.03.0Jan-31-2012 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 3.0 Verykool USA INC. 2013-12-26 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Verykool USA INC. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product description ： Mobile Phone model name ： S351 FCC ID: WA6S351 We affirm that between SIEMIC and Verykool USA INC., any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have beenresolved prior to commencement of testing activities. Sincerely, Client’s signature ： Client’s name / title ： Sunny Choi /Manager Contact information / address ： 3636 Nobel Drive, Suite 325, San Diego, CA 92122

SCS-F19: Confidentiality Request LetterPage 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date FromTo Initial Release (obsolete)1.01.0Nov-14-2006 Adding CFR 2.459 (obsolete)1.02.0August – 11 - 2008 Updated company template & Added text box (current) 2.03.0Jan-31-2012 SCS-F19: Confidentiality Request LetterPage 2 of 2 Rev 3.0 Verykool USA INC. (2013-12-26) To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject:Permanent Confidentiality Requestfor FCC ID: WA6S351 We hereby request confidential treatment of information accompanying this application as outlined below: -Bloc kDiagram -Schematics -Operational Description -BOM - Tune up The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature : Client’s name / title :Sunny Choi/Manager Contact information / address:3636 Nobel Drive, Suite 325, San Diego, CA 92122

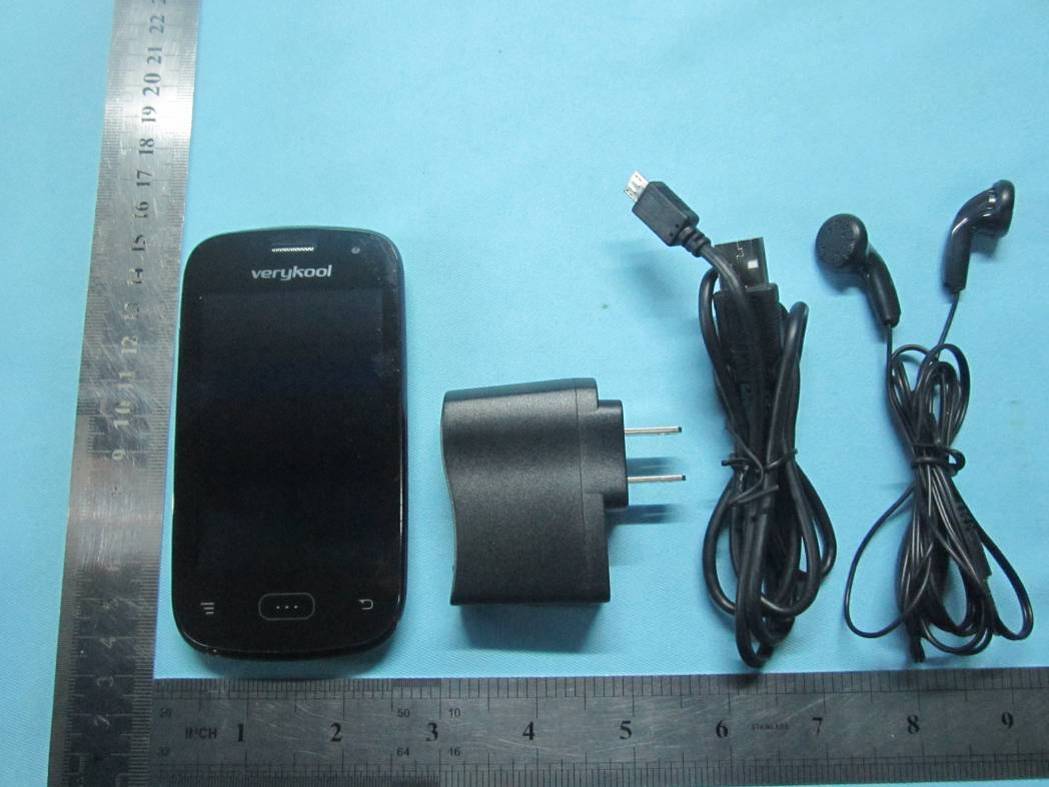

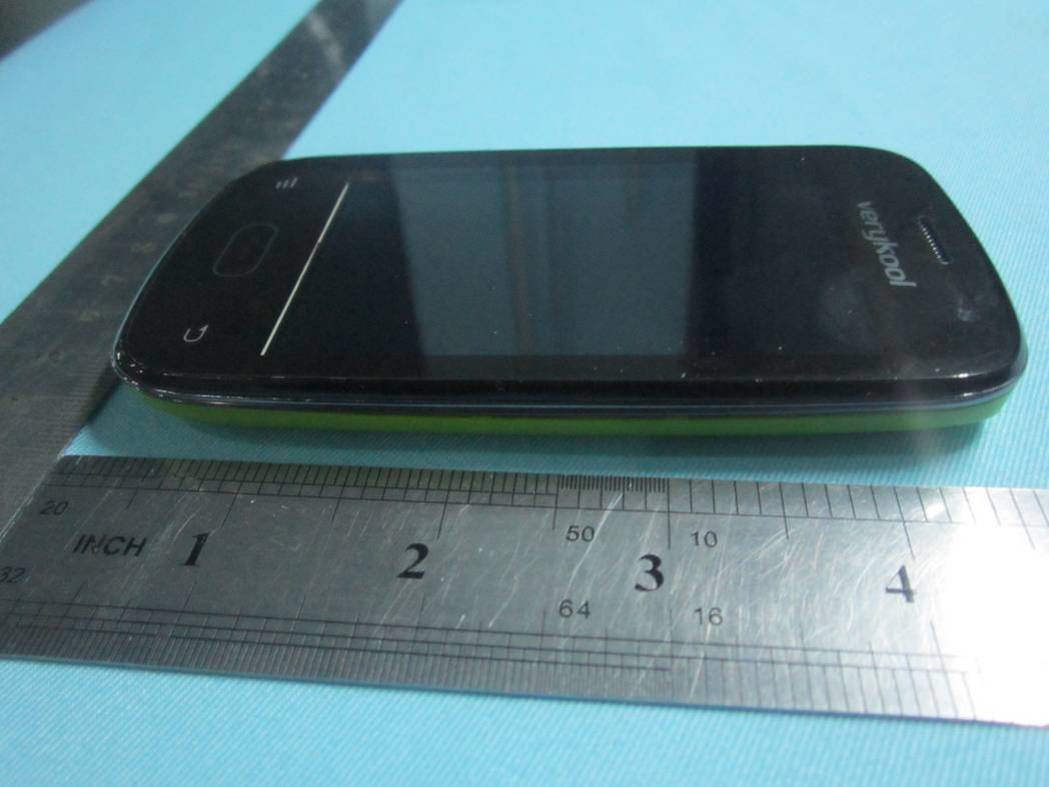

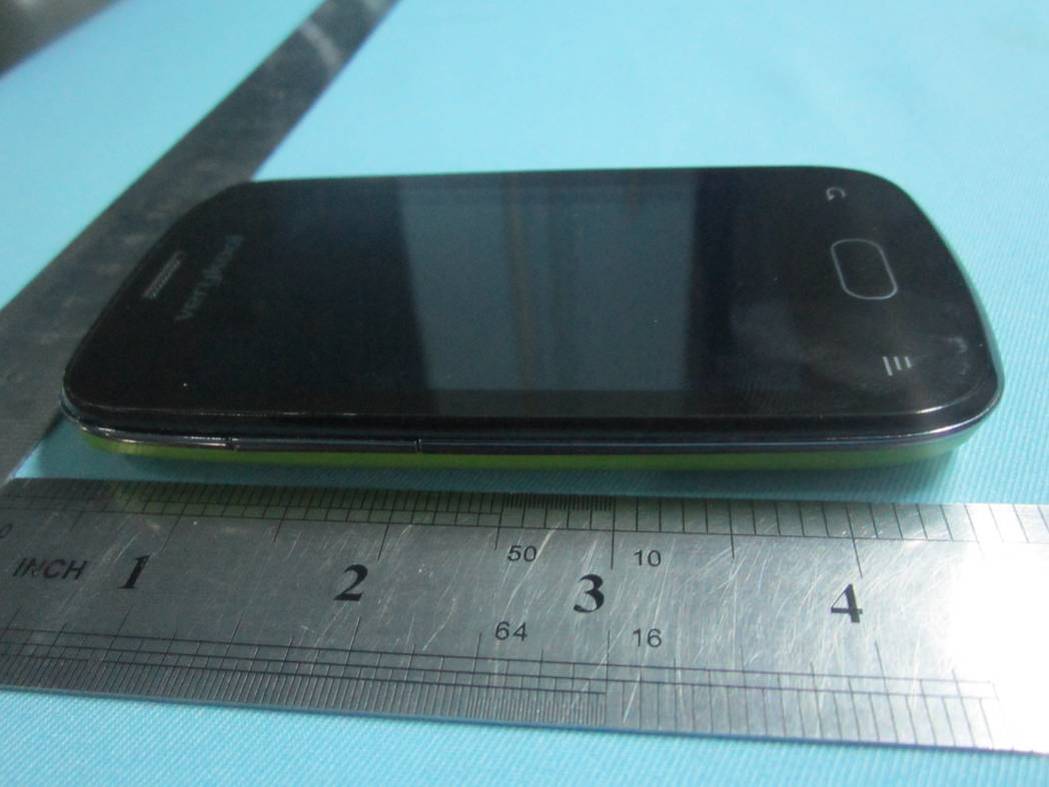

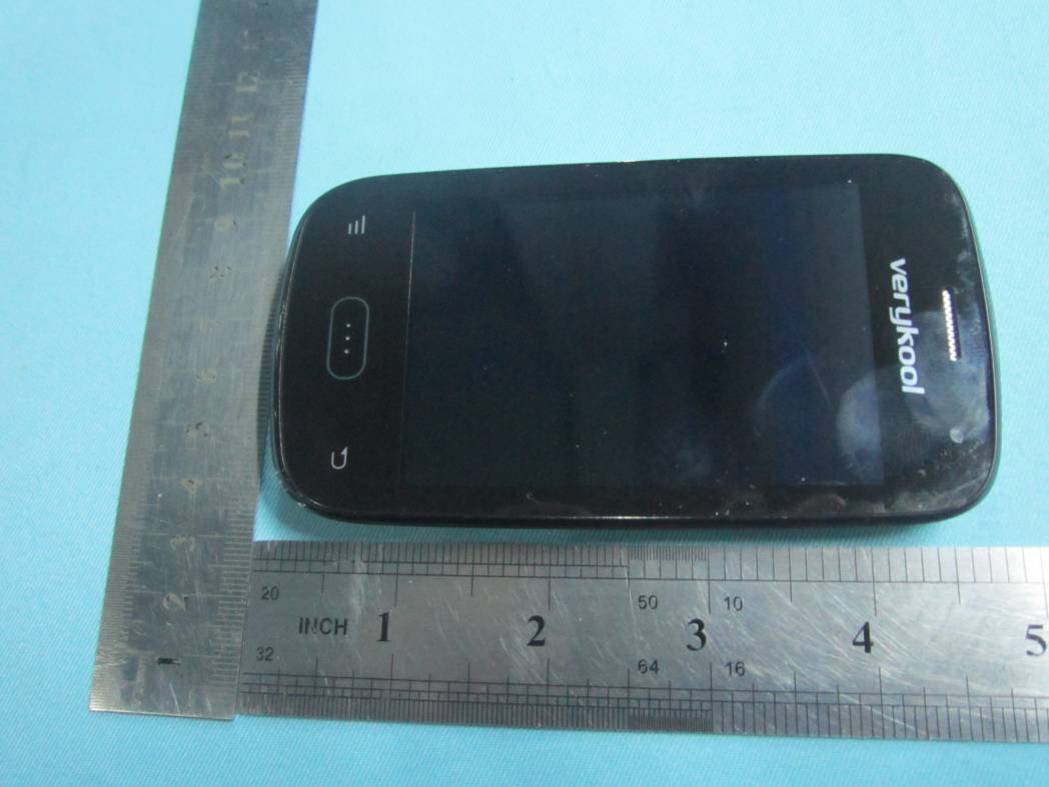

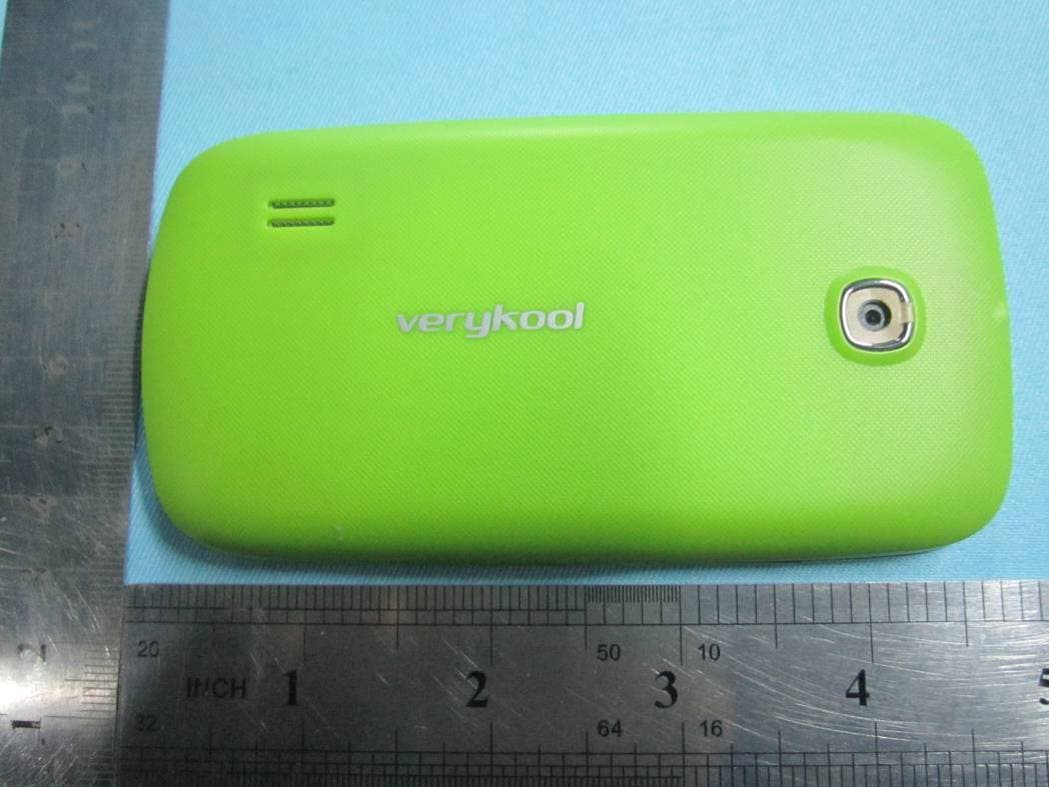

Title: EMC Test Report for Mobile Phone Main Model: S351 Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2013 , ANSI C63.4:2009 Report No.: 13070565-FCC-E1 Issue Date: December 25, 2013 Page: 19 of 35 www.siemic.com.cn Annex B. EUT AND TEST SETUP PHOTOGRAPHS Annex B.i. Photograph 1: EUT External Photo Whole Package - Top View Adapter – Top View Title: EMC Test Report for Mobile Phone Main Model: S351 Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2013 , ANSI C63.4:2009 Report No.: 13070565-FCC-E1 Issue Date: December 25, 2013 Page: 20 of 35 www.siemic.com.cn EUT - Front View EUT - Rear View Title: EMC Test Report for Mobile Phone Main Model: S351 Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2013 , ANSI C63.4:2009 Report No.: 13070565-FCC-E1 Issue Date: December 25, 2013 Page: 21 of 35 www.siemic.com.cn EUT - Top View EUT - Bottom View Title: EMC Test Report for Mobile Phone Main Model: S351 Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2013 , ANSI C63.4:2009 Report No.: 13070565-FCC-E1 Issue Date: December 25, 2013 Page: 22 of 35 www.siemic.com.cn EUT - Left View EUT - Right View

Label Location

Title: EMC Test Report for Mobile Phone Main Model: S351 Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2013 , ANSI C63.4:2009 Report No.: 13070565-FCC-E1 Issue Date: December 25, 2013 Page: 23 of 35 www.siemic.com.cn Annex B.ii. Photograph 2: EUT Internal Photo Cover Off - Top View 1 Cover Off - Top View 2 Title: EMC Test Report for Mobile Phone Main Model: S351 Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2013 , ANSI C63.4:2009 Report No.: 13070565-FCC-E1 Issue Date: December 25, 2013 Page: 24 of 35 www.siemic.com.cn Battery - Top View Battery - Bottom View Title: EMC Test Report for Mobile Phone Main Model: S351 Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2013 , ANSI C63.4:2009 Report No.: 13070565-FCC-E1 Issue Date: December 25, 2013 Page: 25 of 35 www.siemic.com.cn Mainborad With Shielding - Front View Mainborad Without Shielding - Front View Title: EMC Test Report for Mobile Phone Main Model: S351 Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2013 , ANSI C63.4:2009 Report No.: 13070565-FCC-E1 Issue Date: December 25, 2013 Page: 26 of 35 www.siemic.com.cn Mainborad With Shielding – Rear View Mainborad Without Shielding – Rear View Title: EMC Test Report for Mobile Phone Main Model: S351 Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2013 , ANSI C63.4:2009 Report No.: 13070565-FCC-E1 Issue Date: December 25, 2013 Page: 27 of 35 www.siemic.com.cn Bluetooth / WIFI Antenna View GSM / PCS/ UMTS Antenna View

Title: SAR Test Report of Mobile Phone Model : S351 To C95.1, IEEE 1528, IEC62209-2 & RSS-102 Issue 4 and Safety Code 6 Serial# 13070565-FCC-H Issue Date Dec 4th, 2013 Page 83 of 119 www.siemic.com Annex A CALIBRATION REPORTS SARTIMO Calibration Certificate-Extended Dipole Calibrations According to KDB865664 D01, Dipoles must be recalibrated at least once every three years; however, immediate re-calibration is required for following conditions. The test laboratory must ensure that the required supporting information and documentation have been included in the SAR report to qualify for extended 3-year calibration interval. 1) When the most recent return-loss, measured at least annually, deviates by more than 20% from the previous measurement (i.e. 0.2 of the dB value) or not meeting the required -20 dB return-loss specification 2) When the most recent measurement of the real or imaginary parts of the impedance, measured at least annually, deviates by more than 5 ∩from the previous measurement Dipole Verification plot: SID 835 SN 31/10 DIPC150 835MHz for Head: 835MHz for Body: Title: SAR Test Report of Mobile Phone Model : S351 To C95.1, IEEE 1528, IEC62209-2 & RSS-102 Issue 4 and Safety Code 6 Serial# 13070565-FCC-H Issue Date Dec 4th, 2013 Page 84 of 119 www.siemic.com Dipole Verification plot: SID 1900 SN 31/10 DIPG153 1900MHz for Head: 1900MHz for Body: Title: SAR Test Report of Mobile Phone Model : S351 To C95.1, IEEE 1528, IEC62209-2 & RSS-102 Issue 4 and Safety Code 6 Serial# 13070565-FCC-H Issue Date Dec 4th, 2013 Page 85 of 119 www.siemic.com SID 835 SN 31/10 DIPC150 For Head Return- Loss (dB) Deviate (dB) Real Impedance ( Ω) Imaginary Impedance (Ω) Deviate ( Ω) Calibrate Date -35.8 ----- ----- 50 ----- 06/01/2011 -35.207 0.593 50.949 50 0.949 06/06/2013 SID 835 SN 31/10 DIPC150 For Body -35.938 -0.138 51.490 50 1.49 06/06/2013 SID 1900 SN 31/10 DIPCG153 For Head Return- Loss (dB) Deviate (dB) Real Impedance (Ω) Imaginary Impedance (Ω) Deviate ( Ω) Calibrate Date -25.9 ----- ----- 50 ----- 06/01/2011 -25.506 0.394 48.713 50 -1.287 06/05/2013 SID 1900 SN 31/10 DIPG153 For Body -26.188 -0.288 50.107 50 0.107 06/05/2013 According to up table, the return loss is <-20dB, deviates by less than 20% from the previous measurement; the real Impedance are all within 5 Ω compared to the required Impedance (50 Ω). Title: SAR Test Report of Mobile Phone Model : S351 To C95.1, IEEE 1528, IEC62209-2 & RSS-102 Issue 4 and Safety Code 6 Serial# 13070565-FCC-H Issue Date Dec 4th, 2013 Page 86 of 119 www.siemic.com Title: SAR Test Report of Mobile Phone Model : S351 To C95.1, IEEE 1528, IEC62209-2 & RSS-102 Issue 4 and Safety Code 6 Serial# 13070565-FCC-H Issue Date Dec 4th, 2013 Page 87 of 119 www.siemic.com Title: SAR Test Report of Mobile Phone Model : S351 To C95.1, IEEE 1528, IEC62209-2 & RSS-102 Issue 4 and Safety Code 6 Serial# 13070565-FCC-H Issue Date Dec 4th, 2013 Page 88 of 119 www.siemic.com Title: SAR Test Report of Mobile Phone Model : S351 To C95.1, IEEE 1528, IEC62209-2 & RSS-102 Issue 4 and Safety Code 6 Serial# 13070565-FCC-H Issue Date Dec 4th, 2013 Page 89 of 119 www.siemic.com Title: SAR Test Report of Mobile Phone Model : S351 To C95.1, IEEE 1528, IEC62209-2 & RSS-102 Issue 4 and Safety Code 6 Serial# 13070565-FCC-H Issue Date Dec 4th, 2013 Page 90 of 119 www.siemic.com Title: SAR Test Report of Mobile Phone Model : S351 To C95.1, IEEE 1528, IEC62209-2 & RSS-102 Issue 4 and Safety Code 6 Serial# 13070565-FCC-H Issue Date Dec 4th, 2013 Page 91 of 119 www.siemic.com Title: SAR Test Report of Mobile Phone Model : S351 To C95.1, IEEE 1528, IEC62209-2 & RSS-102 Issue 4 and Safety Code 6 Serial# 13070565-FCC-H Issue Date Dec 4th, 2013 Page 92 of 119 www.siemic.com Title: SAR Test Report of Mobile Phone Model : S351 To C95.1, IEEE 1528, IEC62209-2 & RSS-102 Issue 4 and Safety Code 6 Serial# 13070565-FCC-H Issue Date Dec 4th, 2013 Page 93 of 119 www.siemic.com Title: SAR Test Report of Mobile Phone Model : S351 To C95.1, IEEE 1528, IEC62209-2 & RSS-102 Issue 4 and Safety Code 6 Serial# 13070565-FCC-H Issue Date Dec 4th, 2013 Page 94 of 119 www.siemic.com Title: SAR Test Report of Mobile Phone Model : S351 To C95.1, IEEE 1528, IEC62209-2 & RSS-102 Issue 4 and Safety Code 6 Serial# 13070565-FCC-H Issue Date Dec 4th, 2013 Page 95 of 119 www.siemic.com Title: SAR Test Report of Mobile Phone Model : S351 To C95.1, IEEE 1528, IEC62209-2 & RSS-102 Issue 4 and Safety Code 6 Serial# 13070565-FCC-H Issue Date Dec 4th, 2013 Page 96 of 119 www.siemic.com Title: SAR Test Report of Mobile Phone Model : S351 To C95.1, IEEE 1528, IEC62209-2 & RSS-102 Issue 4 and Safety Code 6 Serial# 13070565-FCC-H Issue Date Dec 4th, 2013 Page 97 of 119 www.siemic.com Title: SAR Test Report of Mobile Phone Model : S351 To C95.1, IEEE 1528, IEC62209-2 & RSS-102 Issue 4 and Safety Code 6 Serial# 13070565-FCC-H Issue Date Dec 4th, 2013 Page 98 of 119 www.siemic.com Title: SAR Test Report of Mobile Phone Model : S351 To C95.1, IEEE 1528, IEC62209-2 & RSS-102 Issue 4 and Safety Code 6 Serial# 13070565-FCC-H Issue Date Dec 4th, 2013 Page 99 of 119 www.siemic.com Title: SAR Test Report of Mobile Phone Model : S351 To C95.1, IEEE 1528, IEC62209-2 & RSS-102 Issue 4 and Safety Code 6 Serial# 13070565-FCC-H Issue Date Dec 4th, 2013 Page 100 of 119 www.siemic.com Title: SAR Test Report of Mobile Phone Model : S351 To C95.1, IEEE 1528, IEC62209-2 & RSS-102 Issue 4 and Safety Code 6 Serial# 13070565-FCC-H Issue Date Dec 4th, 2013 Page 101 of 119 www.siemic.com Title: SAR Test Report of Mobile Phone Model : S351 To C95.1, IEEE 1528, IEC62209-2 & RSS-102 Issue 4 and Safety Code 6 Serial# 13070565-FCC-H Issue Date Dec 4th, 2013 Page 102 of 119 www.siemic.com Title: SAR Test Report of Mobile Phone Model : S351 To C95.1, IEEE 1528, IEC62209-2 & RSS-102 Issue 4 and Safety Code 6 Serial# 13070565-FCC-H Issue Date Dec 4th, 2013 Page 103 of 119 www.siemic.com Title: SAR Test Report of Mobile Phone Model : S351 To C95.1, IEEE 1528, IEC62209-…

Text truncated - open the document above for the full version.

Verykool USA INC. Mobile Phone Model: S351 Serial Model: NA Dec 4th, 2013 Report No.: 13070565-FCC-H (This report supersedes NONE) This Test Report is Issued Under the Authority of: Chris You Test Engineer Alex Liu Technical Manager Modifications made to the product : None This test report may be reproduced in full only. All Test Data Presented in this report is only applicable to presented Test sample. Title: SAR Test Report of Mobile Phone Model : S351 To C95.1, IEEE 1528, IEC62209-2 & RSS-102 Issue 4 and Safety Code 6 Serial# 13070565-FCC-H Issue Date Dec 4th, 2013 Page 2 of 119 www.siemic.com Laboratory Introduction SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one-stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management through out a project. Our extensive experience with China , Asia Pacific, North America, European, and international compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets . SIEMIC (Shenzhen-China) Laboratories Accreditations for Conformity Assessment Country/Region Scope USA EMC , RF/Wireless , Telecom Canada EMC, RF/Wireless , Telecom Taiwan EMC, RF, Telecom , Safety Hong Kong RF/Wireless ,Telecom Australia EMC, RF, Telecom , Safety Korea EMI, EMS, RF , Telecom, Safety Japan EMI, RF/Wireless, Telecom Singapore EMC , RF , Telecom Europe EMC, RF, Telecom , Safety Title: SAR Test Report of Mobile Phone Model : S351 To C95.1, IEEE 1528, IEC62209-2 & RSS-102 Issue 4 and Safety Code 6 Serial# 13070565-FCC-H Issue Date Dec 4th, 2013 Page 3 of 119 www.siemic.com This page has been left blank intentionally. Title: SAR Test Report of Mobile Phone Model : S351 To C95.1, IEEE 1528, IEC62209-2 & RSS-102 Issue 4 and Safety Code 6 Serial# 13070565-FCC-H Issue Date Dec 4th, 2013 Page 4 of 119 www.siemic.com CONTENTS 1 EXECUTIVE SUMMARY & EUT INFORMATION .............................................................................................................. 6 2 TECHNICAL DETAILS ................................................................................................................................................... 7 3 INTRODUCTION ........................................................................................................................................................... 8 4 SAR MEASUREMENT SETUP ....................................................................................................................................... 9 5 ANSI/IEEE C95.1 – 1999 RF EXPOSURE LIMIT ............................................................................................................ 20 6 SYSTEM AND LIQUID VALIDATION ............................................................................................................................ 21 7 UNCERTAINTY ASSESSMENT .................................................................................................................................... 29 8 TEST INSTRUMENT .................................................................................................................................................... 32 9 OUTPUT POWER VERIFICATION ................................................................................................................................ 33 10 SAR TEST RESULTS .................................................................................................................................................. 38 11 SAR MEASUREMENT REFERENCES .......................................................................................................................... 43 ANNEX A CALIBRATION REPORTS .................................................................................................................................. 83 ANNEX B SAR SYSTEM PHOTOGRAPHS ........................................................................................................................ 114 ANNEX C SETUP PHOTOGRAPHS .................................................................................................................................. 115 ANNEX D EUT PHOTOGRAPHS ...................................................................................................................................... 118 Title: SAR Test Report of Mobile Phone Model : S351 To C95.1, IEEE 1528, IEC62209-2 & RSS-102 Issue 4 and Safety Code 6 Serial# 13070565-FCC-H Issue Date Dec 4th, 2013 Page 5 of 119 www.siemic.com This page has been left blank intentionally. Title: SAR Test Report of Mobile Phone Model : S351 To C95.1, IEEE 1528, IEC62209-2 & RSS-102 Issue 4 and Safety Code 6 Serial# 13070565-FCC-H Issue Date Dec 4th, 2013 Page 6 of 119 www.siemic.com 1 Executive Summary & EUT information The purpose of this test programmed was to demonstrate compliance of the Verykool USA INC. Model: S351 against the current Stipulated Standards. The Mobile Phone has demonstrated compliance with the C95.1, IEEE 1528, IEC62209-2, RSS-102 Issue 4 and Safety Code 6. The test has demonstrated that this unit complies with stipulated standards. EUT Information EUT Description Mobile Phone Model No S351 Input Power Li-ion Battery Model: 454650AR Charging Voltage:3.7V , 1150mAh Charge Cut-off Voltage: 4.2 V Maximum Conducted Output Power to Antenna Cellular 850(Class 4) : 32.23dBm PCS1900 (Class 1) :29.36dBm WCDMA Band II(Class 3): 22.92dBm WCDMA Band V(Class 3): 22.43dBm Highest Reported SAR Level(s) 1.05 W/Kg 1g Head Tissue 1.07 W/Kg 1g Body Tissue Classification Per Stipulated Test Standard Mobile Device , Class B, No DTM/Hotspot Mode Multi-SIM Support dual-SIM, dual standby, the multiple SIM card with two lines cannot transmitting at the same time. Co-located TX WWAN can transmit simultaneously …

Text truncated - open the document above for the full version.

Verykool USA INC. Mobile Phone Main Model:S351 Serial Model: N/A December 25, 2013 Report No.: 13070565-FCC-R1 (This report supersedes NONE) Modifications made to the product : None This Test Report is Issued Under the Authority of: Herith Shi Compliance Engineer Alex Liu Technical Manager This test report may be reproduced in full only. Test result presented in this test report is applicable to the representative sample only. Title: RF Test Report for Mobile Phone Main Model: S351 Serial Model: N/A To: FCC Part 22(H) & FCC Part 24(E): 2013 Report No: 13070565-FCC-R1 Issue Date: December 25, 2013 Page: 2 of 62 www.siemic.com.cn Laboratory Introduction SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one-stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management through out a project. Our extensive experience with China, Asia Pacific, North America, European, and international compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets . SIEMIC (Shenzhen - China) Laboratories Accreditations for Conformity Assessment Country/Region Scope USA EMC , RF/Wireless , Telecom Canada EMC, RF/Wireless , Telecom Taiwan EMC, RF, Telecom , Safety Hong Kong RF/Wireless ,Telecom Australia EMC, RF, Telecom , Safety Korea EMI, EMS, RF , Telecom, Safety Japan EMI, RF/Wireless, Telecom Singapore EMC , RF , Telecom Europe EMC, RF, Telecom , Safety Title: RF Test Report for Mobile Phone Main Model: S351 Serial Model: N/A To: FCC Part 22(H) & FCC Part 24(E): 2013 Report No: 13070565-FCC-R1 Issue Date: December 25, 2013 Page: 3 of 62 www.siemic.com.cn This page has been left blank intentionally. Title: RF Test Report for Mobile Phone Main Model: S351 Serial Model: N/A To: FCC Part 22(H) & FCC Part 24(E): 2013 Report No: 13070565-FCC-R1 Issue Date: December 25, 2013 Page: 4 of 62 www.siemic.com.cn CONTENTS 1. EXECUTIVE SUMMARY & EUT INFORMATION ........................................................................................... 5 2. TECHNICAL DETAILS .......................................................................................................................................... 6 3 MODIFICATION ..................................................................................................................................................... 7 3. TEST SUMMARY .................................................................................................................................................... 8 4. MEASUREMENTS, EXAMINATION AND DERIVED RESULTS ................................................................... 9 ANNEX A. TEST INSTRUMENT & METHOD ........................................................................................................ 45 ANNEX B. EUT AND TEST SETUP PHOTOGRAPHS ........................................................................................... 48 ANNEX C. TEST SETUP AND SUPPORTING EQUIPMENT ................................................................................ 58 ANNEX D.USER MANUAL / BLOCK DIAGRAM / SCHEMATICS / PART LIST .............................................. 61 ANNEX E. DECLARATION OF SIMILARITY ........................................................................................................ 62 Title: RF Test Report for Mobile Phone Main Model: S351 Serial Model: N/A To: FCC Part 22(H) & FCC Part 24(E): 2013 Report No: 13070565-FCC-R1 Issue Date: December 25, 2013 Page: 5 of 62 www.siemic.com.cn 1. EXECUTIVE SUMMARY & EUT INFORMATION The purpose of this test programmed was to demonstrate compliance of the Verykool USA INC., Mobile Phone and model: S351 against the current Stipulated Standards. The Mobile Phone has demonstrated compliance with the FCC Part 22(H) & FCC Part 24(E): 2013. EUT Information EUT Description : Mobile Phone Main Model : S351 Serial Model N/A Antenna Gain : UMTS-FDD Band V/GSM850: -2 dBi UMTS-FDD Band II/PCS1900: 0 dBi Bluetooth: 1.5 dBi WIFI: 1.5 dBi Input Power : Battery: Model: 454650AR Spec: 3.7V 1150mAh Limited charger voltage: 4.2V Adapter: Model: NBT-005A-038A-Y Input: 100-240V;50/60Hz 0.15A Output: 5.0V;500mA Maximum Conducted AV Power to Antenna : GSM850: 32.23 dBm PCS1900: 29.36dBm UMTS-FDD BandV: 23.43 dBm UMTS-FDD BandII: 22.92 dBm Maximum Radiated ERP/EIRP : GSM850: 29.87 dBm / ERP PCS1900:26.77 dBm / EIRP UMTS-FDD BandV: 19.76dBm / ERP UMTS-FDD BandII: 19.98 dBm / EIRP Classification Per Stipulated Test Standard : FCC Part 22(H) & FCC Part 24(E): 2013 Title: RF Test Report for Mobile Phone Main Model: S351 Serial Model: N/A To: FCC Part 22(H) & FCC Part 24(E): 2013 Report No: 13070565-FCC-R1 Issue Date: December 25, 2013 Page: 6 of 62 www.siemic.com.cn 2. TECHNICAL DETAILS Purpose Compliance testing of Mobile Phone with stipulated standard Applicant / Client Verykool USA INC. 3636 Nobel Drive, Suite 325, San Diego, CA 92122 Manufacturer Verykool Wireless Technology Ltd. Room 1701(5th floor), Reward Building C, No.203, 2nd section of Wang Jing, Li Ze Zhong Yuan, Chaoyang District, Beijing, P.R. of China 100102 Laboratory performing the tests SIEMIC (Shenzhen - China) Laboratories Zone A, Floor 1, Building 2, Wan Ye Long Technology Park, South Side of Zhoushi Road, Bao'an District, Shenzhen, Guangdong, China Tel: +86-0755-2601 4629 / 2601 4953 Fax: +86-0755-2601 4953-810 Email: [email protected] Test report reference number 13070565-FCC-R1 Date EUT received November 25, 2013 Standard applied FCC Part 22(H) & FCC Part 24(E): 2013 Dates of test December 02 to December 24, 2013 No of Units #1 Equipment Category PCE Trade Name Verykool RF Operating Frequency (ies) GSM850 TX : 824.2 ~ 848.8 MHz; RX : 869.2 ~ 893.8 MHz PCS1900 TX : 1850.2 ~ 1909.8 MHz; RX : 1930.2 ~ 1989.…

Text truncated - open the document above for the full version.

Title: RF Test Report for Mobile Phone Main Model: S351 Serial Model: N/A To: FCC Part 22(H) & FCC Part 24(E): 2013 Report No: 13070565-FCC-R1 Issue Date: December 25, 2013 Page: 57 of 62 www.siemic.com.cn Annex B.iii. Photograph 3: Test Setup Photo Radiated Spurious Emissions Test Setup Below 1GHz - Front View Radiated Spurious Emissions Test Setup Above 1GHz –Front View

Title: SAR Test Report of Mobile Phone Model : S351 To C95.1, IEEE 1528, IEC62209-2 & RSS-102 Issue 4 and Safety Code 6 Serial# 13070565-FCC-H Issue Date Dec 4th, 2013 Page …
