WA6S470Mobile Phone

Productivity, efficient and entertainment all in one. Use this guide to take advantage of all the great features available to you. Please visit www.verykool.net for full version of user manual. Welcome to verykool ƒ Your S470 Functions Description 1. Receiver 8. Power key 2. Torch 9. Volume key 3. Home key 10. USB port 4. Menu key 11. Camera 5. Back key 12. LED flash light 6. Front camera lens 13. Battery cover 7. earphone jack 14. Speaker Keys functions description Power On/Off Unlock phone Wallpaper Make a call Press and hold the Power key Press Power key to wake up your phone Slide Lock icon to the right to unlock the phone On Standby mode, press and hold background Wallpaper Select Gallery, Live wallpapers, Video wallpaper or Wallpapers to change to desired wallpaper In the standby mode Select to enter dial screen Input the number Press to dial End a call Press With my verykool S470Iwant to... Add a new contact Enter Contacts Tap create New contact Select an account to add contact When finished editing Select Done to save Send a message Messaging New message Edit recipient or select recipients from contacts Edit content Once done typing Press Browser Browser Input URL Select Go to open web page Music Music Select a listing (Artists, Albums, Songs, or Playlists) Select a song to begin play FM radio Plug in your earphone FM radio Take a picture Camera (Press to switch to video recorder) Press to take pictures Turn on Bluetooth Settings Wireless & networks Select Bluetooth to turn on/off Wi-Fi Settings Wireless & networks Select Wi-Fi to turn on/off Wi-Fi settings Select the access point Connect(Input the password if the AP is locked) Accessories in Package Handset 1 piece Battery 1 piece Travel charger 1 piece Headset 1 piece Micro USB Cable 1 piece User Guide 1 piece Warranty Card 1 piece Safety Instructions Do not make or receive handheld calls while driving, and never text while driving. Do not use at gas stations. Keep your phone at least 15 mm away from your ear or body while making calls. Your phone may produce a bright or flashing light. Small parts may cause choking. Please do not dispose of used batteries in the trash. The proper disposal of your waste battery will help to protect the environment and human health. Your phone can produce a loud sound. Avoid contact with magnetic fields. Keep away from pacemakers and other electronic medical devices. Avoid extreme temperatures. Switch off in hospitals and other medical facilities when requested. Avoid contact with liquids. Keep your phone dry. Switch off in aircraft and airports when requested. Do not disassemble your phone. Switch off when near explosive materials or liquids. Please use only authentic verykool accessories with this phone, and do not use the battery with any other type of phone. Do not rely on your phone for emergency communications. For Promotions, ringtones, technical information, support, and much more, Visit: www.verykool.net This manual and the installed software of the S470 are subject to change by verykool USA Inc. without advance notice. FCC Caution. § 15.19 Labelling requirements. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. § 15.21 Information to user. Any Changes or modifications not expressly approved by the party responsible for compliance Visit our website... could void the user's authority to operate the equipment. § 15.105 Information to the user. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ‐Reorient or relocate the receiving antenna. ‐Increase the separation between the equipment and receiver. ‐Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ‐Consult the dealer or an experienced radio/TV technician for help. Specific Absorption Rate (SAR) information: This Mobile Phone meets the government's requirements for exposure to radio waves. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons regardless of age or health. FCC RF Exposure Information and Statement The SAR limit of USA (FCC) is 1.6 W/kg averaged over one gram of tissue. Device types: S470 (FCC ID: WA6S470) has also been tested against this SAR limit. The highest SAR value reported under this standard during product certification for use at the ear is 0.53 W/kg and when properly worn on the body is 1.15 W/kg. This device was tested for typical body‐worn operations with the back of the handset kept 1.5cm from the body. To maintain compliance with FCC RF exposure requirements, use accessories that maintain a 1.5cm separation distance between the user's body and the back of the handset. The use of belt clips, holsters and similar accessories should not contain metallic components in its assembly. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure requirements, and should be avoide…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (current) 2.0 3.0 Jan-31-2012 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 3.0 2013-7-19 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, _____ Verykool USA INC _____hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product description：Mobile Phone model name：S470 FCC ID: WA6S470 We affirm that between SIEMIC and ____ Verykool USA INC ___, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature : Client’s name / title : Sunny Choi Contact information / address : 3636 Nobel Drive, Suite 325, San Diego, CA 92122, USA

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 Verykool USA INC 2013-7-19 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: WA6S470 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description - Tune up Procedure - BOM The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature : Client’s name / title : Sunny Choi/ Manager Contact information / address: 3636 Nobel Drive, Suite 325, San Diego, CA 92122, USA

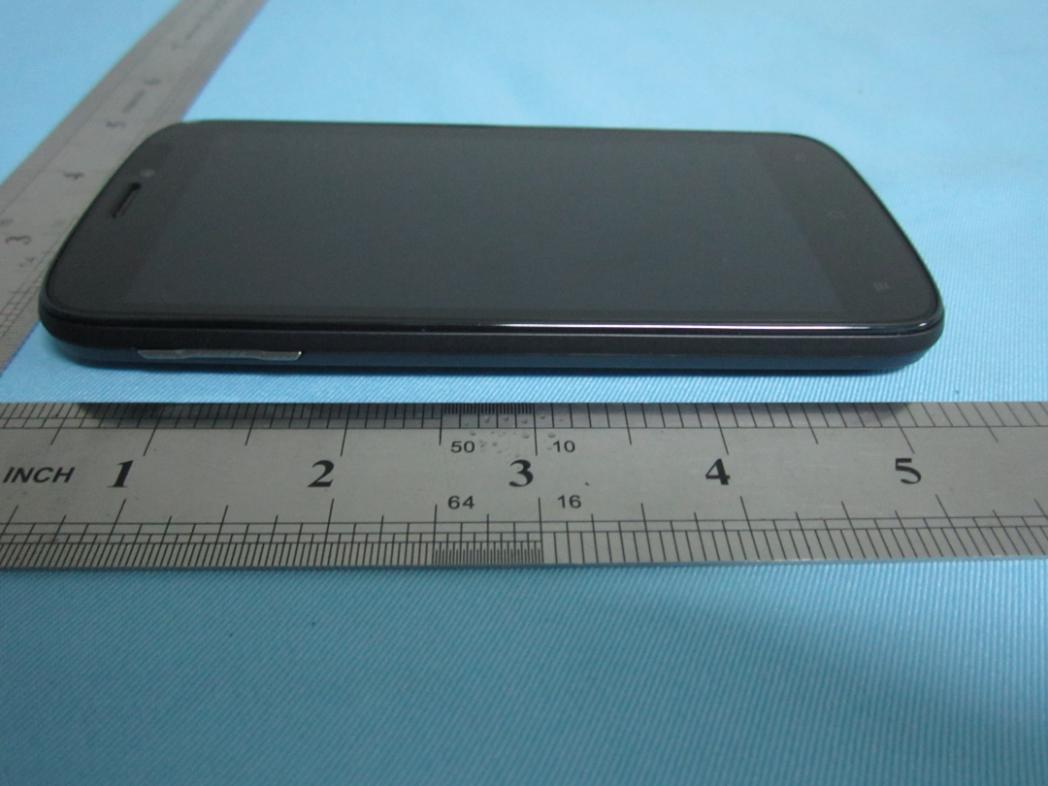

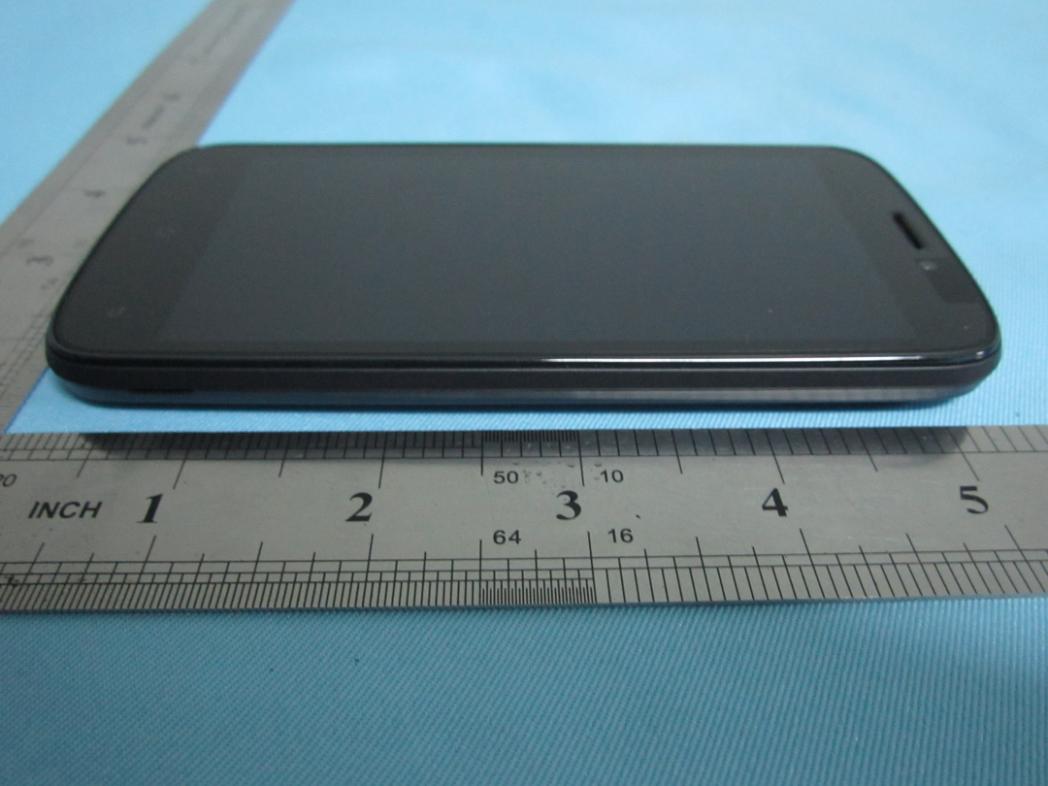

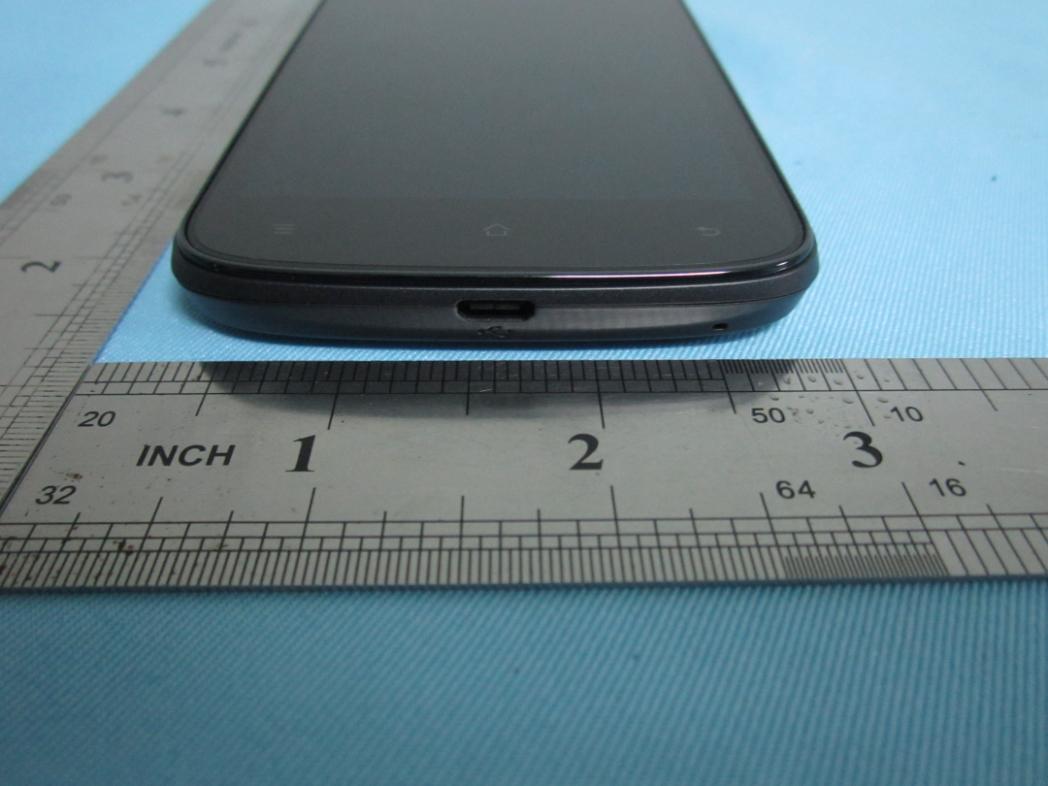

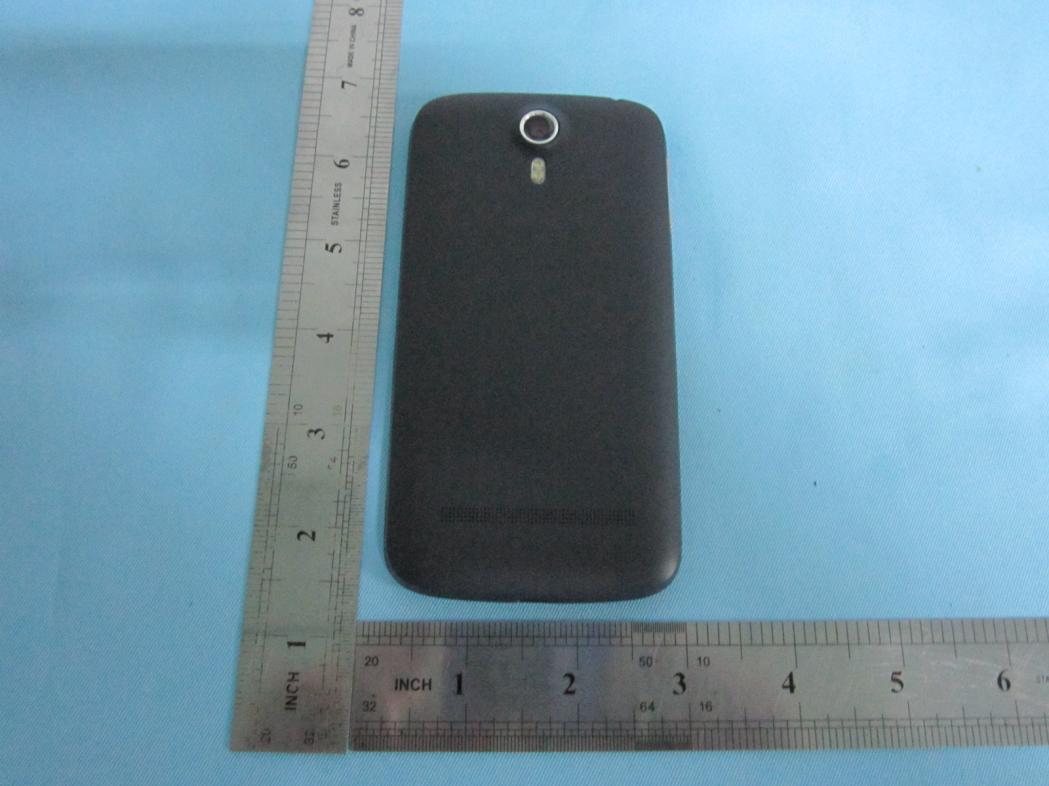

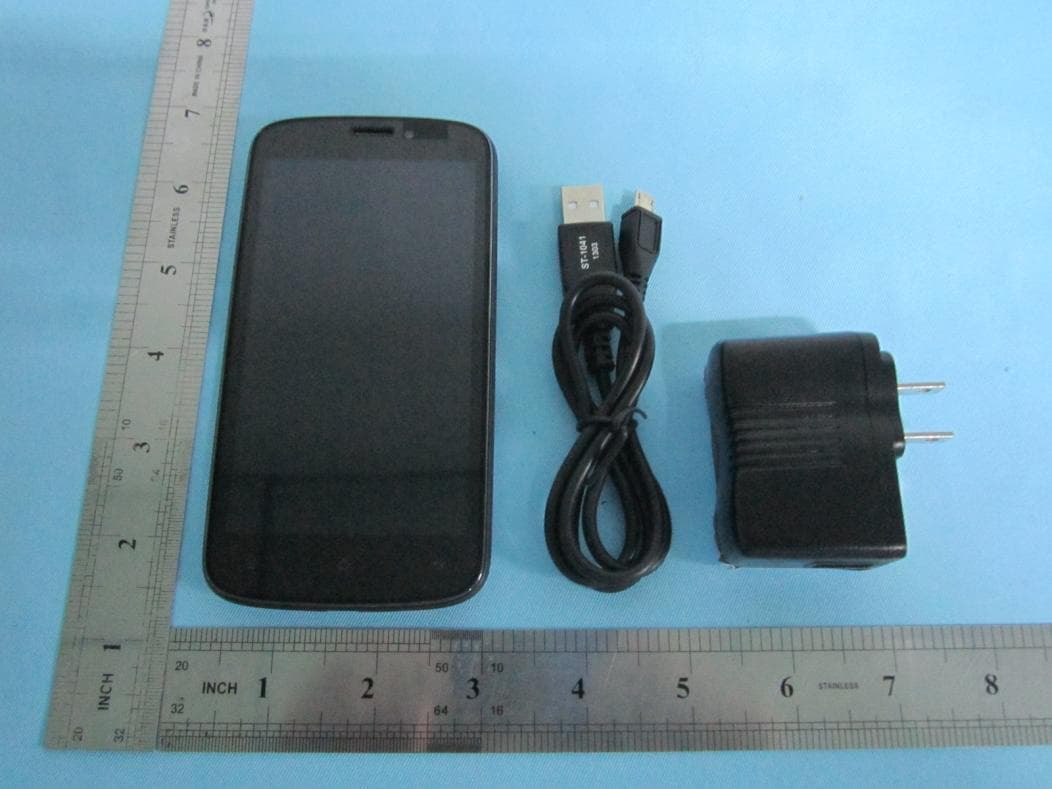

Title: EMC Test Report for Mobile Phone Main Model: S470 Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2012 , ANSI C63.4:2009 Report No.: 13070170-FCC-E Issue Date: July 26, 2013 Page: 19 of 35 www.siemic.com.cn Annex B. EUT AND TEST SETUP PHOTOGRAPHS Annex B.i. Photograph 1: EUT External Photo Whole Package - Top View Title: EMC Test Report for Mobile Phone Main Model: S470 Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2012 , ANSI C63.4:2009 Report No.: 13070170-FCC-E Issue Date: July 26, 2013 Page: 20 of 35 www.siemic.com.cn EUT - Front View EUT - Rear View Title: EMC Test Report for Mobile Phone Main Model: S470 Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2012 , ANSI C63.4:2009 Report No.: 13070170-FCC-E Issue Date: July 26, 2013 Page: 21 of 35 www.siemic.com.cn EUT - Top View EUT - Bottom View Title: EMC Test Report for Mobile Phone Main Model: S470 Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2012 , ANSI C63.4:2009 Report No.: 13070170-FCC-E Issue Date: July 26, 2013 Page: 22 of 35 www.siemic.com.cn EUT - Left View EUT - Right View

Label Location

Title: EMC Test Report for Mobile Phone Main Model: S470 Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2012 , ANSI C63.4:2009 Report No.: 13070170-FCC-E Issue Date: July 26, 2013 Page: 23 of 35 www.siemic.com.cn Annex B.ii. Photograph 2: EUT Internal Photo Cover Off - Top View Cover Off - Rear Housing View Title: EMC Test Report for Mobile Phone Main Model: S470 Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2012 , ANSI C63.4:2009 Report No.: 13070170-FCC-E Issue Date: July 26, 2013 Page: 24 of 35 www.siemic.com.cn Adapter View Battery View Title: EMC Test Report for Mobile Phone Main Model: S470 Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2012 , ANSI C63.4:2009 Report No.: 13070170-FCC-E Issue Date: July 26, 2013 Page: 25 of 35 www.siemic.com.cn Rear Housing - Uncover View Mainborad - Bottom View Title: EMC Test Report for Mobile Phone Main Model: S470 Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2012 , ANSI C63.4:2009 Report No.: 13070170-FCC-E Issue Date: July 26, 2013 Page: 26 of 35 www.siemic.com.cn Mainborad Without Shielding - Bottom View Mainborad - Top View Title: EMC Test Report for Mobile Phone Main Model: S470 Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2012 , ANSI C63.4:2009 Report No.: 13070170-FCC-E Issue Date: July 26, 2013 Page: 27 of 35 www.siemic.com.cn Mainborad Without Shielding - Top View Antenna View GSM/WCDMA Antenna Bluetooth/WIFI Antenna GPS Antenna

Title: SAR Test Report of Mobile Phone Model : S470 To C95.1, IEEE 1528, OET Bulletin 65 Supplement C, IEC62209-2 & RSS-102 Issue 4 and Safety Code 6 Serial# 13070170-FCC-H Issue Date July 26th, 2013 Page 74 of 111 www.siemic.com Annex A CALIBRATION REPORTS SARTIMO Calibration Certificate-Extended Dipole Calibrations According to KDB 450824 D02, Dipoles must be recalibrated at least once every three years; however, immediate re-calibration is required for following conditions. The test laboratory must ensure that the required supporting information and documentation have been included in the SAR report to qualify for extended 3-year calibration interval. 1) When the most recent return-loss, measured at least annually, deviates by more than 20% from the previous measurement (i.e. 0.2 of the dB value) or not meeting the required -20 dB return-loss specification 2) When the most recent measurement of the real or imaginary parts of the impedance, measured at least annually, deviates by more than 5 ∩from the previous measurement Dipole Verification plot: SID 835 SN 31/10 DIPC150 835MHz for Head: 835MHz for Body: Title: SAR Test Report of Mobile Phone Model : S470 To C95.1, IEEE 1528, OET Bulletin 65 Supplement C, IEC62209-2 & RSS-102 Issue 4 and Safety Code 6 Serial# 13070170-FCC-H Issue Date July 26th, 2013 Page 75 of 111 www.siemic.com Dipole Verification plot: SID 1900 SN 31/10 DIPG153 1900MHz for Head: 1900MHz for Body: Title: SAR Test Report of Mobile Phone Model : S470 To C95.1, IEEE 1528, OET Bulletin 65 Supplement C, IEC62209-2 & RSS-102 Issue 4 and Safety Code 6 Serial# 13070170-FCC-H Issue Date July 26th, 2013 Page 76 of 111 www.siemic.com SID 835 SN 31/10 DIPC150 For Head Return- Loss (dB) Deviate (dB) Real Impedance (Ω) Imaginary Impedance (Ω) Deviate (Ω) Calibrate Date -35.8 ----- ----- 50 ----- 06/01/2011 -35.207 0.593 50.949 50 0.949 06/06/2013 SID 835 SN 31/10 DIPC150 For Body -35.938 -0.138 51.490 50 1.49 06/06/2013 SID 1900 SN 31/10 DIPCG153 For Head Return- Loss (dB) Deviate (dB) Real Impedance ( Ω) Imaginary Impedance ( Ω) Deviate (Ω) Calibrate Date -25.9 ----- ----- 50 ----- 06/01/2011 -25.506 0.394 48.713 50 -1.287 06/05/2013 SID 1900 SN 31/10 DIPG153 For Body -26.188 -0.288 50.107 50 0.107 06/05/2013 According to up table, the return loss is <-20dB, deviates by less than 20% from the previous measurement; the real Impedance are all within 5 Ω compared to the required Impedance (50 Ω). Title: SAR Test Report of Mobile Phone Model : S470 To C95.1, IEEE 1528, OET Bulletin 65 Supplement C, IEC62209-2 & RSS-102 Issue 4 and Safety Code 6 Serial# 13070170-FCC-H Issue Date July 26th, 2013 Page 77 of 111 www.siemic.com Title: SAR Test Report of Mobile Phone Model : S470 To C95.1, IEEE 1528, OET Bulletin 65 Supplement C, IEC62209-2 & RSS-102 Issue 4 and Safety Code 6 Serial# 13070170-FCC-H Issue Date July 26th, 2013 Page 78 of 111 www.siemic.com Title: SAR Test Report of Mobile Phone Model : S470 To C95.1, IEEE 1528, OET Bulletin 65 Supplement C, IEC62209-2 & RSS-102 Issue 4 and Safety Code 6 Serial# 13070170-FCC-H Issue Date July 26th, 2013 Page 79 of 111 www.siemic.com Title: SAR Test Report of Mobile Phone Model : S470 To C95.1, IEEE 1528, OET Bulletin 65 Supplement C, IEC62209-2 & RSS-102 Issue 4 and Safety Code 6 Serial# 13070170-FCC-H Issue Date July 26th, 2013 Page 80 of 111 www.siemic.com Title: SAR Test Report of Mobile Phone Model : S470 To C95.1, IEEE 1528, OET Bulletin 65 Supplement C, IEC62209-2 & RSS-102 Issue 4 and Safety Code 6 Serial# 13070170-FCC-H Issue Date July 26th, 2013 Page 81 of 111 www.siemic.com Title: SAR Test Report of Mobile Phone Model : S470 To C95.1, IEEE 1528, OET Bulletin 65 Supplement C, IEC62209-2 & RSS-102 Issue 4 and Safety Code 6 Serial# 13070170-FCC-H Issue Date July 26th, 2013 Page 82 of 111 www.siemic.com Title: SAR Test Report of Mobile Phone Model : S470 To C95.1, IEEE 1528, OET Bulletin 65 Supplement C, IEC62209-2 & RSS-102 Issue 4 and Safety Code 6 Serial# 13070170-FCC-H Issue Date July 26th, 2013 Page 83 of 111 www.siemic.com Title: SAR Test Report of Mobile Phone Model : S470 To C95.1, IEEE 1528, OET Bulletin 65 Supplement C, IEC62209-2 & RSS-102 Issue 4 and Safety Code 6 Serial# 13070170-FCC-H Issue Date July 26th, 2013 Page 84 of 111 www.siemic.com Title: SAR Test Report of Mobile Phone Model : S470 To C95.1, IEEE 1528, OET Bulletin 65 Supplement C, IEC62209-2 & RSS-102 Issue 4 and Safety Code 6 Serial# 13070170-FCC-H Issue Date July 26th, 2013 Page 85 of 111 www.siemic.com Title: SAR Test Report of Mobile Phone Model : S470 To C95.1, IEEE 1528, OET Bulletin 65 Supplement C, IEC62209-2 & RSS-102 Issue 4 and Safety Code 6 Serial# 13070170-FCC-H Issue Date July 26th, 2013 Page 86 of 111 www.siemic.com Title: SAR Test Report of Mobile Phone Model : S470 To C95.1, IEEE 1528, OET Bulletin 65 Supplement C, IEC62209-2 & RSS-102 Issue 4 and Safety Code 6 Serial# 13070170-FCC-H Issue Date July 26th, 2013 Page 87 of 111 www.siemic.com Title: SAR Test Report of Mobile Phone Model : S470 To C95.1, IEEE 1528, OET Bulletin 65 Supplement C, IEC62209-2 & RSS-102 Issue 4 and Safety Code 6 Serial# 13070170-FCC-H Issue Date July 26th, 2013 Page 88 of 111 www.siemic.com Title: SAR Test Report of Mobile Phone Model : S470 To C95.1, IEEE 1528, OET Bulletin 65 Supplement C, IEC62209-2 & RSS-102 Issue 4 and Safety Code 6 Serial# 13070170-FCC-H Issue Date July 26th, 2013 Page 89 of 111 www.siemic.com Title: SAR Test Report of Mobile Phone Model : S470 To C95.1, IEEE 1528, OET Bulletin 65 Supplement C, IEC62209-2 & RSS-102 Issue 4 and Safety Code 6 Serial# 13070170-FCC-H Issue Date July 26th, 2013 Page 90 of 111 www.siemic.com Title: SAR Test Report of Mobile Phone Model : S470 To C95.1, IEEE 1528, OET Bulletin 65 Supplement C, IEC62209-2 & RSS-102 Issue 4 and Safety Code 6 Serial# 13070170-FCC-H Issue Date July 26th, 2013 Page 91 of 111 www.siemic.com Title: SAR Test Report of Mobile Phone Model : S470 To C95.1, IEEE 1528, OET Bulletin 65 Supplement C, I…

Text truncated - open the document above for the full version.

Verykool USA INC MOBILE PHONE Model: S470 Serial Model: NA July 26th, 2013 Report No.: 13070170-FCC-H (This report supersedes NONE) This Test Report is Issued Under the Authority of: Chris You Test Engineer Alex Liu Technical Manager Modifications made to the product : None This test report may be reproduced in full only. All Test Data Presented in this report is only applicable to presented Test sample. Title: SAR Test Report of Mobile Phone Model : S470 To C95.1, IEEE 1528, OET Bulletin 65 Supplement C, IEC62209-2 & RSS-102 Issue 4 and Safety Code 6 Serial# 13070170-FCC-H Issue Date July 26th, 2013 Page 2 of 111 www.siemic.com Laboratory Introduction SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one-stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management through out a project. Our extensive experience with China, Asia Pacific, North America, European, and international compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets . Accreditations for Conformity Assessment Country/Region Accreditation Body Scope USA FCC, A2LA EMC , RF/Wireless , Telecom Canada IC, A2LA, NIST EMC, RF/Wireless , Telecom Taiwan BSMI , NCC , NIST EMC, RF, Telecom , Safety Hong Kong OFTA , NIST RF/Wireless ,Telecom Australia NATA, NIST EMC, RF, Telecom , Safety Korea KCC/RRA, NIST EMI, EMS, RF , Telecom, Safety Japan VCCI, JATE, TELEC, RFT EMI, RF/Wireless, Telecom Mexico NOM, COFETEL, Caniety Safety, EMC , RF/Wireless, Telecom Europe A2LA, NIST EMC, RF, Telecom , Safety Accreditations for Product Certifications Country Accreditation Body Scope USA FCC TCB, NIST EMC , RF , Telecom Canada IC FCB , NIST EMC , RF , Telecom Singapore iDA, NIST EMC , RF , Telecom EU NB, NIST EMC,RF,Safety,Telecom Title: SAR Test Report of Mobile Phone Model : S470 To C95.1, IEEE 1528, OET Bulletin 65 Supplement C, IEC62209-2 & RSS-102 Issue 4 and Safety Code 6 Serial# 13070170-FCC-H Issue Date July 26th, 2013 Page 3 of 111 www.siemic.com This page has been left blank intentionally. Title: SAR Test Report of Mobile Phone Model : S470 To C95.1, IEEE 1528, OET Bulletin 65 Supplement C, IEC62209-2 & RSS-102 Issue 4 and Safety Code 6 Serial# 13070170-FCC-H Issue Date July 26th, 2013 Page 4 of 111 www.siemic.com CONTENTS 1 EXECUTIVE SUMMARY & EUT INFORMATION .............................................................................................................. 6 2 TECHNICAL DETAILS ................................................................................................................................................... 7 3 INTRODUCTION ........................................................................................................................................................... 8 4 SAR MEASUREMENT SETUP ....................................................................................................................................... 9 5 ANSI/IEEE C95.1 – 1999 RF EXPOSURE LIMIT ............................................................................................................ 20 6 SYSTEM AND LIQUID VALIDATION ............................................................................................................................ 21 7 UNCERTAINTY ASSESSMENT .................................................................................................................................... 28 8 TEST INSTRUMENT .................................................................................................................................................... 31 9 OUTPUT POWER VERIFICATION ................................................................................................................................ 32 10 SAR TEST RESULTS .................................................................................................................................................. 37 11 SAR MEASUREMENT REFERENCES .......................................................................................................................... 42 ANNEX A CALIBRATION REPORTS .................................................................................................................................. 74 ANNEX B SAR SYSTEM PHOTOGRAPHS ........................................................................................................................ 105 ANNEX C SETUP PHOTOGRAPHS .................................................................................................................................. 106 ANNEX D EUT PHOTOGRAPHS ...................................................................................................................................... 110 Title: SAR Test Report of Mobile Phone Model : S470 To C95.1, IEEE 1528, OET Bulletin 65 Supplement C, IEC62209-2 & RSS-102 Issue 4 and Safety Code 6 Serial# 13070170-FCC-H Issue Date July 26th, 2013 Page 5 of 111 www.siemic.com This page has been left blank intentionally. Title: SAR Test Report of Mobile Phone Model : S470 To C95.1, IEEE 1528, OET Bulletin 65 Supplement C, IEC62209-2 & RSS-102 Issue 4 and Safety Code 6 Serial# 13070170-FCC-H Issue Date July 26th, 2013 Page 6 of 111 www.siemic.com 1 Executive Summary & EUT information The purpose of this test programmed was to demonstrate compliance of the Verykool USA INC. Model: S470 against the current Stipulated Standards. The Mobile Phone has demonstrated compliance with the C95.1, IEEE 1528, OET Bulletin 65 Supplement C , IEC62209-2, RSS-102 Issue 4 and Safety Code 6. The test has demonstrated that this unit complies with stipulated standards. EUT Information EUT Description Mobile Phone Model No S470 Input Power Li-ion Battery Model: KLB200N282 Charging Volta…

Text truncated - open the document above for the full version.

Verykool USA INC. Mobile Phone Main Model: S470 Serial Model: N/A July 25, 2013 Report No.: 13070170-FCC-R1 (This report supersedes NONE) Modifications made to the product : None This Test Report is Issued Under the Authority of: Back Huang Compliance Engineer Alex Liu Technical Manager This test report may be reproduced in full only. Test result presented in this test report is applicable to the representative sample only. Title: RF Test Report for Mobile Phone Main Model: S470 Serial Model: N/A To: FCC Part 22(H) & FCC Part 24(E): 2012 Report No: 13070170-FCC-R1 Issue Date: July 25, 2013 Page: 2 of 62 www.siemic.com.cn Laboratory Introduction SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one-stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management through out a project. Our extensive experience with China, Asia Pacific, North America, European, and international compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets. Accreditations for Conformity Assessment Country/Region Accreditation Body Scope USA FCC, A2LA EMC , RF/Wireless , Telecom Canada IC, A2LA, NIST EMC, RF/Wireless , Telecom Taiwan BSMI , NCC , NIST EMC, RF, Telecom , Safety Hong Kong OFTA , NIST RF/Wireless ,Telecom Australia NATA, NIST EMC, RF, Telecom , Safety Korea KCC/RRA, NIST EMI, EMS, RF , Telecom, Safety Japan VCCI, JATE, TELEC, RFT EMI, RF/Wireless, Telecom Mexico NOM, COFETEL, Caniety Safety, EMC , RF/Wireless, Telecom Europe A2LA, NIST EMC, RF, Telecom , Safety Accreditations for Product Certifications Country/Region Accreditation Body Scope USA FCC TCB, NIST EMC , RF , Telecom Canada IC FCB , NIST EMC , RF , Telecom Singapore iDA, NIST EMC , RF , Telecom EU NB EMC & R&TTE Directive Japan MIC, (RCB 208) RF , Telecom Hong Kong OFTA (US002) RF , Telecom Title: RF Test Report for Mobile Phone Main Model: S470 Serial Model: N/A To: FCC Part 22(H) & FCC Part 24(E): 2012 Report No: 13070170-FCC-R1 Issue Date: July 25, 2013 Page: 3 of 62 www.siemic.com.cn This page has been left blank intentionally. Title: RF Test Report for Mobile Phone Main Model: S470 Serial Model: N/A To: FCC Part 22(H) & FCC Part 24(E): 2012 Report No: 13070170-FCC-R1 Issue Date: July 25, 2013 Page: 4 of 62 www.siemic.com.cn CONTENTS 1. EXECUTIVE SUMMARY & EUT INFORMATION ........................................................................................... 5 2. TECHNICAL DETAILS .......................................................................................................................................... 6 3. MODIFICATION ..................................................................................................................................................... 7 4. TEST SUMMARY .................................................................................................................................................... 8 5. MEASUREMENTS, EXAMINATION AND DERIVED RESULTS ................................................................... 9 ANNEX A. TEST INSTRUMENT & METHOD ........................................................................................................ 45 ANNEX B. EUT AND TEST SETUP PHOTOGRAPHS ........................................................................................... 48 ANNEX C. TEST SETUP AND SUPPORTING EQUIPMENT ................................................................................ 58 ANNEX D. USER MANUAL / BLOCK DIAGRAM / SCHEMATICS / PART LIST ............................................ 61 ANNEX E. DECLARATION OF SIMILARITY ........................................................................................................ 62 Title: RF Test Report for Mobile Phone Main Model: S470 Serial Model: N/A To: FCC Part 22(H) & FCC Part 24(E): 2012 Report No: 13070170-FCC-R1 Issue Date: July 25, 2013 Page: 5 of 62 www.siemic.com.cn 1. EXECUTIVE SUMMARY & EUT INFORMATION The purpose of this test programmed was to demonstrate compliance of the Verykool USA INC., Mobile Phone and model: S470 against the current Stipulated Standards. The Mobile Phone has demonstrated compliance with the FCC Part 22(H) & FCC Part 24(E): 2012. EUT Information EUT Description : Mobile Phone Main Model : S470 Serial Model N/A Antenna Gain : GSM850: -1.35 dBi PCS1900: -0.91 dBi UMTS-FDD Band V: -0.96 dBi UMTS-FDD Band II: -0.87 dBi Bluetooth/ WIFI: -1.15 dBi GPS: -1.06 dBi Input Power : Battery: Model: KLB200N282 Li-ion Battery: 3.7V 2000mAh Limited charger voltage: 4.2V Adapter: Model: SKL-5WU-U050-1000 Input: AC 100-240V 50/60Hz 0.15A MAX Output: DC 5V 1000mA Maximum Conducted AV Power to Antenna : GSM850: 31.66 dBm PCS1900: 29.39 dBm UMTS-FDD BandV: 22.73 dBm UMTS-FDD BandII: 22.49 dBm Maximum Radiated ERP/EIRP : GSM850: 30.46 dBm / ERP PCS1900: 25.76 dBm / EIRP UMTS-FDD BandV: 22.25 dBm / ERP UMTS-FDD BandII: 19.76 dBm / EIRP Classification Per Stipulated Test Standard : FCC Part 22(H) & FCC Part 24(E): 2012 Title: RF Test Report for Mobile Phone Main Model: S470 Serial Model: N/A To: FCC Part 22(H) & FCC Part 24(E): 2012 Report No: 13070170-FCC-R1 Issue Date: July 25, 2013 Page: 6 of 62 www.siemic.com.cn 2. TECHNICAL DETAILS Purpose Compliance testing of Mobile Phone with stipulated standard Applicant / Client Verykool USA INC. 3636 Nobel Drive, Suite 325, San Diego, CA 92122, USA Manufacturer ShenZhen Konka Telecommunication Technology Co., ltd Overseas Chinese Town nanshan district, Shenzhen, China Laboratory performing the tests Zone A, Floor 1, Building 2, Wan Ye Long Technology Park, South Side of Zhoushi Road, Bao'an District, Shenzhen, Guangdong, China Tel: +86-0755-2601 4629 / 2601 4953 Fax: +86-0755-2601 4953-810 Email: [email protected] Test report r…

Text truncated - open the document above for the full version.

Title: RF Test Report for Mobile Phone Main Model: S470 Serial Model: N/A To: FCC Part 22(H) & FCC Part 24(E): 2012 Report No: 13070170-FCC-R1 Issue Date: July 25, 2013 Page: 57 of 62 www.siemic.com.cn Annex B.iii. Photograph 3: Test Setup Photo Radiated Spurious Emissions Test Setup Below 1GHz - Front View Radiated Spurious Emissions Test Setup Above 1GHz –Front View
