WA6S5511Mobile Phone

Productivity, efficient and entertainment all in one. Use this guide to take advantage of all the great features available to you. Please visit www.verykool.net for full version of user manual. Welcome to verykool  Your s5511 Functions Description 1. Menu key 8. 3.5mm headset jack 2. Home key 9. Receiver 3. Back key 10. Volume key 4. MIC 11. Power key 5. Micro USB connector12. Flash 6. Proximity sensor 13. Back Camera 7. Front camera 14. Speaker Keys functions description Power On/Off Unlock phone Wallpaper Make a call Press and hold the Power key Press Power key to wake up your phone Slide Lock icon to the right to unlock the phone On Standby mode, press and hold background Choose wallpaper from Select Gallery, Live wallpapers, or Wallpapers to change to desired wallpaper In the standby mode Select to enter dial screen Input the number Press to dial End a call Press With my verykool s5511 want to... Add a new contact Enter Contacts Press in the contacts Select an account to add contact When finished editing Select DONE to save Send a message Messaging Edit recipient or select recipients from contacts Edit content Once done typing Press Browser Browser Input URL Select Go to open web page Music Music Select a listing (Artists, Albums, Songs, or Playlists) Select a song to begin play FM radio Plug in your earphone FM radio Take a picture/video Camera Press to take pictures (Press to switch to video recorder) Turn on BT Settings BT Slide the bar at the right side to turn on/off BT WLAN Settings Wireless & networks Select Wi-Fi to turn on/off Wi-Fi settings Select the access point Connect(Input the password if the AP is locked) Accessories in Package Handset 1 piece Battery 1 piece Travel charger 1 piece Headset 1 piece Micro USB Cable 1 piece User Guide 1 piece Warranty Card 1 piece  Safety Instructions Do not make or receive handheld calls while driving, and never text while driving. Do not use at gas stations. Keep your phone at least 15 mm away from your ear or body while making calls. Your phone may produce a bright or flashing light. Small parts may cause choking. Please do not dispose of used batteries in the trash. The proper disposal of your waste battery will help to protect the environment and human health. Your phone can produce a loud sound. Avoid contact with magnetic fields. Keep away from pacemakers and other electronic medical devices. Avoid extreme temperatures. Switch off in hospitals and other medical facilities when requested. Avoid contact with liquids. Keep your phone dry. Switch off in aircraft and airports when requested. Do not disassemble your phone. Switch off when near explosive materials or liquids. Please use only authentic verykool accessories with this phone, and do not use the battery with any other type of phone. Do not rely on your phone for emergency communications. For Promotions, ringtones, technical information, support, and much more, Visit: www.verykool.net This manual and the installed software of the s5511 are subject to change by verykool USA Inc. without advance notice. FCC Caution. § 15.19 Labelling requirements. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. § 15.21 Information to user. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. § 15.105 Information to the user. Visit our website... Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. Specific Absorption Rate (SAR) information:  This Mobile Phone meets the government's requirements for exposure to radio waves. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons regardless of age or health. FCC RF Exposure Information and Statement The SAR limit of USA (FCC) is 1.6 W/kg averaged over one gram of tissue. Device types: S5511 (FCC ID: WA6S5511) has also been tested against this SAR limit. The highest SAR value reported under this standard during product certification for use at the ear is 0.19W/kg and when properly worn on the body is 0.57W/kg. This device was tested for typical body-worn operations with the back of the handset kept 1.5cm from the body. To maintain compliance with FCC RF exposure requirements, use accessories that maintain a 1.5cm separation distance between the user's body and the back of the handset. The use of belt clips, holsters and similar accessories should not contain metallic components in its assembly. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure requirements, and should be avoided. Bo…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 4.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (current) 3.0 4.0 May-23-2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 4.0 Verykool USA INC. 2014/11/04 To: SIEMIC, Inc. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, _____ Verykool USA INC. _____hereby authorize SIEMIC, Inc. to act as Certification Body for certifying for the following project(s): Product description：Mobile Phone FCC ID: WA6S5511 Model: s5511 We affirm that between SIEMIC, Inc. and ____ Verykool USA INC. ___, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature : Client’s name / title : Sunny Choi /Manager Contact information / address : 3636 Nobel Drive, Suite 325, San Diego, CA 92122

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 Verykool USA INC. 2014/11/04 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: WA6S5511 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description - Tune up Procedure - BOM The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature : Client’s name / title : Sunny Choi /Manager Contact information / address : 3636 Nobel Drive, Suite 325, San Diego, CA 92122

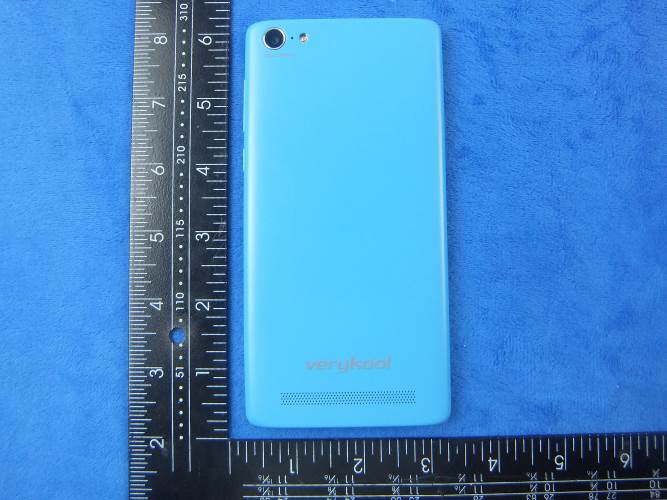

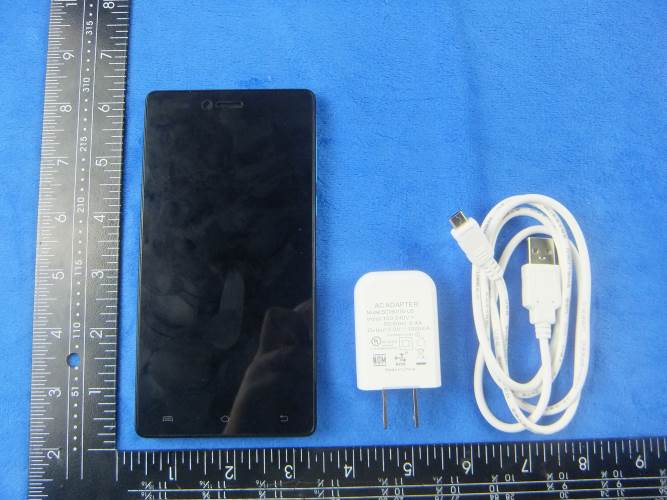

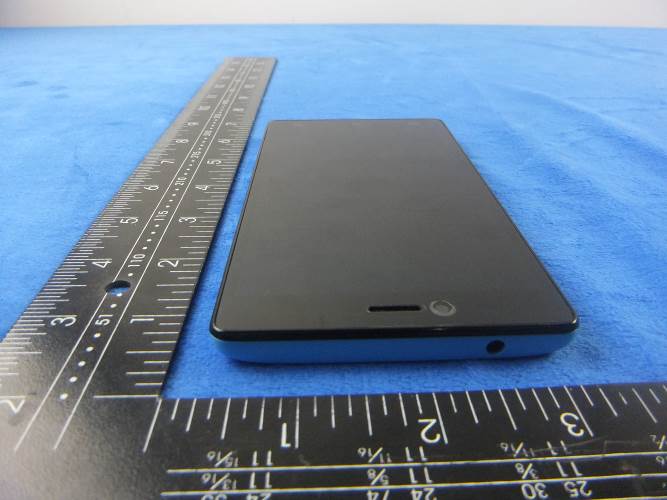

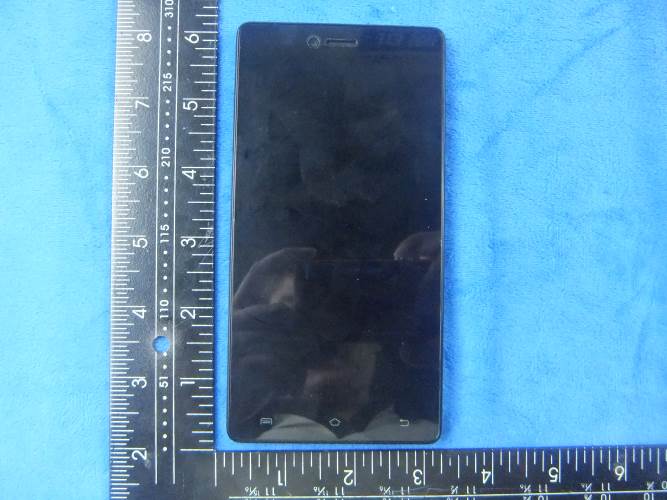

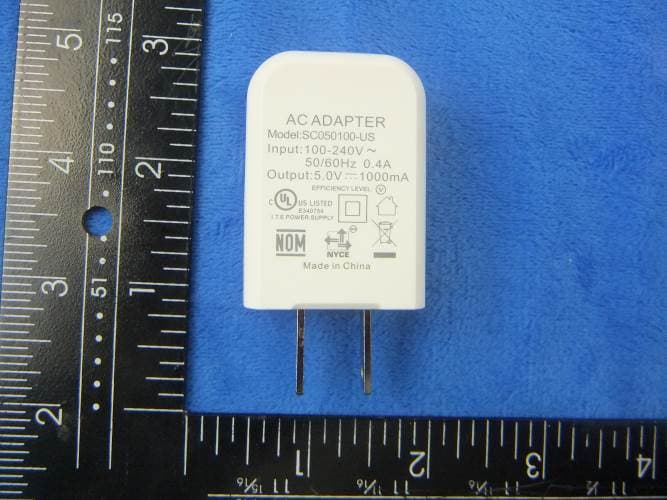

Test Report 14070579-FCC-E1 Page 17 of 26 Annex B. EUT And Test Setup Photographs Annex B.i. Photograph: EUT External Photo Whole Package - Top View Adapter - Front View EUT - Front View EUT - Rear View Test Report 14070579-FCC-E1 Page 18 of 26 EUT - Top View EUT - Bottom View EUT - Left View EUT - Right View

Test Report 14070579-FCC-E1 Page 19 of 26 Annex B.ii. Photograph: EUT Internal Photo Cover Off - Top View 1 Cover Off - Top View 2 Battery - Top View Battery - Bottom View LCD - Front View LCD - Rear View Test Report 14070579-FCC-E1 Page 20 of 26 Mainborad With Shielding - Front View Mainborad Without Shielding - Front View Mainborad With Shielding - Front View Mainborad Without Shielding - Rear View BT/BLE/WIFI Antenna View GSM/PCS/UMTS-FDD Antenna View

SAR TEST REPORT Report No.: 14070579-FCC-H Supersede Report No.: N/A Applicant Verykool USA Inc Product Name Mobile phone Model No. s5511 Standards FCC 47 CFR Part2(2.1093) ANSI/IEEE C95.1-1999 IEEE 1528-2013 & Published RF Exposure KDB Procedures Test Date October 28 to October 29, 2014 Issue Date November 3, 2014 Test Result PASS Equipment complied with the specification Equipment did not comply with the specification Huke Wang Test Engineer Leslie Bai Checked By This test report may be reproduced in full only Test result presented in this test report is applicable to the tested sample only Issued by: SIEMIC (SHENZHEN-CHINA) LABORATORIES Zone A, Floor 1, Building 2 Wan Ye Long Technology Park South Side of Zhoushi Road, Bao’an District, Shenzhen, Guangdong China 518108 Phone: +86 0755 2601 4629801 Email: [email protected] Test Report 14070579-FCC-H Page 2 of 100 Laboratory Introduction SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one-stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management throughout a project. Our extensive experience with China, Asia Pacific, North America, European, and International compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets. Accreditations for Conformity Assessment Country/Region Scope USA EMC, RF/Wireless, SAR, Telecom Canada EMC, RF/Wireless, SAR, Telecom Taiwan EMC, RF, Telecom, SAR, Safety Hong Kong RF/Wireless, SAR, Telecom Australia EMC, RF, Telecom, SAR, Safety Korea EMI, EMS, RF, SAR, Telecom, Safety Japan EMI, RF/Wireless, SAR, Telecom Singapore EMC, RF, SAR, Telecom Europe EMC, RF, SAR, Telecom, Safety Test Report 14070579-FCC-H Page 3 of 100 This page has been left blank intentionally. Test Report 14070579-FCC-H Page 4 of 100 CONTENTS 1 EUT IMFORMATION ...................................................................................................................................................... 5 2 TECHNICAL DETAILS ................................................................................................................................................... 6 3 INTRODUCTION ........................................................................................................................................................... 7 4 SAR MEASUREMENT SETUP ....................................................................................................................................... 8 5 ANSI/IEEE C95.1 – 1999 RF EXPOSURE LIMIT ............................................................................................................ 19 6 SYSTEM AND LIQUID VERIFICATION ......................................................................................................................... 20 7 UNCERTAINTY ASSESSMENT .................................................................................................................................... 28 8 TEST INSTRUMENT .................................................................................................................................................... 31 9 OUTPUT POWER VERIFICATION ................................................................................................................................ 32 10 SAR TEST RESULTS .................................................................................................................................................. 38 11 SAR MEASUREMENT REFERENCES .......................................................................................................................... 42 ANNEX A CALIBRATION REPORTS .................................................................................................................................. 67 ANNEX B SAR SYSTEM PHOTOGRAPHS .......................................................................................................................... 96 ANNEX C SETUP PHOTOGRAPHS .................................................................................................................................... 97 ANNEX D EUT PHOTOGRAPHS ...................................................................................................................................... 100 Test Report 14070579-FCC-H Page 5 of 100 1 EUT IMFORMATION EUT Information EUT Description Mobile phone Model No s5511 Input Power Li-ion Battery Model: GLORY II Charging Voltage:3.7V , 2300mAh Charge Cut-off Voltage: 4.2 V Maximum Conducted Output Power to Antenna GSM 850(Class 4) : 32.64dBm PCS1900 (Class 1) :28.49dBm WCDMA Band II(Class 3): 21.61dBm WCDMA Band V(Class 3): 22.94dBm Highest Reported SAR Level(s) 0.19 W/Kg 1g Head Tissue 0.57 W/Kg 1g Body Tissue Classification Per Stipulated Test Standard Portable Device, Class B, No DTM/Hotspot Mode Multi-SIM Support dual-SIM, dual standby, the multiple SIM card with two lines cannot transmitting at the same time. Co-located TX WWAN can transmit simultaneously with Bluetooth WIFI cannot transmit simultaneously with Bluetooth WWAN can transmit simultaneously with WiFi Antenna Separation distances 11.6cm - WWAN antenna-to-WIFI/Bluetooth antenna Antenna Type(s) PIFA Antenna(WWAN) Accessory Earphone Equipment Class Highest Reported SAR ( W/kg) Head Body-Worn WWAN/PCE 0.19 0.57 Max Simultaneous sum SAR 0.69 Test Report 14070579-FCC-H Page 6 of 100 2 TECHNICAL DETAILS Purpose Compliance testing of Mobile phone model s5511 with stipulated standard Applicant / Client Verykool USA Inc 3636 Nobel Drive, Suite 325, San Diego, CA 92122 USA Manufacturer HONGKONG IPRO TECHNOLOGY CO., LIMITED FLAT/RM A3 9/F SILVERCORP INT TOWER 707-713 NATHAN RD MONGKOK KL HONGKONG Laboratory performing the tests SIEMIC(China-Shenzhen) Laboratories Zone A, Fl…

Text truncated - open the document above for the full version.

RF TEST REPORT Report No.: 14070579-FCC-R1 Supersede Report No.: N/A Applicant Verykool USA Inc Product Name Mobile phone Model No. s5511 Test Standard FCC Part 22(H) & FCC Part 24(E): 2013; ANSI/TIA C63-D: 2010 Test Date October 24 to October 25, 2014 Issue Date October 30, 2014 Test Result Pass Fail Equipment complied with the specification Equipment did not comply with the specification Herith Shi Test Engineer Alex Liu Checked By This test report may be reproduced in full only Test result presented in this test report is applicable to the tested sample only Issued by: SIEMIC (SHENZHEN-CHINA) LABORATORIES Zone A, Floor 1, Building 2 Wan Ye Long Technology Park South Side of Zhoushi Road, Bao’an District, Shenzhen, Guangdong China 518108 Phone: +86 0755 2601 4629801 Email: [email protected] Test Report 14070579-FCC-R1 Page 2 of 52 Laboratories Introduction SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one-stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management throughout a project. Our extensive experience with China, Asia Pacific, North America, European, and International compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets. Accreditations for Conformity Assessment Country/Region Scope USA EMC, RF/Wireless, SAR, Telecom Canada EMC, RF/Wireless, SAR, Telecom Taiwan EMC, RF, Telecom, SAR, Safety Hong Kong RF/Wireless, SAR, Telecom Australia EMC, RF, Telecom, SAR, Safety Korea EMI, EMS, RF, SAR, Telecom, Safety Japan EMI, RF/Wireless, SAR, Telecom Singapore EMC, RF, SAR, Telecom Europe EMC, RF, SAR, Telecom, Safety Test Report 14070579-FCC-R1 Page 3 of 52 This page has been left blank intentionally. Test Report 14070579-FCC-R1 Page 4 of 52 CONTENTS 1. REPORT REVISION HISTORY ............................................................................................................................ 5 2. CUSTOMER INFORMATION ................................................................................................................................ 5 3. TEST SITE INFORMATION ................................................................................................................................... 5 4. EQUIPMENT UNDER TEST (EUT) INFORMATION ......................................................................................... 6 5. TEST SUMMARY .................................................................................................................................................... 8 6. MEASUREMENTS, EXAMINATION AND DERIVED RESULTS ..................................................................... 9 6.1 RF EXPOSURE (SAR) .............................................................................................................................................. 9 6.2 RF OUTPUT POWER ............................................................................................................................................. 10 6.3 MODULATION CHARACTERISTIC ...................................................................................................................... 19 6.4 OCCUPIED BANDWIDTH ...................................................................................................................................... 20 6.5 SPURIOUS EMISSIONS AT ANTENNA TERMINALS ...................................................................................... 24 6.6 SPURIOUS RADIATED EMISSIONS ................................................................................................................... 29 6.7 BAND EDGE ............................................................................................................................................................. 34 6.8 FREQUENCY STABILITY ...................................................................................................................................... 38 ANNEX A. TEST INSTRUMENT ................................................................................................................................. 42 ANNEX B. EUT AND TEST SETUP PHOTOGRAPHS ........................................................................................... 43 ANNEX C. TEST SETUP AND SUPPORTING EQUIPMENT ................................................................................ 48 ANNEX C.II. EUT OPERATING CONKITIONS ........................................................................................................ 50 ANNEX D. USER MANUAL / BLOCK DIAGRAM / SCHEMATICS / PARTLIST .................................................. 51 ANNEX E. DECLARATION OF SIMILARITY ............................................................................................................ 52 Test Report 14070579-FCC-R1 Page 5 of 52 1. Report Revision History Report No. Report VersionDescription Issue Date 14070579-FCC-R1 NONE Original October 30, 2014 2. Customer information Applicant Name Verykool USA Inc Applicant Add 3636 Nobel Drive, Suite 325, San Diego, CA 92122 USA Manufacturer HONGKONG IPRO TECHNOLOGY CO., LIMITED Manufacturer Add FLAT/RM A3 9/F SILVERCORP INT TOWER 707-713 NATHAN RD MONGKOK KL HONGKONG 3. Test site information Lab performing tests SIEMIC (Shenzhen-China) LABORATORIES Lab Address Zone A, Floor 1, Building 2 Wan Ye Long Technology Park South Side of Zhoushi Road, Bao’an District, Shenzhen, Guangdong China 518108 FCC Test Site No. 718246 IC Test Site No. 4842E-1 Test Software LabView of SIEMIC version 2.0 Test Report 14070579-FCC-R1 Page 6 of 52 4. Equipment under Test (EUT) Information Description of EUT: Mobile phone Main Model: s5511 Serial Model: N/A Date EUT received: October 17, 2014 Test Date(s): October 24 to October 25, 2014 Equipment Cat…

Text truncated - open the document above for the full version.

Test Report 14070579-FCC-R1 Page 45 of 50 Annex B.iii. Photograph: Test Setup Photo Radiated Spurious Emissions Test Setup Below 1GHz Radiated Spurious Emissions Test Setup Above 1GHz
