WA6SL4502Mobile Phone

Verykool SL4502 1 User Manual ‐‐‐‐Verykool SL4502 Verykool SL4502 2 Contents 1．APPEARANCE AND KEYPAD OPERATIONS ............................ 3 2．USING MEMORY CARD AS U DISK ............................... 4/5 3．WIFI ...................................................... 6/7 4．BLUETOOTH ................................................... 8 5．MAIL ........................................................ 9  5.1 GMAIL ...................................................................................................................... 9  5.2 EMAIL .......................................................................................................................... 10 6．DIALLING .............................................. 11/12/13 7．MESSAGING ............................................ 14/15/16 8. CONTACTS ............................................. 17/19/21 9. INTENET EXPLOR .......................................... 22/23 10．RECORDER .................................................. 24 11．CLOCK ..................................................... 24 12. CACULATOR ................................................. 25 13．CAMERA .............................................. 26/27/28  13.1 IMAGE MODE .................................................................................................................. 26  13.2 VIDEO MODE ................................................................................................................. 27 14．IMAGES ................................................ 29/30 15．MUSIC .................................................. 31/32 16. CALENDER .................................................. 33 17. FM RADIO .................................................. 34 18. SETTINGS ......................................... 35/36/37/38 Verykool SL4502 3 19. NOTICES FOR THE USE OF PHONE ........................... 39/40 1 . Appearance and Keypad Operations Keys Functions home  Press this button to return home from any application or interface.  Press it to open recently opened application window. menu  Press it to start the menu，which allows you to perform actions in the current interface or options’ menu. back  Press it to return to the previous interface，or to close dialog box 、 options’ menu、notification panel or the keypad. power  Press it to open the phone’s menu，then you could choose to lock the screen、 turn off the phone，or set it to the silent mode . up  Press it to increase the volume  Press it to turn the phone to vibration mode from the silent mode. down  Press it to decrease the volume. P‐Serson  Cover it, and then the phone’s backlight will turn off Verykool SL4502 4 front camera  Entering the camera interface, switched to the front camera can photo yourself. 2. Using Memory Card as U Disk If you want to send music, pictures or other files to the phone’s memory card from the computer，you should set memory card as u disk first. Set memory card as u disk 1) Connect the phone to the computer with USB cable. The notification icon will appear in the status box. 2) Use USB mobile transmission line will connected to the computer 3) In the notification panel, touch USB is connected ，And then touch the USB connected as a media device 1 2 3 4 Specific shown in the following figure (picture 1.2.3.4) Verykool SL4502 5 1: connectedas a media device 2:Charging info 3:Wi‐Fi network available 4:USB debuggling connected Verykool SL4502 6 3: 4) Insert the SD Card. Open USB connected. Verykool SL4502 7 2）After the connection can be directly in the PC check images captured on camera。  Notice: different PC operating system to how to operate to normal use the U disk. 1） WIN7 Can directly use 2） XP update windows media player to 11 3） Install wpdmtp.inf driver 4） Vista Unconfirmed  Notice :On the PC operation assistant tool such as mobile phone, Must be open the USB debugging. 3.WiFi Wifi provides as far as 300feet (100M) range of wireless network access. If you use cell phone to connect wifi, you should connect to the wireless access point or 「hot spots」.  Notices：The availability and coverage of Wi‐Fi signal depend on the number, infrastructure and other objects penetrated by the signal. Open Wi‐fi and to connect to the wireless network 1) Press home>menu，then touch settings>wifi and internet 2) Select the wi‐fi box，to open Wi‐Fi. Phone will automatically scan for available wireless networks. 3) Touch Wi‐Fi settings. Then a list of Wi‐Fi network will show the founded network name and security settings. (open network or WEP、WPA/WPA2 with password).If you enable the notification in Wi‐Fi settings, The status box will show this icon ( ) when open available wireless network founded. 4) Touch one of the Wi‐Fi choices to connect the network. When you choose open network, phone will connect to it automatically. If you choose WEP、WPA/WPA2 with password, you should type the password first, then touch to connect it. Verykool SL4502 8  Notices：when the phone is connected to the wireless network, The status box will show this Wi‐Fi icon（ ）, and the approximate signal strengthen (the number of lit bars).If touch the connected network，will display the name of Wi—Fi network, status,speed,signal, strength, security, information and IP address. If you want to delete the wireless settings, please touch “not reserve” as in the right picture. If you want to connect to this network, you should re‐enter these settings.  Notices： Unless you choose not to reserve the network, otherwise, there is no need to re‐enter the corresponding password when next time connecting to the previously encrypted wireless network. Wi‐Fi will search automatically, that is, phone needn’t to perform additional steps to connect Wi‐Fi networks.  Notices： Unless you choose not to reserve the network with password, otherwise, there is no need to re‐enter the corresponding password when next time connecting to the previously encrypted wireless network. Wi‐Fi will search automatically,…

Text truncated - open the document above for the full version.

Date: 2015/9/15 To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD FCC ID: WA6SL4502 To Whom It May Concern: This letter is to ascertain that Verykool USA INC . Product 3G Smart Phone has been the units used for conducting FCC compliance testing, the DoC part will be tested by FCC recognized test lab. If you have any question or concerns, pls. contact us. Sincerely, Client’s signature: Client’s name / title: Sunny Choi /Manager Contact information / address: 3636 Nobel Drive, Suite 325, San Diego, CA 92122 USA

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 5.0 Verykool USA INC. 2015/9/15 To: SIEMIC, Inc. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, _____Verykool USA INC_____hereby authorize SIEMIC, Inc. to act as Certification Body for certifying for the following project(s): Product description : Mobile Phone FCC ID : WA6SL4502 model name: SL4502 We affirm that between SIEMIC, Inc. and ____ Verykool USA INC ___, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature Client’s name / title : Sunny Choi /Manager Contact information / address : 3636 Nobel Drive, Suite 325, San Diego, CA 92122 USA

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 4.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (obsolete) 2.0 3.0 Jan-31-2012 Added IC confidentiality letter form (current) 3.0 4.0 March-26-2015 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 4.0 Verykool USA Inc. 2015/9/15 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: WA6SL4502 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - . Schematics - . Operational Description - . Tune up Procedure - . Part List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature : Client’s name / title : Sunny Choi /Manager Contact information / address: 3636 Nobel Drive, Suite 325, San Diego, CA 92122, USA

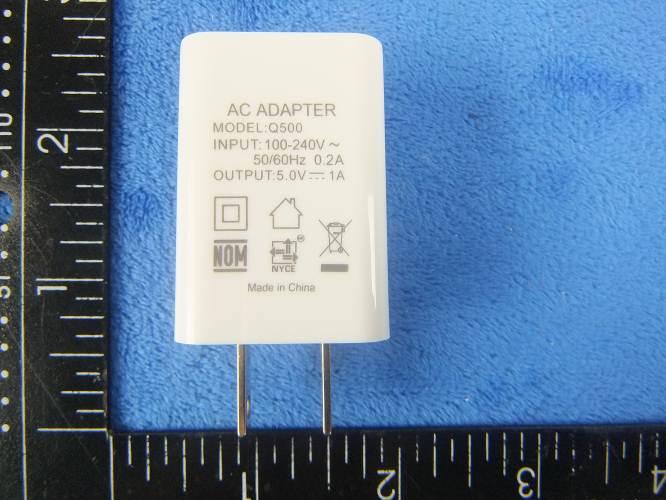

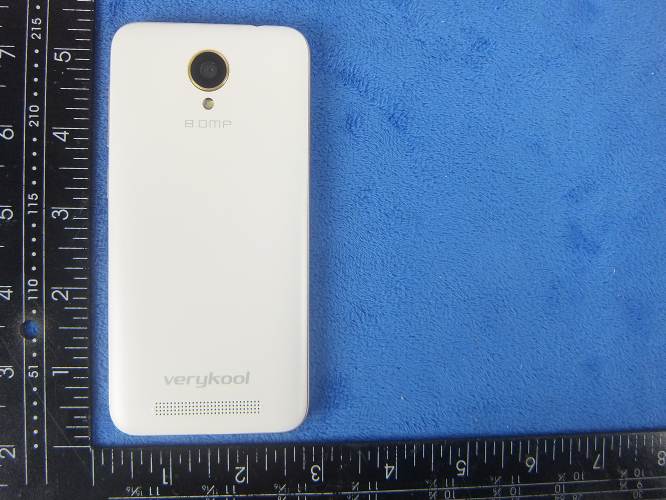

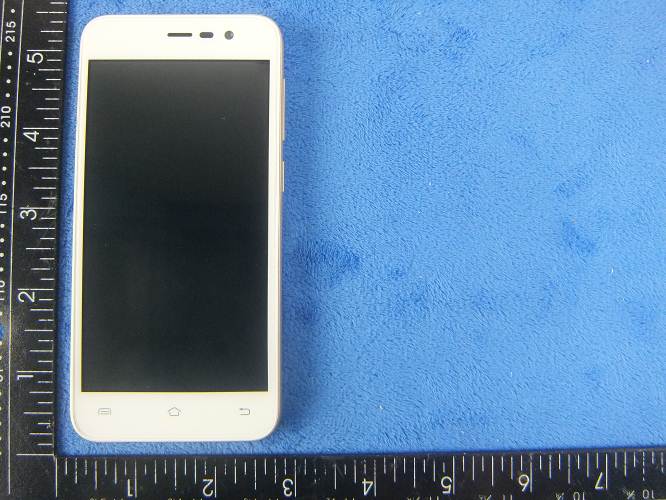

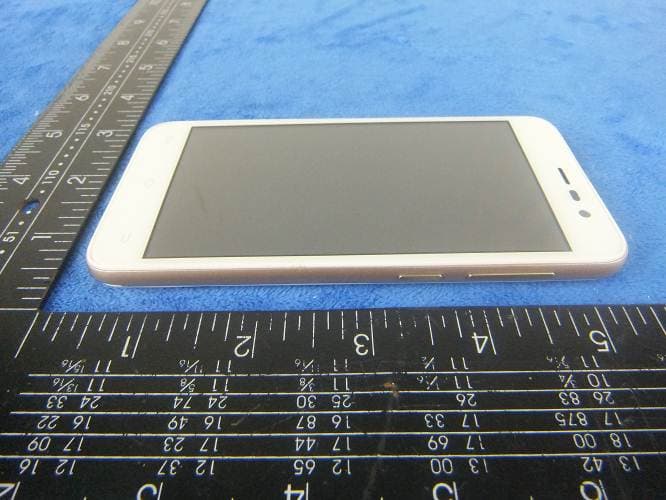

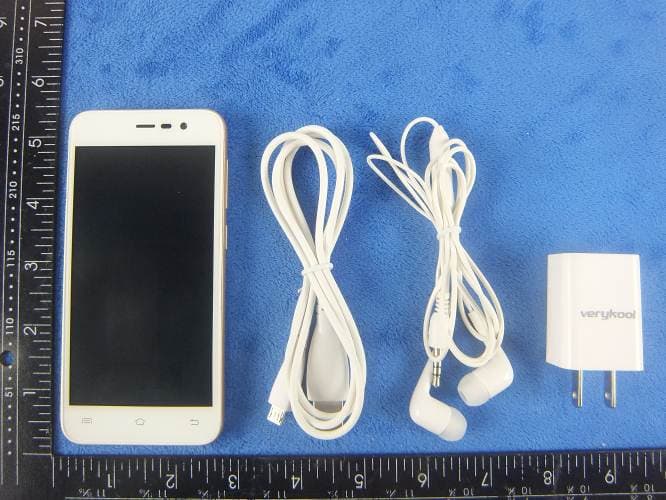

Test Report 15070656-FCC-R5 Page 110 of 120 Annex B. EUT And Test Setup Photographs Annex B.i. Photograph: EUT External Photo Whole Package - Top View Adapter - Front View EUT - Front View EUT - Rear View EUT - Top View EUT - Bottom View Test Report 15070656-FCC-R5 Page 111 of 120 EUT - Left View EUT - Right View
