WAOGSXGeospace Seismic Recorder (GSX)

1 of 3 GSX User Manual Geospace Seismic Recorder (GSX) USER MANUAL 7007 Pinemont Houston, TX 77040 USA This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. CAUTION: Any changes or modifications to this device not explicitly approved by the manufacturer could void your authority to operate this equipment. FCC This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Industry Canada (English) This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. (French) Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. 2 of 3 GSX User Manual GSX MODULE Deployment The GSX should be deployed with the metal plate down. This provides sufficient earth grounding and maximum cooling of the unit as well as providing the GPS receiver in the top to the unit with an ideal “view” of the satellite constellation. The grounding spike should be fastened to the unit prior to deployment to provide maximum earth coupling. The unit should be transported on its side in order to put the unit into standby mode and minimize battery consumption prior to use. Once the unit is ready to be deployed it should be flipped spike down and the GSX will immediately begin power on self-test. The GSX will test all of its internal circuits followed immediately by an impedance test of the seismic sensors. The LED that can be seen from the top of the GSX will flash codes to indicate the GSX’s condition. The GSX will enable the Global Positioning System (GPD) receiver and begin to flash the code that indicates that it is searching for satellites. Within a few seconds the GPS receiver will have sufficient satellite information to obtain a 3 dimensional fix. The flash code will change to indicate this condition and the GSX will now begin to acquire seismic data if it has been programmed to begin recording immediately. See Programming below. After several minutes the internal GSX clock will be sufficiently disciplined and the GPS receiver will be turned off. The flash code will again change to indicate this state. See the flash codes below. Radio Status Monitoring A GSX may be connected to a laptop computer and used as a hub to monitor the status of any GSXs within a 50m to 100m radius via a high frequency radio link. In this mode the laptop/hub monitors and logs status information from all of the GSXs that it communicates with. The laptop stores the GPS location, acquisition status, temperature, battery status and the nonvolatile memory status of each GSX. By moving the hub throughout the seismic spread all of the GSXs in the survey may be monitored and logged. This logging may take place during acquisition of seismic data with no adverse effect on the data quality. 3 of 3 GSX User Manual Flash Codes GSX Start-up Error Codes Critical GSX Error: LED flashes repeatedly on solid for 1 second followed by off for one second. Critical Seis Input 1 Error: LED on solid for 1 second followed by 1 short pulse. Critical Seis Input 2 Error: LED on solid for 1 second followed by 2 short pulses. Critical Seis Input 3 Error: LED on solid for 1 second followed by 3 short pulses. Critical Seis Input 4 Error: LED on solid for 1 second followed by 4 short pulses. Critical Battery Error: LED on solid for 1 second followed by 5 short pulses. Non-Volatile Memory Error: LED on solid for 1 second followed by 6 short pulses. Non-Volatile Memory Full: LED on solid for 1 second followed by 7 short pulses. GSX Run Time Codes GPS on but no GPS fix: One LED flash per second. GPS on with GPS fix: Two quick flashes once per second. Recording with GPS off: One quick flash each 8 seconds. Sleeping: Two quick flashes each 10 seconds. Running geophone tests: LED flashes on for 10 ms 5 times per second. Downloading The GSX non-volatile memory may be read and cleared by removing the battery connection and inserting the unit into one of the outlets in the GeoReaper. See the GeoReaper User Manual for further instruction. Programming The GSX recording parameters such as sample rate, pre-amp gain, record mode, and testing, are programmed and stored in non-volatile memory in the GSX by the GeoReaper. See the GeoReaper User Manual for further instruction.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 4.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (current) 3.0 4.0 May-23-2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 4.0 July 8, 2014 To: SIEMIC, Inc. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Geospace Technologies Corporation, hereby authorize SIEMIC, Inc. to act as Certification Body for certifying for the following project(s): FCC ID: WAOGSX Product Description: Geospace Seismic Recorder (GSX) Model: GSX We affirm that between SIEMIC, Inc. and Geospace Technologies Corporation, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, David Heaton David Heaton / Development Engineer 7007 Pinemont, Houston, TX 77040 [email protected] / PH: 713-986-8627

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 July 8, 2014 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: WAOGSX We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, David Heaton David Heaton / Development Engineer 7007 Pinemont, Houston, TX 77040 [email protected] / PH: 713-986-8627

July 2, 2014 Dear Sir/Madam, Re: Agent Authorization Letter I, Jim Hallaman, hereby authorize David Heaton to sign all related documents for the following project(s) with the FCC and Industry Canada: Company: Geospace Technologies Corporation Product: Geospace Seismic Recorder (GSX) Model: GSX FCC ID: WAOGSX IC ID: 7733A-GSX Sincerely, Jim Hallaman Jim Hallaman Senior Engineering Manager Geospace Technologies Corporation 7007 Pinemont, Houston, TX 77040 [email protected] 713-986-4444

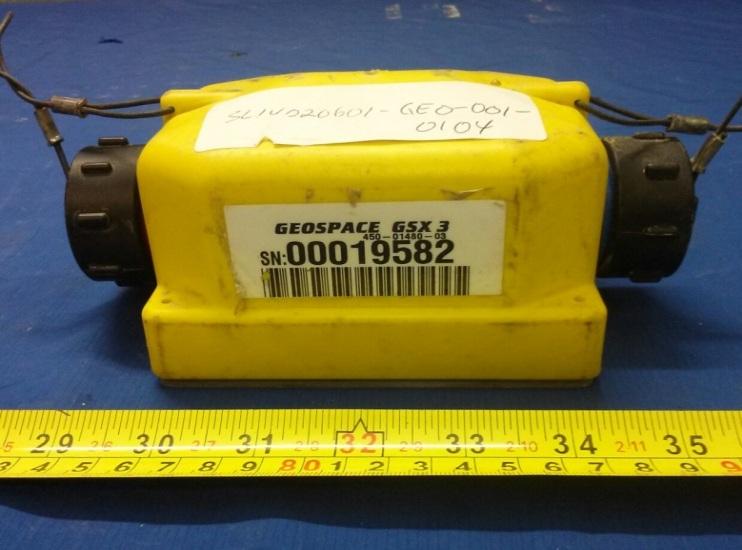

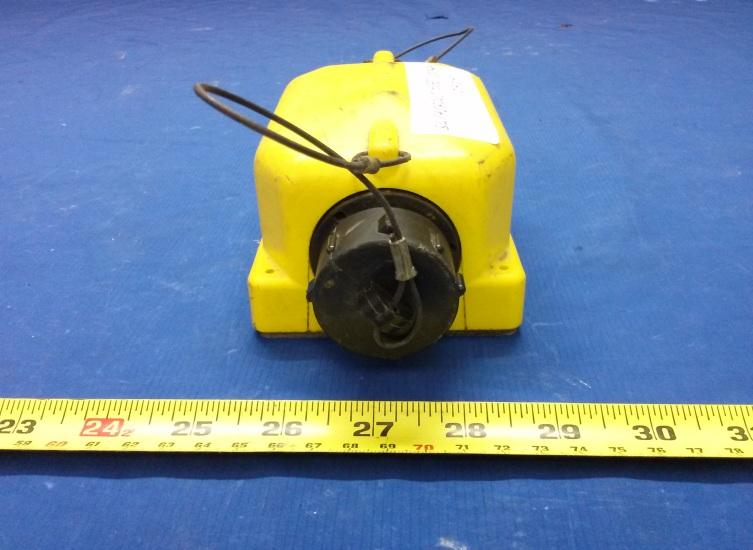

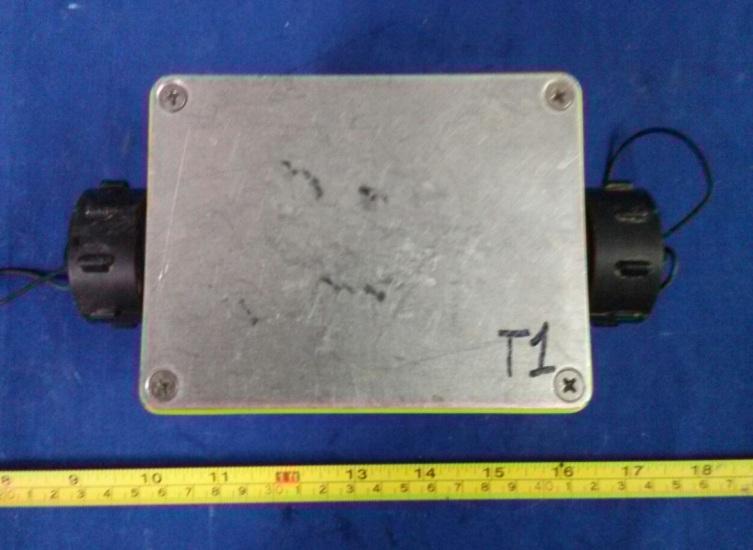

Top View Bottom View Front View Rear View Left View Right View Battery Pack – Top View Battery Pack – Bottom View

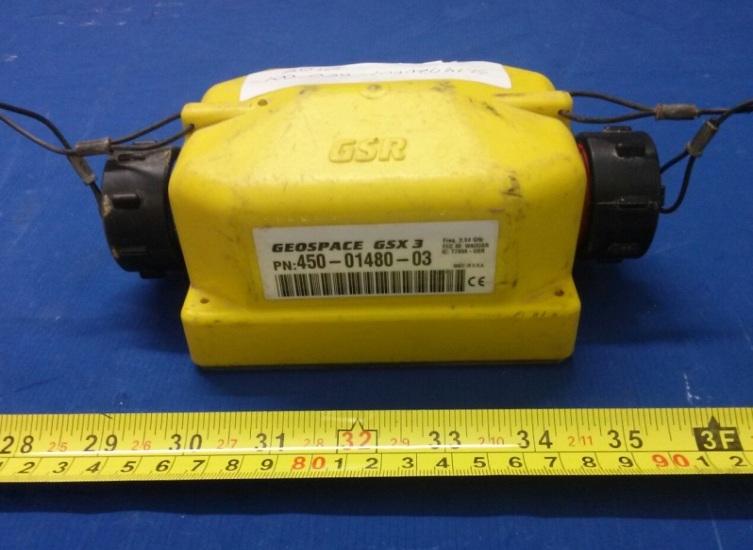

Label Location

EUT –PCBA1 Component Side EUT – PCBA1 Solder Side EUT –PCBA2 Component Side EUT – PCBA2 Solder Side EUT –PCBA3 Component Side EUT – PCBA3 Solder Side EUT –without cover

RF EXPOSURE & RF EXPOSURE CALCULATION ______________________________________________________________________________________________________________________ Evaluation: The SAR test reduction is calculated at below, Formula description 1g SAR with frequency range in 100M6GHz Sep≤ 50mm ☒ [(max. power of channel, distance, mm)] — [ Sep > 50mm ☐ a) [Power allowed at numeric threshold for 50 mmin step 1) + (test separation distance  ☐ b) [Power allowed at numeric threshold for 50 mmin step 1) + (test separation distance  Calculation For Antenna with separation of 3 cm CH (MHz) Zigbee (dBm) Max Rated Power/CH 2405 2.61 1.85 mW / 2440MHz 2440 2.67 2480 2.56 Conclusion: SAR is not required. Completed By: Teody Manansala SIEMIC, Inc 775 Montague Expressway, Milpitas, CA 95035 Phone: (408) 5261188 Date: July 18, 2014 RF EXPOSURE & MPE CALCULATION ______________________________________________________________________________________________________________________ The SAR test reduction is calculated at below, [(max. power of channel, including tuneup tolerance, mW)/(min. test separation distance, mm)] — [√f(GHz)] ≤ 3.0 [Power allowed at numeric threshold for 50 mmin step 1) + (test separation  50 mm)—(f(MHz)/150)] mW, at 100 MHz to 1500 MHz [Power allowed at numeric threshold for 50 mmin step 1) + (test separation  50 mm)—10] mW at > 1500 MHz and ≤ 6 GHz Sep distance (mm) Power Threshold(mW) Limit for SAR test reduction (mW) 5 0.58 ≤3 Expressway, Milpitas, CA 95035 ______________________________________________________________________________________________________________________ up tolerance, mW)/(min. test separation [Power allowed at numeric threshold for 50 mmin step 1) + (test separation 50 mm)—(f(MHz)/150)] mW, at 100 MHz to 1500 MHz [Power allowed at numeric threshold for 50 mmin step 1) + (test separation Limit for SAR test reduction (mW) SAR Test Exclusion ☐Yes ☒No _____________________________________________________________________________________________________________________ RF Exposure Requirements: RF Radiation Exposure Limits: RF Radiation Exposure Guidelines: EUT Frequency Band: Limits for General Population/Uncontrolled Exposure in the band of: Power Density Limit: Equation: S = PG / 4πR 2 or R = √PG / 4π Where, S = Power Density P = Power Input to Antenna G = Antenna Gain R = distance to the center of radiated antenna ______________________________________________________________________________________________________________________ Prediction distance 20cm Zigbee (24052480MHz): Power = 2.670 dBm, antenna gain = Maximum MPE 0.00078 mW/cm 2 , which is less than 1. The Above Result had shown that the d evice complied with Completed By: Teody Manansala SIEMIC, Inc 775 Montague Expressway, Milpitas, CA 95035 Phone: (408) 5261188 Date: June 26, 2014 MPE CALCULATION _____________________________________________________________________________________________________________________ 47 CFR §1. 1307(b) 47 CFR §1. 1310 FCC OST/OET Bulletin Number 65 24052480 MHz Limits for General Population/Uncontrolled Exposure in the band of: 1500  100,000 MHz 1 mW / cm 2 πS R = distance to the center of radiated antenna ______________________________________________________________________________________________________________________ dBm, antenna gain = 3.3 dBi, Power density= 0.00078 , which is less than 1. evice complied with MPE requirement. 775 Montague Expressway, Milpitas, CA 95035 _____________________________________________________________________________________________________________________ FCC OST/OET Bulletin Number 65 ______________________________________________________________________________________________________________________ 78 mW/cm 2

775 Montague Expressway, Milpitas, CA 95035, USA • Phone: (+1) 408 526 1188 • Facsimile (+1) 408 526 1088 Visit us at: www.siemic.com; Follow us at: Report No.: FCC_ RF_SL14020601-GEO-001 Rev1.0 Supersede Report No.: FCC_ RF_SL14020601-GEO-001 Applicant : Geospace Technologies Corporation Product Name : Geospace Seismic Recorder (GSX) Model No. : GSX Test Standard : 47 CRF 15.247: 2013 RSS-210 Issue 8: 2010 Test Method : ANSI C63.4: 2009 558074 D01 DTS Meas Guidance v03r02 FCC ID WAOGSX IC ID 7733A-GSX Dates of test : June 13, 2014 to June 19, 2014 Issue Date : 7/18/2014 Test Result : ☒ Pass ☐ Fail Equipment complied with the specification [X] Equipment did not comply with the specification [ ] This Test Report is Issued Under the Authority of: Teody Manansala Nima Molaei Test Engineer Engineer Reviewer Issued By: SIEMIC Laboratories 775 Montague Expressway, Milpitas, 95035 CA RF TEST REPORT Test report No. FCC_ RF_SL14020601-GEO-001 Rev1.0 Page 2 of 37 775 Montague Expressway, Milpitas, CA 95035, USA • Phone: (+1) 408 526 1188 • Facsimile (+1) 408 526 1088 Visit us at: www.siemic.com; Follow us at: Laboratory Introduction SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one-stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management throughout a project. Our extensive experience with China, Asia Pacific, North America, European, and International compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets. Accreditations for Conformity Assessment Country/Region Accreditation Body Scope USA FCC, A2LA EMC, RF/Wireless, Telecom Canada IC, A2LA, NIST EMC, RF/Wireless, Telecom Taiwan BSMI, NCC, NIST EMC, RF, Telecom, Safety Hong Kong OFTA, NIST RF/Wireless, Telecom Australia NATA, NIST EMC, RF, Telecom, Safety Korea KCC/RRA, NIST EMI, EMS, RF, Telecom, Safety Japan VCCI, JATE, TELEC, RFT EMI, RF/Wireless, Telecom Mexico NOM, COFETEL, Caniety Safety, EMC, RF/Wireless, Telecom Europe A2LA, NIST EMC, RF, Telecom, Safety Accreditations for Product Certifications Country Accreditation Body Scope USA FCC TCB, NIST EMC, RF, Telecom Canada IC FCB, NIST EMC, RF, Telecom Singapore iDA, NIST EMC, RF, Telecom EU NB EMC & R&TTE Directive Japan MIC (RCB 208) RF, Telecom Hong Kong OFTA (US002) RF, Telecom Test report No. FCC_ RF_SL14020601-GEO-001 Rev1.0 Page 3 of 37 775 Montague Expressway, Milpitas, CA 95035, USA • Phone: (+1) 408 526 1188 • Facsimile (+1) 408 526 1088 Visit us at: www.siemic.com; Follow us at: CONTENTS 1 REPORT REVISION HISTORY ....................................................................................................................................... 4 2 EXECUTIVE SUMMARY ................................................................................................................................................. 5 3 CUSTOMER INFORMATION .......................................................................................................................................... 5 4 TEST SITE INFORMATION ............................................................................................................................................ 5 5 MODIFICATION ............................................................................................................................................................. 5 6 EUT INFORMATION ...................................................................................................................................................... 6 6.1 EUT Description ........................................................................................................................................................ 6 6.2 Radio Description ...................................................................................................................................................... 6 6.3 EUT test modes/configuration Description.................................................................................................................... 6 6.4 EUT Photos - External ............................................................................................................................................... 7 6.5 EUT Photos - Internal ............................................................................................................................................ 9 6.6 EUT Test Setup Photos ........................................................................................................................................... 11 7 SUPPORTING EQUIPMENT/SOFTWARE AND CABLING DESCRIPTION ....................................................................... 12 7.1 Supporting Equipment ............................................................................................................................................. 12 7.2 Cabling Description ................................................................................................................................................. 12 7.3 Test Software Description ........................................................................................................................................ 12 8 TEST SUMMARY ......................................................................................................................................................... 13 9 MEASUREMENT UNCERTAINTY ................................................................................................................................. 14 10 MEASUREMENTS, EXAMINATION AND DERIVED RESULTS .................................................................................. 15 10.1 Conducted Emissions ...............................................................…
