WBKCP880-BLTE Outdoor CPE

C P880-B LTE CPE User Manual Index 1 Getting Started ............................................................................................................................... 4 1.1 Welcome to the CPE .................................................................................................. 4 1.2 Computer Configuration Requirements .................................................................... 4 1.3 Logging In to the Web Management Page ................................................................ 4 2 Overview ................................................................................................................................... 6 2.1 Viewing Current Connection ..................................................................................... 6 2.2 Viewing LTE Status ..................................................................................................... 6 2.3 Viewing WAN Status .................................................................................................. 6 3 Statistics .................................................................................................................................... 8 3.1 Viewing CPU Usage ................................................................................................... 8 3.2 Viewing Memory Usage ............................................................................................ 8 3.3 Viewing APN List........................................................................................................ 9 3.4 Viewing Throughput Statistics ................................................................................... 9 3.5 Viewing Device List .................................................................................................... 9 4 Update..................................................................................................................................... 11 4.1 Version Manager ..................................................................................................... 11 Viewing Version Info ........................................................................................................ 11 Version Upgrade .............................................................................................................. 11 4.2 Auto upgrade........................................................................................................... 12 5 Settings .................................................................................................................................... 14 5.1 Viewing the Device Information .............................................................................. 14 Viewing the Version Information .................................................................................... 14 Viewing LAN Status ......................................................................................................... 14 5.2 Viewing Network ..................................................................................................... 15 LTE Settings...................................................................................................................... 15 Scan Mode ....................................................................................................................... 18 APN Management ........................................................................................................... 18 PIN Management ............................................................................................................ 19 SIM Lock .................................................................................................................................. 21 LAN Setting ...................................................................................................................... 22 DMZ Settings ................................................................................................................... 23 Static Route ..................................................................................................................... 24 5.3 Firewall .................................................................................................................... 25 Setting Firewall ................................................................................................................ 25 MAC Filtering ................................................................................................................... 26 IP Filtering ....................................................................................................................... 29 URL Filtering .................................................................................................................... 32 Port Forwarding............................................................................................................... 33 UPnP ................................................................................................................................ 36 DoS .................................................................................................................................. 37 5.6 VPN ............................................................................................................................................ 37 5.7 IPv6 ............................................................................................................................................ 38 Status ...................................................................................................................................... 38 IPv6 WAN Settings ................................................................................................................... 39 IPv6 LAN Settings .................................................................................................................... 39 5.8 System ..........................…

Text truncated - open the document above for the full version.

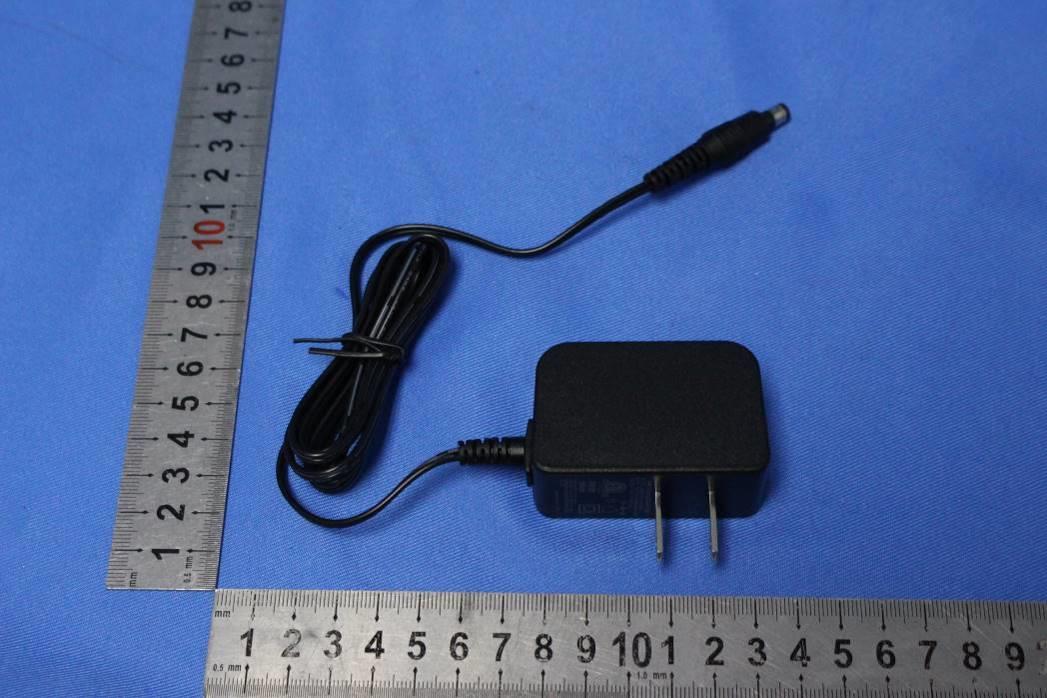

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 1 of 7 External Photos for SZEM2006004502CR FCC ID: WBKCP880-B SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 2 of 7 1 EUT Constructional Details SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 3 of 7 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 4 of 7 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 5 of 7 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 6 of 7 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 7 of 7

1257019101000293 Product Name: LTE Outdoor CPE FCC ID：WBKCP880-B Grantee Code ：WBK Model Name: CP880-B S/N：1257019101000293 MAC : A893520B2210 IMEI : 860524031927237 Frequency Band：Band 48 Supply Voltage：24VDC Manufacturer：Bravo Tech Inc

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 1 of 7 Internal Photos for SZEM2006004502CR FCC ID: WBKCP880-B SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 2 of 7 1 EUT Constructional Details Antenna Panel SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 3 of 7 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 4 of 7 Ant 1 Ant 2 Ant 3 Ant 4 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 5 of 7 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 6 of 7 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 7 of 7

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM200600450003 Page: 1 of 7 Keny Xu EMC Laboratory Manager 1 Cover RF Exposure Evaluation Report Application No.: SZEM2006004500CR Applicant: BTI Wireless Address of Applicant: 6185 Phyllis Drive #D, Cypress, California 90630, United States Manufacturer: Bravo Tech Inc Address of Manufacturer: 14600 INDUSTRY CIRCLE LA MIRADA, CA 90638 Factory: Bravo Tech Inc Address of Factory: 14600 INDUSTRY CIRCLE LA MIRADA, CA 90638 Product Name: LTE Outdoor CPE Model No.: CP880-B FCC ID: WBKCP880-B Standards: 47 CFR Part 1.1307 47 CFR Part 1.1310 47 CFR Part 2.1091 Date of Receipt: 2020-06-02 Date of Test: 2020-06-06 to 2020-07-07 Date of Issue: 2020-07-16 Test Result : Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM200600450003 Page: 2 of 7 2 Version Revision Record Version Chapter Date Modifier Remark 01 2020-07-16 Original Authorized for issue by: Jacky Li /Project Engineer Eric Fu /Reviewer SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM200600450003 Page: 3 of 7 3 Contents Page 1 COVER .........................................................................................................................................................................1 2 VERSION .....................................................................................................................................................................2 3 CONTENTS .................................................................................................................................................................3 4 GENERAL INFORMATION ......................................................................................................................................4 4.1 GENERAL DESCRIPTION OF EUT ...............................................................................................................................4 4.2 TEST LOCATION .........................................................................................................................................................5 4.3 TEST FACILITY ..........................................................................................................................................................5 4.4 DEVIATION FROM STANDARDS ..................................................................................................................................5 4.5 ABNORMALITIES FROM STANDARD CONDITIONS .......................................................................................................5 4.6 OTHER INFORMATION REQUESTED BY THE CUSTOMER .............................................................................................5 5 RF EXPOSURE EVALUATION ................................................................................................................................6 5.1 RF EXPOSURE COMPLIANCE REQUIREMENT ..............................................................................................................6 5.1.1 Limits ..............................................................................................................................................................6 5.1.2 Test Procedure ..............................................................................................................................................6 5.1.3 EUT RF Exposure Evaluation .....................................................................................................................7 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM200600450003 Page: 4 of 7 4 General Information 4.1 General Description of EUT Power supply: Adapter Model NO.: ASSA107A-240050 Input: 100-240V~50/60Hz, 0.45A Output: 24.0V, 0.5A POE Model NO.: GRT-HCQ-1000 Test voltage: AC 120V, 60Hz Cable: RJ45 Cable: 100cm DC cable: 148cm unshielded Sample Type: Mobile production LTE Operation Frequency Band: 48 Frequency range: 3550-3700 MHz Modulation Type: UL: QPSK, 16QAM, 64QAM DL: QPSK, 16QAM, 64QAM, 256QAM LTE Release Version: R11 LTE Power Class: Level 3 CA Capability: DL 2CA 4x4 MIMO DL 4CA 2x2 MIMO UL 2CA Support Intra-band contiguous CA MIMO: DL 2x2 (4CA 256QAM) DL 4x4 (2CA 64QAM) Antenna Type: Panel Antenna Ant 1: TX & RX(SISO & UL CA) Ant 3: TX & RX(UL CA) Ant 2 & 4: RX Antenna Gain: 14dBi SIM Card: This device has only one SIM Card sockets. Extreme temp. Tolerance: -30°C to +50°C Extreme vol. Limits: 20.4VDC to 27.6VDC (nominal: 24.0VDC) SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM200600450003 Page: 5 of 7 4.2 Test Location All tests were performed at: SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch No. 1 Workshop, M-10, Middle section, Science & Technology Park, Shenzhen, Guangdong, China 518057 Telephone: +86 (0) 755 2601 2053 Fax: +86 (0) 755 2671 0594 No tests were sub-contracted. 4.3 Test Facility The test facility is recognized, certified, or accredited by the following organizations: • A2LA (Certificate No. 3816.01) SGS-CSTC Standards Technical Services Co., Ltd., Shenzhen EMC Laboratory is accredited by the American Association for Laboratory Accreditation(A2LA). Certificate No. 3816.01. • VCCI The 3m Fully-anechoic chamber for above 1GHz, 10m Semi-anechoic chamber for below 1GHz, Shielded Room for Mains Port Conducted Interference Measurement and Telecommunication Port Conducted Interference Measurement of SGS-CSTC Standards Technical Services Co., Ltd. have been registered in accordance with the Regulations for Voluntary Control Measures with Registration No.: G-20026, R-14188, C-12383 and T-11153 respectively. • FCC –Designation Number: CN1178 SGS-CSTC Standards Technical Services Co., Ltd., Shenzhen EMC Laboratory has been recognized as an accredited testing laboratory. Designation Number: CN1178. Test Firm …

Text truncated - open the document above for the full version.

1. Peak-Average Ratio Data LTE TDD Band 48, Nominal Bandwidth: 5MHz Modulation Channel RB Configuration Test result (dB) Limit (dB) Verdict Size Offset 16QAM L Full 0 8.08 13 Pass M Full 0 8.36 13 Pass H Full 0 8.20 13 Pass 64QAM L Full 0 10.44 13 Pass M Full 0 8.56 13 Pass H Full 0 8.48 13 Pass QPSK L Full 0 11.92 13 Pass M Full 0 7.88 13 Pass H Full 0 9.76 13 Pass LTE TDD Band 48, Nominal Bandwidth: 10MHz Modulation Channel RB Configuration Test result (dB) Limit (dB) Verdict Size Offset 16QAM L Full 0 8.20 13 Pass M Full 0 8.24 13 Pass H Full 0 8.08 13 Pass 64QAM L Full 0 8.36 13 Pass M Full 0 10.76 13 Pass H Full 0 9.92 13 Pass QPSK L Full 0 10.72 13 Pass M Full 0 8.28 13 Pass H Full 0 10.12 13 Pass LTE TDD Band 48, Nominal Bandwidth: 15MHz Modulation Channel RB Configuration Test result (dB) Limit (dB) Verdict Size Offset 16QAM L Full 0 8.52 13 Pass M Full 0 10.36 13 Pass H Full 0 10.48 13 Pass 64QAM L Full 0 9.84 13 Pass M Full 0 8.76 13 Pass H Full 0 8.60 13 Pass QPSK L Full 0 7.48 13 Pass M Full 0 8.80 13 Pass H Full 0 10.76 13 Pass LTE TDD Band 4, Nominal Bandwidth: 20MHz Modulation Channel RB Configuration Test result (dB) Limit (dB) Verdict Size Offset 16QAM L Full 0 8.88 13 Pass M Full 0 8.88 13 Pass H Full 0 11.28 13 Pass 64QAM L Full 0 9.04 13 Pass M Full 0 9.12 13 Pass H Full 0 9.08 13 Pass QPSK L Full 0 8.88 13 Pass M Full 0 10.04 13 Pass H Full 0 8.32 13 Pass LTE TDD Band 48, Nominal Bandwidth: 5MHz Q16 Low channel Q16 Middle channel Att 40 dB * A 3DB RBW 10 MHz AQT 3.125 ms Offset 6 dB LVL Ref 30 dBm Center 3.5525 GHz 2 dB/Mean Pwr + 20 dB 1 SA VIEW 1E-5 1E-4 1E-3 0.01 0.1 Complementary Cumulative Distribution Function (100000 samples) Trace 1 Mean 20.26 dBm Peak 29.66 dBm Crest 9.40 dB 10 % 4.40 dB 1 % 6.76 dB .1 % 8.08 dB .01 % 8.80 dB Ref 30 dBmAtt 40 dB * Offset 6 dB Center 3.625 GHz 2 dB/Mean Pwr + 20 dB 1 SA VIEW A LVL 3DB RBW 10 MHz AQT 3.125 ms 1E-5 1E-4 1E-3 0.01 0.1 Complementary Cumulative Distribution Function (100000 samples) Trace 1 Mean 20.47 dBm Peak 30.51 dBm Crest 10.04 dB 10 % 4.44 dB 1 % 6.88 dB .1 % 8.36 dB .01 % 9.36 dB Q16 High channel 64QAM Low channel Ref 30 dBmAtt 40 dB * Offset 6 dB Center 3.6975 GHz 2 dB/Mean Pwr + 20 dB 1 SA VIEW A LVL 3DB RBW 10 MHz AQT 3.125 ms 1E-5 1E-4 1E-3 0.01 0.1 Complementary Cumulative Distribution Function (100000 samples) Trace 1 Mean 20.87 dBm Peak 30.51 dBm Crest 9.64 dB 10 % 4.44 dB 1 % 6.84 dB .1 % 8.20 dB .01 % 9.00 dB Att 40 dB * A 3DB RBW 10 MHz AQT 3.125 ms Offset 6 dB LVL Ref 30 dBm Center 3.5525 GHz 2 dB/Mean Pwr + 20 dB 1 SA VIEW 1E-5 1E-4 1E-3 0.01 0.1 Complementary Cumulative Distribution Function (100000 samples) Trace 1 Mean 17.68 dBm Peak 29.87 dBm Crest 12.20 dB 10 % 5.72 dB 1 % 8.96 dB .1 % 10.44 dB .01 % 11.48 dB 64QAM Middle channel 64QAM High channel Att 40 dB * A 3DB RBW 10 MHz AQT 3.125 ms Offset 6 dB LVL Ref 30 dBm Center 3.625 GHz 2 dB/Mean Pwr + 20 dB 1 SA VIEW 1E-5 1E-4 1E-3 0.01 0.1 Complementary Cumulative Distribution Function (100000 samples) Trace 1 Mean 20.46 dBm Peak 30.79 dBm Crest 10.33 dB 10 % 4.40 dB 1 % 7.08 dB .1 % 8.56 dB .01 % 9.64 dB Att 40 dB * A 3DB RBW 10 MHz AQT 3.125 ms Offset 6 dB LVL Ref 30 dBm Center 3.6975 GHz 2 dB/Mean Pwr + 20 dB 1 SA VIEW 1E-5 1E-4 1E-3 0.01 0.1 Complementary Cumulative Distribution Function (100000 samples) Trace 1 Mean 20.83 dBm Peak 30.72 dBm Crest 9.89 dB 10 % 4.36 dB 1 % 7.04 dB .1 % 8.48 dB .01 % 9.48 dB QPSK Low channel QPSK Middle channel Att 40 dB * A 3DB RBW 10 MHz AQT 3.125 ms Offset 6 dB LVL Ref 30 dBm Center 3.5525 GHz 2 dB/Mean Pwr + 20 dB 1 SA VIEW 1E-5 1E-4 1E-3 0.01 0.1 Complementary Cumulative Distribution Function (100000 samples) Trace 1 Mean 15.39 dBm Peak 29.10 dBm Crest 13.71 dB 10 % 6.68 dB 1 % 10.24 dB .1 % 11.92 dB .01 % 13.08 dB Att 40 dB * A 3DB RBW 10 MHz AQT 3.125 ms Offset 6 dB LVL Ref 30 dBm Center 3.625 GHz 2 dB/Mean Pwr + 20 dB 1 SA VIEW 1E-5 1E-4 1E-3 0.01 0.1 Complementary Cumulative Distribution Function (100000 samples) Trace 1 Mean 20.33 dBm Peak 29.73 dBm Crest 9.40 dB 10 % 3.80 dB 1 % 6.36 dB .1 % 7.88 dB .01 % 8.76 dB QPSK High channel Att 40 dB * A 3DB RBW 10 MHz AQT 3.125 ms Offset 6 dB LVL Ref 30 dBm Center 3.6975 GHz 2 dB/Mean Pwr + 20 dB 1 SA VIEW 1E-5 1E-4 1E-3 0.01 0.1 Complementary Cumulative Distribution Function (100000 samples) Trace 1 Mean 18.59 dBm Peak 29.73 dBm Crest 11.14 dB 10 % 5.16 dB 1 % 8.04 dB .1 % 9.76 dB .01 % 10.48 dB LTE TDD Band 48, Nominal Bandwidth: 10MHz Q16 Low channel Q16 Middle channel Ref 30 dBmAtt 40 dB * Offset 6 dB Center 3.555 GHz 2 dB/Mean Pwr + 20 dB 1 SA VIEW A LVL 3DB RBW 10 MHz AQT 3.125 ms 1E-5 1E-4 1E-3 0.01 0.1 Complementary Cumulative Distribution Function (100000 samples) Trace 1 Mean 20.09 dBm Peak 29.80 dBm Crest 9.71 dB 10 % 4.32 dB 1 % 6.76 dB .1 % 8.20 dB .01 % 9.00 dB Att 40 dB * A 3DB RBW 10 MHz AQT 3.125 ms Offset 6 dB LVL Ref 30 dBm Center 3.625 GHz 2 dB/Mean Pwr + 20 dB 1 SA VIEW 1E-5 1E-4 1E-3 0.01 0.1 Complementary Cumulative Distribution Function (100000 samples) Trace 1 Mean 20.49 dBm Peak 30.58 dBm Crest 10.09 dB 10 % 4.44 dB 1 % 6.84 dB .1 % 8.24 dB .01 % 9.32 dB Q16 High channel 64QAM Low channel Ref 30 dBmAtt 40 dB * Offset 6 dB Center 3.695 GHz 2 dB/Mean Pwr + 20 dB 1 SA VIEW A LVL 3DB RBW 10 MHz AQT 3.125 ms 1E-5 1E-4 1E-3 0.01 0.1 Complementary Cumulative Distribution Function (100000 samples) Trace 1 Mean 20.67 dBm Peak 30.44 dBm Crest 9.77 dB 10 % 4.44 dB 1 % 6.80 dB .1 % 8.08 dB .01 % 9.08 dB Att 40 dB * A 3DB RBW 10 MHz AQT 3.125 ms Offset 6 dB LVL Ref 30 dBm Center 3.555 GHz 2 dB/Mean Pwr + 20 dB 1 SA VIEW 1E-5 1E-4 1E-3 0.01 0.1 Complementary Cumulative Distribution Function (100000 samples) Trace 1 Mean 20.08 dBm Peak 29.80 dBm Crest 9.72 dB 10 % 4.40 dB 1 % 6.92 dB .1 % 8.36 dB .01 % 9.24 dB 64QAM Middle channel 64QAM High channel Att 40 dB * A 3DB RBW 10 MHz AQT 3.125 ms Offset 6 dB LVL Ref 30 dBm Center 3.625 GHz 2 dB/Mean Pwr + 20 dB 1 SA VIEW 1E-5 1E-4 1E-3 0.01 0.1 Complementary Cumulative Distribution Function (100000 sa…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM200600450202 Page: 1 of 38 Keny Xu EMC Laboratory Manager TEST REPORT Application No.: SZEM2006004502CR Applicant: BTI Wireless Address of Applicant: 6185 Phyllis Drive #D, Cypress, California 90630, United States Manufacturer: Bravo Tech Inc Address of Manufacturer: 14600 INDUSTRY CIRCLE LA MIRADA, CA 90638 Factory: Bravo Tech Inc Address of Factory: 14600 INDUSTRY CIRCLE LA MIRADA, CA 90638 Equipment Under Test (EUT): EUT Name: LTE Outdoor CPE Model No.: CP880-B FCC ID: WBKCP880-B Standard(s) : 47 CFR Part 2 47 CFR Part 96 Date of Receipt: 2020-06-02 Date of Test: 2020-06-08 to 2020-07-13 Date of Issue: 2020-07-16 Test Result: Pass * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM200600450202 Page: 2 of 38 Revision Record Version Chapter Date Modifier Remark 01 2020-07-16 Original Authorized for issue by: Jacky Li /Project Engineer Eric Fu /Reviewer SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM200600450202 Page: 3 of 38 2 Test Summary Test Item FCC Rule No. Requirements Verdict Effective (Isotropic) Radiated Power Output Data §2.1046, §96.41 EIRP≤ 47dBm/10MHz PSD≤ 37dBm/MHz (LTE Band 48) PASS Peak-Average Ratio §96.41 ≤13dB PASS Modulation Characteristics §2.1047 Digital modulation PASS Bandwidth §96.41 OBW: No limit EBW: No limit PASS Band Edge Compliance §2.1051, §96.41 0-10 MHz: -13 dBm; 10-operating band edge MHz: -25 dBm; other: -40 dBm PASS Spurious emissions at antenna terminals §2.1051, §96.41 ≤ -40dBm (LTE Band 48) PASS Field strength of spurious radiation §2.1051, §96.41 ≤ -40dBm (LTE Band 48) PASS Frequency stability §2.1055, Fundamental emission stays within authorized frequency block PASS SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM200600450202 Page: 4 of 38 3 Contents Page 1 COVER PAGE ............................................................................................................................................ 1 2 TEST SUMMARY ....................................................................................................................................... 3 3 CONTENTS ................................................................................................................................................ 4 4 GENERAL INFORMATION ........................................................................................................................ 6 4.1 Details of E.U.T. ............................................................................................................................. 6 4.2 Test Frequency .............................................................................................................................. 7 4.3 Test Environment ........................................................................................................................... 7 4.4 Description of Support Units .......................................................................................................... 7 4.5 Measurement Uncertainty .............................................................................................................. 8 4.6 Test Location ................................................................................................................................. 9 4.7 Test Facility .................................................................................................................................... 9 4.8 Deviation from Standards .............................................................................................................. 9 4.9 Abnormalities from Standard Conditions ....................................................................................... 9 5 EQUIPMENT LIST .................................................................................................................................... 10 6 RADIO SPECTRUM MATTER TEST RESULTS ..................................................................................... 12 6.1 Effective (Isotropic) Radiated Power Output Data ....................................................................... 12 6.1.1 E.U.T. Operation .......................................................................................................................... 12 6.1.2 Test Setup Diagram ..................................................................................................................... 12 6.1.3 Measurement Data ...................................................................................................................... 12 6.2 Peak-Average Ratio ..................................................................................................................... 13 6.2.1 E.U.T. Operation .......................................................................................................................... 13 6.2.2 Test Setup Diagram ..................................................................................................................... 13 6.2.3 Measurement Data ...................................................................................................................... 13 6.3 Bandwidth .................................................................................................................................... 14 6.3.1 E.U.T. Operation .......................................................................................................................... 14 6.3.2 Test Setup Diagram ..................................................................................................................... 14 6.3.3 Measurement Data ...................................................................................................................... 14 6.4 Band Edge Compliance ....................................................…

Text truncated - open the document above for the full version.

1. Effective (Isotropic) Radiated Power Output Data 1.1 Test Result EIRP Test data_Test Band: 48 _ 5MHz Bandwidth Modulation RB Allocation Conducted Power (dBm/10MHz) Antenna gain EIRP (dBm/10MHz) Limit (dBm) Verdict Size Offset LCH MCH HCH (dBd) (dBi) LCH MCH HCH QPSK 25 0 21.67 22.31 21.83 / 14.00 35.67 36.31 35.83 47.0 PASS 16QAM 25 0 21.99 21.85 22.25 / 14.00 35.99 35.85 36.25 47.0 PASS 64QAM 25 0 22.18 22.24 21.88 / 14.00 36.18 36.24 35.88 47.0 PASS Note: 1) EIRP = Conducted output power + Antenna gain (dBi) 2) All modes have been tested and we only record the worst test data. 3) Full RB test mode EIRP Test data_Test Band: 48 _ 10MHz Bandwidth Modulation RB Allocation Conducted Power (dBm/10MHz) Antenna gain EIRP (dBm/10MHz) Limit (dBm) Verdict Size Offset LCH MCH HCH (dBd) (dBi) LCH MCH HCH QPSK 50 0 21.69 21.63 22.1 / 14.00 35.69 35.63 36.1 47.0 PASS 16QAM 50 0 22.18 22.24 21.69 / 14.00 36.18 36.24 35.69 47.0 PASS 64QAM 50 0 22.37 21.68 22.38 / 14.00 36.37 35.68 36.38 47.0 PASS Note: 1) EIRP = Conducted output power + Antenna gain (dBi) 2) All modes have been tested and we only record the worst test data. 3) Full RB test mode EIRP Test data_Test Band: 48 _ 15MHz Bandwidth Modulation RB Allocation Conducted Power (dBm/10MHz) Antenna gain EIRP (dBm/10MHz) Limit (dBm) Verdict Size Offset LCH MCH HCH (dBd) (dBi) LCH MCH HCH QPSK 75 0 22.37 21.85 21.97 / 14.00 36.37 35.85 35.97 47.0 PASS 16QAM 75 0 22.13 22 22.07 / 14.00 36.13 36 36.07 47.0 PASS 64QAM 75 0 22.03 21.83 22.12 / 14.00 36.03 35.83 36.12 47.0 PASS Note: 1) EIRP = Conducted output power + Antenna gain (dBi) 2) All modes have been tested and we only record the worst test data. 3) Full RB test mode EIRP Test data_Test Band: 48 _ 20MHz Bandwidth Modulation RB Allocation Conducted Power (dBm/10MHz) Antenna gain EIRP (dBm/10MHz) Limit (dBm) Verdict Size Offset LCH MCH HCH (dBd) (dBi) LCH MCH HCH QPSK 100 0 21.87 22.11 21.81 / 14.00 35.87 36.11 35.81 47.0 PASS 16QAM 100 0 22.29 21.74 22.33 / 14.00 36.29 35.74 36.33 47.0 PASS 64QAM 100 0 21.72 21.91 22.09 / 14.00 35.72 35.91 36.09 47.0 PASS Note: 1) EIRP = Conducted output power + Antenna gain (dBi) 2) All modes have been tested and we only record the worst test data. 3) Full RB test mode EIRP Test data_Intra-band contiguous CA for LTE Band 48 Bandwidth (MHz) Modulati on Power (dBm/10MHz) Antenna Gain (dBi) EIRP (dBm/10MHz) Limit (dBm) Verdict PCC SCC LCH MCH HCH LCH MCH HCH 5 20 QPSK 21.84 21.48 21.85 14.00 35.84 35.48 35.85 47.0 Pass 5 20 16QAM 21.22 21.17 21.31 14.00 35.22 35.17 35.31 47.0 Pass 5 20 64QAM 21.06 21.08 21.07 14.00 35.06 35.08 35.07 47.0 Pass 10 20 QPSK 21.66 21.53 21.44 14.00 35.66 35.53 35.44 47.0 Pass 10 20 16QAM 21.21 21.18 21.28 14.00 35.21 35.18 35.28 47.0 Pass 10 20 64QAM 21.07 21.07 21.06 14.00 35.07 35.07 35.06 47.0 Pass 15 20 QPSK 21.86 21.54 21.89 14.00 35.86 35.54 35.89 47.0 Pass 15 20 16QAM 21.14 21.13 21.2 14.00 35.14 35.13 35.2 47.0 Pass 15 20 64QAM 21.06 21.06 21.06 14.00 35.06 35.06 35.06 47.0 Pass 20 20 QPSK 21.58 21.83 21.83 14.00 35.58 35.83 35.83 47.0 Pass 20 20 16QAM 21.23 21.27 21.26 14.00 35.23 35.27 35.26 47.0 Pass 20 20 64QAM 21.06 21.06 21.07 14.00 35.06 35.06 35.07 47.0 Pass 20 5 QPSK 21.64 21.65 21.45 14.00 35.64 35.65 35.45 47.0 Pass 20 5 16QAM 21.29 21.12 21.36 14.00 35.29 35.12 35.36 47.0 Pass 20 5 64QAM 21.08 21.08 21.06 14.00 35.08 35.08 35.06 47.0 Pass 20 10 QPSK 21.65 21.74 21.86 14.00 35.65 35.74 35.86 47.0 Pass 20 10 16QAM 21.34 21.41 21.2 14.00 35.34 35.41 35.2 47.0 Pass 20 10 64QAM 21.07 21.08 21.06 14.00 35.07 35.08 35.06 47.0 Pass 20 15 QPSK 21.46 21.7 21.47 14.00 35.46 35.7 35.47 47.0 Pass 20 15 16QAM 21.29 21.34 21.19 14.00 35.29 35.34 35.19 47.0 Pass 20 15 64QAM 21.06 21.07 21.08 14.00 35.06 35.07 35.08 47.0 Pass Note: 1) EIRP = Conducted output power + Antenna gain (dBi) 2) All modes have been tested and we only record the worst test data. 3) Full RB test mode PSD Test data_Test Band: 48 _ 5MHz Bandwidth Modulation RB Allocation PSD (dBm/MHz) Antenna gain EIRP PSD (dBm/MHz) Limit (dBm/M Hz) Verdict Size Offset LCH MCH HCH (dBd) (dBi) LCH MCH HCH QPSK 25 0 12.10 12.44 12.62 / 14.00 26.1 26.44 26.62 37.0 PASS 16QAM 25 0 12.40 12.68 13.07 / 14.00 26.4 26.68 27.07 37.0 PASS 64QAM 25 0 12.47 12.38 13.07 / 14.00 26.47 26.38 27.07 37.0 PASS Note: 1) EIRP PSD= Conducted PSD + Antenna gain (dBi) 2) All modes have been tested and we only record the worst test data. 3) Full RB test mode PSD Test data_Test Band: 48 _ 10MHz Bandwidth Modulat…

Text truncated - open the document above for the full version.
