WC2-CLOUDFOXB1Wireless Portable Bluetooth Speaker

Wireless Portable Bluetooth Speaker Model No.:Cloud Fox BS1 User Manual ContentsControls Bluetooth connection Using auxiliary input Trouble shooting Number 1 2 3 4 5 6 7 8 IconFunction Power Mode indicator AUX IN DC IN Charging indicator Volume up/ Skip forward Play/pause / Hands free Volume down/ Skip backward Description Long press to turn on/off the speaker Paring: Blinking Blue Paired: Solid Blue Auxiliary in: Solid Red Short press to adjust volume down Long press to skip backward Short press to play/pause tune Short press to answer/end an incoming call Long press to reject an incoming call Auxiliary in port DC 5V IN Charging: Solid Red Fully charged: Solid Green Short press to increase volume Long press to skip forward The sound is small or distorted Do not play properly, the music is intermittently Check the volume setting on both the speaker and your Bluetooth device and adjust the volume to a suitable level. Check whether the distance between the speaker and your Bluetooth device is out of its working distance, or whether there are some obstacles block the communication between the speaker and the Bluetooth device. Symptom Can not pair successfully Possible problem and Solution Check whether the speaker is in standby and searching mode. Check whether there are too many Bluetooth receivers around your Bluetooth device. Turn off them to avoid any disturbance. And pair again. 1. Turn on the speaker.Speaker enters to Bluetooth mode automatically. 2. Enabled Bluetooth on your device and choose Cloud Fox BS1 from the list. 3. Paired. 4. Adjust a suitable volume to play music. Requires a Φ3.5mm audio cable (Included). 1. Connect your audio device to the speaker. 2. Speaker switches to Line in mode automatically. 3. Adjust a suitable volume to play music. Specifications Maintenance • Model No.: Cloud Fox BS1 • Bluetooth A2DP function • Rechargeable Li-ion battery included • Battery capacity: 3.7V 500mAh • Battery life: Up to 12Hrs (Volume at 50%) • Φ3.5mm Auxiliary port for connection to other device • Output power: 3W X 1 (THD=10%) • Working distance: 10 M • USB Input: 5V 1A • To Store You may leave the unit on display, or you can store it in its box in a cool, dry place. • To Clean Use only a soft dry cloth to clean the enclosure of the unit. NEVER use liquids or abrasive cleaner to clean. Modifications not authorized by the manufacturer may void users authority to operate this device. 正反面印刷 SIZE：95 X 148NN Wireless Portable Bluetooth Speaker BS1 User Manual Charging the speaker Charge 3 hours for up to 12 hours of play time. AC adaptor not included Auxiliary cable X 1PCSpeaker X 1PCUser Manual X 1PC Warranty card X 1PC Contact card X 1PC Micro USB cable X 1PC 3h 1 2 6 7 8 3 4 5 Caution • Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. • The apparatus shall not be exposed to dripping or splashing. A warning that no objects filled with liquids, such as vases, shall be placed on the apparatus. • A warning that batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire, or the like. • Batteries do not belong in household waste. As a consumer, you are required by law to recycle used batteries. You can recycle your old batteries at public collection points or wherever the product was sold. • For environmental reasons, do not dispose of the device in the household waste at the end of their service life. Dispose of the unit at a suitable local recycling point. Warning To reduce the risk of electric shock, do not remove cover (or back). Refer servicing to qualified service personnel. < Disposal FCC Statement: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Declaration statement Letter 2015-09-18 MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Declaration statement Letter To Whom It May Concern: We hereby declare that (Wireless Portable Bluetooth Speaker / Cloud Fox BS1) fulfill the requirements of 47 CFR Part 15C Section 15.247(g) & 15.247(h). Compliance for section 15.247(g) According to Bluetooth Core Specification, the Bluetooth system transmits the packet with the pseudorandom hopping frequency with a continuous data and the short burst transmission from the Bluetooth system is also transmitted under the frequency hopping system with the pseudorandom hopping frequency system. Compliance for section 15.247(h) According to Bluetooth Core specification, the Bluetooth system incorporates with an adaptive system to detect other user within the spectrum band so that it individually and independently to avoid hopping on the occupied channels. According to the Bluetooth Core specification, the Bluetooth system is designed not have the ability to coordinated with other FHSS System in an effort to avoid the simultaneous occupancy of individual hopping frequencies by multiple transmitter. Please contact me if there is any information you may need. Sincerely, Name: Liang bo Position: Manager Company Name: Wonders Technology Co., Ltd. Address: DOSS Industrial Zone, Qiping Kengdu Industrial Area Guihua Village, Guanlan Town Baoan District, Shenzhen, China E-Mail: [email protected]

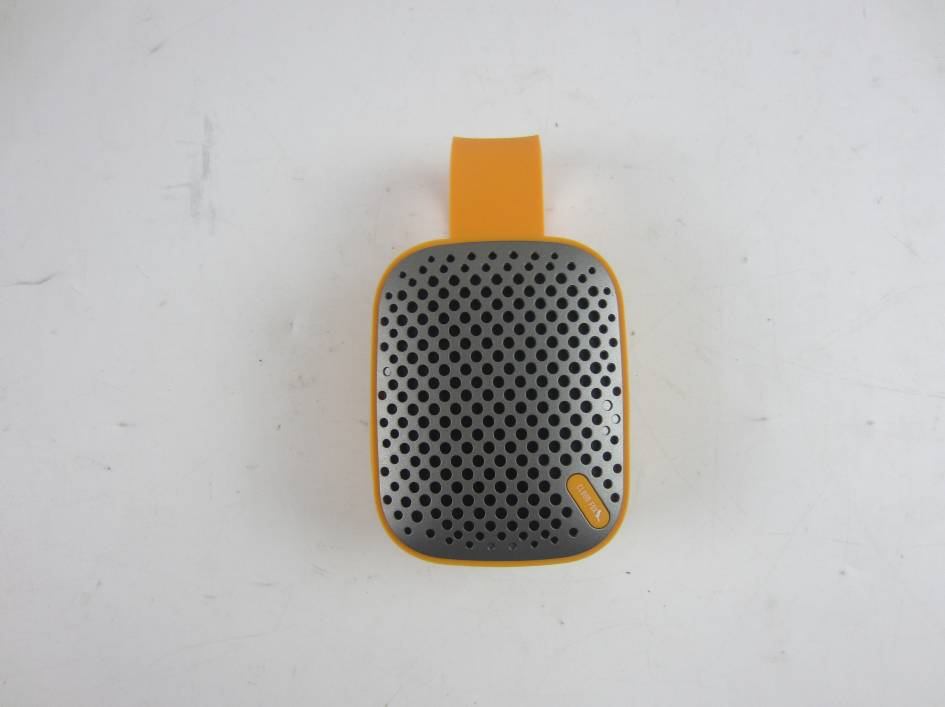

FCC ID: WC2-CLOUDFOXB1 Model No.: Cloud Fox BS1 FRONT VIEW OF SAMPLE BACK VIEW OF SAMPLE FCC ID: WC2-CLOUDFOXB1 Model No.: Cloud Fox BS1 LEFT VIEW OF SAMPLE RIGHT VIEW OF SAMPLE FCC ID: WC2-CLOUDFOXB1 Model No.: Cloud Fox BS1 TOP VIEW OF SAMPLE BOTTOM VIEW OF SAMPLE FCC ID: WC2-CLOUDFOXB1 Model No.: Cloud Fox BS1 PHOTO OF THE ENTIRE SAMPLE

SIZE：24 X 12MM 透明贴纸 印877C银色字体 Cloud Fox BS1 FCC ID: WC2-CLOUDFOXB1 1 Made in Shenzhen,China DOSS Technology Co.,Ltd Cloud Fox BS1 FCC ID: WC2-CLOUDFOXB1 1 Made in Shenzhen,China DOSS Technology Co.,Ltd

FCC ID: WC2-CLOUDFOXB1 Model No.: Cloud Fox BS1 INTERNAL PHOTO OF SAMPLE – 1 INTERNAL PHOTO OF SAMPLE – 2 FCC ID: WC2-CLOUDFOXB1 Model No.: Cloud Fox BS1 INTERNAL PHOTO OF SAMPLE – 3 INTERNAL PHOTO OF SAMPLE – 4 FCC ID: WC2-CLOUDFOXB1 Model No.: Cloud Fox BS1 INTERNAL PHOTO OF SAMPLE – 5 INTERNAL PHOTO OF SAMPLE – 6 FCC ID: WC2-CLOUDFOXB1 Model No.: Cloud Fox BS1 INTERNAL PHOTO OF SAMPLE – 7 INTERNAL PHOTO OF SAMPLE – 8 FCC ID: WC2-CLOUDFOXB1 Model No.: Cloud Fox BS1 INTERNAL PHOTO OF SAMPLE – 9 INTERNAL PHOTO OF SAMPLE – 10

Report No.: MTE/DYY/A15091162 Page 1 of 58 TEST REPORT For Applicant : Wonders Technology Co.,Ltd Address : DOSS Industrial Zone, Qiping Kengdu Industrial Area Guihua Village, Guanlan Town Baoan District, ShenZhen, China Product Name : Wireless Portable Bluetooth Speaker Model Name : Cloud Fox BS1, DS-1653 Remark : Only difference in the model name. Brand Name : N/A FCC ID : WC2-CLOUDFOXB1 Report No. : MTE/DYY/A15091162 Date of Issue : Sept. 17, 2015 Issued by :Most Technology Service Co., Ltd. Address : No.5, 2nd Langshan Road, North District, Hi-tech Industrial Park, Nanshan, Shenzhen, Guangdong, China Tel : 86-755-8602 6850 Fax : 86-755-26013350 The report consists 58 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The clien t should not use it to claim product endorsement by MOST. The test results in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. Report No.: MTE/DYY/A15091162 Page 2 of 58 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY............................................................... 4 2. GENERAL INFORMATION................................................................................. 5 2.1 Product Information ................................................................................................................ 5 2.2 Objective ................................................................................................................................ 5 2.3 Test Standards and Results .................................................................................................... 6 2.4 Environmental Conditions....................................................................................................... 6 3. TEST METHODOLOGY ..................................................................................... 7 3. 1TEST FACILITY...................................................................................................................... 7 3.2 GENERAL TEST PROCEDURES .......................................................................................... 7 4. SETUP OF EQUIPMENT UNDER TEST ............................................................ 8 4.1 SETUP CONFIGURATION OF EUT....................................................................................... 8 4.2 TEST EQUIPMENT LIST........................................................................................................8 5. 47 CFR Part 15 C Requirements ...................................................................... 9 5.1 RF EXPOSURE...................................................................................................................... 9 5.1.1 Applicable Standard............................................................................................................. 9 5.1.2 Measurement Result ........................................................................................................... 9 5.2 ANTENNA REQUIREMENT ................................................................................................. 10 5.2.1 Applicable Standard .......................................................................................................... 10 5.2.2 Evaluation Criteria ............................................................................................................. 10 5.2.3 Result: Compliance. .......................................................................................................... 10 5.3 AC Power Line Conducted Emission .....................................................................................11 5.3.1Requirement........................................................................................................................11 5.3.2 Block Diagram of Test Setup ..............................................................................................11 5.3.3 Test procedure....................................................................................................................11 5.3.4 Test Result..........................................................................................................................11 5.4 Radiated Emission ............................................................................................................... 12 5.4.1Requirement....................................................................................................................... 14 5.4.2 Test Configuration.............................................................................................................. 14 5.4.3 Test Procedure: ................................................................................................................. 15 5.4.4 Test Result......................................................................................................................... 16 5.5.1 Requirement...................................................................................................................... 31 5.5.2 Block Diagram of Test Setup ............................................................................................. 31 5.5.3 Test Procedure .................................................................................................................. 31 5.5.4 Test Result......................................................................................................................... 31 5.6 20dB Emission Bandwidth....................................................................................................35 5.6.1 Test Requirement .............................................................................................................. 35 5.6.2 Test Procedure ...........................................................................................................…
