HX-P190 QUICK START GUIDE GUÍA DE INICIO RÁPIDO / GUIDE DE DÉMARRAGE RAPIDE www.jamaudio.com/ instruction-books NEED MORE HELP? CONTENTS ¿NECESITA MÁS AYUDA? / BESOIN D’AIDE? CONTENIDO / CONTENU A – Earbuds Audífonos Écouteurs B – Charging cord Cable de recarga Câble de recharge C – Legal card Tarjeta de asuntos legales Carte de visite CHARGING RECARGE DE BATERÍAS / CHARGE 2h EN Charge 2 hours for up to 5 hours of play time. AC adapter not included. ES Una recarga de 2 horas rinde hasta 5 horas de operación. El adaptador de CA no está incluido. FR Une charge de 2 heures donne jusqu’à 5 heures d’autonomie de la batterie. Adaptateur c.a. non inclus. EN For a complete user guide and to register your product, visit us online. ES Para la Guía de Uso completa, y para registrar su producto con nosotros, por favor visitenos en la internet. FR Pour consulter un guide complet de l’utilisateur et enregistrer votre appareil, visitez notre site Web. CONTROLS COMMANDES / CONTROLES Pairing Mode Modo de vinculación Mode synchronisation Connected Conectado Connexion établie Low Battery Batería baja Piles faibles Charging Recargando Charge Ready Listo Prêt Aix-in mode Modo auxiliar Mode auxiliare Battery light Luz de la batería / Indicateur de la batterie Bluetooth light Luz de Bluetooth / Indicateur Bluetooth A – Battery light Luz de la batería Indicateur de la batterie B – Volume down / previous track Bajar el volume / la pista anterior Diminution du volume / piste prècèdente C – Play/pause Tocar/pausa Lecture/pause D – Volume up / next track Subir el volume / la pista siguiente Augmentation du volume / Piste suivante E – Bluetooth light Luz de Bluetooth Indicateur Bluetooth 3s 0.5s / 3s/ 0.5s BLUETOOTH CONNECTION CONECCIÓN BLUETOOTH ® / CONNEXION BLUETOOTH ® 3s JAM Classic 2.0 Bluetooth ® Devices EN Turn on the speaker. Enable Bluetooth on your device and choose JAM Classic 2.0 from the list. If prompted, enter code “0000.” ES Encienda el parlante. Habilite la función Bluetooth en su dispositivo y elija JAM Classic 2.0 de la lista. Si se requiere, meta el codigo “0000”. FR Allumez le haut-parleur. Activez la fonction Bluetooth de votre appareil et choisissez JAM Classic 2.0 dans la liste des signaux détectés. Si l’appareil vous le demande, inscrivez le code « 0000 ». EN Press play/pause to answer and end a call. See the full user guide for complete details. ES Presionar el botón tocar/pausa para recibir y finaliza la llamada. Revise la guía de uso para los detalles de uso completos. FR Appuyer le bouton lecture/pause pour répondez ou raccrochez l’appel. Consultez le guide complet de l’utilisateur pour obtenir de plus amples directives. SPEAKERPHONE PARLANTE DEL TELÉFONO / TÉLÉPHONE À HAUT-PARLEUR ©2016 HMDX. All Rights Reserved. QS-HXP190 CONTACT US COMUNÍCATE CON NOSOTROS / CONTACTEZ-NOUS USA [email protected] 1.888.802.0040 8:30am–7:00pm EST M–F / L–V CANADA [email protected] 1.888.225.7378 8:30am–5:00pm EST M–F / L–V FCC Statement: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. IC Statement This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. IC Radiation Exposure Statement: This equipment complies with Canada radiation exposure limits set forth for uncontrolled environments. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Déclaration d’IC sur l’exposition aux radiations: Cet équipement est conforme aux limites d’exposition aux radiations définies par le Canada pour des environnements non contrôlés. Cet émetteur ne doit pas être installé au même endroit ni utilisé avec une autre antenne ou un autre émetteur.

MET Laboratories TCB - Samples Agent Authorization Letter 2015-12-15 MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Most Technology Service Co., Ltd. to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Name: Liang bo Position: Manager Company Name: Wonders Technology Co., Ltd. Address: DOSS Industrial Zone, Qiping Kengdu Industrial Area Guihua Village, Guanlan Town Baoan District, Shenzhen, China E-Mail: [email protected]

Declaration statement Letter 2015-12-23 MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Declaration statement Letter To Whom It May Concern: We hereby declare that (Bluetooth Speaker / HX-P190) fulfill the requirements of 47 CFR Part 15C Section 15.247(g) & 15.247(h). Compliance for section 15.247(g) According to Bluetooth Core Specification, the Bluetooth system transmits the packet with the pseudorandom hopping frequency with a continuous data and the short burst transmission from the Bluetooth system is also transmitted under the frequency hopping system with the pseudorandom hopping frequency system. Compliance for section 15.247(h) According to Bluetooth Core specification, the Bluetooth system incorporates with an adaptive system to detect other user within the spectrum band so that it individually and independently to avoid hopping on the occupied channels. According to the Bluetooth Core specification, the Bluetooth system is designed not have the ability to coordinated with other FHSS System in an effort to avoid the simultaneous occupancy of individual hopping frequencies by multiple transmitter. Please contact me if there is any information you may need. Sincerely, Name: Liang bo Position: Manager Company Name: Wonders Technology Co., Ltd. Address: DOSS Industrial Zone, Qiping Kengdu Industrial Area Guihua Village, Guanlan Town Baoan District, Shenzhen, China E-Mail: [email protected]

MET Laboratories TCB - Samples Long Term Confidentiality Request Letter 2015-12-15 MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR (Bluetooth Speaker / HX-P190) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - e.g. Block diagram - e.g. SCH - e.g. Operational Description required to be submitted with this application be permanently withheld from public review. SPECIFY REASON FOR REQUEST (i.e. the above documents are company proprietary information that could never get into the possession of your competition). Please contact me if there is any information you may need. Sincerely, Name: Liang bo Position: Manager Company Name: Wonders Technology Co., Ltd. Address: DOSS Industrial Zone, Qiping Kengdu Industrial Area Guihua Village, Guanlan Town Baoan District, Shenzhen, China E-Mail: [email protected]

Model difference letter Dec. 23, 2015 Dear MET Reviewer, This is a new Application from Wonders Technology Co.,Ltd HX-P190 and DS-1695 are identical in interior structure, electrical circuits, components and appearance, Only different in model name. Thank you for your cooperation! Yours sincerely, Signatory: Name: Liang bo Position: Manager Company Name: Wonders Technology Co., Ltd. Address: DOSS Industrial Zone, Qiping Kengdu Industrial Area Guihua Village, Guanlan Town Baoan District, Shenzhen, China E-Mail: [email protected]

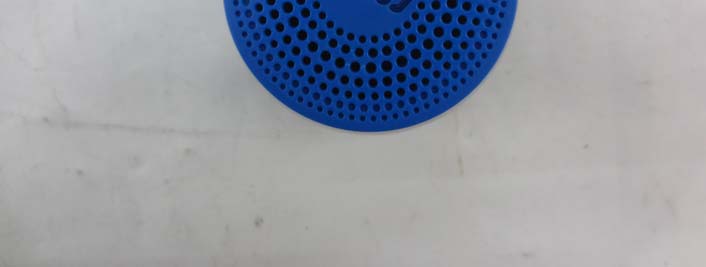

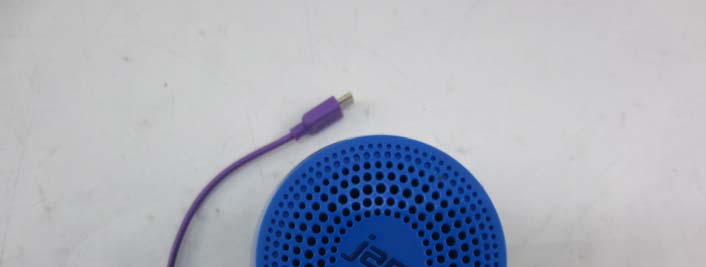

Model No.: HX-P190 FRONT VIEW OF SAMPLE BACK VIEW OF SAMPLE Model No.: HX-P190 LEFT VIEW OF SAMPLE RIGHT VIEW OF SAMPLE Model No.: HX-P190 TOP VIEW OF SAMPLE BOTTOM VIEW OF SAMPLE Model No.: HX-P190 FRONT VIEW OF SAMPLE BACK VIEW OF SAMPLE

M a d e i n C h i n a I C : 8 3 0 0 A - H X P 1 9 0 F C C I D : W C 2 - H X P 1 9 0 I n p u t : 5 V 5 0 0 m A M o d e l N o . : H X - P 1 9 0 content silkscreen Pantone 421C content silkscreen Pantone 421C

Model No.: HX-P190 Page 1 of 4 INTERNAL PHOTO OF SAMPLE – 1 INTERNAL PHOTO OF SAMPLE – 2 Model No.: HX-P190 Page 2 of 4 BATTERY PHOTO OF SAMPLE – 3 BATTERY PHOTO OF SAMPLE – 4 Model No.: HX-P190 Page 3 of 4 INTERNAL PHOTO OF SAMPLE – 5 INTERNAL PHOTO OF SAMPLE – 6 Model No.: HX-P190 Page 4 of 4 INTERNAL PHOTO OF SAMPLE – 7 INTERNAL PHOTO OF SAMPLE – 7

Report No.: MTE/SNS/A15121809 Page 1 of 51 TEST REPORT For Applicant : Wonders Technology Co.,Ltd Address : DOSS Industrial Zone,Qiping Kengdu Industrial Area Guihua Village, Guanlan Town Baoan District, ShenZhen, China Product Name : Bluetooth Speaker Model Name : HX-P190, DS-1695 Remark : Only difference in the model name. Brand Name : N/A FCC ID : WC2-HXP190 Report No. : MTE/SNS/A15121809 Date of Issue : Dec. 21, 2015 Issued by :Most Technology Service Co., Ltd. Address : No.5, 2nd Langshan Road, North District, Hi-tech Industrial Park, Nanshan, Shenzhen, Guangdong, China Tel : 86-755-8602 6850 Fax : 86-755-2601 6850 The report consists 51 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The clien t should not use it to claim product endorsement by MOST. The test results in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. Report No.: MTE/SNS/A15121809 Page 2 of 51 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY............................................................... 4 2. GENERAL INFORMATION................................................................................. 5 2.1 Product Information ................................................................................................................ 5 2.2 Objective ................................................................................................................................ 5 2.3 Test Standards and Results .................................................................................................... 6 2.4 Environmental Conditions....................................................................................................... 6 3. TEST METHODOLOGY ..................................................................................... 7 3. 1TEST FACILITY...................................................................................................................... 7 3.2 GENERAL TEST PROCEDURES .......................................................................................... 7 4. SETUP OF EQUIPMENT UNDER TEST ............................................................ 8 4.1 SETUP CONFIGURATION OF EUT....................................................................................... 8 4.2 SUPPORT EQUIPMENT ........................................................................................................ 8 4.3 TEST EQUIPMENT LIST........................................................................................................9 5. 47 CFR Part 15 C Requirements .................................................................... 10 5.1 RF EXPOSURE.................................................................................................................... 10 5.1.1 Applicable Standard........................................................................................................... 10 5.1.2 Measurement Result ......................................................................................................... 10 5.2 ANTENNA REQUIREMENT ..................................................................................................11 5.2.1 Applicable Standard ...........................................................................................................11 5.2.2 Evaluation Criteria ..............................................................................................................11 5.2.3 Result: Compliance. ...........................................................................................................11 5.3 AC Power Line Conducted Emission .................................................................................... 12 5.3.1Requirement....................................................................................................................... 12 5.3.2 Block Diagram of Test Setup ............................................................................................. 12 5.3.3 Test procedure................................................................................................................... 12 5.3.4 Test Result......................................................................................................................... 12 5.4 Radiated Emission ............................................................................................................... 15 5.4.1Requirement....................................................................................................................... 15 5.4.2 Test Configuration.............................................................................................................. 15 5.4.3 Test Procedure: ................................................................................................................. 16 5.4.4 Test Result......................................................................................................................... 17 5.5 Conducted Peak Output Power ............................................................................................ 20 5.5.1 Requirement...................................................................................................................... 24 5.5.2 Block Diagram of Test Setup ............................................................................................. 24 5.5.3 Test Procedure .................................................................................................................. 24 5.5.4 Test Result......................................................................................................................... 24 5.6 20dB Emission Bandwidth....................................................................................................28 5.6.1 Test Requirement ..................…

Text truncated - open the document above for the full version.

Model No.: HX-P190 RF TEST SETUP CE TEST SETUP Model No.: HX-P190 RE TEST SETUP RE TEST SETUP
