Bluetooth Speaker MIST Thank you to have chosen our product. This product has been created by our professional team and according to the USA regulation. For a better use of your new device, we recommend you to read carefully this user manual and keep it for record. Specifications • Model No.: SP58089 • Speaker size : 85 x 77mm • Power by USB cable :DC 5V • Rechargeable Li-ion battery included • Battery capacity: 3.7V 500mAh • Battery life: 4Hrs (Volume at 75%) • Output power: 1.5W X 1 (THD=10%) • Working distance: ＜ 10 M (Distance differs from different cellphone Bluetooth devices and the environments) Product sketch map 1 2 3 4 1. Charing Indicator 2. Micro USB port 3. AUX in Port 4. LED Indicator 5. Volume Down 6. Hands Free Button 7. Volume Up 8. Pause/Play 8 5 6 7 9 9. Power On/Off Switch Status Indicator Bluetooth pairing LED blue light flash quickly Paired LED blue lighting Charging Red light Fully Charged Green Light Pairing Bluetooth Speaker 1. Push the power switch to turn on the speaker. A “Ding Du Ding” sound out. The speaker is defaulted in Bluetooth Mode, and blue LED starts flashing. 2. Turn on your bluetooth device, search “MIST” in your bluetooth searching list, then pair your bluetooth device with the speaker. (If your bluetooth device ask for password, please insert “0000”.) 3. After paired successfully, there will be a beep sound out and you could play songs. Both the speaker and your Bluetooth device will store the device name. Next time, when you use the same Bluetooth device to connect the speaker, no password is asked. Playing Audio Wirelessly 1. Follow the instruction of Pairing Bluetooth Device 2. Adjust the volume by press or hold on the or buttons on speaker; or native controls on the Bluetooth device. 3. Press Pause button on the speaker to play/pause the tune or just control the tune by press Play/Pause on your Bluetooth device. 4. When do not play music, please push the power button to OFF. Using the 3.5mm Audio Input 1. Plug one end of a 3.5mm Audio cable into the unit. The LED indicator light will display a red light. 2. Plug the other end of the 3.5mm Audio cable into other audio devices. 3. Turn on the speaker, it will play music from the audio device. 4. Press and hold on the or buttons to adjust the volume. 5. If you want to Play/pause the tune, just control the native buttons on your audio device.

Wonders Technology Co., Ltd. PHOENIX TEST-LAB GmbH Product Certification Königswinkel 10 D 32825 Blomberg Date: 13.03.2014 Authority to Act as an Agent We declare that the following representative (agent) Name Mark Wen Position General Manager Company Name Most Technology Service Co., Ltd. Address No.5, 2 nd Langshan Road, North District, Hi-Tech Industrial Park, Nanshan, Shenzhen, Guangdong, China Tel / Fax 86-755-86170306/86-755-86170310 E-Mail [email protected] to act on our behalf on all matters concerning the application and documents submitted to PHOENIX TEST-LAB for product certification below Product Name Bluetooth Speaker Model Name SP58089, DS-1355 Brand Name N/A Yours sincerely, Signatory Name Liang bo Position Manager Company Name Wonders Technology Co., Ltd. Address DOSS Industrial Zone, Qiping Kengdu Industrial Area Guihua Village, Guanlan Town Baoan District, Shenzhen, China Tel / Fax 86-755-2752-0683/86-755-2752-0228 E-Mail [email protected] In case of FCC, we certify that we are not subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance.

Wonders Technology Co., Ltd. Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Request for Confidentiality Company name: Wonders Technology Co., Ltd. FCC ID: WC2-SP58089 FCC Part 15 Certification Gentlemen, Pursuant to 47 CFR 0.457(d)(1)(ii) and 0.459 we hereby requests permanent confidentiality of the following documents for the subject application: Exhibit Type Description ☒ Schematics All circuitry of devices and component values ☒ Block Diagrams Details of device showing the frequency of all oscillators ☐ Bill Of Materials Parts list of the product for the radio device ☒ Operational Description Description of the circuit functions Note: Exhibit types that are commonly held confidential are: (1) Schematics, (2) Block Diagrams, (3) Bill Of Materials, (4) Operational Descriptions. Any exhibit NOT granted confidentiality is viewable on the FCC website as soon as a grant is issued. These documents contain detailed system and equipment description and related information about the product which we considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, we consider that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Yours sincerely, Signatory Name Liang bo Position Manager Company Name Wonders Technology Co., Ltd. Address DOSS Industrial Zone, Qiping Kengdu Industrial Area Guihua Village, Guanlan Town Baoan District, Shenzhen, China Tel / Fax 86-755-2752-0683/86-755-2752-0228 E-Mail [email protected]

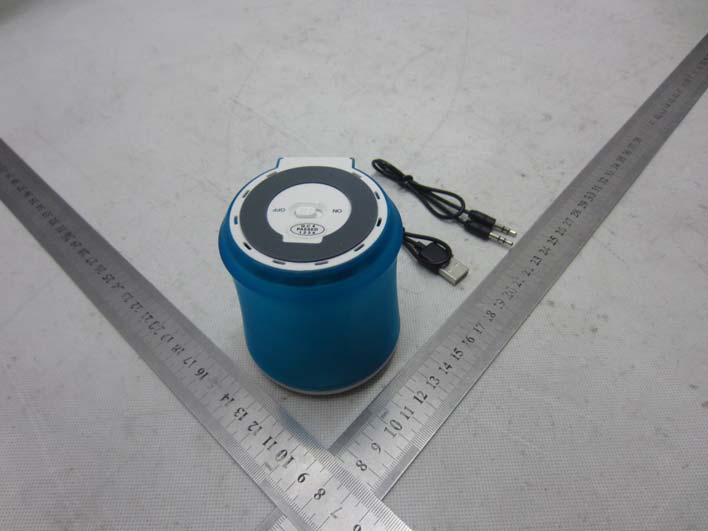

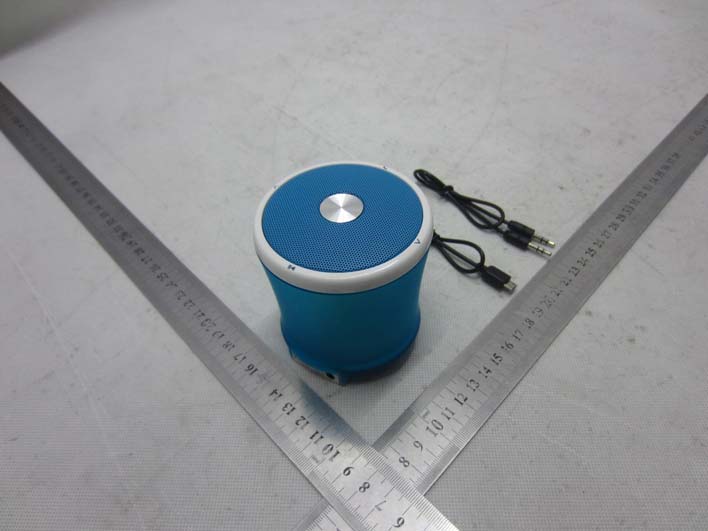

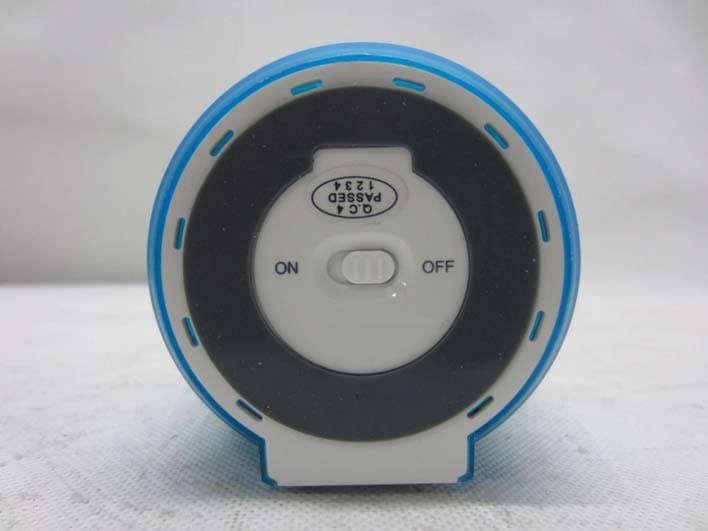

Model No.: SP58089 FRONT VIEW OF SAMPLE BACK VIEW OF SAMPLE Model No.: SP58089 UP VIEW OF SAMPLE DOWN VIEW OF SAMPLE Model No.: SP58089 LEFT VIEW OF SAMPLE RIGHT VIEW OF SAMPLE Model No.: SP58089 PHOTO OF THE ENTIRE SAMPLE PHOTO OF THE ENTIRE SAMPLE

Bluetooth Speaker Model:SP58089 Power Input: 3.7V 500mAh Output :1.5W X 1 (THD=10%) FCC ID: WC2-SP58089 Made in China SIZE：31.5 X 33MM ONOFF ONOFF Output :1.5W X 1 (THD=10%) FCC ID: WC2-SP58089 Made in China ONOFF Bluetooth Speaker Model:SP58089 Power Input: 3.7V 500mAh

Model No.: SP58089 INTERNAL PHOTO OF SAMPLE - 1 INTERNAL PHOTO OF SAMPLE - 2 Model No.: SP58089 INTERNAL PHOTO OF SAMPLE - 3 INTERNAL PHOTO OF SAMPLE - 4 Model No.: SP58089 INTERNAL PHOTO OF SAMPLE - 5 INTERNAL PHOTO OF SAMPLE - 6 Model No.: SP58089 INTERNAL PHOTO OF SAMPLE - 7 INTERNAL PHOTO OF SAMPLE - 8 Model No.: SP58089 INTERNAL PHOTO OF SAMPLE - 9

FCC 47 CFR PART 15 SUBPART C TEST REPORT For Applicant: Wonders Technology Co., Ltd. Address: DOSS Industrial Zone, Qiping Kengdu Industrial Area Guihua Village, Guanlan Town Baoan District, Shenzhen, China Product Name: Bluetooth Speaker Model Name: SP58089, DS-1355 Brand Name: N/A FCC ID: WC2-SP58089 Report No.: MTE/DAL/F14020108 Date of Issue: Mar. 25, 2014 Issued by : Most Technology Service Co., Ltd. Address : No.5, Langshan 2nd Road, North District, Hi-tech Industrial Park, Nanshan, Shenzhen, Guangdong, China Tel : 86-755-8617 0306 Fax : 86-755-8617 0310 The report consists 35 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by MOST. The test results in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. FCC ID: WC2-SP58089 Report No.: MTE/DAL/F14020108 Page 2 of 35 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY.......................................................................................... 4 2. GENERAL INFORMATION....................................................................................................... 5 2.1 Product Information ................................................................................................................ 5 2.2 Objective ................................................................................................................................ 6 2.3 Test Standards and Results .................................................................................................... 6 2.4 Environmental Conditions....................................................................................................... 6 2.5 MEASUREMENT UNCERTAINTY ......................................................................................... 6 3. TEST FACILITY........................................................................................................................ 7 3.1TEST FACILITY....................................................................................................................... 7 3.2 Test Conditions ....................................................................................................................... 7 3.3 Channel List ........................................................................................................................... 8 3.4 Description of Test Modes ...................................................................................................... 8 3.5 Table of Parameters of Text Software Setting......................................................................... 9 3.6 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS............................................. 10 4. SETUP OF EQUIPMENT UNDER TEST.................................................................................11 4.1 SUPPORT EQUIPMENT .......................................................................................................11 4.2 TEST EQUIPMENT LIST...................................................................................................... 12 5. 47 CFR Part 15C 15.249 Requirements................................................................................. 13 5.1 Spurious Emission Test ........................................................................................................ 13 5.1.1 Requirement...................................................................................................................... 13 5.1.2 Test Description ................................................................................................................. 14 5.1.3 Test Description ................................................................................................................. 15 5.1.5 Test Result .....................................................................................................................16 5.2 Band Edge............................................................................................................................ 22 5.2.1 Requirement...................................................................................................................... 22 5.2.2 Test Description ................................................................................................................. 22 5.2.3Test Result.......................................................................................................................... 22 5.3 LINE CONDUCTED EMISSION TEST................................................................................. 27 5.3.1. LIMITS OF LINE CONDUCTED EMISSION TEST........................................................... 27 5.3.2. BLOCK DIAGRAM OF TEST SETUP............................................................................... 27 5.3.3. PRELIMINARY PROCEDURE OF LINE CONDUCTED EMISSION TEST ...................... 28 5.3.4. FINAL PROCEDURE OF LINE CONDUCTED EMISSION TEST .................................... 28 5.3.5. Test result ......................................................................................................................... 28 5.3.5. TEST RESULT OF LINE CONDUCTED EMISSION TEST .............................................. 28 5.4 20 dB Bandwidth .................................................................................................................. 31 5.4.1 Definition ........................................................................................................................... 31 FCC ID: WC2-SP58089 Report No.: MTE/DAL/F14020108 Page 3 of 35 5.4.2 Block Diagram Of Test Setup ............................................................................................ 31 5.4.3 Test Result..................................................…
