Bluetooth Speaker Instruction Manual Model No.: DS‐1042, ISB202S Features •Bluetooth A2DP function •Metal housing •Rechargeable Li‐ion battery included •Battery capacity: 3.7V 400mA •Battery life: 2Hrs •Mini USB jack, power adaptor with USB cable included •3.5mm Aux jack for connection to other MP3, CD, Laptop... •Output power:1.5W Included • USB cable • AC/DC power adapter Introduction A1 A2 A3 A4 A5 A6 A7 A8 A9 A1: DC In A2: Power/Charging indicator A3: Prev/Vol‐ A4: Play/Pause A5: Next/Vol+ A6: Pair/Line In A7: Line In Jack A8: Power On/Off A9: Pair Setup Power DC power input: requires an AC/DC power adapter with USB cable (included) Status indicator: Turn on the speaker, speaker start searching for Bluetooth device, and blue LED start flashing, once paired, LED will change flashing rate from quick flashing to slow flashing. If license to AUX IN, once plug in AUX in cable into the jack, the LED will change to RED. Charging indicator: LED is red when charging and come to green after fully charged. Green LED will be flashing if low battery. Note: USB Jack for charging only. Listening to Bluetooth device 1. Play music from Bluetooth device 2. Press and hold volume by vol‐/+ or native controls on the bluetooth device 3. Press Prev/Next to change tune, and press play/pause to play/pause the tune If repair Bluetooth device, please press Pair button at the bottom of speaker. Note: Speaker can store total 8 bluetooth device. 3.5mm Audio Input Using the 3.5mm Audio Input Requires a 3.5mm audio cable (not included) 1. Connect a 3.5mm audio cable to the 3.5MM AUDIO INPUT on the speaker and an audio output on an MP3 player or other audio source. 2. Speaker will switch to Line In mode automatically 3. Use the vol ‐/+ button or native controls on the connected MP3 player to control volume. FCC NOTE: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user's authority to operate the equipment.

 DS-1042 ISB202     Audio line input Bluetooth module Key Audio signal processing Li-ion Battery Charging  VER:1.0 TX3012 Detect circuiit LED display AMP Wonders Technology Co.,LTD. PDF "pdfFactory Pro"  !"www.fineprint.com.cn G-TW-0001454.2.4 P D F created w ith pdfFactory P ro trial versionwww.pdffactory.com

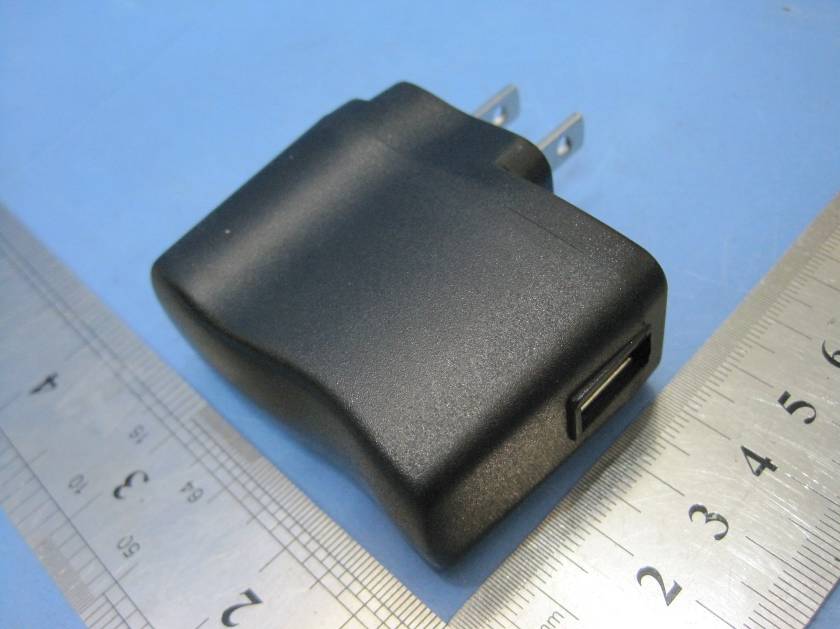

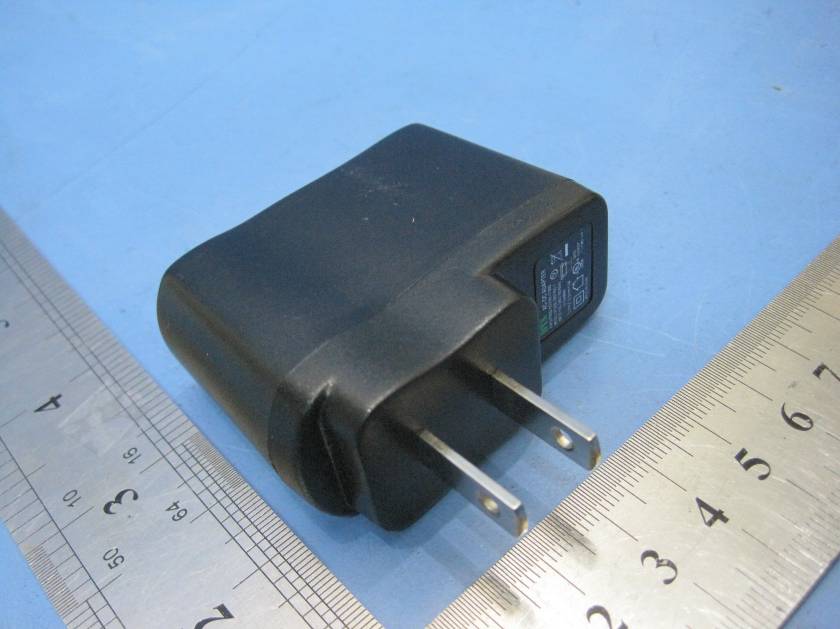

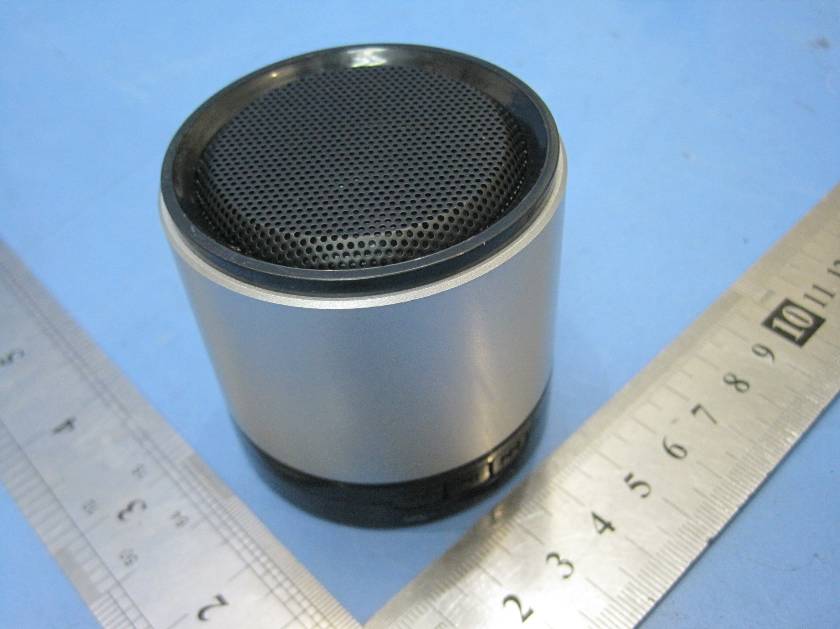

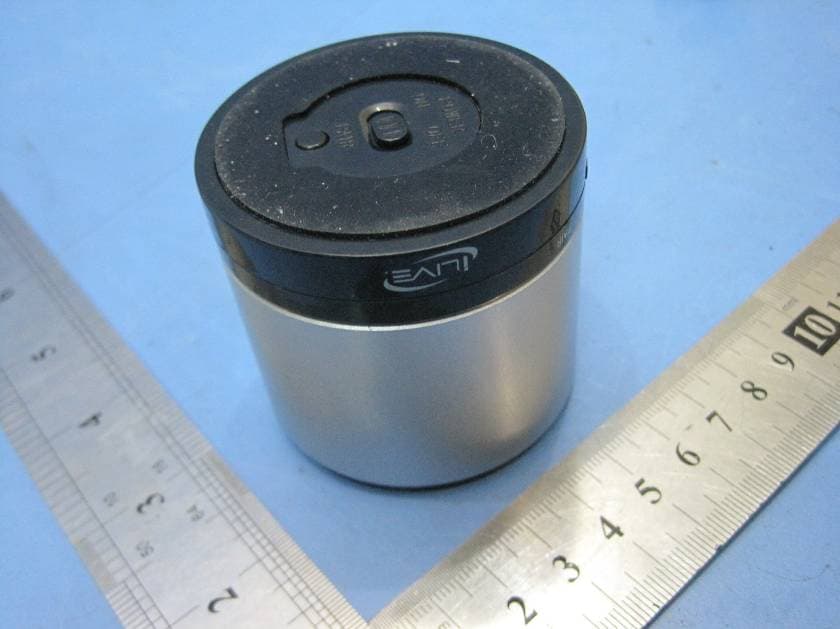

2.1 Product View 2.2 EUT – Appearance View 2.3 Adapter – Appearace View

Page:55 of 55 Wonders Technology Co., Ltd. FCC ID: WC2DS-1042 The results shown in this test report refer only to the sample(s) tested , This Test report cannot be reproduced, except in full, without prior written permission of the Company. WALTEK SERVICES Reference No.: WT11116186-D-E-F 17 FCC Label This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)this device may not cause harmful interference,and (2) this device must accept any interference received, including interference that may cause undesired operation The Label must not be a stick-on paper. The Label on these products must be permanently affixed to the product and readily visible at the time of purchase and must last the expected lifetime of the equipment not be readily detachable. Proposed Label Location on EUT EUT Side View/ proposed FCC Label Location FCC ID: WC2DS-1042 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC ID Label Sample for Model: DS-1042, ISB202S FCC ID: WC2DS-1042 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

2.1 EUT – Open View 2.2 EUT - PCB View 2.3 Module View 2.4 Adapter – Open View 2.5 Adapter - PCB View

Circuit Description The Bluetooth Speaker includes below main components：IC2 (HX6001), IC3 (CYT8117), IC4 (TX3012), U2 (LM358), U5(bluetooth module), CN1(mini USB socket), JK1(headphone jack), K1(power switch), S1(button), S2(button), S3(button), LED1(light diode), LED2(light diode)，BAT(battery). Bluetooth circuit: The IC3 and L8, C14, C2, C25 constitute a 3.3Vvoltage supply U5 circuit (utilizing a 16MHz oscillator), which will receive and decode the audio signal and then via the C3, C4 input to U2, after U2 magnification and high-pass filter output to IC4 power amplifier, and then by IC4 power amplifier output to the speaker.Through the S1, S2 control U5, make U5 I/O, PIO4 control IC4 increase volume; AIO3 control IC4 reduced volume.S3 control U5, make its control music play/pause. LED2 for bluetooth indicator. AUX audio circuit: JK1 for external audio input port AUX, audio through input to the U2 C1 high-pass filter, and then by IC4 power amplifier output to the speaker. Charging circuit explanation: CN1 mini USB socket of the input DC5V supply IC2 first constant current 310 mA, again constant pressure to lithium battery charging 4.2 V.LED1 for charging indicator .

COMPANY: DOSS TITLE: DS-1042  (  ) Drawn Date: Drawn: 20011/09/19 yefeng Revision: Rev:1.0 Approval: CODE: CSR 1 VCC 2 D- 3 D+ 4 GND 5 G 6 CN1 USB-MIN C3 224pF C4 224pF R3 0Ω R4 0Ω R7 10KΩ R8 10KΩ -+ 32 1 U2-A JRC4558 -+ 56 7 U2-B JRC4558 48 U2-C LM358 R9 10KΩ C7 47pF R10 10KΩ C8 104pF C9 104pF R11 15KΩR12 10KΩ R13 36KΩ R14 20KΩ C10 104pF C11 470UF R15 36KΩ R16 22KΩ C12 104pF C13 105pF C18 224pF C29 104pF 1 CHRG 3 BAT 5 PROG 4 VCC 2 GND IC2 HX6001 L1 BEAD R26 2.7KΩ 12 CN5 BAT R36 100Ω 53214 JK1 PJ-30280 R37 47KΩ R38 47KΩ 1 SPKL- 2 SPKL+ 3 SPKR- 4 SPKR+ 5 GND 6 MICL+ 7 MICL- 8 MICR+ 9 MICR- 10 1.8V 11 PCM-IN 12 PCM-SYNC 13 PCM-CLK 14 PCM-OUT 15 AI00 16 AI01 17 AI03 18 GND1 19 3.3V 20 USB-D+ 21 USB-D- 22 RTS 23 CTS 24 TX 25 RX 26 RESET 27 GND2 28 PI04 29 PI05 30 PI06 31 PI07 32 MOSI 33 CSB 34 CLK 35 MISO 36 PI010 37 PI011 38 PI03 39 PI02 40 PI01 41 PI00 42 PI08 43 PI09 44 GND3 45 GND4 46 ANT 47 GND5 U5 BLUETOOTH2.0 S2 - L2 BLUE-ANT R29 100KΩ C31 105pF VIN VOUT GND IC3 CYT8117 C25 100UF/10V C24 104pF R33 150KΩ R34 91KΩ C15 105pF C1 104pF R18 100KΩ C17 100pF R20 47KΩ S3 >|| R21 100Ω R4047KΩ L5 100M/600R S4 ID_trigger S1 + C32 100UF/16V R24 100 R25 100 R39 220Ω LED2 R/B R41 10KΩ LED1 G/R C19 105pF C23 102pF R1 22K R2 33K R17 10 12 CN2 Speaker C2 105pF 1 +OUT_L 4 -OUT_L 8 INL 10 VREF 6 MUTE 19 SHDN 21 +OUT_R 24 -OUT_R 17 INR 14 UP 13 DN 15 RST 9 NC 3 PGND3 2 PGND4 5 PVCC0 18 GND 7 VDD 23 PGND2 22 PGND1 20 PVDD 16 NC 12 NC 11 NC IC4TX-3012 L4 BEAD L6 BEAD C16 200pF C20 200pF C30 105pF C33 104pF C34 104pF R19 33K R22 22K L7 NC R23 47KΩ L8 BEAD/NC C14 100pF 2 1 3 K1 SW2 R27 470Ω +3.7V +3.3V +3.3V +1.8V AUX_DET AMP_VDD AUX_DET MUTE +3.3V GND GND VOL+ VOL- AMP_VDD MUTE VOL+VOL- PDF "pdfFactory Pro" www.fineprint.com.cn

Page: 1 of 55 FCC TEST REPORT The results shown in this test report refer only to the sample(s) tested , This Test report cannot be reproduced, except in full, without prior written permission of the Company. WALTEK SERVICES Reference No.: WT11116186-D-E-F FCC ID : WC2DS-1042 Applicant : Wonders Technology Co., Ltd. Address : Doss Industrial Zone, Qiping Kengdu Industrial ARE Guihua Village, Guanlan Town, Baoan District, Shenzhen, China. Equipment Under Test (EUT) : Product Name : Bluetooth Speaker Model No. : DS-1042, ISB202S Standards : FCC CFR47 Part 15 Section 15.247:2009 Date of Test : November 16 ~ November 19, 2011 Date of Issue : November 21, 2011 Test Engineer : Hunk yan / Engineer Reviewed By : Philo zhong / Manager Test Result : PASS Prepared By: Waltek Services (Shenzhen) Co., Ltd. 1/F, Fukangtai Building, West Baima Rd., Songgang Street, Baoan District, Shenzhen 518105, China Tel :+86-755-27553488 Fax:+86-755-27553868 — The sample detailed above has been tested to the requirements of Council Directives ANSI C63.4:2003. The test results have been reviewed against the Directives above and found to meet their essential requirements. Page:2 of 55 Wonders Technology Co., Ltd. FCC ID: WC2DS-1042 The results shown in this test report refer only to the sample(s) tested , This Test report cannot be reproduced, except in full, without prior written permission of the Company. WALTEK SERVICES Reference No.: WT11116186-D-E-F 2 Test Summary Test Items Test Requirement Result Conducted Emissions 15.207 PASS Radiated Spurious Emissions (9kHz to 25GHz) 15.205(a) 15.209 15.247(d) PASS 20dB Bandwidth 15.247(a)(1) PASS Maximum Peak Output Power 15.247(b)(1) PASS Frequency Separation 15.247(a)(1) PASS Number of Hopping Frequency 15.247(a)(1)(iii) PASS Dwell time 15.247(a)(1)(iii) PASS Maximum Permissible Exposure (Exposure of Humans to RF Fields) 1.1307(b)(1) PASS Page:3 of 55 Wonders Technology Co., Ltd. FCC ID: WC2DS-1042 The results shown in this test report refer only to the sample(s) tested , This Test report cannot be reproduced, except in full, without prior written permission of the Company. WALTEK SERVICES Reference No.: WT11116186-D-E-F 3 Contents Page 1 COVER PAGE ........................................................................................................................................................ 1 2 TEST SUMMARY .................................................................................................................................................. 2 3 CONTENTS............................................................................................................................................................. 3 4 GENERAL INFORMATION ................................................................................................................................ 4 4.1 CLIENT INFORMATION........................................................................................................................................... 4 4.2 GENERAL DESCRIPTION OF E.U.T. ........................................................................................................................ 4 4.3 DETAILS OF E.U.T................................................................................................................................................. 4 4.4 DESCRIPTION OF SUPPORT UNITS.......................................................................................................................... 4 4.5 STANDARDS APPLICABLE FOR TESTING................................................................................................................ 4 4.6 TEST FACILITY...................................................................................................................................................... 5 4.7 TEST LOCATION.................................................................................................................................................... 5 5 EQUIPMENT USED DURING TEST .................................................................................................................. 6 6 CONDUCTED EMISSION .................................................................................................................................... 7 7 RADIATED SPURIOUS EMISSIONS ............................................................................................................... 12 8 RADIATED EMISSIONS WHICH FALL IN THE RESTRICTED BANDS................................................. 26 9 20 DB BANDWIDTH MEASUREMENT........................................................................................................... 31 10 MAXIMUM PEAK OUTPUT POWER ............................................................................................................. 33 11 HOPPING CHANNEL SEPARATION .............................................................................................................. 34 12 NUMBER OF HOPPING FREQUENCY .......................................................................................................... 37 13 DWELL TIME ...................................................................................................................................................... 38 14 ANTENNA REQUIREMENT ............................................................................................................................. 45 15 RF EXPOSURE .................................................................................................................................................... 46 16 PHOTOGRAPHS - CONSTRUCTIONAL DETAILS...................................................................................... 48 16.1 PRODUCT VIEW.............................................................................................................................................. 48 16.2 EUT – APPEARANCE VIEW..........................................................................................…
