WC2DS-1073BLUETOOTH SPEAKER

USER’SGUIDE CSMP135                    Table of Contents Safety information...................................................................................................................... Contents...................................................................................................................... Package contents ......................................................................... Features .................................................................................................................. Main unit................ ..................................................... Getting Started......................................................................................................................... Pairing a Bluetooth Device...................................................................................................................... Playing Audio Wirelessly ........................................................................................................................ Playing Other Audio Devices (AUX In) ... ................................................................................................................................................................. Powered ....................................................... LED indicator ........................................................................................................................ Charging Indicator Light ......................................................................................................................................... Pairing Indicator Lights ........................................................................................................................... Specifications.........................................................................................................................                               Important Safety Instructions 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with a dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8. Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including amplifiers) that produce heat. 9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10. Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles and the point where they exit from the apparatus. 11. Only use attachments/accessories specified by the manufacturer. 12. Use only with the cart, stand, tripod, bracket or table specified by the manufacturer or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. 13. Unplug this apparatus during lightning storms or when unused for long periods of time. 14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 15. Do not expose this apparatus to dripping or splashing and ensure that no objects filled with liquids, such as vases, are placed on the apparatus. 16. To completely disconnect this apparatus from the AC Mains, disconnect the power supply cord plug from the AC receptacle. 17. The mains plug of the power supply cord shall remain readily operable. 18. Do not expose batteries to excessive heat such as sunshine, fire or the like. Warnings and Precautions • WARNING: To prevent fire or shock hazards, do not expose this unit to rain or moisture. • WARNING: Do not place the unit on top of any soft, porous, or sensitive surfaces to avoid damaging the surface. Use a protective barrier between the unit and surface to protect the surface. • WARNING : Where the mains plug or appliance coupler is used as the disconnect device, such disconnect device shall remain readily operable. • Note : This device uses an internal rechargeable lithium-ion battery that should last the lifetime of the device. If you suspect your battery may be dead after several attempts to charge, please contact COBY for support. • Never disassemble the unit or attempt to remove the battery as that could cause leakage of an electrolytic substance.  FCC Warnings WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and recei…

Text truncated - open the document above for the full version.

12345678 A B C D 87654321 D C B A Title NumberRevisionSize A3 Date:25-Feb-2012Sheet of File:E:\本地磁盘 (G)\LMCHEN项目\DS1073资料夹\DS1073.ddbDrawn By: Bluetooth Module U4 F3089 LOUT 4 OHM SPEAKER R OUT 4 OHM SPEAKER Amplifier U2 HT6088 DC 5V INPUT Charging Ciruit U5 EUP8054 3.7V Lithium Battery AUX INPUT Signal sources switch AUX L/R input bluetooth L/R signal input R/L signal after switch 3.7V and preprocessing U1 LM358 Signal processing U3 LM358 Bluetooth R/L bluetooth L/R 3.7V 3.7V 3.7V From USB 5V BT Module F-3089

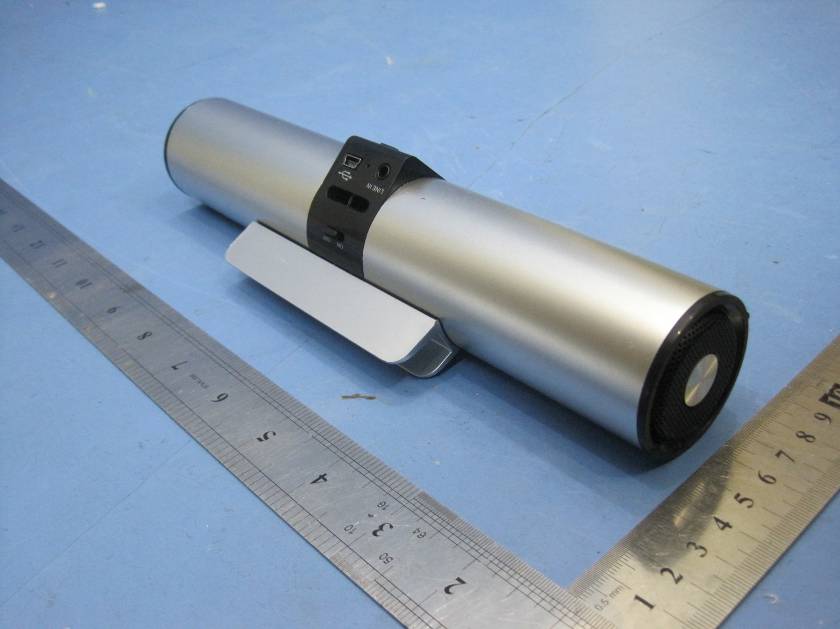

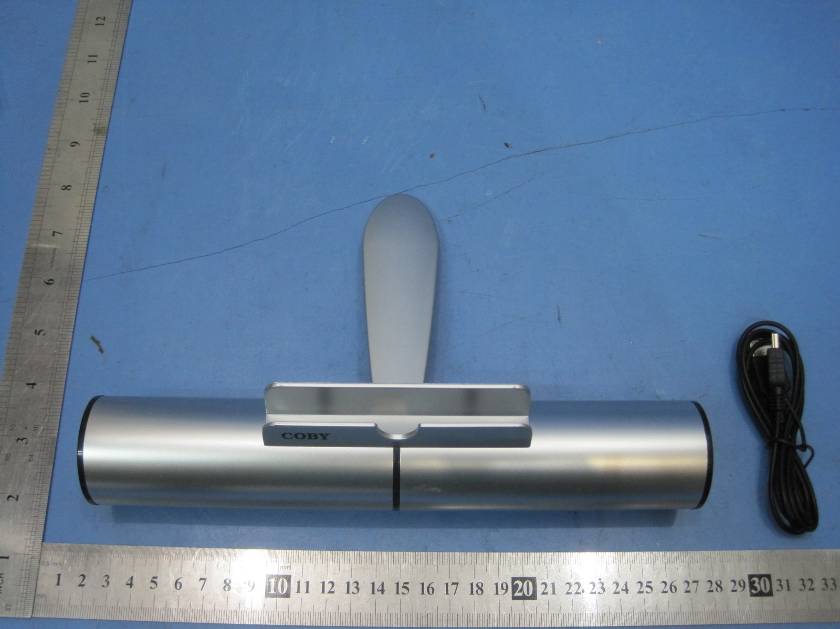

2.1 Product View 2.2 EUT – Appearance View

Page:53 of 53 Wonders Technology Co., Ltd. FCC ID: WC2DS-1073 The results shown in this test report refer only to the sample(s) tested , This Test report cannot be reproduced, except in full, without prior written permission of the Company. WALTEK SERVICES Reference No.: WT12031306-D-S-F 17 FCC Label This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)this device may not cause harmful interference,and (2) this device must accept any interference received, including interference that may cause undesired operation The Label must not be a stick-on paper. The Label on these products must be permanently affixed to the product and readily visible at the time of purchase and must last the expected lifetime of the equipment not be readily detachable. Proposed Label Location on EUT EUT Back View/ proposed FCC Label Location FCC ID:WC2DS-1073 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC ID Label Sample for Models: DS-1073, CSMP135 FCC ID:WC2DS-1073 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

2.1 EUT – Open View 2.2 EUT – PCB1 View 2.3 EUT – PCB2 View

Main parameters: Power adaptor: 3.7V 900mAh built-in lithium battery Charching voltage: DC 5V Speaker resistor: 4Ohm Power consumption output: 1.5W*2 Circuit Description 1.DS-1073 is a 2.0(stereo) portable Bluetooth speaker 2. DS-1073 can support AUX and Bluetooth speaker. 2.1 When play AUX music, sound frequency L&R signal enter into 3(R IN)&18(L IN) of IC HT6808(U2) through JK1(earphone dock), after amplifying, transferring into L&R speaker from amplifier IC 5(RP+), 8(RO-) and 13(L-) 16(L+). 2.2 The shift between AUX and Bluetooth can be controlled by JK1(earphone dock). When AUX signal is input, JK1(earphone dock) switch outputs L electrical level, counter wisely, JK1(earphone dock) switch outputs H level. 2.3 While playing AUX music, the Bluetooth module power will be cut off to stop working through JK1(earphone dock) switch to control triode Q1(3904) and Q2(3906). 2.4 Under Bluetooth working status, due to no AUX signal input, it can use JK1(earphone dock) switch to control triode Q1(3904) and Q2(3906) to make it pass, then the Bluetooth can be charged by power adaptor which will help Bluetooth work.. Bluetooth signal L&R inputs into bi-mold noisse interruption circuit U3 (LM358) , the new signal will be output from 1&7 of U3.Sound frequency L&R signal enter into 3(R IN)&18(L IN) of IC HT6808(U2) through JK1(earphone dock), after amplifying, transferring into L&R speaker from amplifier IC 5(RP+), 8(RO-) and 13(L-) 16(L+). 2.5 The Bluetooth Module F-3089 utlizes 12MHz OSC. Power charging: Electricity of DS-1073 is supplied by 3.7V 900mAh built-in lithium battery. When the power is limited, it can be charged by outer DC 5V adaptor, which connected with mini USB cable, using charging management IC EUP8054(U3) to transfer the power to device.

12345678 A B C D 87654321 D C B A Title NumberRevisionSize A3 Date:22-Feb-2012Sheet of File:E:\本地磁盘 (G)\LMCHEN项目\DS1073资料夹\DS1073.ddbDrawn By: R246.8K R5 6.8K AUX-R AUX-L C40 100p C31 100p C15 105 C30 105 L5 BEAD C42 104 C26 473 C22 333 R20 22K R21 39K 4 8 2 3 1 U1A LM358 C6 NC R33 10K R1 12K C11 104 C1 224 R18 15K R17 22K C18 473 C9 333 R15 22k R2 39K C17 NC R16 10K R22 12K C25 104 C20 224 R7 15K R9 22K 7 6 5 U1B LM358 Vref2 1 2 3 4 5 USB1 USB GND MCU-3.3V 1 2 3 8 4 U3A LM358 7 6 5 U3B LM358 Vref1 C38 105 C37 105 R30 47K R28 47K R29 47K R26 47K R14 47K R13 47K R1947K R3447K C36 105 R3 10K R27 10K AUX_L AUX_R AUX_R AUX_L JK1 JK_SW C43 106 CHRG 1 GND 2 PROG 5 BAT 3 VCC 4 U5 EUP8054 R39 2.2K R52 1k 1 2 BAT CN5 + C32 1000U/6.3V + C50 1000U/6.3V C49 104 C41 104 Q1 3906 R41 56K R40 100R C34 104 C35 106 AUX AUX C45 104 C44 106 C46 NC LED1 blue red R44 2.2K R36 1K CHANGE_LED LED2 R25 100R + C48 100U C59 104 R32 47K R31 33K C28 105 Vref1 R23 100R + C47 100U C3 104 R6 47K R8 33K C2 104 Vref2 MUTE C8 105 R38 10K R45 10K Q2 8050 R43 8.2K R42 56K R35 7.5K + C51 1000UF/6.3V SW1 POWER SW R46 4.7R PVDD MUTE C13 104 PVDD C7 105 R4 1M C4 224 C19 104 L2 BEAD 600/100MHz L1 BEAD 600/100MHz C12 102 C10 102 C5 100p L4 BEAD 600/100MHz L3 BEAD 600/100MHz C16 102 C23 102 C27 100p C24 106 C21 104 1 2 3 Ro CON3 1 2 3 Lo CON3 C14 224 VOL+ 1 VOL- 2 NEXT 3 PRE 4 POWER 5 LDO1.8V 6 GND 7 VCC 8 LED_ON/OFF 9 LED_WORK 10 MIC 11 SPK_RP 12 SPK_RN 13 SPK_LP 14 SPK_LN 15 AGND 16 17 17 18 18 19 19 MUTE 20 U4 BT3089 C55 101 C54 101 C29 101 C56 101 C39 106 Q3 3906 R37 NC R51 10k R53 220R OUTL- 13 PGND 7 OUTL+ 16 PVDD 6 MUTE 9 AVDD 12 INL+ 18 INR- 2 ACRC 4 INR+ 3 AGND 1 SDL 10 PVDD 15 OUTR+ 5 PGND 14 OUTR- 8 INL- 19 NC 20 G0 17 SDR 11 U2 HT6808 R10 4.7R C46 104 AVDD AVDD PVDD D1 1N4007 R48 100R C58 101 C57 101 BT Module F-3089

Page: 1 of 53 FCC TEST REPORT The results shown in this test report refer only to the sample(s) tested , This Test report cannot be reproduced, except in full, without prior written permission of the Company. WALTEK SERVICES Reference No.: WT12031306-D-S-F FCC ID : WC2DS-1073 Applicant : Wonders Technology Co., Ltd. Address : Doss Industrial Zone, Qiping Kengdu Industrial ARE Guihua Village, Guanlan Town, Baoan District, Shenzhen, China. Equipment Under Test (EUT) : Product Name : Bluetooth Speaker Model No. : DS-1073, CSMP135 Standards : FCC CFR47 Part 15 Section 15.247:2010 Date of Test : March 1 ~ March 9, 2012 Date of Issue : March 21, 2012 Test Engineer : Hunk yan / Engineer Reviewed By : Philo zhong / Manager Test Result : PASS Prepared By: Waltek Services (Shenzhen) Co., Ltd. 1/F, Fukangtai Building, West Baima Rd., Songgang Street, Baoan District, Shenzhen 518105, China Tel :+86-755-27553488 Fax:+86-755-27553868 — The sample detailed above has been tested to the requirements of Council Directives ANSI C63.4:2003. The test results have been reviewed against the Directives above and found to meet their essential requirements. Page:2 of 53 Wonders Technology Co., Ltd. FCC ID: WC2DS-1073 The results shown in this test report refer only to the sample(s) tested , This Test report cannot be reproduced, except in full, without prior written permission of the Company. WALTEK SERVICES Reference No.: WT12031306-D-S-F 2 Test Summary Test Items Test Requirement Result Conducted Emissions (150kHz to 30MHz) 15.207 PASS Radiated Spurious Emissions (9kHz to 25GHz) 15.205(a) 15.209 15.247(d) PASS 20dB Bandwidth 15.247(a)(1) PASS Maximum Peak Output Power 15.247(b)(1) PASS Frequency Separation 15.247(a)(1) PASS Number of Hopping Frequency 15.247(a)(1)(iii) PASS Dwell time 15.247(a)(1)(iii) PASS Maximum Permissible Exposure (Exposure of Humans to RF Fields) 1.1307(b)(1) PASS Page:3 of 53 Wonders Technology Co., Ltd. FCC ID: WC2DS-1073 The results shown in this test report refer only to the sample(s) tested , This Test report cannot be reproduced, except in full, without prior written permission of the Company. WALTEK SERVICES Reference No.: WT12031306-D-S-F 3 Contents Page 1 COVER PAGE ........................................................................................................................................................ 1 2 TEST SUMMARY .................................................................................................................................................. 2 3 CONTENTS............................................................................................................................................................. 3 4 GENERAL INFORMATION ................................................................................................................................ 5 4.1 CLIENT INFORMATION........................................................................................................................................... 5 4.2 GENERAL DESCRIPTION OF E.U.T. ........................................................................................................................ 5 4.3 DETAILS OF E.U.T................................................................................................................................................. 5 4.4 DESCRIPTION OF SUPPORT UNITS.......................................................................................................................... 5 4.5 STANDARDS APPLICABLE FOR TESTING................................................................................................................ 5 4.6 TEST FACILITY...................................................................................................................................................... 6 4.7 TEST LOCATION.................................................................................................................................................... 6 5 EQUIPMENT USED DURING TEST .................................................................................................................. 7 6 CONDUCTED EMISSION .................................................................................................................................... 8 6.1 E.U.T. OPERATION................................................................................................................................................ 8 6.2 EUT SETUP........................................................................................................................................................... 9 6.3 CONDUCTED EMISSION TEST RESULT................................................................................................................... 9 6.4 PHOTOGRAPH – CONDUCTED EMISSION TEST SETUP.......................................................................................... 12 7 RADIATED SPURIOUS EMISSIONS ............................................................................................................... 13 7.1 EUT OPERATION :............................................................................................................................................... 13 7.2 MEASUREMENT UNCERTAINTY........................................................................................................................... 13 7.3 TEST SETUP......................................................................................................................................................... 14 7.4 SPECTRUM ANALYZER SETUP............................................................................................................................. 15 7.5 TEST PROCEDURE................................................................................................................................................ 16 7.6 CORRECTED AMPLITUDE & MARGIN CALCULATION............................................................................…

Text truncated - open the document above for the full version.

2.1 Photograph – Radiation Spurious Emission Test Setup Below 1GHz Above 1GHz 2.2 Photograph – Conducted Emission Test Setup
