WC2DS-843BLUETOOTH SPEAKER SYSTEM

USER’S GUIDE V: 682-01 DS-843 Bluetooth Speaker System for iPod + iPhone For the most up-to-date version of this User’s Guide, go to www.iLiveElectronics.com ISPB592-682-01-IB-0802.indd 18/2/2012 2:12:01 PM 2 • WARNING: Lithium batteries, like all rechargeable batteries are recyclable and should be recycled or disposed of in normal household waste. Contact your local government for disposal or recycling practices in your area. They should never be incinerated since they might explode. • WARNING: Shock hazard - Do Not Open. • AVIS: RISQUE DE CHOC ÉLECTRIQUE - NE PAS OUVRIR Mains Plug or Direct plug-in adapter is used as disconnect device and it should remain readily operable during intended use. In order to disconnect the apparatus from the mains completely, the Mains Plug or Direct plug-in adapter should be disconnected from the mains socket outlet completely. La fiche d’alimentation ou adaptateur de courant est utilisé comme dispositif de déconnexion et doit rester accessible pendant l’utilisation. Pour mettre l’appareil hors tension, la fiche ou adaptateur de courant doit être débranché de la prise de courant. Do not mix old and new batteries. Do not mix alkaline, standard (carbon-zinc), or rechargeable (ni-cad, ni-mh, etc) batteries. No mezcle baterías viejas y nuevas. No mezcle baterías alcalinas, estándar (carbono-zinc) o recargables (ni-cad, ni-mh, etc.). • CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT. • WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. • AVERTISSEMENT: Pour réduire le risque d’incendie ou de choc électrique, ne pas exposer cet appareil sous la pluie et l’humidité. • CAUTION: Use of any controls or adjustments or performance of procedures other than those herein specified may result in hazardous radiation exposure. • WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. • WARNING: Do not place the unit on top of any soft, porous, or sensitive surfaces to avoid damaging the surface. Use a protective barrier between the unit and surface to protect the surface. • WARNING: Use of this unit near fluorescent lighting may cause interference regarding use of the remote. If the unit is displaying erratic behavior move away from any fluorescent lighting, as it may be the cause. • CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. • PRÉCAUTION: Danger d’explosion si les piles sont remplacées de façon incorrect. Remplacer les piles seulement par le même type de pile ou l’équivalent. • WARNING: There is a danger of explosion if you attempt to charge standard Alkaline batteries in the unit. Only use rechargeable NiMH batteries. • WARNING: The battery, batteries, and battery pack shall not be exposed to excessive heat such as sunshine, fire, or the like. • WARNING: The remote control’s button cell battery contains mercury. Do not put in the trash, instead recycle or dispose of as hazardous waste Warnings and Precautions The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER- SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. ATTENTION RISQUE D' ÉLECTROCUTION NE PAS OUVRIR CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. ISPB592-682-01-IB-0802.indd 28/2/2012 2:12:02 PM Customer Support: 1-888-999-42153 13. Unplug this apparatus during lightning storms or when unused for long periods of time. 14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This device complies with Part 15 of the FCC Rules. Operation is subject to the follow: (1) This device may not cause harmful interference, and (2) This device must accept any including interference that may cause undesired operation. The manufacturer is not responsible for any radio or TV interference caused by uncouth. Such modifications could void the user's authority to operate the equipment. • The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on apparatus. L’appareil ne doit pas être exposé aux écoulements ou aux éclaboussures et aucun objet ne contenant de liquide, tel qu’un vase, ne doit être placé sur l’objet. • Battery shall not be exposed to excessive heat such as sunshine, fire or the like. Les piles ne doivent pas être exposées à de forte chaleur, tel qu’à la lumière du soleil, au feu ou autres choses de semblable. • Caution marking is located at the rear or back of the apparatus. Attention marquage est situé à l’arrière ou à l’arrière de l’appareil • The marking information is located at the rear or back of apparatus. Les informations de marquage est situé à l’arrière ou à l’arrière de l’appareil. FCC Warnings Additional Warnings 1. Read these Instructions. 2. Keep these Instructions. 3. Heed all Warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with a dry cloth. 7. …

Text truncated - open the document above for the full version.

1 2 3 4 5 6 78 ABCD 8 7 6 5 4 3 2 1 D CBA AUX IPHONE DOCK OP-AMP U7(4558) POWER AMP U5(TDA7266SA) MCU U2(MC80F0308AD ST-BY CONTROL Q3(S8050) 123 DCIN + 9 V POWER VCC DC/DC +3.3V BUTTON LED DISPLAY +5V +9V VCC 30PIN SOCKET BLOCK DIAGRAM DC IPOD+5V CONVERTER U9(FR9888) CONTEROL U11(1117-3V3) DC CONTEROL Q1(S8050)/Q2(2N2301) DC/DC +5V Q4(S8050) MODEL: DATE: 2012.08.10 ISPB592B REV: 1.0 REMOTE CONTROL CONTEROL INPUT SELECTER U6(SJ2253) /VOLUME OP-AMP U8(4558) +9V BLUETOOTH ANTENNA MODULE (F-3089) STATE DISPLAY BLUETOOTH OVC3860/24C08C DC +9V CONTEROL BLUETOOTH POWER SUPPLY DC/DC +3V6 BLUETOOTH POWER SUPPLY BLUETOOTH Q7(S8050) Q8(2N2301) U4(1117-3V3) F-3089 Balun and filter ANT matching EEPROM Audio Codec Power control and regulation Crystal 12MHz OVC3860/24C08C

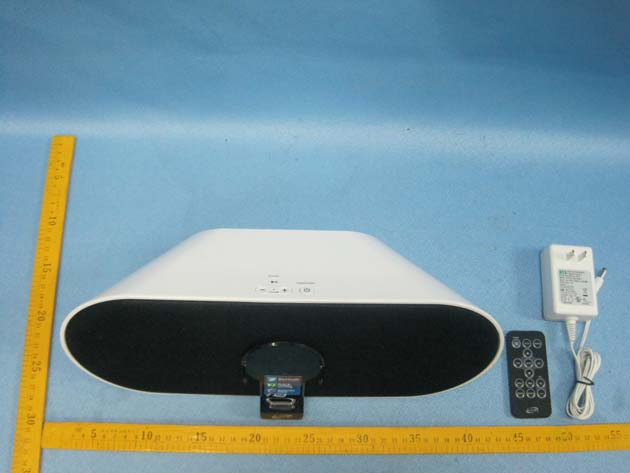

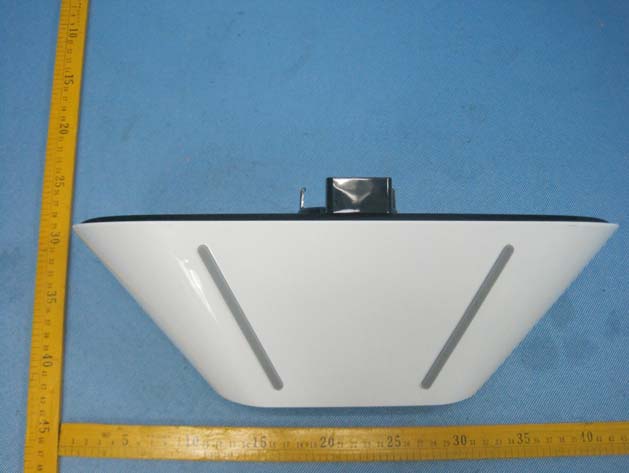

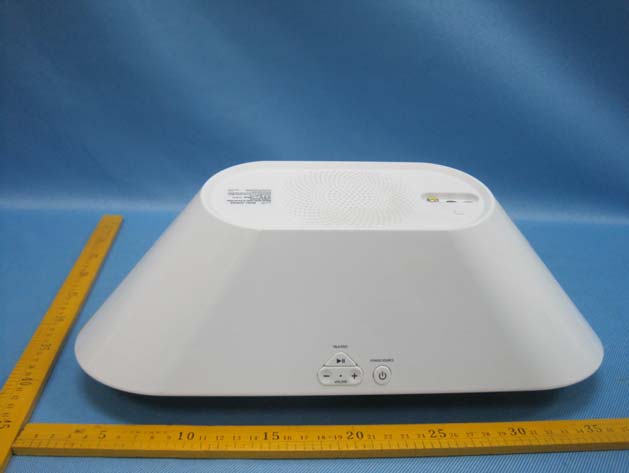

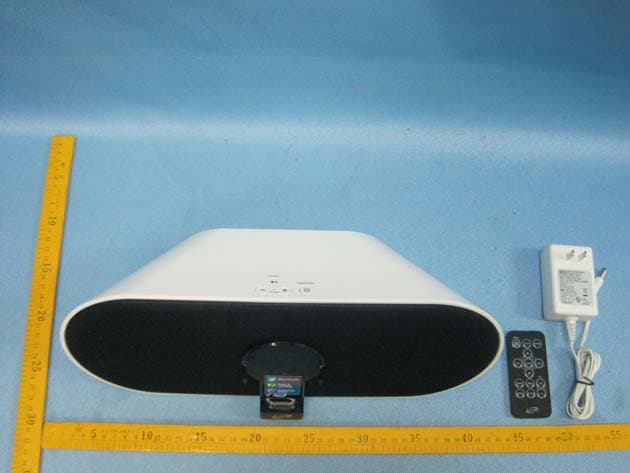

2.1 EUT – Produce View 2.2 EUT – Appearance View

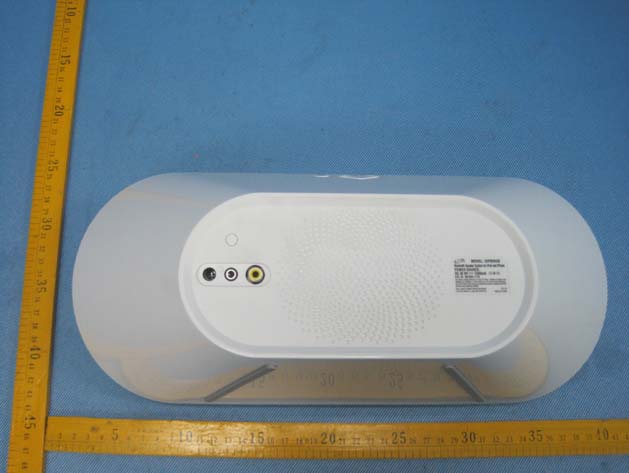

Page:67 of 67 Wonders Technology Co., Ltd. FCC ID: WC2DS-843 The results shown in this test report refer only to the sample(s) tested , This Test report cannot be reproduced, except in full, without prior written permission of the Company. WALTEK SERVICES Reference No.: WT12085547-D-S-F 17 FCC Label This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)this device may not cause harmful interference,and (2) this device must accept any interference received, including interference that may cause undesired operation. The Label must not be a stick-on paper. The Label on these products must be permanently affixed to the product and readily visible at the time of purchase and must last the expected lifetime of the equipment not be readily detachable. Proposed Label Location on EUT EUT Back View/ proposed FCC Label Location FCC ID: W C2DS-843 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC ID Label Sample for Models: DS-843, DS-843B, ISPB592B FCC ID: WC2DS-843 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

2.1 EUT- Open View 2.2 EUT – PCB View

Power Supply: AC 100-240 V 50-60Hz DC 9V-1.5A Speaker Impedance: 8Ohm DS-843 is a Bluetooth /iphone dock speaker, introductions for the circuits: AUX signal was sent through the JACK1 (earphone socket) to U6 (SJ2253) switching the volume controller to the amplifier U5 (TDA7266SA), and finally to the speaker. iPod signal was sent through the iPod (iPod socket) to COMMON Code circuit U8(JRC4558) and then switched by the volume controller to the Amplifier U5(TDA7266SA) and to the speaker at the end. Video signal was input directly to Video AV socket and external video play equipment, such as the TV, and now the connection is done. Under BT status, Pls press ‘pair ’button at the back of the speaker to pair with the external BT equipment. After paired, it can play the music. The signal is conducted after the Bluetooth receiver module to the COMMON Mode U7 (JRC4558), changed the volume by the U6 (SJ2253) volume controller to amplifier U5 (TDA7266SA), and finally received by the speaker. When play the music, can press PLAY/PAUSE button and there is a phone call, pls press PLAY/PAUSE button to answer and to hang off as well. U2(MC81F4316) is the main controller , MUC , to control the U6 (SJ2253)、U1(APPLE 2.0 C). SW3(STANDBY/AUDIO button)、 SW1(PLAY/PAUSE)、SW4(Volume down)、SW2(Volume Up)、LED1(Status indicator)、LED2(Bluetooth working indicator). The device is a bluetooth stereo speaker, The working frequency of RF module F-3089（crystal is 12MHz） is setted to 2402MHz ~ 2480MHz, the frequency separation is 1MHz and there are 79 channels. with the spread spectrum code sequences to hopping constantly. To make sure the communication stable, Bluetooth special design the fast acknowledge and frequency hopping plan to ensure that link stability. First link, between Bluetooth devices will build a pseudorandom code, Only the pseudorandom code is same, the information transfer will be accepted. Other interference is not possible in the same sequence of interference. Bluetooth through the spread spectrum technology, Make the influence of interference may become very small. The working procedures are: 1. Power on, the indicator light flashes faster, the DS-843 enter to pair mode.The DS-843 will do the frequency hopping according to a certain sequence, and then send the connection command. 2. If there is a Device response, the DS-843 will judge whether it can be permitted to connect. Prompt enter a passkey. 3. If the passkey is right, then can be permitted to connect, send the connection command to build up the connection. 4. While the connection build up successfully, the data transmission is beginning. At the same time, the DS-843 and device will shift frequencies in synchronization per a same pseudo randomly ordered list of hopping frequencies, the hopping rate is 1600 times per second. 5. The bandwidth of the receiver, which is set to a fix width by the software, match the hopping channel bandwidth of their corresponding transmitte

1 2 3 4 5 6 78 ABCD 8 7 6 5 4 3 2 1 D CBA C13 25P C14 25P X1 4M 123 JACK2 12345 JACK1 + E1 2200U/16V R194K7R18 4K7 R21 10K R20 10K C28 102 C27 102 MCU-3.3V R04/AN2 1 R05/AN3 2 R06/AN4 3 R07/AN5 4 VDD 5 R10 6 R11/AN6 7 R12/AN7 8 R13/AN8 9 R14/RX 10 R15/TX 11 R16/SDA 12 R17/SCL 13 R20/AN9 14 R25/AN10 15 R26/AN11 16 R27/AN12 17 R30/AN13 18 R31/AN14 19 R32 20 R33/XOUT 21 R34/XIR 22 R35/VPP 23 VSS 24 R00/EXT10 25 R01/EXT11 26 R02/AN0 27 R03/AN1 28 U2 MC80F0308AD AUX-LED + C5 100U/16V VCC R9 10 Ω Vin 3 GND 2 Vout 1 U4 1117-3V C26 104 + C19 100U/16V +5V + C82 470U/16V C40 104 C49 104 R L R6 68K C9104 AD Vin 3 GND 2 Vout 1 U11 1117-3V3 C31 105 C29 105 C33 102 C42 102 VCC 12 OUT1 C59 104 C20 104 R29 22K R24 22K 12 OUT2 C25224 C51224 C11 104 R12 10 Ω C12104 R1310 Ω C65104 R4910 Ω C74104 R52 10 Ω R1610K R2522K MUTE R11 10K Q3 S8050 +9V C35 105 R17 15K R36 15K C30 102 C58 102 蓝色 BLU LED LED2 R510K MCU-3.3V MCU-3.3V R3 2K2 R210K Q1 S8050 R447K POWER Q4 S8050 R51 1K Z15V6 + C57 100U/16V +9V IPOD-LED MUTE BLU-PAIR 1234567 J3 4P AUXLAUXR AUX-J 1 2 3 4 5 1N1A 1 1N2A 2 1N3A 3 1N4A 4 1N1B 5 1N2B 6 1N3B 7 1N4B 8 IN1C 9 OUTC 10 OUTB 11 OUTA 12 GND 13 VCC 14 SCL 15 SDA 16 U6SJ2253 2253DA2253CL R151K C22105 R1422K R5 10K R2310K C34 105 R3022K 2253DA2253CL C41 225 BS 1 IN 2 SW 3 GND 4 FB 5 COMP 6 EN 7 NC 8 U9 FR9888 C85 103 C84104 + C80 220UF/16V C79104 + C83 1000U/16V R6337.4K R62 8K2 L6 33UH R58100K IPOD+5V VOL+ 1 VOL- 2 UP 3 DOWN 4 PLAY/PU 5 1.8V 6 GND 7 VDD 8 LED1 9 LED2 10 MIC 11 R+ 12 R- 13 L+ 14 L- 15 GND 16 USB-TX 17 USB-RX 18 VBUCK 19 MUTE 20 U10 F-3089 MIC1 BLU-MUTE BLU-K BLU-POWER BLU-POWER 1 2 L3 BEAD 1 2 L5 BEAD 1 2 L4 BEAD C72 22P C7522P C47105C70105 C76 105 R45 22K R5322K R2822KR3422KR3522K R55 22K R4622KR4722K R39 22K R50 22K +4.2V C55105C48105 1 23 + - U8ALM358 7 65 + - U8BLM358 84 U8CLM358 R48 10K R57 10K C78104 C77 10UF +4.2V C37104 1234 J44P IPOD-LIPOD-R IPOD-G R56 100 R54100 + C71 100U/16V C73104 1234567 J5 R61 100R Q5 9014 R65 1K R66 100R R59 100K R6447K R6910R R67 10K R68 15K R70 8K2 IPOD+5V IPOD DET ACC DET IPOD TXIPOD RXACC 3.3V Q6 8050 IPOD DET1 MCU-3.3V IPOD RX1 IPOD RX1 R60100R IPOD-K IPOD-K GND 1 SDA 2 NC 3 NC 4 NC 5 SCL 6 RST 7 VCC 8 U1 APPLE2.0-C R1 10K MCU-3.3V BLU-K R37 100R IPOD DET1 POWER D1 IN5819 R7 100 BLU-MUTE AUX-J SW1 AD R80 2K2 R79 47K R781K Q7 S8050 R8147K BLU-K BLU-K IR R2 1K SW2 VOL+ R7 2K2 SW3 POWER R1 1K5 SW4 VOL- AD R6 3K3 SW1 R32K7R4100 AUX-LED IPOD-LED BLU-PAIR R10 10 Ω VCC AUXL AUXR R1 10 Ω C2 22P C122P 12 TV1 AV1 12 CN7 VIDEO OUT BLU-LED BLU-LED BLU-POWER 12 BT-MIC C60 224 C52 224 C67224C64 224 1 23 + - U7A JRC4558 7 65 + - U7BJRC4558 8 4 U7C JRC4558 R42 22K R41 22K R38 22K R40 22K R27 22K R43 22K C45104C39104 R33 22K R32 22K R26 22K R31 22K C43 104 C66 20P C63 20P C53 20P C54 20P C36 106 C44 105 R72 10K R7110K C69 47P +9V C38 47P +9V R22 15K C4647P C6147P R4415K + C16 1000U/16V C6104 C1 104 C2 104 1 2 3 4 5 J1 5P AD MCU-3.3V IR RES RES 1 2 3 4 5 6 J2 6P BLU-LED AD VIDEO C8104 C4104 C62105 C7105 C56104 C32 100P L1 600RH +5V C86105 R810 Ω D2 IN4007 + C68 100U/16V + C21 100U/16V C15 104 C24100P C50100P OUT1+ 1 OUT1- 2 VCC 3 IN2 12 ST-BY 7 MUTE 6 P-G 8 S-G 9 VCC 13 OUT2- 14 OUT2+ 15 IN1 4 NC 5 NC 10 NC 11 U5 TDA7266SA SP-LSP-R C18 104 C1720P C10104 C81104 R6 100K G 2 D 3 S 1 Q1 LN2302 GND DGNDAGND R/O L/O R/INL/IN R-SENS C-VDO SVDO-C SVDO-Y A-DET TXRX NC2 D/GND USBGND NC1 3.3V FWV FWV+ A-ID TPB- USBV+ TPB+ USBD- TPA- USBD+ TPA+ FWG1FWG0 CN4 IPOD IN 30PIN 20PIN 19PIN 18PIN 13PIN 10PIN 23PIN 123456789101112131415 J8 GND IPOD DET ACC DET IPOD TX IPOD RXACC 3.3V IPOD-R IPOD-L IPOD-G R1549K R2 75K R5 49.9K R3 43.2K R4 49.9K IPOD PINS G 1 D 3 S 2 Q8 LN2301 G 1 D 3 S 2 Q2 LN2301 GNDGND VIDEO GND IPOD+5V IPOD+5V C3 104 C23 225 L2 600RH R110 Ω O 1 G 2 V 3 IR1 C1 105 IR MCU-3.3V 1 2 3 LED1 蓝色 BLU LED 绿 GRE LED BT Module F-3089

Page: 1 of 67 FCC TEST REPORT The results shown in this test report refer only to the sample(s) tested , This Test report cannot be reproduced, except in full, without prior written permission of the Company. WALTEK SERVICES Reference No.: WT12085547-D-S-F FCC ID : WC2DS-843 Applicant : Wonders Technology Co., Ltd. Address : Doss Industrial Zone, Qiping Kengdu Industrial Area Guihua Village, Guanlan Town, Baoan District, Shenzhen, China. Equipment Under Test (EUT) : Product Name : Bluetooth Speaker System Model No. : DS-843, DS-843B, ISPB592B Standards : FCC CFR47 Part 15 Section 15.247:2010 Date of Test : August 16 ~ September 2, 2012 Date of Issue : September 3, 2012 Tested By : Zero Zhou / Engineer Reviewed By : Philo zhong / Manager Test Result : PASS Prepared By: Waltek Services (Shenzhen) Co., Ltd. 1/F, Fukangtai Building, West Baima Rd., Songgang Street, Baoan District, Shenzhen 518105, China Tel :+86-755-83551033 Fax:+86-755-83552400 — The sample detailed above has been tested to the requirements of Council Directives ANSI C63.4:2003. The test results have been reviewed against the Directives above and found to meet their essential requirements. Page:2 of 67 Wonders Technology Co., Ltd. FCC ID: WC2DS-843 The results shown in this test report refer only to the sample(s) tested , This Test report cannot be reproduced, except in full, without prior written permission of the Company. WALTEK SERVICES Reference No.: WT12085547-D-S-F 2 Test Summary Test Items Test Requirement Result Conducted Emissions (150kHz to 30MHz) 15.207 PASS Radiated Spurious Emissions (12MHz to 25GHz) 15.205(a) 15.209 15.247(d) PASS 20dB Bandwidth 15.247(a)(1) PASS Maximum Peak Output Power 15.247(b)(1) PASS Frequency Separation 15.247(a)(1) PASS Number of Hopping Frequency 15.247(a)(1)(iii) PASS Dwell time 15.247(a)(1)(iii) PASS Maximum Permissible Exposure (Exposure of Humans to RF Fields) 1.1307(b)(1) PASS Page:3 of 67 Wonders Technology Co., Ltd. FCC ID: WC2DS-843 The results shown in this test report refer only to the sample(s) tested , This Test report cannot be reproduced, except in full, without prior written permission of the Company. WALTEK SERVICES Reference No.: WT12085547-D-S-F 3 Contents Page 1 COVER PAGE ........................................................................................................................................................ 1 2 TEST SUMMARY .................................................................................................................................................. 2 3 CONTENTS............................................................................................................................................................. 3 4 GENERAL INFORMATION ................................................................................................................................ 5 4.1 CLIENT INFORMATION........................................................................................................................................... 5 4.2 GENERAL DESCRIPTION OF E.U.T. ........................................................................................................................ 5 4.3 DETAILS OF E.U.T................................................................................................................................................. 5 4.4 DESCRIPTION OF SUPPORT UNITS.......................................................................................................................... 5 4.5 STANDARDS APPLICABLE FOR TESTING................................................................................................................ 5 4.6 TEST FACILITY...................................................................................................................................................... 6 4.7 TEST LOCATION.................................................................................................................................................... 6 5 EQUIPMENT USED DURING TEST .................................................................................................................. 7 6 CONDUCTED EMISSION .................................................................................................................................... 9 6.1 E.U.T. OPERATION................................................................................................................................................ 9 6.2 EUT SETUP......................................................................................................................................................... 10 6.3 CONDUCTED EMISSION TEST RESULT................................................................................................................. 10 6.4 PHOTOGRAPH – CONDUCTED EMISSION TEST SETUP.......................................................................................... 17 7 RADIATED SPURIOUS EMISSIONS ............................................................................................................... 18 7.1 EUT OPERATION :............................................................................................................................................... 18 7.2 MEASUREMENT UNCERTAINTY........................................................................................................................... 18 7.3 TEST SETUP......................................................................................................................................................... 19 7.4 SPECTRUM ANALYZER SETUP............................................................................................................................. 21 7.5 TEST PROCEDURE................................................................................................................................................ 22 7.6 CORRECTED AMPLITUDE & MARGIN CALCULATION.........................................................…

Text truncated - open the document above for the full version.

2.1 Photograph – Conducted Emission Test Setup 2.2 Photograph – Radiation Spurious Emission Test Setup Below 30MHz From 30-1000MHz Above 1GHz
