WC2HX-P200Bluetooth Wireless Speaker

HX-P200 Instruction Manual and Warranty Information 1 HX-P200: The ultimate wireless speaker! Thank you for purchasing the HX-P200 wireless speaker for smartphones, tablets, notebook computers and other Bluetooth enabled devices. Approximately 2 hours required for full charge. Can be charged by using the USB to Micro USB cord (included) through computer or AC adapter with USB jack (not included). Note: Battery will last up to 4 hours when connected wirelessly and up to 12 hours when connected through Aux-In Audio Jack. Package Contents User Manual Charging Cord Speaker Charging the Unit Controls Indicators Power Switch Play/Pause Button Volume Controls Bluetooth Indicator Line-In Audio Jack Charging Port Battery Status Indicator CHARGE Solid RED Power ON Charging Fully Charged OFF Quick Flash BLUEPairing Mode Slow Flash BLUEPaired Solid REDLine-in Mode Indicator Status 2 3 4 5 6 7 1 2 3 4 5 6 7 CHARGE (when charging) To listen to your music over Bluetooth wireless connection, you need to pair your device with HX-P200: 1. Make sure your device has Bluetooth capability. 2. Slide POWER SWITCH to turn on the unit, indicator will begin to ash. 3. Follow the instructions of your device to pair the unit. 4. Pair your device with the unit by selecting HX-P200 from your Bluetooth listings on your device or selecting YES. If prompted, then you will listen the paired successful prompt sound. 5. Press play on your device and use controls on the unit to adjust desired volume. NOTE: Once you have successfully paired your device, you typically will not need to repeat the above steps. Please ensure the unit source is set to Bluetooth and your device has Bluetooth enabled. NOTE: When pairing with a computer running windows 7 OS, please consult your computer manufacturer for Bluetooth pairing instructions and/or Bluetooth Drivers. Listening to your device wirelessly over Bluetooth ® 8 8 CHARGE BLUETOOTH BLUETOOTH Forware/Reverse TM FCC Disclaimer: One Year Limited Warranty: Note: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modications to this equipment. Such modications could void the user authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. For detailed Warranty Instructions and Information visit : www.homedics.com/audio-and-electronics/portable-audio/jam.html To obtain warranty service on your HMDX product, contact a Consumer Relations Representative by telephone at 1-800-466-3342 or email [email protected] for assistance. Please make sure to have the model number of the product available. Representatives are available 8:30am - 7:00pm EST Monday-Friday. HX-P200 and HMDX Audio® are trademarks of HoMedics. ©2012 HoMedics, Inc. All Rights Reserved. IB-HXP200 1. Connect Aux-in cable to the headphone or line-out jack of an audio device and plug the other end of the cable into the Line-In Audio Jack on the back of the unit. 2. Slide the POWER SWITCH to turn on the unit. 3. Press PLAY on the device and use controls on the unit to adjust desired volume. Listening to your device through the Auxiliary Line-In Audio Jack

Ersteller: D. Brandhorst Revision: 00 Erstelldatum: 07.03.2008 Datum: 00.00.00 Seite 1 von 1 PHOENIX TEST-LAB GmbH Product Certification Königswinkel 10 D 32825 Blomberg Date:2012-09-26 FCC ID: WC2HX-P200 Subject: Attestation Letter “Declaration of Conformity” Dear Sirs, Our products with the above FCC ID are defined as composite device. The transmitter is authorized under the “Certification” procedure. The device is also defined as “PC Periphery” acc to §15.101 Equipment authorization of unintentional radiators, where we hereby declare, that we apply and follow the “Declaration of Conformity” procedure. If you have any questions, please feel free to contact me at the address shown below. Yours sincerely, Signatory Signature Name Liang Bo Title Engineer Manager Wonders Technology Co., Ltd.

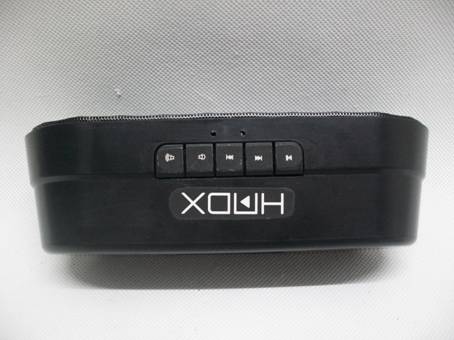

Page 1 of 5 PHOTO of ENTIRE SAMPLE PHOTO of ENTIRE SAMPLE Page 2 of 5 FRONT VIEW OF SAMPLE BACK VIEW OF SAMPLE Page 3 of 5 UP VIEW OF SAMPLE DOWN VIEW OF SAMPLE Page 4 of 5 LEFT VIEW OF SAMPLE RIGHT VIEW OF SAMPLE Page 5 of 5 PHOTO OF LINK CABLE PHOTO OF USB CABLE

FCC ID: WC2HX-P200 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1)this device may not cause harmful interference, and (2)this device must accept any interference received,including interference that may cause undesired operation. MADE IN CHINA

Page 1 of 4 INTERNAL PHOTO OF SAMPLE – 1 INTERNAL PHOTO OF SAMPLE – 2 Page 2 of 4 INTERNAL PHOTO OF SAMPLE – 3 INTERNAL PHOTO OF SAMPLE – 4 Page 3 of 4 INTERNAL PHOTO OF SAMPLE – 5 INTERNAL PHOTO OF SAMPLE – 6 Page 4 of 4 INTERNAL PHOTO OF SAMPLE – 7

FCC 47 CFR PART 15 SUBPART C TEST REPORT For Applicant: Wonders Technology Co., Ltd. Address: DOSS Industrial Zone, Qiping Kengdu Industrial Area Guihua Village, Guanlan Town Baoan District, ShenZhen, China Product Name: Bluetooth Wireless Speaker Model Name: HX-P200, DS-1112 Brand Name: N/A FCC ID: WC2HX-P200 Report No.: MTE/AYG/D12091280 Date of Issue: Sep. 27, 2012 Issued by : Most Technology Service Co., Ltd. Address : No.5, Langshan 2nd Road, North District, Hi-tech Industrial Park, Nanshan, Shenzhen, Guangdong, China Tel : 86-755-8617 0306 Fax : 86-755-8617 0310 The report consists 45 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by MOST. The test results in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. FCC ID: WC2HX-P200 Report No.: MTE/AYG/D12091280 Page 2 of 45 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY..........................................................................................4 2. GENERAL INFORMATION.......................................................................................................5 2.1 Product Information................................................................................................................5 2.2 Objective................................................................................................................................6 2.3 Test Standards and Results....................................................................................................6 2.4 Environmental Conditions.......................................................................................................6 2.5 MEASUREMENT UNCERTAINTY.........................................................................................6 3. TEST FACILITY........................................................................................................................7 3.1TEST FACILITY.......................................................................................................................7 3.2 Test Conditions.......................................................................................................................7 3.3 Channel List...........................................................................................................................8 3.4 Description of Test Modes......................................................................................................8 3.5 Table of Parameters of Text Software Setting.........................................................................9 3.6 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS.............................................10 4. SETUP OF EQUIPMENT UNDER TEST.................................................................................11 4.1 SUPPORT EQUIPMENT.......................................................................................................11 4.2 TEST EQUIPMENT LIST......................................................................................................12 5. 47 CFR Part 15C 15.249 Requirements.................................................................................13 5.1 Spurious Emission Test........................................................................................................13 5.1.1 Requirement......................................................................................................................13 5.1.2 Test Description.................................................................................................................14 5.1.3 Test Description.................................................................................................................15 5.1.5 Test Result.....................................................................................................................16 5.2 Band Edge............................................................................................................................28 5.2.1 Requirement......................................................................................................................28 5.2.2 Test Description.................................................................................................................28 5.2.3Test Result..........................................................................................................................28 5.3 LINE CONDUCTED EMISSION TEST.................................................................................34 5.3.1. LIMITS OF LINE CONDUCTED EMISSION TEST...........................................................34 5.3.2. BLOCK DIAGRAM OF TEST SETUP...............................................................................34 5.3.3. PRELIMINARY PROCEDURE OF LINE CONDUCTED EMISSION TEST......................35 5.3.4. FINAL PROCEDURE OF LINE CONDUCTED EMISSION TEST....................................35 5.3.5. Test result.........................................................................................................................35 5.3.5. TEST RESULT OF LINE CONDUCTED EMISSION TEST..............................................36 FCC ID: WC2HX-P200 Report No.: MTE/AYG/D12091280 Page 3 of 45 5.4 20 dB Bandwidth..................................................................................................................38 5.4.1 Definition...........................................................................................................................38 5.4.2 Block Diagram Of Test Setup............................................................................................38 5.4.3 Test Result..................................................................................................…
